What are the best antenna projects using MATLAB for MTech and BE ECE students in 2026?

Top IEEE 2026 antenna projects using MATLAB include: microstrip patch antenna design and parametric optimisation using MATLAB Antenna Toolbox, MIMO antenna isolation improvement using EBG structures in MATLAB, UWB antenna for imaging radar simulation in MATLAB, fractal Sierpinski gasket antenna multi-band analysis, 5G mmWave phased array beamforming using Phased Array Toolbox, reconfigurable antenna frequency switching using PIN diode model in MATLAB, HFSS-to-MATLAB antenna measurement co-simulation, wideband array pattern synthesis using convex optimisation in MATLAB, cognitive radio wideband antenna spectrum simulation, and RIS-assisted antenna array for 6G using MATLAB. All projects include MATLAB source code, IEEE 2026 base paper, simulation screenshots, project report and viva support.

Which MATLAB toolboxes are used for antenna design projects?

Antenna projects using MATLAB primarily use: MATLAB Antenna Toolbox (geometry, feed, mesh, S-parameter, gain, radiation pattern, impedance, efficiency), RF Toolbox (RF budget analysis, S-parameter import from HFSS/CST, touchstone files), Phased Array Toolbox (beamforming, steering vectors, MIMO channel, pattern synthesis, ULA/UPA/conformal arrays), Signal Processing Toolbox (pulse shaping, matched filtering), Communications Toolbox (OFDM channel modelling), and Optimization Toolbox (antenna dimension optimisation using GA, PSO, fmincon). HFSS and CST are used for full-wave EM validation and their results are imported into MATLAB via Touchstone/S-parameter files for system-level analysis.

Can MATLAB be used to simulate HFSS and CST antenna designs?

Yes. MATLAB interfaces with HFSS and CST for antenna co-simulation workflows. HFSS exports S-parameter Touchstone (.s1p, .s2p) and radiation pattern files that are directly imported into MATLAB for system-level analysis, beamforming, OFDM BER simulation and channel capacity evaluation. CST Studio Suite also exports far-field radiation patterns and S-parameters that are post-processed in MATLAB. MATLAB Antenna Toolbox also provides its own built-in MoM-based EM solver for rapid simulation of standard antenna geometries without needing HFSS or CST.

What deliverables are included in antenna MATLAB projects?

Every antenna project using MATLAB from ProjectsatBangalore includes: complete MATLAB source code (Antenna Toolbox / RF Toolbox / Phased Array Toolbox scripts with comments), simulation result plots (S11/S22 return loss, gain vs frequency, radiation pattern, VSWR, impedance), IEEE 2026 base paper PDF reference, university-format project report (VTU/Anna University/JNTU/RGPV format), 15-slide PPT presentation, 25-question viva Q&A guide, and post-delivery WhatsApp support during viva week.

2026 Antenna Projects Using MATLAB | Antenna Projects using Matlab | Antenna Matlab Projects | Matlab Projects Based on Antennas | Microstrip Patch Antenna Design using Matlab

Microstrip Patch Antenna Design using Matlab

MATLAB has become the primary simulation and post-processing platform for antenna engineering — from rapid geometry prototyping with the MATLAB Antenna Toolbox to system-level beamforming with the Phased Array Toolbox and RF budget analysis with the RF Toolbox. At ProjectsatBangalore, we deliver 25+ IEEE 2026 antenna projects using MATLAB for BE, BTech, MTech and PhD ECE students in Bangalore — covering microstrip patch antenna MATLAB projects (rectangular, circular, E-shaped, H-shaped, stacked), MIMO antenna MATLAB projects (isolation, ECC, TARC, pattern diversity), UWB antenna MATLAB simulation, fractal antenna MATLAB (Koch, Sierpinski, Cantor), 5G mmWave phased array beamforming MATLAB, reconfigurable antenna MATLAB, HFSS-to-MATLAB co-simulation and antenna pattern synthesis MATLAB using convex optimisation.

Whether you want a MATLAB-only antenna simulation project using the Antenna Toolbox built-in MoM solver or a hybrid HFSS + MATLAB or CST + MATLAB workflow for your MTech thesis, we guide you through every step: antenna geometry design, substrate selection, feed configuration, parametric sweep, return loss / S11 plot, gain pattern, VSWR, impedance matching network and IEEE documentation.

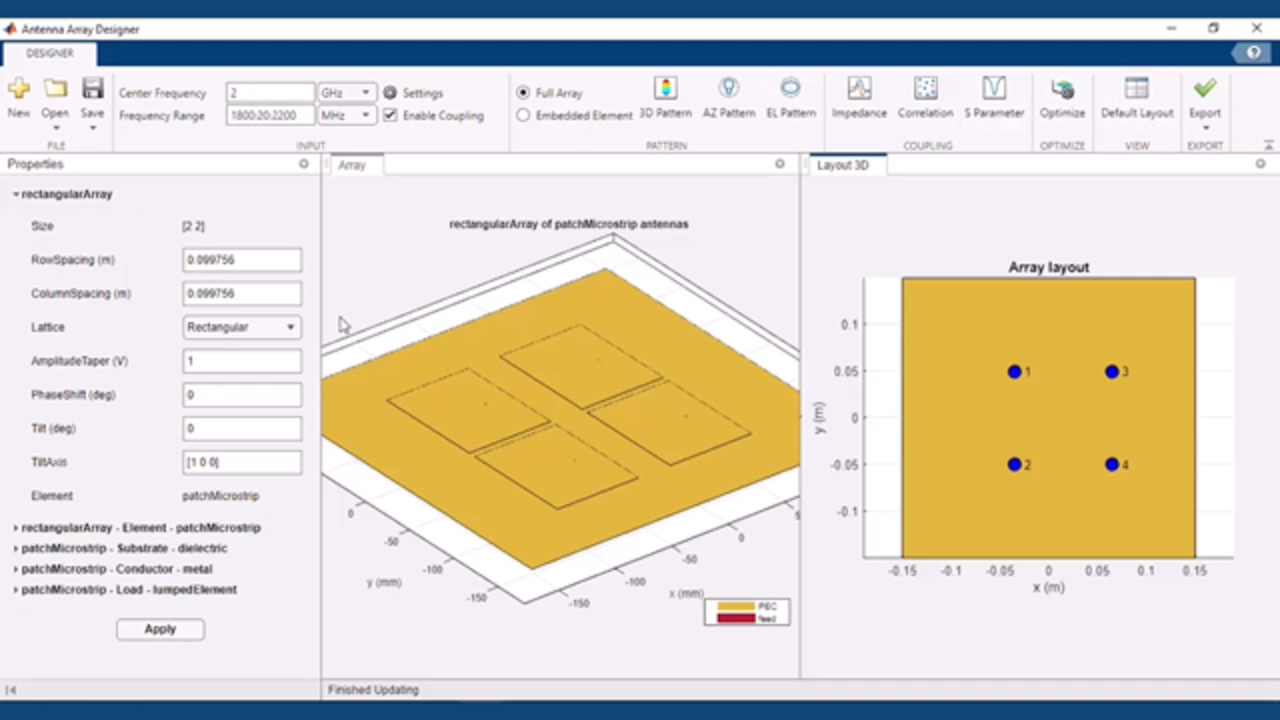

Antenna Array Design Matlab

We Cover

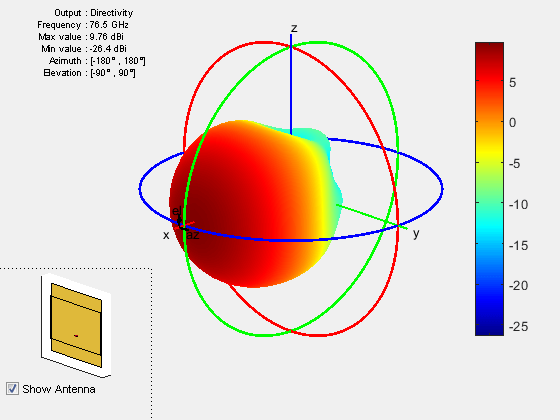

Microstrip patch antenna MATLAB — rectangular, circular, E-shaped, H-shaped, stacked, aperture-coupled

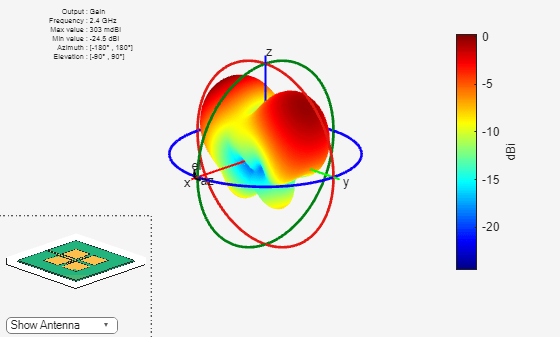

MIMO antenna MATLAB — 2×2, 4×4 MIMO, isolation improvement using neutralisation, ECC / TARC
UWB antenna MATLAB — notch-band UWB, time-domain UWB pulse, UWB imaging radar
Fractal antenna MATLAB — Koch, Sierpinski, Minkowski, self-similar multiband analysis

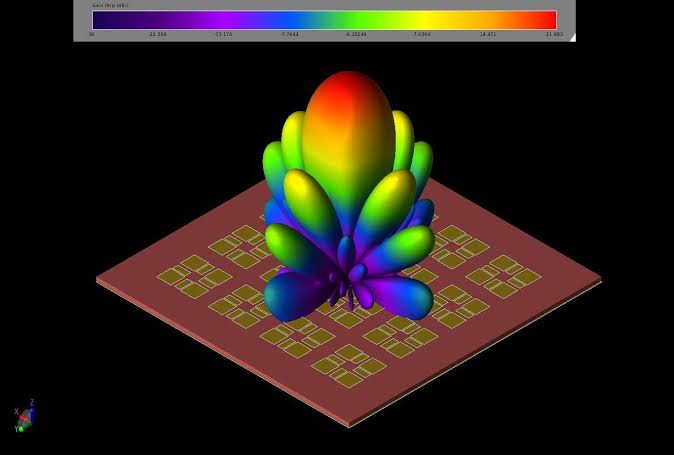

5G mmWave MATLAB — phased array beamforming, beam steering, massive MIMO, sub-6GHz and 28 GHz
Reconfigurable antenna MATLAB — PIN diode switching, varactor tuning, frequency/pattern agility
EBG / DGS antenna MATLAB — surface wave suppression, back lobe reduction, bandwidth enhancement
Log-periodic, Yagi-Uda, horn, reflector antenna MATLAB simulation and gain optimisation
HFSS to MATLAB co-simulation — S-parameter import, pattern post-processing, BER evaluation

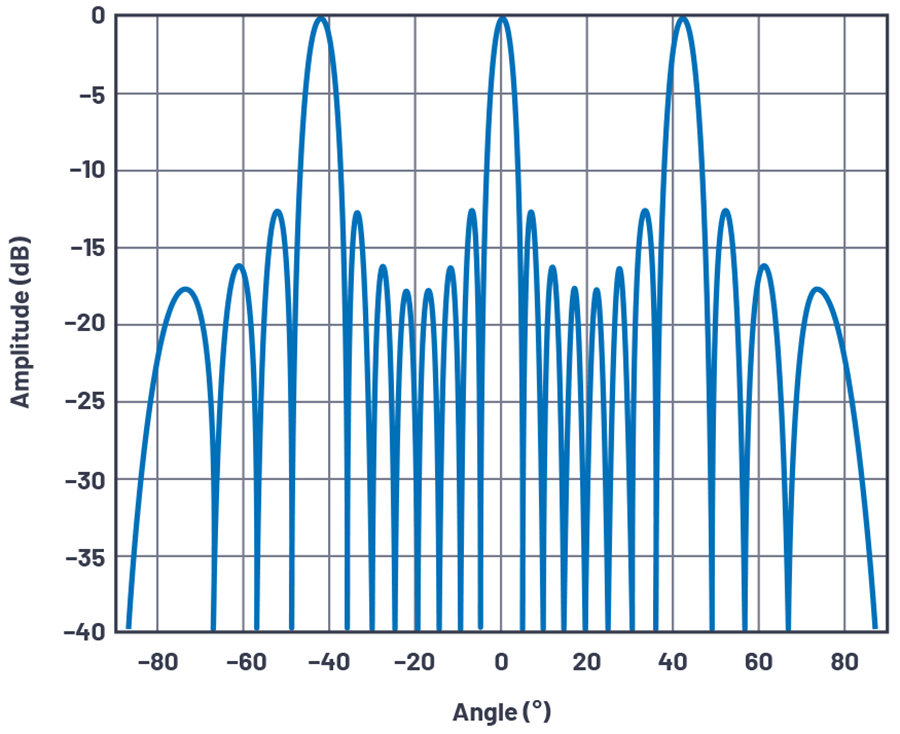

Antenna array pattern synthesis MATLAB — Chebyshev, Taylor, Dolph-Chebyshev, convex optimisation

Matlab Patch Antenna Design

MATLAB Toolboxes & EM Simulators for Antenna Projects

Industry-standard MATLAB toolboxes and full-wave EM solvers used to simulate, design and validate every antenna MATLAB project in Bangalore.

MATLAB R2024b Antenna Toolbox (MoM) RF Toolbox (S-param / Touchstone) Phased Array Toolbox ANSYS HFSS CST Studio Suite FEKO / CADFEKO Keysight ADS Optimization Toolbox (GA/PSO) Signal Processing Toolbox Simulink (Channel Model) Python (ML Antenna Opt.)

Matlab PCB Antenna Design

Topics & Tools

All 25 antenna MATLAB project topics below are aligned with IEEE Transactions on Antennas and Propagation, IEEE Antennas and Wireless Propagation Letters, IEEE Access and IEEE TAP 2026. Each includes MATLAB source code, simulation result plots (S11, gain, pattern, VSWR), IEEE base paper, project report, PPT and viva support for ECE BE, BTech, MTech and PhD students in Bangalore.

#	IEEE 2026 Antenna Project Using MATLAB	Domain	MATLAB Toolbox / Tool
01	Rectangular Microstrip Patch Antenna Design and Parametric Optimisation at 2.4 GHz Using MATLAB Antenna Toolbox with S11, Gain and Radiation Pattern IEEE 2026	Patch Antenna	MATLAB Antenna Toolbox
02	Dual-Band E-Shaped Patch Antenna for WLAN 2.4/5.8 GHz — MATLAB MoM Simulation and Substrate Thickness Parametric Sweep IEEE 2026	Patch Antenna	MATLAB Antenna Toolbox, RF Toolbox
03	Compact Slotted Patch Antenna for WiMAX 3.5 GHz — Bandwidth Enhancement Using DGS Modelled in MATLAB with HFSS Validation IEEE 2025	Patch Antenna	MATLAB Antenna Toolbox, HFSS
04	Circularly Polarised Circular Patch Antenna for GPS L1 — Axial Ratio and Gain Analysis Using MATLAB Antenna Toolbox IEEE 2026	Patch Antenna	MATLAB Antenna Toolbox
05	4-Element MIMO Antenna System Design for 5G Sub-6GHz — ECC, TARC, Mean Effective Gain and Channel Capacity Simulation in MATLAB IEEE 2026	MIMO Antenna	MATLAB Antenna Toolbox, Comm Toolbox
06	MIMO Antenna Isolation Improvement Using Neutralisation Line — S-Parameter Import from HFSS to MATLAB and BER Evaluation IEEE 2026	MIMO Antenna	HFSS, MATLAB RF Toolbox
07	Massive MIMO 8×8 Antenna Array Channel Capacity Analysis Using MATLAB Antenna and Communications Toolbox for 5G NR IEEE 2026	MIMO Antenna	MATLAB Antenna + Comm Toolbox
08	Compact UWB Monopole Antenna with Triple Band Notch (WiMAX, WLAN, X-Band) — MATLAB MoM Simulation and Group Delay Analysis IEEE 2026	UWB Antenna	MATLAB Antenna Toolbox
09	UWB Microwave Imaging Radar Antenna System — Pulse Shaping, Propagation and Target Scattering Simulation in MATLAB IEEE 2026	UWB Antenna	MATLAB Signal + RF Toolbox
10	Printed UWB Diversity Antenna Pair — Pattern and Polarisation Diversity Analysis Using MATLAB Antenna Toolbox for WBAN IEEE 2025	UWB Antenna	MATLAB Antenna Toolbox
11	Koch Fractal Dipole Antenna — Multiband Resonance and Miniaturisation Analysis Using MATLAB Antenna Toolbox with Iteration Comparison IEEE 2026	Fractal Antenna	MATLAB Antenna Toolbox
12	Sierpinski Gasket Fractal Microstrip Patch Antenna for GSM/Wi-Fi/WiMAX — Self-Similar Geometry Simulation in MATLAB IEEE 2026	Fractal Antenna	MATLAB Antenna Toolbox, HFSS
13	Minkowski Fractal Slot Antenna for Cognitive Radio UWB Application — Band-Notch Characteristic and Radiation Analysis in MATLAB IEEE 2026	Fractal Antenna	MATLAB Antenna Toolbox

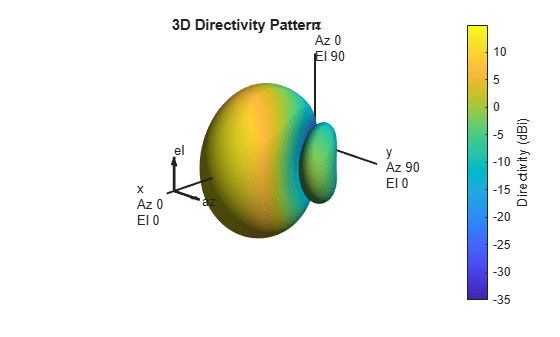

14	28 GHz mmWave Phased Array Beamforming Simulation — Hybrid Precoding, Beam Steering and Array Pattern Using MATLAB Phased Array Toolbox IEEE 2026	5G / mmWave	MATLAB Phased Array Toolbox
15	RIS-Assisted Beamforming for 6G Indoor Coverage — Phase Shift Matrix Optimisation and Antenna Gain Simulation in MATLAB IEEE 2026	5G / RIS	MATLAB Phased Array + Comm Toolbox
16	Dolph-Chebyshev Weighted Linear Array Pattern Synthesis for 5G Base Station — Sidelobe Suppression Simulation in MATLAB IEEE 2026	Array Synthesis	MATLAB Phased Array Toolbox
17	DOA Estimation for 5G MIMO Using MUSIC and ESPRIT Algorithms on ULA/UPA — MATLAB Phased Array Toolbox Simulation IEEE 2026	5G MIMO	MATLAB Phased Array Toolbox
18	Frequency-Reconfigurable Patch Antenna Using PIN Diode Switching — MATLAB Equivalent Circuit Model and S-Parameter Simulation IEEE 2026	Reconfigurable	MATLAB RF Toolbox, HFSS
19	EBG-Loaded Patch Antenna for Surface Wave Suppression and Gain Enhancement — MATLAB Post-Processing of HFSS Far-Field Data IEEE 2026	EBG Antenna	HFSS, MATLAB RF Toolbox
20	Log-Periodic Dipole Array Design and Gain-Bandwidth Analysis from 300 MHz to 3 GHz Using MATLAB Antenna Toolbox IEEE 2025	Log-Periodic	MATLAB Antenna Toolbox
21	Yagi-Uda Antenna Optimisation for Maximum Front-to-Back Ratio Using MATLAB GA Optimisation Toolbox and Antenna Toolbox IEEE 2026	Yagi-Uda	MATLAB Antenna + Optimization Toolbox
22	Horn Antenna Aperture Design and Near-Field to Far-Field Transformation Using MATLAB Phased Array Toolbox for X-Band Radar IEEE 2026	Horn Antenna	MATLAB Phased Array + Antenna Toolbox

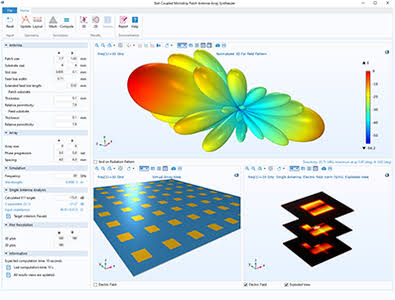

23	Machine Learning-Assisted Antenna Dimension Prediction for Target S11 Using Neural Network Surrogate Model in MATLAB and HFSS Dataset IEEE 2026	ML Antenna Opt.	MATLAB Deep Learning Toolbox, HFSS

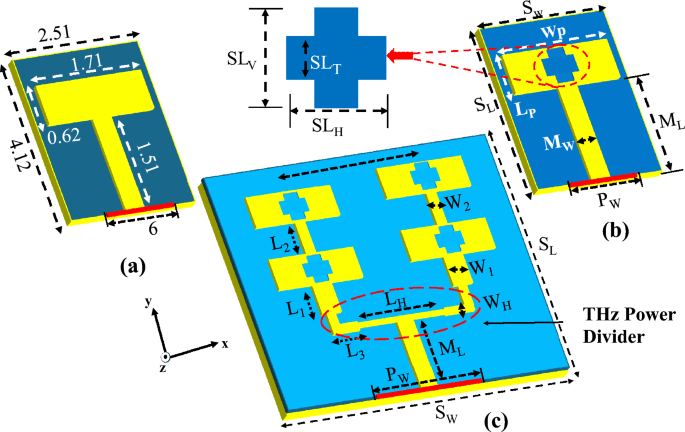

24	PSO-Optimised Patch Antenna Array for Maximum Gain Using MATLAB Particle Swarm Optimization and Antenna Toolbox Integration IEEE 2026	Array Optimisation	MATLAB Antenna + Optimization Toolbox
25	Cognitive Radio Wideband Antenna — Spectrum Sensing Coverage Analysis Using MATLAB Antenna Toolbox and Communications Toolbox SNR Evaluation IEEE 2026	Cognitive Radio	MATLAB Antenna + Comm Toolbox

All 25 antenna MATLAB project topics are aligned with IEEE Transactions on Antennas and Propagation, IEEE Antennas and Wireless Propagation Letters and IEEE Access 2026. Contact us for the full IEEE base paper, MATLAB Antenna Toolbox simulation code and project report starter kit for any topic — +91 95919 12372 (WhatsApp).

MATLAB Code for Antenna Design

Our Bangalore lab — MATLAB R2024b workstations with Antenna Toolbox, RF Toolbox and Phased Array Toolbox licenses, HFSS and CST simulation servers, ADS RF circuit workstations, FEKO EM solver desks, oscilloscope and VNA measurement rigs and antenna prototype fabrication stations for ECE BTech, MTech and PhD students.
