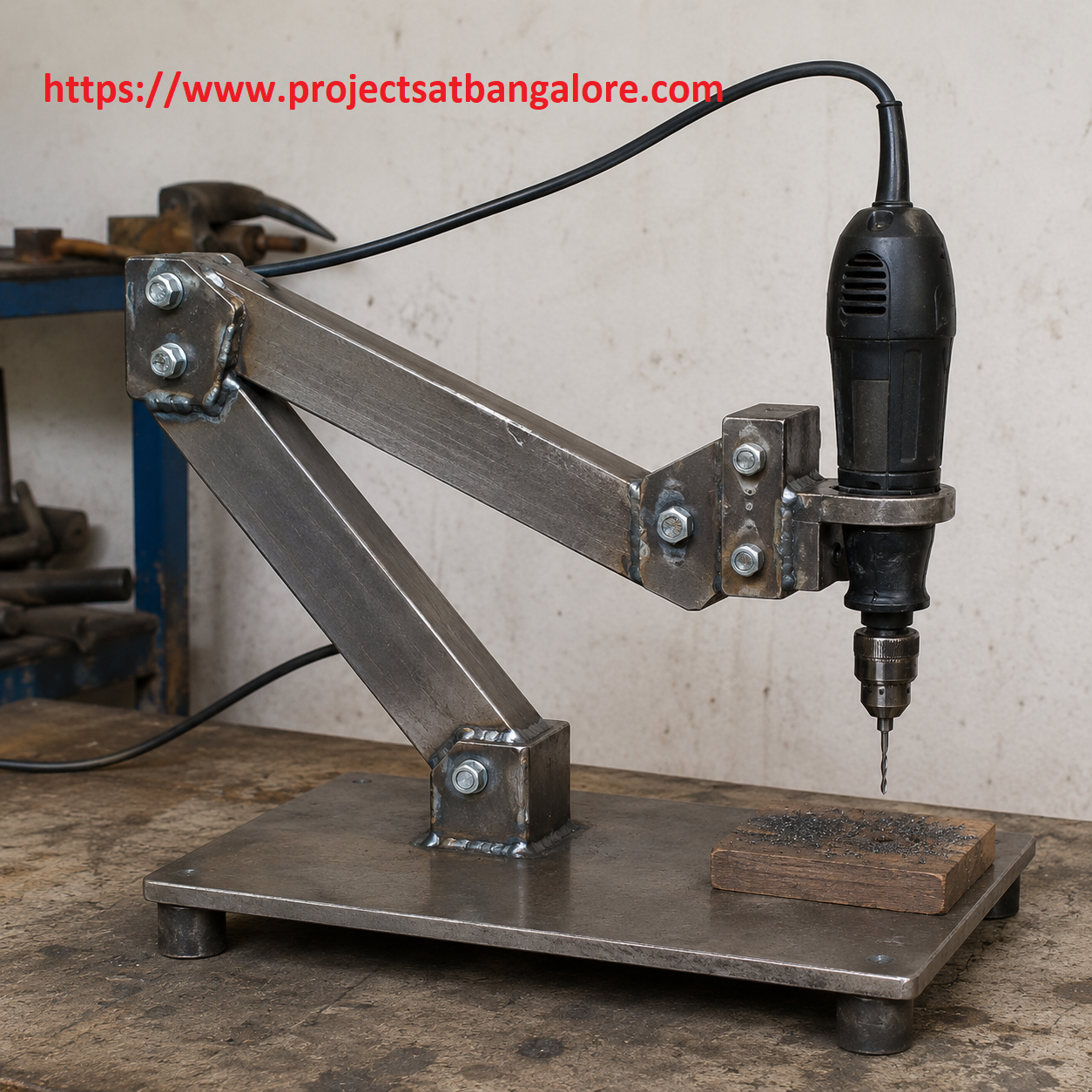

360 Degree Flexible Drilling Machine
360 Degree Flexible Drilling Machine report
Abstract: In previous drilling machine many of the problems arise during drilling. Some parts cannot drill due to small work space between drill bit and work piece. So we use hand drills in this cases but it cause alignment problems. So here i propose a 360 degree flexible drill that can be mounted on a table or wall and can be used to drill holes horizontally, vertically or even upside down. So this make it possible for easy drilling in even complicated parts and surfaces. The working principle of this flexible drilling machine is initially started from the D.C. motor through full wave rectifier. In which there is one power sources, received from the rectifier. Then the arm rotates at 360 degree and moves anywhere when drilling is required up to its maximum arm length. With the help of my project we can drill in complicated parts accurately. method of controlling the drilling machine by manually. Materials like wood, plastic and light metals drilled with this. The work piece is fixed on thework table.As the machine tool exert Vertical pressure to original a hole it loosely called a drill press. This Drilling is performed for Different Position Drilling in the working job. Up/Down and rotating mechanism is available in this DrillingMachine.One end of the arm is attached to a firm base while the other has atool.These arms are made up of Aluminum. The number of parameters in the subgroup is called thedegrees of freedomof the joint. Mechanical linkages are usually designed to transform a given input force and movement into a desired output force and movement.
