Automatic Paper Cutting Machine Using Geneva Mechanism.

Intermittent-feed paper cutting machine driven by a Geneva mechanism for precise stop-and-cut cycles. Complete working model with fabrication, project report, PPT and viva support for BE, B.Tech, Diploma and MTech students.

View Project Details Talk to a Mentor
12K+
Students Guided
100%
Fabrication Support
98%
Project Success

Automatic Paper Cutting Machine Using Geneva Mechanism Project Report

& Key Components & Technology

Core mechanical and drive components used in the Automatic Paper Cutting Machine Using Geneva Mechanism fabrication project.

Geneva Drive Drive Motor Cutting Blade Paper Feed Rollers Frame Structure Crank / Cam Link Intermittent Motion Theory of Machines

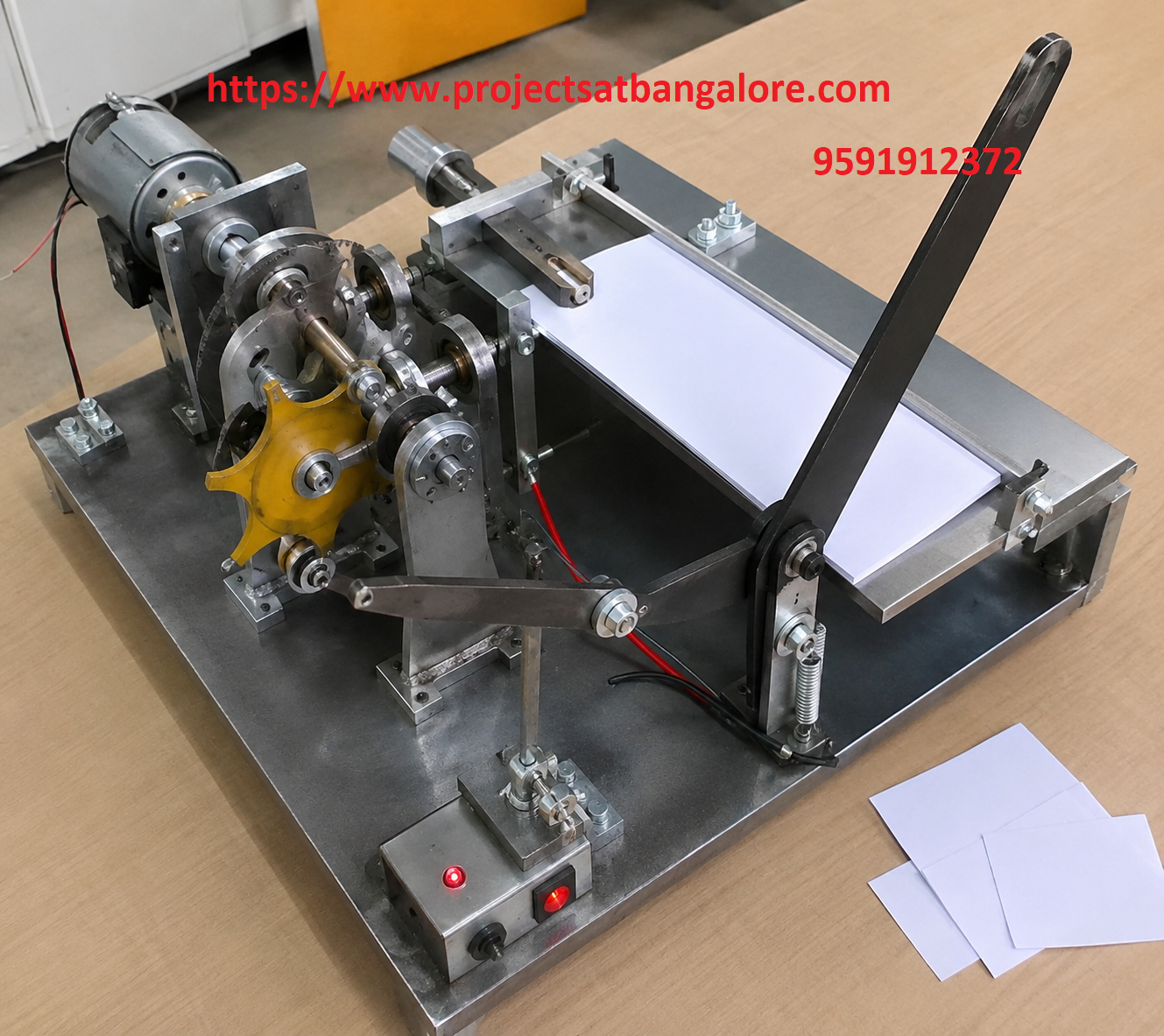

Automatic Paper Cutting Machine Using Geneva Mechanism Project fabrication setup

Automatic Paper Cutting Machine Using Geneva Mechanism Project

Mechanical & Theory of Machines fabrication final year project with complete documentation support.

The Geneva mechanism converts continuous rotary motion into intermittent indexing motion — ideal for feed-and-cut cycles. In a paper cutting machine it advances the paper by a fixed length, pauses for the cut, then repeats, giving consistent strip or sheet lengths without complex electronics.

This project fabricates an automatic paper cutting machine driven by a Geneva wheel, motor, cutting blade and feed rollers. The design covers Geneva drive geometry, frame fabrication, blade actuation and paper handling — ideal for Mechanical Engineering students studying intermittent motion and machine design.

Call: +91 95919 12372

Abstract

Many packaging and stationery processes need paper or sheet material cut to a fixed length in a repeating cycle. A Geneva mechanism provides a simple, purely mechanical way to obtain intermittent feed: the driving pin engages the Geneva wheel for a fraction of each revolution, indexes the feed, then dwells while the blade cuts.

This project develops an Automatic Paper Cutting Machine Using Geneva Mechanism with a motor-driven Geneva drive, feed rollers, cutting blade and support frame. Key subsystems include Geneva wheel and driver design, power transmission, blade actuation and paper path. The unit demonstrates intermittent motion, machine kinematics and practical fabrication suitable for academic evaluation.

It is an excellent final-year project for Mechanical and Production Engineering students, combining Theory of Machines concepts with a working fabrication model.

Working Principle

  • Motor rotates the Geneva driver continuously; the pin engages the Geneva wheel slots for intermittent indexing.
  • During the index phase, feed rollers advance the paper by a fixed length.
  • During the dwell phase, the cutting blade descends (cam or linkage actuated) to cut the paper.
  • Cycle repeats: feed → stop → cut → feed, producing uniform cut lengths.

Advantages

  • Purely mechanical intermittent motion — no complex electronics required.
  • Consistent cut length determined by Geneva indexing and roller geometry.
  • Clear demonstration of Geneva drive kinematics and dwell periods.
  • Suitable for academic study of Theory of Machines and machine design.

Challenges

  • Accurate Geneva wheel and pin geometry for smooth engagement.
  • Synchronising blade stroke with the dwell interval.
  • Minimising paper slip in feed rollers for length accuracy.
  • Frame rigidity and blade sharpness for clean cuts.

Technical Specifications

Parameter Details
Drive MechanismGeneva wheel (typically 4-slot / external type)
Prime MoverElectric motor with reduction (or hand crank for demo)
Feed SystemRollers driven during Geneva index phase
Cutting ActionBlade actuated during Geneva dwell (cam / linkage)
FrameFabricated mild steel / aluminium support structure
Material HandledPaper / thin sheet (demo lengths adjustable by design)
Key ConceptIntermittent motion via Geneva mechanism (Theory of Machines)

What We Provide

ProjectsatBangalore offers complete support for the Automatic Paper Cutting Machine Using Geneva Mechanism Project including working fabrication, project report, PPT, block diagram, viva questions, and demonstration guidance for BE, B.Tech, Diploma, and MTech students in Bangalore.

Working Fabrication
Project Report
PPT Presentation
Block Diagram
Viva Support
Demo Guidance
