PLC Based Paper Cutting Machine


PLC Based Paper Cutting Machine report

Call:9591912372

PLC Based Paper Cutting Machine

PLC Based Paper Cutting Machine


Abstract: To understand the application and importance ofthe involvement of automation in conventional cutting machine in manufacturing. A cutting machineis available in various shapes and sizes, with small hand-held power cutting systems and to bench mounted and finally floor-mounted models. This paper includes the types of cutters, and shop formulas for setting up each operation. Safety plays a critical part in any operationinvolving power equipment. This paper also includes proceduresfor maintaining, and proper setting up the work and methods ofselecting various tools, and object holding devices to get a jobdone safely without causing damage to the equipment, yourself,or someone nearby. Thoughto evolve and admit automation by theinvolvementof various types of drives, cylinders and man motion study. In this paperit has been innovated that howwe can use or convert conventional cutting process withthe help of PLC, Pneumatic Cylinder, sensors and dc motor into the process. It is a time saving with good quality procedure. In the paper the various Man Motion has been done with help of cylinders. Suchkind of conversion can be done easily anywhere where high volume with good quality to be produced. The industrial CNC machine components are fabricated using quality material and technology. These are available in varied diameter and sizes at the leading market prices. We ensure to monitor its quality before offering to our esteemed clients across the world.


A cutting machine consists of a part called as cutter, is usedto cut the metal, wood, or other materials. Cutter is circular inshape. All the edges of cutter are equally sharp. This cutter isheld by a shaft and is rotated and fed into the work at variablespeeds.Operators must know how to set up the work, set speedand feed, and provide for coolant to get an acceptable finished product. The size or capacity of the cutting machine is generally determined by the largest piece of stock that can be cut.The system aspects of manufacturing are more important than ever today. The word manufacturing was originally derived from two Latin words, Manus (hand) and factus (make), so that the combination means made by hand.Depending on the human participation in the manufacturing process performed by the manufacturing industries.

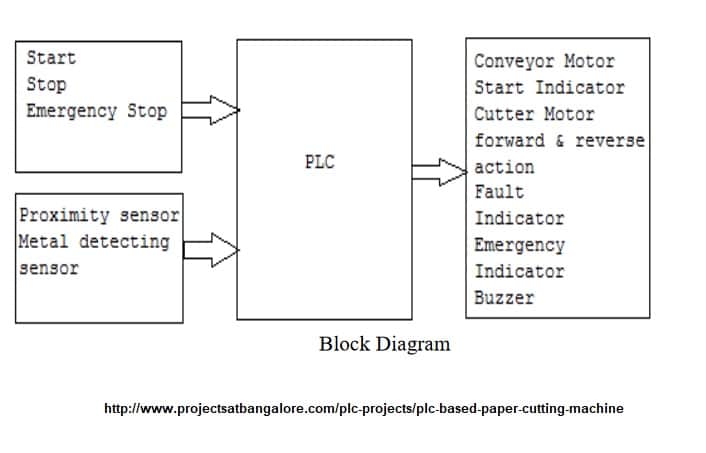

he system consists of the main conveyor assembly, cutter with motor arrangement, object detecting, pneumatic cylinder, proximity sensorsThe proposed system consists of Pneumatic system andPLC. Here PLC is the main controller which will acceptthe inputs from proximity sensor, and then take controlaction on the conveyor, pneumatic cylinder and necessarycutting process assembly. Pneumatic Setup: It is an assemblyof pneumatic actuators integrated together with the help ofmechanical assembly controlled through PLC via Solenoidvalves. Pressurized air is supplied through air compressor.Programmable Logic Controller (PLC): It is the main element of the system which is used to control the automated systems. It accepts the inputs from Proximity Sensor and gives controls the Pneumatic Setup, Conveyor and cutting motor.Proximity Sensor: One Inductive proximity sensor is used for object detection. This sensor gives signals to PLC for taking the necessary control action.
