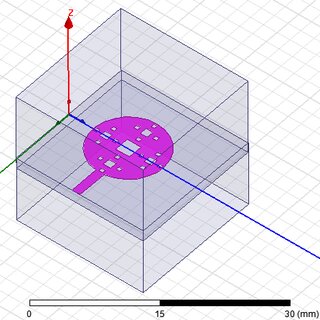

Fractal Antenna Design

Abstract

The Fractal Antenna Design project focuses on the electromagnetic design and performance analysis of an antenna structure intended for its target wireless application. The study considers the antenna geometry, substrate or dielectric environment, conducting elements, excitation method, and surrounding boundaries so that the proposed configuration can be evaluated under realistic operating conditions.

The design process begins with suitable antenna dimensions and material parameters derived from the intended operating requirements. The intended operating frequency range is considered during the initial design and tuning. Key geometric parameters can be varied to study their influence on impedance matching, bandwidth, radiation behaviour, efficiency, and gain.

Full-wave electromagnetic simulation is used to examine the behaviour of the proposed Fractal Antenna Design before fabrication. Ansys HFSS and CST Studio Suite are suitable for this type of antenna investigation because they support detailed electromagnetic field analysis and extraction of parameters such as S-parameters, resonant response, radiation patterns, gain, directivity, and field distributions.

During optimization, parameters such as feed position, element dimensions, spacing, substrate properties, and other project-specific geometric features can be adjusted to obtain the required response. Simulation results can be compared across design iterations to identify a practical configuration while reducing unnecessary fabrication trials and helping validate the expected antenna characteristics.

The completed study provides a structured basis for antenna fabrication and experimental verification. The simulated results can be used to prepare performance plots and design documentation, followed by measurements such as return loss, impedance response, radiation pattern, gain, or other application-specific characteristics. This approach supports systematic evaluation of the Fractal Antenna Design for academic research, prototype development, and wireless communication applications.

Simulation Tools Used

HFSS, CST, MATLAB fractal generators

Typical workflow: geometry → boundary conditions → parametric sweep → S-parameter & far-field post-processing → optimization.

Operating Frequency

Multi-band covering GSM / WLAN / WiMAX example bands

Antenna Dimensions (Typical)

Initiator size scaled to lowest band; 2–3 fractal iterations typical

Feed Network

Microstrip or CPW

Fabrication Details

FR-4 PCB etching of fractal outline

Key Performance Metrics

Multiple resonances, size reduction factor, efficiency

Deliverables for Students

Simulation project files (HFSS/CST), dimensioned drawings, S11 / Smith / pattern plots, comparison table (sim vs target), university-format report, PPT and viva Q&A support from Bangalore.

EM Simulation

HFSS, CST, COMSOL and FEKO workflows with mesh, S-parameters and pattern analysis.

Design Metrics

Return loss, gain, efficiency, axial ratio and mutual coupling interpretation.

Fabrication

PCB guidelines, VNA measurement concepts and sim-vs-measured comparison.

Report & Viva

University-format documentation, PPT and expected viva questions.
