Ntroduction

The last two decades have seen the emergence and prevalence of Micro-Electro-Mechanical Systems (MEMS) technology. The reduction in size, low power consumption and low cost is the ultimate goals of application specific MEMS devices. One way to achieve these goals is the monolithic integration of MEMS technology with the standard integrated circuit (IC) technol‐ ogy. The utilization of the conventional IC technology as a platform for design of the fast- growing MEMS technology has led to development of numerous devices and technologies in the past years. Much effort has been made and large capital has been invested into mainstream Complementary Metal-Oxide Semiconductor (CMOS) compatible MEMS technology. This approach has enabled MEMS devices to be directly integrated with CMOS circuits, allowing smaller device sizes and higher performances. This integration of MEMS technology with the mainstream CMOS technology is referred to as CMOS-MEMS technology .

Bulk Micromachining Technologies

Among all micromachining technologies, Bulk micromachining is the oldest one. To make small mechanical components using bulk micromachining technology, substrate material such as silicon wafer is selectively etched. There are two major classes of bulk micromachining: wet bulk micromachining (WBM) and dry bulk micromachining (DBM).WBM gives nice feature resolution and vertical sidewalls for deep trenches in the substrate but have numerous disadvantages such as incompatibility with microelectronic circuits and higher cost due to mask requirement. The fabrication cost, time and simplification of micromachining for MEMS devices is reduced by using dedicated MEMS foundry and making the prototyping develop‐ ment cycle much shorter by reducing number of masks and photolithography steps. CMOS MEMS technology is a good solution for post micromachining because in this technology CMOS circuitry is protected completely by the top metal layer and the same top metal layer © 2013 Dennis et al.; licensee InTech. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/3.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

is used as mask to define MEMS structures in MEMS region during the post-CMOS micro‐ machining. That is why this post micromachining process is known as CMOS-compatible.

Wet Bulk Micromachining

Wet bulk micromachining is done normally with the help of chemicals. In chemical wet etching, the silicon substrate is immersed into the solution of reactive chemicals which etches the exposed regions of substrate at measureable rates. Wet etching typically uses alkaline liquid solvents, such as potassium hydroxide (KOH) or tetramethylammonium hydroxide (TMAH) to dissolve silicon which has been left exposed by the photolithography masking step.

These alkali solvents dissolve the silicon in a highly anisotropic way, with some crystallo‐ graphic orientations dissolving up to 1000 times faster than others. Fig. 1 shows the three major crystal planes in a cubic unit of silicon.

Figure 1. The three orientations <110>, <111> and <100> are the respective directions normal to the plane For example in silicon anisotropic etching, planes <111> are etched at slower rate than all other planes. The reasons for the slow etch rate of planes <111> are, high density of silicon atoms exposed to the etchant solution in this direction and three silicon bonds laying below the plane.

Fig. 2 (a) shows a schematic and (b) three dimensional photo of a typical wet anisotropic etching of a silicon substrate. (a) (b)

Backside Mask

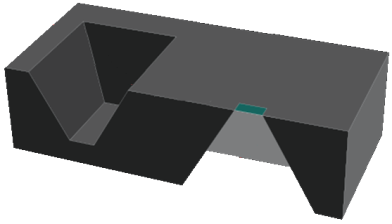

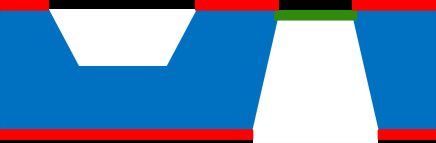

Figure 2. a) 2-D Schematic and (b) 3-D diagram of a typical wet bulk micromachining of Si Advances in Micro/Nano Electromechanical Systems and Fabrication Technologies Wet chemical micromachining technology is popular in MEMS industry because of high etch rate and selectivity. There is one drawback and that is the mask is also etched during normal etching process so it is suggested to find a mask that doesn’t dissolve or at least dissolves at a much slower rate than the silicon substrate. In wet etching, etch rates and selectivity can be modified by various methods such as: (a) chemical composition of etching solution, (b) dopant concentration in the substrate, (c) adjusting temperature of etching solution and finally (d) Modifying crystallographic planes of the substrate.

Chemical wet etching in bulk micromachining may be further subdivided into two parts: isotropic wet etching where the etch rate is not dependent on crystallographic orientation of the substrate and etching proceeds in all directions at equal rates as shown in Fig.3 (a) and anisotropic wet etching where the etch rate is dependent on crystallographic orientation of substrate as shown in Fig. 3 (b). Often in order to control etching process and uniform etch depths across the wafer, etch stops are used. Generally three types of etch stops are used in micromachining: Dopant etch stops, Electrochemical etch stops and Dielectric etch stop.

) Planes

Figure 3. Difference between (a) isotropic and (b) anisotropic wet etching Usually in order to control etching process and uniform etch depths across the wafer, etch stops are used. Generally three types of etch stops are used in micromachining: Dopant etch stops, Electrochemical etch stops and Dielectric etch stop .

Ry Bulk Micromachining

Dry etching in bulk micromachining is classified into three groups: Reactive ion etching (RIE), Vapor phase etching and Sputter etching. Reactive ion etching (RIE) uses both physical and chemical mechanisms to achieve high levels of resolution. The process is one of the most diverse and most widely used processes in industry and research. Since the process combines both physical and chemical interactions, the process is much faster. The high energy collision from the ionization helps to dissociate the etchant molecules into more reactive species. In the RIE-process, cations are produced from reactive gases which are accelerated with high energy to the substrate and chemically react with the silicon. The typical RIE gasses for Si are CF4, SF6 and BCl2 + Cl2.

Os Compatible Bulk Micromachining

Both physical and chemical reaction is taking place with the physical part similar to the sputtering deposition. If the ions have high enough energy, they can knock atoms out of the material to be etched without a chemical reaction. It is very complex task to develop dry etch processes that balance chemical and physical etching, since there are many parameters to adjust. By changing the balance it is possible to influence the anisotropy of the etching with the chemical part being isotropic and the physical part highly anisotropic and therefore the combination can form side walls that have shapes from rounded to vertical.

A special subclass of RIE which continues to grow rapidly in popularity is deep RIE (DRIE). In this process, etch depths of hundreds of microns can be achieved with almost vertical sidewalls. The primary technology is based on the so-called "Bosch process", named after the German company Robert Bosch which filed the original patent, where two different gas compositions are alternated in the reactor. The first gas composition etches the substrate, and the second gas composition creates a polymer on the surface of the substrate. The polymer is immediately sputtered away by the physical part of the etching, but only on the horizontal surfaces and not the sidewalls. Since the polymer only dissolves very slowly in the chemical part of the etching, it builds up on the sidewalls and protects them from etching and working as pasivation, as illustrated in fig. 4. In fig.4 (a) SF6 is etching the silicon while in fig. 4 (b) C4F8 is playing the role of passivation and in fig. 4 (c) again SF6 is etching. As a result, etching aspect ratios of 1 to 50 can be achieved. The process can easily be used to etch completely through a silicon substrate, and etch rates are 3-4 times higher than wet etching. In the following part more details are given on DRIE. Under our MEMS research group in Universiti Teknologi PETRONAS, high aspect ratio of 3 to 50 µm and complete etch through is achieved as shown in fig.5.

(a) (b) (c)

Polymer

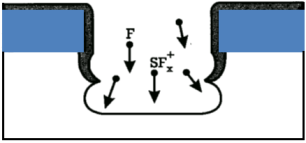

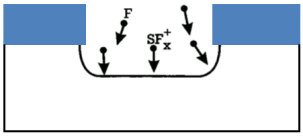

Figure 4. Illustration of etching and passivation in DRIE Vapor phase etching (also called Chemical dry etching) does not use liquid chemicals or etchants. This process involves a chemical reaction between etchant gases to attack the silicon surface. The chemical dry etching process is usually isotropic and exhibits high selectively.

Anisotropic dry etching has the ability to etch with finer resolution and higher aspect ratio than isotropic etching. Due to the directional nature of dry etching, undercutting can be avoided. Some of the ions that are used in chemical dry etching is tetrafluoromethane (CH4), sulfur hexafluoride (SF6), nitrogen trifluoride (NF3), chlorine gas (Cl2), or fluorine (F2) . Vapor phase etching can be done with simpler equipment than what RIE requires. The two most common vapor phase etching technologies are silicon dioxide etching using hydrogen fluoride (HF) and silicon etching using xenon diflouride (XeF2), both of which are isotropic in nature.

Advances in Micro/Nano Electromechanical Systems and Fabrication Technologies Usually, care must be taken in the design of a vapor phase process to not have bi-products formed in the chemical reaction that condense on the surface and interfere with the etching process.

Sputter etching is essentially RIE without reactive ions. The systems used are very similar in subjected to ion bombardment instead of the material target used in sputter deposition .

Os Compatible Micromachining

CMOS compatible micromachining is now commonly known as CMOS MEMS technology. During post processing in CMOS MEMS technology, the top metal layer acts as mask to define MEMS structures. For the front side processing of the die no photolithographic steps are required. CMOS MEMS technology facilitates the wiring of MEMS structures to integrated circuits due to many metal layers. Through monolithic integration of the CMOS-MEMS devices with circuits, the parasitic capacitances is reduced and overall high performance devices is achieved. Dry post CMOS MEMS technologies are divided into two classes: Thin film micro‐ machining technology (Thin-film Post-CMOS MEMS Technology) and DRIE bulk microma‐ chining technology (DRIE Post-CMOS MEMS Technology).

Thin-Film Post-Cmos Mems Technology

The process flow of thin-film CMOS-MEMS with three metal layers is shown in Fig. 6. The CMOS circuit region is designed to be covered by the top metal layer and the MEMS structures are also pre-defined by the top metal layer or the other interconnect metal layers. Fig.6 (a) shows the cross-section of the original chip after CMOS foundry fabrication, with a passivation layer on top. Two processing steps are performed only on the front side of the chip. First, the pre-defined MEMS structure is opened by etching the SiO2 dielectric stack layer as shown in Fig.6 (b). This is done by an anisotropic SiO2 plasma etch using Tegal SS110 A DRIE system

Μm

Figure 5. FESEM image of a high aspect ratio plasma etching using DRIE with inhibitor

Os Compatible Bulk Micromachining

based on Bosch technology . Next, an anisotropic silicon DRIE is performed using the same Tegal DRIE system as shown in Fig.6 (c), followed by isotropic silicon etch, which releases the MEMS structure by undercutting the silicon beneath as shown in Fig.6 (d). The depth of the anisotropic etch into the silicon controls the gap between the released structure and the silicon substrate. This gap should be large enough to eliminate the parasitic capacitance between the MEMS structures and the silicon substrate. In practice, it is normally on the order of 30 µm .

(a) Original CMOS-chip (b) Anisotropic dielectric (SiO2) etch (c) Anisotropic silicon etch (d) Isotropic silicon etch for undercut to release structure.

Etal 3

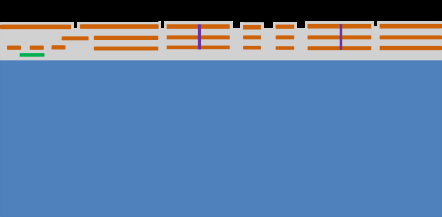

Figure 6. The process-flow for thin film DRIE post-CMOS micromachining A resonant magnetic field sensor and piezoresistive accelerometer are examples of devices fabricated using this technology [7, 8]. This simple fabrication process yields much smaller parasitic effects as compared to the other processes such as poly MUMPs and it provides flexible wiring by using the multiple metal layers. However, there are some drawbacks in this technology, which limit the performance of the fabricated accelerometers. First, there is large vertical curling in the comb fingers of the suspended MEMS structures caused by the residual stress gradient existing in the composite SiO2/Al layers as shown in Fig. 7. Additionally, due to different thermal expansion coefficients (TEC) of Al and SiO2, the curled MEMS devices exhibit a strong temperature dependence, which limits their utility. Although particular compensation technology was employed to reduce the structure mismatch by using a specially designed frame, the device fabricated using this thin film process still has a stringent size limit.

Second, for sensors which require proof mass like inertial sensors fabricated using this technology, the requirement of holes on the proof mass reduces the proof mass, resulting in a lower mechanical sensitivity of the sensors. To achieve a capacitance change large enough for Advances in Micro/Nano Electromechanical Systems and Fabrication Technologies the readout circuit to detect, the dimension of the sensors may need to be considerably large, which is in conflict with the dimensional limit imposed by the possibility of structure curling.

Third, in-plane curling of the thin film structures due to fabrication variations also limits the maximum size of the device. Although there are some specific processes designed for low residual stress thin films , CMOS foundry processes to reduce the curling of the MEMS structures by proper design of the structures as described in . Fig. 8 shows the successfully released central shuttle of magnetic field sensor fabricated using this process. It can be clearly observed that the curling in the structure has been significantly reduced as indicated by the minor curling in the fingers.

In addition to the collection of technological data directly from the employed CMOS foundries, systematic post-CMOS process calibration must be conducted to characterize the process variations and their effects on the MEMS devices.

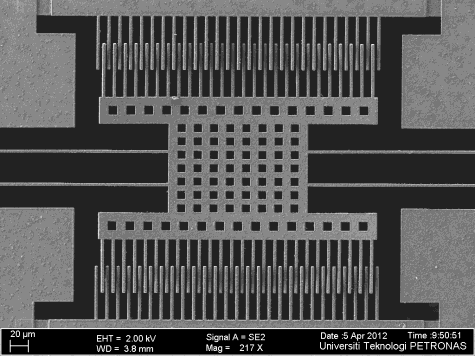

Figure 8. FESEM image showing comb fingers of the central part of a magnetic field sensor Lastly, since the last release step is an isotropic etch, it undercuts the silicon close to the circuit and structure anchors. The ratio of the vertical and lateral etching rate is approximately 3:5.

To protect the silicon underneath the circuit region from being etched away during the

Curling In The Comb Fingers

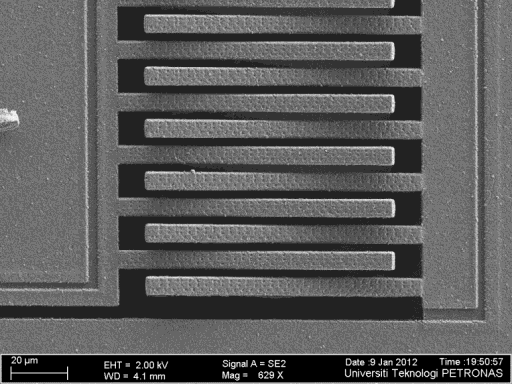

Figure 7. FESEM image of typical comb fingers fabricated using thin film CMOS-MEMS technology

Os Compatible Bulk Micromachining

structure release, the CMOS circuitry must be placed far away from the microstructures, especially when a large separation between the microstructures and substrate is needed. As a result, significant chip area is wasted due to the protection margin around the MEMS struc‐ tures. Since the silicon underneath the mechanical anchors of the MEMS structures is also etched away, the suspension of the mechanical structures is softened, which results in a lower mechanical performance and less robustness of the device .

Rie Post-Cmos Mems Technology

To reduce the disadvantages of the above thin-film post-CMOS MEMS process, DRIE post- CMOS MEMS technology is developed to incorporate bulk single crystal silicon (SCS) into the technology, high aspect ratio CMOS MEMS structures have been exhibited as shown in Fig.

9. The achievement of maximum aspect-ratio in DRIE system is an important factor in the MEMS structure design . It decides the dimensional limit of the structures fabricated using that DRIE system. Once a lateral feature to be etched is fixed, the maximum thickness is uniquely defined.

Process Flow

The DRIE post-CMOS MEMS technology branches from the thin film technology described in the previous section. DRIE CMOS-MEMS provides an approach to implement thick and flat MEMS structures with improved mechanical performance and device strength due to advant‐ age of both flexible wiring with multiple metal layers in CMOS technology and the capability of high aspect ratio etching. Fig.10 shows the process flow of the DRIE post-CMOS MEMS technology.

To define the MEMS structure thickness (thin film plus substrate), the process starts with backside silicon DRIE etching by the selective application of photoresist at the back-side as shown in Fig.10 (a). The maximum thickness of this structure is limited by the smallest etching pattern on the front side of the MEMS structure and the maximum etch aspect-ratio. Next, to Advances in Micro/Nano Electromechanical Systems and Fabrication Technologies define the MEMS structures, an anisotropic SiO2 etch is performed on the front side of the chip as shown in Fig. 10 (b) similar to the thin film process. In the following step, the structure is released by etching through the remaining SCS substrate. This step differs from the thin film process in that an anisotropic DRIE, instead of isotropic Si etch, is performed to release the structure as shown in Fig.10 (c). Flat and large MEMS structures can be obtained by incorpo‐ rating SCS underneath the CMOS interconnect layers because the residual stresses in the SiO2/Al thin-films are mitigated by the thick SCS, showing very little out-of-plane curling as shown in Fig. 11 where it can be seen that the sense fingers are perfectly flat and aligned.

Interconnect Layers

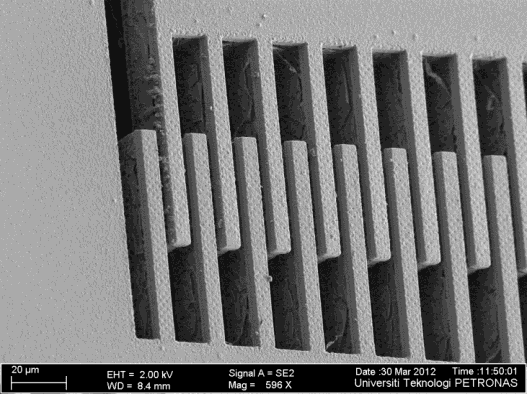

Figure 11. FESEM image showing comb fingers with thick SCS underneath (a) CMOS-chip with back side etch (b) Front side anisotropic SiO2 etch (c) Front side anisotropic silicon etch (d) Final released structure.

Etal 3

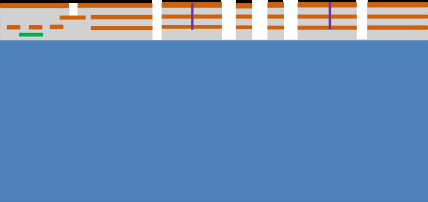

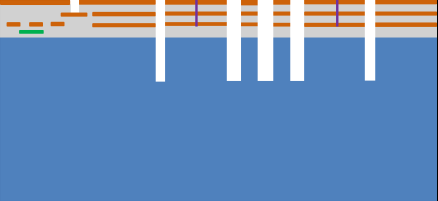

Figure 10. The process-flow for DRIE CMOS micromachining

Os Compatible Bulk Micromachining

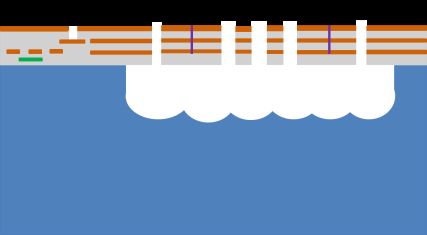

In some MEMS structures isotropic silicon etch can be added to create nice mechanical CMOS thin-film layers for the beams and silicon substrate along with CMOS thin films in the side torsional coils as shown in Fig. 12.

With Scs Substrate

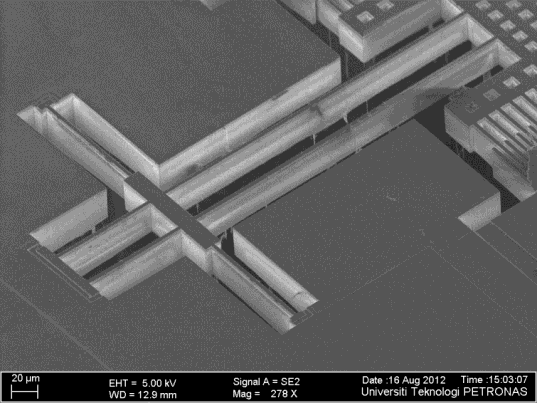

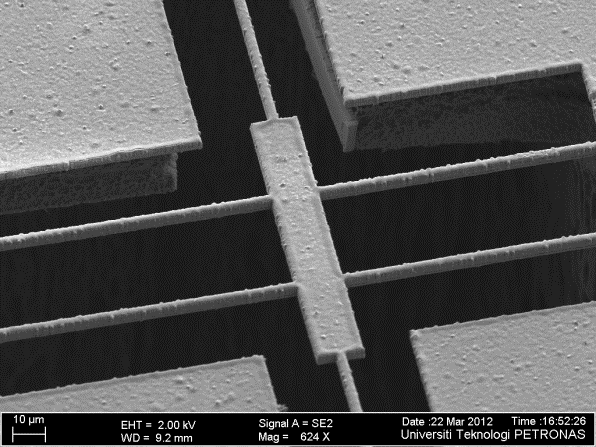

Figure 12. FESEM image of CMOS thin layers and incorporation of SCS with thin layers as MEMS structures Double side alignment is required in the backside DRIE step to define the thickness of the MEMS structures. It is observed that normally the remaining silicon for bulk MEMS structures is on the order of tens of microns and by the substrate thinning there is no apparent circuit performance degradation. Therefore, there is no hard and fast constraints for alignment in the backside etch. A reliable sensing and actuation is achieved with the flat MEMS microstructures enabled by the DRIE CMOS MEMS technology. A resonant magnetic field sensor with piezoresistive sensing is fabricated using this technology . The technology is very suitable for the fabrication of, in particular, thermally actuated micromirrors where bimorphs are used to elevate the mirror plate. Numerous resonant chemical sensors, electrothermal micromirrors and accelerometers have been fabricated using this technology .

Esign Rules For Mems Devices

For CMOS circuit designs, there are different ways to break up a layout into basic elements. Designers usually divide and analyze a circuit by the function of individual components, devices and interconnect. The devices may be active (e.g. transistors, diodes) or passive devices (e.g. resistors, capacitors and inductors). The interconnects include in-plane wires, pads and vias which connect multiple metal layers. The critical information on the geometric patterns includes the size of each feature, the spacing between features and the overlap of features.

These geometric data, required in the design, leads to evolutions of processes and ensures successful fabrication of microelectronic circuitry. In order to fulfill the requirements of successful MEMS device designs, processing information, which quantitatively describes the capabilities and limitations of the process under predetermined processing conditions and Advances in Micro/Nano Electromechanical Systems and Fabrication Technologies
