Aniform Process Optimization

Performance Computing (IHPC), A*STAR, 1 Fusionopolis Way, #16-16, Connexis North Tower, Singapore 138632, Singapore

Published January 25, 2023

This Book Chapter is a republication of an article published by Long Bin Tan and Nguyen Dang Phuc Nhat at Polymers in July 2022. (Tan, L.B.; Nhat, N.D.P. Prediction and Optimization of Process Parameters for Composite Thermoforming Using a Machine Learning Approach. Polymers 2022, 14, 2838.

How to cite this book chapter: Long Bin Tan, Nguyen Dang Phuc Nhat. Prediction and Optimization of Process Parameters for Composite Thermoforming Using a Machine Learning Approach. In: Alexandru Vasile Rusu, Monica Trif, editors.

Prime Archives in Polymer Technology. Hyderabad, India: Vide Leaf. 2023. © The Author(s) 2023. This article is distributed under the terms of the Creative Commons Attribution 4.0 International License

Permits

unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Prime Archives In Polymer Technology: 2Nd Edition

2 www.videleaf.com Author Contributions: Conceptualization, Finite Element Simulation and Results Compilation, Manuscript review and modification, Figure artwork, Supervision, Project Management, Tan, L.B.; ANN code development, ANN model training, validation and results, Manuscript initial draft, Nhat, N.D.P.

Advanced

Manufacturing and Engineering Domain (AME)—Industry Alignment Fund, grant number A19C9a0044. Acknowledgments: We acknowledge the support given by the post-manufactured CFRTP parts for model calibration and validation.

Conflicts of Interest: The authors declare no conflict of interest.

Abstract

Thermoforming is a process where the laminated sheet is pre- heated to the desired forming temperature before being pressed and cooled between the molds to give the final formed part.

Defects such as wrinkles, matrix-smear or ply-splitting could occur if the process is not optimized. Traditionally, for thermoforming of fiber-reinforced composites, engineers would either have to perform numerous physical trial and error experiments or to run a large number of high-fidelity simulations in order to determine satisfactory combinations of process parameters that would yield a defect-free part. Such methods are expensive in terms of equipment and raw material usage, mold fabrication cost and man-hours. In the last decade, there has been an ongoing trend of applying machine learning methods to engineering problems, but none for woven composite thermoforming. In this paper, two applications of artificial neural networks (ANN) are presented. The first is the use of ANN to analyze full-field contour results from simulation so as to predict the process parameters resulting in the quality of the formed product. Results show that the developed ANN can

Prime Archives In Polymer Technology: 2Nd Edition

3 www.videleaf.com predict some input parameters reasonably well from just inspecting the images of the thermoformed laminate. The second application is to optimize the process parameters that would result in a quality part through the objectives of minimizing the maximum slip-path length and maximizing the regions of the laminate with a predesignated shear angle range. Our results show that the ANN can provide reasonable optimization of the process parameters to yield improved product quality. Overall, the results from the ANNs are encouraging when compared against experimental data. The image analysis method proposed here for machine learning is novel for composite manufacturing as it can potentially be combined with machine vision in the actual manufacturing operation to provide active feedback to ensure quality products.

Carbon Fiber; Woven Composites; Thermoforming; Machine

Ntroduction

In the last decade, machine learning has been utilized across different industries. In engineering and manufacturing, a properly trained artificial neural network (ANN) can help to develop design guidelines or provide optimized solutions that would substantially reduce the design cycle time. In the first application, the slip-path length contour images from hundreds of finite element thermoforming analyses are used as inputs and the ANNs are trained to predict the original process parameters

Knowing

approximately the actual process parameters that formed the part can provide a causal link insight to help develop design rules and allow an experienced engineer to propose improvements on the manufacturing processes so as to mitigate part defects. In the second application, another ANN is used for process parameter optimization in order to minimize the maximum slip-path length (indicator for surface defect) and to maximize the shear angle coverage (indicator for formability) for ply angles between 40 to

Prime Archives In Polymer Technology: 2Nd Edition

4 www.videleaf.com 50 degrees of the formed laminate part. The second criterion is in tandem with promoting the draping of the laminate by ply shear mechanism rather than out-of-plane bending which will cause wrinkling.

Background

In this work, the finite element analysis software AniFormTM is used to simulate thermoforming of woven carbon fiber thermoplastic laminate under various process conditions. Each simulation can take between 1 to 2 h which is a time-consuming process. The motivation is to apply artificial neural network (ANN) to expeditiously predict better process parameters so as to reduce design cycle time. This process can help engineers explore the design space much faster, help develop correlations and design guidelines for thermoforming and in deriving an optimal set of process parameters that would create a better- quality part.

Artificial Neural Network and Convolutional Neural

Network

Neural network in computer science is an attempt to approximate the biological neural network of human brains. Its application in the field of machine learning is vast and can include natural language processing, object recognition, data analytics and many others.

An ANN is a system of many computing devices called neurons. Usually, an ANN consists of multiple neuron layers: an input layer followed by hidden layers and a final output layer. In a feed-forward NN (FFNN), the neurons in a layer only receive information from neurons in previous layers and send information to neurons in subsequent layers. Typically, only the neurons in two consecutive layers are connected. This connection is weighed and comes with a weight value. Despite the great variety of layer types, most neurons would perform the multiply and accumulate (MAC) operation on the data received from other neurons and then apply a non-linear function on the result. In this paper, two types of FFNN are developed. The first is the fully connected neural network (FCNN), whereby each

Prime Archives In Polymer Technology: 2Nd Edition

5 www.videleaf.com neuron in layer i is connected to all neurons in layer i + 1, and the defining parameters for each FC layer are the number of output neurons. The second is the convolutional neural network

(Cnn) That Is Commonly Used In The Field Of Image

classification, whereby ANNs with many convolutional blocks (Conv) extract features, followed by FC layers that would perform prediction using the extracted feature vector.

In a Conv layer, a sliding filter is applied to perform MAC operations on a region of the input and stores the result in the output tensor, called a feature map. The filter will take a stride, which can be multi-dimensional, to the next region after each MAC operation. Finally, an activation function is applied at each position of the feature map to compute the output of the Conv layer. As sliding filters can stride over multiple dimensions, they can be used to extract inter-dimensional and/or spatial information from the input. The defining parameters of a Conv layer include the filter size and the stride.

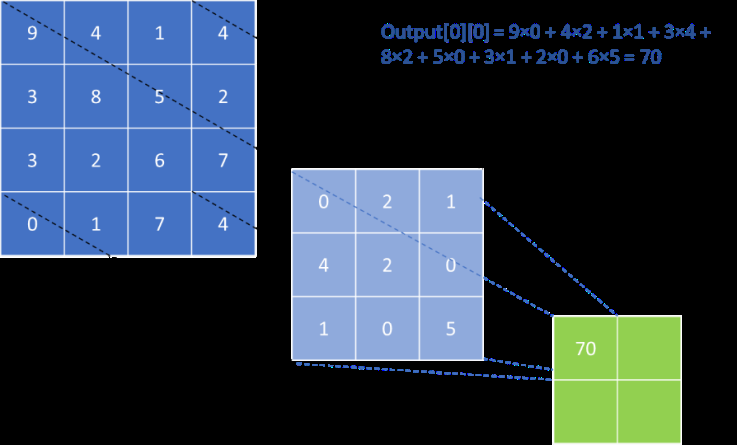

Figure 1 shows an example of how a sliding filter works. The input source is a 2D array while the filter is a 3 × 3 array. Each element in the filter represents a weight. When the filter is applied on a region of the input source (overlapping region), its product with the corresponding element in the filter is accumulated. Essentially, the filter is a weight matrix used to carry out MAC operations on a region of the input tensor.

Figure 1: Example of convolution operation.

Prime Archives In Polymer Technology: 2Nd Edition

6 www.videleaf.com

Ann Applications In Manufacturing Research

To the best of the authors’ knowledge, almost all applications of ML in manufacturing thus far belong to the category of supervised learning whereby the training dataset is fully labelled. How the data are generated is very specific to the problem investigated, and for each engineering field, there are different considerations for data. As early as 2003, applications of ML in manufacturing were present. In , an overview of basic ANN applications in polymer composites was conducted.

Methodologies reviewed in this paper were used to predict fatigue life, wear performance and dynamic mechanical properties for the material and its response under combined loading situations. Fully connected (FC) networks, using backpropagation training algorithms, were primarily used for For more recent and novel approaches, Chang et al.

developed an ANN with the desired product dimensions as modeling inputs to predict parameters for the thermoforming of polymeric foam sheets, which is an inverse problem. This work employed the use of a small FC network with layer sizes (6, 𝑥0, 𝑥1, 6) and 𝑡𝑎𝑛ℎ activation functions. The inputs to the ANN are the thickness measured at six locations while the outputs are the processing parameters: heater temperature, plug displacement, vacuum time, vacuum pressure, plug velocity and plug material type. Multiple experiments were conducted and the optimal network size was found to be (6, 5, 2, 6). Prediction for six parameters is a rare sight, especially when the reported dataset is small (just 40 cases). The data generation method is based on single-parameter variation, such that only one variable changes while others remain constant. This greatly simplifies the problem as the data are not coupled and therefore do not effectively allow the ANN to learn the relationships between parameters. As the root-mean-square errors (RMSE) or loss values for all processing parameters were under 0.01, an acceptable accuracy was reported and the method is deemed suitable for the specific problem.

Prime Archives In Polymer Technology: 2Nd Edition

7 www.videleaf.com Simoncini et al. used ANN to predict the maximum stress of tensioned ABS coupons undergoing the IR-heating process similar in thermoforming. A FC network with three layer sizes (5, 11, 1) was used whereby the five inputs are: operating heat source, crosshead speed, thickness of sample, distance from heat source and elongation of sample. The sole output was the stress– strain response of the coupon. The dataset only comprises 24 cases so it is inconclusive as to how good the ANN was at generalization.

Leite et al. studied the application of ANN for the vacuum thermoforming process. Simulation data were generated and a FCNN was used. The five inputs comprise process parameters: heating time, electric heating power, mold actuator power, vacuum time and vacuum pressure. The outputs are dimensional deviation in height, deviation of the diagonal length, geometric deviation of flatness and of the side angles. First, the ANN was trained to predict the abovementioned deviation groups so as to obtain a set of values representative of the final product geometry. The authors then proceeded to optimize a target function that combines the four metric functions, with the ANN serving as a proxy that helped with mapping parameters to the target function, that can be understood as a criterion to meet for the part design.

Zobeiry et al. studied the application of theory-guided ML (TGML) on laminate damage characterization, which is a direct problem. In total, 10,000 simulations were conducted. The ANN took in five input parameters: Young’s modulus, initial damage slope angle and the strains at three different points of the stress– strain curve with strain-softening response based on MAT81 material model in LS-DYNA. The training process was carried out with a validation split of 70/30 from the dataset and the mean squared error (MSE) was the loss function used for the evaluation of training quality. Four fully connected NNs were trained to each consecutively to predict four parameters: overall fracture energy, peak stress, slope of the damage function and strain-softening parameter. Knowledge in mechanics was evoked to build the chain of NNs where the output of one NN is used to guide the prediction of the next parameter. An advantage

Prime Archives In Polymer Technology: 2Nd Edition

8 www.videleaf.com of this method is that the predicted data are uncoupled. Therefore, each NN can learn more effectively. More specifically, each NN can have a dedicated input vector and their weights can be trained to model one theoretical function only.

However, the number of required simulations is huge, likely making the method infeasible to other engineering problems which may have limited data.

Nardi et al. developed an ANN to predict final part attributes using the input temperatures of the thermoforming process, comparing the results to those from analytical and finite-element modeling (FEM) methods. The FC network has the architecture (3, 5, 3) with three layers and three output neurons. The small architecture was sensible as having more neurons can lead to overfitting or long training time. The Bayesian-regularization method, different from many other ANN approaches that used some variants of backpropagation, was used. It was not explained why the Sigmoid activation function was chosen, instead of the more popular ReLU function that can help gain sparsity when computing and better prevent vanishing gradients.

More recently, Humfeld et al. studied the problem of optimizing air temperature cycle in the autoclave for composite processing. Due to uncertainties including tool placement, convective boundary conditions vary in each run. As a result, temperature histories in some of the parts may not conform to process specifications due to under-curing or over-heating.

Recurrent NNs, a class of NNs where data from past inputs are remembered, were used in a FC network. This memory of past data is taken into account when operating on the current input.

Compared to FFNN, there is a feedback link in the RNNs. Data do not simply flow from the first to last layers but can be sent backwards when computing the next input. It has broad application in natural language processing due to its ability to analyze sequential data. In total, 100,000 simulations with eight input parameters comprising heat transfer BCs, thickness of composite part, thickness of tool and air temperature profiles were conducted. The validation split was 70/30. The ANN is used for inverse modeling to predict the bottom tool temperature and the center part temperature. Multi-objective optimization,

Prime Archives In Polymer Technology: 2Nd Edition

9 www.videleaf.com using the same ANN, that predicts the probabilities of the temperatures on the composite being acceptable or not, is then performed. For each ANN simulation case, if the maximum part temperature and part temperature rate fall into a desirable range, Tmax < 185 °C, 1 °C/min < Tpart < 3 °C/min, the case is classified as “pass”. The outputs to this FCNN would be the failure and pass probabilities whereby cases/conditions with high pass probability are chosen and a sorting step is used to find the most optimal one.

Wanigasekara et al. extended their previous work, which built a direct model to predict output characteristics of thermoplastic composite laminates used in automated fiber placement machines and resolving it using inverse modeling for the same manufacturing problem. In the direct method, an ANN was used to predict four characteristics of thermoplastic composite laminates, namely, elastic modulus, short-beam strength/inter-laminar shear strength, maximum flexural stress and maximum flexural strain, based on four inputs, i.e., the deposition rate, consolidation force, hot gas torch temperature and its corresponding nip-point temperature. The inverse problem studied here simply reverses the flow of prediction. The authors showed that from a small set of 28 experimental data, virtual data can be generated whereby the training set for the inverse model consisted of predictions made by the direct model, excluding outliers, in addition to the original data. This approach showed a relationship between the direct and inverse models where one can be used to train the other. It was inferred that as more data are available, both models can be improved with little modification to the training pipeline.

Melaibari et al. applied neural networks to predict the GO- CuO/water-EG hybrid nanofluid viscosity that is found from the process of loading graphene oxide and copper oxide nanoparticles into ethylene glycol-water. Two methods were studied and compared: neural networks and response surface methodology (RSM). The ANNs comprised three layers, with the architecture (3, 10, 1). The three inputs are temperature, mass fraction and shear rate and the output value is the viscosity.

Additionally, the Sigmoid activation function was used. However, the training setup such as the dataset size, optimizer,

Prime Archives In Polymer Technology: 2Nd Edition

10 www.videleaf.com etc., was not reported. On the other hand, the RSM uses the same three inputs to form a polynomial predicting the viscosity.

The polynomial consists of 19 parameters that are learned. From the experiments, the ANN achieved a mean square error of 0.0125 while RSM reached 0.166. This is quite sensible, considering that the ANN had 3×10 + 10×1 = 40 parameters to fine-tune, almost double that of the RSM polynomial.

In many of these works, the neural networks used were small FC networks and the main interest came from the workflow which can be used as a guideline for other manufacturing ML In the domain of quality control, a few papers have introduced the use of CNN. Nuria et al. incorporated CNN into a computer vision quality control system for the sealing of thermoforming food packages. In particular, the system contains multiple components, from a vision software that processes images from the camera to a CNN that makes the prediction of accepting or rejecting the package. Multiple neural network architectures were used: five ResNet configurations, three VGG

Each

architecture would be trained on all five datasets separately. This is to find which dataset fits the real-word scenario the most. In total, there are 2978 training images and 628 validation images.

For each network, it can be trained from scratch or trained from a set of weights pre-trained on ImageNet—an extensive dataset for object classification, first described in . The input to the CNN is a mono-infrared (read black and white) image, while the output is a binary decision of accept/reject. For this type of prediction, the output could either be one or two neurons. It is unclear how pre-trained models are trained or used for prediction, since ImageNet contains RGB images that have different dimensions from the mono ones. The results shown were very promising. All models achieved an accuracy of at least 93%. Pre-trained DenseNet161 proved to be the best with 99%. This work proved the usefulness of CNNs in the real- world setting. It has also demonstrated that using pre-trained models can be helpful. This can serve as a guideline for other applications of CNN in manufacturing to create a system of both computer vision software and convolutional neural networks.

Prime Archives In Polymer Technology: 2Nd Edition

11 www.videleaf.com

Odel Overview And Material Properties

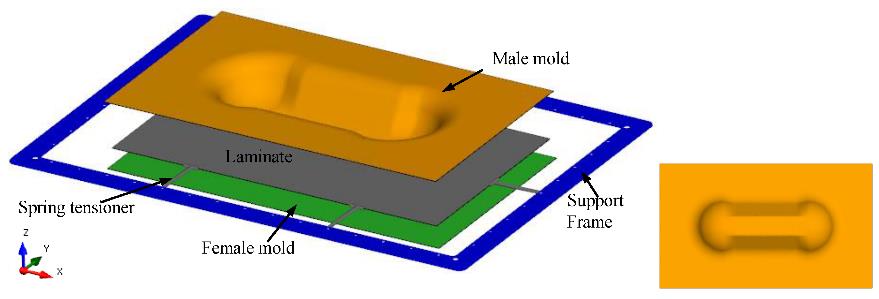

Figure 2 shows the model setup for the thermoforming process analysis. The molds are of a double-dome geometry. The support frame and mold tools are rigid and the underlying fabric- reinforced thermoplastic laminate comprises two layers of plain- woven carbon fiber prepregs that are each 0.3 mm thick. The laminate is gripped using spring tensioners and suspended within the supporting frame to transport it from the heating stage to the molding stage where the slightly tensioned laminate will be placed in between the upper and lower molds before being pressed to form the part. Tensioners are typically used to reduce the amount of laminate sagging and improve laminate alignment with the mold when the thermoplastic composite has been heated.

Figure 2: Thermoforming setup (left); Double-dome mold geometry—bottom view (right). The thermoforming behavior of the laminate is mathematically captured using various material models. Essentially, the mechanisms observed in composite laminate forming are intra- ply in-plane shear and bending and tool–ply and ply–ply interfacial slippage. Table 1 shows the ply properties used for the thermoforming analysis in AniFormTM.

Prime Archives In Polymer Technology: 2Nd Edition

12 www.videleaf.com Table 1: Ply properties used for the plain-woven laminate thermoforming analysis.

Prime Archives In Polymer Technology: 2Nd Edition

13 www.videleaf.com The isotropic elastic and the cross-viscosity models are jointly used to predict the in-plane and bending behaviors of the plies.

The cross model is a shear-rate-dependent viscosity model as found in the work of Macosko . It is used to model power law type of response with a viscosity plateau region at low and high shear rates, respectively. The mathematical equations

𝐃

where  is the Cauchy stress, D is the rate of deformation tensor and J is the Jacobian of the deformation gradient. The Mooney–Rivlin model is a hyperelastic model, suited to model the response of rubber-like materials. The general

𝐼2 −3)

with Cij material constants and I1 and I2 the strain invariants. AniFormTM uses the two parameter Mooney–Rivlin model, where C01 and C10 can be set for n = 1, C00 = C11 = 0. The

𝐽. (2𝐶10(𝑩−𝑰) −2𝐶01(𝑩−1 −𝑰))

where B is the Cauchy–Green deformation tensor and J is the Jacobian of the deformation gradient. A mixed model that combines the models in parallel is used to describe the overall deformation mechanism. The total stress

, Where Each Basic Model

stress tensor, i, can be scaled by a weight. In our modeling, we

Prime Archives In Polymer Technology: 2Nd Edition

14 www.videleaf.com assume equal weightage between the elastic and viscous response, i.e., 1= 1=1.

Part Profile

A geometry for the part profile has to be selected for this machine learning work. The double-dome geometry, with doubly curved regions of steep walls and small radii, is chosen as it is widely used by research groups as a suitable benchmark for the investigation of forming behavior. The groups aim to support the development of reliable and robust simulations for forming processes. The benchmark metrics for comparison include shear angles, draw-in and possible presence of wrinkles. The chosen testing material comprised balanced plain weave (BPW), balanced twill weave (BTW) and UBTW Twintex comingled glass/PP fabric laminate.

For greater insights on the formability response of plain-woven fabric-reinforced thermoplastics, Rietman et al. compared the results of AniFormTM simulations of the double-dome (DD) geometry with published results. The authors pointed out that different laminate orientations alone would lead to completely different deformation results, which include the distribution of shear angle. It is with this consideration that our work also utilizes the double-dome geometry so as to provide insights on optimization and also gain wider readership and application.

Thermoforming Parameters Studied

Five process parameters were investigated. These include (1) laminate orientation, (2) spring stiffness of tensioners, (3) preload of grip tensioners, (4) forming/press Rate and (5) grip size. The effect of tool and laminate temperatures could not be effectively investigated as temperature-dependent ply properties were not available. The parameter values were varied to run a total of 200 AniformTM simulations. The values corresponded to practical thermoforming process parameter ranges and are shown in Table 2. It is noted that the run cases are not a full factorial space of the available parameters shown in Table 2.

Prime Archives In Polymer Technology: 2Nd Edition

15 www.videleaf.com Table 2: Combinations of process parameters used.

, 4, 8

Metrics such as the slip-path length and intra-ply shear angle results were used to evaluate the quality of the thermoformed part. The slip-path length is defined as the total slip that was encountered by a certain point at the tool–ply interface as the laminate needs to slide along the tooling during press forming . The magnitude of this length could give an indication of the duration a particular region was exposed to a colder tooling surface, which will give a higher possibility of surface defect as shown by Figure 3, where in-house experiments and simulations, for the thermoforming of four ply 2 × 2 twill carbon fiber- reinforced thermoplastics, show positive correlation between the slip-path length and the location of matrix smearing or optical defect. This defect is caused by excessive traction and slippage of the solidifying laminate with the cooling surface. Figure 4 shows experimental verification that regions of the laminate with higher ply shear will less likely experience wrinkle formation. In the top pictures of Figure 4, the side regions of the thermoformed wall showed wrinkles upon forming, which correlates to lower ply shear angles at that region. Similarly, in the bottom pictures of Figure 4, the two sides of the triangular wall surface have higher ply shear resulting in a smoothly formed part while wrinkles were observed close to the centerline of the triangular surface which corresponds to a lower ply shear angle at that region.

Prime Archives In Polymer Technology: 2Nd Edition

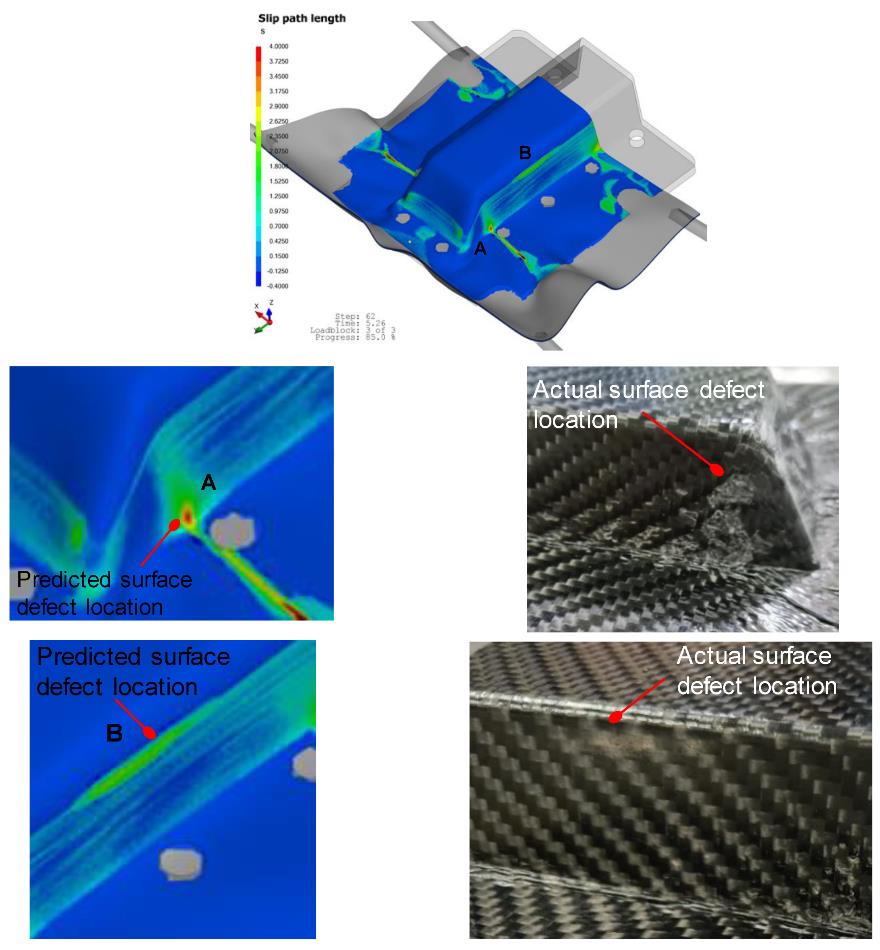

16 www.videleaf.com Figure 3: Good correlation of matrix smearing surface defect with slip-path length indicator.

Prime Archives In Polymer Technology: 2Nd Edition

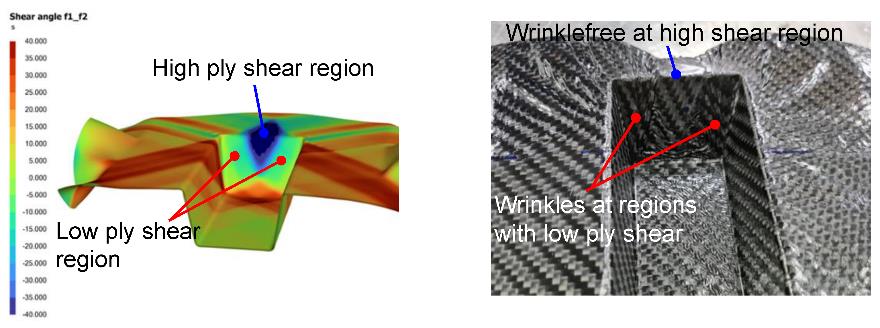

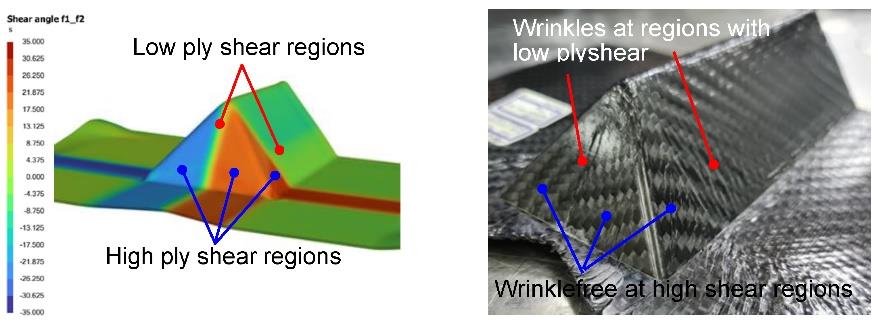

17 www.videleaf.com Figure 4: Good correlation of wrinkle formation with low ply shear angle. Figure 5 (left) shows an example of the slip-path length and ply shear angle distribution on the double-dome part after thermoforming simulation. Higher slip-path lengths (as shown by the red regions) are typically near the transition from the vertical wall of the part to the excess material, with values as high as 15 to 20 mm. The location of high shear angles typically depends on the ply orientation relative to the mold. Figure 5 (right) shows the shear angle resulting from a 0 degree laminate.

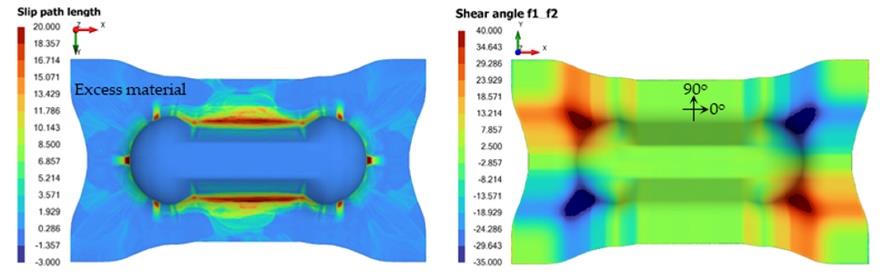

The maximum shear angles could reach +/−40 degrees. Figure 5: Example of slip-path length (left) and ply shear angle (right) distribution on the formed laminate.

Mage Data Preprocessing

Machine learning is the process of learning a predictor to correctly predict a data space with the objective being either a regression (real number) task or a classification (discrete sets) task. Many learning paradigms have been proposed over the years. Non-ANN methods are specifically designed with

Prime Archives In Polymer Technology: 2Nd Edition

18 www.videleaf.com restrictive assumptions in mind. They can excel with data spaces that fit their assumptions, but are difficult, if not impossible, to predict data with complicated distributions. Some important reasons why ANNs are used so widely today is that virtually no assumptions about the data space are made and that they are capable of capturing nuances from the data and provide nonlinear predictions.

The first part of this project explores the possibility of predicting process parameters based on the product images from finite element (FE) simulation contours similar to those in Figure 5.

Although FE simulation contours were evaluated in our study, this does not exclude the use of images from actual formed physical products. In our study, the slip-path length (SPL) contour images are collected as input data for machine learning.

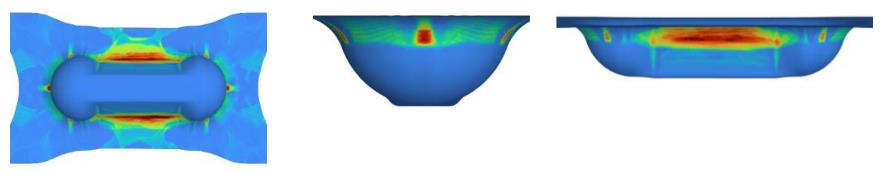

To maximize the visual information gained, multiple views of the same case run are collected as shown in Figure 6, with the bottom view giving an overview of the SPL distribution and approximate location with high values, while the front and right views give more details of the SPL distribution on the sides of the laminate.

Figure 6: Bottom (left), front (middle) and side (right) views of SPL distribution of the double-dome part from AniFormTM simulation. Before being processed by the ANNs, the images are normalized. The normalization step would convert pixel values into values between 0 and 1. As the original images have very high resolution, using these images would require extensive computational resources for ANN training. Therefore, they are rescaled to 336 × 336 pixels which allowed for good results while not requiring too much computational memory. In some cases, it is possible to rescale the images to 224 × 224 pixels and still achieve good results. Since the SPL distribution is represented by a color contour, it is appropriate to represent an
