Abstract

Isogeometric cohesive elements are presented for modeling two and three dimensional delaminated composite structures. We exploit the knot insertion algorithm offered by NURBS (Non Uniform Rational B-splines) to generate cohesive ele- ments along delamination planes in an automatic fashion. A complete computational framework is presented including pre-processing, processing and post-processing. They are explained in details and implemented in MIGFEM–an open source Matlab Isogemetric Analysis code developed by the authors. The composite laminates are modeled using both NURBS solid and shell elements. Several two and three dimensional examples ranging from standard delamination tests (the mixed mode bending test), the L-shaped specimen with a fillet, three dimensional (3D) double cantilever beam and a 3D singly curved thick-walled laminate are provided. To the authors’ knowledge, it is the first time that NURBS-based isogeometric analysis for two/three dimensional delamination modeling is presented. For all examples considered, the proposed framework outperforms conventional Lagrange finite elements.

isogeometric analysis (IGA), B-spline, NURBS, finite elements (FEM), CAD, delamination, composite,

Ntroduction

Isogeometric analysis (IGA) was proposed by Hughes and his co-workers in 2005 to reduce the gap between Computer Aided Design (CAD) and Finite Element Analysis (FEA). The idea is to use CAD technology such B-splines, NURBS (Non Uniform Rational B-splines), T-splines etc. as basis functions in a finite element (FE) framework. Since this seminal paper, a monograph has been published entirely on the subject and applications have been found in several fields including structural mechanics, solid mechanics, fluid mechanics and contact mechanics. It should be emphasized that the idea of using CAD technologies in finite elements is not new. For example in , B-splines were used as shape functions in FEM and subdivision surfaces were adopted to model shells .

Due to the ultra smoothness provided by NURBS basis, IGA has been successfully applied to many engineering problems ranging from contact mechanics, see e.g., [5, 6, 7, 8, 9], optimisation problems [10, 11, 12, 13], structural mechanics [14, 15, 16, 17, 18, 19, 20], structural vibration [21, 22, 23, 24], to fluids mechanics [25, 26, 27], fluid-structure interaction problems [28, 29]. In addition, due to the ease of constructing high order continuous basis functions, IGA

Arxiv:1305.2738V1 [Math.Na] 13 May 2013

has been used with great success in solving PDEs that incorporate fourth order (or higher) derivatives of the field variable such as the Hill-Cahnard equation , explicit gradient damage models and gradient elasticity . The high order NURBS basis have also found potential application in the Kohn-Sham equation for electronic structure modeling of semiconducting materials . We refer to for an overview of IGA and its implementation aspects.

In the context of fracture mechanics, IGA has been applied to fracture using the partition of unity method (PUM) to capture two dimensional strong discontinuities and crack tip singularities efficiently [35, 36]. In an explicit isogeometric enrichment technique is proposed for modeling material interfaces and cracks exactly. Note that this method is contratry to PUM-based enrichment methods which define the cracks implicitly. A phase field model for dynamic fracture has been presented in where adaptive refinement with T-splines provides an effective method for simulating fracture in three dimensions. There are, however, only a few works on cohesive fracture in an IGA framework . The method hinges on the ability to specify the continuity of NURBS/T-splines through a process known as knot insertion. Highly accurate stress fields in cracked specimens were obtained with coarse meshes.

Delamination or interfacial cracking between composite layers is unarguably one of the predominant modes of failure in laminated composite. This failure mode has therefore been widely investigated both experimentally and numerically. Delamination analyses have been traditionally performed using standard low order Lagrange finite elements, see e.g., [40, 41, 42, 43] and references therein. The two most popular computational methods for the analysis of delamination are the Virtual Crack Closure Technique (VCCT) [44, 45] and interface elements with a cohesive law (also known as decohesion elements) [40, 41, 42]. The latter is adopted in this contribution for it can deal with initiation and propagation of delamination in a unified theory. The Element Free Galerkin, which is a meshfree method, with the smooth moving least square basis was also adopted for delamination analysis . In order to alleviate the computational expense of cohesive elements, formulations with enrichment of the FE basis was proposed in [47, 48]. The extended finite element method (XFEM) have been adopted for delamination studies e.g., [50, 51, 52] which makes the pre- processing simple for the delaminations can be arbitrarily located with respect to the FE mesh. The interaction between the delamination plane and the mesh is resolved during the solving step by using enrichment functions. More recently, in high order B-splines cohesive FEM with C0 continuity across element boundary were utilized to efficiently model delamination of two dimensional (2D) composite specimens. In the referred paper, it was shown that by using high order B-spline (order of up to 4) basis functions, relatively coarse meshes can be used and 2D delamination benchmark tests such as the MMB were solved within 10 seconds on a laptop.

In this manuscript, prompted by our previous encouraging results reported on and the work in , we present an isogeometric framework for two and three dimensional (2D/3D) delamination analysis of laminated composites. Both the geometry and the displacement field are approximated using NURBS, therefore curved geometries are exactly represented. We use knot insertion algorithm of NURBS to duplicate control points along the delamination path.

Meshes of zero-thickness interface elements can be straightforwardly generated. The proposed ideas are implemented in our open source Matlab IGA code, MIGFEM4, described in . Several examples are provided including the mixed mode bending test, a L-shaped curved composite specimen test [54, 55], 3D double cantilever beam and a 3D singly curved thick-walled laminate. Moreover, isogeometric shell elements are used for the first time, at least to the authors’ knowledge, to model delamination. Our findings are (i) the proposed IGA-based framework reduces significantly the time being spent on the pre-processing step to prepare FE models for delamination analyses and (ii) from the analysis perspective, the ultra smooth high order NURBS basis functions are able to produce highly accurate stress fields which is very important in fracture modeling. The consequence is that relatively coarse meshes (compared to meshes of lower order elements) can be adopted and thus the computational expense is reduced.

The remainder of the paper is organized as follows. Section 2 briefly presents NURBS curves, surfaces and solids. Section 3 is devoted to a discussion on knot insertion and automatic generation of cohesive interface elements followed 4available for download at https://sourceforge.net/projects/cmcodes/ by finite element formulations for solids with cohesive cracks given in Section 4. Numerical examples are given in Section 5. Finally, Section 6 ends the paper with some concluding remarks.

Nurbs Curves, Surfaces And Solids

In this section, NURBS are briefly reviewed. We refer to the standard textbook for details. A knot vector is a sequence in ascending order of parameter values, written Ξ = {ξ1, ξ2, . . , ξn+p+1} where ξi is the ith knot, n is the number of basis functions and p is the order of the B-spline basis. Open knots are used in this manuscript.

Given a knot vector Ξ, the B-spline basis functions are defined recursively starting with the zeroth order basis

(2)

This is referred to as the Cox-de Boor recursion formula. Figure 1 illustrates some quadratic B-splines functions defined on an open non-uniform knot vector. Note that the basis functions are interpolatory at the ends of the interval thanks to the use of open knot vectors and also at ξ = 4, the location of a repeated knot where only C0-continuity is attained. Elsewhere, the functions are C1-continuous. The ability to control continuity by means of knot insertion is particularly useful for modeling discontinuities such as cracks or material interfaces as will be presented in this paper. In general, in order to have a C−1 continuity at a knot, its multiplicity must be p + 1.

−1

Figure 1: Quadratic (p = 2) B-spline basis functions for an open non-uniform knot vector Ξ = {0, 0, 0, 1, 2, 3, 4, 4, 5, 5, 5}. Note the flexibility in the construction of basis functions with varying degrees of regularity.

(3)

where Ni,p(ξ) denotes the ith B-spline basis function of order p and wi are a set of n positive weights. Selecting appropriate values for the wi permits the description of many different types of curves including polynomials and circular arcs. For the special case in which wi = c, i = 1, 2, . . , n the NURBS basis reduces to the B-spline basis. Note that for simple geometries, the weights can be defined analytically see e.g., . For complex geometries, they are obtained from CAD packages such as Rhino .

Given two knot vectors (one for each direction) Ξ = {ξ1, ξ2, . . , ξn+p+1} and H = {η1, η2, . , ηm+q+1} and a control net Bi,j ∈Rd, a tensor-product NURBS surface is defined as

(7)

Derivatives of the B-splines and NURBS basis functions can be find elsewhere e.g., [1, 2].

Knot Insertion

It should be emphasized that knot insertion does not change the B-spline curves or surfaces geometrically but a direct influence on the continuity of the approximation where knots are repeated. Let us consider a knot vector defined by Ξ = {ξ1, ξ2, . . , ξn+p+1} with the corresponding control net denoted by B. A new extended knot vector given by ¯Ξ = {¯ξ1 = ξ1, ¯ξ2, . , ¯ξn+m+p+1 = ξn+p+1} is formed where m knots are added. The n + m new control points ¯Bi are

(9)

Considering a quadratic B-spline curve with knot vector Ξ = {0, 0, 0, 0.5, 1, 1, 1} and control points as shown in Fig. 2 (left). On the right of the same figure, two new knots ξ = 0.25 and ξ = 0.75 were added. Consequently, two new control points were formed. Although the curve is not changed geometrically and parametrically, the basis functions are now richer and may be more suitable for the purpose of analysis.

Figure 2: Knot insertion on a quadratic B-spline curve. The curve is not changed geometrically. Control points are denoted by filled green circles. Points corresponding to the knot values are denoted by red circles. These points divide the curve into segments or elements from an analysis standpoint.

Let us now consider a quadratic B-spline defined using Ξ = [0, 0, 0, 1, 1, 1]. The three basis functions for this curve are given in Fig. (3a). Now suppose that we need to have a discontinuity at ξ = 0.5. This can be achieved by inserting a new knot ¯ξ = 0.5 three (= p + 1) times. The new knot vector is then given by Ξ′ = [0, 0, 0, 0.5, 0.5, 0.5, 1, 1, 1] and the new basis functions are shown in Fig. (3b). Let us build a B-spline curve with the control net defined by B as shown in Eq. (10). The new control net that is defined by B′ is also given in Eq.

= B′

4. The B-spline curve corresponds to the original and new basis is the same

And Given In Fig. (3C). Imagine Now That Point B′

4 slightly moves vertically, the resulting B-spline curve with a strong discontinuity at x = 0.5 is plotted in Fig. (3d). This technique of inserting knot values p + 1 times was used in to model the decohesion of material interfaces. The application of this method in two/three dimensions resemble the usage of zero-thickness interface elements by doubling nodes in the FE framework.

We demonstrate the technique to generate a discontinuity into a NURBS surface by a simple example. The studied surface is a square of 10 × 10 and suppose that one needs a horizontal discontinuity line in the middle of the square

The Original Position

Figure 3: p + 1 times knot insertion for a quadratic B-spline curve to introduce a C−1 discontinuity at ξ = 0.5. as shown in Fig. (4a). The coarsest mesh consists of one single bi-linear NURBS element with Ξ = H = {0, 0, 1, 1} and p = q = 1. To insert the desired discontinuity, the following steps are performed: (1) perform order elevation to p = q = 2; (2) perform knot insertion for H , the new knot is H = {0, 0, 0, 0.5, 0.5, 0.5, 1, 1, 1} (Fig. (4b)); and (3) perform knot insertion to refine the mesh if needed. In Fig. (4c,d) the duplicated control points were moved upward to show the effect of discontinuity. In order to use these duplicated nodes in a FE context, one can put springs connecting each pair of nodes or employ zero-thickness interface elements. In this manuscript the latter is used. With a small amount of effort, the connectivity matrix for the interface elements can be constructed using a simple Matlab code as given in Listing 1. It is obvious that, due to the simplification made in line 2 of Listing 1, this code snippet applies only for a horizontal/vertical discontinuity line. However, it is straightforward to extend this template code to general cases by changing line 2. Such refinements are certainly problem dependent and hence not provided here. We refer to Fig. (5) for one example of a curved composite panel made of two plies.

Listing 1: Matlab code to build the element connectivity for 1D interface elements

C

Figure 4: Example of introducing a horizontal discontinuity in a NURBS surface.

N

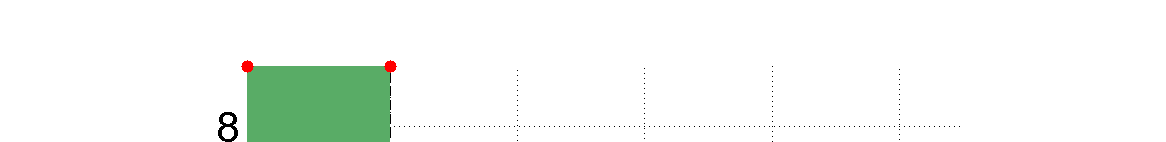

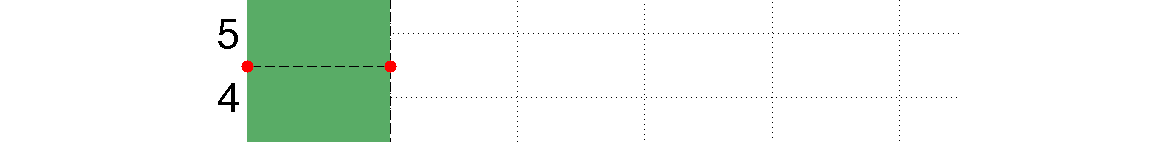

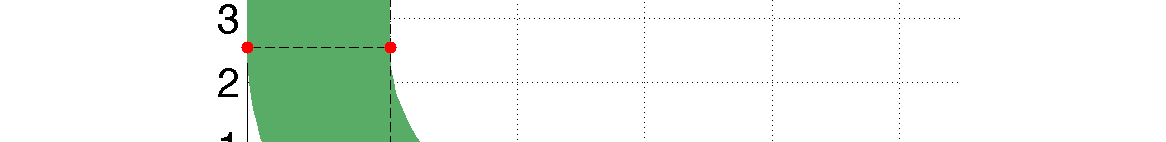

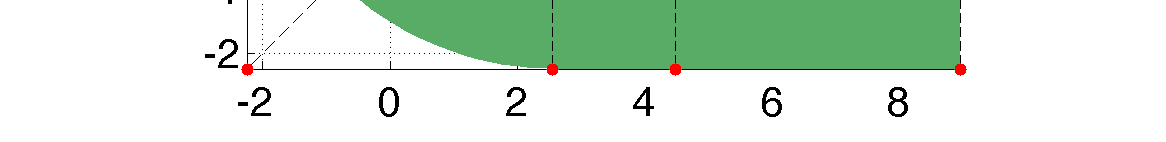

Figure 5: L-shaped composite sample of two plies with a fillet modeled with a bi-quadratic NURBS: red circles denote duplicated nodes. For this case, it suffices to find the index of node S–the first node on the discontinuity curve. By virtue of the tensor-product nature of NURBS, the indices of other discontinuity nodes can then be found with ease.

= Lowernodes ( S C T R ) ;

iElements ( i , p+2:end) = upperNodes ( s c t r ) ;

End

Listing 2: Matlab code to build the element connectivity for 2D interface elements

= Lowernodes ( Ielements ( E , : ) ) ;

iElements ( e , ( p+1)∗(q+1)+1:end) = upperNodes ( iElementS ( e , : ) ) ;

End

The technique introduced so far can be straightforwardly extended to three dimensions, see Listing 2 and Fig. (6) for an example. The discontinuity surface lies in the X −Y plane. Line 7 of this Listing builds the element connectivity array for a 2D NURBS mesh, we refer to for a detailed description of these Matlab functions. These pre-processing techniques are implemented in our open source Matlab IGA code named MIGFEM, desribed in , which is available at https://sourceforge.net/projects/cmcodes/. In order to support IGA codes which are based on the B´ezier extraction [58, 59], see also Section 4.5, MIGFEM computes the 1D, 2D and 3D B´ezier extractors. In summary the pre-processing code writes to a file with (1) coordinates of control points (including duplicated ones), (2) connectivity of continuum elements, (3) connectivity of interface elements, (4) 2D/3D B´ezier extractors for continuum elements and (5) 1D/2D extractors for interface elements. It should be emphasized that inserting interface elements into a Lagrange FE mesh is a time-consuming task even with commercial FE packages. Due to that fact, a free mesh generator for cohesive modeling was developed by the first author and presented in .

Dis

Figure 6: A 3D bar with a discontinuity surface in the middle: modeled by a tri-quadratic NURBS solid. Remark 3.1. In the proposed framework, interface elements are inserted a priori, therefore delaminations only grow along predefined paths.

For laminates built up by plies of unidirectional fiber reinforced composites, the fracture toughness of the plies is much greater than the fracture toughness of the ply interfaces. Therefore, delaminations only grow along the ply interfaces which are known a priori. And that justifies our assumption.

Sogeometric Analysis

According to the IGA the field variable (which is, in this paper, the displacement field) is approximated by the same B-spline/NURBS basis functions used to exactly represent the geometry. Therefore, in an IGA context, one writes for

(11B)

where xI are the nodal coordinates, uiI is the i (i = 1, 2, 3) component of the displacement at node/control point I and NI denotes the shape functions which are the B-spline/NURBS basis functions described in Section 2.

Phy

Figure 7: Definition of domains used for integration in isogeometric analysis. Elements are defined in the parametric space as non-zero knot spans, [ξi, ξi+1] × [ηj, ηj+1] and elements in the physical space are images of their parametric counterparts.

Elements are defined as non-zero knot spans, see Fig. (7), which are elements in the parameter space (denoted by ˆΩe). Their images in the physical space obtained via the mapping, see Eq. (11), are called elements in the physical space (denoted by Ωe) that resemble the familiar Lagrange elements. From our experiences, it is beneficial to work with elements in the parameter space. Numerical integration is also performed on a parent domain as in Lagrange FEs.

Fe Discrete Equations

The semi-discrete equation for a solid with cohesive cracks is given by

(12)

where a is the acceleration vector, M denotes the consistent mass matrix, f ext is the external force vector , the internal force vector is denoted as f int and the cohesive force vector f coh. The elemental mass matrix, external and internal force vectors are computed from contributions of continuum elements and given by

(15)

where ρ is the density, Ωe is the element domain, Γe t is the element boundary that overlaps with the Neumann boundary, b and ¯t are the body forces and traction vector, respectively. The shape function matrix and the strain-displacement matrix are denoted by N and B; σ is the Cauchy stress vector.

The cohesive force vector is computed by assembling the contribution of all interface elements. It is given by for an

(16)

in which tc denotes the cohesive traction, Nint represents the shape function matrix of interface elements. The subscripts +/- denote the upper and lower faces of the interface element. The displacement of the upper and lower faces of an interface element, let say the first element in Fig. (8)-left read

(17)

with NI (I = 1, 2, 3, 4) are the quadratic NURBS shape functions. Figure 8 also explains the difference between Cp−1 and C0 high order elements–for the same number of elements, Cp−1 meshes have less nodes. We refer to for more information on this issue. The latter was used in with B-spline basis for 2D delamination analysis.

Having defined the displacement of the upper and lower faces of the interface, it is able to compute the displacement

(19)

The displacement jump will be inserted into a cohesive law (or traction-separation law) to compute the corresponding traction tc. We refer to [40, 41, 42] and references therein for other aspects of interface cohesive elements.

The

implementation for three dimensional problems i.e., 2D interface elements is straightforward, for example in Eq. (17),

N2

Figure 8: Illustration of Cp−1 NURBS interface elements (left) and C0 NURBS interface elements (right): For Cp−1 ele- ments, the connectivity of the first element is [1, 2, 3, 5, 6, 7] while the connectivity of the second element is [2, 3, 4, 6, 7, 8]. instead of using univariate NURBS basis one uses bivariate basis NI(ξ, η).

Ohesive Laws

In this work, we adopt the damage-based bilinear cohesive law developed in [61, 62]. This is a cohesive law in which the fracture toughness is a phenomenological function, rather than a material constant, of mode mixity as formulated by Benzeggagh and Kenane . Herein we briefly recall the cohesive law of which implementation details can be found in . Denoting d as the damage variable (0 ≤d ≤1), the cohesive law reads in the local coordinate system attached

(20)

where K is the dummy stiffness. The damage variable d is a function of the equivalent displacement jump, the onset

[[U]]0

eq and the propagation equivalent displacement jump [[u]]f

Eq, Mode I

and II fracture toughness GIc, GIIc, the mode mixity and η which is a curve fitting value for fracture toughness tests performed by Benzeggagh and Kenane .

Numerical Integration

In this manuscript, full Gaussian integration schemes are used. Precisely, for 2D solid elements of order p × q, a (p + 1) × (q + 1) Gauss quadrature rule is adopted and for cohesive elements of order p, a (p + 1) Gauss scheme is utilized. A similar rule was used for 3D solid elements and 2D cohesive elements.

Mplementation Aspects

There are at least two approaches to incorporating IGA into existing FE codes–with and without using the B´ezier extraction. The former, which relies on the B´ezier decomposition technique, was developed in [58, 59] and provides data structures (the so-called B´ezier extractor sparse matrices) that facilitate the implementation of IGA in existing FE codes. Precisely, the shape functions of IGA elements are the Bernstein polynomials (defined on the standard parent element) multiplied by the extractors. We refer to for a discussion on both techniques.

For curved geometries, the post-processing of IGA is more involved than Lagrange FEs due to two reasons (1) some control points locate outside the physical domain (hence the computed displacements at control points are not nodal values) and (2) existing post-processing techniques cannot be applied directly to NURBS meshes. Interested reader can refer to for a discussion on some post-processing techniques for IGA. For completeness we discuss briefly is constructed. The nodes of this mesh are the intersections of the ξ and η knot lines in the physical space. We then extrapolate the quantities at Gauss points to these nodes and perform nodal averaging if necessary. Figure 9 summarizes the idea.

Gp

Figure 9: Post-processing in Isogeometric Analysis.

Examples

Since we are introducing a computational framework for delamination analyses rather than a detailed study of the delamination behaviour of composite materials, intralaminar damage (matrix cracking and fiber damage) is not taken into account leading to an orthotropic elastic behaviour assumption for the plies. Note that matrix cracking can however be efficiently modeled using extended finite elements as shown in [65, 64] and can be incorporated in our framework without major difficulties. Besides, inertia effects are also skipped. In order to trace equilibrium curves we use either a displacement control (for problems without snapbacks) and the energy-based arc-length control [66, 67].

Interested reader can refer to [53, 65] for the computer implementation aspects of this arc-length solver. A full Newton- Raphson method was used to solve the discrete equilibrium equations. Unless otherwise stated, a geometrically linear formulation is adopted.

We use a C++ code for computations since Matlab is not suitable for this purpose. Whenever possible, validation against theoretical solutions are provided.

Four Numerical Examples Are Provided Including

• Mixed mode bending test (MMB), 2D simple geometry, implementation verification test; • L-shaped specimen, single and multiple delamination, NURBS curved geometry; • 3D double cantilever beam, to verify the implementation; • Singly curved thick-walled laminate, 3D curved geometry.

And in an extra example, we present NURBS parametrization for other commonly used composite structures–glare panel with a circular initial delamination, open hole laminate and doubly curved composite panel.

Ixed Mode Bending Test (Mmb)

Figure 10 shows the mixed mode bending test of which the geometry data are L = 100 mm, h = 3 mm; the beam thickness B is equal to 10 mm; the initial crack length is a0 = 20 mm. The plies are modeled with isotropic material to make a fair comparison with analytical solutions which are valid for isotropic materials only. The properties for the isotropic material are E = 150 GPa and ν = 0.25. The properties for the cohesive elements are GIc = 0.352

= 80 Mpa, Τ 0

3 = 60 MPa. The interface stiffness is K = 106 N/mm3 and η = 1.56. In order to prevent interpenetration of the two arms, in addition to cohesive elements, frictionless contact elements are placed along the initial crack. The loads applied are P1 = 2Pc/L and P2 = P(2c + L)/L, where L is the beam length, c is the lever arm length, and P is the applied load. From these relationships, it is clear that the applied loads P1 and P2 are proportional i.e., P2/P1 = (2c + L)/L. We choose c = 43.72 mm so that the mixed-mode ratio GI/GII is unity.

The external force vector is therefore f ext = λ[1, −2.1436]T (a unit force was assigned to P1) in which the variable load scale λ is solved together with the nodal displacements using the energy based arc-length method [66, 67, 53].

P1

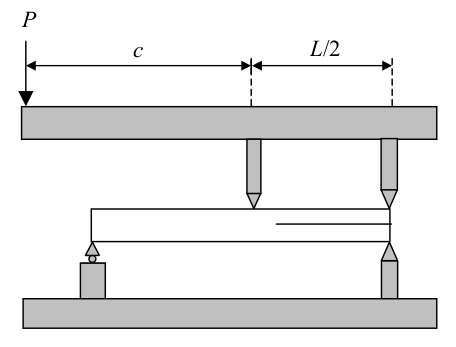

Figure 10: Mixed Mode Bending (MMB): geometry and loading.

Geometry And Mesh

For those who are not familiar to B-splines/NURBS, we present how to build the beam geometry using B-splines. It is obvious that the beam can be exactly represented by a bilinear B-spline surface with 4 control points locating at order that suits the analysis purpose, see line 10 of the same Listing. The delamination path locates in the midline of the beam i.e., η = 0.5 and note that q = 2, in order to introduce a discontinuity one simply has to insert 0.5 three (= q + 1) times into knot vector H (knot vector which is perpendicular to the delamination plane). For point load P2 one needs a control point at the location of the force which corresponding to insert 0.5 three times (equals p = 3) into knots Ξ. Line 13 does exactly that. In order to differentiate cohesive elements and contact elements (remind that contact elements are put along the initial crack to prevent interpenetration), a knot 1 −a0/L is added to Ξ p times (see line 14). The final step is to perform a h-refinement to refine the mesh and extract element connectivity data for the interface elements using the code given in Listing 1.

Listing 3: Matlab code to build the beam using B-splines

Vknot = ;

s o l i d = nrbmak( controlPts , { uKnot vKnot } ) ; % build

S O L I D

= nrbkntins ( s o l i d ,{[1 −a0/L 1−a0/L 1−a0/L ]

Analyses With Varying Basis Orders

We use meshes with two elements along the thickness direction and the basis order along this direction is fixed to 2 (quadratic basis). The notation 2 × 128 B2 × 3 indicates a mesh of 2 × 128 elements of orders 2 × 3. The order of basis functions along the length direction, p, varies from two to five. Firstly we perform a mesh convergence test for quartic-quadratic elements and the result is given in Fig. (11a). Mesh 2 × 64 is simply too coarse to accurately capture the cohesive zone and mesh 2 × 128 is sufficient to get a reasonable result. Next, the mesh density is fixed at 2 × 128 and p is varied from 2 to 5, the result is plotted in Fig. (11b). We refer to for a throughout study on the excellent performance of high order B-splines elements compared to low order Lagrange finite elements for delamination analyses.

-Shaped Composite Panel With A Fillet

For the second example, we analyze the L-shaped composite specimen which was studied in [55, 54] using Lagrange finite elements. The geometry and loading configuration is given in Fig. (12). Contrary to the previous example, in this example NURBS surfaces are used to exactly represent the curved geometry (to be precise circular arcs). The structure is built up by 15 plies of a unidirectional fiber reinforced carbon/epoxy material. The plies are oriented in alternating 0◦and 90◦orientation, where the angle is measured from the xy plane. The inner ply and the outer ply are oriented in the 0◦direction. Material constants are given in Table 1 which are taken from [55, 54]. A plane strain condition

(B)

Figure 11: Mixed Mode Bending (MMB): (a) mesh convergence test and (b) varying basis order in the length direction on meshes of 2 × 128 elements. is assumed. For this problem, unless otherwise stated, we use bi-quadratic NURBS elements for the continuum and quadratic NURBS interface elements for the delamination.

Pa

Table 1: L-shaped specimen: material properties.

Geometry And Mesh

The L-shaped geometry can be exactly represented by a quadratic-linear NURBS surface as shown in Fig. (13) that consists of 7 × 2 control points. The Matlab code used to build the NURBS is given in Listing 4. It is easy to vary the number of plies (see line 4 of the same Listing). Listing 5 gives code to perform p-refinement (to a bi-quadratic NURBS surface) and knot insertion at ply interfaces (two times) to create C0 lines so that the strain field is discontinuous across the ply interfaces. Next, knot insertion is performed again to generate discontinuity lines at the desired ply interfaces.

Two cases are illustrated in the code–interface elements locate along the interface between ply 5 and 6 (line 10) and interface elements at every ply interfaces (line 12-16). Listing 4: Matlab code to build NURBS geometry of the L-shaped specimen.

Layout

Figure 12: L-shaped specimen: boundary and geometry data. There are 15 plies (0◦and 90◦). The ply orientation is measured with respect to the x −y plane. Figure 13: L-shaped specimen: quadratic-linear NURBS geometry with control points (filled circles) and control polygon.
