Digimat Thermal Analysis

Salt Lake City, Ut, Usa

∗A preliminary version of this work was presented in IMECE 2017: paper number IMECE2017-72120 †Address all correspondence for other issues to this author.

Abstract

An Omnimagnet is an electromagnetic device that enables remote magnetic manipulation of devices such as medical implants and microrobots. It is comprised of three orthogonal nested solenoids with a ferromagnetic core at the center. Electrical current within the solenoids leads to Joule heating, resulting in undesired temperature increase within the Omnimagnet. If the temperature exceeds the melting point of the wire insulation, device failure will occur.

Thus, a study of heat transfer within an Omnimagnet is a necessity, particularly to maximize the performance of the device. For the first time, a transient heat transfer model, that incorporates all three heat transfer modes, is proposed and validated with experimental data for an Omnimagnet with maximum root mean square error equal to 8% (4◦C). This transient model is not computationally expensive. It is relatively easy to apply to Omnimagnets with different structures. The accuracy of this model depends on the accuracy of the input data. The code is applied to calculate the maximum safe operational time at a fixed input current or the maximum safe input current for a fixed time interval. The maximum safe operational time and maximum safe input current depend on size and structure of the Omnimagnet and the lowest melting point of all the Omnimagnet materials. A parametric study shows that increasing convective heat transfer during cooling, and during heating with low input currents, is an effective method to increase the maximum operational time of the Omnimagnet.The thermal model is also presented in a state-space equation format that can be used in a real-time Kalman filter current controller to avoid device failure due to excessive heating.

¯

: Transient; Lumped capacitance; State-space; Thermal management; Omnimagnet; Optimization

Ntroduction

An Omnimagnet is a relatively new electromagnetic device that enables remote magnetic manipulation of devices such as medical implants and microrobots. We are particularly interested in its use for robotically assisted insertion of cochlear-implant electrode arrays [3, 4, 5], in which an Omnimagnet is adjacent to the patient’s head during surgery. An Omnimagnet is comprised of three orthogonal nested solenoids with a spherical ferromagnetic core at the center, and is optimized to generate a dipole-like magnetic field in any direction. By controlling the input current within the individual solenoids, the magnitude and direction of the resulting dipole moment can be controlled. The electrical current flowing through the solenoids produces Joule heating, which results in undesirable temperature increase within the Omnimagnet. If the temperature of the wire insulation exceeds its melting point in any of the solenoids, a short circuit will occur, resulting in irreversible device failure. Thus, a heat transfer study is necessary to define operational limits for the Omnimagnet.

Additionally, a heat transfer model can be employed to improve future designs of Omnimagnets. Petruska and Abbott briefly considered heat transfer in an Omnimagnet as a part of the original design process. They assumed a steady-state condition and calculated the maximum current density for a desired magnetic field strength.

Transient heat transfer within the Omnimagnet has not been previously studied. Other relevant research is related to heat- transfer studies within power transformers. The heat source in both a power transformer and an Omnimagnet is resistive heating and the materials (copper, electrically resistive paper, and polyamide insulation) are similar. Thus, the basic heat transfer within a power transformer and an Omnimagnet are alike; hence, the published work on power-transformer heat transfer is relevant. Temperature is a key factor in controlling power transformer aging. Based on the international standards for oil-immersed transformers (IEC 60076-7), the aging rate of power transformers is normal at temperatures lower than 98◦C. For every 6◦C temperature increase, the lifetime of a transformer is reduced by 50% . Another key performance parameter in transformers is hot-spot location. Locating hot spots and calculating their temperature are two of the primary reasons researchers have investigated power-transformer heat transfer .

Computational fluid dynamics (CFD) and thermal network models (TNM)/thermal hydraulic network models (THNM) are two of the main techniques that have been applied to model heat transfer within power transformers [6, 10, 11, 12, 13, 14,15,16,17,18]. In the review paper by Campelo et al., it was reported that increasing oil flow rate does not significantly change the convection coefficient in high voltage power transformers . They concluded that CFD and TNM methods produced the most accurate thermal models for power transformers. CFD methods were reported to be more accurate, but computationally expensive, and as a result researchers are using TNM frequently in their studies .

Research studies focused on modeling heat transfer within power transformers are still being reported [6, 11, 15, 16, 19]. For instance, Rodriguez et al. focused on the cooling capacity of radiators that have been used to decrease the temperature of the windings. They performed experiments to validate their simulation results and showed that oil is ten times more efficient than air in cooling the transformer. They also reported that the air flow rate has only a minor effect on convective cooling of the transformer.

In most heat-transfer studies related to power transformers, a steady-state condition has been applied. Power trans- formers are relatively large devices; thus, finding the spatial temperature distribution of the power transformers has been the main aim of most studies. On the contrary, an Omnimagnet is typically a relatively small device in comparison to a power transformer; therefore, the transient temperature change of the Omnimagnet is more important than the spatial temperature distribution. Because of the small dimensions of the Omnimagnet, assuming a uniform temperature distribution within in- dividual components is reasonable, i.e., the Biot number (Bi) is small. Probably the most important determination in an Omnimagnet heat-transfer study is the maximum time the device can be operated, for a given power distribution in the three coils, before its failure. Alternatively, one is interested in the maximum power that can be applied for a certain period of time. Therefore, an assumption of a steady-state condition is not beneficial for an analysis of Omnimagnet thermal behavior.

Methods to mitigate temperature rise in electrical devices such as power transformers have also been pursued recently. For instance, modified nanomaterials with better thermal properties (higher thermal conductivity and higher cooling con- vection coefficient) [20, 21, 22] and magnetic fluid coolants [23, 24] are two interesting adaptations that have been studied.

Mineral oil has been used as a cooling fluid in transformers. Nanofluids have also been used as alternative coolants. The thermal conductivity of nanofluids can be as much as 75% greater than that for mineral oil, making these new substances attractive as coolants. Increasing the operational temperature limit for wire insulation is also an attractive upgrade for trans- formers. Typical wire insulation consists of polyamide. New nanomaterials (aliphatic polyamide) that are reinforced with SiO2, Al2O3, and TiO2 have been patented by Weinberg . These alternative insulations have better thermal properties than pure polyamide. In addition, carbon nanotube (CNT) materials can potentially replace copper wire, as they have high thermal and electrical conductivity . As a method to increase transformer cooling rate, Patel et al. have used a mag- netic fluid as a coolant. A Mn-Zn ferrite magnetic fluid (TCF-56) can reduce the winding, core, and top oil temperatures by 20◦C, 14◦C, and 21◦C, respectively .

In practice, an Omnimagnet operates for short time intervals, so it is unlikely that a steady-state thermal condition is reached. Thus, calculating the maximum allowable current density (as in Petruska et al. ) to produce a desired magnetic field does not provide transient temperature data. In this study, a transient thermal model of an Omnimagnet is developed and validated for the first time. A preliminary version of this work was presented in . The model is applied to determine the relationship between current density and thermal limits. In addition, potential cooling methods are investigated. Finally, a model in state space form is provided to facilitate control of the magnetic field strength while taking into account transient temperature increase.

Thermal Lumped Capacitance Model

The details of an Omnimagnet design are presented in . The main components include frames, solenoids (coils), wire insulation, and a ferromagnetic core. The ferromagnetic core can be spherical or cubical. An Omnimagnet may be thermally modeled as a set of its elements (see Fig. 1).

• Frames: Four sets of two identical parallel frames are included (four elements). • Solenoids: Three solenoids of copper wire wound around each frame are the main components of an Omnimagnet (three elements).

• Wire insulation: Solenoid wires are insulated; however, each solenoid is modeled as a copper solid rather than a conglomeration of separate wires. Thus, the wire insulation is also modeled as a single solid surrounding the solenoid conductor (three elements ).

• Ferromagnetic core: A solid ferromagnetic spherical or cubical core is located in the middle of the Omnimagnet to magnify the electromagnetic field; this sphere/cube is considered a separate element (one element). In addition to the main components, the design may include extra electrical insulation to ensure the safety of the Omni- magnet. These insulation layers are modeled as separate components.

• Cover insulation: The outer surface of each solenoid is covered with an additional layer of thin electrically resistive insulation (three elements). • Insulating paper or Kapton tape: Thermal insulating paper or Kapton tape is placed between each solenoid and the surrounding frames.

• Material in the innermost region: The material which fills the deepest part of the Omnimagnet is modeled as an independent element. This gap may be filled with trapped air or any other material. The four frames, each consisting of two parallel frame sections, and their assembly for a sample Omnimagnet are shown in Fig. 1. Inner, middle, and outer solenoids are wound around Frame 1, Frame 2, and Frame 3, respectively. Frame 4 is used Fig.

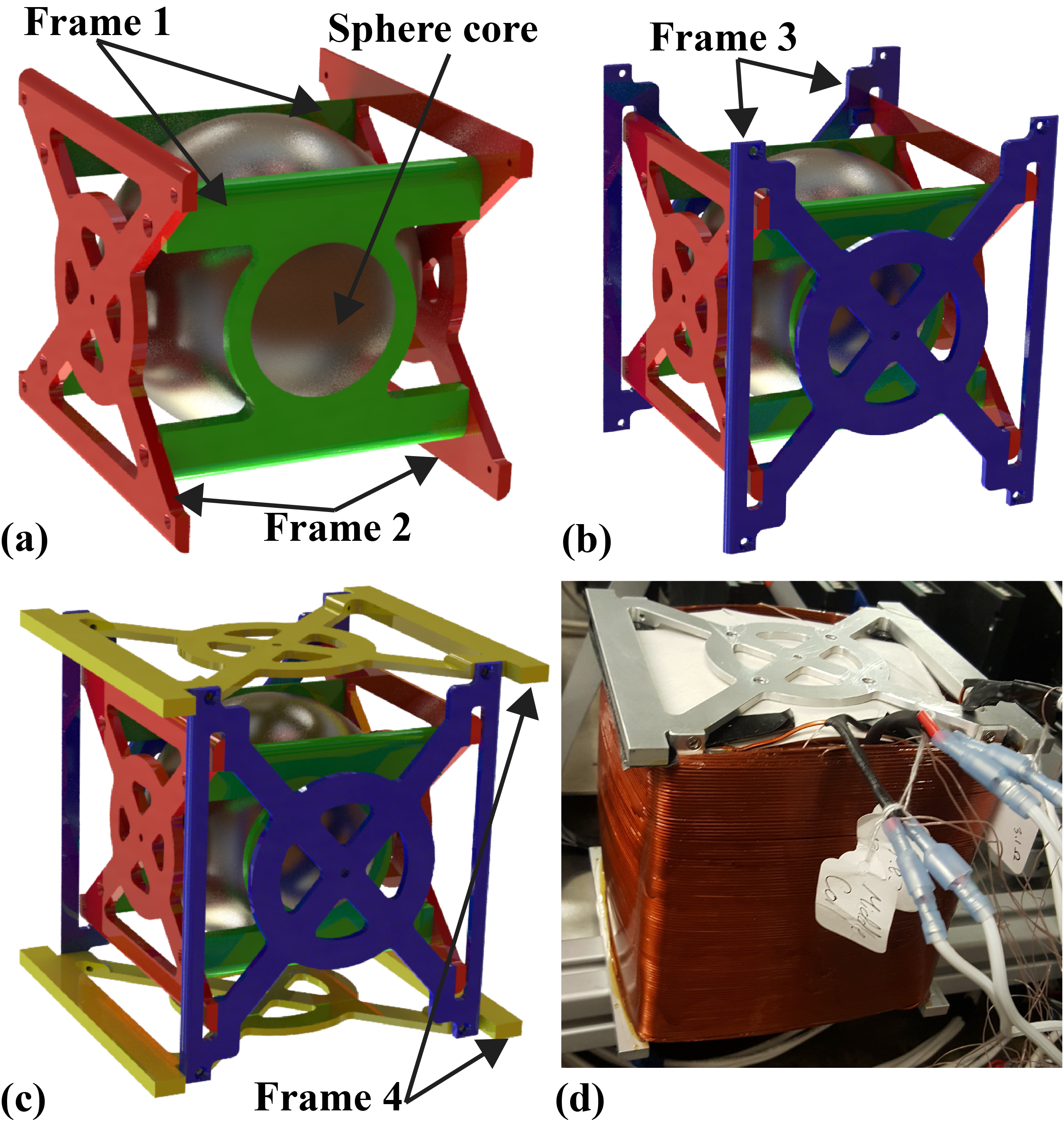

OMNIMAGNET COMPONENTS. (a) FRAME 1, FRAME 2, AND THE SPHERICAL CORE; (b) FRAME 3 IS ADDED; (c) FRAME 4 IS DIMENSIONS SHOWN ARE FOR ONE PARTICULAR OMNIMAGNET DESIGN, BUT THE DEVICE CAN BE SCALED HOMOTHETICALLY. (d) PHOTO OF AN ASSEMBLED OMNIMAGNET.

as a support to join all the parts together. An image of a complete Omnimagnet is shown in Fig. 1(d). The wire insulation and outer insulating cover insulation are optically transparent; thus, they are not visible in the photo. Due to the high thermal conductivity of most Omnimagnet components (on the order of 10–100 W·m−1·K−1), low convection coefficient (natural convection assumed, 0–10 W·m−2·K−1), and small characteristic length of each component (< 0.2 m), Bi for each element is less than 0.1. Owing to small Bi and symmetry, it is reasonable to model the Omnimag- net using a lumped-capacitance method. The main assumptions for the application of this method to the elements of the

Omnimagnet Include:

• Temperature distribution is uniform in each element (Bi < 0.1). • Conduction between elements is modeled with Fourier’s Law, where the differentials are approximated with variable differences.

• Thermal contact resistance is neglected. • The temperature of the surroundings is equal to that of ambient air. • All thermal properties of the elements (except the copper coils) are considered to be temperature independent.

• Radiation heat transfer between different elements is neglected; however, radiation between the surrounding and insulating paper, Frame 4, wire insulation of solenoid 3, cover insulation of the solenoid 3, and outer solenoid (solenoid 3) is included.

• Electrical insulating materials (paper or Kapeton tape) is placed between each solenoid and the surrounding frames. These insulating layers can be incorporated in the model as correction coefficients. • The view factor between solenoid 2 and ambient, as well as the view factor between solenoid 3 and ambient, are both assumed to be unity.

Utilizing these simplifying assumptions and applying an energy balance to each element, n ordinary differential equa- tions (ODEs) are developed for n unknown temperatures. n is the number of elements of the Omnimagnet. The number of elements includes the principal elements (11 elements), the inside trapped material (1 element), and the number of extra electrical insulation layers. The general form of the ODE for each element is:

(1)

The variables ρi, Vi, cpi, Ti, εi, Ri and Ii are density (kg·m-3), volume (m3), specific heat capacity at constant pressure (kJ·kg-1·K-1), temperature (K), emissivity, electrical resistance (Ω), and input current (A) of the ith element, respectively. κ j is thermal conductivity (W·m-1·K-1) of the jth element. Ii is nonzero only for the three solenoids. Time (s) is represented by t. Si,j,m and ∆xj,m are contact surface area (m2) and thickness (m) between the ith and jth elements in the m direction (x = 1, y = 2, or z = 3), respectively. Note that Si,j,m = Sj,i,m. hi,j is the convection coefficient (W·m-2·K-1) between the ith element and the ambient (j = 0) or the inner air ( j = 14). hi,j is a function of temperature and the orientation of the surface. Based on the orientation of the heated surface hi,j can be estimated by the convection coefficient correlation in an enclosure (hi,j)encl, over a vertical surface (hi,j)v, above a horizontal surface (hi,j)ha, or below a horizontal surface (hi,j)hb. All heat transfer coefficient correlations are provided in Appendix A for a specific Omnimagnet.

T14 is the temperature of the innermost trapped fluid (K). Note that if the gap inside the inner solenoid (Solenoid 1) and the middle solenoid (Solenoid 2) is filled with a solid, this term is replaced by a conduction term. σ is the Stefan-Boltzmann constant (5.67 × 10−8 W·m-2·K-4) and T0 is ambient temperature (K) of the air surrounding the device. The term on the left-hand side of Eq. (1) is the storage term for the ith element. The first term on the right-hand side of Eq. (1) represents heat source. Source terms are applicable only to the equations related to the three solenoids. The second term represents conduction between elements, the third term represents convection to the inside trapped fluid, or the convection to ambient if the component is exposed to the ambient air, and the fourth term represents radiation exchange with the surroundings.

Radiation is included in the equations related to the outer solenoid, the outermost frame (Frame 4), and the insulating paper. Equation (1) is applied to each of the n elements to produce n ODEs with n unknown element temperatures. The model requires input data such as initial temperature, volume and thickness of each element, contact surface area between two adjacent elements, thermal properties, convection coefficients, and electrical resistance and input current of each solenoid.

An example of the thermal model applied to a specific Omnimagnet is presented in Appendix A. The equation set is solved using MATLAB (function ode45). The ode45 function uses the last time step to provide the results for the next time step using an explicit Runge-Kutta (4,5) method . A state space format of the equations is provided in Appendix B. Simulations from the model should be validated and assessed for accuracy by comparisons to experimental data. An experimental apparatus and test procedure for model validation are presented in the following section.

Experimental Setup

A schematic of the experimental setup is depicted in Fig. 2. An AMC high-frequency PWM servo drive provides an effecively constant electrical input current to the solenoids. Two Omega type-K thermocouples are implanted on opposite sides of each solenoid, near the coil center, to measure temperature. The location of each thermocouple depends on the number of windings in each solenoid. The thermocouples are implanted at the middle layer if there are an even number of layers, and one wire towards the core from that if there is an odd number of layers. Two similar thermocouples are used to measure the ambient air temperature and the air temperature beneath the center of the Omnimagnet. Electrical resistance of each solenoid is measured using a Fluke 87 True-RMS Multimeter (accuracy ± 2 Ω) at the beginning of each experiment.

All temperature data are recorded every 0.5 s and the electrical potential difference of each solenoid is measured every 5 minutes. The computer and AMC servo drive together control the input current and maintain it at the desired value to each solenoid. As temperature increases, the copper wire resistance changes, requiring modifications to the applied voltage to achieve a constant current. The control loop functions between the computer and the solenoids and does not require tempera- ture feedback. In Fig. 2, the dashed line between the data acquisition system (DAQ) and the computer indicates temperature data acquired and stored on the computer. A single thermocouple from the same batch of identical thermocouples was calibrated using a two-point method.

The lowest melting point in the entire Omnimagnet system is selected as the critical temperature. The experiment is stopped when the maximum temperature is 5◦C lower than the critical temperature or after 2 hr. The maximum time that the Omnimagnet is powered depends on the input current; higher input current leads to shorter safe operating time. Experimental data from this process are used to validate simulation results, as presented in Appendix A.

To validate the model, 40 independent experiments were conducted on the lab-scale Omnimagnet. In each experiment, temperatures of the three solenoids were measured at two separate locations (six measurements total) as a function of time. Measurements were repeated for three current levels and different combinations of powered solenoids (20 heating exper- iments). Passive Omnimagnet cooling was also considered (20 experiments). The standard deviation of the mean of the thermocouple temperatures was determined to be 0.03◦C.

Alidation And Optimization

Omnimagnets are manually wound; therefore, some uncertainty exists in values required as input data to the model. For instance, the exact value of the contact surface area between different elements, the thermal contact resistance, and the thickness of the various insulation layers are not easily measurable and are not reported. Given these unknown parameters, the following assumptions are made to the model initially: Fig. 2.

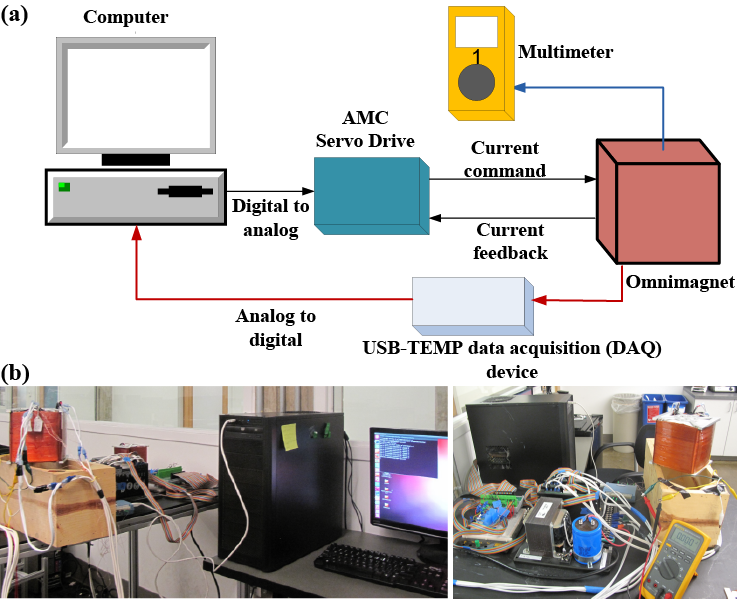

EXPERIMENTAL SETUP. (a) SCHEMATIC, (b) PHOTOS. • Contact resistance between different elements is neglected. • Each solenoid is in perfect contact with its frame and with the adjacent solenoid(s). Thus, the maximum contact area between elements is assumed.

• Thickness of all elements is assumed to be constant. Shrinkage or expansion due to winding pressure or temperature increase is neglected. The model is solved applying these assumptions and the resulting temperature data are compared with experimental data.

Conditions in the model are set to match those used in the experiments. If the differences in solenoid temperature between the experiment and simulations are acceptable, this model can be applied for further studies or for controlling the system. But, due to the mentioned uncertainties, better performance can be achieved by modifying the model using experimental data. To reduce the error, and to ultimately create a more accurate model, a set of coefficients is added to the basic code.

These coefficients are applied to the terms with uncertain dimensions (e.g., thickness, contact area) and where there is a high probability that contact resistance may be present. In addition, some coefficients are used as correction factors in the convection heat transfer terms to better estimate convection coefficients. All assumptions and simplifications presented in the previous paragraph are incorporated through these correction coefficients.

The number of correction coefficients and the appropriate terms to augment in the model depends on the structure of any specific Omnimagnet. As an initial step, a correction coefficient is added to each term and an optimization process is performed. If a correction coefficient is found to be small after optimization, that coefficient can be neglected. Only the correction coefficients that cause a significant change to the final results (minimization of the difference between model and experimental data) in the optimization process are incorporated into the model.

As noted, an optimization process is performed to determine appropriate values for the correction coefficients based on minimization of the solenoid temperature differences between the experiments and simulations. During the optimization pro-

Optimization Algorithm To Determine Modification Coefficients.

cess, transient solenoid temperatures for seven experiments corresponding to the seven combinations of powered solenoids, are evaluated and compared to simulation data determined under similar conditions. A MATLAB optimization toolbox (using the fmincon ‘interior point algorithm’ ) is used to minimize the maximum solenoid temperature difference by varying the coefficients using a quasi-Newton method. The algorithm is illustrated in Fig. 3. The final result is a semi-empirical model, based on the lumped capacitance method, for the Omnimagnet. The coefficients for the conduction terms can vary between 0 to 1. On the other hand, the coefficients for the convection terms can be larger than one, but the upper limit for these coefficients should not exceed the upper limit for the type of the convection used to cool the Omnimagnet (e.g., for natural convection in air the convection coefficient should not exceed 25 W·m-2·K-1 .

The model is applied to the Omnimagnet used in the experiments. Details of the input data for the Omnimagnet are presented in Appendix A. Following the optimization process, the maximum solenoid temperature difference between the simulations and experiments is less than 4◦C at temperatures less than 120◦C. Comparisons of simulation and experiment transient temperatures for the three solenoids are shown in Fig. 4. In Fig. 4(a), only the inner solenoid (Solenoid 1) is powered (at 3.13 A). The maximum root-mean-square error (RMSE) and normalized root-mean-square error (NRMSE) in this case are 1.7◦C and 4.7%, respectively. During cooling, no electrical current is flowing in any part of the system (Fig. 4(b)).

The model accurately predicts solenoid temperatures under conditions of natural convection and radiation cooling (RMSE = 1.2◦C, NRMSE = 3.1%). Transient solenoid temperature response when current is applied to the middle (Solenoid 2) and outer solenoids (Solenoid 3) (3.04 A in each) is shown in Fig. 4(c). Here the error (RMSE = 0.43◦C, NRMSE = 1%) is less than the case when only Solenoid 1 is powered (Fig. 4(a)). Finally, the transient solenoid temperature response when all three solenoids are powered at 3.8 A is presented in Fig. 4(d), where the maximum RMSE and NRMSE are 0.6◦C and 0.6%, respectively. These errors are deemed acceptable given the uncertainties in some of the input data and the assumptions inherent to the lumped capacitance method. When using an Omnimagnet in practice, a factor of safety can be included that accounts for this level of modeling error.

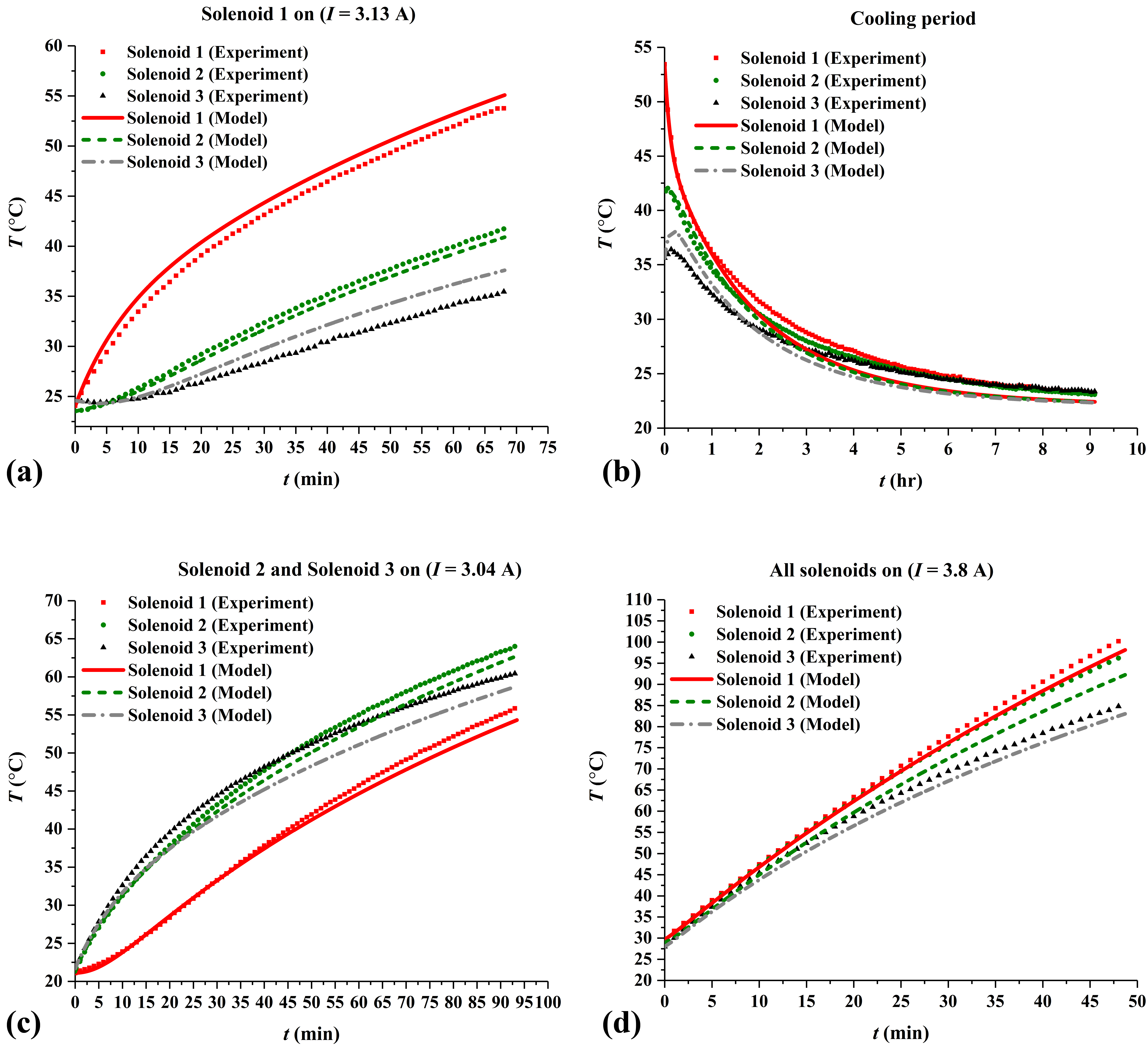

Fig. 4. EXPERIMENTAL VALIDATION OF THE MODEL. (a) INNER SOLENOID ON; (b) COOLING PERIOD, NO CURRENT FLOW; (c) MIDDLE AND OUTER SOLENOIDS ON; (d) ALL THREE SOLENOIDS ON.

Results And Discussion

After validation, the model is used to study the thermal behavior of the Omnimagnet under different conditions. Of most interest is the maximum time tmax the Omnimagnet can be powered before the maximum temperature Tmax in the device Fig. 5.

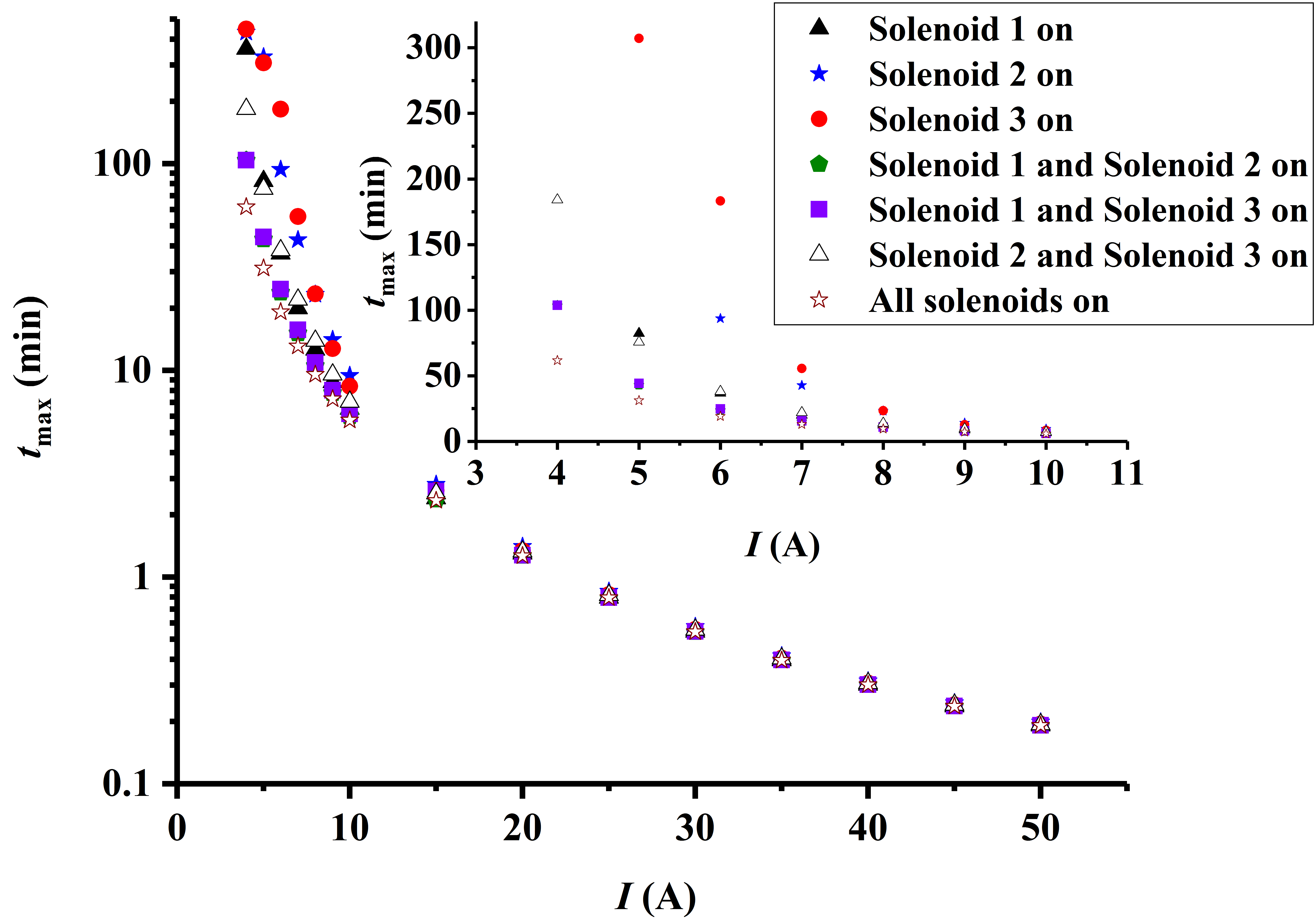

MAXIMUM OPERATIONAL TIME FOR THE OMNIMAGNET UNDER SEVEN DIFFERENT COMBINATIONS OF POWERED SOLENOIDS IN A RANGE OF CURRENT FROM 0 TO 50 A AND NATURAL-CONVECTION COOLING. reaches the temperature limit (glass temperature) where the outer insulation would begin melting, which for the Omnimagnet prototype (see Appendix A) is 115◦C. tmax data are shown in Fig. 5 for seven cases corresponding to seven combinations of solenoids carrying current I.

As shown in Fig. 5, when cooling is achieved by natural convection and radiation with the surroundings, the worst-case scenario occurs when all three solenoids are powered simultaneously. The inner solenoid heats more quickly than the other two, due to the high thermal resistance between the inner solenoid (solenoid 1) and the ambient. According to the data in Fig. 5, free convection is not very effective in removing excess heat from the Omnimagnet, which limits the time the device can be powered. Thus, more effective cooling mechanisms should be considered. Increasing the convection heat transfer coefficient on the surface of the middle and outer coils, which are exposed to the ambient, is an option to decrease Tmax and subsequently increase tmax. The effect of the convection heat transfer coefficient is discussed in the next section.

Effect Of H For Heating And Cooling

The inner solenoid is not exposed to the ambient so it is not directly affected by convective cooling from the outer surfaces of the Omnimagnet. On the other hand, all four external surfaces of the outer solenoid and two of the four external surfaces of the middle solenoid are exposed to convective cooling with ambient air. Therefore, it is expected that increas- ing the convective heat transfer coefficient will directly affect the transient temperature response of the middle and outer solenoids while the inner solenoid will only be indirectly influenced. The effect of h on the temperature of the solenoids is studied in both cooling and heating modes. A set of four different values of h are selected for the study. A heat trans- fer coefficient equal to 5 Wm−2K−1 is chosen as a representation of natural convection in air. A value of 250 Wm−2K−1 represents forced convection in air, and 500 and 1000 Wm−2K−1 correspond to natural convection in a liquid media, which can be produced by nanofluids as mentioned in the Introduction. The effect of h for six different values of input current applied only to the outer solenoid is shown in Fig. 6. Generally, the heating rate for the solenoid with the highest temperature (Solenoid 3) is slowed as h increases, but this effect is tempered at higher input current. For large I (depending on size and structure of the Omnimagnet) this effect is negligible. At lower current, the input power is of the same order of magnitude as the convection heat transfer rate, which enables control of the Omnimagnet temperature. According to Eq. (1), doubling the current leads to four times the power. As a result, for larger values of I, increases in convection coefficient have less effect on reducing the rate of temperature increase, making a maximum safe operating temperature impossible. It should also be noted that for relatively high input current (it depending on size and structure of the Omnimagnet), Solenoid 3 heats very rapidly and the safe operating temperature is achieved quickly. For these power levels, heat dissipation by convective cooling is overwhelmed by the input power and changes in h are inconsequential. It can be concluded that for high I, forced convection from the outer surfaces of the Omnimagnet by itself is not a suitable method to slow the heating process and to prevent undesirable effects of high temperature.

While convective cooling of the Omnimagnet is found to be insufficient for extending the operational time at relatively high input power, convective cooling should be effective when none of the solenoids is powered and the objective is to cool the entire device to an acceptable temperature level. To study the validity of this hypothesis, the transient response of non- dimensional temperature of the three solenoids is considered with no power applied to the device (Fig. 7). To calculate the initial temperature, it is assumed that all solenoids are powered for 60 min with I = 3 A. The temperature at the last time step is used as the initial temperature of the cooling period. Initial temperatures for Solenoids 1, 2, and 3 are 75.3◦C, 71.1◦C, and 66.0◦C, respectively. A non-dimensional temperature is chosen to display the temporal response as the trends are self-similar for different initial temperatures. As expected, cooling rates are greater for increasing values of h. This is especially true for forced convection with air or a liquid. As expected, the outer solenoid (Solenoid 3) with its entire outer surface exposed to the convective environment cools at the highest rate. The data in Fig. 7 indicate that the cooling rate on the inner solenoid (Solenoid 1) is lower than the other two. The inner solenoid does not have direct contact with the ambient air, while the middle solenoid (Solenoid 2) has less surface area exposed to convection in comparison to the outer solenoid (Solenoid 3).

While the cooling process is reasonably effective, it would be advantageous to find other means to reduce Tmax, increase tmax, and decrease the cooling time to achieve a desired temperature level.

Onclusion

For the first time, thermal performance of an Omnimagnet is studied using a lumped capacitance model, which is validated with experimental data from a single Omnimagnet. An optimized model, which includes correction coefficients for the Omnimagnet used in the validation, is found to be in good agreement with the experimental data. The maximum root mean square error of the model is approximately 8% (4◦C). Based on a parametric study that considers all seven possible combinations of powered solenoids, the safe range of input current, where the maximum temperature of the system does not reach the minimum melting point of the Omnimagnet components, is calculated. Increases to the external heat transfer coefficient are found to be beneficial only at low input current. With no power applied to the device, external convection is found to be much more beneficial for heat dissipation although cooling time is still significant. Given the ineffectiveness of
