Abstract: Eliminating warpage in injection molded polymeric parts is one of the most important problems in the injection molding industry today. This situation is critical in geometries that are particularly susceptible to warping due to their geometric features, as occurs with topologies of great length and slenderness with high changes in thickness. These features are, in these special geometries, impossible to manufacture with traditional technologies meeting the dimensional and sustainable requirements of the industry. The paper presents an innovative green conformal cooling system that is specifically designed for parts with slender geometric shapes, highly susceptible to warping. Additionally, the work presented by the authors investigates the importance of using highly conductive inserts made of steel alloys in combination with the use of additively manufac- tured conformal channels in reducing influential parameters such as warpage, cooling time and residual stresses in the complex manufacturing of long and slender parts. The results for a real in- dustrial case study indicate that the use of conformal cooling layouts decreases cycle time by 175.1 s - 66% below the current cooling time, the temperature gradient by 78.5% specifically 18.16 ºC, the residual stress by 39.78 MPa or – 81.88 %, and the warpage by 6.9 mm or- 90.5%. In this way, it is possible to achieve a final warping in the complex geometry studied of 0.72 mm under the maxi- mum value required at the industrial level of 1 mm. The resulting values obtained by the researchers present a turning point from which the manufacturing and sustainability in injection molding of said plastic geometries is possible, taking into account that the geometric manufacturing features analyzed, will present a great demand in the coming years in the auto parts manufacturing industry Keywords: Conformal cooling; Green mold; Sustainability; Injection molding; Numerical simula-

Ntroduction

The plastic manufacturing process of injection molding is currently considered one of the most widely used plastic transformation technologies worldwide . It is estimated that 70% of consumer products incorporate components manufactured with this produc- tion process . The global scope of the plastic injection molded market was estimated at USD 265.1 billion in the year 2020, expected to grow annually by 4.6% between 2021 and 2028.

Although the demand for plastic components comes from various industrial fields such as packaging, electrical, electronic products, and medical devices, the automotive industry is one of the areas that produce the largest number of plastic parts, with a de- mand valued at 45,000 million in 2020 estimating the growth of up to 65 million USD in

Of 26

2027 mainly in Europe and China . The automobile requires the design of multiple plas- tic parts such as wheel covers, casings, interior parts, complex optical parts, etc. This fact causes manufacturers to increase the use of injection molded parts due to their recyclabil- ity, durability, vibration control, strength, etc .

The threat of climate change is high on international, European, and national political agendas . The commitments set out in the Paris Agreement set the baseline for cost- effective greenhouse gas emission reductions. To achieve climate neutrality in 2050, the EU raises the need to decarbonize the industry by increasing its competitiveness, demand- ing that technological products and processes be climate neutral . The injection mold- ing technology, processes around 117 million tons of thermoplastics worldwide every year, estimating the use of electricity in injection machines at approximately 105,109 Kw.h.

resulting in 80 million metric tons of CO2 emissions per year . Technologically, plastic injection molding is based on the process of melting and sub- sequent solidification of the plastic material that has been injected at high pressure and temperature into the mold cavity . Among the stages of the molding cycle, the cool- ing phase is the one with the highest energy and time consumption, being around 70% of the total cycle manufacturing time . In a conventional molding process, water, act- ing as a coolant, flows continuously through a set of channels in the mold, starting the solidification process of the injected melt when it comes into contact with the surface of the cavity at a lower temperature .

Decreasing the molding cycle time is a key factor in improving energy efficiency and the sustainability of the process . From the perspective of increasing productivity, an efficient cooling design is critical, since the cooling phase takes up a large part of the cycle time. Designing adaptative channel geometries capable of maintaining a constant distance between the part surface and the cooling channels, even in those difficult areas where material accumulation occurs, can dramatically decrease cooling time and increase the uniformity of temperatures at the surface of the molded part . In the same way, a uniform distribution of temperatures on the surface of the part helps not only to reduce the cooling time but also to improve the quality of the part in terms of metrology . An unbalanced temperature map can cause warpage in the plastic part and result in the re- jection of manufactured parts, which goes against the industrial sustainability criteria cur- rently required .

In industrial practice, the warpage of molded parts is an even bigger problem than shrinkage. Warpage is a consequence of unequal shrinkage values . The injection molding process significantly affects the warping phenomenon in the geometry obtained due to non-uniformities in the mold wall . Particularly of the parameters of manufac- turing by molding, the surface temperature of the mold is the most important in the phys- ical phenomenon of warping . The differential cooling of the part occurs when the surfaces are at different temperatures, specifically in the hot spots of the mold, such as core pins, corners, thick areas, gates, etc. Hot spots cause problems by adding extra crys- tallinity to the material and prolonging the part's cooling time so that the area that cools the longest, shrinks the most .

The cooling of the mold in the traditional way is achieved by making straight chan- nels in both cavities of the mold. Despite the economic manufacture of this type of chan- nels, they are not useful in the uniform cooling of parts with complex geometry. The dif- ficulty in establishing a uniform distance between the channel and the topology of the piece prevents this length from being kept constant, preventing the uniformity of temper- atures on the surface of the piece and increasing the number of rejections in production.

Additive manufacturing processes allow the manufacture of cooling channels following the contour of the part , giving design flexibility. Regarding the sustainability of the production process, additive manufacturing allows the use of shorter supply chains, as well as more efficient use of manufacturing materials. Likewise, conformal cooling chan- nels reduce cycle time and energy consumption, making them green channels. Compared

Of 26

to traditional cooling channels, the use of conformal cooling channels decreases the cool- ing time to a maximal range of 15 to 50%. Beard et al. decreased the cooling cycle time in a range of 20 to 40%. Torres et al. reduce cycle time by 13% in very complex optical parts with a high thickness ratio. Sayfullah and Masood reduced the total cycle time by 35% as well as the maximum temperature by 30%, improving the differential shrinkage and therefore its warpage. Mazur et al. obtained improvements of 5º C in the maxi- mum temperature, improving the shrinkage of the part as well as its warpage and Smidt et al. improved the cooling time by 32.7% reducing the warpage by 28.2%.

Given the high influence of conformal cooling channels in reducing cycle time and improving part uniformity, different applications and designs have been proposed. Con- cerning the geometry of the layout, the spiral layout is one of the most used . Unfor- tunately, these channels present sudden turns, increasing the pressure drop and slowing down the flow, weakening the effectiveness of the cooling process. To avoid these prob- lems, other authors use layouts whose axes follow a zigzag design. For highly complex geometries, it is possible to use cross-linked channel designs , porous , lattice or vascularized topologies. However, all these geometries have the problem of requiring a connection between channels, so in the event of an obstruction caused by foreign elements, it could not be easily removed from the layout. Another way to cool complex cores is the use of inserts made of high thermal conductive materials such as high conductive steel alloys. The high thermal conductivity of these materials helps in the process of reducing the cycle time while maintaining the corrosion and oxidation re- sistance of the mold .

Reducing the warpage of a plastic part to a minimum value is a highly significant factor, especially for complex optical parts where dimensional accuracy affects the func- tionality of the vehicle . The current designs demanded in the industry and espe- cially in the automotive sector, increasingly complicate the manufacturing process by molding. The trends place more and more emphasis on the development of the visual or aesthetic appearance of the vehicle, complicating the functional aspect of the molded parts. This fact increases if we take into account that, in addition to style, some of these pieces have to fulfill an optical function at the level of lighting or light signalling by the standards. The style implemented today in the automotive industry highlights futuristic concepts characterized by large-format stylized details that incorporate new technologies such as LEDs. These technologies require a marked precision in the dimensional aspect of the pieces, so it is necessary to look for designs that improve the current conception of the injection molding process. The procedures and tools used to date do not guarantee an optimal result in terms of the aesthetic or functional aspect of the piece, as well as of the manufacturing process that makes the activity competitive.

The use of long plastic parts with geometric slenderness including areas with large thickness ratios is becoming more and more common in the automotive field and more specifically in the area of optical plastic parts using LED technology. The upcoming lines of aesthetics and functionality that will come in the coming years for the car demand a type of lighting not only external but also internal to the vehicle. These optical plastic parts require high aesthetic and dimensional specifications, being also characterized by a great length and slenderness. These geometries cannot be manufactured with quality using the current means of production. To avoid these problems, the use of conformal cooling lay- outs together with high thermal conductivity materials can help to obtain a uniform and balanced temperature map in these complex parts. Unfortunately, currently, the applica- tion of green conformal cooling channels for the cooling of injection molds is a complex procedure from the initial design to the final manufacturing process of the mold. Despite previous literature and relevant review articles, unfortunately, there are still significant gaps in the research and application of conformal cooling layouts .

To avoid the problems raised so far, the paper proposes a new industrially sustaina- ble conformal cooling system that can reduce cycle times, longitudinal warpage, and re-

Of 26

sidual stresses in the manufacturing of highly complex injection molded parts, character- ized by their great length and slenderness as well as thick points. Research has not yet been conducted at a scientific or industrial level on the application of conformal layouts to the manufacture of this type of plastic geometry that is impossible to manufacture meet- ing the industry's requirements using traditional methods. The results obtained by the authors mark a turning point in the manufacture by molding of this type of topology, given that the geometric manufacturing features studied in the paper will present a very high demand in the coming years in the automotive industry . The research results obtained show that the use of conformal cooling layouts in the cooling of injection molds makes it possible to manufacture parts following the high dimensional requirements de- manded by current industries. Finally, the results presented by the authors are fully in line with the sustainability and energy-saving criteria demanded by the European Union and the rest of the world in terms of the manufacture of industrial plastic parts.

Aterials And Methods

2.1 Geometric analysis and functional description of the plastic part manufactured via injection

Molding

The analysis and determination of the geometric, technological, and functional re- quirements of the plastic part directly influence the process of geometric design and di- mensioning of the main elements that make up the mechanical systems of the injection mold. Likewise, geometric aspects such as the complexity of the surfaces, the distribution of the thickness map, general dimensions, and geometric tolerances, not only determine the final configuration of the injection mold but also establish the technological parame- ters that control its correct manufacturing process. That is why, in this section, the main geometric features and parameters of the plastic part under study are described in detail, as well as the definition of its main application and functional requirements.

The plastic part object of study is defined as a chimsel. As shown in Fig. 1, this real case study is an industrial part belonging to a LED - collimator lighting system, used in the automotive industry. The main function of this optical part is to collect the light com- ing from the LEDs using several collimating elements (see Fig. 1) and project it onto a light output surface, geometrically composed of a large number of small squares with closed angles "Pillows" in charge of distributing the light according to the desired purpose (see Fig. 1). In this way, the light generated by the LED lighting elements is directed along the plastic part according to the functionality and standards established by the automotive industry.

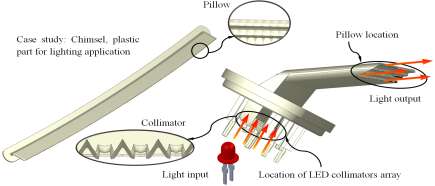

Fig. 1 Description of the plastic part for lighting application case study It should be noted that, as it is an optical part, the dimensional tolerances required to meet the requirements and standards of functionality and optical criteria are more de- manding, relevant, and significant than for any other plastic part. In general, the final or resulting dimensional tolerances in plastic geometries are closely related to the design of the main components of the injection mold. This is especially true for the elements that

Of 26

make up the cooling system. Similarly, it is equally pertinent to establish the technological parameters that define the cooling phase within the cycle of manufacturing the plastic part. After manufacturing, warping can be generated due to physical concepts related to the cooling phase, including distribution of the cooling temperature gradients on the sur- face of the plastic part, residual stresses caused by a nonuniform cooling temperature, and the associated unbalanced volumetric shrinkage of the thermoplastic material. Therefore, an optimal design and dimensioning would favor the reduction of the final warpage of the plastic part, and therefore, achieve its functional requirements.

During the cooling phase, the most relevant features and geometric parameters are the thickness map and the main part dimensions (width, length, height), see Fig. 2 and Fig. 3, being the resulting variables the time needed until reaching the ejection tempera- ture, the distribution of volumetric shrinkage, and the warpage after the cooling phase.

These parameters mainly determine the economic viability, the efficiency, and sustaina- bility of the manufacturing process as well as the compliance with the dimensional toler- ances and the functional requirements of the plastic part. Table 1 shows the magnitude of the main geometric parameters of the plastic part under study.

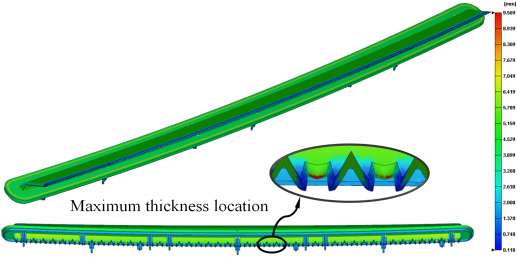

Fig. 2 Thickness map distribution of the plastic part

[Mm]

As can be seen in Table 1 and Fig. 3, the plastic part has a particular topology, fea- tures, and geometric parameters, which differ from the usual standards in the plastics industry. The nominal length of the plastic part is 630 mm. The difference between the average and maximum thickness is 5.5 mm. This thickness variation is given by the need to include an upper wing and several collimating elements, to project and direct the light beam coming from the LEDs towards the pillow elements (see Fig. 1). The part is made up of a set of reinforcing elements of variable dimensions that greatly increase the thick- ness of the part in its lower area, making it difficult to manufacture. These features and geometric parameters directly affect the design and manufacture of the main elements of the cooling system and its functionality.

Fig. 3 Plastic Part Main Dimensions

2.2.- Theoretical background and analytical study of the cooling phase The analytical study of the cooling phase of the plastic part under study focuses on the analysis of two technological parameters: time to reach the ejection temperature and longitudinal warpage. On the one hand, the evaluation of the current time that elapses until the plastic part reaches the ejection temperature facilitates the evaluation of the ther- mal performance associated with the design of the cooling system and the cooling phase of the plastic part. Meanwhile, the longitudinal warpage in a plastic part after cooling determines its compliance with dimensional tolerances and its functional requirements.

- Time To Reach The Ejection Temperature

The manufacturing cycle of the plastic part is determined by different technological phases: filling, packing, cooling, and ejection. Among all of them, the cooling phase is the most important in the thermoplastic injection molding process representing more than 70% of the total time invested in the manufacturing cycle and the one with the greatest influence on energy consumption. The cooling phase begins with the solidification of the gate. This is followed by the solidification of the molten plastic front, which has completed the mold cavity, cooling down until it reaches a sufficient and suitable temperature to go on to the ejection phase. The physical model used to determine the cooling time is estab- lished from the heat exchange by conduction that occurs between the thermoplastic ma- terial and the coolant flow. Consequently, the hypothesis is established that the thermal exchange by convection and radiation between the main elements of the injection mold and the external environment is neglected, as this represents less than 5% of the total heat exchange. The heat flow by conduction is defined, according to Eq. 1, using Fourier's dif- ferential equation, reduced to one dimension. Although this thermal analysis can be ap- plied to the three main directions of space, the heat exchange flow between the thermo- plastic material and the coolant flow is carried out in only one direction, the main direction of the thickness so the unidirectional approach of the analysis is valid . In this way, the one-dimensional heat flow or Fourier equation reduced to one dimension can be ex-

(1)

Being αp [m2/s] the coefficient for the thermal diffusivity of the mold material, taking into account that after the filling of the mold the temperature of the molten plastic is con- stant, while the temperature of the surface of the mold changes until it reaches a value stationary. For these conditions, a solution of a particular type can be found (see Eq. 2) for Eq. 1.

At a belonging point to the mold cavity it is possible to analyze the temperature of the molten plastic through the convergence of the Fourier series as indicated in equation 1.

(2)

Solving Eq. 2 concerning the cooling time variable, the expression that determines the cooling time tcooling is defined in Eq. 3.

(3)

Where Tp [m] represents the maximum thickness of the plastic part, Tmelt [ºC] repre- sents the temperature of the molten plastic front, Tmold [ºC] represents the surface temper- ature of the injection mold cavity and Teject [ºC] represents the recommended ejection tem- perature for the thermoplastic material (see Fig. 4).

Also, it should be noted that the boundary conditions established to define Eq.3 are that the thickness of the plastic part is much less than the rest of its dimensions and that the direction of the heat flow, which is exchanged between the plastic part and the coolant, is perpendicular to the melt plastic flow direction .

Secondly, the magnitude of the main thermal variables that define Eq. 3 are estab- lished and recommended by the manufacturer or supplier of the thermoplastic material. Also, Eq. 3, determined by a physical model, establishes an analytical and approximate cooling time. Well, in practice, the cooling time can be substantially longer if the mold maker considers that the plastic part requires more cooling time to achieve the required functional specifications and geometric tolerances. In addition, the definition of the mag- nitude of the surface temperature of the mold cavity Tmold [ºC] (see Eq. 3) depends directly on the design and dimensioning of the main elements that make up the injection mold cooling system. Therefore, an optimized design adjusted to the features and geometric properties of the plastic part can significantly reduce the result of the cooling time, im- proving the sustainability of the process.

Fig. 4 Thermal variables representation of the physical model

- Warpage Analysis Process

The warpage map generated on the plastic part is a result of its manufacturing pro- cess. This map defines the final quality of the part, according to its functional requirements and geometric tolerances. In general, the warpage map is related to the volumetric shrink- age that it undergoes during the different phases of the plastic injection cycle. In particu- lar, the main physical effect that generates volumetric shrinkage in the plastic part is the pressure and temperature gradients that develop along its surface, especially after the cooling phase.

According to the differential volumetric shrinkage, caused by temperature gra- dients and stresses along with the geometry of the plastic part, cause longitudinal warp- age outside its main plane (see Fig. 5) and can be expressed according to Eq. 4.

Of 26

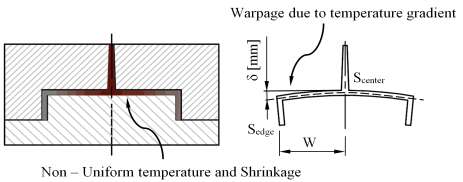

Fig. 5 Warpage due to differential shrinkage of temperature gradient

(4)

Where W [m] represents the separation distance between the center of the plastic part and its outer contour, Sedge represents the percentage of linear shrinkage that is obtained along the outer contour of the plastic part, and Scenter represents the percentage of linear shrinkage obtained in the central region of the plastic piece. Likewise, the volumetric shrinkage parameter is defined from the linear shrinkage experienced by the thermo- plastic material in the three main directions of the space. In this way, if the hypothesis is established in which the thermoplastic material is considered to be isotropic, the linear shrinkage that it experiences in the three main directions of space is the same.

And, therefore, the linear shrinkage experienced by the thermoplastic material can be expressed as a function of the magnitude of volumetric shrinkage, according to Eq. 5.

(5)

Where S represents the percentage of linear shrinkage of the thermoplastic material and rv represents the percentage of volumetric shrinkage of the thermoplastic material. Finally, to complete the analytical study that determines the longitudinal warpages of the plastic part, Tait's double domain equations are used, which characterize the compressi- bility behavior of the thermoplastic material. From this analytical model, and as shown in Eq. 6, the specific volumes of the thermoplastic material can be defined from its tempera- ture and pressure.

(6)

Where υ0 [m3/kg] represents the reference specific volume of the thermoplastic mate- rial for the analyzed temperature, β [Pa] represents the compressibility of the thermo- plastic material for the analyzed temperature, and P [Pa] the analysis pressure of the ther- moplastic material. Furthermore, this set of variables can be expressed according to Eq. 7 and Eq. 8.

(8)

Where b1 [m3/kg], b2 [m3/kg], b3 [Pa], b4 [1/K] and b5 [K] are technological parameters specific to the thermoplastic material, provided by its manufacturer and supplier. Finally, to define the longitudinal shrinkage (see Eq. 4) suffered by the plastic part, both in its

Of 26

outer contour and in its central region, the percentage of volumetric shrinkage of the ther- moplastic material (see Eq. 5) is defined according to Eq. 9. All these requirements, for temperature and pressure conditions between the instant before the beginning of the cool- ing phase, and the end of the manufacturing process.

- Materials

In this item, we proceed to define the features and properties of the materials used during the research work both for the main elements that make up the injection mold and for the thermoplastic material of the part under study. In this case, the polymer family used to manufacture the plastic geometry is Polymethyl methacrylate (PMMA). This pol- ymer is a highly transparent thermoplastic that is established by the polymerization of the methylmethacrylate monomer. In this way, thanks to its optical and aesthetic features and its high surface strength, this thermoplastic material is used as a lightweight alternative to glass and polycarbonate (PC) when greater transparency, and strength to ultraviolet rays, and high mechanical performance against impacts are required. For this reason, the field of application of this thermoplastic material focuses on the automotive sector, espe- cially for the manufacture of lighting components included in vehicle headlights. In par- ticular, the trade name of the thermoplastic material used is Plexiglas 8N . According to the physical models analyzed in this manuscript, Table 2 shows the mechanical, ther- mal, and rheological properties of this thermoplastic material according to the infor- mation provided by the supplier and manufacturer.

Table. 2 Magnitude of the main properties of the material Plexiglas 8N

Of 26

Likewise, it should be noted that the manufacturing material can be subjected to a chemical recycling process. In other words, this material, in addition to encountering the requirements and specifications of the plastic part, is recyclable and maintains its original mechanical, thermal, and chemical properties without compromising the sustainability of the manufacturing process.

On the other hand, metallic materials have been defined as the main elements that called 1.2709 has been used. The selection of this metallic material is justified due to the need to use a 3D additive manufacturing process, based on laser sintering (SLS) technol- ogy, which allows the optical fabrication of green conformal cooling channels. In addition, to optimize the cooling of the plastic part under study, it is proposed to use a high con- ductive steel alloy – 50 at 44 HRC material for the auxiliary elements of the cooling system . The high thermal capacities and performance of this material, together with the loca- tion and design of the auxiliary cooling elements, optimize the exchange thermical be- tween part and mold. Especially, in those areas where the effectiveness of the cooling channels decreases and the temperature gradients are greater. Table 3 and Table 4 present several properties of the metallic materials used. The materials properties have been pro- vided by the plastic suppliers.

Table. 3 Thermal, physical and mechanical properties of Steel alloy 1.2709

W/M·K

Table. 4 Thermal, physical and mechanical properties of Fastcool – 50 at 44 HRC

- Cooling Channels Design

In this section, it is described the design of the devices and channels of the traditional cooling layout that is currently used for the industrial optical part under study. They have

Of 26

also presented the proposals for channels and elements of the cooling layout, based on the concept of green conformal cooling channels (GCCC) and Fastcool inserts, which allow the optimization of the cooling phase and the technological parameters and sustainability- related to the manufacture of the complex part.

In the first place, the geometry and topology of the part have a direct influence on the main parameters of the process using injection molds, such as cycle time, the temper- ature map of the plastic part, the map of longitudinal warpage and residual stresses of the plastic part after the cooling phase, the thermal performance of the cooling system and the uniformity in the thermal exchange between the plastic part and the coolant flow. So, these parameters have great relevance to the surface and dimensional quality of the plastic part and in the energy required for its manufacturing. As shown in Table 1 and Fig. 2, the plastic piece under study has a maximum thickness in the collimator area of 9.6 mm, while the average thickness in the rest of the geometry is equal to 4.1 mm. That is, the thickness ratio is equal to 2.34:1. Therefore, the manufacture of a plastic part with this thickness variation is a challenge since, as the dimensions and thickness gradients in the plastic part increase, the residual stresses, and longitudinal warpage increase similarly. In addition, the area of the part with greater thickness presents an increase in the accumulation of heat due to a slower cooling process. This variation in the temperature of the part generates an increase in the cooling time and, consequently, a non-uniform shrinkage process. Like- wise, the topology of the plastic piece makes it difficult for the cooling channels to access the pillow region (see Fig. 1) due to the reduced dimensions of the pillows. The use of traditional cooling channels in this area reduces the thermal exchange between the plastic material and the coolant flow, as well as their thermal performance.

On the other hand, the geometric design of the cooling system also determines the thermal and energy performance of the cooling phase of the plastic part. In particular, as shown in Fig. 6, the plastic part has a traditional injection mold design based on straight drilled channels. This traditional design must meet dimensional requirements that guar- antee the structural integrity of the different elements and systems that make up the in- jection mold. These requirements are the distance between cooling channels, the distance between cooling channels and elements of the ejection system, and the distance between cooling channels and the surface of the mold cavity. The diameter of the cooling channels is 8 mm. The separation distance between the cooling channels themselves and the surface of the injection mold cavity or any other element thereof is 16 mm, that is, twice the value of the diameter of the cooling channels. In this way, the sizing and structural integrity criteria established by the industry are met, with the minimum safety distance between elements of the injection mold always greater than 10 mm. Fig. 6 and Table 5 show the traditional design and magnitude of the geometric variables of the cooling system, for the two cavities of the injection mold, whose manufacture is carried out using computerized numerical control (CNC) techniques.

Of 26

Table. 5 Geometric variables of the traditional cooling system design

Mm

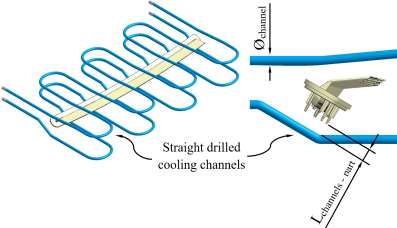

Starting from the design and configuration of the straight drilled channels defined for the current cooling system of the plastic part under study and, taking into account the thermal and rheological properties of the thermoplastic material associated with it, using Eq. 3 and Eq. 4, a predictive analytical calculation can be made of the maximum longitu- dinal warpage obtained after the cooling phase and the total time that elapses during the cooling phase. Table 6 shows the results obtained for said analytical calculation.

Table. 6 Results obtained from the cooling phase analytical model for the cooling system traditional

S

As can be seen, the analytical results (see Table 6) show that the plastic part under study warps longitudinally by 7.1 mm with a time of the cooling phase equal to 271.5 s, with a traditional cooling system. These analytical results do not meet the functional re- quirements and geometric and dimensional tolerances established in the industrial sector tor, the maximum longitudinal warpage should not exceed 1 mm. Likewise, the resulting cooling time is very long, which implies an increase in cost and energy expenditure asso- ciated with the manufacturing process and is contrary to sustainable manufacturing.

Therefore, the traditional tools, designs, and technologies for the manufacture and design of the injection mold cooling system are limited and sometimes do not allow the functional requirements and tolerances established by the industrial sector to be met. For this reason, in this manuscript, a new design of conformal cooling channels adapted to the geometry of the plastic part along with the use of auxiliary cooling elements such as Fastcool inserts and the application of new SLS 3D additive manufacturing techniques aim to optimize the cooling phase and the final quality of the plastic part, allowing the functional require- ments and tolerances established for the plastic part under study to be achieved.

- Green Conformal Cooling Channels Design

The design of the main elements that make up the cooling system of an injection mold focuses on optimizing the dissipation of the heat flow from the plastic part in a uniform manner and in the shortest possible time until it reaches the temperature of ejection. How- ever, this process presents great difficulties and inconveniences in plastic parts with com- plex surfaces, whose geometric and technological requirements, such as the case study, The conformal cooling channels allow these drawbacks to be solved since they are capable of optimizing the free volume between elements of the injection mold and, thanks to their SLS additive manufacturing process, reducing the distance between the cooling channels and the surface of the plastic part, mainly in geometric areas of difficult access.

Likewise, in this manuscript, to improve this problem, a novel design of conformal cooling channels is proposed (see Fig. 7), with a circular section, whose geometric arrangement

Of 26

allows traversing the upper and lower region of the plastic piece, as well as the area con- cave generated by the support to place the pillows in the correct position to project the light coming from the collimators. On the other hand, although the application of confor- mal channels for this geometric area is appropriate, sometimes the separation between the channels and the surface of the mold cavity is not enough to dissipate all the heat flow from this region uniformly. As a solution to this design problem, the use of Fastcool inserts in combination with the use of conformal channels is proposed (see Fig. 8 and Fig. 9).

Fastcool inserts are characterized by being associated with a metallic material with a high thermal transmission coefficient, which favors heat exchange in areas of the plastic part where high temperature gradients accumulate. However, during the cooling phase, the Fastcool insert exchanges a large amount of heat flow that it is not able to dissipate on its own. The use of conformal cooling channels, in these cases, can be very useful, not so much to directly cool the plastic part but to cool the Fastcool insert itself.

In this way, to evaluate the thermal performance of the application of conformal cool- ing channels and Fastcool inserts, three different cooling system designs are proposed. A design defined solely by conformal cooling channels, (see Fig. 7) and two hybrid designs that combine conformal cooling channels and Fastcool inserts of different lengths, see Fig.

8 and Fig. 9. Table 7 shows the geometric features of the cooling elements used in the proposed cooling system designs. It should be noted that the geometric parameters that define the proposed cooling systems, conformal and hybrid, have been optimized and adapted to the requirements presented by its own 3D SLS additive manufacturing pro- cess, the geometric features of the plastic part under study and the own complexity of the real injection mold with which the present case study is manufactured.

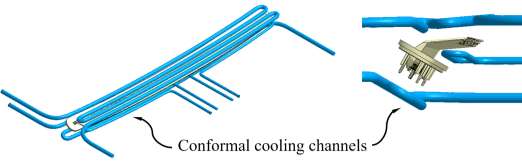

Fig. 7 Conformal Cooling Channels Design

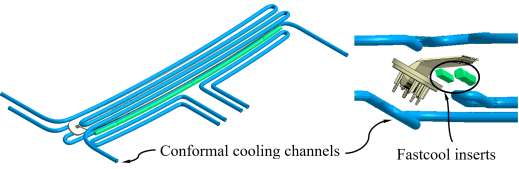

Fig. 8 Hybrid cooling system design, Fastcool full bars
