Multi Objective Composite Optimization

Ru Lei, Lin Li, Rustam Stolkin, Bin Feng

Abstract—This paper addresses the challenge of dynamic multi-objective optimization problems (DMOPs) by introducing novel approaches for accelerating prediction strategies within the evolutionary algorithm framework. Since the objectives of DMOPs evolve over time, both the Pareto optimal set (PS) and the Pareto optimal front (PF) are dynamic. To effectively track the changes in the PS and PF in both decision and objective spaces, we propose an adaptive prediction strategy that incorporates second-order derivatives to predict and adjust the algorithms search behavior. This strategy enhances the algorithm’s ability to anticipate changes in the environment, allowing for more efficient population re-initialization. We evaluate the performance of the proposed method against four state-of-the-art algorithms results demonstrate that the proposed approach significantly Index Terms—Dynamic Multi-objective Optimization Prob- lems, Second-order Derivative, Adaptive Dual-Domain Predic- tion.

Ntroduction

UMEROUS practical problems can be formulated as dy- namic multi-objective problems (DMOPs) . In simple terms, a ”dynamic environment” means that the problem is constantly changing over time. For example, imagine you are trying to optimize a delivery route, but the traffic conditions, weather, and customer demands keep changing. This makes finding the best solution more challenging compared to static problems, because the conditions remain constant. As a result, the convergence process for DMOPs becomes more complex generality, a DMOP can be formulated mathematically as:

(1)

where F(x, t) is the vector of objective functions with m time-varying objective functions fj(x, t), j = 1, 2, . . , m. x is an n-dimensional decision variable, t = 1, 2, 3, . T.

T denotes the time scale, and ai, bi are the bounds of xi , and these constants fall within the range (−∞, +∞) for all i = 1, 2, . . , n.

Multi-objective evolutionary algorithms (MOEAs) are rec- ognized as a powerful technique for solving multi-objective tion Fusion Technology of Ministry of Education, Northwestern Polytech- optimization problems (MOPs) [2, 3]. There is a particular class of MOPs [2, 4, 5] which becomes important in various scientific and engineering applications. These MOPs are chal- lenging, in having mutually conflicting objective functions, meaning that improving the performance of one function often comes at the expense of the others. It is impossible to optimize all such functions simultaneously. However, we can obtain a set of equilibrium solutions which is called the Pareto-optimal Set (PS) in decision variable space, which corresponds to the Pareto-optimal Front (PF) in the objective function space [6, 7]. However, in certain kinds of real-world applications, the parameters of MOPs may change over time, causing the optimal PF to evolve. These problems with changing PFs are usually called DMOPs . DMOPs can be especially challenging to solve. This is partly because the objective functions are continually changing over time, and also because multiple, mutually contradictory objective functions need to be optimized at each time step. A critical challenge in solving DMOPs is that of tracking the trajectories of the changing PS and PF in various environments.

Dynamic multi-objective optimization is widely applied

In Dynamic Scheduling , Planning , Resource

allocation , and machine learning . It can be difficult to adapt conventional, static MOEAs to problems where the environment changes dynamically. To address this, researchers have developed strategies to improve the convergence of solutions to DMOPs, including the diversity-based ,

Memory-Based , And Change Prediction-Based

methods. Diversity-based methods include mutating or re- initializing populations based on the severity of environmental changes. Memory-based methods reuse the past information by storing representative individuals to conduct future searches.

Change prediction-based strategies use past search experiences to guide the evolutionary process towards future PS or PF directions, and have gained significant attention in the research community.

However, the methods above encounter several challenges when addressing certain real-world DMOPs, characterized by three main issues. First, the absence of precise guidance strategies might negatively impact subsequent optimization efforts, as they fail to provide clear directions for the algorithm to follow when changes occur. Second, approaches that utilize memory to recall past solutions often struggle to swiftly adapt to new environmental conditions, resulting in outdated or irrelevant solutions being recalled. Third, previous change prediction strategies typically focus solely on the decision space, overlooking the characteristics of the objective space.

This narrow focus can lead to inaccurate convergence and sub-

Arxiv:2410.05787V2 [Cs.Ne] 13 Nov 2024

optimal performance, as the objective space dynamics contain important additional information for effective optimization. In this paper, we consider DMOPs with time-varying ob- jective functions. To address these problems, we propose a novel dynamic multi-objective prediction strategy that incor- porates an adaptive multi-view approach and a second-order derivative-based model. The proposed strategy can adaptively model in both the decision and objective spaces, and use these models to predict subsequent optima, thereby responding more rapidly and accurately. These two key contributions can be summarized as follows.

• A prediction strategy based on the second-order derivative method is proposed to reinitialize the population when a change occurs. First, this strategy applies an online k- means approach to cluster individuals, effectively captur- ing changes in the population distribution by continuously updating cluster centroids. Second, it leverages second- order derivative calculations from the clustering informa- tion of past populations to predict the PF’s movement at different time steps. By analyzing population dynamics over time, this method accurately forecasts changes in the PF’s trajectory, enabling proactive adjustments to the population. This predictive approach ensures that evolutionary algorithms can adapt efficiently to chang- ing objectives, maintain operational effectiveness, and achieve optimal solutions in dynamic environments.

The remainder of this paper is organized as follows. Section II reviews previous literature on DMOPs. Section III presents the framework of the Second-order Derivative method and the adaptive dual-domain prediction strategy. Section IV presents experiments that evaluate the performance of our method and discusses the results. Section V provides concluding remarks and suggestions for future work.

Related Work

In this section, we first introduce the characteristics of we present the motivation behind our proposed evolutionary search method for solving DMOPs.

A. Dynamic Multi-Objective Problems Definition

Changes in DMOPs may occur in different spaces, affecting the dynamic PS or PF accordingly [1, 26]. According to the types of change, DMOPs can be categorized into four types

Type Iv: Both Ps And Pf Do Not Change

For Type IV, both the PS and PF remain static, defining them as static MOPs. Therefore, in this study, we focus only on the first three dynamic types. The main challenge in handling DMOPs lies in effectively tracking the evolving PS or PF as they change over time.

Efinition 1: Dynamic Pareto Optimal Solution

Following Eq. 1, suppose that both x1, x2 ∈Ωare two individuals in the population at time t. We consider that x1 dominates x2, represented as x1 ≺x2, if and only if the

Efinition 2: Dynamic Pareto Optimal Set

The dynamic Pareto optimal set, denoted as DPS∗(t), is a set of solutions comprising all non-dominated solutions in the decision space, if a decision vector x∗(t) satisfies:

Efinition 3: Dynamic Pareto Optimal Front

The dynamic optimal PF at time t, which is denoted as DPF ∗(t), is a set formed by mapping all Pareto optimal solutions to the objective space at time t, which is formuled

(4)

B. Related Dynamic Multi-Objective Evolutionary Algorithms In recent years, there has been a growing body of re- search literature on using evolutionary algorithms (EA) to

Solve Dmops . Generally, The Workflow Of Existing

prediction methods includes two parts: change detection and response strategies. After an environmental change, the first step is to determine if the characteristics of the problem have changed. If they have, a change response strategy, such as prediction strategy, is adopted; otherwise, a static optimization strategy is used.

The DMOEAs are primarily categorized into three types: diversity maintaining methods , memory-based meth- ods and prediction methods [24, 25, 32, 33]. These strategies have been developed over recent years and have been shown to be effective both theoretically and experimentally in addressing a wide range of DMOPs.

Diversity maintaining methods [17, 18] are designed to enhance and preserve the population’s diversity upon detecting changes. Liu et al. developed a diversity introduction algorithm that adaptively adjusts individuals to new envi- ronmental conditions. Chen et al. have explored an evolutionary method that preserves the diversity of a collection of individuals by treating it as an additional objective in dynamic environments. Peng et al. introduced a technique that uses historical data to guide the search process and increase diversity. These methods initiate individuals in the new environment through random initialization or mutation for mild changes, or through complete re-initialization for more significant changes.

Memory-based approaches [37, 38] store valuable historical information to guide future searches. Wang and Li devised a multi-strategy ensemble evolutionary algorithm that uses Gaussian mutation operators and a memory-like strategy to reinitialize populations upon environmental changes. Ramsey et al. , in 1993, introduced a case-based initialization for genetic algorithms, where an evolutionary mechanism updates the population by categorizing and storing past data when changes occur. However, these memory-based methods are typically best suited for scenarios where the PS remains constant or the environmental changes occur slowly. They often struggle to maintain population diversity.

Recent developments have seen a surge in integrating prediction-based strategies within evolutionary frameworks, utilizing the time-history of evolutionary steps. These strate- gies focus on constructing prediction models by exploiting the correlations in historical data. Iason et al. have developed a novel evolutionary algorithm that incorporates forecasting techniques to address DMOPs, estimating future positions based on the time-history trajectories of optima and leveraging memory method benefits. An enhanced evo- lutionary prediction strategy, introduced by Anabela et al.

, incorporates a dynamically adjustable linear predictor. Additionally, Yang et al. have devised a prediction method that segments the population into sub-populations based on reference points. When changes occur, the centers of sub- populations belonging to the same reference point are used to estimate the center sequence. Zhou et al. propose a population prediction strategy (PPS), which divides the PS into two parts: center point and manifold. This method employs an autoregression model to estimate the manifold, and then combines the predicted center and manifold to generate the new population. This method only employs the previous two PS manifolds for prediction, which has small time complexity and space complexity. Cao et al. integrated a support vector regression (SVR-MOEA/D) predictor with MOEA/D to address DMOPs, in which the SVR model is trained using historical time-series data of solutions from the decision space to construct the predictor. focus on addressing DMOPs by using a multi-view prediction approach (MV- MOEA/D) that leverages predictions from both the decision and objective spaces. This method integrates a kernelized autoencoding model in a reproducing kernel Hilbert space (RKHS), which provides a closed-form solution and mapping strategy for multi-view predictions. Another method involving mapping in the objective space is Inverse Gaussian Process Modeling (IGP-DMOEA), proposed by Zhang et al. . This approach distinguishes itself by mapping historical optimal solutions from the objective space back to the decision space, in contrast to more conventional methods that focus solely on the decision space. This inolvement of both spaces enhances the adaptability and effectiveness of solving DMOPs.However, our approach places greater emphasis on adaptively adjusting the predicted population size within both the decision and objective spaces based on different changing states. This innovation not only fully leverages the strengths of both spaces but also dynamically optimizes the population size, leading to improved performance and robustness in solving DMOPs.

C. Motivation for Conducting Second-order Derivative and

Adaptive Prediction From Dual-Domain Spaces

Dynamic changes are an inherent attribute of real-world and benchmark DMOPs, which exhibit varying patterns in the PS and PF (i.e. dynamic variations of decision space and objective space over time).

These time-varying behaviours display a diversity of pat- , as shown in Fig. 1, several complex PF shapes are illustrated. As depicted in this figure, DF12 and DF13 generate both continuous and disconnected PF geometries. While the PS of DF13 is simple to track compared to the PS of DF12, the resulting PF is complex. Similar properties can also be observed in other Type II DMOPs. Therefore, predictions made solely from the decision space or the objective space are insufficient to fully capture the diverse patterns of change.

Given the unknown dynamics of DMOPs, it is crucial to establish a predictive model from both domains, to effectively handle the dynamic characteristics and enhance convergence capabilities.

Furthermore, with complex environmental changes, the task of solving for the population at the next time-step becomes in- tricate and time-consuming. Thus, there is a need for efficient dynamic multi-objective optimization algorithms to enhance the convergence speed of the population. By remembering the optimal solutions from the environments at previous time- steps, it is possible to compute the direction of evolution and the changes in each evolutionary direction, ultimately obtaining the Second-order Derivative of the evolutionary direction.

In the literature, although numerous attempts have been made to develop predictive methods for dynamic multi- objective optimization, there is still relatively little work which specifically addresses complex DMOPs adaptively from both the decision and objective spaces. This paper introduces a novel method which adaptively targets the most suitable space, focusing on resource on the objective space or the decision space, depending on whichever is most useful at any given time-step, for solving the dynamic changes in both spaces.

Additionally, this method integrates a Second-order Derivative prediction evolutionary search strategy with historical popula- tion analysis, aiming to effectively utilize both the positional information of historical populations, and the number of non- dominated solutions, to predict changes in the population at the next time-step.

The Proposed Method

This section presents technical details of our proposed second-order derivative-based adaptive dual-domain predic- tion strategy (ADPS). ADPS works by utilizing adaptive multi-view prediction and Second-order Derivative prediction for parallel convergence. We embed this mechanism into a decomposition-based evolutionary algorithm, MOEA/D .

The main processes of ADPS include dynamic detection, an adaptive dual-domain algorithm, and the second-order deriva- tive prediction strategy. The framework of ADPS is shown in Algorithm 1.

A. Dynamic Detection

Existing methods for dynamics detection in evolutionary al- gorithms fall into two categories: detector-based and behavior- based detection [46, 47]. Detector-based methods focus on reassessing specific solutions, termed detectors, to observe

(B)

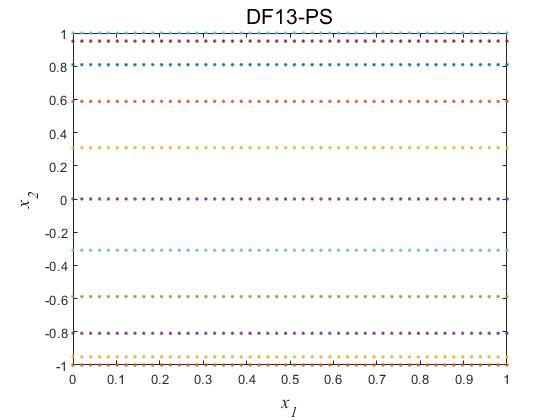

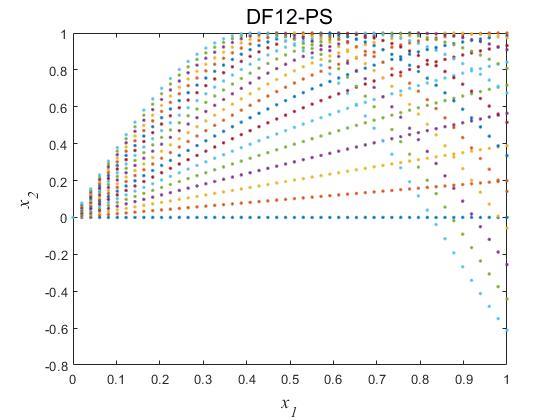

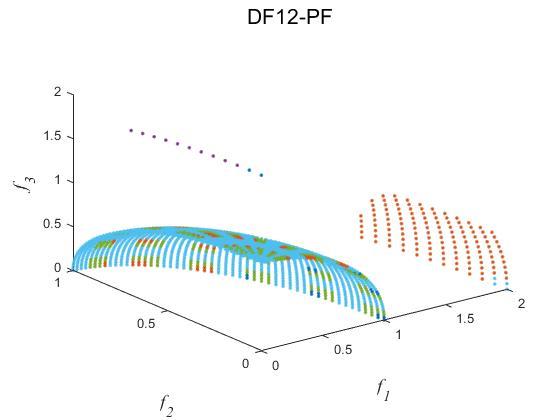

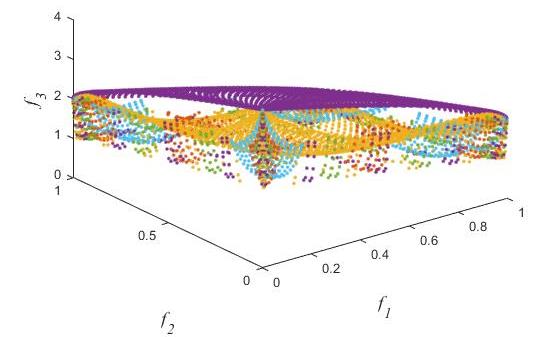

Fig. 1: Illustrations of the Complex Changes in PS and PF for Two Representative Type II DMOPs:(a) Changing PS of DF12 and DF13. (b) Changing PF of DF12 and DF13. alterations in their functional values or their viability. On the other hand, behavior-based methods analyze the performance of the algorithm itself to detect changes dynamically.

In this paper, we employ a strategy where 10% of the population is randomly selected to serve as detectors. At the beginning of each generation, these detectors are reassessed.

If there is a discrepancy between the current and previously stored objective values of these detectors, an environmental change is considered to have occurred.

B. Adaptive Dual-Domain Prediction Algorithm

Current prediction methods predominantly focus solely on the decision space, neglecting the characteristics of the objective space. In contrast, our proposed ADPS method adaptively exploits both spaces, by dynamically adjusting the search weights between the decision versus objective spaces, depending on which space seems most informative given the recent environmental changes. Algorithm 1 presents the overall framework of the proposed method and details the specific processes of adaptation which we apply to this dual-domain paradigm.

This algorithm begins by initializing the population N and the spatial weights wd and wo to 0.5, meaning that the weights are initially evenly distributed between the two spaces. In each iteration, the algorithm performs standard evolutionary operations such as reproduction and selection, while also conducting dynamic detection to identify any envi- ronmental changes. When a change is detected, the algorithm compares the number of non-dominated solutions from the objective space, denoted as NDSP F with the number of non-dominated solutions from the decision space, denoted as NDSP S. Based on this comparison, the algorithm adjusts the spatial weights wd and wo for the next iteration by increasing them with a parameter λ, The parameter λ, referred to as the weight adjustment parameter, controls the change in weights.

Subsequently, the algorithm uses a second-order derivative prediction algorithm to obtain the prediction solutions PSt+1 and PFt+1, as detailed in algorithm 3. Based on the weight ratios, a subset of solutions is selected from both the decision and objective spaces. These solutions are then combined to form the prediction solution set Pt+1. Finally, the algorithm employs the MOEA/D to optimize the current population.

Note that the predicted solutions in the objective space need to be mapped back to the decision space. Here, by optimizing the Euclidean distance , this method adaptively finds the optimal decision variables within the decision space, that best approximate the predicted target values in the objective space. In this way, the nonlinear relationships between the

Algorithm 1 Adaptive Dual-Domain Algorithm

1: Initialization: Initialize the population N and the Spatial weight wd = 0.5, wo = 0.5.

:

Evolutionary Search, e.g., Reproduction, Selection, etc.

Obtain The Prediction Solutions Pst+1, Pft+1 By

Second-order Derivative prediction Algorithm (Algorithm

: End

two spaces can be conveniently handled, and a set of decision vectors optimally corresponding to the target objective values is generated. The implementation process is as follows:

(5)

where YF represents the fitness of the decision variables, YT represents the ture objective value. The goal is to find a set of decision variables which minimizes the Euclidean distance between YF and the given target objective value YT , which means finding the decision variables which minimize the objective function.

Second-Order Derivative Prediction Strategy

Leveraging changes in historical data is crucial for predict- ing new individuals so that the population can quickly con- verge to the new Pareto Optimal Set in the decision space when the environment changes (and similarly the Pareto Optimal Front in the objective space). Most existing prediction-based methods rely on recording the optima from many previous environments to guide future evolution . This approach requires substantial storage space and leads to information redundancy. Using only the optima from the previous time step is effectively “zeroth order” and does not fully capture changes in the population. In contrast, employing the optima from the previous three environments can accurately predict changes in the next time step to a second order degree.

We consider the current generation population pst at time t as well as the generation populations pst−1 and pst−2 at the previous two time steps t-1 and t-2. Specifically, the difference between pst−1 and pst−2 can be used to estimate the change velocity at time t-1, and the difference between pst and pst−1 can be used to estimate the change velocity at time t. The difference between these two velocities can then be used to estimate the rate of change of velocity, i.e., the “change acceleration” or second-order derivative.

Ka −

Fig. 2: Second-order Derivative-based prediction strategy for

Ops

To fully describe the PS position at different time-steps and make accurate predictions, we employ an online k-means clustering strategy to cluster the PS at the current time t.

Subsequently, the new population is predicted based on the historical clustering centers of the PS. We begin by recording historical data: N t, N t−1, and N t−2. Key points at times t, t-1, and t-2 are then calculated and denoted as Ct, Ct−1, and Ct−2. These are then used to predict the clustering centers of the population in the new environment at the next time-step Ct+1.

The initial clustering centers are determined using the following technique. First, we set the number of clusters to K=M+1. Next, the PS center point is chosen as one of the cluster centers, which represents the overall evolution direction of the population. Finally, M boundary points are selected as additional cluster centers. These boundary points describe the location and distribution of the PF and, through their corresponding Pareto optimal solutions, determine the maximum and minimum values of the objective function, defining the edges of the PF shape. Thus, the M boundary points, along with the center point, are used as the initial K clustering centers, and k-means is applied to obtain the final key points for each environment. The clustering process is as shown in Algorithm 2.

(6)

where |N t| represents the size of PS at time t, and xt

I

represents the ith Pareto solution in the PS at time t.

K} Are The K Key Cluster-

ing center points at time t, then the evolution direction ∆Ct

Algorithm 2 Online K-Means

1: Input: Data at time t, number of clusters K, historical PS

: Otput: Cluster Centers Ct

3: Set K cluster centers according to the above induction

I And Each Cluster

center, and use Eq. (6) to find the closest center, denoted

(7)

where ∆t is the time interval between adjacent time steps, and the acceleration At is the second-order finite difference approximation of position change over time.

To effectively improve prediction accuracy for different degrees of environmental change, we use targeted methods. Here, we detect the degree of change by analyzing the relative direction between two consecutive evolutionary second-order derivatives. The difference in the angle of the relative direction is denoted as ∆sin(θk). The change in direction is obtained through the inner product of the sine differences of these two evolutionary directions, which is defined as follows:

(8)

Note that if ∆sin(θk) ≥0, it means that the two evolution- ary Second-order Derivatives are in the same direction, imply- ing that the environmental changes are not severe, and at

K Is

unchanged. Conversely, if ∆sin(θk) < 0, the two evolutionary Second-order Derivatives are in opposite directions, indicating that the environmental changes are severe. However, relying solely on the current second-order derivative is unreliable for predicting sudden, significant changes in direction. To mitigate the impact of sudden changes, a weighted moving average method is adopted to smooth the second-order derivatives over time. Thus, the influence of historical second-order derivatives diminishes as time progresses. The final prediction can be obtained through Eq.9.

(9)

where i = 1, 2, · · · , n, and w1+w2+w3 = 1 represents the different correlations between adjacent at. Furthermore, an ad- ditional variance, εi, is required, and needs to be incorporated into Eq. 9. It can be obtained by Eq.10, where x represents a point in the current set of solutions N t, and y represents a

Population

Fig. 3: Flow diagram of the proposed prediction method. 2 shows the detailed prediction process. This figure provides a comprehensive representation of the second-order derivative prediction process for PF or PS. In the decision space, we calculate the prediction step size in the space x1 and x2 by considering the first two decision variables (viewed as projections in a multidimensional space). In the objective space, there are both multi-objective problems (with For two-objective problems, the approach remains consistent with the decision space. However, for for multi-objective problems, we need to combine the derivatives and step sizes from each dimension to calculate the next step prediction in the overall multidimensional space.

Algorithm 3, Using The Decision Space As An Exam-

ple, presents a Second-order Derivative-inspired prediction method. Within the framework of Algorithm 1, it utilizes clustering to estimate Second-order Derivatives as shown in Eq. (6)-(10) to predict the population at the next moment.

Algorithm 3 The Second-order Derivative Prediction Strategy

: Input: Historical Sub-Population Pi

2: Otput: Prediction solutions in decision space PSt+1 and

:

Employ the k-means method to divide the population into k sub-populations use Online K-means ((Algorithm

:

Set the prediction solutions by maintaining 90% indi- viduals in Pt−1 and generating 10% individuals randomly.

: End If

10: Record the optimal PF and PS of the current population

: End

Figure 3 illustrates the entire proposed prediction method, detailing the processes of prediction and merging in both the objective space and the decision space. In the decision space prediction, we record the PS at three different times as historical information. After applying second-order derivative prediction and iterative evolution, we obtain the prediction
