Short Fiber Composite Digimat

LS-DYNA Machine Learning-based Multiscale Method for Nonlinear Modeling of

Ansys Inc.,

7374 Las Positas Rd, Livermore, California, 94551, USA

Jsol Corporation,

Kudan-Kaikan Terrace 1-6-5, Kudanminami, Chiyoda-ku, Tokyo, 102-0074, Japan

Honda Motor Co., Ltd.,

4630 Shimotakanezawa, Haga-machi, Haga-gun, Tochigi, 321-3393, Japan

Oretech System Co., Ltd.,

Final version of this manuscript has been published in Journal of Engineering Mechanics

Ite This Article

Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of Engineering Mechanics. 149(3): 04023003.

Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Abstract

Short-fiber-reinforced composites (SFRC) are high-performance engineering materials for lightweight structural applications in the automotive and electronics industries. Typically, SFRC structures are manufactured by injection molding, which induces heterogeneous microstructures, and the resulting nonlinear anisotropic behaviors are challenging to predict by conventional micromechanical analyses. In this work, we present a machine learning-based multiscale method by integrating injection molding-induced microstructures, material homogenization, and Deep Material Network (DMN) in the finite element simulation software LS-DYNA for structural analysis of SFRC. DMN is a physics-embedded machine learning model that learns the microscale material morphologies hidden in representative volume elements of composites through offline training. By coupling DMN with finite elements, we have developed a highly accurate and efficient data-driven approach, which predicts nonlinear behaviors of composite materials and structures at a computational speed orders-of-magnitude faster than the high-fidelity direct numerical simulation. To model industrial-scale SFRC products, transfer learning is utilized to generate a unified DMN database, which effectively captures the effects of injection molding-induced fiber orientations and volume fractions on the overall composite properties. Numerical examples are presented to demonstrate the promising performance of this LS-DYNA machine learning-based multiscale method for SFRC modeling.

Keywords: multiscale method, reduced-order modeling, mechanistic machine learning, nonlinear multiscale simulation, deep material network, CAE software, LS-DYNA, short-fiber-reinforced composites, injection-molded thermoplastics, composite structures.

Ntroduction

Short-fiber-reinforced composites (SFRC), such as glass-fiber-reinforced thermoplastics, become increasingly attractive for lightweight structural applications in automotive and electronics industries. Nowadays, mass-production of SFRC parts is achieved by the injection molding process, which inevitably causes inhomogeneous fiber dispersion in the polymer melt, and consequently, location-dependent fiber orientations and volume fractions in the finished products. The heterogeneous microstructural distributions and the distinct properties of each constituent material lead to highly complicated, anisotropic, and nonlinear responses of SFRC (Mortazavian and Fatemi 2015; Hessman et al. 2019), and reliable prediction of the mechanical behaviors of composite products remains challenging. Phenomenological anisotropic constitutive models often require a tedious parameter fitting process to calibrate a large number of model parameters against material data. Measuring these material data from a series of physical experiments is quite time-consuming, and often the fitted model parameters become ineffective for a different microstructure in materials. For instance, conventional constitutive models calibrated for SFRC with low fiber volume fraction is not able to predict SFRC with high fiber volume fraction, even if the fiber orientations remain unchanged. To circumvent such difficulties, multiscale composite material modeling methods have emerged as an effective means to predict macroscopic material properties at the upper length scale from the geometries and properties of the materials at a lower length scale.

Various multiscale methods have been developed for modeling composites. Among these methods, analytical homogenization methods (Eshelby and Peierls 1957; Mori and Tanaka 1973; Nemat-Nasser and Hori 2013; Li and Wang 2008; Huang 2021) are quite popular due to their simplicity and efficiency. For instance, upscaling microscopic material information to obtain homogenized SFRC material properties via analytical micromechanics methods has been studied in (Müller and Böhlke 2016; Tucker III and Liang 1999). Nevertheless, analytical homogenization methods are based on assumptions involving simplified microstructural morphologies and material behaviors, which limits their applicability and accuracy for nonlinear analysis of composites with complicated microstructures. On the other hand, computational homogenization methods become increasing attractive in multiscale design and modeling of composite materials (Fish et al.

2021; Terada et al. 2013). For SFRC, Representative Volume Element (RVE) with realistic fiber distributions can be numerically reconstructed, and multiscale mechanical responses can be predicted through Direct Numerical Simulations (DNS) methods, such as the Finite Element Method (FEM) and Fast Fourier Transformation (FFT) (Naili et al.

2020; Müller et al. 2015). The high-fidelity DNS is especially useful for the design and analysis of composite materials at the RVE level. To model large-scale composite structures, multiscale methods coupling numerical RVE models with structure-level FE Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 4 Of 41

models have been developed. While FEM is typically adopted to discretize the macroscale composite structure, different numerical approximation methods have been utilized for the microscale RVE models, and the resulting multiscale methods are referred to as FE2 (Feyel 2003; Feyel and Chaboche 2000; Kouznetsova et al. 2004; Tan et al. 2020) or FE-FFT (Kochmann et al. 2018; Spahn et al. 2014). Although these multiscale methods are particularly advantageous to high-fidelity structural analysis, their applications to industrial scale modeling are limited by the high computational costs (Liu et al., 2020; Xu et al., 2020). For large-scale injection-molded SFRC structures with heterogeneous fiber distributions, high-fidelity FE2 or FE-FFT models will consume extremely high CPU time and memory that are unaffordable especially when nonlinear analyses are desired.

Recent progress in machine learning and data science have brought great opportunities to develop advanced data-driven material modeling and multiscale simulation methods and Humer 2022). To circumvent the limitations of conventional constitutive modeling, the model-free data-driven approach has been developed, which formulates an optimization problem to search for a stress solution directly from the material database characterizing constitutive behaviors subjected to essential physical constraints, such as equilibrium and compatibility conditions (Kirchdoerfer and Ortiz 2016; Ibanez et al. 2018; Eggersmann et al. 2019; He and Chen 2020; He et al. 2020; He et al. 2021a; He et al.

2021b; Xu et al. 2020). This data-driven computing paradigm has been applied for multiscale modeling of fiber-reinforced plastic composites (Huang et al. 2021), biological materials (Mora-Macías et al. 2020; Sanz-Herrera et al. 2021), and granular materials (Karapiperis et al. However, its application to elastoplastic material modeling remains challenging due to difficulties in defining a material database to characterize path-dependent material behaviors. Meanwhile, machine learning techniques have been applied to construct surrogate models of constitutive laws, including Gaussian process modeling (Bostanabad et al. 2018; Chen et al. 2018) and artificial neural networks, such as feedforward neural networks (Ghaboussi et al. 1991; Fritzen et al. 2019; Le et al. 2015; Lu et al. 2019), recurrent neural networks (Ghavamian and Simone 2019; Wang and Sun 2018), and graph/convolutional neural networks (Frankel et al. 2019; Vlassis et al. 2020; Rao and Liu 2020). In addition, neural network-based constitutive models with embedded material physical constraints including material frame invariance (Ling and Jones et al.

2016), symmetric positive definiteness (Xu and Huang et al. 2021), self-consistency (Bonatti and Mohr 2022), and thermodynamics (Vlassis and Sun 2021; Masi and Stefanou et al. 2021; He and Chen 2022) have been developed. Recently, coupling of neural networks with finite element methods and meshfree methods for modeling material damage and strain localization phenomena have also been investigated (Tao et al. 2022; Baek et al. 2022). These studies demonstrate the excellent performance of machine learning methods for modeling complex material physics by exploitation of material data.

Page 5 Of 41

To accelerate multiscale material modeling, several reduced-order modeling methods have been developed through the construction of surrogate models for high-fidelity

On

proper-orthogonal decomposition is developed in (Kaneko et al. 2021; Rocha et al. 2020; Fritzen and Kunc 2018; Goury et al. 2016; Yvonnet and He 2007), self-consistent clustering analysis is developed in (Gao et al. 2020; Liu et al. 2016; Liu et al. 2018; Yu et al. 2019), and a mechanistic machine learning method named Deep Material Network (DMN) is proposed by (Liu et al. 2019a; Liu and Wu 2019). DMN is designed to capture nonlinear microstructural interactions through a binary-tree network structure equipped with physics-based building blocks (Liu et al. 2019a; Liu and Wu 2019; Gajek et al. 2020).

DMN can be trained in an offline stage to learn the microscopic material morphologies and physics hidden in linear composite material data, and afterwards the trained network is able to perform multiscale online prediction of nonlinear constitutive behaviors. DMN has been extended to model woven composites (Wu et al. 2021), porous materials (Nguyen and Noels 2022a; Nguyen and Noels 2022b), cohesive interfacial failure (Liu 2020), and strain localization analysis (Liu 2021). In addition, transfer learning strategies are developed in (Liu et al. 2019b; Liu et al. 2020; Huang et al. 2022) for fast creation of DMN models with minimized training efforts for materials that share similar microstructural morphologies but own different characteristic geometries, such as particle-reinforced composites with different volume fractions. Coupling of DMN to finite elements has also been investigated for multiscale structural simulation (Gajek et al.

2022; Gajek et al. 2021; Liu et al. 2020). Despite the great progress, the usage of mechanistic machine learning techniques for Computer-Aided Engineering (CAE) is still limited within academic research community due to the lack of a general and robust software platform. To bridge this gap, we have developed a unified DMN database for SFRC to cover a full range of injection-molded microstructures, and the trained DMN model is seamlessly integrated in the multiphysics simulation software LS-DYNA for nonlinear multiscale modeling.

The main goal of this paper is to present the LS-DYNA machine learning-based multiscale method for nonlinear modeling of SFRC, and the remainder of this paper is organized as follows. Firstly, an overview of network architecture of DMN is given. Next, we present the details on the integration of DMN into LS-DNA for SFRC modeling, including the offline training of DMN based on an efficient transfer learning scheme for

Based On

injection-molding-induced microstructures, and the nonlinear multiscale prediction of SFRC parts by coupling trained DMN models with finite elements. Lastly, numerical examples are presented to demonstrate the capability of the proposed method, followed by the conclusions.

Overview Of Deep Material Network

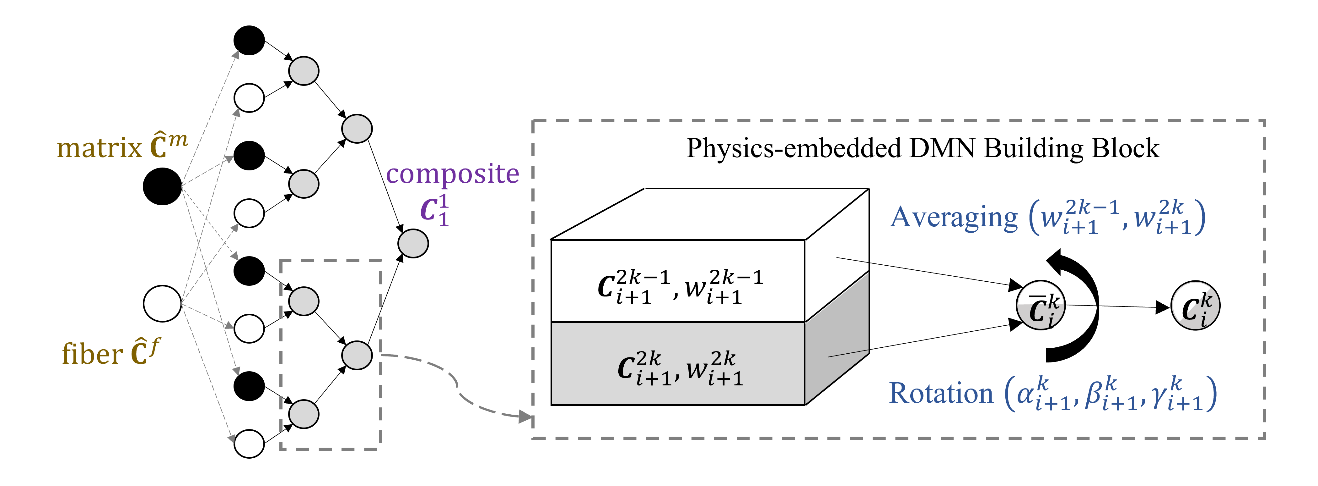

Fig. 1. Architecture of a 4-layer Deep Material Network (DMN). Deep Material Network (DMN) proposed in (Liu et al. 2019a; Liu and Wu 2019) is a mechanistic machine learning method for data-driven multiscale material modeling. As illustrated in Fig. 1, a binary-tree network structure is adopted for DMN. Therefore, for a network with 𝑁 layers, there are (2𝑁−1) nodes, where 2𝑁−1 nodes are located at the bottom layer 𝑁. For the 𝑘-th node at layer 𝑖, four network parameters are defined,

𝑘, Where 1 ≤𝑖≤

𝑁 denotes the layer index, and 1 ≤𝑘≤2𝑖−1 denotes the node index within each layer. Different from conventional artificial neural networks, all the network parameters of DMN have clear physical meanings, and thus it is straightforward to apply the rule of

𝑘−1 And 𝝈𝑖+1

2𝑘 are the stresses associated with the two child nodes of the

𝑘−1 And 𝑤𝑖+1

2𝑘 are the nodal weights of these two child nodes, respectively. Accordingly, an averaged material stiffness 𝑪̅𝑖

𝑘 Can Be Expressed As A

function of the nodal weights and material stiffness of its two child nodes:

𝑘−1)𝚨 (2)

where 𝚨 denotes a strain concentration matrix within each DMN building block, which is obtained by enforcing the interfacial equilibrium and kinematic conditions of a two-phase composite material (Liu and Wu, 2019). Derivation of an analytical form for the strain concentration matrix is given in Appendix I of this paper.

𝑘 Are Defined At Each Node Of

the network to capture directional material behaviors due to complicated microstructures. Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 7 Of 41

By applying three dimensional rotations to the averaged stiffness and stress, one obtains the following rotated stiffness matrix and stress vector:

𝑘 (4)

where 𝑹 denotes a rotation matrix based on the Euler angles (𝛼𝑖

𝑘). By Applying

the averaging and rotation operations to the physical quantities (stress, strain, stiffness, etc.) in different building blocks, DMN can upscale the microscopic base material behaviors at the bottom layer to predict macroscopic composite behaviors at the top layer.

The Nodal Weight 𝑤𝑖

𝑘 of a parent node is computed by adding up the weights of its two

𝑘 (5)

except for the bottom layer nodes whose weights are activated through the rectified linear

𝑘= 𝑅𝑒(𝑧𝑘) = 𝑚𝑎𝑥(𝑧𝑘, 0) (6)

Therefore, all the nodal weights in DMN can be calculated from the activations 𝑧𝑘. As a result, for a network with 𝑁 layers, its independent network trainable parameters are 2𝑁−1 activations 𝑧𝑘 and 3(2𝑁−1) rotation angles 𝛼𝑖

𝑘, Where 1 ≤𝑖≤

𝑁, 1 ≤𝑘≤2𝑁−1. Once DMN trainable parameters are determined through offline training, the essential microstructural interactions can be learned by the trained network, which can be applied for online prediction of nonlinear composite behaviors under general loading conditions.

Offline Training Of Dmn For Sfrc

Rewriting the independent network trainable parameters in a vector form as 𝒛∈ℝ2𝑁−1, 𝜶∈ℝ2𝑁−1 , 𝛃∈ℝ2𝑁−1 , 𝛄∈ℝ2𝑁−1 , we can express the overall material stiffness

𝑪1

1 of a two-phase composite at the top node of a 𝑁-layer DMN as:

𝑪1

1 = 𝒇(𝑪̂𝑓, 𝑪̂𝑚, 𝒛, 𝜶, 𝛃, 𝛄) (7) in which 𝑪̂𝑓 and 𝑪̂𝑚 represent stiffness matrices of the fiber phase and the matrix phase of short-fiber-reinforced composites. During the offline training process, they are

(8)

To determine the network trainable parameters, an optimization problem is formulated based on the mean square error (MSE), and the cost function is given by (Liu and Wu

(9)

where ‖⋯‖ denotes the Frobenius norm, 𝜆 is a positive hyper-parameter associated with the regularization term, which is set to be 0.001 in the present study to ensure the well-posedness of the optimization problem, 𝑗 denotes the index of the material sample in the training dataset, and 𝑁𝑠 is the total number of material samples. Hence, 𝑪̂𝑗

𝑪̂𝑗

𝑐 represent the fiber stiffness, matrix stiffness, and composite stiffness of the 𝑗th material sample, all of which are considered as linear elastic material properties. To minimize the cost function, the mini-batch gradient descent algorithm is employed, where gradients of the cost function with respect to the trainable parameters 𝛻𝐽 are derived by the backpropagation algorithm, as analytical functions are available in DMN building blocks.

Offline training data for DMN, i.e., linear elastic macroscopic stiffness tensors of the composites and microscopic stiffness tensors of the material constituents, can be gathered from both experimental measurements and numerical predictions. In the present study, high-fidelity computational homogenization of SFRC is employed to generate training data due to the lack of experimental data. To this end, RVE models are reconstructed Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 9 Of 41

based on SFRC microstructures. In practice, SFRC products may contain heterogeneous microstructures due to numerous combinations of fiber orientations and fiber volume fractions, depending on the injection-molding layout and material design. Therefore, it is infeasible to reconstruct a new SFRC RVE for each individual microstructural geometry.

To reduce the cost of DMN training, we introduce a transfer learning scheme (Liu et al. 2019b; Liu et al. 2020; Huang et al. 2022) to quickly generate DMNs for new SFRC microstructures by transferring the knowledge of a few pre-trained networks. To consider the effects of different fiber orientation states, we need to reconstruct 3 SFRC RVE geometries with the same fiber volume fraction, including RVEs with random 3D, random 2D, and unidirectional (UD) fiber orientation states. These three special orientation states are chosen for the offline training because a linear combination of their corresponding second-order orientation tensors (Advani and Tucker III, 1987) is sufficient for parametrization of all other possible fiber orientation states, as explained in Appendix II of this paper. Furthermore, an additional RVE geometry with a UD fiber orientation state and a high fiber volume fraction is reconstructed to capture the fiber volume fraction effect on the composite response. In total, we have reconstructed 4 SFRC RVE geometries with a fiber aspect ratio around 20 for the offline training of DMN, as shown in Fig. 2.

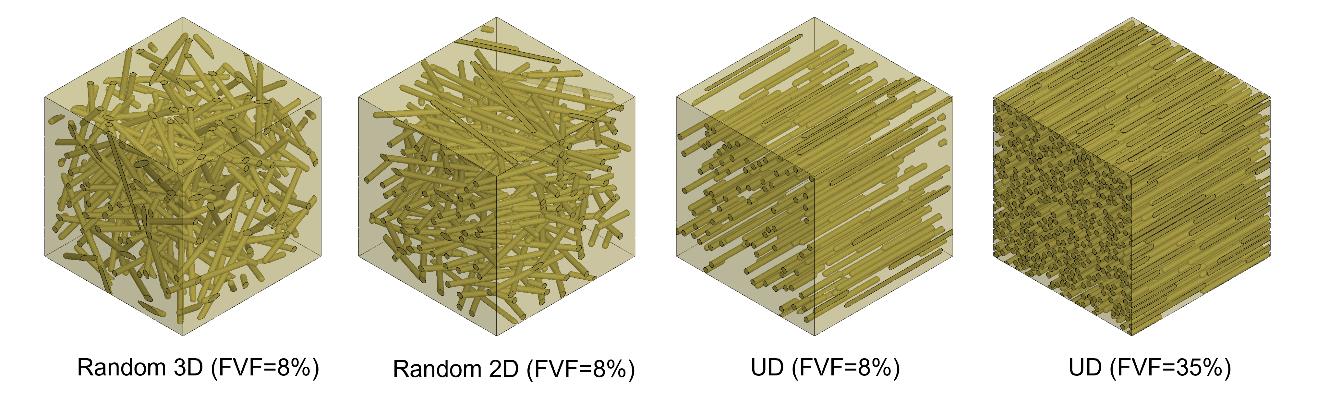

Fig. 2. Short-fiber-reinforced composite microstructures for transfer-learning-based offline training of DMN models, where FVF denotes the fiber volume fraction. For each SFRC microstructural geometry, we define 500 material samples containing different microscopic stiffness tensors for the fiber phase and matrix phase, and computational homogenization is employed to obtain the corresponding macroscopic stiffness tensors for the composites. Material samples are assigned with linearly elastic microscopic stiffness tensors with sufficient phase contrast and material anisotropy (Liu and Wu 2019) for the material network to learn the topological representation of SFRC. In the present study, each microstructure is discretized by 10-node tetrahedron finite elements in LS-DYNA and the *RVE_ANALYSIS_FEM keyword is used to Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 10 Of 41

automatically impose the periodic displacement boundary conditions for homogenization (Wei and Lyu et al. 2022). Since 4 microstructural geometries are considered for offline training, 2000 linear elastic finite element models are generated in total. To calculate the macroscopic composite stiffness tensor, 6 orthogonal loading conditions are imposed to each finite element model, respectively. As a result, 12000 linear elastic finite element simulations are performed, for which the total CPU time is approximately 670 hours with 32 processors used for each simulation.

After the finite element simulations, the homogenized composite stiffness and the corresponding microscopic fiber and matrix stiffness data are collected, and then the material data for each RVE microstructural geometry are separated into two datasets, of which 400 data points are defined as the training dataset, and the remaining 100 data points are defined as the testing dataset. The training dataset is utilized with a gradient-based optimization to calculate the network parameters of DMN models during the offline training stage, whereas the testing dataset is used to assess the generalization performance of a trained model.

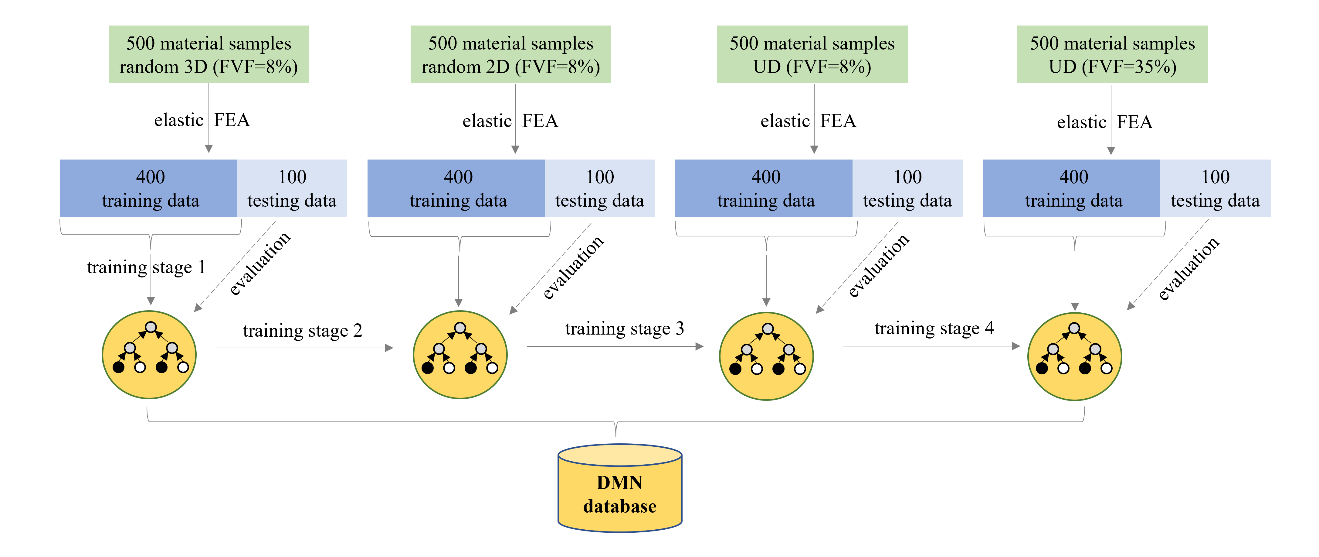

Fig. 3. Workflow for the 4-stage offline training of DMN for SFRC. Transfer learning-based offline training of DMN for SFRC consists of the following four stages, as illustrated in Fig. In stage 1, the RVE microstructure with 8% fibers uniformed oriented in 3D is considered, and DMN is trained with randomly initialized trainable parameters. After this stage, we obtain a trained DMN model, and we transfer it to initialize the networks for the random 2D and the UD RVEs with 8% fibers in stage 2 and stage 3, respectively. Finally, in stage 4 we transfer the network trained for the UD RVE with a low fiber volume fraction at 8% to the UD RVE with a high fiber volume fraction at 35%. For each stage, we use 20000 epochs to train a DMN model, where one Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 11 Of 41

epoch refers to one round of evaluation on all the training samples. During the optimization process, the 400 training samples for each SFRC microstructure are divided randomly into 10 mini-batches, so there are 10 training steps in each epoch. In addition, the bold driver method is employed to adapt the learning rate (i.e., the multiplier on the step size) by comparing the training error to its previous value after each epoch. Parallel computing with 10 processors is adopted for the offline training, and it takes around 200 hours to finish all the 4 training stages.

Histories of the average training and testing errors for the offline training process are plotted in Fig. 4, where the average errors are defined in (Liu and Wu 2019). DMN for the first RVE with the random 3D microstructure begins with a large training error since the trainable parameters are randomly initialized without any prior knowledge about the microstructure. For the other three RVEs, the training starts from a much lower error thanks to the knowledge transferred from the pre-trained network, which demonstrates the enhanced training efficiency of the employed transfer learning scheme.

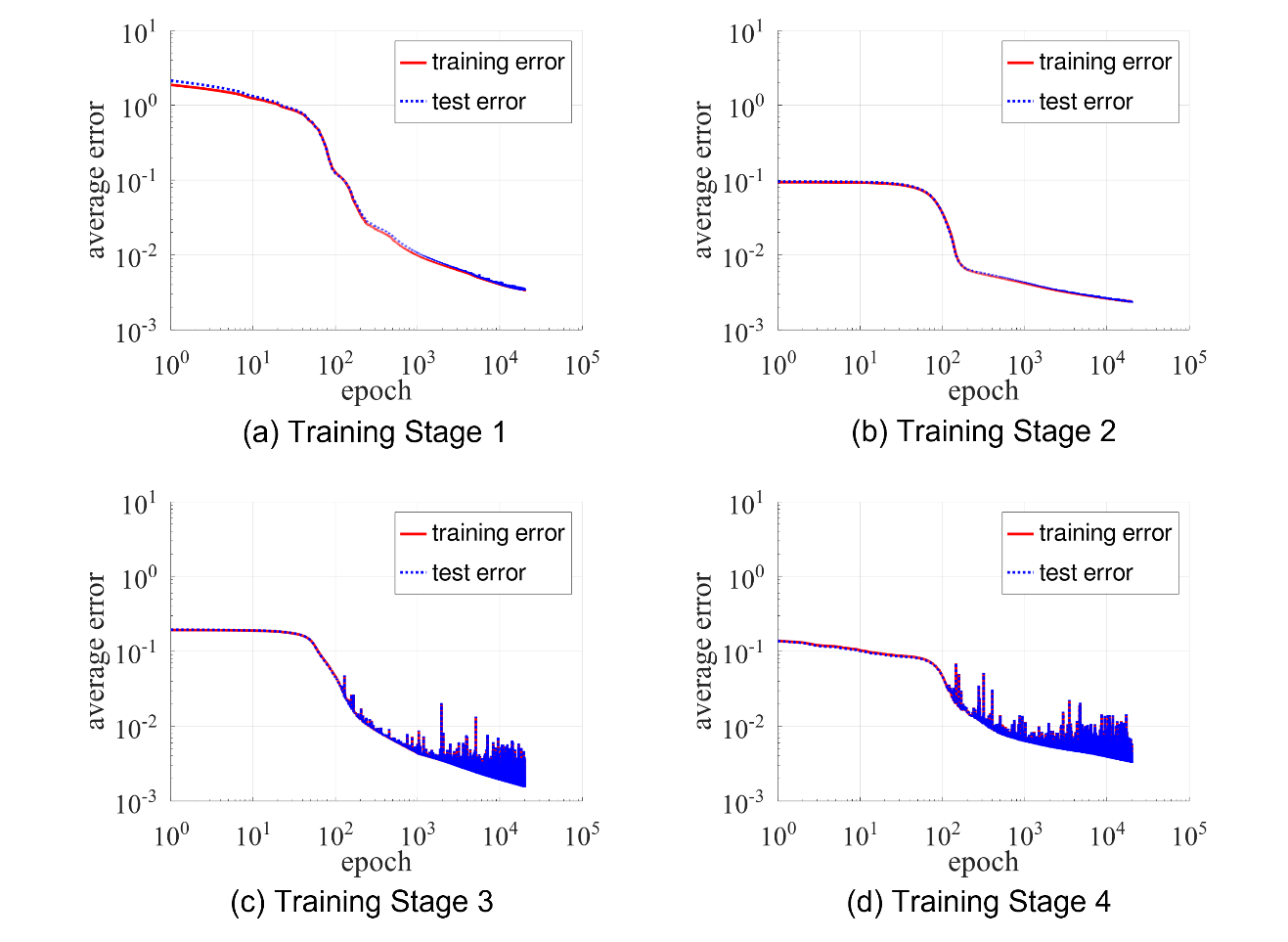

Fig. 4. Histories of the average training and testing errors for transfer-learning-based training of DMN models for SFRC. Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 12 Of 41

Table 1. Training results of DMN for SFRC microstructures

%

Table 1 shows the training results for DMN with 8 layers, where the accuracy is measured by the scaled mean absolute error. As can be seen from the table, training errors of all the DMN models are less than or equal to 0.33%. In addition, we can observe that the training error decreases from the random 3D fiber orientation to random 2D fiber orientation, and it further decreases for the UD fiber orientation state. Increasing the fiber volume fraction, however, induces a higher training error. The levels of testing errors on unseen data points are quite close to the training error levels, suggesting that there is no overfitting issue. The strong generalization performance of DMN is attributed to the essential physics embedded in the two-layer building block, which enhances the extrapolation capability to unknown material and loading spaces. To further examine the ability of trained DMN for capturing material anisotropic effects, DNS and DMN are employed to predict the homogenized linear elastic material stiffness for UD and random 2D SFRC microstructures, respectively, for which we adopt a set of fiber and matrix properties unseen in the training process. Using the method described by (Nordmann et al.

2018), direction-dependent Young’s modulus calculated from the anisotropic stiffness can be visualized as a 3D surface, as shown in Fig. 5. The good agreement between DNS and

The

microstructure-induced directional dependency of SFRC properties. Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 13 Of 41

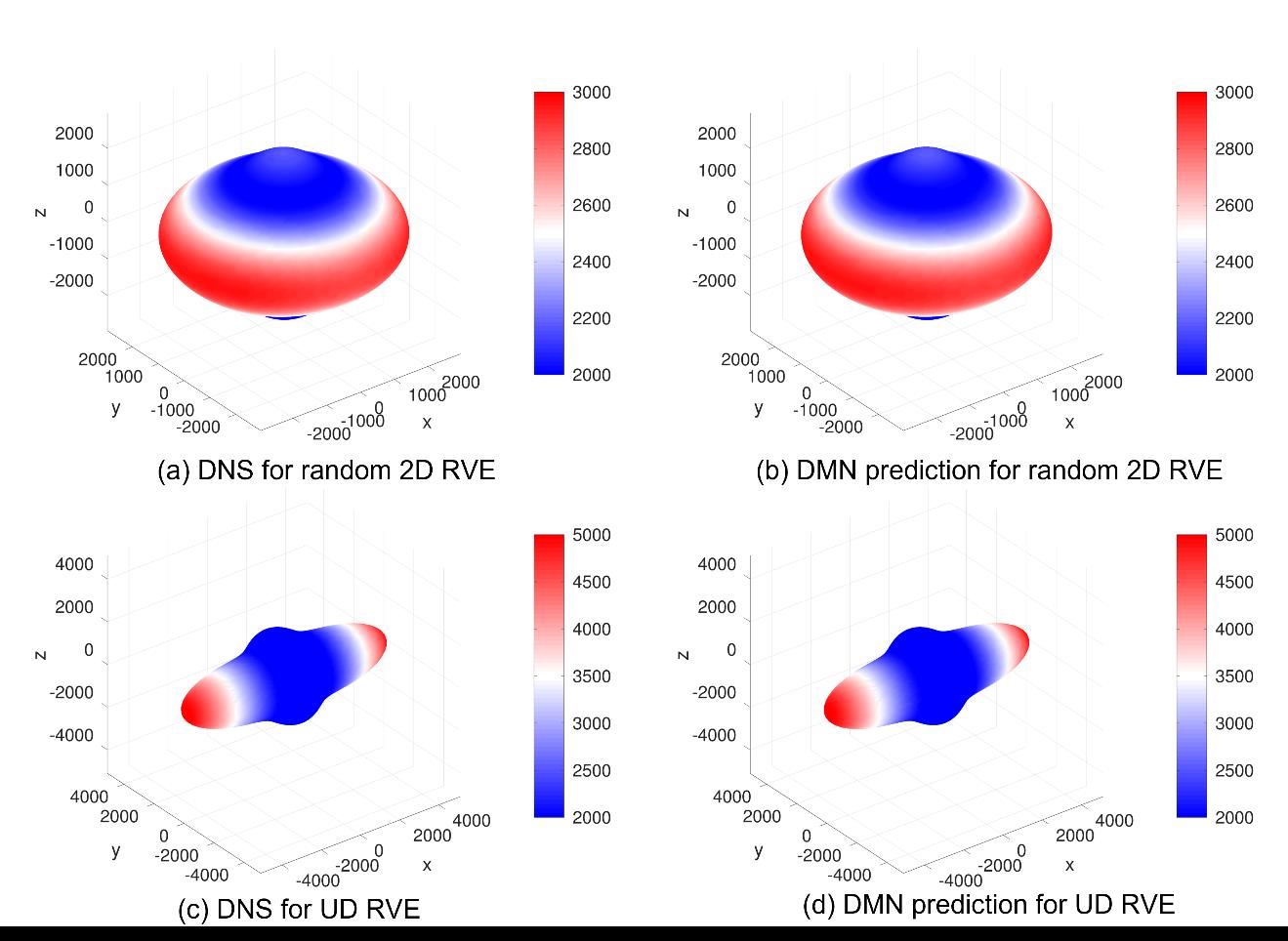

Fig. 5. 3D representation of Young’s modulus for anisotropic SFRC microstructures predicted by DNS and DMN, where the radius (vector measured from the origin to the surface) in any direction is proportional to the magnitude of the Young’s modulus in that direction, and the magnitude of the Young’s modulus is also conveyed by a color mapping applied to the surface.

Page 14 Of 41

LS-DYNA Nonlinear Multiscale Online Prediction for Injection-Molded SFRC Integration of DMN models for SFRC with the engineering simulation software LS-DYNA is implemented for multiscale structural analysis of SFRC. In dynamic finite element analysis, the spatial domain 𝑉 of the global SFRC structure is discretized into a collection of subdomains 𝑉𝑒, where 𝑒= 1, ⋯, 𝑁𝑒, 𝑁𝑒 denotes the total number of finite elements, and the global displacement field 𝒖(𝑿, 𝑡) ∈ℝ3 is approximated by

(10)

where 𝐼 denotes the global nodal index, 𝑁𝑛 denotes the total number of nodes in the finite element mesh, 𝑿∈ℝ3 and 𝑡 denote the spatial position and time, respectively,

N𝐼

𝑢(𝑿) and 𝐔𝐼(𝑡) ∈ℝ3 denote the shape function and the displacement vector associated with node 𝐼, respectively. The nodal displacements, velocities, and accelerations can be obtained by solving the global semi-discrete momentum equation:

(11)

where 𝐔̈ ∈ℝ3𝑁𝑛 is the global nodal acceleration vector, which is the 2nd-order material time derivative of the global nodal displacement vector 𝐔∈ℝ3𝑁𝑛, 𝐌∈ℝ(3𝑁𝑛)×(3𝑁𝑛), 𝐅ext ∈ℝ3𝑁𝑛, and 𝐅int ∈ℝ3𝑁𝑛 are the lumped mass matrix, the global external nodal force vector, and the global internal nodal force vector, respectively. 𝐅int is obtained by

(12)

where 𝓑𝐼 denotes the shape function gradient matrix associated with node 𝐼. Evaluation of the internal nodal force in Eq.(12) is based on numerical integration. To this end, the macroscopic stress 𝛔 is calculated at every quadrature point 𝛏𝑞 of the finite element model, where the subscript 𝑞 denotes the quadrature point index. In the present LS-DYNA multiscale method, the macroscopic stress 𝛔 is predicted by DMN coupled with finite elements, where each quadrature point 𝛏𝑞 has an associated network corresponding to the local fiber orientation and volume fraction. To model injection-molded SFRC parts, where nonuniform fiber distributions are induced by different molding conditions (e.g., part geometry, injection gate position, filling time, and mold temperature), it is desirable to create the online DMN models in an efficient manner, instead of performing offline training for each individual microstructure. For this reason, Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 15 Of 41

the transfer learning method proposed in (Liu et al. 2019b; Liu et al. 2020; Huang et al. 2022) is adopted for creating DMN models in LS-DYNA during online computation. Under the transfer learning framework, the base topological structures of all the four DMN models obtained from offline training are analogous, which enables a continuous migration between different networks through direct interpolation of their trainable parameters. Let us define a data point (𝑿∗, 𝒀∗), where the superscript (∗) denotes an intermediate state, 𝒀∗ denotes the unknown DMN trainable parameters:

(13)

and 𝑿∗ denotes the geometric descriptors of the intermediate SFRC microstructure:

∗ Are Two Largest

eigenvalues of the second-order fiber orientation tensor (Advani and Tucker III, 1987), which describes the orientation state of short fibers. Note that the three eigenvalues 𝑎11, 𝑎22, and 𝑎33 of any fiber orientation tensor 𝒂 satisfy 𝑎11 ≥𝑎22 ≥ 𝑎33 and 𝑎11 + 𝑎22 + 𝑎33 = 1, as described in Appendix II. The values of fiber orientation tensor and volume fraction can be either measured from experiments or predicted through injection molding simulation of the melt flow process (Wang et al. 2018). Similarly, we can define the known trainable parameters of pre-trained DMN models as 𝒀1, 𝒀2, …, 𝒀𝑁, and the geometric descriptors of microstructures used in the offline training as 𝑿1, 𝑿2, …, 𝑿𝑁.

Accordingly, the regression function for the new data point (𝑿∗, 𝒀∗) can be expressed as 𝒀∗(𝑿∗) = 𝒓(𝑿∗|(𝑿1, 𝒀1), (𝑿2, 𝒀2), ⋯, (𝑿𝑁, 𝒀𝑁)) (15) To determine the unknown trainable parameters (i.e., [𝒛∗, 𝜶∗, 𝛃∗, 𝛄∗]) for a linear regression model with three independent geometric descriptors (i.e., [𝑣𝑓

∗]), We

need four linearly independent data points (𝑿𝑖, 𝒀𝑖), which correspond to the four RVE geometries created in the offline training stage. Therefore, N=4 is chosen in Eq. (15). Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 16 Of 41

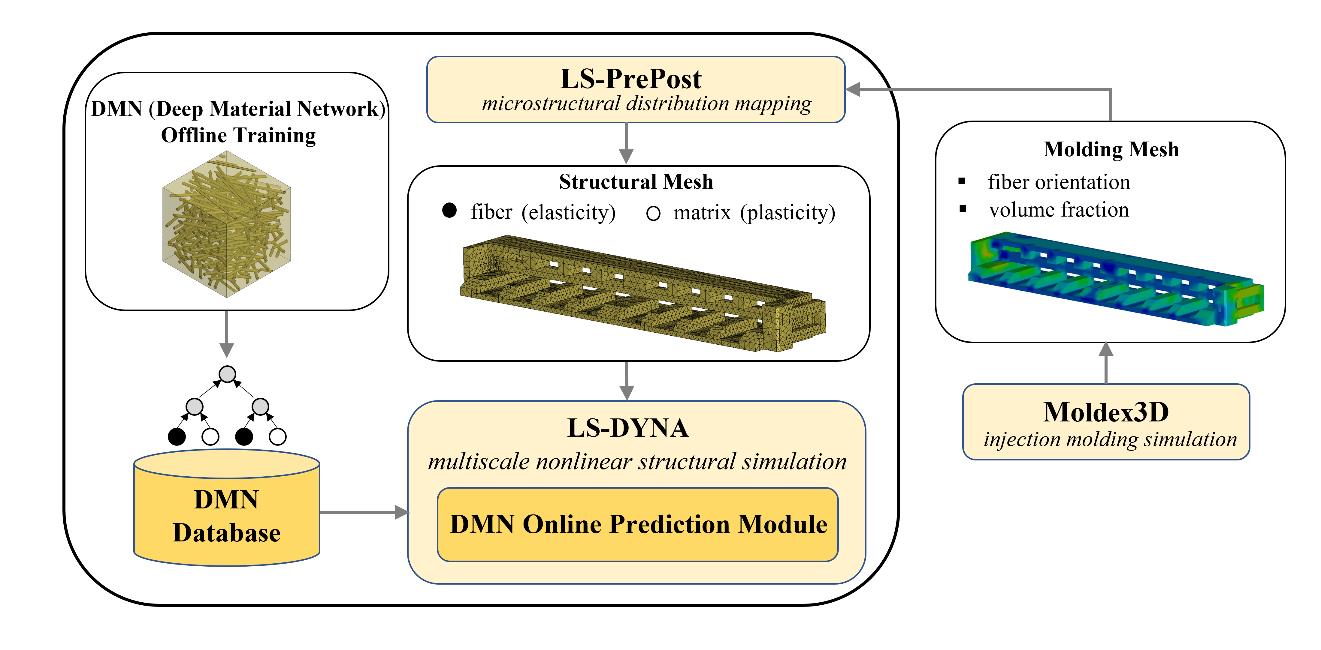

Fig. 6. Illustration of the DMN-based nonlinear multiscale simulation framework for short-fiber-reinforced composite (SFRC) structures, where microstructural data from Moldex3D are mapped by LS-PrePost to LS-DYNA finite elements coupled with DMN.

Since the online network creation is guided by the microstructures at quadrature points, it is essential to gather the injection-molded microstructure information. In practice, microstructural distribution in SFRC products can be obtained through injection molding simulation (Wang et al. 2018) using the software Moldex3D, and the predicted fiber orientation and volume fraction data can be mapped from the molding simulation mesh to the LS-DYNA structural simulation mesh using the pre-processing software LS-PrePost.

After mapping, the DMN online prediction module will create a new DMN model at each quadrature point specific to the local microstructure, and then the network will be dynamically coupled to the finite elements in LS-DYNA for nonlinear multiscale online prediction. An illustration of the overall multiscale simulation framework (Wei et al. 2021) is depicted in Fig. 6. Note that this online DMN creation process does not involve RVE reconstruction or DNS. In addition, the new DMN models are created only once at the beginning of the online prediction stage, so the associated computational cost is negligible in the overall multiscale simulation.

After the creation of microstructure-based DMN models, LS-DYNA multiscale structural simulations will be carried out, where finite element modeling for the global structures and DMN prediction of the local composite materials are tightly coupled. At each time step, finite element equations are solved to calculate the nodal accelerations, velocities, and displacements at the global structural level. In the present work, an explicit time integration algorithm has been adopted, which has been proven to be highly efficient and Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 17 Of 41

robust for nonlinear dynamic problems involving contact-impact and large deformations (Belytschko et al. 2014). Afterwards, the macroscopic strain at each quadrature point is evaluated and transferred to DMN. With the macroscopic strain increment, backward de-homogenization and forward homogenization of material information are performed within DMN to predict the multiscale material response. The incremental stress-strain relationship associated with DMN’s 𝑘th node at layer 𝑖 takes the following form:

𝑘 Denotes The Strain Increment Of Dmn’S

𝑘th node at layer 𝑖. In multiscale structural analysis, macroscopic rate-of-deformation increments computed by the finite element method are assigned to the top layer node of DMN at the corresponding quadrature point. Strain increments of nodes at other layers are calculated through backward de-homogenization. d𝝈̅𝑖

𝑘 Denotes A Correction To The

incremental stress, which should vanish if material nonlinearities of composites are omitted. In nonlinear composite modeling, however, d𝝈̅𝑖

𝑘 Is Not Necessarily Equal To Zero

and is calculated through forward propagation from a lower layer of the network:

𝑘−1 And 𝑤𝑖+1

2𝑘 are the corresponding nodal weights, and the vector 𝝌 depends on the material stiffness matrices and stress corrections of the two child nodes, for which an analytical expression can be found in (Liu and Wu, 2019). d𝝈𝑖+1

D𝝈𝑖+1

2𝑘 are the rotated stress corrections of child nodes, which are obtained by applying a rotation operation to the averaged stress correction:

𝑗, 𝛾𝑖

𝑗) denotes the rotation matrix based on the Euler angles (𝛼𝑖

𝑗)

of the network. At the bottom layer of DMN, material stiffness matrices 𝑪𝑁

𝑘, And The Correction D𝝈𝑁

𝑘 are evaluated using microscopic constitutive laws for the fiber phase and the matrix phase. While linear elastic constitutive laws are adopted during the offline stage to learn the essential physics, elastoplastic microscopic constitutive laws can be adopted in the online structural analysis stage to capture nonlinear composite material behaviors. For SFRC, a linear elastic law is usually sufficient for modeling the fiber phase, whereas an elastoplastic law with isotropic hardening can be adopted for modeling the nonlinear matrix phase. After the microscopic material law evaluation, stress and state variables (e.g., equivalent plastic strain/EPS) are Wei, H., Wu, C. T., Hu, W., Su, T. H., Oura H., Nishi, M., Naito T., Chung S., Shen L. (2023). LS-DYNA machine learning-based multiscale method for nonlinear modeling of short-fiber-reinforced composites. Journal of

Page 18 Of 41

stored at the bottom layer, while the stiffness matrices and stress corrections are propagated to an upper layer of the network. Due to material nonlinearities, forward homogenization and backward de-homogenization of stresses and strains are iterated in the network. To check convergence for the network iteration, an L2 norm of the difference in two successive strains is computed at the bottom layer:

≤𝜖𝑡𝑜𝑙 (19)

where the superscripts (𝑖𝑡𝑒) and (𝑖𝑡𝑒+ 1) denote iteration counts, and 𝜖𝑡𝑜𝑙 is a convergence tolerance. Once convergence is achieved, the microscopic stress and state variables (e.g., equivalent plastic strain) of each bottom node are updated, and the stress

Increment ∆𝝈1

1 of the DMN’s top layer node is employed to update the macroscopic stress 𝛔 at the finite element’s quadrature point 𝛏𝑞:

(𝛏𝑞) (20)

where the superscript 𝑡𝑛 and 𝑡𝑛+1 denote two different time instants during the time integration of the momentum equation. Upon the completion of the DMN-based multiscale stress computation, finite elements in LS-DYNA will gather the macroscopic stress from different quadrature points to evaluate the internal force vector 𝐅𝐼

Int By

Eq.(12) for nonlinear finite element analysis. After the internal force computation, the resulting finite element equations for composite structures can be solved for the next time step. A flowchart for the DMN-based internal force calculation in LS-DYNA is given in Box 1. It is noteworthy to mention that, in addition to applying DMN in the nonlinear finite element modeling, it is also feasible to couple DMN with meshfree methods (Wang et al. 2009; Wu et al. 2020; Huang et al. 2020; Pasetto et al. 2021) for accelerated multiscale analysis of structures undergoing extreme deformations.

Page 19 Of 41

Box 1. Flowchart for DMN-based internal force calculation in FEA a.

Oop Over Finite Elements 𝑒= 1, ⋯, 𝑁𝑒

i. Gather element nodal displacements and velocities ii. Loop over quadrature points 𝛏𝑞∈ℝ3 with quadrature weights 𝜛𝑞(𝛏𝑞) 1. Initialize Deep Material Network (DMN) parameters if time t𝑛= 0 1.1 Import fiber orientation 𝒂(𝛏𝑞) ∈ℝ3×3, volume fraction 𝑣𝑓(𝛏𝑞) 1.2 Regression-based transfer learning to get new network parameters 𝒛, 𝜶, 𝛃, 𝛄, 𝒘 based on SFRC microstructure at point 𝛏𝑞 Retrieve DMN parameters 𝜶, 𝛃, 𝛄, 𝒘 stored at point 𝛏𝑞 if time t𝑛> 0 2. Compute macroscopic rate-of-deformation increment ∆𝐃(𝛏𝑞)

Ompute Cauchy Stress Increment ∆𝛔(𝛏𝑞) By Dmn

3.1 Evaluate microscopic constitutive equations to get stress ∆𝝈̅𝑁

Stiffness 𝑪̅𝑁

𝑘, and material state variables of bottom-layer nodes

𝑘

3.5 Check network convergence. If not converged, go to 3.1 4. Update macroscopic Cauchy stress 𝛔(𝛏𝑞) ←𝛔(𝛏𝑞) + ∆𝝈1

Page 20 Of 41

Applications for Nonlinear Modeling of Short-Fiber-Reinforced Composites In this section, two numerical examples are presented to demonstrate the effectiveness and performance of the present DMN-based multiscale method. In the first example, we verify the accuracy and efficiency of the method by comparing with direct numerical simulations of RVE, where both the microstructural geometries and nonlinear microscopic material laws are unseen in the DMN offline training. In the second example, nonlinear multiscale analysis is performed for a short-fiber-reinforced thermoplastic part by integrating injection molding-induced fiber orientations and volume fractions, which demonstrates the capability of the present method for industrial applications where capturing the microstructural effects is essential.

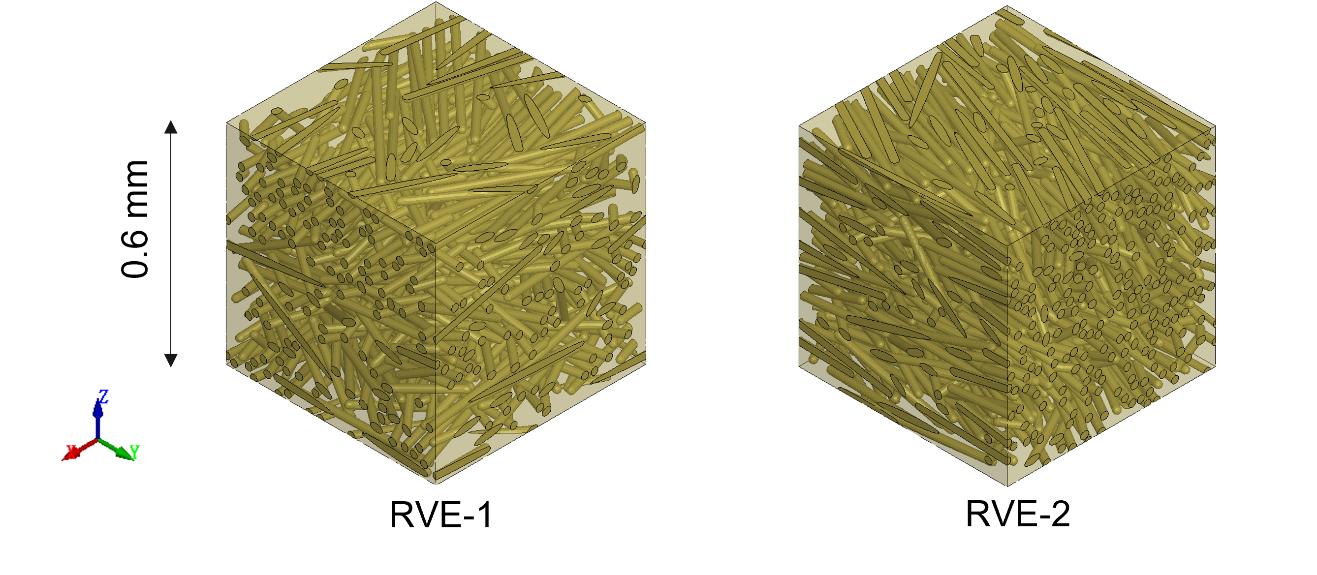

Verification Against Direct Numerical Simulation of SFRC RVE Fig. 7. Reconstructed SFRC microstructures for direct numerical simulation. Table 2. SFRC microstructures analyzed in the online prediction

%

In this example, we present nonlinear online prediction results of DMN at a single macroscopic material point level for different SFRC microstructures. The two analyzed
