Absolute Calibration With The Horizontal Muons

Absolute calibration with the americium-beryllium source

Ntroduction

The SoLid (Search for Oscillations with a Lithium-6 Detector) experiment is located in the vicinity of the Belgian Reactor 2 (BR2) research reactor at the SCK CEN site in Mol, Belgium. The experiment aims to make a precise measurement of the reactor antineutrino flux at a very short baseline (6.3 - 8.9 m) to search for oscillations of neutrinos to a sterile state. The second goal is to study the 235U energy spectrum with regard to the “5 MeV bump” . The first measurement provides information on the so-called Reactor Antineutrino Anomaly (RAA) and the Gallium anomaly . In particular, it is possible to constrain the 3 + 1 model , which assumes the existence of an additional light sterile neutrino state. The SoLid experiment was designed to probe the best-fit region of the oscillation parameters with sin2(2𝜃𝑠) ≈0.1 and Δm2

𝑠≈1 Ev2. The Description Of The

design of the SoLid detector is beyond the scope of this article. The interested reader can consult the detailed discussion reported in Ref. . The following paragraph contains the executive summary required for the description of the calibration procedure.

The basic detection unit of the detector is a 5 cm side PolyVinyl Toluene (PVT) cube. PVT is a cheap plastic scintillator with a linear response over a wide range of energy. Each cube has two

– 1 –

neutron detection screens (microcomposite 6LiF:ZnS(Ag)) placed on adjacent faces. The detection units are combined into planes of 16 × 16 units each.

Each Cube Is Individually Wrapped In

Tyvek to prevent scintillation light from escaping. Furthermore, each plane is surrounded by two square Tyvek sheets, which optically decouple the planes by further preventing the passage of light between them [5, 6]. The latter is a very important feature for both calibration and reconstruction, since it simplifies the problem from 3D to 2D. Ten planes make up a module, and the detector comprises five modules in total. The scintillation light from the PVT cube is collected by two vertical and two horizontal WaveLength-Shifting (WLS) fibres that pass through each detection cell. One side of each WLS fibre is covered with a Mylar foil that acts as a mirror to reflect the incoming light. The second side is coupled with Multi-Pixel Photon Counters (MPPCs) that read out the light. The digitised version of the readout is the initial input received from the detector.

Figure 1 shows the schematic view of the SoLid detection unit and the detection plane. The origin of the coordinate system corresponds to the position of the reactor core. The 𝑥−𝑦coordinates are defined by the orientation of the detector planes, with 𝑥being the horizontal direction and 𝑦the vertical, respectively. The 𝑧axis is perpendicular to the detector planes.

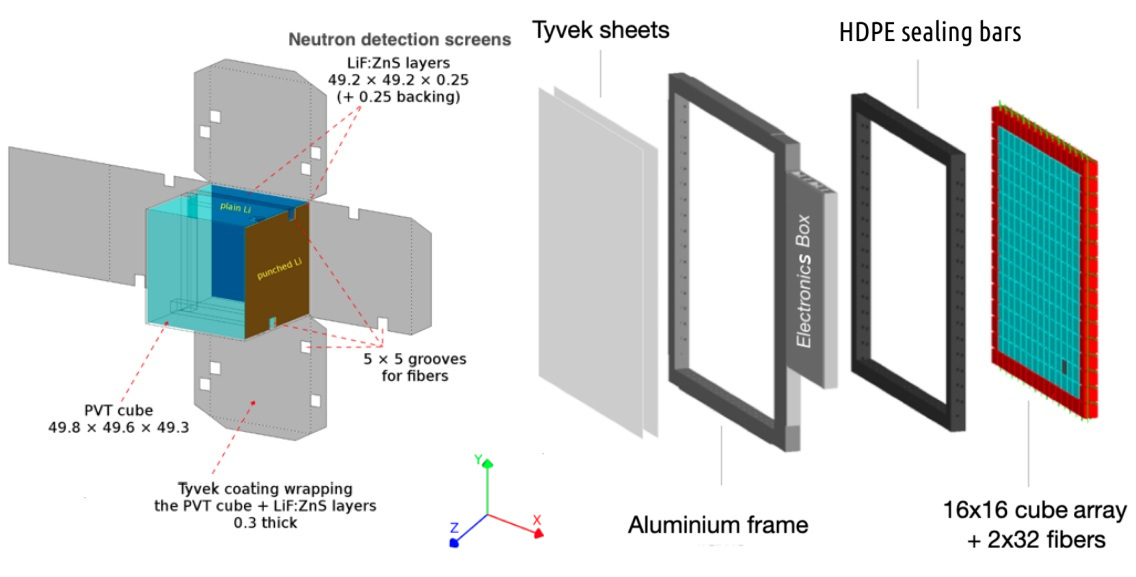

Figure 1. A sketch of the SoLid basic detection unit (left) and detector plane (right). The SoLid detector uses the Inverse Beta Decay (IBD) process (¯𝜈𝑒+ 𝑝→𝑛+ 𝑒+) to detect antineutrinos. The necessary simultaneous detection of the neutron and positron signals justifies the use of two scintillators: neutron detection screens featuring 6LiF:ZnS(Ag) and PVT. On average, the IBD neutron receives a kinetic energy of 50 keV, which is much larger than the thermal neutron energy (25 meV). Thus, the neutron is first thermalised via elastic collisions with the nuclei in the PVT. After thermalisation, it is captured on the 6Li, which has a very large thermal neutron cross section of 936 b (compared to 0.3 b for hydrogen and 0.5 mb for carbon). The atom breaks into tritium and 𝛼particles, generating scintillation photons in the ZnS(Ag) crystals present in the detection screens. The PVT acts not only as a neutron moderator but also as a proton-enriched target

– 2 –

This light is subsequently captured by WLS fibres and read out by MPPCs. The high granularity of the detector allows the ionisation and annihilation gamma contributions from the positron to be distinguished. Hence, the antineutrino energy is defined from the IBD process as follows:

(1.1)

where 𝑚𝑝and 𝑚𝑛denote the masses of the scattered proton and the outgoing neutron, respectively, and 𝐸𝑖with 𝑖∈𝑒+, 𝑛, ¯𝜈denotes the kinetic energies of the corresponding particles. Neglecting 𝐸𝑛in the second equation is justified, since the neutron kinetic energies do not exceed 50 keV, much lower than the O(3) MeV antineutrino energy. Therefore, the antineutrino energy estimator relies on the measurement of the actual energy deposited by the positron, in contrast to the total prompt energy of the event in the case of liquid scintillators. The size of the cube in the SoLid geometry corresponds to the maximum path length of a 10 MeV positron. According to Geant4 (version 10.6.0) studies, the positron, in fact, deposits its energy in a single cube in 80% of events. Furthermore, the cube in which the annihilation occurred (Annihilation Cube or AC) is the most energetic cube of the event when the positron energy is above 1 MeV. Thus, an accurate reconstruction of the AC and an accurate calibration of its energy are key to a precise measurement of the antineutrino spectrum; which in turn is of the utmost importance for both oscillation analysis and the “5 MeV bump” exploration.

Figure 2. A sketch of the energy deposit (pink cube) in the SoLid detector plane with fired horizontal (red) and vertical (blue) fibres and impacted (pink and light pink) MPPC. However, the detector does not directly deliver the positron energy information at the cube level. The starting point for any analysis is the digitised readout from the MPPCs. Therefore, signal candidates must be defined from this input. More precisely, the MPPC response must be transformed back into the list of detection cubes involved in the event. This list of cubes contains the energy deposits from the annihilation gamma and positron if the mean path length of the

– 3 –

annihilation gamma is enough to escape the AC. In addition to verifying the energy estimator suggested in Equation (1.1), the reconstructed annihilation gamma clusters also provide a very powerful background rejection tool. Figure 2 sketches the basics of the reconstruction problem. If there is an energy deposit 𝐸𝑗, then the WLS fibres act as linear projectors to transfer light to the MPPC. As mentioned above, the planes are optically decoupled; hence, the reconstruction problem can be posed for each plane individually. We postulate 𝑓𝑖𝑗as the projector from cube j to MPPC i (generally speaking, 𝑓𝑖𝑗represents the fraction of light generated in the given cube received by an individual fibre). The definition of 𝑓𝑖𝑗involves the absolute energy scale and the MPPC gain. It is discussed in more detail in Section 4. The readout value for this particular MPPC is calculated as

(1.2)

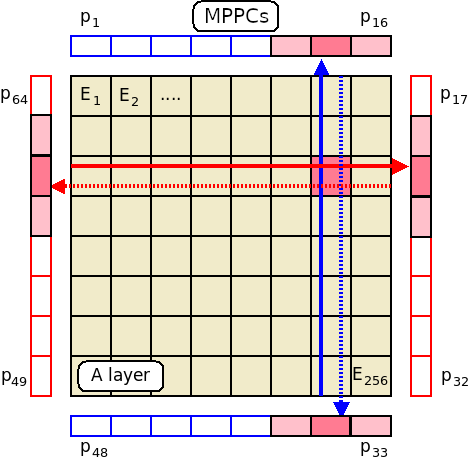

where 𝑝𝑖corresponds to one of the 64 readout projection values (twice the sum of the number of cubes in rows and columns) and 256 corresponds to the number of cubes in the plane. A similar equation can be written for each individual MPPC. Afterwards, the system of 64 equations can be

(1.3)

where p is the column vector of the readout projections. E is a column vector of unknown energy deposits that are determined by the reconstruction procedure. Finally, 𝐴64×256 is called the system matrix and embodies the best of our knowledge about the detector behaviour at each stage, from light generation to digitisation. Finally, it must be complemented with the absolute energy scale to transform the energy of the cubes from the Analogue-to-Digital Converter units (ADCs) to the physics units (MeV). The description of the methods for solving Equation (1.3) is beyond the scope of this article. The tools available on the market, together with the baseline choice made for the SoLid experiment, known as the CCube algorithm, are exhaustively discussed in Ref. . The equation is solved under the assumption that the system matrix is determined elsewhere. The derivation of this matrix and the determination of the absolute energy scale are the subject of this article.

Osmic Muons As The Calibration Source

The projector values 𝑓𝑖𝑗in Equation (1.2) are not constrained a priori. Their initial features are obtained from a simplified optical simulation. The simulation is performed with the GODDeSS extension framework for Geant4. It consists of one row of 16 identical PVT cubes without neutron detection screens, but wrapped in reflective Tyvek paper. Both horizontal and vertical WLS fibres are paired with MPPCs, which read out the number of arriving scintillation photons. A single muon is generated such that it crosses the central cube of the system. The setup is sketched in Figure 3.

First, the simulation shows that the scintillation light is not contained within a single cube. A significant fraction of the photons (∼10%) are propagated to the neighbouring cubes, in particular through the holes created by the WLS positioning tolerances. This effect will be referred to as

– 4 –

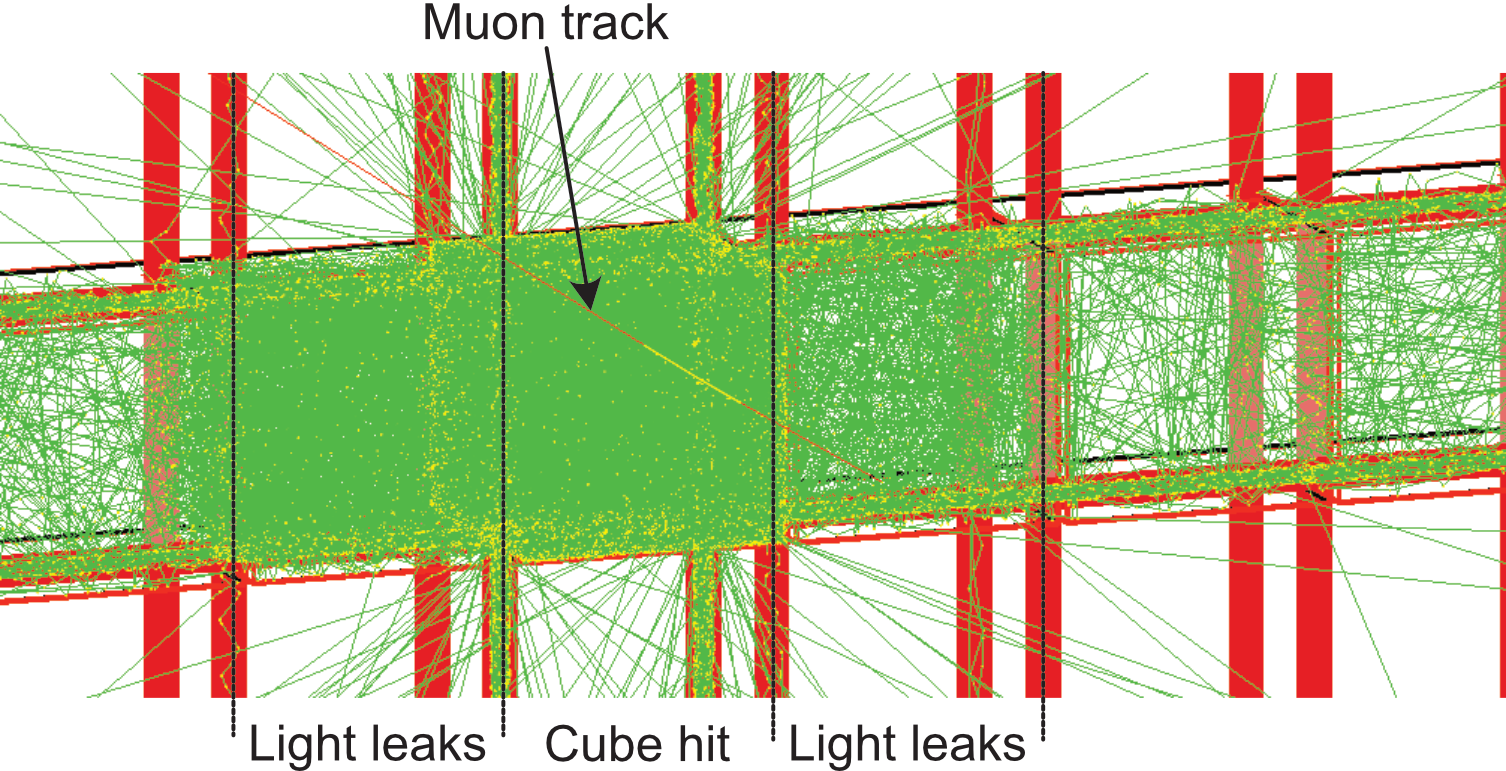

Figure 3. An optical simulation setup with a single muon track launched through the central cube. Light Leaks (LL) in the following. The fraction of photons that end up two cubes away from the crossed cube is at a subpercent level, and thus neglected. Therefore, each energy deposit has only 12 non-zero projector values associated with it. Four of them are related to the fibres in the main cube, where the energy deposit has occurred, and another eight are related to the four neighbouring cubes (2 on the horizontal axis and 2 on the vertical) created by the LL. Secondly, the simulation reveals asymmetries in light sharing between the fibres. These asymmetries are observed between the horizontal and vertical fibres. Moreover, the amount of light shared between the two horizontal (vertical) fibres that cross the same cube is not equivalent either. Thus, a per-fibre determination of the System Matrix elements, i.e. calibration, is desirable. The final stage of the simplified optical simulation scrutiny is related to the impact of the WLS groove size. The width of the groove is 5 mm, while the diameter of the fibre is 3 mm. In the modified version of the simulation, the width of the groove is changed to match the size of the WLS fibre, so that there is no air gap between the two. This modification demonstrated a drastic change in the distributions of scintillating light, which, in turn, indicates miscalibrations due to the actual geometry of the detector. This effect also varies from cube to cube. Other effects such as temperature or the detector displacements triggered by the movement of the calibration sources can also influence the detector response. The modelling of the miscalibrations cannot therefore rely solely on physics assumptions such as attenuation length or coupling effect. Since all detection units are identical in the Geant4 simulation, the modelling cannot rely on it either. There are two ways to address this problem: develop a much more detailed simulation or alternatively use the data directly.

In summary, the optical simulation shows that the calibration in the SoLid experiment must be performed on the per-fibre level. In addition, the calibration source must provide a way to determine the LL. Accurate measurement of light-sharing features contributes to a precise reconstruction of the positions of the cubes and their energies. Events can therefore be categorised on the basis of their topological characteristics. These calibration requirements are further complemented by the

– 5 –

fact that the detector is a dynamic system; e.g. the PVT is exposed to ageing, which decreases the number of generated photons and therefore modifies the energy response during data taking. As such, the calibration procedure must be performed regularly, with a frequency defined by the precision of the method. This in turn provides the third requirement: the precision of the approach has to be at the percent level, which requires enough statistics for all the fibres. Finally, let us return to Equation (1.2). In the case of the unique energy deposit 𝐸𝑗, for the projection 𝑝𝑖, the equation

(2.1)

where 𝑝𝑖is the direct output of the detector. Hence, if the total energy deposited in the plane is known, the projector value 𝑓𝑖𝑗is the only unknown. Therefore, in such a case, all 12 projector values associated with the cube, where the energy deposit occurs, can be measured directly. Cosmic muons can meet all the requirements listed above. On average, muons deposit 1.6 MeV/cm (which translates to 8 MeV for the SoLid detection unit size of 5 cm). As such, it is possible to accurately measure both the light-sharing properties within the main cube traversed by a muon and in the neighbouring cubes impacted by the LL. Furthermore, the muon track typically crosses several cubes in the detector. Thus, it is possible to use a single track to calibrate multiple cubes. However, to fit the condition of the single energy deposit in the plane, only a subset of the cosmic muon sample is considered for calibration purposes. It consists of parts of the muon tracks that are horizontal enough to cross only one cube in a plane.

Selection Of Horizontal Muons

Horizontal muon candidates are selected from both reactor-off (ROff) and reactor-on (ROn) samples. The selection itself is implemented in the SoLid Analysis Framework (Saffron2). The main objective of the tool is to cluster the waveforms recorded by detectors that are close in time and space. The waveforms within a cluster are divided into three mutually exclusive categories: muons, nuclear signals, and electromagnetic signals. The latter two are aimed at selecting the signals originating from the IBD neutron (nuclear) and positron together with annihilation gammas (electromagnetic), respectively. The exhaustive description of the Saffron2 software can be found in Ref. . As for muon clusters, they are searched for in the first place that satisfies a single requirement on the fibre read-out: the presence of high-energy channels with an amplitude greater than 200 ADC counts.

If the number of these channels is less than 11, the muon candidate is tagged as a Type 0 muon. In most cases, Type 0 muons correspond to the so-called clipping muons, which cross only a few cubes on the edge of the detector. In other cases, the muon candidate deposits energy in a larger number of cubes that most likely form a track. The latter assumption is checked with two weighted least-squares linear fits (vertical and horizontal projections).

The candidates are further divided into two categories according to the convergence of the fits: Type 1 if either one of the fits has failed; Type 2 if both fits were successful. The horizontal muons used for the calibration were selected exclusively from the Type 2 muon sample. It is important to mention that the fits are performed solely with the fibre-level information, i.e. the reconstruction algorithm is not involved in determining the positions of the cubes on the track. Therefore, one

– 6 –

can simultaneously solve Equation (1.3) and determine the System Matrix.

Several Additional

requirements are applied to Type 2 muons to increase the quality of the sample and ensure that there is indeed a single cube hit in the plane. First, the start and end cubes of the track have to be on the detector border. This requirement allows muons that are captured while crossing the detector (stopping muons) and as such have different stopping power to be rejected. Second, the muon track length must be greater than or equal to 7 cubes. This rejects candidates that are likely excited nuclei.

Third, the slopes 𝑥/𝑧and 𝑦/𝑧must provide cos 𝜃less than 0.8, where 𝜃is the polar angle of the muon track (approximately 40◦). The development of muon selection is discussed in Ref. . An example of a Type 2 muon track that meets all the listed conditions is shown in Figure 4.

However, not all cubes along this track are used in the calibration procedure. To select the planes in which the muon has indeed deposited its energy in a single detection unit, the cube is kept if and only if the reconstructed track enters and exits the cube through a fiducial window. This window is shown in pink in Figure 5 and represents the area which is at least 10% (of the cube size) away from each border. It lifts the ambiguity of a choice of the cube of interest when the track passes close to the border. The set of such cubes from the dedicated muon tracks is referred to as horizontal muons in the following.

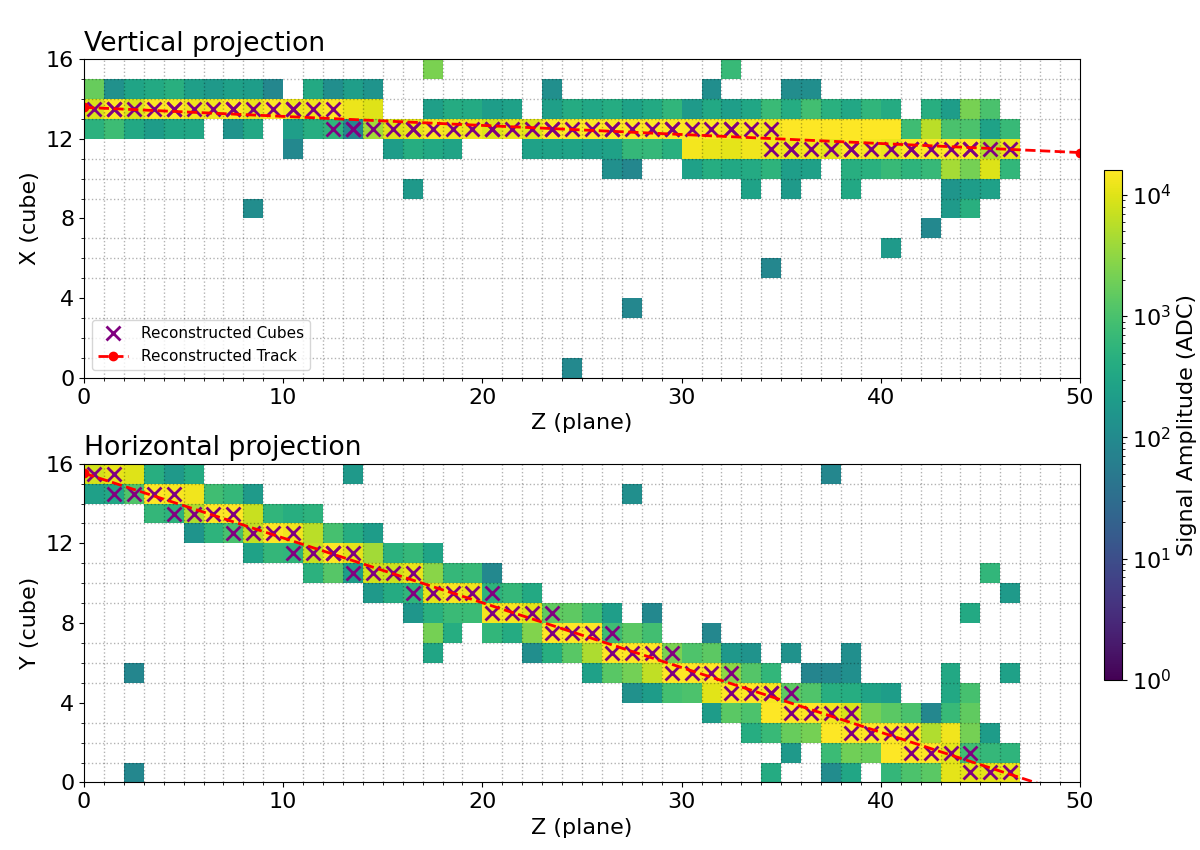

Figure 4. An example of the horizontal muon track obtained from ROff data. There are 4 fibres traversing each SoLid cube. If there is an energy deposit in the cube, each fibre should receive a fraction of the scintillating photons. However, there are several scenarios for which this is not the case. The first one appears when the energy contribution is not enough for the

– 7 –

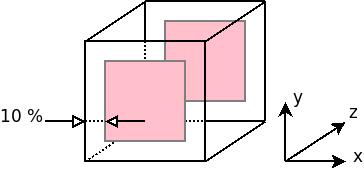

Figure 5. The entrance and exit windows (shown in pink), that the reconstructed muon track must follow. fibre photons to meet the threshold level; since muons typically deposit large amounts of energy on average, this is not the main case. Another appears when one or more fibres are dead, i.e. that the fibre does not transport the photons to the MPPC. About 1% of the fibres are permanently dead (most of these dysfunctional fibres are concentrated in Module 5. This module is the farthest from the reactor core, and hence receives the least statistics), or temporarily in dysfunction.

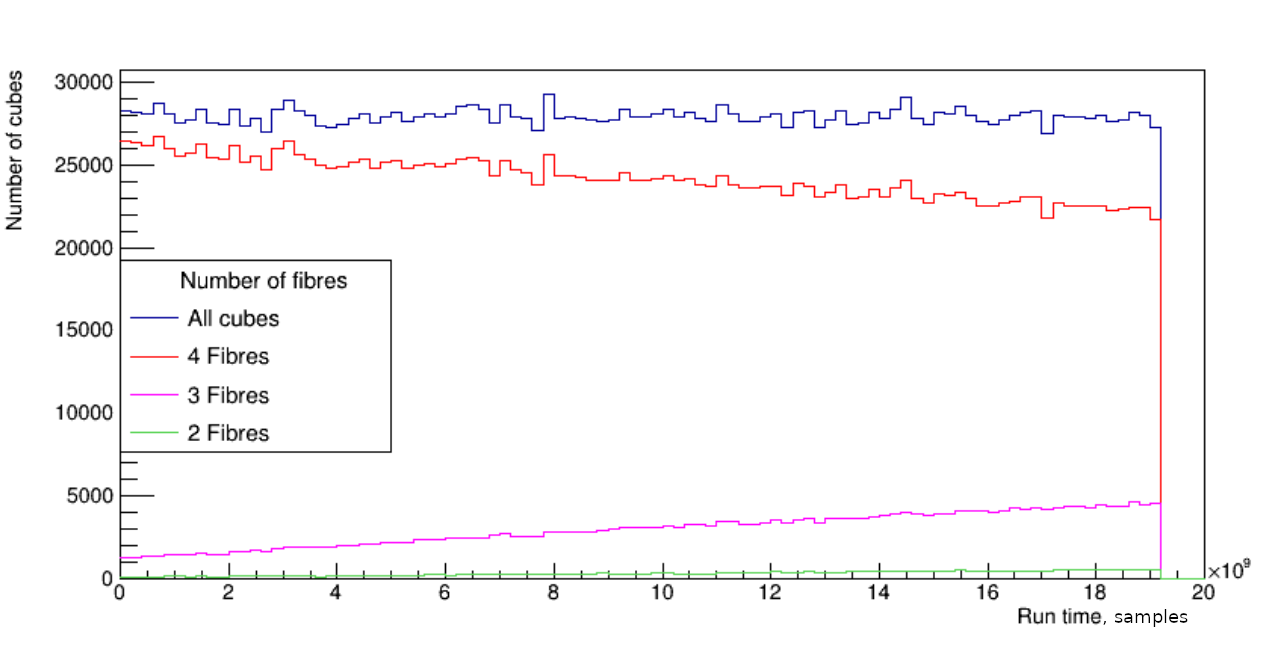

Figure 6. The time evolution of the number of cubes reconstructed with different number of fibres within a run of ROff data. The total number of cubes (blue) is shared among 4 (red), 3 (purple) and 2 (green) fibres. The second scenario occurs if a fibre receives too many scintillating photons (e.g. stopping muons) to the extent that it exceeds the processing capacity of the electronics.

According To

ROff studies, a single channel saturates at 15700 ADC counts. When a channel saturates, the corresponding event buffer is required to be reset in order to transmit again normally the read-out information. This reset occurs only at the beginning of a new physics run that lasts 8 minutes.

Therefore, a saturated fibre remains dead until the end of the current run. The time evolution of the number of candidates reconstructed with different numbers of fibres is presented in Figure 6. The sample unit of the 𝑥-axis corresponds to 25 ns. Hence, the figure represents a single physics run of

– 8 –

8 minutes. As a side note, the dying fibre effect also impacts Equation (1.3). If the fibre dies during the run, the corresponding projector values a𝑖𝑗are switched to zero and restored with the fibre at the beginning of the next run.

Relative Calibration

As discussed in Section 2, a sample of horizontal muons is considered to obtain the system matrix elements that define a cell-by-cell calibration. For each fibre, projection 𝑝𝑖is calculated by multiplying projector 𝑓𝑖𝑗by the energy deposit made in the cube 𝐸𝑗. The definition of 𝑓𝑖𝑗involves the multiplication of three factors: the MPPC gain (𝑔𝑖), the absolute energy scale (𝛽𝑗, which shows the number of photoavalanches generated per unit of energy) and the fraction of light received by the fibre (𝑎𝑖𝑗). The result of the multiplication of 𝐸𝑗by 𝛽𝑗is the total number of scintillation photons (denoted as 𝑛plane) in the given cube, which matches the number of photons in the given plane (since, by construction, horizontal muons hit a unique cube in the plane). The gain for the entire SoLid detector was equalised at the beginning of each data-taking period . As discussed in Section 5, the absolute scale factors are homogenised for all detection cells. Therefore, it is equivalent (up to a scaling factor) to fill the system matrix with the values of 𝑓𝑖𝑗or 𝑎𝑖𝑗. We arbitrarily chose the latter.

N Summary, The Projection 𝑝𝑖is Defined As:

𝑝𝑖= 𝐸𝑗· 𝑓𝑖𝑗= 𝐸𝑗· 𝛽𝑗· 𝑎𝑖𝑗· 𝑔𝑖= 𝑛plane · 𝑎𝑖𝑗· 𝑔𝑖= 𝑛𝑖· 𝑔𝑖= 𝑛𝑖· 𝑔,

(4.1)

where 𝑛𝑖represents the number of scintillating photons reaching the MPPC 𝑖. The sum of all projections 𝑝𝑖in the given plane (denoted as 𝑝plane) is the only missing piece to compute 𝑎𝑖𝑗. It is

(4.3)

This formula is equivalent for all fibres (shown in Figure 7) of the main cube that is traversed by the muon track, and of the neighbouring cubes that are affected by LL. This formula provides a single value for the projector 𝑎𝑖𝑗of a single muon. Once all muons crossing a cube are considered, the distribution of the projector values is obtained. The value 𝑎𝑖𝑗that goes into the System Matrix is determined from a fit of a Landau model to the distribution. A transformation that deals with the outliers and ensures a Gaussian behaviour of the distribution is applied, and is described in the next section.

Kl Divergence

The left panel of Figure 8 shows the raw distribution of the 𝑎𝑖𝑗values for one of the fibres in the adjacent cube (due to LL). A fit to this distribution with a Landau function would allow us to determine the 𝑎𝑖𝑗values. However, the presence of outliers compromises the goodness of fit. There are multiple approaches to address outliers, and the Kullback–Leibler (KL) divergence method

– 9 –

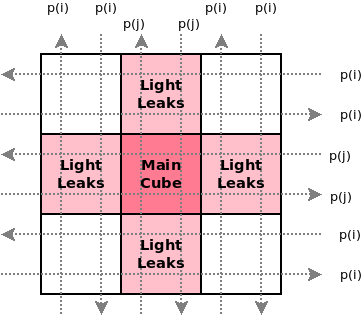

Figure 7. The calibration problem posed by horizontal muon. Scintillation light shared between the hit cube (in pink) with fibre projectors p𝑖and the cubes affected by the LL (light pink) with projectors p 𝑗. is one of them. The KL divergence method is a type of statistical distance (or dissimilarity test), which quantifies how much a probability distribution 𝑝1 is different from a reference probability distribution 𝑝2. In the case of the SoLid experiment, both distributions must obey the Poisson law; hence, the KL divergence, slightly modified with respect to Ref. , is given by:

(4.4)

This class of equations is solved with a Lambert function 𝑊. This is a multivalued function with different branches. In our implementation, 𝜆1 is either 22.5% (main cube with four fibres) or 1.25% (adjacent cubes, 8 fibres). The parameter 𝑚is the mean of a Gaussian model fit to the initial distribution of 𝑥. Equation (4.4) is solved for 𝜆2 (mean value of the measured distribution)

(4.5)

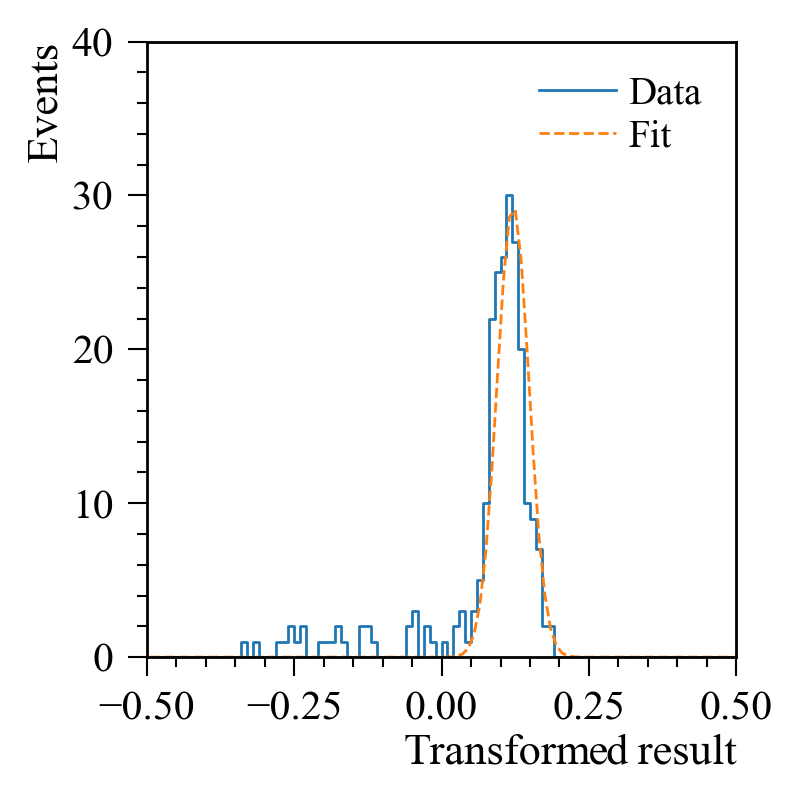

As a result, it is not the distribution of 𝑎𝑖𝑗values that is fit. Instead, we fit the statistical distance for each set of projector values from the Poisson law. The outliers in the transformed distribution are much more pronounced and can be straightforwardly excluded from the fit. The result of the application of the KL divergence method is shown in Figure 8. As such, the total sum of the light-sharing fractions from the four fibres of the main cube and the eight fibres of the adjacent cubes improves from 96% to 99%.

Homogenisation Of The Response

The second stage of the relative calibration is the homogenisation of the response from individual cubes. The characteristics of the detection units (namely the absolute energy scale 𝛽𝑗) differ, causing a variation in the response of the detector. The energy loss of the muon serves as a calibration reference. The sum of the projections of the 12 fibres involved within the plane is considered as the

– 10 –

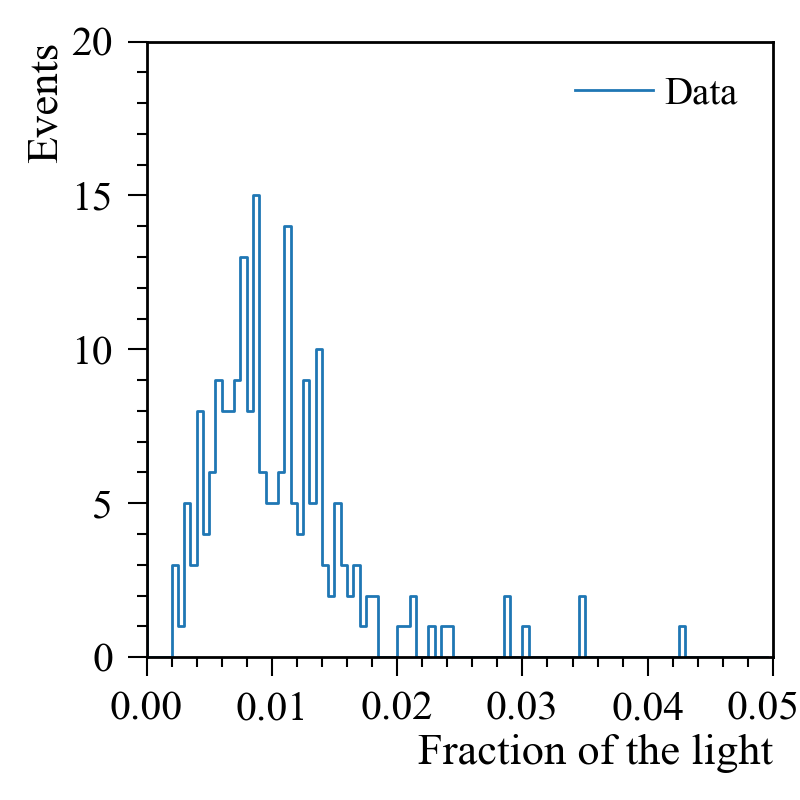

Figure 8. The distributions of the light fraction observed by one of the fibres in the neighbouring cubes (triggered by LL) before (left) and after (right) application of the KL divergence method. representation of the energy deposit made by the muon while crossing it (as in the variable 𝑝plane from Equation (4.2)). In addition, all muon candidates are selected from Type 2 muons, for which there is a successfully reconstructed track. The path length of the muon within a certain plane is determined from this track information and is further denoted as 𝑥track. Thus, the energy loss is

(4.6)

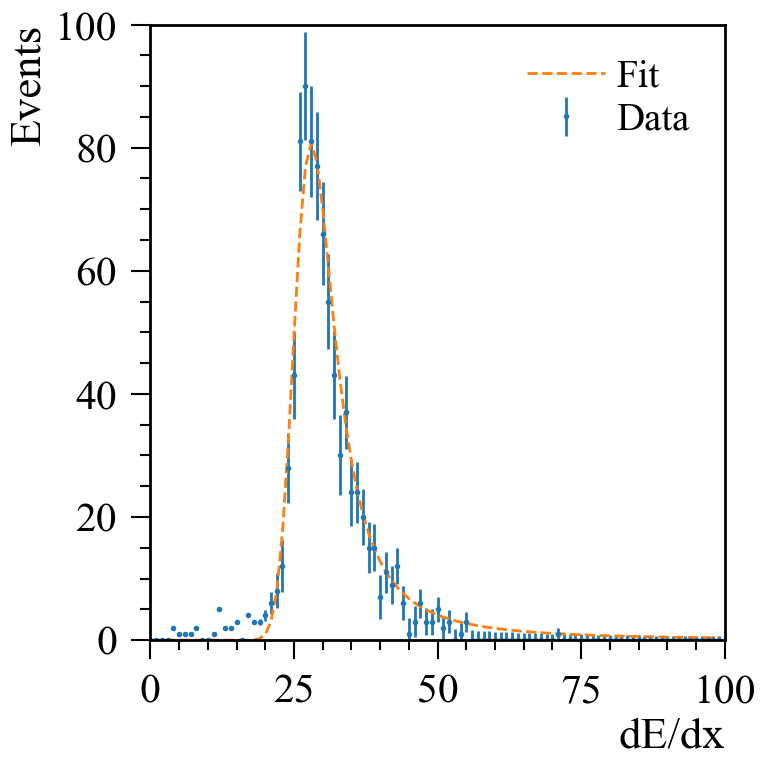

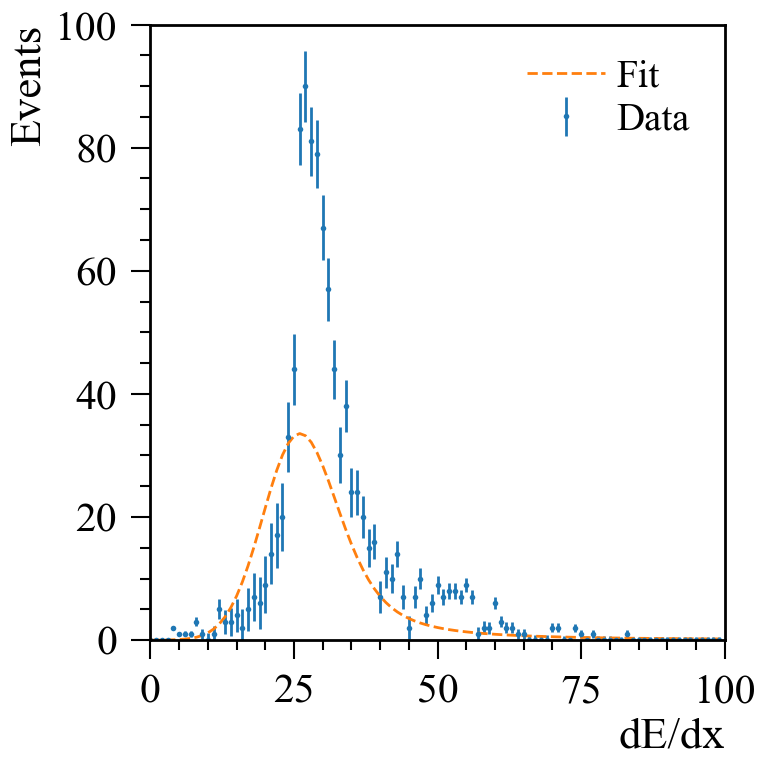

Figure 9. The energy loss distribution before(left) and after (right) application of the 4 active fibre cut. The energy loss distribution for a given cube is obtained by applying Equation (4.6) to the subset of muons that cross it. A muon is rejected if the cube is not reconstructed with 4 fibres (except for the cases where the fibre is permanently dead). This additional selection compensates for the dying fibre effect presented in Section 3. The result of the selection is shown in Figure 9. A Landau function convoluted with a Gaussian is fit to the resulting energy loss distribution. The model has
