Abstract

We present a ﬁeld-based method of toolpath generation for 3D printing continuous ﬁbre reinforced thermoplastic composites. Our method employs the strong anisotropic material property of continuous ﬁbres by generating toolpaths along the directions of tensile stresses in the critical regions. Moreover, the density of toolpath distribution is controlled in an adaptive way proportionally to the values of stresses. Speciﬁcally, a vector ﬁeld is generated from the stress tensors under given loads and processed to have better compatibility between neighboring vectors. An optimal scalar ﬁeld is computed later by making its gradients approximate the vector ﬁeld. After that, isocurves of the scalar ﬁeld are extracted to generate the toolpaths for continuous ﬁbre reinforcement, which are also integrated with the boundary conformal toolpaths in user selected regions. The performance of our method has been veriﬁed on a variety of models in diﬀerent loading conditions. Experimental tests are conducted on specimens by 3D printing continuous carbon ﬁbres (CCF) in a polylactic acid (PLA) matrix. Compared to reinforcement by load-independent toolpaths, the specimens fabricated by our method show up to 71.4% improvement on the mechanical strength in physical tests when using the same (or even slightly smaller) amount of continuous ﬁbres.

Figure: Model & System Architecture for Vericut Composite Toolpath

Keywords: Toolpath Generation, Stress-Field, Continuous Fibre Reinforcement, Thermoplastic Composites.

Ntroduction

As one of the most popular 3D printing techniques, fused ﬁla- ment fabrication has been widely employed in many applications because of its cost-eﬀectiveness and large variety of material op- tions for ﬁlament deposition . With growing demand to im- prove the mechanical strength of models fabricated by fused de- position, the reinforcement by integrating high-performance ma- terials in fused ﬁlament fabrication has recently caught a lot of attention [2, 3]. In particular, the behavior of continuous car- bon ﬁbre (CCF) reinforced thermoplastic composites has been well studied (ref. ). Models fabricated by CCF can pro- vide excellent tensile strength along the axial direction of ﬁbres while remaining lightweight. Moreover, a recent study showed that CCF is also a recyclable material .

Figure: Model & System Architecture for Vericut Composite Toolpath

At present, there are two major methods for 3D printing of continuous ﬁbre reinforced polymers, including in-nozzle im- pregnation and out-of-nozzle impregnation . The beneﬁt of out-of-nozzle impregnation is threefold. Firstly, dual extrud- ers with one for thermoplastic materials (e.g., PLA, ABS, Ny- lon, etc.) as matrix and the other for continuous ﬁbre are able to provide better control for stretching the continuous ﬁbre dur- ing deposition. Secondly, the temperatures of continuous ﬁbre and matrix resin can be separately controlled to achieve a bet- ter mechanical property. Lastly, the deposition of ﬁbres can be

∗Joint First Authors

adaptive and only applied in the critical regions that are neces- sary. Therefore, this technique is more widely used and even commercialized in the oﬀ-the-shelf 3D printers (e.g., ). On the other aspect, manufacturing parameters (temperature, layer thickness, platform temperature, etc.) have been studied to op- timize the mechanical strength of CCF reinforcement .

Figure: Model & System Architecture for Vericut Composite Toolpath

The out-of-nozzle impregnation strategy is employed in our research and physical experiment. With the help of optimized paths for ﬁbre alignment – e.g., along the ﬂow of stresses, the structures fabricated as continuous ﬁbre reinforced thermoplastic composites (CFRTPCs) can result in tensile strengths that are an order of magnitude higher than those of structures fabricated by preprag ﬁlaments with chopped ﬁbres (ref. [2, 15, 16]). However, load-dependent toolpath gen- eration for CCF reinforcement has not been well studied yet. In commercial CCF toolpath generators (e.g., Eiger software from MarkForged ), hybrid of contour-parallel and zigzag-parallel toolpaths are employed, by which the performance of CCF re- inforcement is not optimized.

Figure: Model & System Architecture for Vericut Composite Toolpath

The Recent Work Published In

[17, 18] for generating load-dependent toolpaths was based on ﬁrst selecting a critical region by topology optimization and then generating media-axis aligned toolpaths of CCF in selected re- gions. In contrast, we directly compute distributed toolpaths in the whole design space of input models by using the stress ﬁeld obtained from ﬁnite element analysis (FEA).

In this paper, we propose a ﬁeld-based computational method to generate CCF toolpaths along the directions of tensile stresses in the critical regions, which fully considers the strong

Arxiv:2112.12057V1 [Cs.Gr] 2 Nov 2021

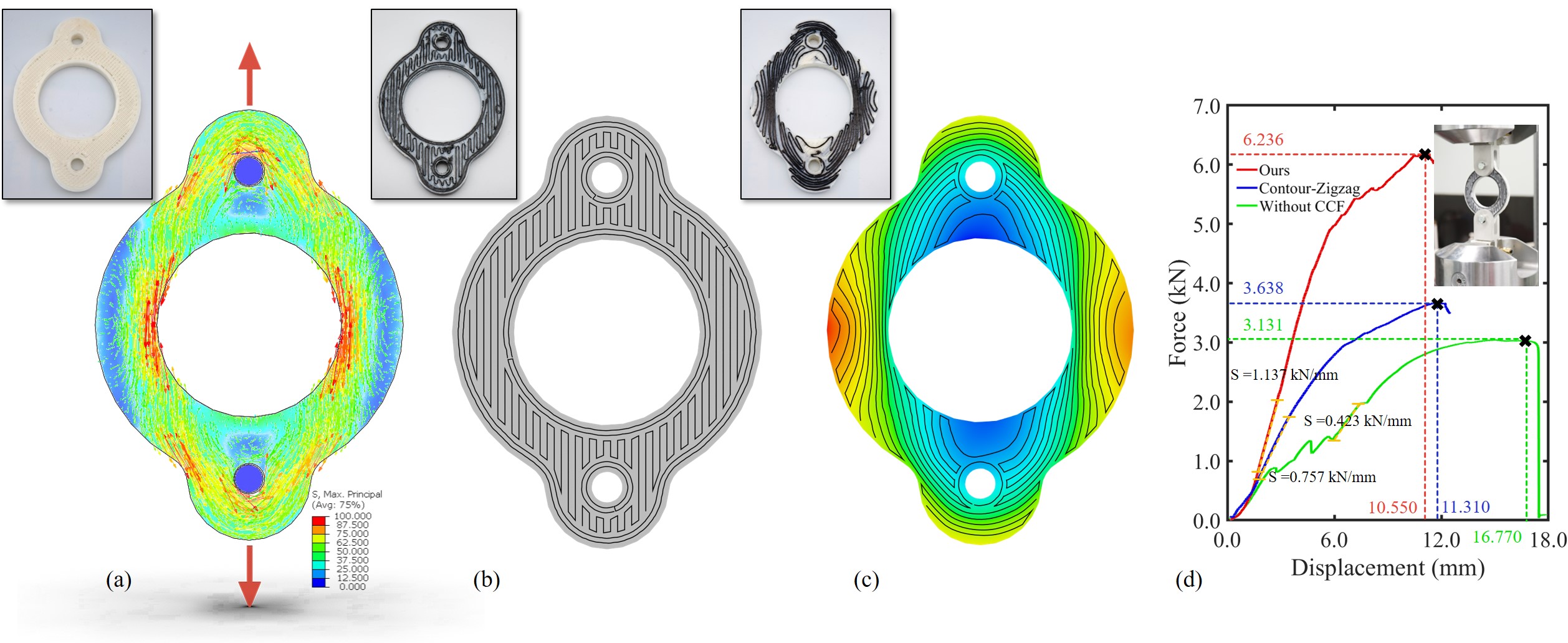

Figure 1: Using the stress-ﬁeld based toolpaths generated by our approach, the 3D printed CFRTPCs can result in much better mechanical strength in physical tests. (a) The ﬁeld of principal stresses under a given load is generated by FEA. (b) The load-independent CCF toolpaths generated by oﬀ-the-shelf Eiger software is employed as a benchmark to demonstrate the advantage of our approach. (c) Our method extracts isocurves from the governing scalar-ﬁeld (colorful map) as CCF toolpaths, which is adaptive to the principal stresses in tension. (d) The force-displacement curves obtained from tensile tests by 3D printed specimens using the toolpaths in (b) and (c), where our method can increase the breaking force and the stiﬀness S (as shown by the slope of the force-displacement curve) by 71.4% and 50.2% respectively. Note that, the total length of CCF ﬁlaments used in (b) and (c) are 35.895 m and 34.658 m – i.e., ours are slightly shorter.

anisotropic material property of continuous ﬁbres for 3D printing CFRTPCs. The density of toolpath distribution generated by our method is adaptive – i.e., denser in the region with higher stresses and sparser in the less critical regions (see Fig. 1 for an exam- ple). By using well-controlled orientation and density of tool- paths in the ﬁbre-layers between PLA layers, the breaking force of CFRTPCs fabricated by our method is 71.4% higher than the specimens fabricated by using the load-independent CCF tool- paths (i.e., the zigzag parallel pattern with 45◦direction change between ﬁbre layers). The PLA matrix in all specimens are all printed by using the zigzag parallel pattern – again with 45◦ change between layers. The enhancement in stiﬀness as the slope of force-displacement curve is 50.2% by our method while using the similar length (or even slightly shorter) of CCF ﬁlaments in 3D printing.

The major technical contribution of our approach is a method to convert the stress-ﬁeld obtained from FEA into a governing scalar-ﬁeld to generate toolpaths for 3D printing CFRTPCs (Sec- tions 4.1 and 4.2). After obtaining the optimized governing ﬁeld, we develop an algorithm to extract adaptive CCF toolpaths by controlling the minimally allowed distance between neighbor- ing toolpaths (Section 4.3). We also enhance the adaptive CCF toolpaths by merging the boundary conformal toolpaths that are added in user-speciﬁed boundary regions to reinforce the contact interface (Section 4.4). Experimental tests on a variety of models in diﬀerent loading conditions are conducted to verify the eﬀec- tiveness of our approach and its advantage.

The rest of this paper is organized as follows. After reviewing the literature in Section 2, we conduct experimental exploration in Section 3 to derive the rules of CCF toolpaths for 3D printing CFRTPCs. Toolpath generation algorithms are detailed in Sec- tion 4 as the major technical contributions of our paper. Both the computational and physical experiments are presented in Section 5 together with the discussion on our method’s limitations.

Related Work

In this section, we review both the recent progress in 3D print- ing CCF reinforced composites and the related work on stress- oriented toolpath optimization in fused ﬁlament fabrication. A comprehensive review is beyond the scope of this paper, thus we only discuss the most relevant works below.

2.1. Filament deposition-based fabrication of CFRTPCs Materials in continuous ﬁbres such as carbon ﬁbre, glass ﬁbres and jute ﬁbres have been used to fabricate CFRTPCs in complex shapes by 3D printing [4, 9, 19]. Among these materials, CCF is widely adopted because of its high stiﬀness and high tensile strength along the axial direction. Although the toolpath gener- ation method presented in this paper can be applied to any con- tinuous ﬁbres, we employ CCF in our experimental tests as it is also used by the oﬀ-the-shelf 3D printers.

Applying compaction by a roller is a widely used strategy for generating strong adhesion between CCF and matrix in auto- mated ﬁbre placement (AFP) – an industrial technology in com- posite material manufacturing . Inspired by AFP, Omuro et al. installed a compaction roller on the printer head to ‘iron’ ﬁbres onto matrix in thermoplastics. Using a compaction roller in a printer head makes it hard to turn during printing; moreover, the position of ﬁbre on the roller is unstable so that the quality of the 3D printing result is poor. This however motivated the development of out-of-nozzle 3D printing for CCF , which is later employed in the oﬀ-the-shelf 3D printers with dual printer heads (e.g., Markforged ) as stable extrusion of both CCF and melted thermoplastics can be realized. Speciﬁcally, the cir- cular corner of the nozzle on a CCF printer head works as a com- paction roller during the printing process to reform the CCF from a cylindrical ﬁlament into a planar ribbon. Instead of extruding by the motor, CCF ﬁlaments are in fact dragged out and then compacted by the circular corner. Therefore, the CCF ribbons are stretched during adhesion so as to result in better mechani- cal performance than those CFRTPCs fabricated by the in-nozzle impregnated ﬁlaments [4, 12, 13].

The inﬂuence of processing parameters on the mechanical strength of 3D printed CFRTPCs has been studied comprehen- sively in prior research (ref. [8, 11, 13, 22]). The ‘best’ com- bination of parameters, such as the temperatures at the extruder and printing bed, the feed rate of the extruder and the movement speed of the printer head are usually obtained by empirical tests; which is not the focus of our work. Instead, we attempt to ﬁnd the optimized toolpath w.r.t. the stress distribution under a given loading condition while keeping the aforementioned processing parameters unchanged.

With the help of electronic microscopy images, researchers an- alyzed the failure mode of 3D printed CFRTPCs [6, 7, 15] and concluded that there are two major reasons for structural failure in CFRTPCs – 1) delamination between ﬁbres and matrix and 2) fracture of ﬁbres. As the fracture of ﬁbres is hard to improve, various studies have been conducted to improve the adhesion be- tween CCF and the matrix in thermoplastic materials. A common method is to conduct post-processing treatment by applying pres- sure with high temperature – e.g., improved bending modulus was reported in . A recent study showed that an optimal result can be obtained with heating at 250◦C under a pressure of 200 psi. In contrast, we aim to design toolpaths aligning with the tensile stress directions to reinforce 3D printed thermoplastic composites by utilizing the strong tensile strength of CCF mean- while avoiding large transverse loads between continuous ﬁbres.

2.2. Toolpath optimization for ﬁlament fused deposition For fused ﬁlament fabrication, the design of the toolpath takes a crucial role as the toolpath of ﬁlament alignment has a signif- icant inﬂuence on the behavior of 3D printed models, in both surface quality [24, 25] and mechanical strength . To im- prove mechanical strength, studies have been conducted to gen- erate load-dependent toolpaths – usually according to the stress distribution obtained by FEA.

Sugiyama et al. generated CCF toolpaths by considering both the stress distribution and the geometry constraints, which showed good mechanical performance in physical tests. How- ever, the toolpaths are manually designed and only presented on models with a simple bar shape. A thread of studies [17, 18, 30] came up with a design method of load-dependent toolpaths for ﬁbre-reinforced 3D printing by using topology optimization to ﬁnd a critical region for the placement of CCF. A truncation bias is introduced to exclude those ‘less’ critical regions. A recently published work simultaneously conducted the topology op- timization and the orientation optimization for ﬁbres, which also excluded those less important regions from toolpath generation.

On the other hand, we keep the geometry of the input model unchanged but control the density of CCF toolpaths in diﬀerent regions to reﬂect the level of importance.

Methods have been developed whereby the stress ﬁeld gener- ated by FEA is directly incorporated into the algorithm to gen- erate 3D printing toolpaths.

Steuben Et Al. Developed A

method to generate toolpaths by the isocurves of the von Mises stress ﬁeld as a scalar-ﬁeld. The toolpaths generated from the Figure 2: Tensile and compression tests conducted on specimens with vs. without CCF reinforcement, where the layer of CCF is demonstrated in the image at the upper-right corner. The force-displacement curves are shown for (a) tensile and (b) compression tests respectively. The breaking force has been increased by 63.4% (tensile) and 11.0% (compression) after adding the CCF reinforcement layers. Three specimens are conducted for each test.

von Mises stress ﬁeld do not explicitly consider the direction of stresses, which makes it diﬃcult to utilize the anisotropy of CCF’s mechanical property to reinforce CFRTPCs. The other category of approaches employ vector ﬁeld to generate tool- paths for reinforced 3D printing. Vectors of principal stresses are obtained by applying the Eigen vector decomposition on the stress tensors obtained from FEA. Principal stress lines (PSL) are then extracted by tracing algorithms to be used as toolpaths (e.g., [33, 34]). However, the vector ﬁeld directly formed by maximal principal stresses is neither smooth nor divergence-free.

PSL obtained from such a ﬁeld will not be smooth and can also have self-intersection. The study by Tian et al. computed a divergence-free vector ﬁeld for the generation of intersection- free CCF toolpaths. However, all these methods which extract the CCF toolpath by particle tracing do not provide a good way to control the density / sparsity of toolpaths as the method pre- sented in this paper. A graph-based searching algorithm pre- sented in also has similar diﬃculties with density control.

Our method is based on the pipeline of vector-ﬁeld processing, scalar-ﬁeld optimization and isocurve extraction . The new method is developed to process the vector-ﬁeld by using mini- mal spanning tree (MST) based search to assign orientations of vectors and re-generating vectors in the region with high ‘turbu- lence’ with the help of minimizing a harmonic energy. Moreover, the computation of the scalar-ﬁeld is modiﬁed to enable density control. Details can be found in Section 4.

3. Scheme for CCF Alignment: Experimental Exploration Continuous carbon ﬁbres have been used in 3D printing to fab- ricate ﬁbre reinforced composites because of the excellent me- chanical property in high stiﬀness and tensile strength that can Figure 3: Experimental results of tensile tests taken on models fabricated by using diﬀerent schemes of CCF toolpaths – (Model A) without CCF, (Model B) load- independent zigzag-parallel CCF toolpath, (Model C) load-independent contour-parallel CCF toolpath, (Model D) stress-oriented toolpath with uniform CCF density and (Model E) adaptive stress-oriented toolpaths.

be achieved. However, previously published papers mainly pre- sented the reinforcement in tensile tests. It is interesting to study and compare the eﬀectiveness of reinforcement in both the ten- sile and the compression tests. There is a heuristic about aligning continuous ﬁbres along the direction of principal stress lines. In this section, we will conduct experimental tests to explore the signiﬁcance of this heuristic. Moreover, the inﬂuence of CCF’s density will also be studied.

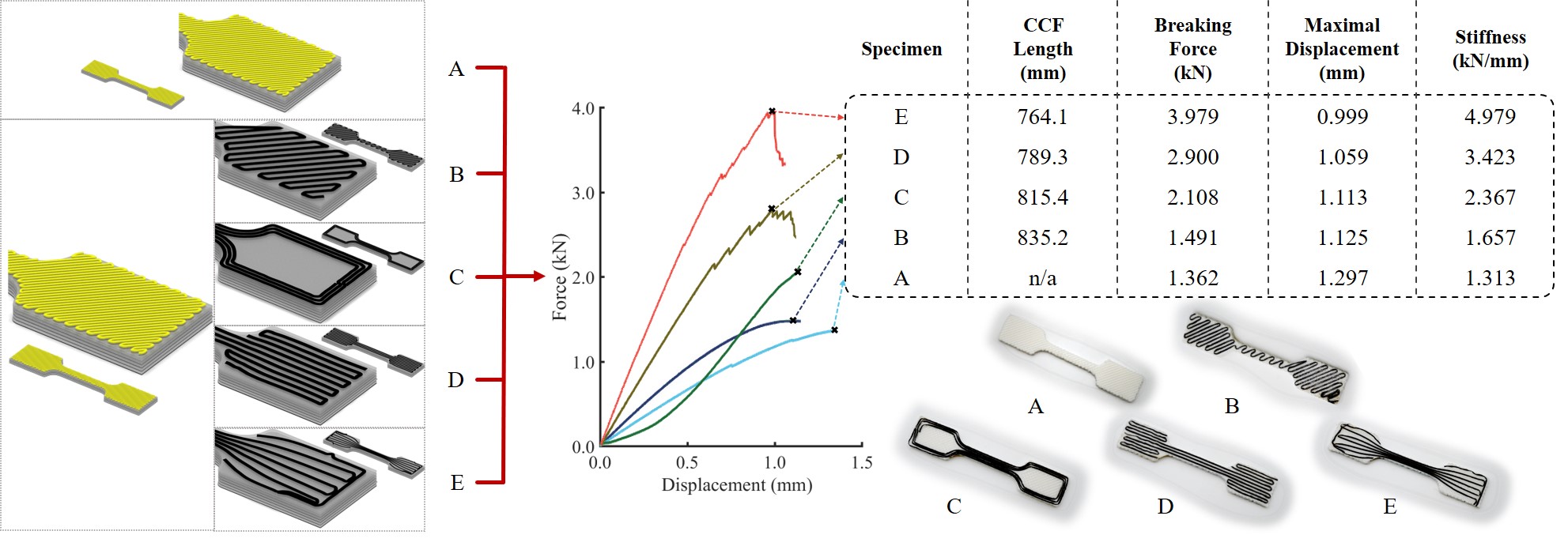

Experimental tests are conducted on specimens in two diﬀer- ent shapes, the shape of the tensile test bar and the shape of a cuboid. Note that the cuboid model is applied to study the ef- fectiveness of reinforcement in tension vs. compression as its relatively large cross-sectional area can avoid buckling during compression tests. The force-displacement curves are obtained in experimental tests with 12 specimens fabricated for each of these two models. Therefore, each experiment is conducted on 3 specimens. Three curves are generated for each experiment as shown in Fig. 2. The other tensile tests for exploring the strategy of CCF alignment are conducted on the specimens in the standard shape of the tensile bar (see Fig. 3). Except the specimen with- out CCF (Model A), the toolpaths generated by diﬀerent schemes are employed to fabricate models in diﬀerent groups – again 3 specimens per group. Model B and Model C were reinforced by using the zigzag-parallel and the contour-parallel toolpaths respectively, which were independent of the loading condition.

The toolpaths employed in Model D are uniformly aligned along the directions of maximum stresses (in tension), and the adap- tive density of stress-oriented toolpaths are employed in model E. Note that, the toolpaths in zigzag patterns are employed for the layers of resin matrix on all the specimens tested in this section.

The same material, PLA, is used to fabricate the matrix of these models. The force-displacement curves are given in Fig. 3) and the total lengths of CCF used for all models are also reported.

As it is diﬃcult to control the exact length of CCF used in a model, we adjusted the parameters of toolpath generation to use slightly shorter CCF ﬁlaments on models with stronger mechan- ical strength to ensure a fair comparison.

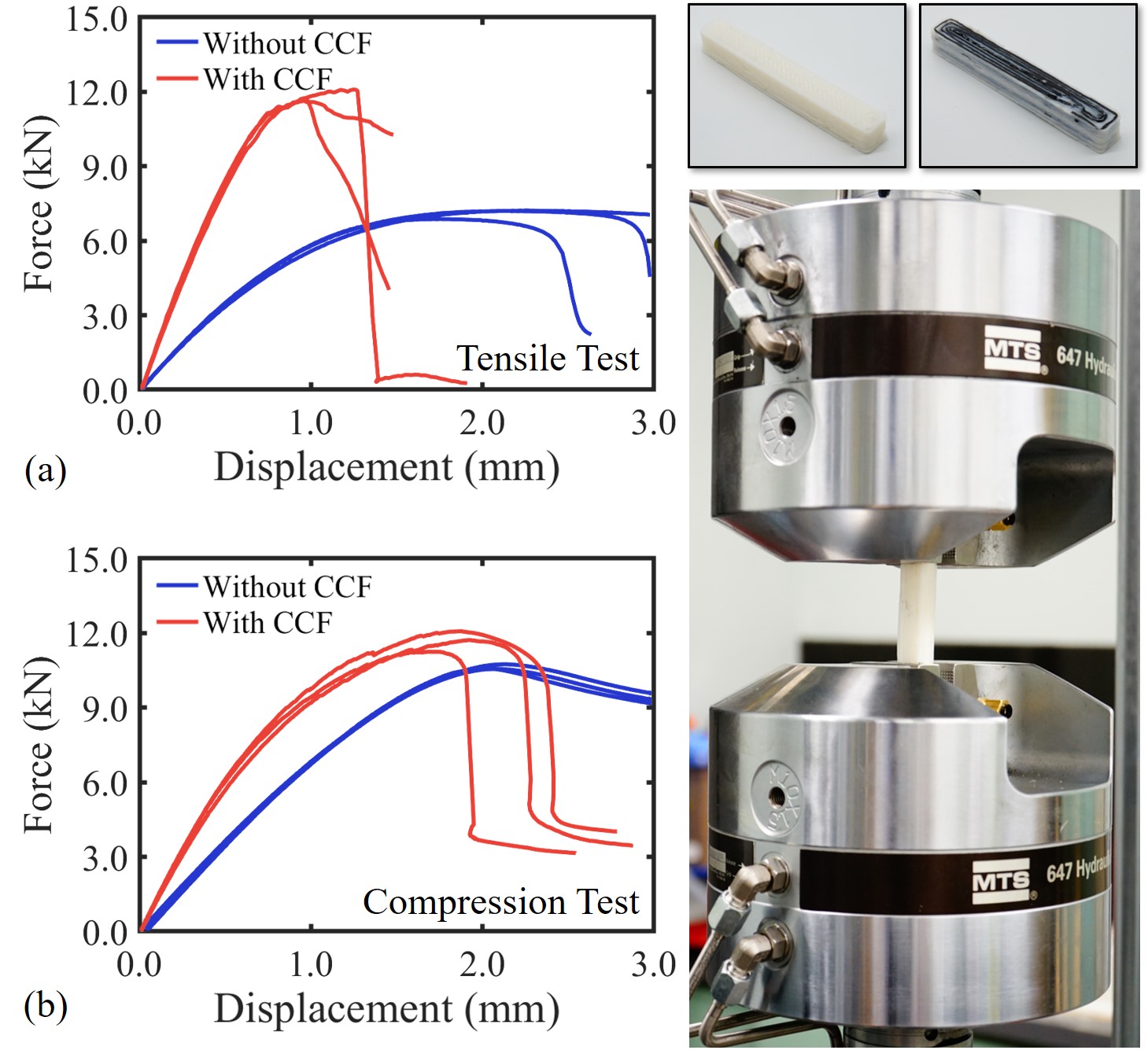

Based on the results of experimental tests shown in Figs. 2 and 3, we can conclude the following observations. Observation I: Adding continuous carbon ﬁbres as a very thin layer between the layers of resin matrix can enhance the mechan- ical strength of 3D printed models.

As can be found in all the tests conducted, adding intermedi- ate CCF reinforcement layers with very thin thickness (e.g., 0.05 mm in the specimens fabricated by our hardware system) can im- prove the mechanical strength in both the breaking force and the stiﬀness (as the slope of force-displacement curve shows).

Observation II: The reinforcement of adding CCF intermediate layers is more signiﬁcant in the regions under tensile loads than those regions under compression.

It was found from the experiment shown in Fig. 2 that the me- chanical strengthening caused by reinforcement was not signif- icant under compression even if the CCF toolpaths are aligned along with the direction of maximum stresses. Therefore, only principal stresses in tension are considered in our scheme for CCF alignment.

Observation III: The reinforcement is more signiﬁcant when aligning continuous ﬁbres along the direction of large tensile stresses.

This observation is obtained by comparing the mechanical strength of Models B & C with Models D & E. Stronger mechan- ical strength is given on Models D & E even when the amount of CCF used in these two models (i.e., 835.2mm and 815.4mm) is less than the Models B & C (i.e., 789.3mm and 764.1mm).

Based on this observation, our scheme for CCF alignment will control the direction of toolpaths according to the maximal prin- cipal stresses in tension.

Observation IV: The reinforcement is further strengthened when aligning denser ﬁbres in the regions with higher tensile stresses. This observation is based on the comparison of Model D and Model E. It can be found that both the breaking force and the Figure 4: The computational pipeline of our ﬁeld-based toolpath generation algorithm. (a) The vectors of large principal stresses in tension are extracted in all tetrahedra of the input solid model. (b) Consistent orientations of the vectors are determined by propagation in an order determined by MST. (c) Vectors in ‘turbulent’ regions (displayed in red) are identiﬁed and removed from the vector ﬁeld v(x). (d) A slicing layer is partially spanned by the projected vectors of v(x). (e) The full vector ﬁeld u(x) can be obtained by extrapolation / interpolation where the color map shows the distribution of weight σf to control the density of CCF toolpaths. (f) The scalar ﬁeld s(x) is determined by letting its gradients ∇s(x) ≈u(x) and the isocurves of s(x) are used as stress-oriented CCF toolpaths. (g) The ﬁnal toolpaths are generated by merging the stress-oriented toolpaths with the boundary conformal toolpaths.

stiﬀness of Model E are further improved from Model D al- though less amount of CCF is used (i.e., 789.3mm for Model D and 764.1mm for Model E).

Based on these experimental observations, we propose the fol- lowing scheme of continuous ﬁbre placement to aim at printing CFRTPCs with stronger mechanical strength.

Scheme of CCF Alignment: Reinforcement layers are fabri- cated by aligning CCF along the direction of tensile principal stresses in an adaptive density that is proportional to the tensile stresses.

The algorithm developed according to this scheme will be pre- sented in the following section, and the eﬀectiveness of our al- gorithm will be veriﬁed on a variety of models under diﬀerent loading conditions.

Field-Based Toolpath Generation

This section presents the details of our ﬁeld-based algorithm to generate CCF toolpaths for the reinforcement of 3D printed thermoplastic composites. The whole computational pipeline in- cludes four major steps as illustrated in Fig. 4. First of all, a vector ﬁeld v(x) is computed in an input 3D solid H represented by a tetrahedral mesh M, which is consistent with FEA. In the second step, the vector ﬁeld is projected onto each layer P dur- ing slicing and converted into a scalar-ﬁeld s(x) (∀x ∈P ∩H).

In the third step, the CCF toolpaths are extracted from s(x) by controlling the minimal distance between neighboring toolpaths. Lastly, the adaptive CCF toolpaths are merged with the boundary conformal toolpaths to form the ﬁnal toolpath.

Processing Of Vector Field

Given a solid model H represented by a tetrahedral mesh M, the stress distribution under a certain condition of loading can be computed by FEA and exported as a 3 × 3 stress tensors σ(e) for every element e ∈M. We can determine the principal stresses [σ1, σ2, σ3] (sorted by absolute values) and their corresponding directions [τ1, τ2, τ3] (as unit vectors) by applying the eigenvalue decomposition to σ(e). The vector ve and the maximal tensile stress σe for each element e are deﬁned by the following rules: • When σ1 is positive (i.e., in tension), ve = τ1 and σe = σ1; • If σ1 is negative (i.e., in compression) but σ2 is positive, ve = τ2 and σe = σ2 when |σ1/σ2| < µ is satisﬁed1; • Otherwise, we consider there is no strong tensile direction in this region and ve = σ1 and σe = 10−5 are assigned to avoid singularity in the following step of re-orientation.

1The threshold µ = 3.0 is employed in our implementation to avoid applying this rule to the regions that tension is too trivial than compression. Applying these results in a discrete ﬁeld with vectors deﬁned in the elements of M although there are some regions with unde- ﬁned values. However, this vector ﬁeld has issues of compatibil- ity. Firstly, the direction of a principal stress is ambiguous – i.e., either τ1 or −τ1 can be chosen by the decomposition algorithm as an eigenvector. As shown in Fig.4(a), neighboring elements can have vectors with inverse orientations. Secondly, it is ob- served that the directions of principal stresses can have turbulent variation in some regions. Moreover, ambiguity is introduced in the region with isotropic stresses (i.e., |σ1| ≈|σ2|). Two methods, MST-based re-orientation and incompatibility removal, are intro- duced in our pipeline to process vectors to enhance the compat- ibility of neighboring toolpaths that are ﬁnally determined from the vector ﬁeld.

MST-based re-orientation is a method that has been widely used in computer graphics to generate consistent vectors as nor- mals of point clouds for surface reconstruction . We extend it from a surface domain into a volumetric domain here. Speciﬁ- cally, every tetrahedral element e with a deﬁned vector ve is con- verted into a node of a graph G. For two tetrahedra ei and e j that are face-neighbours to each other, an edge is constructed to link them in G. Starting from a seed node, we can propagate the ori- entation of vectors by travelling on the graph. Without loss of the generality, when the tetrahedron e j is visited next after the tetra- hedron ei, the orientation of vej will be ﬂipped to vej = −ve j if vei ·ve j < 0 (i.e., the orientations of vectors in ei and ej are incon- sistent). As discussed in , a na¨ıve breadth-ﬁrst-traversal on G will mis-assign orientations in the regions with sharp change.

(1)

is given to every edge (ei, e j). With the help of these weights, a better order of traversal is determined by computing MST on G. The new order of node-visit can eﬀectively avoid propagat- ing orientations through the region with sharp change (i.e., edges with large weights). An example result of this step is shown in Fig. 4(b), where a globally consistent vector ﬁeld can be found although there is still some local incompatibility.

A ﬁlter is applied to remove the vectors in locally incompati- ble regions, where the ﬁltering algorithm is also implemented by using the connectivity of a tetrahedral mesh. For an element e, the set Ne of it neighbors is deﬁned by all other elements that have a vertex, an edge or a face shared with e. We detect the region with incompatibility by ﬁnding all elements e that give

(2)

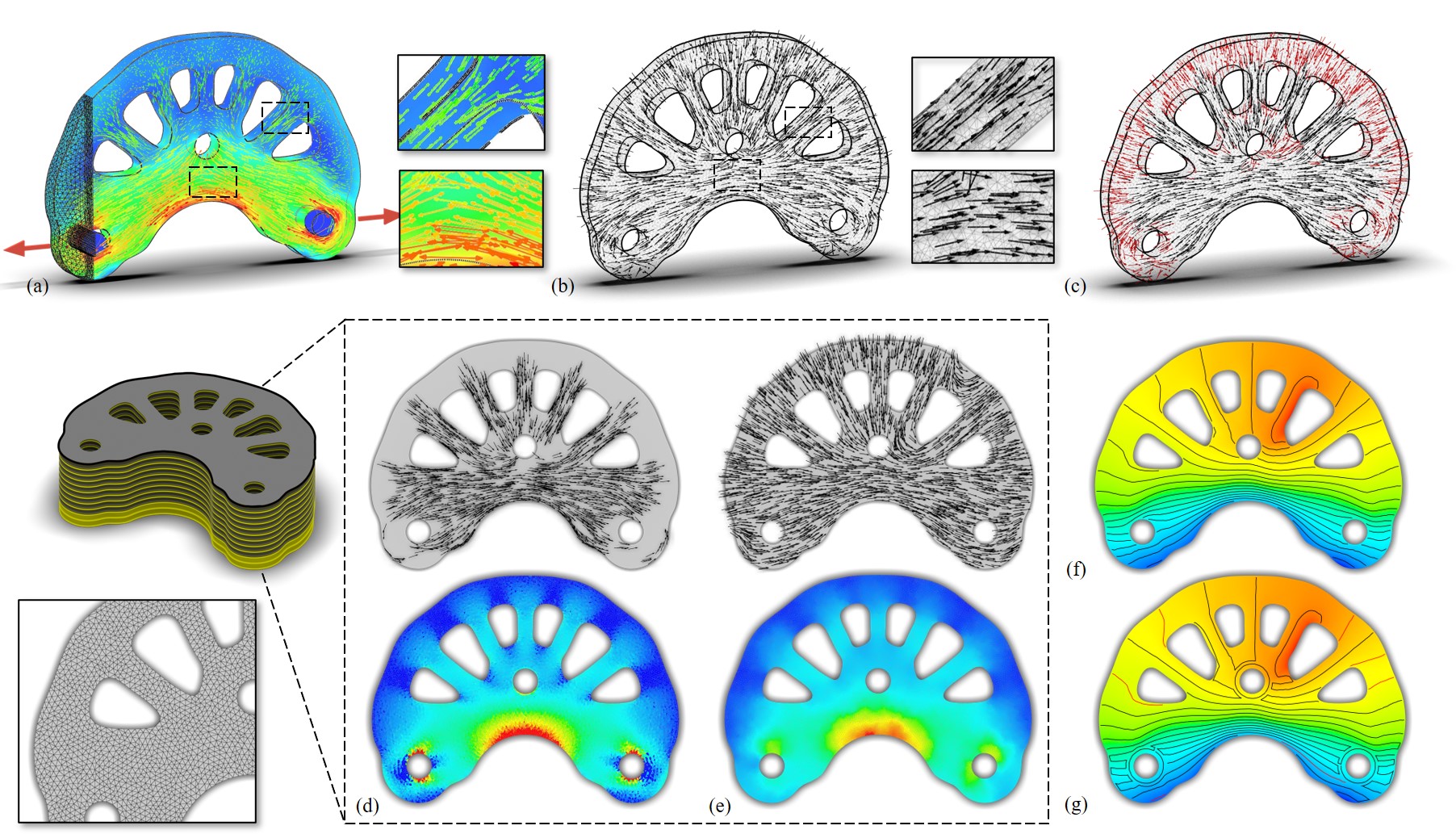

See Fig. 4(c) for an illustration displaying those incompatible vectors in red. Vectors of elements in incompatible regions are assigned as undeﬁned but the stress values σe in these elements are retained. The threshold η = 0.5 is determined by the sta- tistical study of diﬀerent examples (i.e., the histograms given in Fig. 8).

4.2. Computing scalar ﬁeld for toolpath generation After obtaining a compatible vector ﬁeld v(x) that is deﬁned in the volumetric mesh M of the solid H, we convert it into a scalar ﬁeld s(x) (∀x ∈P ∩H) on a plane P during the slicing compu- tation for 3D printing. A polygonal mesh T can be obtained by intersecting the tetrahedral mesh M with P (see the bottom-left of Fig.4). For each polygonal face f formed by intersecting a tetrahedron e with the plane P, the vector vf can be obtained by projecting the vector ve onto the xy-plane. The stress weight σf of a face can also be derived from the tetrahedron e’s stress weight as σ f = σe (∀f ∈e). From Fig.4(d), we can ﬁnd that vf is undeﬁned in some regions (i.e., those identiﬁed as incompatible and removed regions). Denoting the set of f’s neighboring faces by Nf , the undeﬁned values of vf are determined by minimiz- ing the following energy functions while smoothing the deﬁned values / vectors of vf and σ f in compatible regions.

(4)

where | · | returns the number of elements in a set. To minimize these energy functions, a local Laplacian operator can be itera- tively applied to update the values σ f (and the vectors vf ) on all faces while ﬁxing the value (and the vector) on the face with max- imal σ f to impose a boundary condition for avoiding the trivial solution. In our implementation, the computation converges in 50 iterations. The processed vector ﬁeld can then be obtained by

(5)

with p being a parameter to control the adaptation of CCF tool- path’s density (more will be discussed in Section 5). Fig.4(e) illustrates the results of processed ﬁelds for vf and σf .

By deﬁning the vectors in each face of P, a piecewise linear scalar ﬁeld s(x) (∀x ∈P ∩H) can be obtained by determining the ﬁeld values on every node to minimize the diﬀerence between

(6)

where xf is the center of face f and its scalar ﬁeld value can be computed by piecewise linear function (see detail in ). An example of the scalar ﬁeld determined by Eq.(6) can be found in Fig.4(f).

Adaptive Toolpath Extraction

Isocurves of the scalar ﬁeld s(x) (∀x ∈P ∩H) are extracted as CCF toolpaths. When extracting too sparse isocurves to use as CCF toolpaths, 3D printed CFRTPCs cannot meet the expec- tation of reinforcement. When the isocurves are extracted too densely, overlapped CCF ﬁlaments will be generated during de- position. Overlapped CCF ﬁlaments will reduce the eﬀectiveness of adhesion between CCF and the resin matrix and, therefore, also the mechanical strength of 3D printed CFRTPCs. Deﬁning W as the allowed minimal distance between neighboring CCF toolpaths – a manufacturing parameter dependent on diameters of the nozzle and the CCF ﬁlament, we need to extract isocurves as dense as possible but with the minimal distance greater than
