Avoidance and Coalescence of Delamination Patterns

Zoe Budrikis

ISI Foundation, Via Alassio 11/c, 10126 Torino, Italy

Stefano Zapperi

CNR-IENI, Via R. Cozzi 53, 20125 Milano, Italy and ISI Foundation, Via Alassio 11/c, 10126 Torino, Italy Delamination of coatings and thin films from substrates generates a fascinating variety of pat- terns, from circular blisters to wrinkles and labyrinth domains, in a way that is not completely understood. We report on large-scale numerical simulations of the universal problem of avoidance and coalescence of delamination wrinkles, focusing on a case study of graphene sheets on patterned substrates. By nucleating and growing wrinkles in a controlled way, we are able to characterize how their interactions, mediated by long-range stress fields, determine their formation and morphology.

We also study how the interplay between geometry and stresses drives a universal transition from conformation to delamination when sheets are deposited on particle-decorated substrates. Our re- sults are directly applicable to strain engineering of graphene and also uncover universal phenomena observed at all scales, as for example in geomembrane deposition.

Ntroduction

Delamination of a thin sheet from a substrate may be an undesirable effect, for example when plastic coatings peel from glass, but controlled delamination is of inter- est for a range of applications from flexible electronics to building micro- and nanofluidic devices [2, 3]. It is therefore of great technological importance to understand the role played by sheet properties and substrate geom- etry in determining delamination and sheet morphology.

In addition, delamination blisters and wrinkles form a rich variety of complex patterns, which are the subject of ongoing research. Examples include circular blisters, “telephone cord” buckles, parallel and radially organized

Wrinkles, And Labyrinth Patterns . In The Case Of

graphene sheets, patterning into networks of wrinkles us- ing nanopillars or particles on the substrate has been ex-

Perimentally Demonstrated . Previous Theoretical

work on thin sheet delamination has focused on the prop- erties of a single blister or wrinkle, looking for example at how blister growth is affected by substrate interac- tions and elastic instabilities [4, 10, 12, 18]. On the other hand, interactions between delaminated regions are fun- damental as strikingly illustrated by recent experiments by Yamamoto et al on graphene sheets.

Graphene Wrinkles Are Seen To Form Pairs That Ap-

proach each other but do not coalesce (see Fig. 1), as also confirmed by atomistic simulations . Avoiding wrinkle pairs are not just a curiosity of graphene sheets on patterned substrates, and in fact can be found not only in other thin films but even in macroscopic sheets such as geomembranes used to line landfills. Examples from the physics and engineering experimental literature are listed in Table I. Despite their ubiquitous nature, the physics leading to avoiding wrinkle pairs is largely unex- plored. It is remarkable that similar universal avoiding patterns are widely observed in cracks.

“En Passant”

cracks in films and plates have been recently shown to be display universal morphology, independent on the material properties . Do similar universal laws apply

To Avoiding Wrinkle Pairs?

Here we report a large-scale simulation study of avoid- ing and coalescing delamination wrinkles in graphene. The phenomena we describe are universal, but we have chosen to focus on graphene as a case study because it is an exemplary thin sheet, being truly two-dimensional and having a remarkably high ratio of bending rigidity

(∼1 Ev) To Tensile Rigidity (∼103 Ev/Nm2) ,

which allows narrow buckled morphological features to form. This makes it an ideal model system in which to explore the mechanics of membranes and fascinating in its own right .

Furthermore, Strain Engineering

of graphene promises control of electronic, optical and thermal properties, making it useful for a range of appli-

Cations , So That Understanding The Morphology

of graphene sheets on substrates is of value for building devices.

We Introduce A Coarse Grained Model For Mono- And

multilayer graphene, which we validate by comparing simulations of micron square sheets with existing exper- imental results . We then report on simulations of controlled growth of interacting delamination wrinkles, which are inspired by Fender et al’s experiments on cracks in plates . These reveal the role played by long range interactions in determining the shapes of wrinkles, and arXiv:1403.8063v1 [cond-mat.mtrl-sci] 31 Mar 2014 whether they form avoiding pairs or coalesce. We also discuss how coalescence of wrinkles can be used to in- duce delamination in rectangular regions. Our simula- tion studies illustrate the importance of free edges on the sheet for allowing lateral motion, without which it is impossible to model experimentally-observed phenomena correctly.

N-Layer Graphene Sheet

While atomistic simulations provide a useful bench- mark, their computational intensity limits their useful- are primarily interested in universal phenomena, rather than graphene-specific behavior.

We Therefore Develop

a linearized model that captures the essential physics of an ultrathin sheet interacting with a patterned substrate, and show below that it is capable of describing the me- chanical behavior of graphene in which we are interested.

We model the graphene sheet as a triangular lattice of particles connected by springs with rest length a = 5˚A,

S Is The Stiff-

ness for a graphene sheet composed by n layers, with

K∗

s = 20 eV/˚A2 [22, 23]. Bending rigidity is implemented as an energy that depends on the angle φ between two neighbouring triangles and is minimized when the sheet

A Distinct Advantage Of These

simulations over atomistic simulations is that sheet thick- ness enters as a change in parameters, without a change in the number of particles simulated. This allows us to study any number of layers as long as the assumptions of thin-sheet elasticity hold.

The sheet is attracted to the substrate via a down- ward force applied on all particles that is independent of height, but the substrate itself has a radial repulsive interaction with the sheet, to form a hard barrier. The strength of these forces has been selected to give qualita- tive agreement with experiments (see below). This sub- strate interaction guarantees a substrate solid enough to deposit particles on, and behaves in a reasonable way

Even If The Specific Choice Is Rather Arbitrary

Open boundary conditions are used, so that the sheet is able to expand and shrink laterally. As discussed be- low, an adequate accounting for lateral deformation of the sheet is essential to capture the physics of the system.

In order to reduce spurious edge effects and allow for ef- fects of friction between the sheet and substrate, particles near the sheet edge are coupled to their original lateral positions with harmonic springs, to constrain their lateral (but not vertical) motion. The simulation is performed

Using The Molecular Dynamics Package Lammps And

is conducted at zero temperature, with damping applied to slowly drain energy from the system. Further details are given in Appendix A.

Wrinkle Networks On Decorated Substrates

We verify our model through comparison with experi- mental studies of graphene sheets deposited on substrates decorated with nanoparticles of diameter ∼10 nm, as published recently by Yamamoto et al . We simulate 1×1 µm2 regions of monolayer and 5-layer graphene, with particles of radius 8 nm placed at positions determined by digitizing the atomic force micrograph that was obtained

By Yamamoto Et Al For A System With Nanoparticle

density of 90 µm−2. As seen in Fig. 1, the agreement be- tween monolayer simulation and experiment is good, with both systems displaying similar networks of long narrow wrinkles connecting particles. We note that agreement is only expected in the center of the region simulated, because the experimental image is a sample of a larger region so that wrinkles near the edges are affected by particles that are not shown in the limited field of view.

Importantly, our linearized simulations exhibit avoid- ing pairs of wrinkles, an example of which is highlighted in Fig. 1(d,e). The pairs are stable for long simulation times (up to at least 2×106 time steps) and occur under a range of downward forces on the sheet. In addition, like Yamamoto et al, we find that increasing the thickness of the graphene sheet hinders its conformation to the sub- strate (compare our Fig. 1(a,b) with Fig. 6 of Ref. ).

This is especially apparent in regions where close-spaced particles are positioned on the vertices of a polygon, as in the region indicated in Fig. 1(a,b). As highlighted in Fig. 1(f,g), the sheet in this region “pops up” when its thickness (and hence ratio of bending to stretching costs) increases. In the rest of this paper, we study these two characteristic behaviors in greater detail.

Beyond Visual Comparisons, We Compare Simulation

and experiment statistically, by measuring the distribu- tion of the number of wrinkles emanating from each parti- cle for the grpahene monolayers, as plotted in Fig. 1(h).

The agreement is good, although the simulations have a slightly larger mean number of wrinkles per particle (2.48 for simulation, vs 2.15 for experiment). However, this may simply be because the lower noise levels in the simulation data allow more wrinkles to be detected.

Orphology Of Wrinkle Pairs

We first study the growth and interactions of wrinkles, with a focus on avoiding pairs. In order to character-

± 0.06 M C

a c.f. Fig. 1 of main text. b Based on the average wrinkle width being approximately the nanoparticle diameter . c As quoted in Ref. .

TABLE I. Examples of avoiding pairs of wrinkles in the literature, sorted by sheet thickness. This is not intended to be an exhaustive list, but rather to give a sense of the variety of situations in which avoiding pairs occur. ize and understand these pairs, we require a controlled method for creating and growing them. Inspired by stud- ies of interacting cracks grown from a pair of notches , we study propagating and interacting wrinkles using sim- ulations in which an initially flat sheet of dimensions 600×600 nm2 is subject to upward pulling in well-defined “wrinkle nuclei” regions. The tips of the nuclei are sepa- rated by distances X and Y as defined in Fig. 2(a), which are our control parameters. We set the upward force to 0.01 eV/˚A, a factor of 10 larger than the downward force that is applied to the whole sheet. Because the nuclei are long and narrow and the sheet has high stretching cost, the upward driving primarily causes the wrinkle to prop- agate forward, with minimal lateral broadening, as shown in Fig. 2. We run each simulation until a stable configu- ration is attained, which occurs when the applied upward forces are balanced by stresses in the sheet. We have also tested simulations where the upward force is increased slowly, rather than turned on instantaneously, and find that although this allows smoother initial wrinkle growth, the final configurations attained are not strongly affected, as seen in example movies in Supplemental Material .

We have also tested changing the nucleus orientation rel- ative to the sheet edges (and therefore lattice), but do not find any lattice effects.

Whereas an isolated wrinkle propagates directly for- ward, parallel to its nucleus, nearby wrinkles interact via long-range stresses in the sheet. This leads to wrinkles ei- ther joining or forming an avoiding pair. For fixed driving conditions, we find that whether a pair of wrinkles join is controlled by the separation of their nuclei. As shown in Fig. 2(b), this can be characterized by aspect ratio X/Y and distance R. When X > Y , the joining condition is simply a distance threshold of ∼30 nm. However, for X < Y , wrinkle merging becomes more favourable and the minimum distance required for the formation of an avoiding pair increases rapidly.

In addition to the conditions for avoiding pair forma- tion, we also characterize how the morphology of such pairs depends on wrinkle nuclei separation. Typical wrin- kle shapes are shown in Fig. 2(c), for fixed X/Y = 1. For small R, wrinkles are directed toward each other, but for larger R they are initially repelled before being attracted.

To quantitatively describe the wrinkle shapes, we focus on two characteristics which are indicated in Fig. 2(a):

Μ2 + Ν2

from base to tip, and aspect ratio µ/ν. For fixed X/Y , ξ depends on R and is maximized at a distance ∼230 nm, as shown in Fig. 2(d). As shown in Fig. 2(e), the maximum extension decreases with increasing X/Y , so that avoiding pairs of wrinkles formed by nearly head- on nuclei are substantially longer than wrinkles formed from nuclei that are separated in the X direction. Re- markably, for nucleus separations R ≳200 nm, X/Y has little effect on the aspect ratio µ/ν of wrinkles, which decreases approximately linearly with R.

Nteractions Of Wrinkle Pairs

In order to understand how wrinkle interactions af- fect their shape, we characterize the stresses induced by wrinkles, via the trace of the stress tensor Tr(σ) = σxx + σyy + σzz. (The calculation of the stress tensor is described in Appendix A.) We first consider a single wrinkle. As shown in Fig. 3, the stresses emanating from the tip of a wrinkle are compressive (Tr(σ) < 0), which causes the wrinkle to grow via buckling of the sheet, so that deformation occurs as bending rather than stretch- ing which is highly unfavourable for graphene.

As indicated in Fig. 3(b), the stress distribution dis- plays an angular dependence and compressive stresses are largest along a line parallel to the wrinkle. We have also calculated the stresses generated by an idealized wrin- kle in an infinite sheet under the assumption of zero in-plane deformation by imposing a wrinkle shape and numerically calculating the stresses using standard thin- plate elasticity, as described in Appendix D. As shown in

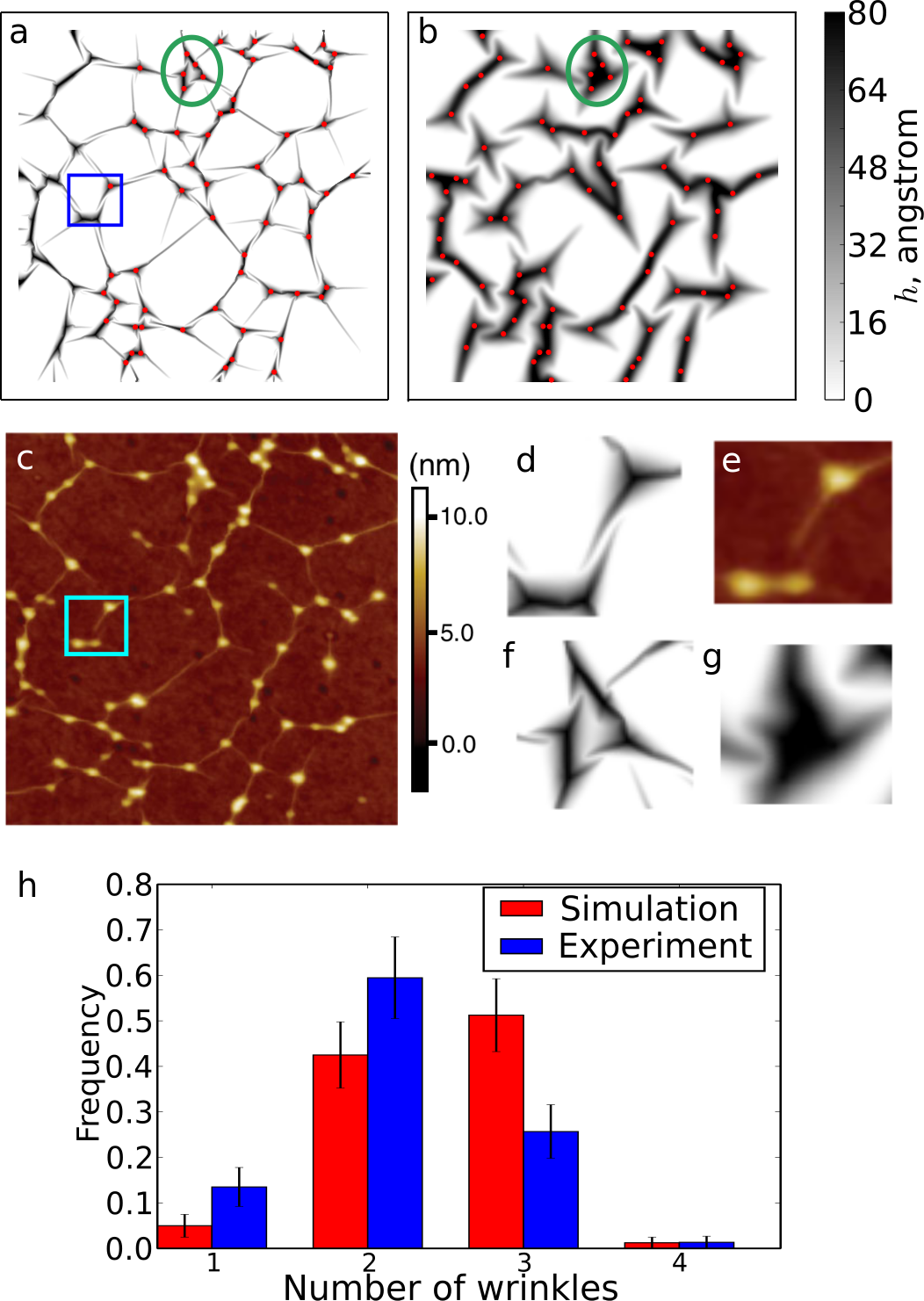

Simulated 1 × 1 Μm2 (A) Monolayer And (B) 5-Layer

graphene sheet on a substrate decorated with spherical parti- cles of diameter 8 nm, placed in positions determined by dig- itization of the experimental micrograph shown in panel (c).

Red dots indicate the particle centres. (c) Atomic force mi- showing a 1×1 µm2 region of graphene exfoliated onto a sub- strate decorated with nanoparticles of mean diameter 7.4nm.

(d,e) Close-ups of an example avoiding pair of wrinkles found in experiment and simulation, as highlighted by the blue boxes in panels (a) and (c).

(F,G) Close-Ups Of A Region In

which the monolayer sheet conforms to the substrate but the 5-layer sheet delaminates, as indicated by the green ellipses in panels (a) and (b). (h) Histograms of the number of wrinkles emanating from each particle, as counted from the images in panels (a) and (c). Error bars correspond to the square root of each count.

Fig. 3(c,d), the idealized wrinkle also generates a stress field with an angular dependence. Far from the wrinkle tip, the stresses decay as a power law with exponent 1 along the wrinkle axis and 2 perpendicular to the wrinkle axis.

When Two Wrinkles Are Grown In Proximity To Each

other, their behavior is determined by the superposition of their stress fields. A video showing the evolution of stresses for a growing pair of wrinkles is provided as Sup- plemental Materials . As shown in Fig. 4, wrinkles

Fig. 2.

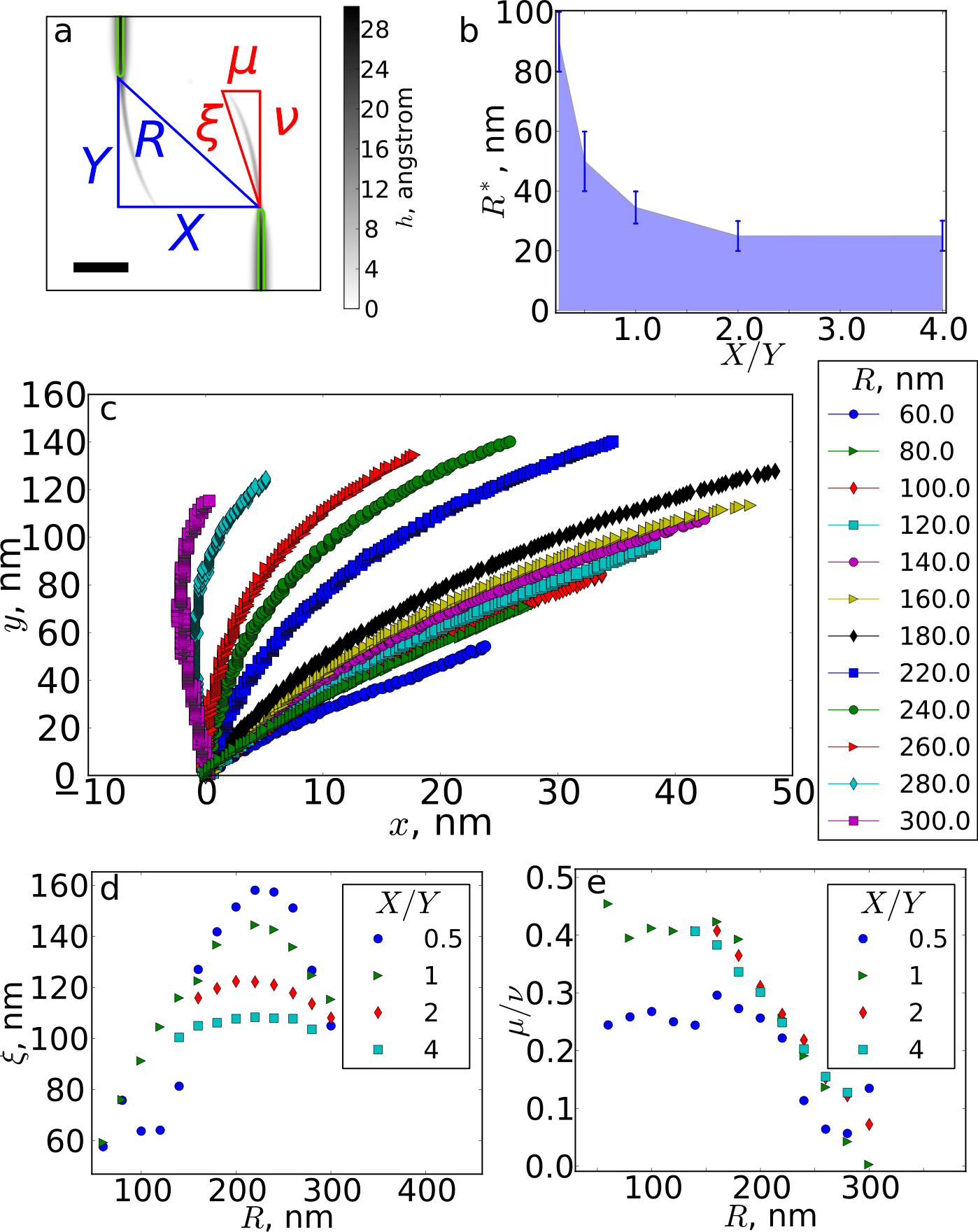

(a) Schematic of wrinkle interaction tests shown on a close-up of the central region of a sheet. Elongated “wrinkle nuclei”, indicated by green lines, are lifted with constant force, to cause wrinkles to propagate towards the centre of the sheet.

We investigate how changing the nucleus separations X and Y affects the wrinkle shape, which is characterized by µ and ν. The scale bar indicates 50 nm. (b) Whether two wrinkles join or remain separate depends on nucleus separations, here characterized by aspect ratio X/Y and distance. When the nuclei are nearly head on (X/Y small), even distant pairs join, but the maximum distance for joining drops offrapidly as the aspect ratio is increased. (c) Wrinkle shapes for X = Y , for a range of R values. The wrinkle nucleus is excluded, and wrinkles are transformed so the end of the nucleus (the base of the wrinkle) is situated at (x = 0, y = 0) and the tip of the wrinkle is to the right of its base. (d) The extension of

Μ2 + Ν2, Is Maximised For A Separation Of

∼220 nm, but decreases with increasing aspect ratio.

(E)

Remarkably, when X/Y ≥1, the aspect ratio of the wrinkle, µ/ν depends only on nucleus tip separation R. propagate along the steepest stress gradient in front of them. Pairs of wrinkles propagate in a spiral around the centre of the line joining their tips. As seen in Fig. 4(a,b), the wrinkle tips initially propagate outwards slightly, and the high-stress central region expands. As the tips pass each other, their motion changes to an inwards propaga- tion, as seen in Fig. 4(c), and the high-stress region con- tracts. The wrinkles continue to propagate around the centre of the line joining their tips, and come to a stop in the configuration seen in Fig. 4(d). This configuration

Fig. 3.

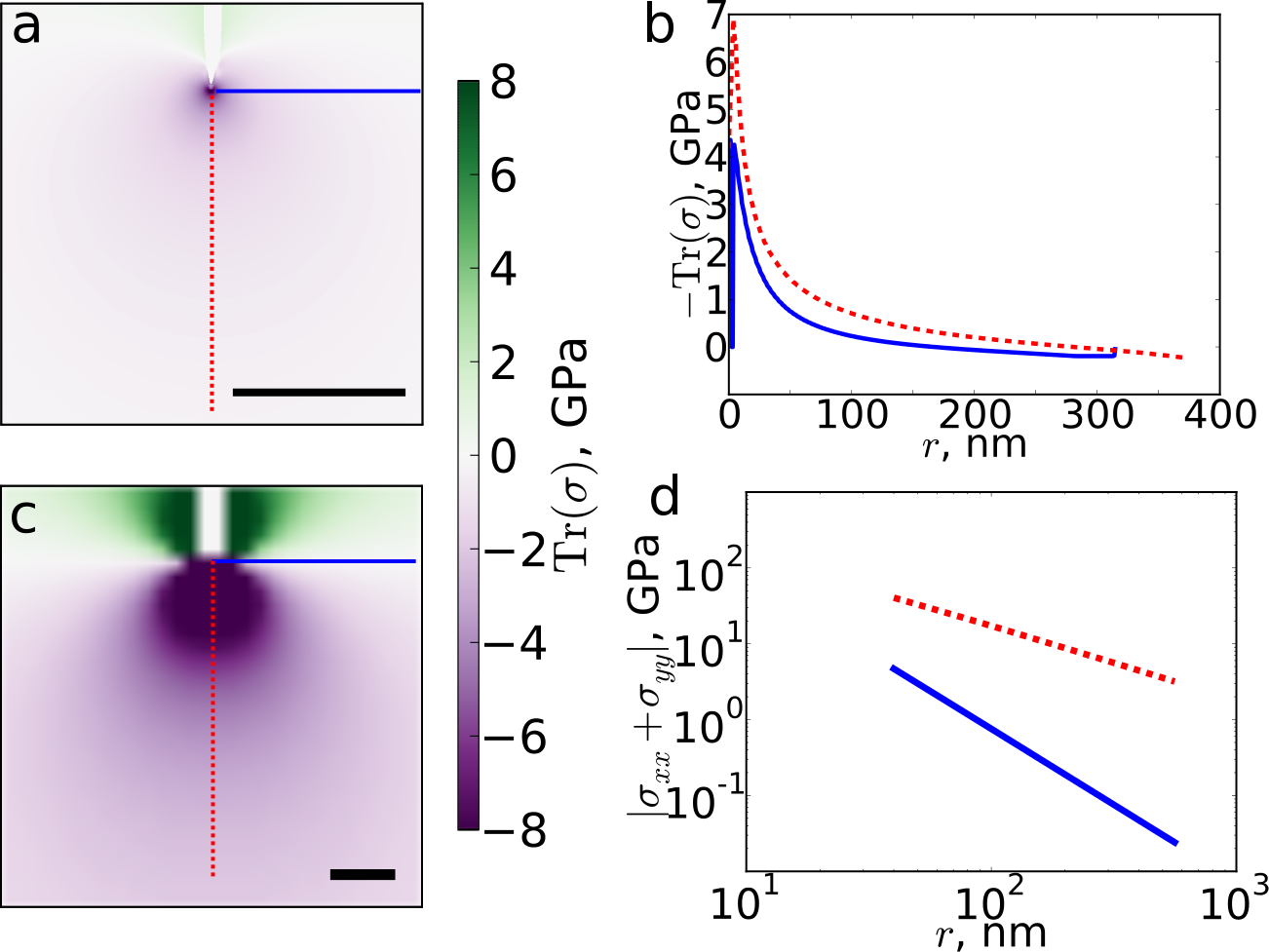

(a) Trace of the stress tensor from a single wrinkle in the coarse grained model, showing tension behind the tip and compression in front, concentrated at the tip. The scale bar represents 100 nm. (b) Slices of the stress trace parallel and perpendicular to the wrinkle direction, as indicated by red and blue lines in panel (a). (c) σxx +σyy for an infinite sheet with an idealized wrinkle imposed, as described in Appendix D. (d) Slices of σxx + σyy parallel and perpendicular to the wrinkle direction, as indicated by red and blue lines in panel (c). For clarity, in panels (a) and (c) the interiors of the wrinkles, defined by a height threshold of 2 ˚A, are not shown.

is stabilized by the balance between applied forces and stresses in the sheet. However, even for larger upward forces on the wrinkle nuclei, the deformations required to merge two wrinkles are highly unfavourable. This is consistent with the observation of stable avoiding pairs of wrinkles in simulation and experimental stud- ies of graphene deposited on nanoparticles. The depen- dence of wrinkle extension on nucleus tip distance seen in Fig. 2(c) can be accounted for by noting that when nuclei are close, wrinkle propagation is limited by wrin- kles blocking each other, but as nuclei distance increases, stresses decrease and the rate of wrinkle propagation de- creases accordingly.

Finally, We Observe That, As Expected For A Thin

plate , the stresses induced by wrinkles act in-plane. As shown in Fig. 4(e), σzz is zero outside the wrinkle, and even on the wrinkle boundary has a value two orders of magnitude smaller than σxx + σyy. In other words, wrinkle growth is driven by buckling induced by in-plane compressive stresses.

Suspended On Four Particles

Finally, we consider a situation where wrinkle merging is of great relevance, namely the transition from con- formation to delamination of a graphene sheet placed on a substrate decorated with nanoparticles. To study

Fig. 4.

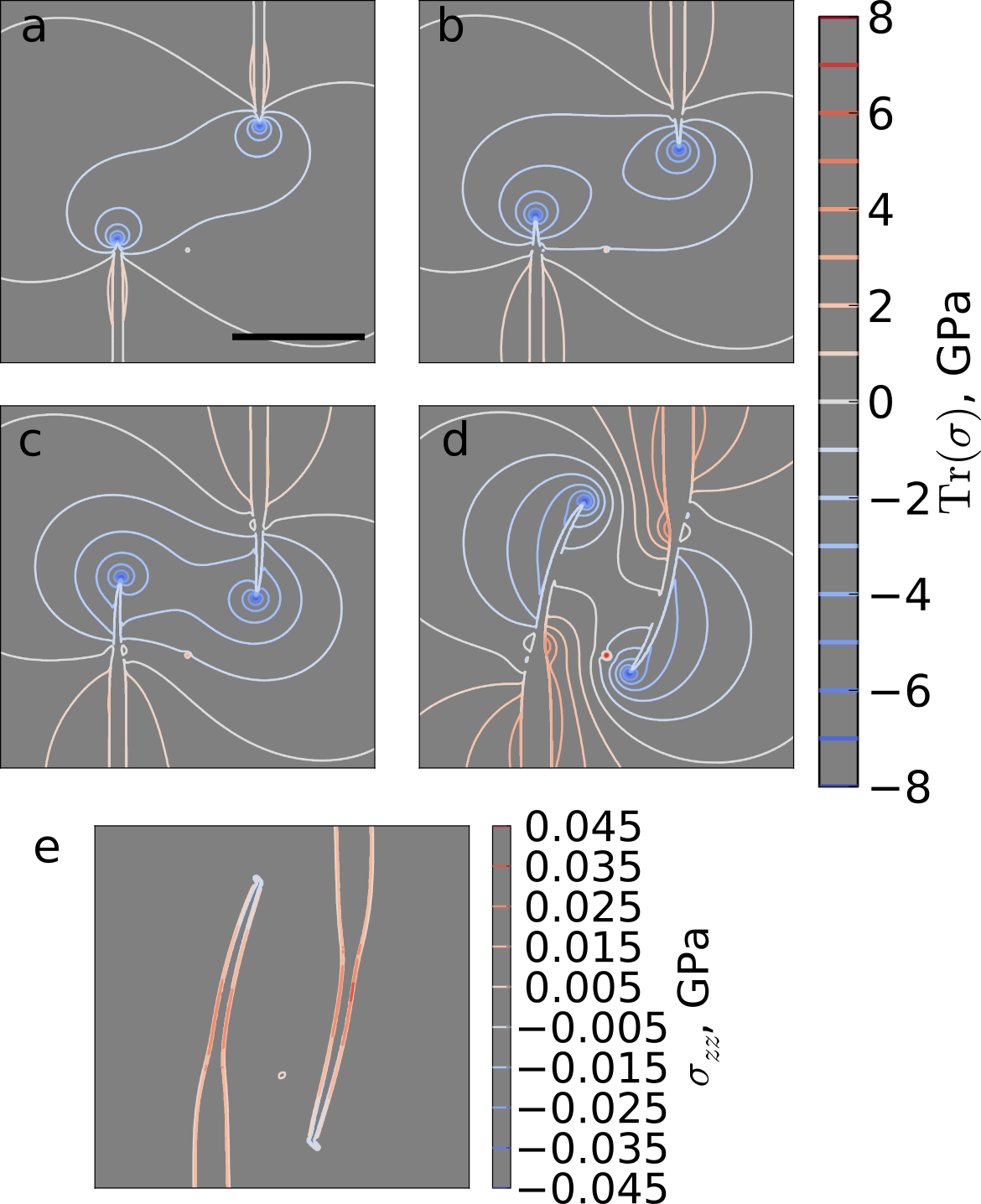

(a–d) Contour lines of the stress trace during the evolution of an avoiding pair of wrinkles, with a field of view that excludes the sheet edges. The nucleus separations are X = Y = 56.6 nm. The line joining the wrinkle tips is a local maximum in the stress distribution and the tips propagate around the centre of this line, which is a saddle point. (e) Contour lines of σzz, for the same wrinkle configuration as shown in panel (d). For clarity, the interiors of the wrinkles (defined by a height threshold of 2 ˚A) are not shown.

All

images have the same scale; the scale bar, shown in panel (a), represents 100 nm. this transition in a systematic way, we simulate a 600 × 600 nm2 graphene sheet deposited on a substrate with four nanoparticles of diameter 8 nm, arranged in a rect- angle with aspect ratio close to unity and a range of side lengths ℓ, with center close to the sheet center. (We use this configuration, rather than a square centered exactly, in order to avoid spurious effects arising from symme-

Example Movies Of Deposition Are Shown In The

Supplemental Material . Here, we examine the role of both the inter-particle distance and the sheet’s mechan- ical properties, which are controlled by its thickness.

Figure 5(a–d) shows typical configurations for close- spaced and distant particles, for a monolayer (panels a and b) and a 5-layer sheet (panels c and d). When the particles are close together, the sheet is delaminated in the center of the rectangle, but as their spacing is in- creased, it is able to conform to the substrate. Increas- ing the sheet thickness “smooths” the sheet and increases the size of features, as can be seen by comparing panels

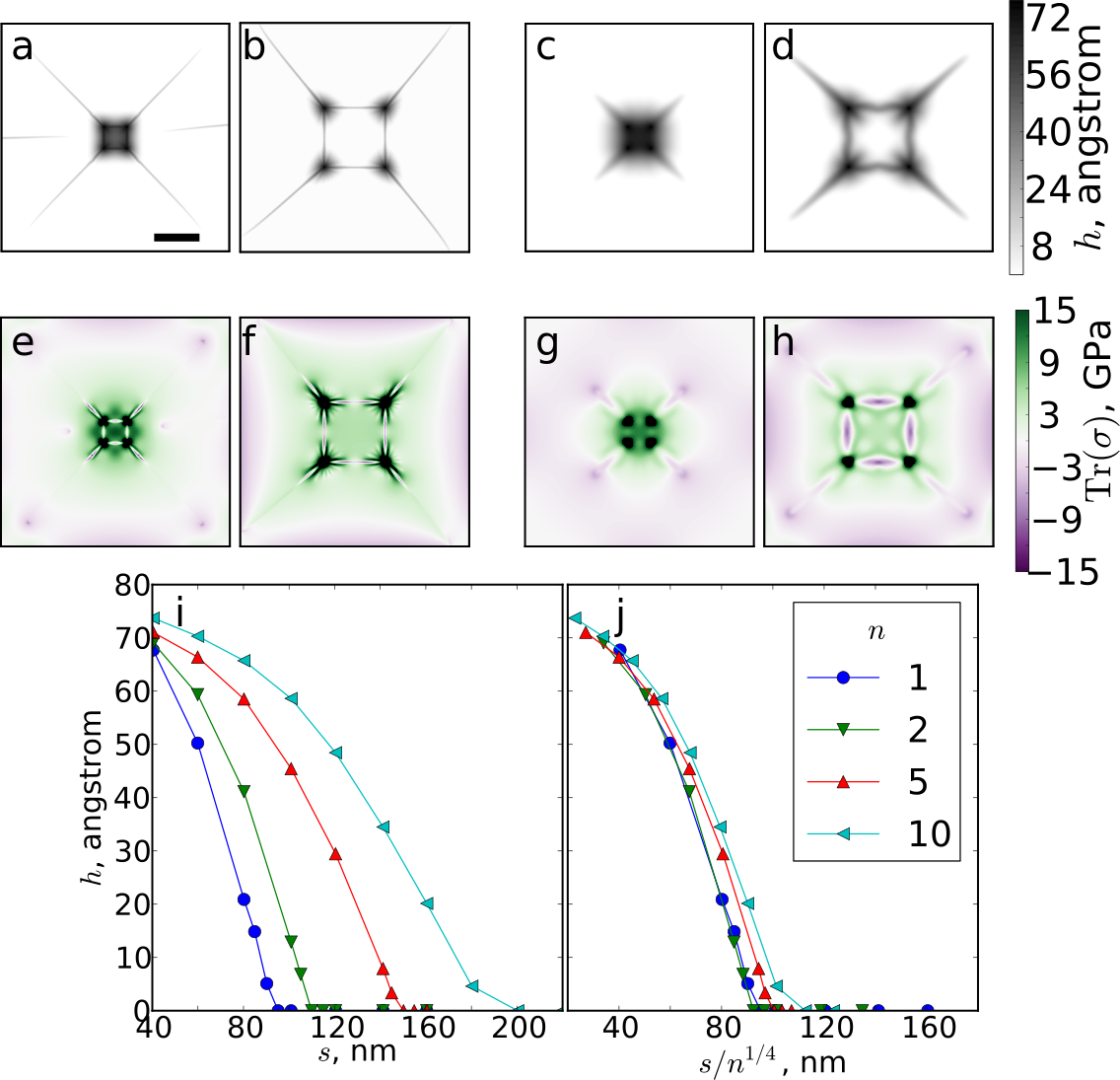

Typical Configurations Of A Sheet Deposited On

four nanoparticles: (a) monolayer sheet, particle spacing 60 nm, (b) monolayer sheet, particle spacing 160 nm, (c) 5-layer sheet, particle spacing 60 nm, (d) 5-layer sheet, particle spac- ing 160 nm. Panels (e–h) show the trace of the stress tensor corresponding to the configurations. Where the stress is above 15 GPa, the color scale has been clipped (black regions on top of the particles). All eight panels have the same scale, and the scale bar, shown in panel (a), represents 100 nm. (i) Height of the center of the graphene sheet as a function of particle spacing, for 1, 2, 5 and 10 layer sheets.

(J) As A First Ap-

proximation, the delamination transition occurs at a particle spacing s∗∼n1/4. (a,b) and (c,d) of Fig. 5. It also reduces stresses in the sheet, as seen in panels (e–h) which show the trace of the stress tensor.

Near The Particles, Stresses Are Ten-

sile (Tr(σ) > 0), but compressive regions exist inside the wrinkles and especially at the wrinkle tips. The effect of the finite sheet size is also seen, with the stress fields clearly modified by the sheet edges.

The delamination transition is quantified in Fig. 5(i), which shows the height of the center of the sheet as a function of particle spacing s, for 1-, 2-, 5- and 10-layer sheets. In all cases, a sharp transition is observed at a particle spacing s∗that depends on sheet thickness. As a first approximation, one can estimate the dependence on sheet thickness under the assumption that bending rigidity does not enter the problem and the sheet de- forms purely via stretching.

N That Case The Delami-

nated region of an n-layer sheet around a protrusion has radius R ≈r(4nE2D/3Γ)1/4 [16, 37], where r is the par- ticle radius, E2D is the tensile rigidity of the sheet and Γ characterizes the adhesion energy. Under the assump- tion that delamination in the center occurs when delam- inated regions meet, the critical particle spacing scales as s∗∼n1/4. As seen in Fig. 5(j), this scaling collapses the 1- and 2-layer curves very well, but already breaks down for the 5-layer sheet. This is to be expected, be- cause argument does not take into account the existence of long-range stresses and wrinkles connecting the parti- cles.

Interacting Cracks

Delamination is a form of fracture, so it is not sur- prising that our interacting delamination wrinkles are reminiscent of interacting cracks.

Single Wrinkles And

cracks have different fracture modes, since propagation of a crack due to pulling orthogonal to the crack direction is purely mode I fracture, whereas wrinkle propagation is inherently a mixture of modes I and II, due to the com- pressive stresses in front of the wrinkle tip (as shown in Fig. 3). Nonetheless, when interactions with other cracks or wrinkles are introduced, both types of fracture propa- gation involve mixed modes I and II loading, and in both cases fracture proceeds as rotation of the line connecting their tips, which is a local stress maximum , tensile for cracks and compressive for wrinkles.

Gelatine

plates reveal a universal shape for the lenticular region cut out by two interacting cracks, described by y(x) = √x.

N Those Experiments, Notch Lateral

separation (equivalent to our X, see Fig. 2(a)) was varied over an order of magnitude, with fixed separation along the direction of the notches (equivalent to our Y in Fig. 2(a)).

By Way Of Contrast, We Are Unable

to identify a universal shape in our data on avoiding wrinkle pairs, as is obvious from visual inspection of Fig. 2(c), in which some wrinkles are almost straight and others are substantially curved.

Furthermore, In

those experiments, cracks were found to only deviate from straight paths when their tips pass each other, whereas we find wrinkle shapes that are curved even at the wrinkle nuclei. We attribute these differences in behavior to differences in the long range stress fields.

In addition to fundamental differences between crack and wrinkle tips, in our simulations stresses are strongly affected by system edges, as we discuss below.

Experiments by Cortet et al on cracks in paper also reveal crack shapes controlled by interactions . Their experimental geometry is more complex, consisting of two lines of equidistant slits. The cracks are grown by pulling the paper perpendicular to the slit direction. The slits and their spacing are both fixed, and the control pa- rameter is the distance d between the two lines. For small d, cracks typically repel each other during their initial growth, before becoming attracted. For larger d, repul- sion is seen less frequently, until a transition inter-line distance above which cracks from different lines do not interact. As seen in the wrinkle shape data for X/Y = 1
