Cold flow modeling of the combustion chamber for a multi-fuel turbine engine

Article Info

Turbine engines, thanks to their high efficiency and flexibility in using different types of fuels, can play a key role in integration with hybrid systems that combine electric drive with traditional energy sources. Additionally, different fuels may influence combustion temperatures and soot formation, affecting thermal loads and material degradation. The proposed methodology will consist of conduct a comprehensive review of current models of combustion chambers in turbine engines, focusing on multi-fuel capability and hybrid applications. As a result, it will allow to identify key performance parameters (efficiency, emissions, stability, etc.) and define system requirements for hybrid optimization. The article presents a comparative analysis of which geometry performs best for multi-fuel combustion. The model results were then compared with literature data. The conducted modelling of a multi-fuel combustion chamber intended for use in hybrid turbine systems has shown that the choice of fuel significantly influences combustion behaviour, temperature distribution, and emission profiles.

Nevertheless, the developed model provides a solid foundation for future integration into hybrid propulsion architectures, offering adaptability to various fuels and operating regimes.

Available Online: 22 September 2025

Key words: turbine engine, multi-fuel engine, hydrogen, natural gas, hybrid drive This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)

Ntroduction

The global demand for sustainable and low-emission propulsion systems has intensified the search for alternative fuels and advanced combustion technologies. Gas turbine engines, widely used in power generation and aviation, face increasing pressure to adapt to cleaner energy sources while maintaining high performance and operational reliability. In this context, the combustion of alternative fuels, such as hydrogen, synthetic gases, and biofuels, presents both a promising solution and a complex engineering challenge.

The paper describes the challenges of adding hydrogen power to gas turbines, including high production costs, limited infrastructure, and an underdeveloped value chain.

All major gas turbine companies are aiming for full hydro- gen combustion capability by 2030, and some manufactur- ers, such as Siemens Energy, are already introducing se- lected hydrogen-capable models. Technical challenges include the combustion characteristics of hydrogen, in par- ticular, lower ignition energy and higher flame speed .

Sample tests have shown that biofuels can offer similar or even better performance compared to conventional fuels, although some biofuels may require modifications to the injectors or combustion chamber. In terms of cost- effectiveness, biofuels and synthetic fuels may be more expensive to produce, but the environmental benefits and potential savings over the long term may make them cost- effective. The use of biofuels, such as biodiesel, in turbine engines can lead to comparable or even better performance compared to conventional fuels. However, some biofuels, especially those with high viscosity, may require modifica- tions to the injectors or combustion chamber to ensure optimal combustion and avoid operational problems .

In some cases, especially in aviation, multi-fuel operation allows the engine to be adapted to different weather condi- tions or missions, which can be important for military oper- ations or specialist missions.

In recent years, research on combustion chambers in turbine engines has focused on optimizing the combustion process to ensure better fuel and air mixing, leading to higher combustion efficiency and lower emissions of harm- ful chemicals . In the work an analysis of the com- bustion chamber of a micro gas turbine engine was present- ed, which can operate on various fuels such as methane, natural gas, and ethanol. The research showed that the ap- propriate configuration of the outlet holes and the angles of the rotor blades significantly affect the performance of the combustion chamber. High combustion efficiency (over 98% for methane and natural gas) and low emissions of pollutants, such as nitrogen oxides, were key outcomes of ducing nitrogen oxide (NOx) emissions in jet engine com- bustion chambers. By changing design parameters and using computational fluid dynamics (CFD) simulations, researchers significantly reduced NOx emissions, which is crucial for the sustainable development of fuel technologies . Another article describes the effects of hydrogen- enriched biogas on combustion and emission of a dual-fuel diesel engine. The conclusions of the analysis showed that the addition of hydrogen to biogas significantly reduced carbon dioxide emissions. At 20% H content in biogas, a reduction in CO emissions of up to 56% was observed compared to running the engine on biogas alone.

In the context of hybrid systems, modelling a turbine engine will allow for mapping its operating conditions. Such systems operate in diesel-electric generators or gas- electric generators. Such an application is easier to imple- ment because the turbine operates at a constant speed under different loads, which may suggest that certain operating parameters are much easier to predict. An example of using a turbine as a power generator is shown in Fig. 1. Such an application works as a serial hybrid propulsion called Rex . Modelling a multi-fuel combustion chamber allows for Cold flow modeling of the combustion chamber for a multi-fuel turbine engine

Ombustion Engines, 2026;204(1)

flexible adaptation to different energy sources, increasing practical application possibilities. With advanced simula- tion tools, such as Ansys Fluent and Creo-6.0, researchers can accurately analyse the flow of fuel and air, leading to the optimization of the combustion process and the im- provement of hybrid systems' efficiency.

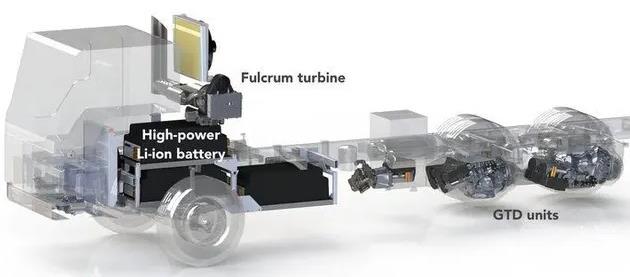

Fig. 1. Application of a turbine as a generator in heavy goods vehicles

Research Problem

The article describes combustion processes occurring in the chamber of turbine engines. By selecting, among others, the appropriate shape of the combustion chamber, the amount of fuel in the injector and chemical additives, the combustion process can be controlled. The types of com- bustion are presented: diffusion and laminar, together with examples of their occurrence. Then, the formation of pollu- tants and their types are described. The emissions of NOx, CO, and particulate matter by gas turbines and reciprocat- ing engines were compared. Ways to reduce gas emissions were proposed, among others, by rearranging the aerody- namics of the combustion chamber, increasing the volume of the primary flame zone, or improving fuel atomization.

The next step is to describe the fuels used to power gas turbines. The main problems of the combustion process are described, including maintaining the initiation of combus- tion in a very stable flow, or a lack of stability . For example, blends of biofuels with traditional aviation fuels can reduce particulate and CO2 emissions without signifi- cant loss of efficiency. Specific blends, such as bioethanol with jet fuel, have shown a 15% reduction in CO2 emissions and improved lubricity. The use of hydrogen as a fuel in gas turbines reduces CO2 emissions by 100% and NOx by 90% compared to conventional fuels . Additionally, hydrogen as a fuel improves the efficiency of turbines at high temperatures. Other studies have shown that biogas can be effectively used in gas turbines, which allows for a 20–30% reduction in CO2 emissions. Mixing biogas with natural gas does not significantly affect engine efficiency . The use of gas turbines, for example, as generators or in industry, is discussed. Turbine engines can be used in hybrid motor vehicles as a generator to charge batteries, which allows for increased range and energy efficiency of vehicles.

The following section describes the research stand used for the simulation tests and specifies the operation of the stand, specifying the individual components of the system.

In the research part of the work, the combustion cham- ber of the tested engine was first modelled in the Ansys Fluent simulation environment. It detailed the calculation of boundary conditions and preparation of the model for the needs of the analysis. The next part included the results of simulation studies of the flow of the working medium through the combustion chamber, taking into account the selection of an appropriate volumetric mesh for the cham- ber and the simulation of cold air flow. Finally, the results of the simulation were compared with their analysis. The obtained assessment of the numerical analysis allowed for undertaking design changes in the future for the combustion chamber and highlighted further development possibilities The numerical calculations performed using the models and mechanisms available in the Ansys Fluent program can be a starting point for the modernization of the existing re- search engine. The author will focus on the analysis of the flow through the above-mentioned combustion chamber in order to verify the design solution selected by the team building the turbine engine.

In diffusion combustion, fuel and air mix immediately prior to ignition, and the mixing process continues even after combustion has begun. This type of combustion oc- curs within the boundary layer where the fuel gas stream meets the still oxidizing environment. A classic example is a candle flame, where a visible glowing zone forms at the point where the amount of fuel and oxidizer is in stoichio- metric balance. Depending on the nature of the gas flow, diffusion combustion can be categorized as either laminar or turbulent.

Laminar combustion is represented as molecular. Lami- nar flame velocity is defined as the propagation rate of the normal flame front relative to the unburned mixture (homo- geneous combustible mixture). This is an important proper- ty for a mixed flame because it contains basic information about the diffusivity and exothermicity of the combustible hydrocarbon mixture. At a practical level, laminar flame velocity is related to the combustion rate in the chamber, which can affect combustion efficiency and exhaust emis- sions. Laminar flame speed values can be applied directly in turbulent combustion modelling or used indirectly to validate chemical kinetic models.

The theory shows that the creation of swirl and an inter- nal recirculation zone significantly improves the flame stability in the combustion chamber. On the other hand, the increase in the number of inert gases causes a decrease in the laminar velocity, which causes a deterioration in the flame stability. There are many other models for describing turbulent combustion. Currently, the most commonly used model is the Launder and Spalding model, i.e., the model k-ε, where k denotes the kinetic energy, while the rate of dissipation of kinetic energy. They are described by a two- equation model - the first equation of kinetic energy transport, the second of dissipation. Turbulent viscosity in

(1)

where Cμ in the formula means constant, while ρ – density. The dissipation energy is equal to the energy of large- scale motion, which later transforms into motion with ener- gy of smaller and smaller scale. For the level of fibbers of the smallest scale (Kolmogorov), the energy eventually Cold flow modeling of the combustion chamber for a multi-fuel turbine engine

Ombustion Engines, 2026;204(1)

dissipates (spreads). Therefore, the dissipation energy is

(2)

where, l – macroscale of turbulence, u' – speed pulsation. Stability is a key characteristic of the combustion pro- cess in turbine engine chambers. Flame stability depends on two main factors: resistance to flame blow-off and re- sistance to flashback. In combustion chambers, flame blow- off is the primary cause of instability. This occurs when the flow velocity exceeds the flame propagation speed and there is no mechanism in place to stabilize the flame. Stabi- lization can be achieved by placing an obstruction in the airflow or by generating a swirling motion in the air. This swirl can be produced either by adjusting the air nozzles or by incorporating a swirler into the airstream.

In the exhaust gases, we can find unwanted pollutants that are created in the combustion chamber. There are four main pollutants that occur in the largest quantities :

 Carbon Monoxide

 nitrogen oxides. Gas turbines emit significantly lower levels of NOx, CO2, particulates, and other pollutants compared to recipro- cating engines. This difference is due to the distinct com- bustion methods used: internal combustion engines produce power through thousands of high-temperature explosions within the cylinders, whereas gas turbines operate with a continuous combustion process that maintains a lower and more consistent temperature profile.

To substantially lower CO emissions, achieving maxi- mum net efficiency is essential, as greater efficiency leads to lower specific CO emissions measured in grams per kilowatt-hour (kWh) of energy produced. For illustration, Fig. 2 presents data on the concentration of harmful com- pounds measured from a turboprop engine.

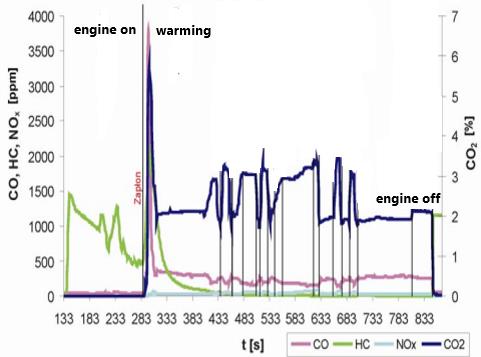

Fig. 2. Content of chemical compounds during measurement of exhaust

Gas Composition Concentration In The Time Domain

When the engine is started, a sharp increase in the concen- tration of hydrocarbons can be seen, associated with the deliv- ery of the mixture to the combustion chamber. With the initia- tion of ignition, there is an increase in the amount of carbon monoxide compounds, carbon dioxide, as well as hydrocar- bons. The concentrations of the aforementioned compounds decrease in the further stage of engine warm-up .

In conditions of optimal excess air coefficient (in the starting range) and high combustion temperature, the great- est amount of NOx occurs. One way to reduce them is to use a recirculation zone in the combustion chamber (Fig. 3).

Its task is to stabilize the flame, lower its temperature, and separate it from the flame tube, which is the internal part of the combustion chamber . The fuel burns with high in- tensity in a stream of strongly swirled air. The use of lean kinetic flames reduces NOx emissions compared to diffu- sion flames (flame temperature exceeds 1900°C). Thanks to the presence of turbulence zones in the combustion cham- ber, the combustion process can be maintained within wide limits of pressure changes, flow velocity, and mixture com- position. Another concept aimed at reducing nitrogen ox- ides is the use of catalytic combustion. It involves the use of catalysts to accelerate the chemical reaction and initiate the combustion process at very low temperatures, which radically reduces NOx emissions.

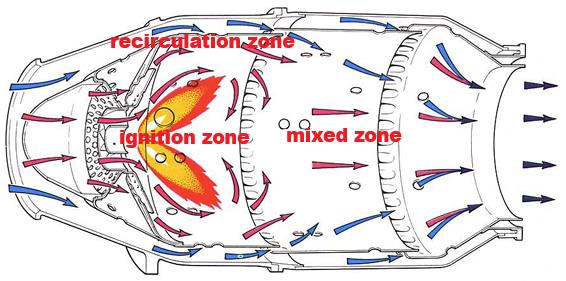

Fig. 3. Individually separated zones in the combustion chamber of a tur-

Bine Engine

All changes in the combustion chamber must be the re- sult of a compromise between changes in combustion pa- rameters and permissible emission of toxic components. It should be remembered that current standards require a reduction in the components of incomplete combustion – carbon monoxide and unburned hydrocarbons – both fuels ejected from the combustion chamber in the form of drop- lets or vapours, and products of partial decomposition of hydrocarbons into hydrocarbons with a lower molecular weight.

The most common way of classifying fuels is to divide them into gaseous and liquid fuels, and within gaseous fuels, they can be distinguished according to their calorific value. Table 1 presents the classification of fuels, which is divided into natural gas (mainly methane with small amounts of volatile hydrocarbons and inert gases), and high calorific value gases.

They consist of volatile hydrocarbons with small frac- tions of inert gases, which are usually very clean and work well in gas turbines. This can be propane, butane, or a mix- ture of them. They often contain some hydrogen and are usually available as by-products of refineries. Additionally, there are medium calorific value gases. These fuels contain methane additives with a high content of inert substances Cold flow modeling of the combustion chamber for a multi-fuel turbine engine

Ombustion Engines, 2026;204(1)

(CO2, N2), or they are also processing gases or gasifier coal. The latter, i.e., low calorific value gases, contain carbon monoxide and hydrogen diluted with inert components, namely nitrogen and carbon dioxide. They come from the chemical, oil and gas, or steel sectors; many of these fuels cannot be transported or stored, and their main advantage is to reduce the fuel supply in industrial plants in a carbon- constrained environment .

Table 1. Classification of fuels for turbine engines

Oils, Bio-Liquids

Hydrogen's relatively low power density compared to other fuels like gasoline or natural gas underscores the difficulties in using it as an energy source. Moreover, hy- drogen can cause embrittlement in certain materials, poten- tially compromising the safety and durability of storage and transport systems, making material compatibility a crucial consideration. When used in fuel cells to produce electrici- ty, hydrogen also suffers energy losses during conversion, which further decreases the overall power density of hydro- gen-based systems . Another significant challenge is hydrogen’s broad flammability range spanning from 4% to 75% by volume in air, which makes it more prone to igni- tion than fuels with narrower flammability limits. Addition- ally, its low ignition energy means it can be ignited by minimal energy sources, such as sparks or hot surfaces. As a result, minimizing ignition sources is critical to safety when working with hydrogen. Finally, the shock wave created by a hydrogen detonation can propagate at very high speeds, causing significant damage to structures and equipment. Therefore, managing and mitigating the risk of detonation is essential in any hydrogen project . The high temperatures and pressures associated with hydrogen combustion can cause wear and damage to engine compo- nents. In addition, hydrogen's reactivity poses a risk of corrosion, and its low density creates challenges in fuel materials are used in engine components exposed to high temperatures and pressures. In addition, corrosion-resistant materials are used in components exposed to hydrogen to mitigate the potential effects of corrosion.

In article , a novel concept for a gas turbine engine utilizing pressure gain combustion (PGC) was introduced. This design effectively addressed challenges related to the precise timing of combustion chamber opening and closing.

The proposed valve timing system optimized gas flow, enhancing the conversion of high-pressure gas into mechan- ical energy. The use of rotary combustion chambers al- lowed for an efficient sealing solution. Notably, the design stands out for its simplicity and potentially low power-to- weight ratio . CFD simulations demonstrated high effi- ciency and low specific fuel consumption, highlighting the promise of this hybrid gas turbine engine. It achieved a notable energy efficiency of 37% and a specific fuel con- sumption of just 219.9 g/kWh, all while maintaining a po- tentially low power-to-weight ratio. The engine's straight- forward construction could reduce manufacturing costs compared to traditional engines with isobaric combustion.

It incorporates elements common in piston engines, such as fuel injection systems and turbochargers, but eliminates the need for a crankshaft. Additionally, the use of an advanced ceramic sealing system in the rotating combustion cham- bers further enhances performance .

In gas turbine power systems, including hybrid fuel cell plants, transitioning from conventional fuels to pure hydro- gen or hydrogen-natural gas blends is a critical develop- ment. However, this shift presents several challenges, such as the risk of flashback, acoustic combustion instabilities, higher temperatures on smoke tube walls, and, in some instances, increased nitrogen oxide emissions. The study in focuses on enhancing the efficiency of gas turbine power systems by utilizing pure hydrogen and hydrogen- natural gas mixtures as fuels. The paper examines the oper- ational setup of both premixed combustion chambers and chambers with sequential injection of eco-friendly, energy- efficient steam, specifically for Aquarius-type power plants.

The research evaluates the key aerodynamic and energy characteristics of combustion chambers fuelled with hydro- gen-containing gases, using conservation and transport equations within a multicomponent reactive system. A four- step chemical reaction model for burning the hydrogen- natural gas mixture was applied, enabling the calculation of optimal parameters for environmentally sustainable com- recommended only for working with natural gas-hydrogen mixtures with a hydrogen content not exceeding 20% (by volume). An increase in the hydrogen content leads to the formation of flashback zones and fuel combustion inside the swirler channels (Fig. 4). In the case of the combustion chamber of the Vodoley combined-cycle power plant, when operating on pure hydrogen, there are no flashback zones.

In study , the impact of hydrogen co-combustion on aircraft engine performance and emissions was examined. Researchers utilized zero-dimensional models of the JetCat P140 RXI and DGEN 380 engines, developed using the GSP (Gas Turbine Simulation Program). Combustion simu- lations in GSP rely on a real gas model and the NASA Chemical Equilibrium Applications (CEA) equations. The Cold flow modeling of the combustion chamber for a multi-fuel turbine engine

Ombustion Engines, 2026;204(1)

study evaluated engine performance using Jet A-1 fuel as well as blends containing hydrogen or methane. Simula- tions were conducted both at ground-level design condi- tions and during flight at selected altitudes and speeds.

Results showed that as the proportion of gas in the fuel mixture increased, there was a slight rise in both thrust and turbine outlet temperature, while specific fuel consumption decreased due to the higher energy content of hydrogen and

Methane . The Performance Of Jetcat And Dgen 380

engines was calculated for kerosene mixtures with methane or hydrogen. This knowledge will be used to convert these engines to gas fuels. When it comes to fuels and emissions, GSP has limitations related to the set of available chemicals and the zero-dimensional combustion chamber model.

B)

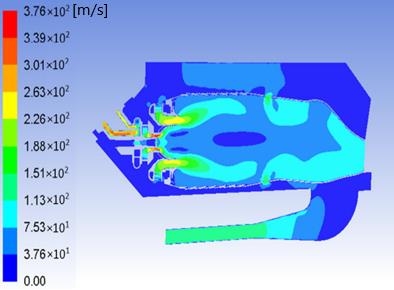

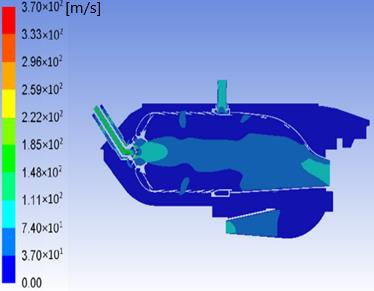

Fig. 4. Contours of velocity values [m/s] inside the combustion chamber with premixing of components (a) and with steam injection (b)

Generalized Spray Combustion (Gsc) Modelling Was

also used to predict the performance of JetCat and DGEN engines fuelled with kerosene-methane or hydrogen blends. As the gas content in the fuel increased, both thrust and exhaust gas temperature rose slightly, while specific fuel consumption decreased due to the higher energy content of hydrogen and methane . These results demonstrate the impact of hydrogen co-combustion on engine performance, which is crucial for planning experiments and redesigning compare fuel consumption under various conditions. How- ever, accurately modelling off-design operating conditions requires detailed compressor and turbine characterization along with model validation. Additionally, emission predic- tions necessitate a multireactor approach with the combus- tion chamber divided into separate zones.

This Paper Introduces A New Mathematical Model

that incorporates the effects of fuel chemistry on the com- bustion process in turbine engines. The model was initially validated using tests on the Minijet Rig bench. It can be applied to analyse how various fuel components impact combustion, specifically mixtures of Jet A1 with synthetic paraffinic hydrocarbons C15 and C17 blends added at 10% concentration, and C8 and C11 blends added at 10%. The findings indicated that the variation in the reactivity coeffi- cient (α88/39) between the two fuel types aligns with the experimentally observed differences in combustion behav- iour.

Methodology

The work began with a thorough analysis of the existing literature on combustion chambers in multi-fuel engines combustion mechanisms, fuel efficiency, and emission levels under various operating conditions. The key prob- lems identified were: optimizing the engine's fuel efficien- cy, reducing harmful emissions, and improving combustion stability when using different fuels (e.g., natural gas, diesel, biofuels).

The first stage was to develop a preliminary design of a test stand for turbine engines based on a radial compres- sor. The design was created so that in the future it would be possible to conduct analyses of flows in the combustion chamber and to study the concentration of gaseous exhaust components when powered by different fuels. This will allow for the selection of the best fuel supply on the dyna- mometer, as well as the possibility of powering full-size structures with it. When building a test stand for a radial engine based on a car turbocharger, it was necessary to initially determine the requirements on which the design would be based: selection of an appropriate compressor, design of the combustion chamber, testing of designed elements in numerical analysis programs, design of systems cooperating with the engine, assembly of finished elements and systems on the base. Fig. 5 shows what the stand con- sists of: housing, wiring, control elements, pressure sensors, oil, control buttons, turbine, combustion chamber, injector, intake duct, ignition system, and fuel (gas).

In order to correctly model the chamber, it was neces- sary to first determine the values needed to assign boundary conditions. In order to correctly design the combustion chamber, it was necessary to calculate and determine the parameters of the working medium at its inlet. The input data for thermo-gas-dynamic calculations were selected based on the compressor characteristics available on its manufacturer's website.

The next step was to utilize Computational Fluid Dy- namics (CFD) software to simulate the combustion process within the chamber. A three-dimensional geometric model of the chamber was created, taking into account all signifi- cant physical and chemical parameters. The simulations allowed us to analyse cold flow and heat transfer under various operating conditions.
