Abstract

Convergent-divergent (C-D) nozzles are widely used in the aerospace industry to produce thrust at the exit by increasing the velocity and converting the subsonic flow of gases at the inlet into supersonic flow at the outlet. For enhanced flow characteristics, the design of C-D nozzles must be optimized. In this study, the design parameters of the C-D nozzle of a high-speed rocket i.e. throat diameter, convergent angle, and divergent angle are optimized using the Taguchi method. Design of Experiments (DOE)is performed based on Taguchi’s L9 orthogonal array by altering the above-mentioned design parameters at three levels. Based on DOE, the nozzles are designed using SolidWorks, and Computational Fluid Dynamics (CFD) analysis is performed on ANSYS. The response flow characteristics i.e. exit Mach number, exit velocity, and exit pressure (calculated through simulations) are analyzed using the Taguchi method to find the optimized set of parameters. The results depict that shock waves appear in some of the nozzle models from DOE. Other nozzles without shock waves provide perfect supersonic flow at the outlet of the rocket nozzle by increasing the velocity and reducing the pressure. The maximum Mach number at the outlet of the C-D nozzle for the given DOE is 3.45 for the given design, a smaller throat diameter provides better results. Based on Taguchi’s S/N ratio analysis, the optimized set of design parameters that can give a high Mach number at the outlet, high velocity at the outlet, and low pressure at the outlet, is 0.304 m throat diameter, 28o convergent angle and 20o divergent angle.

© 2025 Jordan Journal of Mechanical and Industrial Engineering. All rights reserved Keywords: CFD, CD Nozzle, Design Optimization, Flow Characteristics, ANSYS CFX, Rocket, Aerospace.

Ntroduction

Convergent-divergent (C-D) nozzles also known as de Laval nozzles, have two sections i.e. convergent and divergent sections as their name suggests, with an intermediate section, known as throat. C-D nozzles are primarily used in jet engines and rockets to increase the velocity at the exit. Hot gases have high temperatures and pressure inside the combustion chamber which, after entering in C-D nozzle, decrease at the expense of velocity. The flow of exhaust gases at the inlet of the C-

Nozzle Is Subsonic And Remains Subsonic In The

convergent section. The flow becomes sonic at the throat of the C-D nozzle i.e. Mach number becomes equal to 1 if the nozzle is choked. In the divergent portion, the Mach number increases along with velocity and flow becomes supersonic, i.e., the Mach number is greater than 1. The core purpose of the C-D nozzle is to increase the flow of combustion gases and produce a thrust at the outlet.

Sometimes, shock waves can appear in the flow across the nozzle which causes the Mach number to decrease when reaching supersonic conditions. Shock waves are typically associated with supersonic flows but in certain conditions, shock waves can also appear in subsonic regimes. Due to shock, the flow at the outlet becomes subsonic or remains supersonic but the Mach number decreases. The flow without shock can be treated as isentropic given that the flow is inviscid and adiabatic. The flow characteristics of exhaust gases inside the nozzle are directly dependent on the design of the C-D nozzle. To optimize the design of the C-D nozzle and to analyze the flow characteristics inside the C-D nozzle, the process of experimentation is costly. To overcome this, computational analysis of flow (termed as Computational Fluid Dynamics (CFD)) inside a C-D nozzle is performed for the initial working[3, 4].

Due to its significance, the researchers are analyzing different aspects (including the flow characteristics, design, performance, etc.) of the C-D nozzle. For instance, Zhu and Jiang studied the shock wave length of C-D nozzles. They developed an analytical model for the prediction of shock wavelength. During the comparison, they reported that the results of the analytical model were close to the experimental results with a difference of 11%.In another study, Papamoschou et al. studied the separation of supersonic flow in C-D nozzles. They varied the area ratio from 1 to 6 and pressure ratio from 1.2 to 1.8.They reported that with the increase in area ratio and pressure ratio, the shock developed two lambda feet.Al- Ajlouni proposed an automated method to create the profile of supersonic C-D nozzles.

As mentioned before, CFD analysis is widely used to predict the flow characteristics of fluids.It has been successfully applied to predict the flow and performance characteristics of the C-D nozzle. Kumar and Devarajan designed and analyzed a nozzle using CFD in 2D. They designed a C-D nozzle using the geometry modeler in

Module. By Analyzing The Velocity, Pressure, And

temperature, they reported that their design provided better results in terms of velocity and temperature. In another study, Nakagawa et al. investigated the supersonic flow of CO2 in a C-D nozzle. They varied the divergent

Angle And Studied The Decompression Behavior. For

divergent angles >0.306o for high inlet temperatures, the decompression curve approached the predicted values through Isentropic Homogeneous Equilibrium theory.

Jingwei And Elbel Performed Cfd Simulations On

R134a flow inside the C-D nozzle. During the simulation, the vortex forced the vapor bubbles in the direction of the center of the nozzle which ultimately enhanced the pressure drop in the divergent portion. Whereas in flow having no vortex, the void fraction in the center remained

Deceased. Moreover, The Mass Flow Rate With The

introduction of a vortex decreased. Zhalehrajabi et al. investigated the effect of the mesh grid and turbulence model on the convective heat transfer of the C-D nozzle. The coefficient of heat transfer obtained from CFD simulations was compared with the experimental data and the simulated results agreed with the experimental data. Further, Das et al. analyzed the flow behavior inside the C-D nozzle using CFD. Using the properties of compressible flow, they investigated the Mach number, velocity, pressure, and density of flows inside the C-D nozzle. At some pressures, abnormal

Behavior Of Output Parameters Was Shown Due To

shockwaves. Furthermore, similar studies also focused on flow behavior at different Mach numbers [14, 15]. Douaiba et al. also analyzed the compressible flow at the outlet of the C-D nozzle. Khan et al. investigated the compressible flow in a C-D nozzle using CFD analysis.

They analyzed the 2D flow of air inside a supersonic C-D nozzle. ANSYS Fluent module was used to simulate the flow. The simulations were done based on three nozzle pressure ratios i.e. 6, 7.82, and 8.2. The results demonstrated that CFD can be a good option to simulate shock patterns inside a duct to provide flow information.

In another instance, Vadiveluet al. also analyzed the performance of the C-D nozzle. They selected a rocket nozzle and performed CFD analysis on that nozzle.

Keeping the other input parameters constant, they altered the back pressures of the nozzle to investigate the performance under different back pressures. They reported the optimal back pressure value to be 0.864 bar.

Flow properties of the C-D nozzle are linked directly with the design aspects of the nozzle. Madhu et al. investigated the flow properties of a C-D nozzle using different divergent angles. They utilized the ANSYS Fluent module to assess the flow properties of gases. Mach number, static pressure, and velocity were assessed during the simulation. They varied divergence angle at three stages i.e. 9, 11, and 13 degrees. The results demonstrated that shocks were absent in the flows having higher divergent angles. Taking this work further, Meena et al.

also varied throat diameter as well along with the divergent angle. Divergent angles were varied at five stages i.e. 10, 12, 14, 16, and 18 degrees. Moreover, two throat diameters were analyzed i.e. 0.304 and 0.404 meters. The C-D nozzles were designed in SolidWorks and analyzed in ANSYS Fluent. This too validated the results presented by Madhu et al. which have been mentioned earlier. With a throat diameter of 0.404 m, the maximum velocity recorded was 1500 m/s whereas with 0.303 m, the maximum velocity was 1900 m/s. This provided the idea that increasing throat diameter can alter the exit velocity depending on the flow regime. Kore et al. altered the convergence angles of the C-D nozzle by keeping the

Diameter

constant. Convergence angles were varied as 40, 45, 50, and 55 degrees, and using CFD, Mach number, velocity, and pressures were assessed. Aabid and Khan analyzed the C-D nozzle by using a combination of CFD and Design of Experiments (DOE).

The present study drives the work a step further. Three design parameters, i.e. convergent angle, divergent angle, and throat diameter are varied at the same time to analyze their effect on the flow characteristics (velocity, pressure, and Mach number) of a rocket C-D nozzle. The scope of the study is not just limited to this, but it proposes an optimal design condition of the C-D nozzle for high-speed rockets that can provide better flow characteristics. The design optimization is done through Taguchi’s DOE. L9 array is presented in this study by varying the design parameters to three levels each. Based on DOE, nozzles were designed in SolidWorks, and CFD simulations were

Performed Using The Cfx Module Of Ansys Workbench

to analyze the outlet Mach number, outlet velocity, and outlet pressure of the C-D nozzle. Finally based on flow characteristics, Taguchi’s DOE is analyzed.

Aterials And Methods

This study involves the optimization of a C-D nozzle design for high-speed rockets through the Taguchi method for enhanced flow characteristics. The foremost step is to

Perform Doe By Selecting And Varying The Design

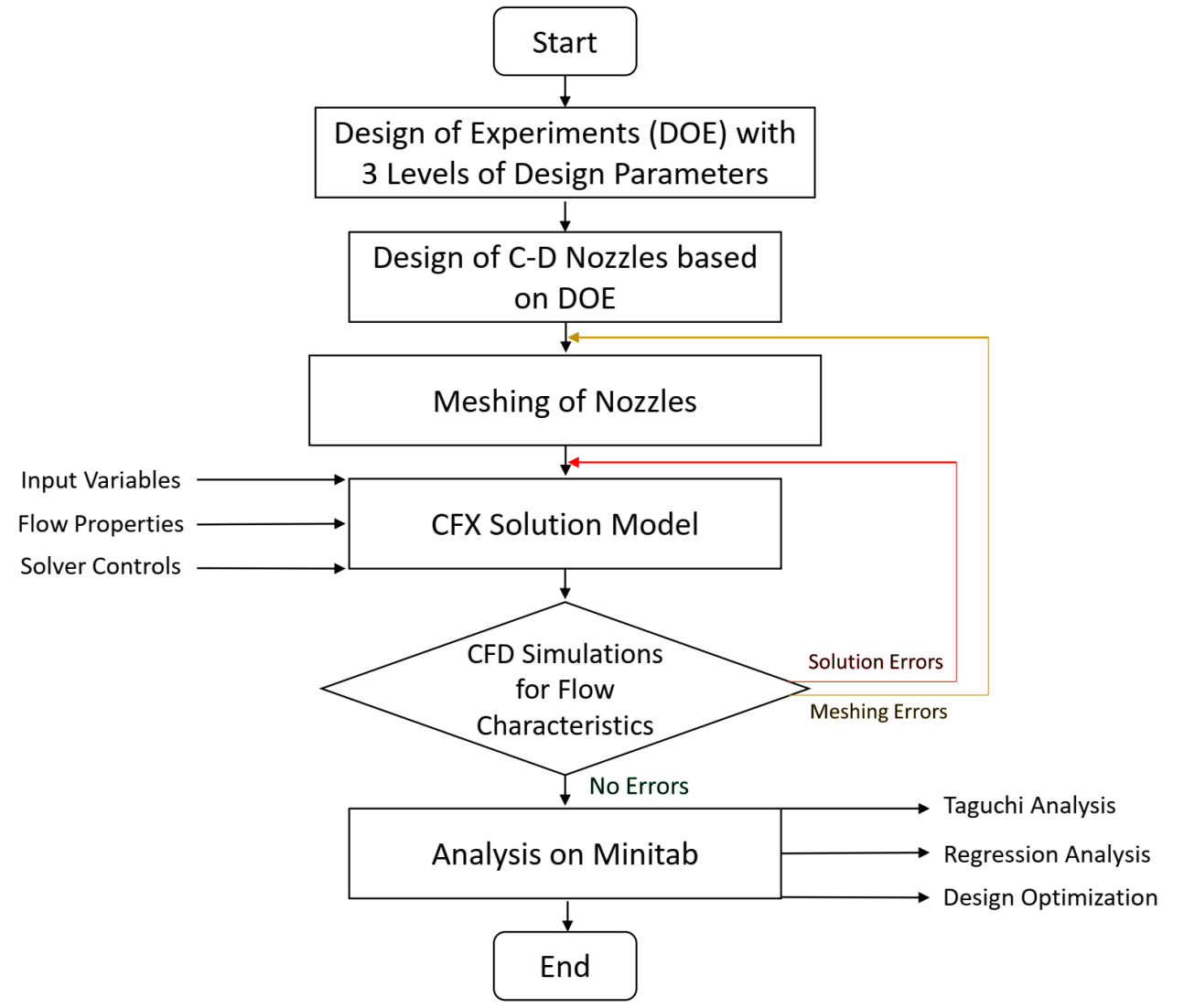

parameters of the nozzle. Then in the next step, based on

Oe, The Nozzles Are Designed In The Solidworks

software. Then CFD simulations are carried out using the ANSYS platform. In the final step, Taguchi's design is analyzed based on response variables of flow. The basic structure of this methodology is presented in Figure 1.

The Taguchi Method Was Initially Developed By

Professor Genichi Taguchi . It is a robust method used

For Optimization Of Parameters .To Employ The

Taguchi method, Minitab 21 software was used in this study which is majorly used for the optimization of

Different Parameters. Before Performing Doe, The

basic design of the nozzle, the constant design parameters, and the range of variable design parameters were selected based on the literature[2, 19]. As mentioned above, the variable design parameters are altered in three levels which are shown in Table I.

Based on these levels, Taguchi’s L9 array was used for optimization. The core benefit of the Taguchi method is to

Reduce The Number Of Runs For Any Experimental Or

computational study. The L9 orthogonal array reduced the computational runs to 9. The proposed L9 array containing nine combinations of design parameters is presented in Table II.

O

Table II. Taguchi’s L9 Array Based on Variable Design

Based On Doe, The C-D Nozzles Were Designed Using

SolidWorks software. The other design considerations were according to the literature[2, 19]. All the geometrical design parameters (constant as well as variable) are given in Table III.

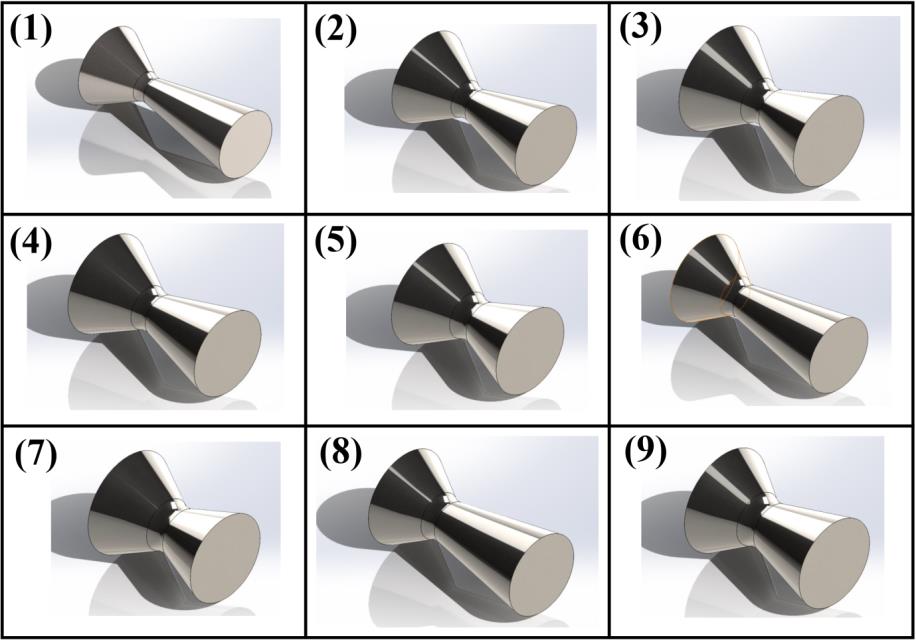

Based on these geometrical design parameters, nine conicalC-D nozzles were designed in SolidWorks software in 3D (because A 3D model provides a more realistic representation of flow physics), as shown in figure 2.

Herein, the diameters of convergent and divergent sections were kept constant just to view the effects of angles and throat diameters.

Fd Simulations On Ansys Cfx:

In the next stage, the designed geometries of 3D C-D nozzles were imported into the ANSYS CFX module of Ansys Workbench one by one. Herein, the models were meshed to discretize the C-D nozzle flow domain into finite volumes. The mesh was selected to accurately capture all geometric details of the C-D nozzle while ensuring numerical stability. Extremely small mesh sizes led to simulation errors, so an optimal mesh size was

Chosen To Maintain Computational Accuracy Without

instability. Along with meshing, the named selection of inlet, outlet, and nozzle walls was also assigned in the

Meshing Tab. The Meshed Model Ofthe C-D Nozzle Is

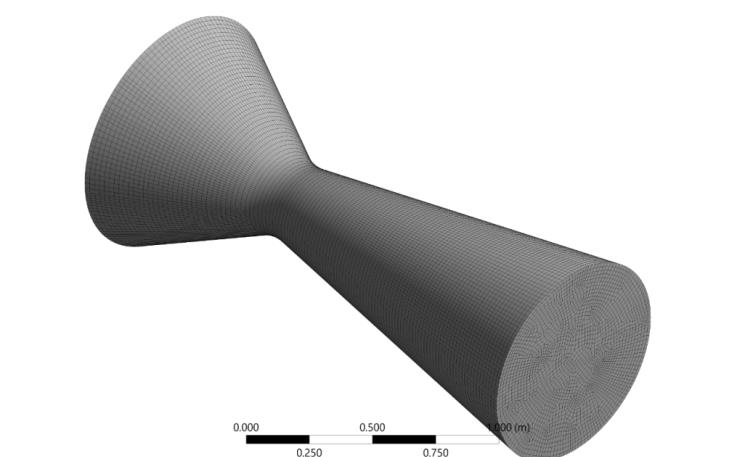

shown in Figure 3. Table III. Design Parameters of C-D Nozzle Geometry

Figure 3.Meshed Model Of Conical C-D Nozzle

After meshing, the CFX setup model was established. The problem type was selected as “single phase” and the fluid was set as “Air ideal gas”. Steady-state analysis was

Performed Using The Shear Stress Transport (Sst)

turbulence model with a reference pressure of 1 atm. According to the literature on liquid rocket engines, combustion chamber pressures range from 4.83 MPa to 24

K.Based On These, In The Cfx Setup, The

stagnation pressure at the inlet of the C-D nozzle was kept at 9.8 MPa whereas the inlet temperature was selected as 3500 K at the outlet, and the pressure was kept at0.101325 MPa (1 atm). Moreover, at the outlet of the nozzle, a pressure boundary condition was applied. The walls of the nozzle were kept as no-slip walls. 0.000001 (10-6) residuals were kept for the simulation along with 1500 iterations. After completing the CFX setup model, the established model was solved. Any errors during the CFD simulation were corrected by going back to the basic setup

Or Meshing And Resolving The Model. A Summary Of

thermodynamics inputs and simulation criteria are shown in Tables IV and V respectively. After the solution, the results were analyzed in the CFD-post processor of ANSYS CFX. A plane was added to the nozzle geometry. And on that plane, contours of different flow characteristics were obtained. For the current study, Mach number, velocity, and pressure contours were analyzed for all nine runs based on DOE.

Nozzle:

The flow behavior of exhaust air from the outlet of the rocket C-D nozzle was different for each run of the simulation. In most of the runs, shock occurred and the values of flow characteristics instead of increasing, suddenly dropped and vice versa. In the first run, the purpose of the C-D nozzle was completely fulfilled. The pressure inside the nozzle kept on decreasing from 9.8 MPa at the inlet of the nozzle to 0.0404 MPa at the outlet.

Similarly, the velocity of hot gases at the inlet of the nozzle was about 120 m/s which increased significantly up to2225.688 m/s at the outlet. The behavior of the Mach number was also quite similar. At the inlet, the value of

Ach Number Was Recorded To Be 0.1, Which Became

exactly one at the throat of the C-D nozzle and further increased in the diverging section to 3.45 at the outlet describing the flow at the outlet to be perfectly supersonic.

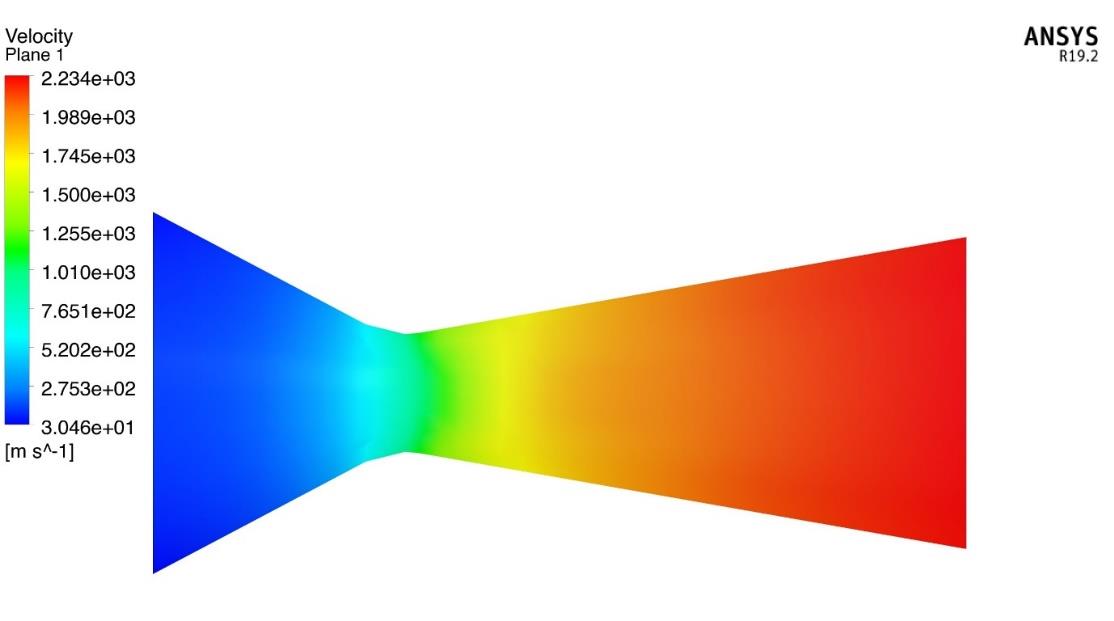

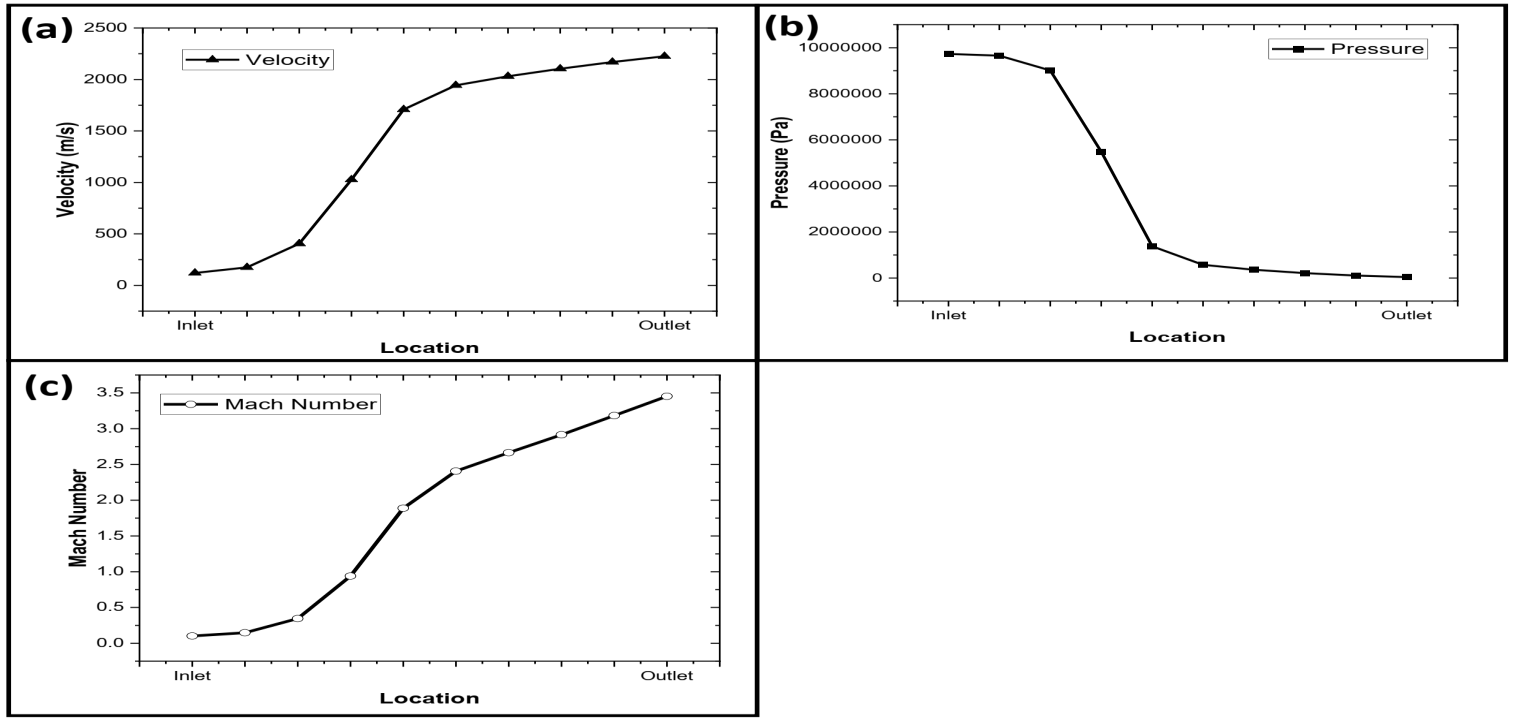

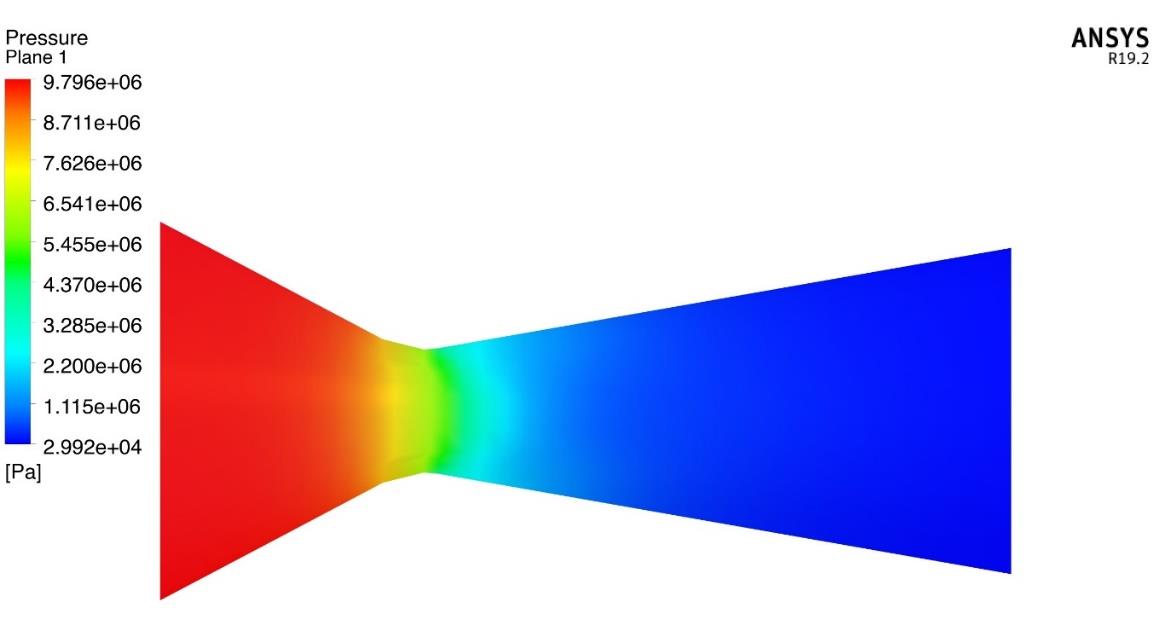

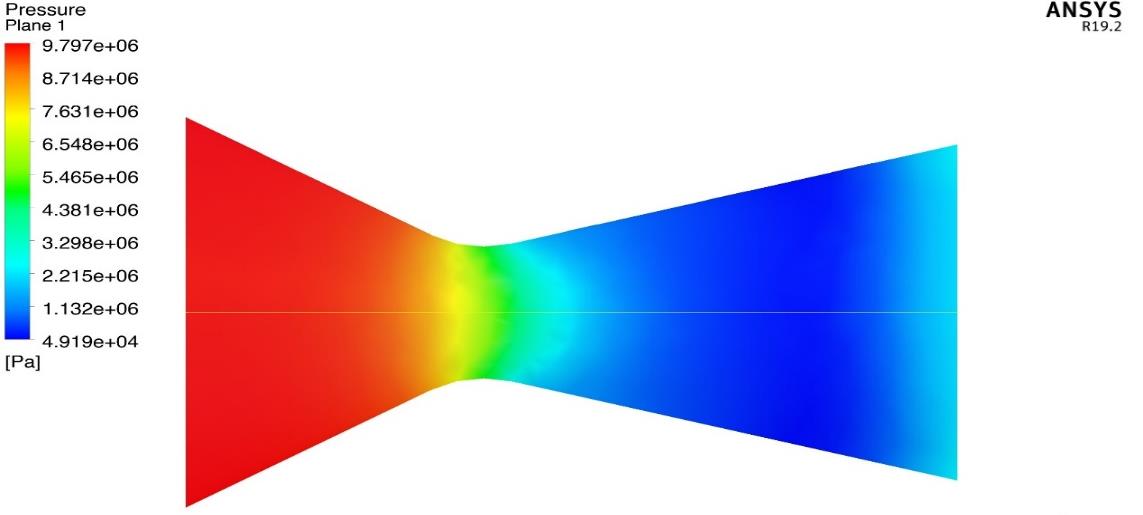

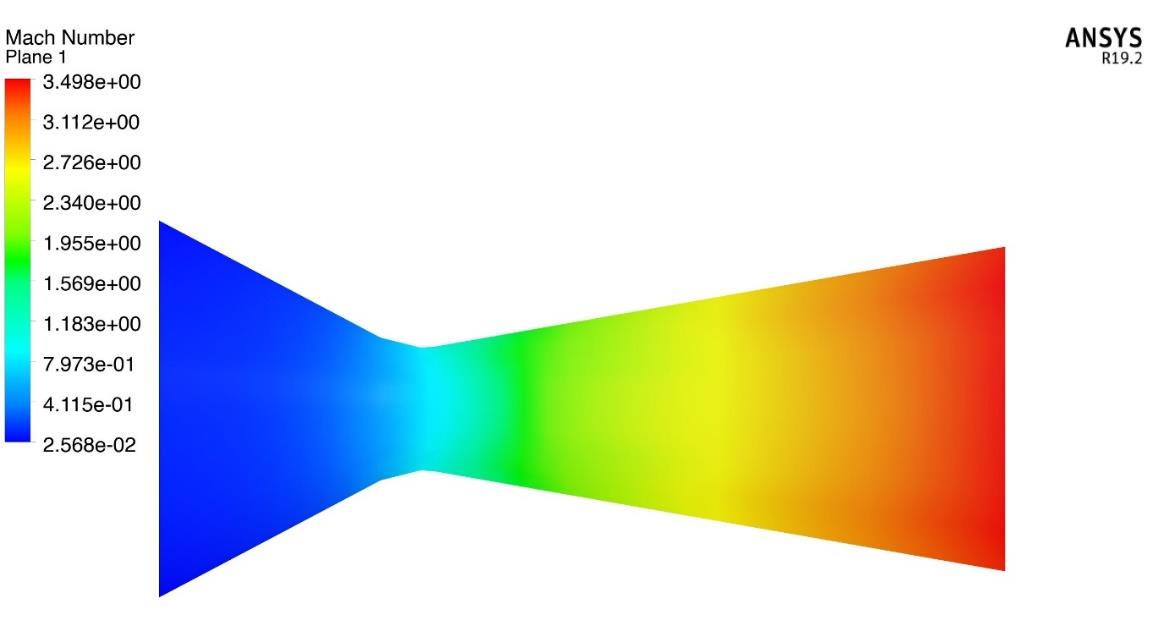

The contours of velocity, pressure, and Mach number for run one are presented in Figures 4, 5, and 6 respectively. A line plot of these characteristics is shown in Figure 7.

Maximum Velocity Value Reached 2200 M/S And Mach

number to 3.23 exhibiting supersonic flow. The pressure was dropped to 0.076 MPa. For run 3, the maximum value of velocity and Mach number reached 1981 m/s and 2.52 respectively. But near the outlet, shock was observed and both the values started to decrease. Although, the flow at the outlet was still supersonic with a Mach number of 1.88 and a velocity of 1687 m/s. This was due to the location of shock which was almost at the outlet.

Figure 7. Properties Distribution For Run 1

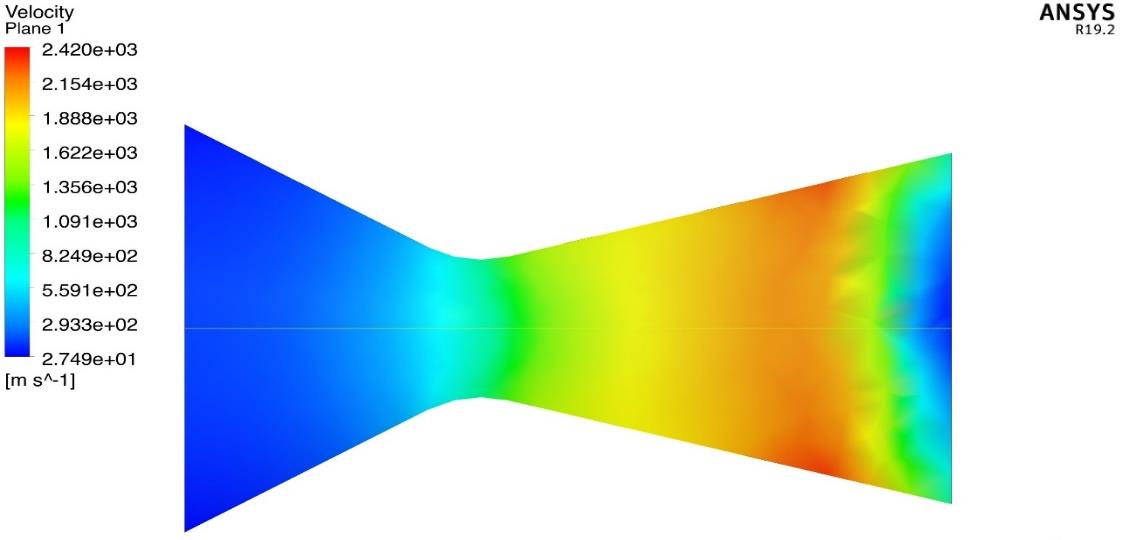

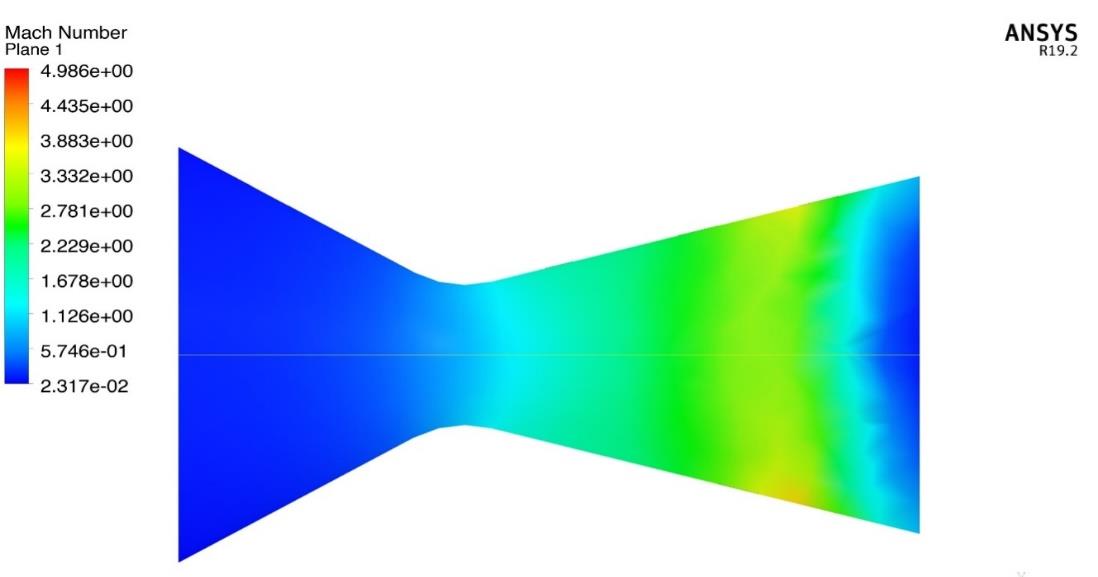

In runs 2, 5, 7, and 8, after reaching the supersonic flow inside the nozzle, the Mach number and velocity decreased again along the length of the nozzle and exhibited subsonic flow at the outlet. These shocks decrease the efficiency of C-D nozzles and the outlet flow cannot be supersonic .

The location of the shock wave for all these nozzle geometries is different. This may be linked to the difference in the geometries of C-D nozzles due to variable length, throat diameter, and convergent and divergent angles. The shock wave location in run 2 is near the exit of the nozzle. In run 5, the shock happened just ahead of the throat and the Mach number and velocity started to decrease again pressure increased again after the shock wave. For run 7, the shock also happened near the throat of

The C-D Nozzle. However, The Maximum Reached Mach

numbers for runs 2, 5, 7, and 8 are 2.97, 1.35, 1.23, and 1.15 respectively. The contour plots of velocity, pressure, and Mach number for run 2 are presented in Figures 8, 9, and 10 respectively whereas the line plot for all these parameters is given in Figure 11.
