Cendrowski P., Kramek-Romanowska K., Lewińska D., Grzeczkowicz M., Korycka P., i Krzysztoforski J., CFD modeling of droplet generation process for medical applications using the electrostatic impulse method, „Chemical and Process Engineering”, 2022, t.43, nr 3, s. 331–355.

Chemical and Process Engineering 2022, 43 (3), 331–355 CFD modeling of droplet generation process for medical applications using the electrostatic impulse method Piotr Cendrowski1o , Katarzyna Kramek-Romanowska1o , Dorota Lewińska2o , Marcin Grzeczkowicz2o , Paulina Korycka3o , Jan Krzysztoforski1∗o

Ks. Trojdena 4, Warsaw, Poland

3Foundation of Research and Science Development, Rydygiera 8, 01-793 Warsaw, Poland The electrostatic impulse method is an established method for producing microbeads or capsules. Such particles have found application in biomedical engineering and biotechnology. The geometric properties of the droplets – constituting precursors of microbeads and capsules – can be precisely controlled by adjusting the geometry of the nozzle system, the physical properties and the flow rate of the fluids involved, as well as the parameters of the electrostatic impulse. In this work, a method of mathematical modeling of the droplet generation process using the electrostatic impulse method in a single nozzle system is presented. The developed mathematical model is an extension of the standard Volume of Fluid (VOF) model by addition of the effect of the electric field on the fluid flow. The model was implemented into the OpenFOAM toolkit for computational fluid dynamics (CFD). The performed CFD simulation results showed good agreement with experimental data. As a result, the influence of all process parameters on the droplet generation process was studied. The most significant change in droplet generation was caused by changing the electrostatic impulse strength. The presented modeling method can be used for optimization of process design and for studying the mechanisms of droplet generation. It can be extended to describe multi nozzle systems used for one-step microcapsule production.

Keywords: droplet generation, electrostatic impulse method, encapsulation, CFD, OpenFOAM

Ntroduction

Encapsulation is a process with constantly growing number of applications in various fields of science and technology, including food industry (Madene et al. 2006; Shahidi and Han, 1993), analytical chemistry (Papadimitriou et al., 2020), biotechnology (Betancor and Luckarift, 2008; Köster et al., 2008; Pierre, 2004; Yaakov et al., 2018) and biomedical engineering (Krishnan et al., 2014; Vaithilingam and Tuch, 2011). There are several methods of creating capsules – using chemical reactions and physical processes, some of them including the use of an electric field (Prüsse et al., 2008). Depending on the final application of the capsule, various requirements regarding the size, shape, composition have to be met. Especially

Https://Journals.Pan.Pl/Cpe

© 2022. The Author(s). This is an open-access article distributed under the terms of the Creative Commons Attri- bution (CC-BY 4.0, https://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Piotr Cendrowski et al., Chem. Process Eng., 2022, 43 (3), 331–355 in biomedical applications of encapsulation processes, where living cells are encapsulated, many factors, including the geometry of the capsules, hydrodynamic stresses during the production process, nutrition of the cells, reduction of the immune response, have to be considered (Hu and de Vos, 2019; Hunkeler et al., 2001; Krishnan et al., 2014; Hyerim et al., 2019; Lewińska et al., 2008; Vaithilingam and Tuch, 2011; Zhang and He, 2009). These requirements impose the need of extensive study of materials, devices and operational conditions used in encapsulation process.

It has already been over 60 years, since TMS Chang presented his ingenious idea of “artificial cells”: erythrocytes surrounded by a polymer membrane that would play the role of “blood substitute”. This is the concept underlying the area of research that has been rapidly developing for the past 20 years and is related to nanomedicine, drug delivery systems, enzyme/gene therapy, cell/stem cell therapy, bioencapsulation, cell encapsulation/scaffold, regenerative medicine, nanobiotechnology and many other areas of advanced science including biomedical engineering (Chang 2019).

Immobilization and encapsulation of biologically active material is defined by the UPAC (Union of Pure and Applied Chemistry) as follows (IUPAC, 1997): “enzymes or cells which are of relatively large size may be entrapped in a maze of polymeric molecules (a gel). This procedure is called immobilization by inclusion. When the biocatalyst is enclosed inside a semipermeable membrane, usually approximately spherical, the method is known as encapsulation”. These are two of the basic techniques that are being intensively developed, researched and applied in modern biotechnology, pharmacy, experimental medicine, and biomedical engineering.

Encapsulation of drugs (Ferreira et al. 2015; Ganesh et al., 2018; Vakilinezhad et al., 2018), bioactive proteins, peptides such as enzymes (Betancor and Luckarift, 2008; Zhai et al., 2015), hormones (Baskaran et al., 2018; Cárdenas-Bailón et al., 2015), cellular growth factors (Osswald and Kang-Mieler, 2016), vaccine candidates (Anugraha et al., 2015) and many others is usually done using emulsion methods (water/oil/water type), often combined with solvent evaporation, spray-drying, freeze-drying (Shahidi and Han, 1993) or surfactant organized interfacial complexation (Duan et al., 2018). These methods allow the formation of micro- (Yaakov et al., 2018) and nanoparticles, which raises the therapeutic effectiveness of encapsulated materials. On the one hand, this protects them from adverse environmental impact that causes their degradation (pH, temperature, oxidants) and simultaneously increases their bioavailability, allowing their direct delivery to the location of therapeutic action (e.g., via an injection directly into a cancerous tumor (Vakilinezhad et al., 2018)). A particularly advantageous method of preparing homogeneous emulsions is the microfluidic technique (in which the dispergation phase takes the form of droplets that are homogeneous in terms of size, with a diameter from several hundred nanometers to several hundred micrometers) (Eberhardt et al., 2019; Köster et al., 2008) used mainly to analyze samples on a micro scale via lab-on-a- chip type devices (Papadimitriou et al., 2020).

The problem of maintaining stability of the encapsulated material is particularly important in the case of orally delivered proteins (Cárdenas-Bailón et al., 2015) and functional food ingredients (Manjula and Bhagath, 2017; Picot et al., 2015) due to the adverse conditions in the digestive tract that contribute to the loss of the bioactive properties of the encapsulated material.

The emulsion method, though cheap and easy to conduct, when applied on an industrial scale, is not appropriate for encapsulation of live cells because it requires the use of toxic solvents. To that end, the two-stage method known since 1980 and proposed by Lim and Sun (1980) for encapsulation of pancreatic islets can be used. In the first stage, a hydrogel microsphere is formed, which is then coated, via successive baths in polymer solutions with an opposing charge, in successive layers of polymer, creating a semi- permeable membrane. The core of the sphere is formed by a spherical hydrogel matrix that contains the encapsulated cells. It is usually composed of biocompatible alginate cross-linked by calcium ions. This method is used to immobilize live cells including probiotics (Liu et al., 2019), microbial cells (Rathore et al., 2013) and microbial biological control agents (Vemmer and Patel, 2013). To ensure that encapsulated

Https://Journals.Pan.Pl/Cpe

CFD modeling of droplet generation process for medical applications using the electrostatic impulse method cells have the best possible conditions for survival and multiplication, the gel microsphere should have the smallest possible diameter: below 200 µm (Zhang and He, 2009). To meet this requirement cells are immobilized using methods that assure their safety: extrusion combined with simultaneous separation of the stream of the cell suspension extruded through a narrow nozzle using various means (Lewińska et al., 2008): coaxial air-flow, vibration, jet-cutter (Prüsse et al., 2008) or electrostatic method (Bugarski et al., 1994; Poncelet et al., 1994). Increasingly more often, particularly in case of encapsulation of single cells such as stem cells, a method involving microfluidic encapsulation in droplets is used.

In the case of encapsulation of live cells for therapeutic purposes in the form of implants, it is necessary to cover the microsphere containing the cells in a semi-permeable membrane, usually formed from polycations such as poly-L-lysine, polyornithine or poly(methyl-co-guanidine) (Bhatia et al., 2005). The task of the membrane is to protect encapsulated cells against destruction by the recipient’s immune system, i.e.

immunisolation (de Vos, 2017), which is necessary in the case of xenotransplantation. Correct functioning of implanted cells is directly dependent on biocompatibility of the capsule-cell-recipient system and for this reason, it has been intensively studied with respect to the purity of the materials used (Hu and de Vos, 2019), the way encapsulation is conducted (Krishnan et al., 2014; Vaithilingam et al., 2011; Vaithilingam and Tuch, 2011), the sources and means of obtaining cells (Hunkeler et al., 2001).

One of the increasingly popular methods of immobilizing biologically active substances (including natural and genetically modified cells (Diel et al., 2018)) in gel microspheres is the electrostatic method proposed by Bugarski and Poncelet (Bugarski et al., 1994). It uses the phenomenon of decreasing surface tension of a liquid extruded through a thin metal nozzle located in an electrostatic field (Castellanos, 1998). The diameter of microdroplets formed with the electrostatic method, both classic (in a constant field (Cárdenas- Bailón et al., 2015)) and impulse (Lewińska et al., 2008), is strongly dependent on the diameter of the nozzle, process parameters (for example the voltage applied) (Goosen et al., 1997), the rheological properties of the liquid used to form the microdroplets (Kramek-Romanowska et al., 2019; Manojlovic et al., 2006), where an impulse field is used, also the frequency and duration of the electrical impulses (Lewińska et al., 2004). These relationships may be observed as well when a double (Lewińska et al., 2008) and a triple (Lewińska et al., 2012) coaxial head is used. In this situation, given such a large number of parameters impacting the size and size homogeneity of the microdroplets formed, the advantageous solution is to optimize this technique using numerical methods for fluid flow simulation. Similar challenges have been identified in other practical applications of charged droplets of liquids, such as conversion of the kinetic energy of accelerated, electrically charged droplets into electrical energy (Xie et al., 2014), development of electrostatic transducers (Allegretto et al., 2018), sorting by diameter in microfluidic systems (Ahn et al., 2009) and the drop-on-demand 3D printing technique (Plog et al., 2020).

Computational fluid dynamics (CFD) is a widely used tool for numerical investigation of complex flow systems involving droplets, e.g. devices for droplet generation (Chaves et al., 2020) and emulsification (Kobayashi et al., 2011). The Navier–Stokes equation, representing the momentum balance, can be solved together with the Maxwell equations in order to study electrohydrodynamics (EHD) (Castellanos, 1998) or magnetohydrodynamics (MHD) (Rakoczy et al., 2021). CFD was applied successfully to model complex flow systems for droplet generation, in various works, including the influence of electric forces on fluid flow. For example, Roghair et al. (2015) developed a numerical model to simulate the behavior of display pixels – the aim of their work was to study dynamics of electrowetting-based pixels. Good agreement with experimental work was achieved, while still acknowledging some room for improvement. Wu et al.

(2017) applied CFD to model electrohydrodynamic jet printing. A model was created, which can be used to describe the printing with more than just the empirical approach, and which is a starting point toward a precise tool, which could allow to test the process parameters in quick and easy manner. Another work utilizing CFD was published by Lastow and Balachandran (2006). Their idea was to collect the previous works on atomization into one comprehensive theory. The created model contained EHD and electrostatic equations. Results were compared against experimental work and qualitative agreement was achieved.

Https://Journals.Pan.Pl/Cpe

Piotr Cendrowski et al., Chem. Process Eng., 2022, 43 (3), 331–355 Darabi and Rhodes (2006) created a numerical model for simulating work of ion-drag EHD pump. It was then tested against experimental data – using the operational parameters which were found to be the best, according to the simulation. The agreement of experimental and numerical data was good and acquired model allows numerical optimization of process. Li and Zhang (2020) performed extensive work on naming different flow regimes for droplet generation processes. Thanks to their numerical modeling, it is possible to design process parameters to acquire desired outcome. Xia and Reboud (2019) ran an extensive set of experiments on the process of electrostatic droplet generation and electrocoalescence. Furthermore, they compared experimental results with mathematical modeling. Good agreement between those two approaches was obtained, which validates this method for use in dehydration of oil-water emulsions.

Wei et al. (2013) carried out investigation of cone jet formation and electrostatic spray. Possible process outcomes and factors were carefully investigated and described. As a result, a physical model was proposed and validated. Rahman et al. (2010) investigated droplet generation through electrostatic forces, aiming at improving the process for purpose of electrostatic inkjet printing. Numerical simulations were carried out and tested against experimental data. Qualitative but not quantitative agreement was reached and some general trends for the process were described. In these studies, various types of CFD simulation software were used, including the open-source CFD toolbox OpenFOAM (Roghair et al., 2015; Wei et al., 2013; Wu et al., 2017).

The aim of this work was to develop a mathematical model suitable for CFD modeling of droplet generation process using the electrostatic impulse method. The developed model should provide better understanding of the investigated process and allow to run numerical experiments with almost every combination of operational parameters (e.g. nozzle diameter, strength and frequency of oscillation of electrical field, viscosity and density of fluids, mass flow rate of liquid). Moreover, the model proposed in this work is regarded as the first step of the development of a modeling method for the encapsulation process using multi-nozzle systems (Lewińska et al., 2012).

Athematical Model

In this work, the Volume of Fluid (VOF) multiphase flow model for incompressible fluids was extended by terms and equations representing the influence of the electric field on fluid flow (Tomar et al., 2007; Hirt and Nichols, 1981; López-Herrera et al., 2011; Roghair et al., 2015). The model was developed analogically to the work by Roghair et al. (2015). The equations of the model are listed below: Continuity equation (overall mass balance for incompressible fluid flow):

(1)

where U is the velocity of fluid.

(2)

where 𝛼is the volume fraction of the liquid phase, U – fluid velocity, and 𝑡– time. Momentum balance (Navier–Stokes equation for incompressible fluid flow):

Https://Journals.Pan.Pl/Cpe

CFD modeling of droplet generation process for medical applications using the electrostatic impulse method Density and viscosity are calculated as weighted averages:

(5)

where 𝜌is the fluid density, U – fluid velocity, 𝑡– time, 𝑝– pressure, 𝜇– fluid kinematic viscosity, Fg – gravity force, F𝝈– surface tension force, FE – electrostatic force, 𝛼– volume fraction of fluid (index 1 is for liquid phase and 0 is for gas phase).

(6)

where 𝜀is the electric permittivity, 𝜑𝐸– electric potential, 𝜌𝐸– volume charge density. This equation was obtained from Maxwell equations and allows the correlation between electric potential 𝜑𝐸(Poisson’s Law) and volume charge density – 𝜌𝐸.

(7)

where 𝜌𝐸is the volume charge density, 𝑡– time, U – fluid velocity, 𝜅– electric conductivity and 𝜑𝐸 – electric potential. This equation describes convection and conduction of electric charge. The electric properties on the interface are calculated as harmonic averages:

(9)

The electric force FE in Eq. (3), responsible for dragging the interface of the droplet and finally breaking it, can be described as divergence of electrostatic stress tensor 𝚲:

(11)

where Λ is the electrostatic stress tensor, 𝜀– electric permittivity, E – electric field strength, i – versor and FE – electric force.

(12)

where F𝝈– surface tension force, 𝜎– surface tension, 𝛼– volume fraction of liquid, 𝑥𝑖– one of dimensions, K – surface curvature.

Https://Journals.Pan.Pl/Cpe

Piotr Cendrowski et al., Chem. Process Eng., 2022, 43 (3), 331–355

Framework For Model Implementation

The mathematical model was implemented in OpenFOAM v. 7 (Jasak, 2009). The starting point was the interFoam solver, which is the numerical implementation of the standard VOF model. It solves Equa- tions (1)–(5) and (12)–(13) (minus the electric strength term in Navier–Stokes equation). It was used for simulations without electric field. This solver has also an extended version, including dynamic mesh refine- ment – named interDyMFoam (Dynamic Mesh). It allows the user to increase the mesh density in a zone fulfilling some defined criteria. The new solver was named ehdFoam (and ehdDyMFoam if with dynamic mesh refinement). It solves all equations described above, from (1) to (13). It was used for simulations with electric field. However, in this work only static mesh was used, due to unsolved bug in the dynamic mesh refining algorithm in OpenFOAM.

Numerical Implementation

The geometry of the standard computational domain, used for simulation with electric field, is depicted in Figure 1, for the variant with 0.44 mm nozzle inner diameter (in the second variant, the nozzle inner diameter equals 0.28 mm). For simulations without electric field, a simpler, shorter mesh was used.

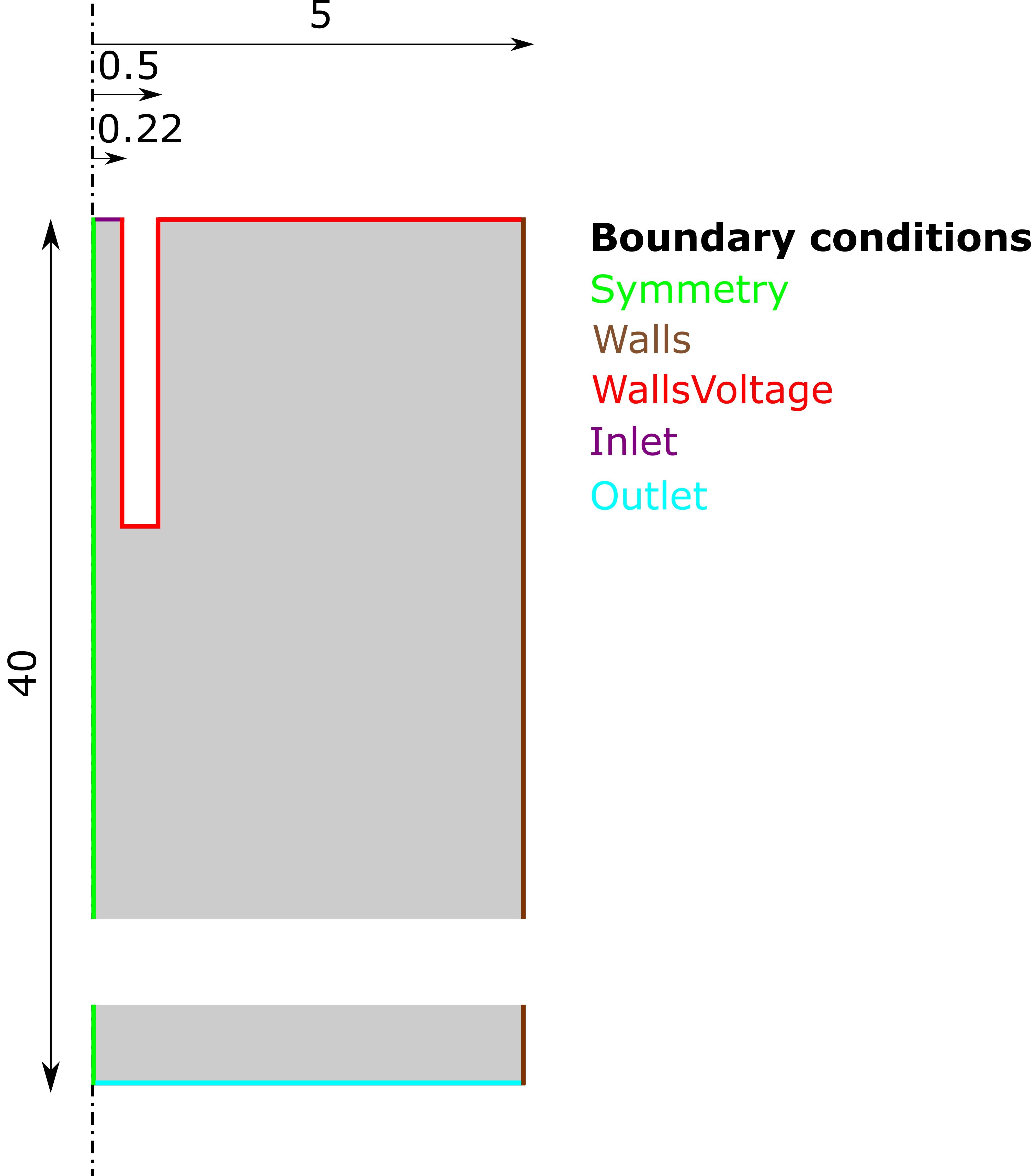

Fig. 1. Geometry and boundary conditions used for simulations with electric field Geometry and mesh were created using a tool called blockMesh of toolbox OpenFOAM. The mesh was created from wedge shaped blocks in order to simulate the axisymmetrical domain. Therefore, the system is solved for one half of cross section, together with proper symmetry boundary conditions. The results are presented for the complete cross section, by mirroring the simulation outcome along the system symmetry axis.

The grid independence test was carried out at the beginning of simulations. 5 different mesh sizes were tested: 2900, 3800, 6500, 10500 and 11600 cells. The tested parameter was droplet breakup time. No strong influence of mesh size on breakup time was observed. The selected variant is the one with second

Https://Journals.Pan.Pl/Cpe

CFD modeling of droplet generation process for medical applications using the electrostatic impulse method lowest number of cells. The choice was made based on two factors: selecting the lowest possible number of cells (to achieve the best time efficiency) while still maintaining good mesh quality. Selecting a small mesh was also required since simulations were run on a PC and not on a dedicated computing unit. The specifications of this machine are as follows: processor Intel® Core™i7 3632QM (4 cores, 2.2 GHz),

Gb Ram, 1 Tb Hdd.

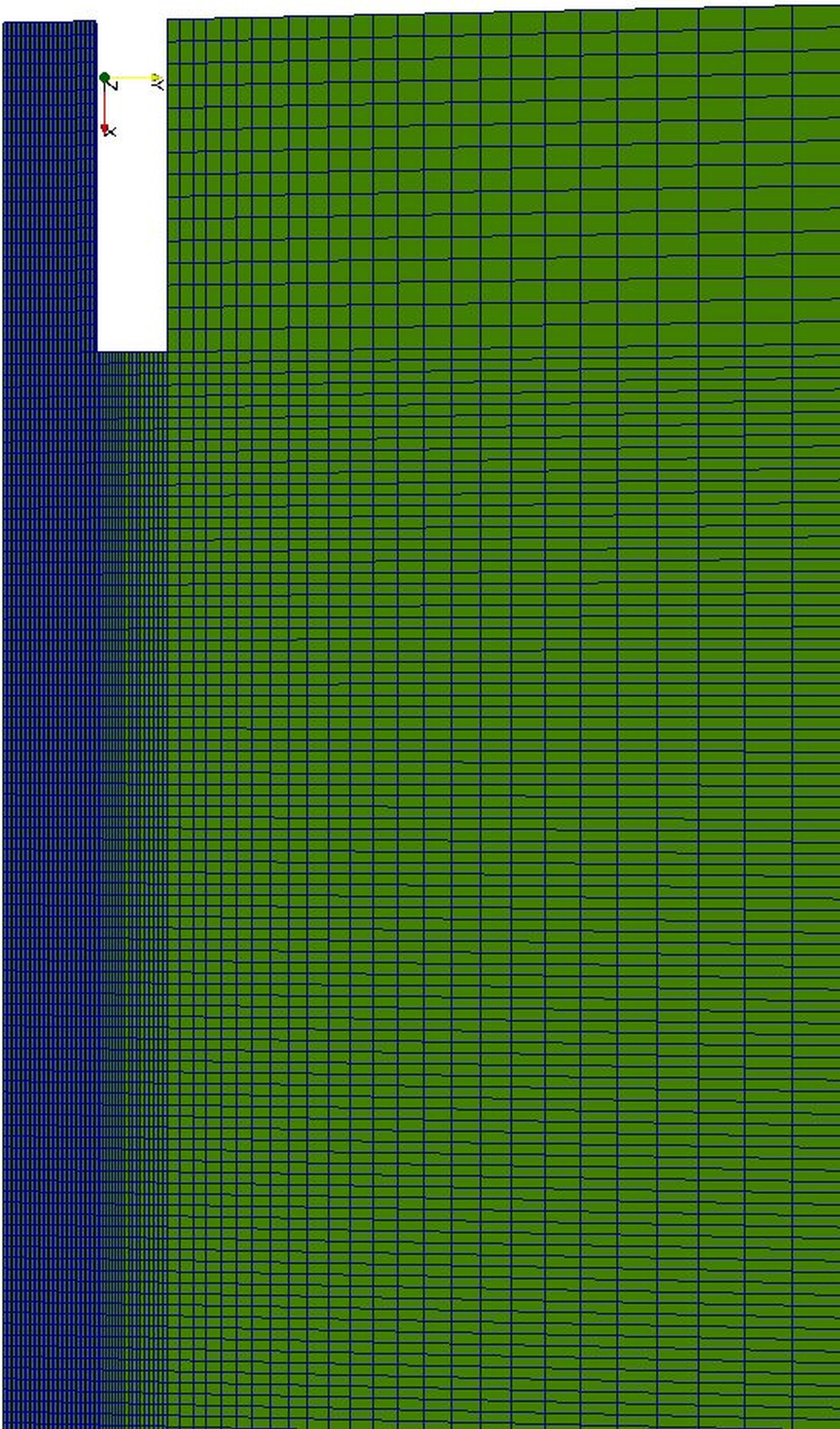

The finally created meshes (for both nozzle diameters) had 3872 cells each. For the simulations with electric field, an extended domain was used, with a longer zone downstream the nozzle outlet (40 mm instead of 10 mm). This modified mesh had 13850 cells.

Mesh parameters were extracted using checkMesh tool. Maximum aspect ratio was 11.90, mesh non- orthogonality was 0 and maximum skewness was 0.33. Fig. 2. Fragment of the computational mesh created in blockMesh tool

Https://Journals.Pan.Pl/Cpe

Piotr Cendrowski et al., Chem. Process Eng., 2022, 43 (3), 331–355 2.4. Boundary conditions and physicochemical properties

Boundary Conditions

To start calculations, boundary conditions must be set up for velocity, pressure and volume fraction. If simulations include the electric field, then more information is needed – volume charge density and electric potential. All boundary conditions can be found in Table 1.

Table 1. Set of all boundary conditions used in calculations

Periodic

At the outlet, a special boundary condition called inletOutlet was defined, which allow the special treatment of fluid reentering the domain. The top wall of the domain and wall of nozzle were set up with alternating electric potential boundary condition, described as follows:

(14)

where 𝜑𝐸– electric potential on wall, 𝜑𝐸max – maximum electric potential, 𝑓– frequency of electric field oscillation and 𝑡– time. Equation (14) describes how the electric potential changes on the wall. It is introduced in order to mimic the alternating electric pulses from real-life experiment. It was implemented into OpenFOAM using a special tool named groovyBC (which allows to define more complex boundary conditions). The positive function returns the value of 1 for each positive argument, and 0 otherwise. It transforms the periodic sinus function into a rectangular function. As a result, the boundary condition experiments.

2.4.2. Simulation setup for cases without electric field Twelve different sets of process parameters were created for the CFD simulations – for two different inner nozzle diameters (parameter code: D; either 0.28 or 0.44 mm), two sets of fluids (parameter code: M; water or alginate solution) and three different volumetric flow rates (parameter code: Q; 8, 5 or 16 ml/h).

The flow rates were used to calculate the fluid inlet velocity for each set, using the known nozzle inner diameter. In Table 2, these velocities are summarized.

Https://Journals.Pan.Pl/Cpe

CFD modeling of droplet generation process for medical applications using the electrostatic impulse method Table 2. Inlet velocities of liquid (calculated from volumetric flow rate and nozzle diameter)

(Q3)

Two types of liquids were used – either water or an 2% aqueous solution of sodium alginate. In the simulations, both liquids were assumed to be Newtonian fluids. In Table 3, the physical properties of the fluids are listed.

Table 3. Density, kinematic viscosity, and surface tension coefficient of fluids used in simulations

–

Each simulation was initialized with certain liquid phase fraction. The nozzle was filled with liquid and there was a small droplet hanging from the end of nozzle (for these regions 𝛼= 1, the rest was 𝛼= 0, at 𝑡= 0). The initial droplet was a perfect sphere with a diameter of 2𝑑(twice the inner diameter of nozzle).

2.4.3. Simulation setup for cases with electric field Calculations with electric field were carried out for two values of maximum electric potential 𝜑𝐸max (parameter code: EP) and two values of frequency of oscillations 𝑓(parameter code: F). Parameter values are listed in Table 4.

Table 4. Variants of parameters for electric field boundary conditions

[Hz]

Both liquids were treated as perfect dielectrics (Roghair et al., 2015). Very low values of electric conduc- tivity were set, to avoid charge leak during droplet breakup. In Table 5, additional physical properties of fluids are listed.

Https://Journals.Pan.Pl/Cpe

Piotr Cendrowski et al., Chem. Process Eng., 2022, 43 (3), 331–355 Table 5. Additional physical properties of fluids for simulations with electric field

· 10−12

2.4.4. Simulation setup for comparison with experimental data The last step of simulations was the comparison of numerical results to ones obtained with the use of experimental setup. Experimental details are summarized in Table 6. The experiments were run with and without the electric field. The nozzle inner diameter was equal to 0.44 mm and its length was 7 mm.

A nozzle concentric metal plate with 40 mm diameter was additionally used in experiments with the electric potential in order to provide a homogenous field, as this is also assumed in the mathematical model. Electric parameters were as follows: electric potential – 11 kV, frequency of oscillations – 5 Hz, as follows. For 85% solution, the density was 1221.4 kg/m3, viscosity was 89·10−6 m2/s. For 100% solution the density was 1261 kg/m3, viscosity was 1119 · 10−6 m2/s. Surface tension coefficient was 0.06 N/m.

Experimental

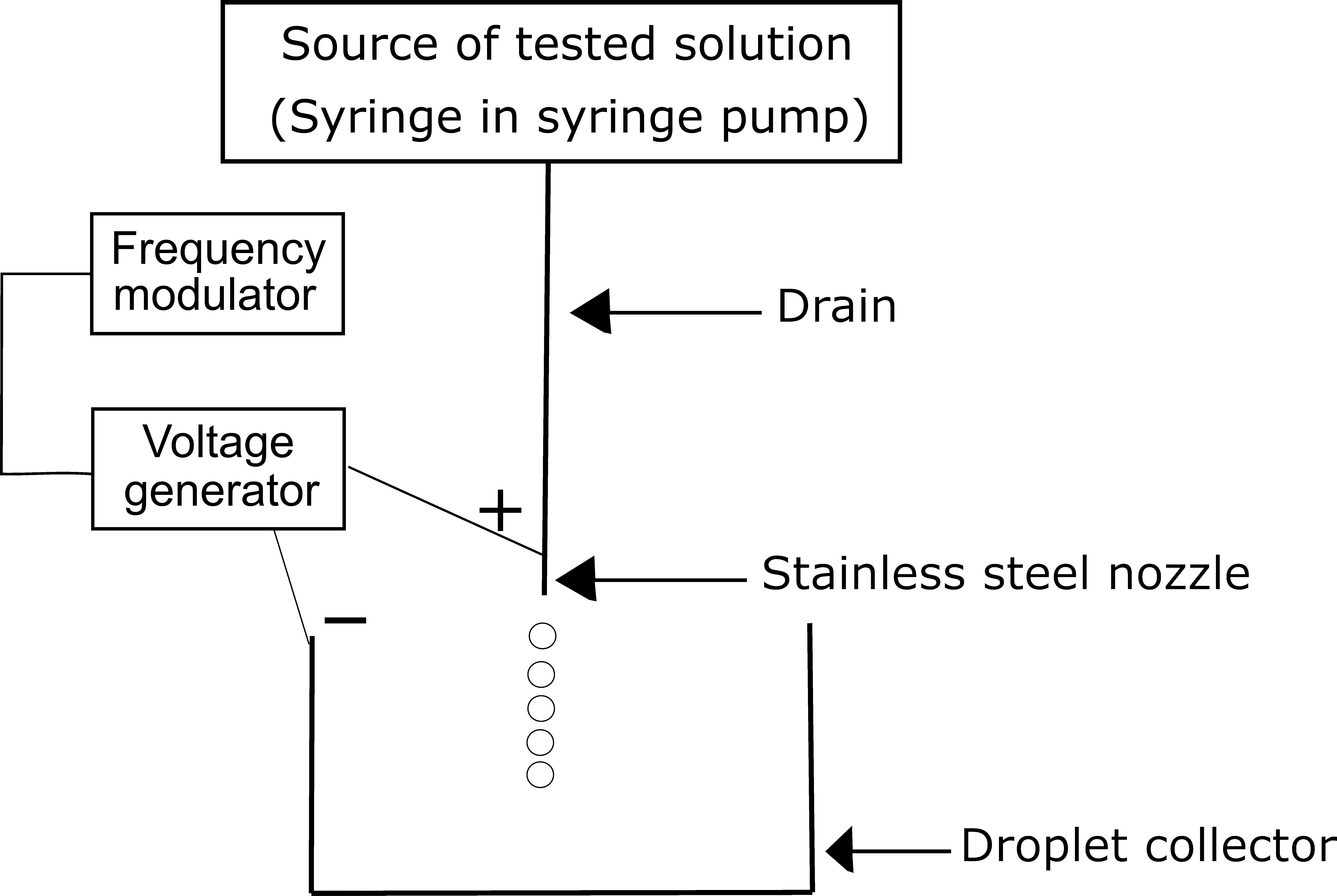

An electrostatic droplet generator with impulse voltage is schematically depicted in Figure 3. The tested liquid is pumped by a syringe pump Alaris Asena (GH) to flow through a stainless steel nozzle with a given diameter. Droplets are formed at the nozzle tip and detach to the droplet collector below.

The nozzle is connected to the positive end of a high voltage supply, coupled to a frequency modulator, whereas the collector is grounded. The setup enables to apply pulsed electric voltages to the nozzle and thus to charge flowing liquid in a controlled manner. Regulated electric parameters include: the applied voltage value 𝜑𝐸(in the range 0–21 kV, stepwise), duration time of the voltage impulse 𝑡(in the range 1–9 ms, stepwise) and frequency of impulse application 𝑓(in the range 1–100 Hz, stepwise). The distance between the tip of the nozzle and the droplet generator can be regulated fluently. The droplet generator is accompanied by a camera and a DVD recorder, coupled to a video monitor, in order to record the process of droplet formation at the tip of the nozzle. The ambient temperature was equal to 25 ◦C and relative

Https://Journals.Pan.Pl/Cpe

CFD modeling of droplet generation process for medical applications using the electrostatic impulse method Fig. 3. Scheme of the electrostatic droplet generator with the impulse voltage generator humidity was ca. 60% during all the experiments. All the measurements were done in triplicate. Finally, the droplet diameter was derived from measured time of a single droplet formation. The calculations were done according to the assumption that the droplet is spherical at the moment of detachment from the nozzle tip.

Alidation Of Cfd Method

In order to test the accuracy of equations implemented to the solver, two numerical test cases were carried out, which were also used by Roghair et al. for validation of their EHD solver (Roghair et al., 2015). In the first test, in which two stationary liquids stacked vertically were simulated, the implementation of the Gauss’s law and the Poisson’s Law – the correlation between volume charge density and electric potential – was tested. The geometry was one-dimensional and the electric potential distribution was calculated.

The obtained simulation results were compared with an analytical solution (see Fig. 4). In the second test case, the charge transport equation was tested for a 2D geometry, in which charge relaxation of an initial Fig. 4. Comparison of results of simulation with analytical solution for first validation case

Https://Journals.Pan.Pl/Cpe

Piotr Cendrowski et al., Chem. Process Eng., 2022, 43 (3), 331–355 charge distribution was observed. Also in this case, the numerical results were assessed by comparison with an analytical solution of the charge relaxation process (see Fig. 5). In all numerical test cases, CFD results were fully consistent with analytical solutions and with the validation results published by Roghair et. al. (2015).

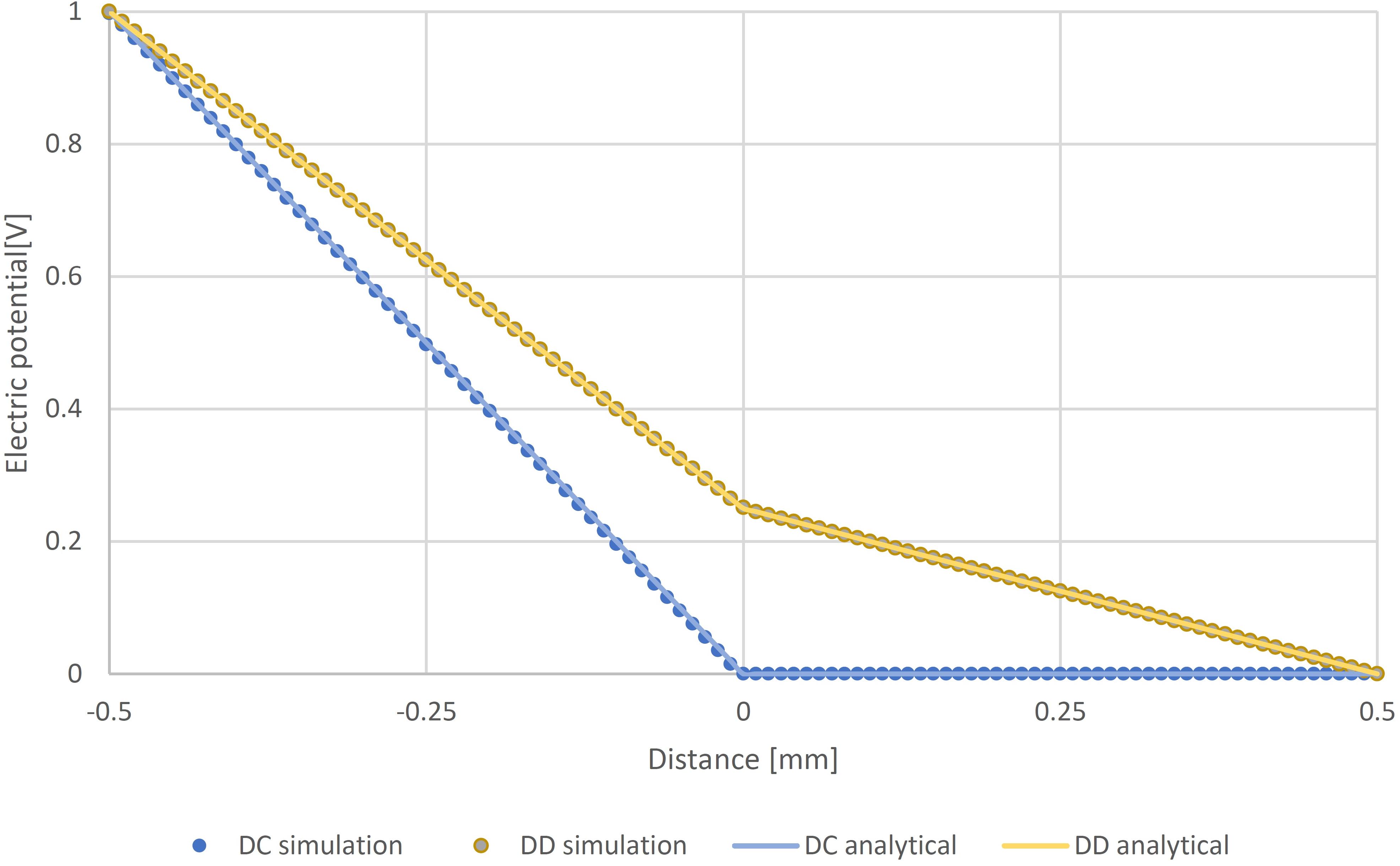

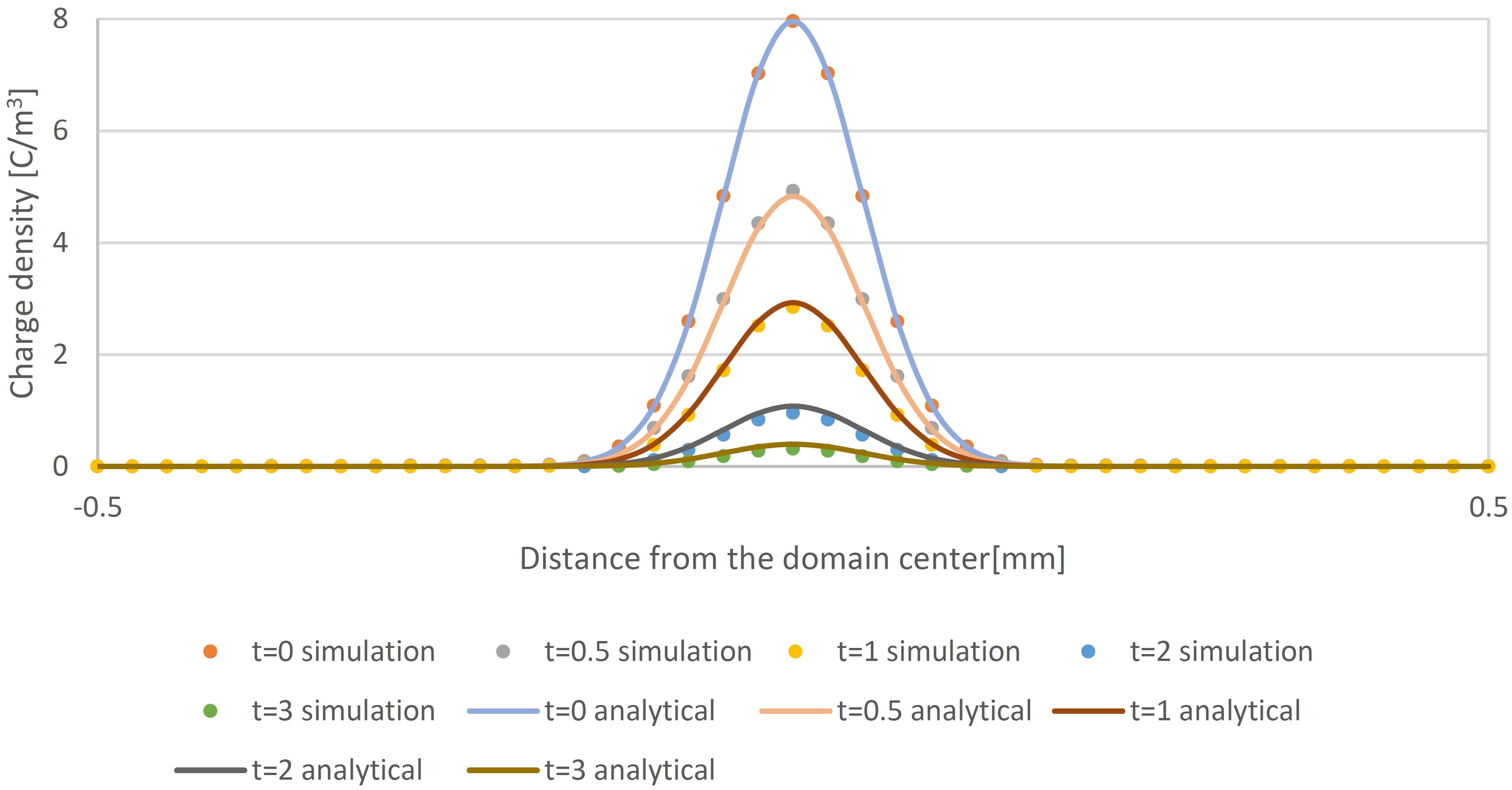

Fig. 5. Comparison of results of simulation with analytical solution for second validation case 3.2. CFD simulations of droplet generation process

Results Without An Electric Field

The outcome of simulations will be presented using contour plots and tables with droplet breakup times. All the results will be discussed in further parts of this work. In Figure 6, exemplary CFD simulation results are presented. Contour plots of volume fraction show the process of droplet creation, growth and finally breakup. All post-processing (plots) were created using ParaView software.

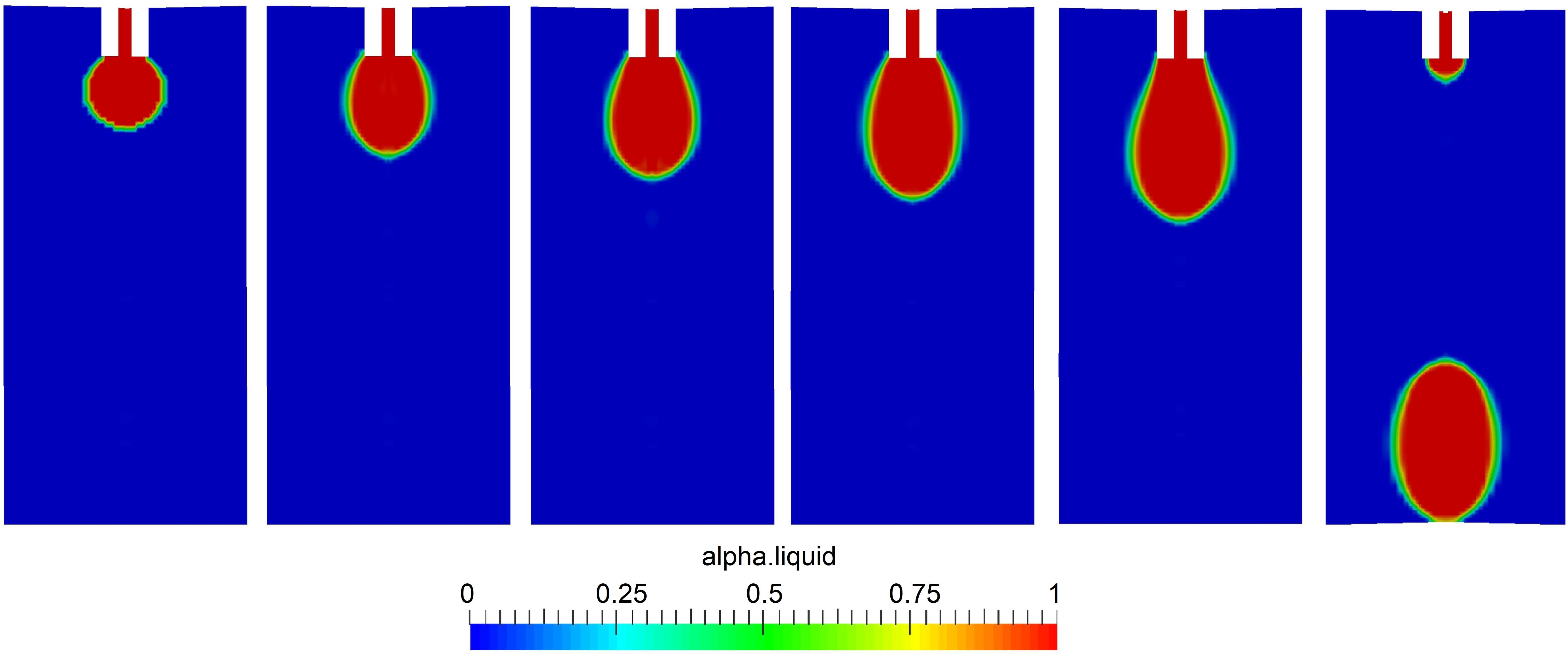

Fig. 6. Contour plots of liquid phase volume fraction in following time steps (each next plot is 0.25 s later

Than The Previous One) – Variant M1D1Q1

Simulations were carried out until four droplets were observed. Additionally, time intervals between each two subsequent droplets were calculated and the volume of the later droplet was calculated from the time interval. The breakup time of each first droplet differs from the other – it is related to simulation initialization with some volume of fluid in the nozzle.
