Hydraulic analysis of a compound weir (triangular-

Análisis Hidráulico De Un Vertedor Compuesto

(triangular-rectangular) mediante dinámica de fluidos

Computacional (Cfd)

Erick Dante Mattos-Villarroel1, ORCID: https://orcid.org/0000-0002-

-5213

Jorge Flores-Velazquez2, ORCID: https://orcid.org/0000-0003-0895- Waldo Ojeda-Bustamante3, ORCID: https://orcid.org/0000-0001-7183-

Auro Iñiguez-Covarrubias4

Carlos Díaz-Delgado5, ORCID: https://orcid.org/0000-0001-6245-070X Humberto Salinas-Tapia6, ORCID: https://orcid.org/0000-0002-0075- 1Instituto Mexicano de Tecnología del Agua, Jiutepec, Morelos, Mexico,

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) 2Instituto Mexicano de Tecnología del Agua, Jiutepec, Morelos, Mexico, 3Colegio Mexicano de Ingenieros en Irrigación, Morelos, Mexico, 4Instituto Mexicano de Tecnología del Agua, Jiutepec, Morelos, Mexico, 5Instituto Interamericano de Tecnología y Ciencias del Agua, Universidad

Exico,

6Instituto Interamericano de Tecnología y Ciencias del Agua, Universidad

Abstract

To make an efficient delivery of water to irrigation users, it is necessary to have accurate dispositive to measure flow rates. These dispositive include triangular and rectangular weirs for measured flow rates ranges between 30 and 200 l s-1. However, the variation of flows in the execution of an agricultural year can be a factor of error in the volumetric delivery and a possible alternative solution is the use of a compound weir. The aim of this study was to analyze the hydraulic behavior of a triangular- rectangular weir, as a function of geometric and flow parameters and get

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) a new global expression of the discharge coefficient. ANSYS Fluent was used to simulate the flow rates fluid, to discretized the dynamics of flow under specific conditions. The evaluation of the model with ANSYS Fluent, and its analysis, was carried out based on experimental data and the corresponding analytical solution. The Computational Fluid Dynamics finding a maximum error of 0.74 %. An expression of the global discharge coefficient was obtained and it was possible to analytically estimate the expenditure with a maximum error of 7.8 % with respect to experimental data. Thanks to the CFD simulation, it was possible to characterize the nappe and to analyze the effects of pressure and velocity on the discharge coefficient. The results allow us to conclude that a triangular-rectangular weir widely satisfies the precision required in the delivery of water to irrigation users.

Keywords: Weir, numerical simulation, gauging, discharge coefficient.

Resumen

Para hacer una entrega eficiente de agua a usuarios de riego es necesario contar con dispositivos precisos para medir gastos. Entre estos dispositivos están los vertedores triangulares y rectangulares para rangos de flujo entre 30 y 200 l s-1. Sin embargo, la variación de gastos en un año agrícola puede ser un factor de error en la entrega volumétrica, y una posible alternativa de solución es el uso de un vertedor compuesto. El objetivo de este trabajo fue analizar el comportamiento hidráulico de un

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) geométricos y de flujo, así como obtener una expresión de su coeficiente global de descarga. ANSYS Fluent fue usado para simular los caudales del fluido, con el fin de discretizar la dinámica del flujo bajo condiciones específicas. La evaluación del modelo con ANSYS Fluent, y su análisis, fue efectuada con base en datos experimentales y la solución analítica

Fluidos

computacional (CFD) mostraron concordancia estadística con los datos de laboratorio, encontrándose un error máximo de 0.74 %. Se obtuvo una expresión del coeficiente global de descarga y se logró estimar analíticamente el gasto con un error máximo de 7.8 % con respecto a datos experimentales. Gracias a la simulación con CFD fue posible caracterizar la lámina de descarga y analizar los efectos de la presión y la velocidad sobre el coeficiente de descarga. Los resultados permiten concluir que un vertedor triangular-rectangular satisface ampliamente la precisión requerida en la entrega de agua a usuarios de riego.

Palabras clave: vertedor, simulación numérica, aforo, coeficiente de descarga.

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) The effect on the conservational and efficient use of water resources now has an impact on improving water management. One of the components of integrated water resources management (IWRM) is the ability to accurately measure and control water flow at specific points in a basin or in a distribution system, such as: Channel bifurcations, control structures, and water delivery points. An efficient water measuring system allows accurate accounting of water use, and the supply of water at optimal rates to areas of demand (Clemmens, Wahl, Bos, & Replogle, 2001). Several types of structures can be used for flow gauging: weirs, Parshall gauges, gates, orifices, among others (Skertchly, 1988).

Weirs are elevated barriers located perpendicular to the direction of water movement so that water rises above the obstruction through an opening on a regular basis (Bautista, Robles, Júnez, & Playán, 2013). The geometric parameters defining the hydraulic behavior of weirs are the length of the ridge and the shape of the flow control section (Emiroglu, Kaya, & Agaccioglu, 2010; USBR, 1997). Thin-walled weirs are studied using the principles of classical physics with experimental results to understand flow characteristics and determine the coefficient of discharge (Cd) under different configurations; this coefficient integrates the effects not considered in the derivation of equations used to estimate discharge, such as viscosity, capillarity, surface tension, velocity distribution and aerodynamic curvature attributable to weir contraction (Aydin, Altan- Sakarya, & Sisman, 2011; Rady, 2011).

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) Design Specifications and proper installation of weirs have been International Standardization Organization (ISO, 1980), the American Society for Testing Materials (ASTM, 1993), and the United States Bureau of Reclamation (USBR, 1997). Normally, the measurement accuracy of the flow rate depends of the geometry of the weir; in areas with unevenness, triangular weirs are recommended for flow rates lower than 30 l s-1 for its greater precision for small discharges, and for higher flow rates rectangular weirs are used (Sotelo, 1997).

Shen (1981) described the procedure for designing sharp-crest triangular weirs supported by experimental results to determine the coefficient of discharge reported in the literature. El-Alfy (2005) experimentally evaluated the effect of the vertical flow curvature on the coefficient of discharge (Cd), in triangular weirs, indicating that it is inversely proportional to the angle of the weir notch (θ) and directly proportional to the relative load (h/P). Bagheri and Heidarpour (2009) obtained a discharge coefficient equation for thin-walled rectangular weirs at the top and bottom of the sheet profiles using the free vortex theory.

Bautista et al. (2013) used a low-speed photographic technique to characterize the upper and lower profiles of the flow draft on a triangular weir. Chen, Fu, Chen, and Cui (2018) analyzed the effects on the discharge coefficient by the variation of the slope of the ramps implemented on the upstream and downstream faces in a rectangular short-crest weir. Fu, Cui, Dai, and Chen (2018) proposed an equation to determine the discharge coefficient in structures of the orifice-weir type.

Tian, Wang, Bai, and Li (2018) investigated the flow pattern and discharge

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) coefficient at finite crest length combined with parallel walls with the flared entry (FGPs) on the crest of the weir.

It has been reported that the use of compound weirs combining triangular and rectangular shapes for flow measurement gives good results (Zahiri, Tang, & Azamathulla, 2014). Negm, Al-Brahim, and Alhamid (2002) proposed a structure composed of an upper rectangular weir with a lower gate to avoid the accumulation of sediments upstream of the structure. Another type of compound weir consists of a rectangular notch with a triangular notch in the center of the rectangular crest; the triangular weir could accurately measure the normal range of flows less than 30 l s-1, but larger flows can also be measured by operating the rectangular weir (USBR, 1997). In irrigation channels with the variability of discharge, the use of compound weirs is recommended to avoid the use of separate structures, which can represent the variability of flow with greater precision; to meet this need, weir structures described in this document play a key role in irrigation zones.

Numerical simulation techniques have been used to solve Fluid Mechanics problems, particularly with the use of general solution tools generically called Computational Fluid Dynamics (CFD). Advances in computer storage and processing capacity allowed the process of creating and fitting a CFD model to evolve and facilitate the analysis of results, both in time and cost. In particular, CFD techniques numerically solve the governing equations of the flow, such as the Navier-Stokes equations, and offer the possibility of hydraulically evaluating a weir under different geometries and hydraulic conditions. In fact, once validated and evaluated, CFD allows the extraction of additional information, such as:

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) Forces, velocity fields, and pressures. Several studies have shown the advantages of CFD techniques, for example, Ho, Boyes, and Donohoo (2001), and Ho, Boyes, Donohoo, and Cooper (2003) compared numerical results from a Creager crest weir and reported results very similar to experimental studies using physical models. Rady (2011) reported a maximum deviation of ±3 % when comparing the coefficient of discharge of a thin-walled rectangular weir obtained numerically with CFD versus, those calculated with the general weir equation. Zuhair and Zubaidy (2013) compared the CFD results, using the VOF (Volume of Fluid) model, with the experimental data of a prototype of the Mandali weir, the results indicate that the flow profile obtained with CFD adjusts to the experimental results with a Pearson correlation coefficient close to 1.

Therefore, the CFD methodology constitutes an effective tool to solve fluid mechanics problems related to hydraulic weirs.

The

experimental or analytical models, represent one of the most difficulties in this area. CFD simulation can be an excellent option in order to investigate modeling on weirs and simulate numerical flow and tracking in detail of the free surface. In analyzing this problem, the use of CFD has been reported, in particular, the computational platform ANSYS-FLUENT, known for its ability to accurately track the free surface using the Volume Of Fluid (VOF) method (Duró, Dios, López, Liscia, & Angulo, 2012).

The aim of this work was (1) to build and evaluate a numerical model of a compound weir using Computational Fluid Dynamics (CFD) and (2) to propose a global discharge coefficient equation for the compound weir (triangular-rectangular). The numerical simulation of compound

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) weirs will facilitate the understanding of its hydraulic behavior, which depends on the geometric characteristics of the weir, its hydraulics conditions, and the estimated discharge coefficient.

Reference Prototype Model

Experimental data and prototype models used are reported by Sotelo (1997), to using rectangular and triangular weir thin-walled, and Jan, Chang, and Lee (2006) in compound weirs. Figure 1 shows the geometric dimensions of the rectangular and triangular weirs, both weirs are independent in a channel with a hydraulic load of 0.27 m for the rectangular weir, and 0.50 m for the triangular weir. Both weirs are sharp- crest for the operation, and for the simulation standard wall value were used (Skertchly, 1988).

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

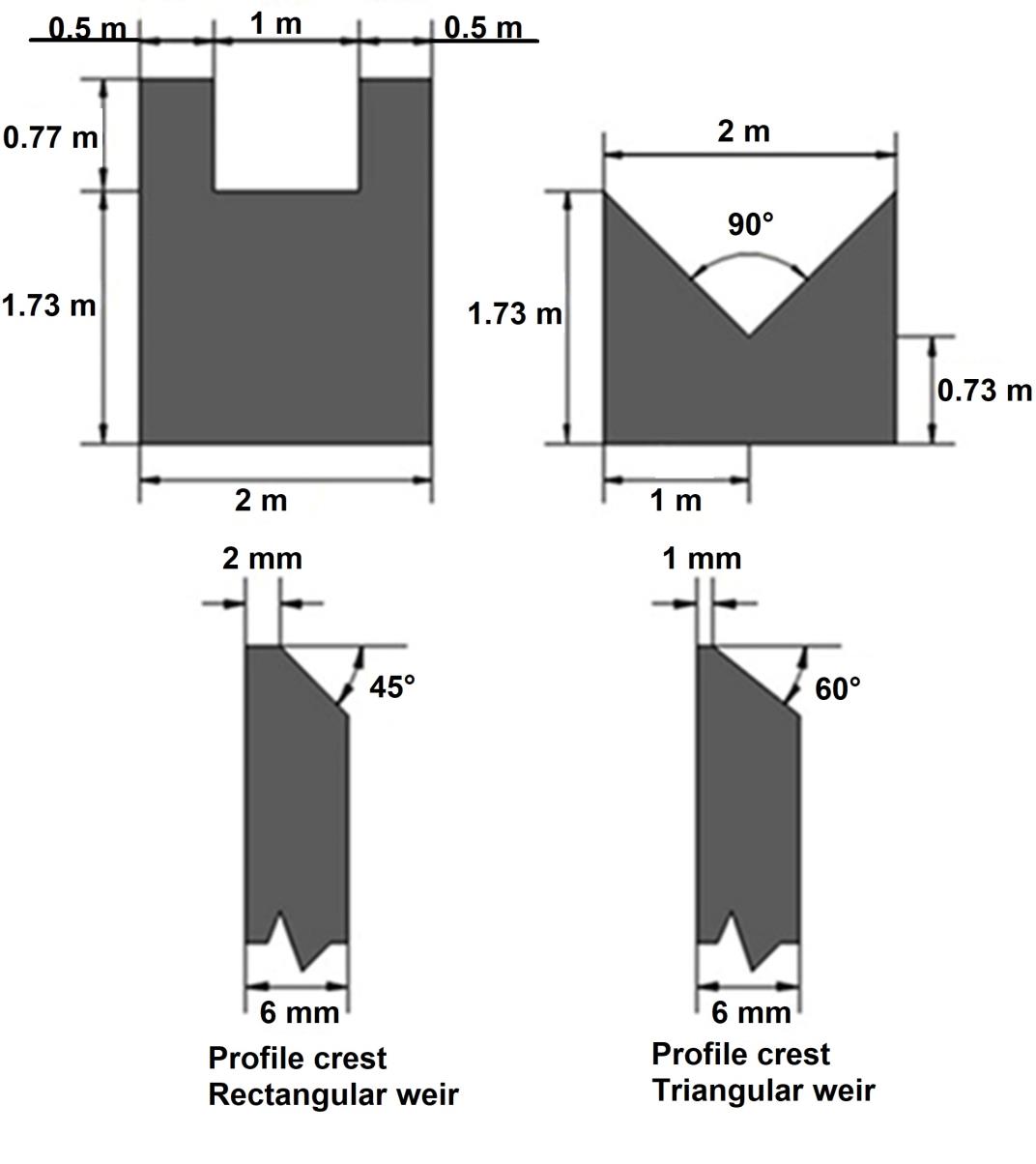

(https://creativecommons.org/licenses/by-nc-sa/4.0/) Figure 1. Dimensions of the rectangular and triangular prototypes weirs (Sotelo, 1997; Skertchly, 1988).

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) Experimental and analytical studies were performance on the flow behavior upstream and downstream of the weir, for instance, upstream near the weir there is a speed varied movement and present a backwater of depression originating the transformation of potential energy into kinetic energy, there is a zone of stagnation of the water called dead water. Upstream of the weir, there is gradually varied flows; this area is up to a distance of 4h, h being the static charge on the crest of the weir (Sotelo, 1997).

Equation (1) shows the general form that allows obtaining the fluid flow through a weir (Bos, 1989).

(1)

Where Q = flow (m3 s-1); k = coefficient depending on the dimensions and shape of the weir (m1.5 s-1) for a rectangular weir (m0.5 s-1) for a triangular weir), and n = dimensionless number depending on the shape of the weir; for a rectangular and triangular weir n is equal to 1.5 and 2.5, respectively (Bos, 1989).

For Henderson (1966) the discharge equation for a rectangular weir

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/)

(2)

Where Cd is the coefficient of discharge (dimensionless); b, the length of the weir crest (m); g, the acceleration of gravity (m s-2), and h is the static load on the weir crest (m). The coefficient of the discharge depends on the flow characteristics and geometry of the channel and weir (Kumar, Ahmad, & Mansoor, 2011).

The triangular section weirs are recommended for the gauging of flow rates less than 30 l s-1 and loads from 6 cm to 60 cm; their precision is better than that of a rectangular weir for small flows. For larger discharges, a rectangular weir is recommended, because the triangular weir is more sensitive to any change in the roughness of the plate and because it requires greater accuracy in the measurement of loads. The flow equation for the triangular weir is Equation (3) (Sotelo, 1997):

(3)

Where θ is the angle of the notch of the triangular section (°). The discharge coefficients are calculated with Equation (4) for the rectangular weir and Equation (5) for the case of a triangular weir whose notch angle, θ, is 90° (Sotelo, 1997).

(5)

Where B is channel width (m); b, the length of the rectangular weir (m); P, the height of the weir (m); h, the static load on the weir (m), and Cd is the coefficient of discharge (dimensionless).

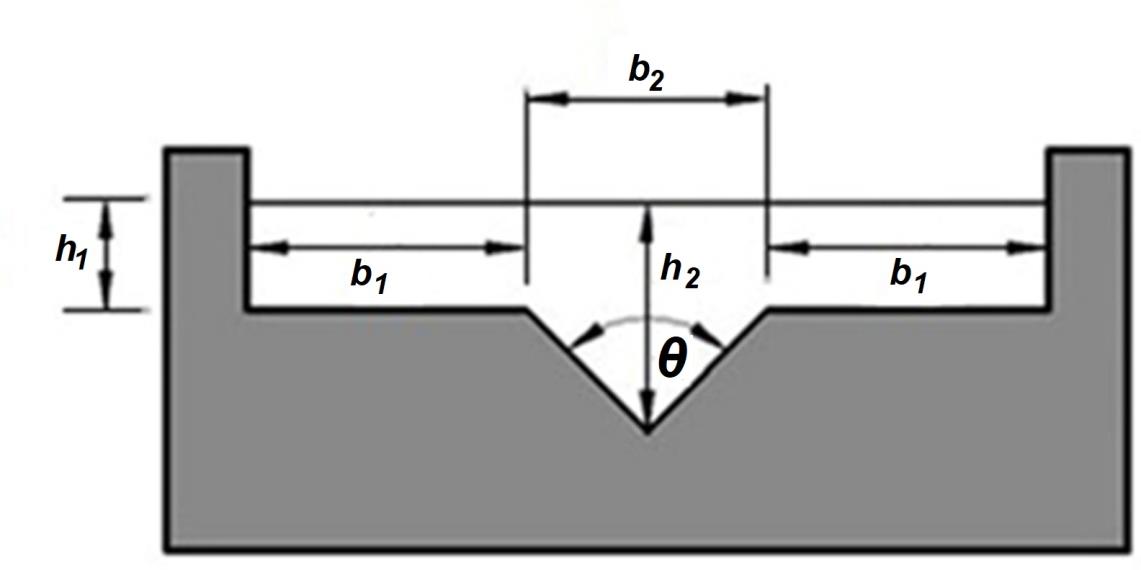

Figure 2 shows the compound weirs with rectangular and triangular sections. The discharge equation can be derived using the linear combination method, according to Jan et al. (2006), and is expressed with

(6)

Figure 2. Triangular-rectangular compound weir.

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) The compound weir equation (Equation (6)) contains two basic terms:

]; Cdt Is The

coefficient of discharge of the triangular section (dimensionless); Cdr is the coefficient of discharge of the rectangular section (dimensionless); b1 is the width of the rectangular weir (m); h1 and h2 are the static load on the rectangular and triangular section (m), respectively.

The value of Cdt can be estimated using the empirical relationship (Jan

(7)

The value of Cdr depends on load h1 (m), crest height P (m), length of rectangular section b (m), and width of channel B (m), it is described as

(8)

It should be clarified that the Cd values of Equation (4) and Equation (5) are different from Cdr and Cdt of Equation (7) and Equation (8), the

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) latter corresponds to a compound weir of rectangular and triangular sections. Sotelo (1997) analyzed just two cases of weirs; the first one using a triangular weir and the second one was a rectangular weir, both with different hydraulics loads, and subsequently evaluated their discharge coefficients based on the level of hydraulics loads obtained in each weir. The results and experimental data are summarized in Table 1.

Table 1. Results and experimental data of the rectangular and triangular weirs were reported by Sotelo (1997).

Triangular

On the other hand, for the weir with combined triangular-rectangular section, Jan et al. (2006) reported experimental results of discharge for three cases of weirs of different width of the rectangular section (b1) and different flow rates (Q); Table 2 show the experimental conditions and the results obtained.

Table 2. Experimental conditions and results of the compound weir reported by Jan et al. (2006).

Omputational Fluid Dynamics (Cfd) Modeling

ANSYS WORKBENCH V14.5 was used to perform the simulations. CFD is a numerical tool that predicts the behavior of a fluid by solving the general transport equations, also called Navier-Stokes (NS) equations. Because there is no analytical solution, CFD uses the Finite Volume Method (FVM),

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) which divides the domain into a finite number of cells over which discrete conservation of the variable is imposed.

General Equations And Sub-Models

Equation (9) is the differential form of the mass equation balance for incompressible flow (constant density), where ∇∙𝑼 represents the velocity variation.

(9)

Regarding the incompressible fluid, the momentum differential

(10)

ρ (kg m-3) is the density of the fluid; U (m s-1) is the velocity field; f (N kg-1) are the forces of the body per unit mass; p (N m-2) is dynamic pressure; μ (kg m-1 s-1) dynamic viscosity (0.001 kg m-1 s-1 for 20 °C).

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) The Volume of Fluid (VOF) model is a surface tracking technique by defining calculation cells that can be empty, partially filled, or full of fluid.

It was reported by Hirt and Nichols (1981) and is based on a concept that the volume occupied by one material cannot be occupied by the other. For each additional phase added to the model, a new variable is introduced: the volume fraction of the phase in the computational cell. In each control volume, the volume fractions of all phases conform the unit.

The volume fraction of the fluid qth in the cell is denoted as αq, then the following three conditions are possible: if 𝛼𝑞 = 0, the cell is empty of fluid 𝑞𝑡ℎ; if 𝛼𝑞 = 1, the cell is full of fluid 𝑞𝑡ℎ, and if 0 <𝛼𝑞< 1, the cell contains the interface between the fluid 𝑞𝑡ℎ and the rest of the fluids.

The follow-up of the interface between phases is carried out by the solution of the continuity equation (Equation (11), for the volume fraction of one (or more) of the phases. For the qth phase this equation has the

(11)

Where ρq is the density of the phase q (kg m-3); vq is the velocity of the phase q (m s-1); 𝑆α𝑞 is the term source of the equation (kg m-2 s-2); ṁ𝑝𝑞 the mass transfer from phase p to phase q (kg s-1), and ṁ𝑞𝑝 the mass transfer from phase q to phase p (kg s-1).

The turbulence model K-ε is a semi-empirical model based on the transport equations for turbulent energy (K) and for the dispersion of

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) turbulent kinetic energy (ε) (Launder & Spalding, 1974; Spalart & Almaraz, 1992). In obtaining this model, it is assumed that the turbulent flow is fully developed and that the effects of molecular viscosity are neglected (Jones & Launder, 1972), parameters K (m2 s-2) and ε (m2 s-3) are obtained from the Equation (12) and Equation (13):

)

Dispersion of turbulent kinetic energy (ε) (Equation (13)):

(13)

μt is the turbulent viscosity (kg m-1 s-1) and it is shown as (Equation

(14)

Pkb and Pεb represent the influence of floatability force. PK is the turbulent generation due to the viscous force (kg m-1 s-3), as shown below

(15)

The values of the coefficients Cμ, C1ε, C2ε, σk, and σε were adjusted by Launder and Spalding (1974), which are shown as follows: Cμ = 0.09, C1ε = 1.44, C2ε = 1.92, σε = 1.3, σk = 1.0.

Numerical Cfd Simulation

Numerical simulation and solution using CFD consider three basic steps: a) Preprocess, b) Process, and c) Post-process. This a sequential activities, quality, and results depend of each one its activities.

The first step consists of digital generation as a solid of the construction of the physical model under study (Figure 3), to hydraulically analyze weirs in CFD the computational model must be defined as a three- dimensional geometry. The geometry module was used to perform the numerical model. The characteristics of the numerical model are based in a prototype triangular, rectangular, and compound model. Jan et al.

(2006) and Sotelo (1997) do not mention the slope of the channel on which the tests were carried out; it was assumed that the slope is totally

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) horizontal and the flow gradually varied so that the discharge coefficient is not affected by the slope of the channel.

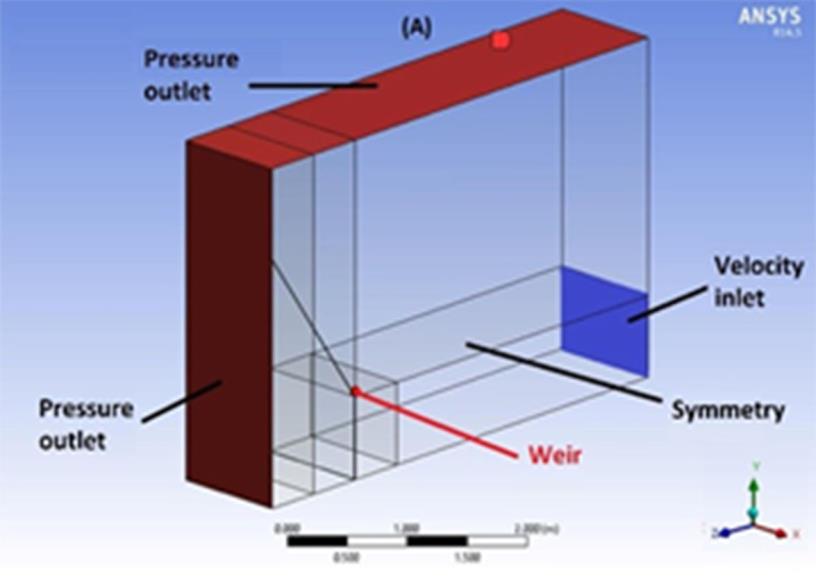

Figure 3. Boundary conditions. After the generation of geometry, the domain is divided into a sufficient number of cells or elements that do not overlap and cover all the geometry, where general conservation equations were applied.

Meshing module was used to generate mesh in the model, for spatial discretization, it was decided to employ a predominantly hexahedral mesh; among the advantages of hexahedral meshing is the reduction of the number of domain elements and the improvement of the convergence of the solution (Sánchez & Elsitidié, 2011). The most important parameter to define de viability of the computational model is the relationship between experimental and simulate data.

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) The boundary conditions of the computational model are established (Table 3). The flow inlet condition is located upstream of the weir at a minimum distance of two times the width of the channel (Boss, Replogle, & Clemmens, 1984) to avoid that the hydraulic load is not affected by the flow approach condition, the most common inlet condition in open channels is the mean flow velocity (inlet velocity) obtained from the flow rate and the continuity equation; the vertical plane located downstream of the spillway is defined as the free outlet of the flow to the atmosphere, the outlet condition assigned for open channels is atmospheric pressure (outlet pressure); as the computational model is symmetric in the axis of the spillway, the condition of symmetry is assigned in the lateral planes perpendicular to the axis of the spillway; the weir, the platform and the lateral walls of the channel are defined as solid stationary and non-slip

High-Density

polyethylene). Table 3. Boundary conditions (Figure 3).

Of The Weir

The basis of an adjusted and adequate development to the physical conditions of a computational model is the numerical scheme that approximately solves the equations that describe the flow. Because it is a two-phase (water-air) and free surface flow, it is assigned to the multiphase VOF model and the turbulence K-ε (Launder & Spalding, 1974) model because it is the most complete simple method with the lowest computational cost to simulate turbulence demonstrating its advantage in confined and internal flows (Fernández, 2012) and in free-surface flows (Chanel & Doering, 2008; Olsen, Nils, & Kjellesvig, 1998; Jiang, Diao, Sun, & Ren, 2018).

The pressure-velocity coupling of the SIMPLE algorithm was used (Semi-Implicit Method for Pressure Linked Equations), it approaches convergence through a series of intermediate fields of pressure and velocity which satisfies continuity (Fernández, 2012). The use of the "Upwind" spatial discretization system ensures stable schemes, but its first-order characteristic makes it sensitive to numerical diffusion errors.

Such errors can be minimized using higher-order discretization schemes. Several simulations were performed to evaluate the precision of the model according to the previous results reported in the bibliography.

Statistical methods were used to compare simulated results with experimental and analytical results. As an indicator of the quality of measurement of numerical results, the relative percentage error was

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) used, which indicates how far from the experimental value is from the numerical estimation with CFD and it is defined with Equation (16):

(16)

Table 4 shows simulation scenarios according to experimental conditions. Table 4. Simulation scenarios.

Open Access Bajo La Licencia Cc By-Nc-Sa 4.0

(https://creativecommons.org/licenses/by-nc-sa/4.0/) Results are analyzed and they are exposed in a qualitatively (maps, distributions, vectors) and quantitatively (graphs, integrals, values, averages) way.

Evaluation Of The Numerical Model

Table 5 reports the simulation parameters and shows the statistical comparison of the experimental results reported by Sotelo (1997) with those simulated with CFD. The discharge coefficients of the rectangular and triangular weirs were obtained from Equation (4) and Equation (5), respectively.
