Abstract: This article presents the converter circuit analysis, mathematical modeling followed by deriving its average state space equations. The model so obtained is simulated in MATLAB in open loop and closed loop configuration and changes in the output are observed. Specifically, Buck & Boost converters with & without its controller at steady state and study of their transient responses to the changing inputs with a controller design and its implementation on SIMULINK model is presented here. The method used to control the output of the converter is Proportional and Integral error correction that is a PI controller which is used to reduce errors and stabilize the variable input fed to the Buck or Boost converters. The tool used to design the controller parameters is PID Tuner application in in MATLAB. The analyses plots derived using the tool lets us examine the controller performance in time and frequency domain. The advantage of the tool used is, it allows user to interactively refine the performance of the controller to adjust loop bandwidth and phase margin or to favor a set-point tracking or disturbance rejection. The designed converters are analyzed in current mode control and voltage mode control to switch on/off. The long term goal is to have a sophisticated controller design for buck & boost converters for the application where variable input is fed to them, so as to allow its simulation to fully understand how the converters behave when controller is implemented. The model tested here are of the similar nature that are being used in standalone solar or wind energy generation & distribution systems. The variable nature of the input tested here with Buck & Boost converters reflects the variable nature of the output of the renewable energy sources and that broaden the scope of these converters to be implanted with such standalone energy systems.

Keywords: Boost Converter, Buck converter, Current Control

I. Introduction

The voltage-mode controlled regulator, the PWM signal is generated by applying a control voltage to one comparator input and a saw-tooth voltage of fixed frequency, generated by the clock, to the other. The duty cycle of the PWM signal is proportional to the control voltage and determines the percentage of the time that the switching element conducts.

The control voltage is derived from the difference between the actual-output voltage and the desired-output voltage. Manuscript received on April 21, 2021.

Revised Manuscript received on April 29, 2021. Manuscript published on April 30, 2021.

* Correspondence Author

© The Authors. Published by Blue Eyes Intelligence Engineering and Sciences Publication (BEIESP). This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/) The more efficient control scheme that finds a wide application is current mode control. In this type of control the Inductor current is used as a feedback state. The current-mode control technique derives the PWM ramp by adding a second loop feeding back the inductor current. This feedback signal comprises two parts: the AC-ripple current, and the DC or average value of the inductor current. An amplified form of the signal is routed to one input of the PWM comparator while the error voltage forms the other input. It will generate PWM pulses, which will act as a controlling signal to the power electronic devices. The advantage is the ease to control and integrate. The voltage transformation in dc-dc converter is achieved by using the technique of PWM (pulse width modulation). The power needed for pulse train is very small and can be neglected.

There are different combinations of switching devices using different energy storing elements used as switching regulators.

The

unregulated dc input to an accurate and desired dc output voltage. Based on the control and regulation of the voltage/current at the output terminals from an input source, the switching regulators can be divided as: Isolated & Non-isolated converters. The transfer of the energy from the input to the output side is done using electromagnetic field. This can be achieved using a mutually coupled magnetic component thereby isolating the input and the output. So this type of DC-DC converter cannot be used where it is desired to have the ground terminal of input and output at different potentials (for example, in case of gate drive circuit of an inverter's devices). Also, if the transformation ratio between

The Input & Output Voltage Is Too Large/Low, The

on-time/off-time of the device becomes comparable to the device turn-on/turn-off time. Therefore, in such cases, isolated type DC-DC converters are more advantageous.

There is no isolation in between the input and the output, i.e. the current flows through a common path during the operation from the source to the load. The selection of converters from a variety of switching system available in the market is based on certain parameters (cost, performance, characteristics) which are determined by the user and the system application.

This paper will limit its consideration to the first two types of non-isolated converters (Buck & Boost). This paper

Farha Naz

Closed loop Buck & Boost Converter Mathematical Modeling, Analysis and Simulation using MATLAB

Journal Website: Www.Ijeat.Org

mathematical modeling followed by deriving its average state space equations. The model so obtained is simulated in MATLAB in open loop and closed loop configuration and changes in the output is observed. PI controller is used here to reduce the errors. These DC-to-DC power converters steps up/down the voltage (while stepping down/up the current) from its input (supply) to its output (load). The DC input to a buck or boost converter can be from many sources as well as batteries, such as rectified AC from the supply mains, or DC from solar panels, fuel cells, dynamos and DC generators.

A. Buck Or Step-Down Converter

In the step-down or buck converter, average dc output voltage Vo is less than the input unregulated dc voltage Vs. Thus, it is a voltage step-down and current step-up converter.

A simplified circuit diagram is shown in figure below.

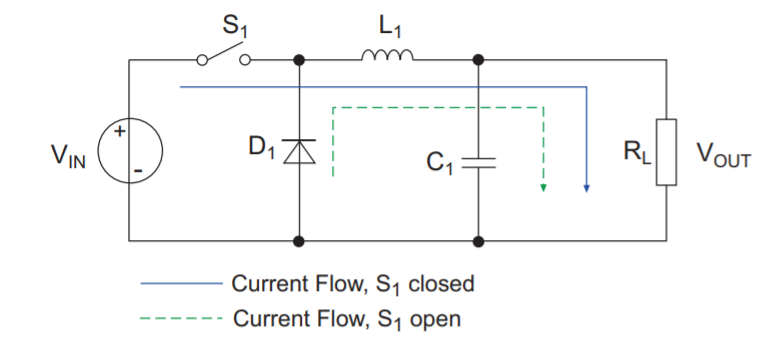

Fig.1 Buck Converter

The transfer function for the buck converter is derived by equating the voltage-time product of the inductance in the ON and OFF conditions. The products so obtained for ON and OFF conditions must be the same because of the energy conservation principle.

Energy equations during ON condition: EIN = (VIN –VOUT) tON Energy equations during OFF condition: EOUT = VOUT tOFF

A) Voltage Control Mode

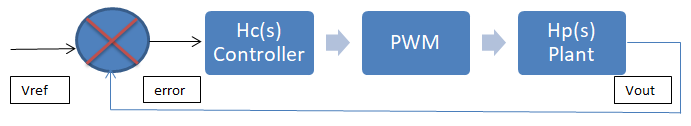

The controller manipulates the error term depending on the type of controller that is being used. The output of the controller is the new value of the duty cycle which is used as an input to the power stage and modulates the switching devices so as to close the control loop and provide a regulated and stable output voltage.

B) Current Control Mode

In this type of control the peak of the output filter inductor current is controlled to a set point value. This set point value is determined by the output of the controller and varies on a cycle-by-cycle basis.

Initially, the switching device is turned on with no pre-determined duty cycle given by the clock pulse which sets the S-R latch. The sensed inductor current is then compared with the desired current by means of a current comparator.

When the sensed inductor current intersects with the desired current, the current sense comparator resets the S-R latch, which turns off the switching device.

Therefore, the duty cycle is not set by the controller and is determined by the rise of the inductor current during the on-time. The modulation of the duty cycle differs significantly from that of voltage mode control, and as such, the design of the compensator differs also.

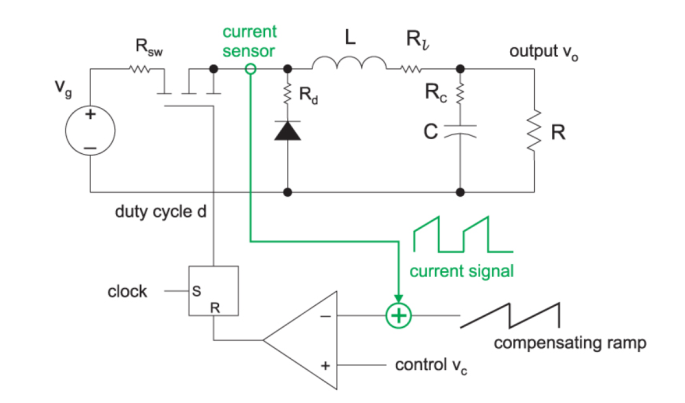

Fig.3 Buck Converter Current Control Loop

The DC gain for the current mode buck converter is: The power stage output filter consists of an inductor and a capacitor that normally forms a double pole due to resonance formed between the inductor and capacitor. In current mode control, the inductor’s current is controlled on a cycle-by-cycle basis, and therefore the inductor acts as a constant current source.

Journal Website: Www.Ijeat.Org

This implies that the plant power stage no longer contains the double pole present when operating under voltage mode control and the plant power stage now only contains a single plant pole. This control method results in a single plant pole at lower frequencies. This removes the crossover frequency restriction around the double pole found in voltage-mode controlled converters and therefore allows for easier stabilizing of converters with a right-half plane zero.

B. Boost Or Step-Up Converter

In the step-up or boost converter, average dc output voltage Vo is more than the input unregulated dc voltage Vs. Thus, it is a voltage step-up and current step-down converter. A simplified circuit diagram is shown in figure below.

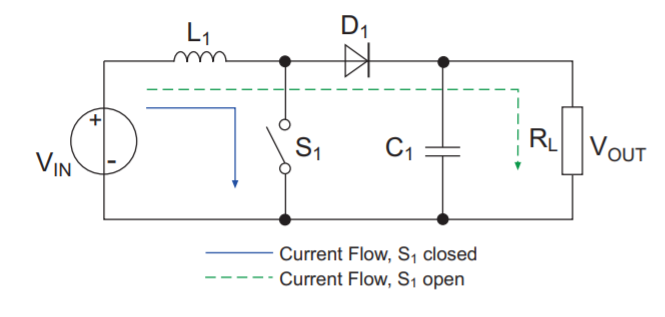

Fig.4 Boost Converter

The transfer function for the boost converter is derived by equating the voltage-time product of the inductance in the ON and OFF conditions. The products so obtained for ON and OFF conditions must be the same because of the energy conservation principle.

Energy equations during ON condition: EIN = VIN tON Energy equations during OFF condition: EOUT = (VOUT-VIN)tOFF

A) Voltage Control Mode

Voltage-mode control which is also called as the duty-cycle control contains a single loop and adjusts the duty cycle directly in response to changes in output voltage.

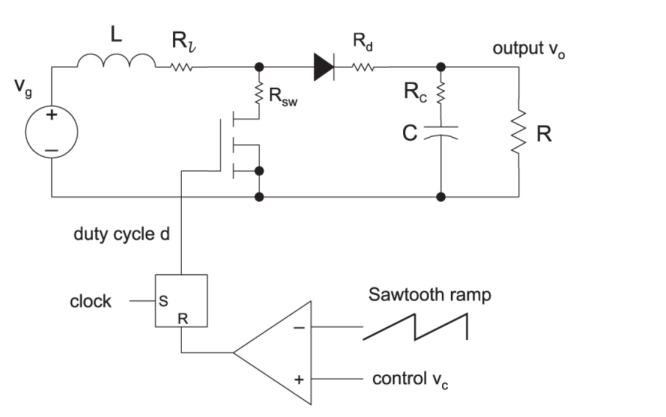

Fig.5 Boost Converter Voltage Control Mode

The equation for the control-to-output transfer function is: The boost converter adds a new complexity to the control problem which is caused by the fact that when the boost converter switch is turned on for a longer period of time, the inductor is disconnected from the load for a longer period of time which makes the output initially drop, even though the control command is trying to make it increase.

B) Current Control Mode

Current-mode control which is also called as current

Programmed Mode Or Current-Injected Control Is A

multiple-loop control method that contains two loops (an inner current loop and an outer voltage loop). There are several types of current mode control methods, and the most popular method is fixed-frequency peak-current-mode control with fixed-slope compensation ramp. The technique is called current-mode control because the inductor current is directly controlled, whereas the output voltage is controlled indirectly by the current loop. A control reference is used to regulate the peak current of the converter directly. Figure shows the schematic of the boost converter with current-mode

C. Inductor And Capacitor Behavior

The basic concept of operation is that every time the switch is closed, current builds up in the inductor. When the switch is opened, the current can't stop instantly and so it's forced to flow into the capacitor until the current dissipates. If the switch is closed again, the diode ensures that the capacitor won't discharge back through the switch. This process of opening and closing the switch can be repeated many times with each cycle adding more charge onto the capacitor until a limiting value of voltage is attained.

A) Inductor Property

Inductor stores energy in the form of magnetic field, and electric current is responsible for it. Therefore electric current flowing through the inductor cannot change suddenly. An applied voltage will cause current through the inductor to build up over time at a rate inversely proportional to its inductance (L1). That process is governed by the equation:

A Matlab Code Was Developed Which Simulates The

behaviour and makes the plot with the title "Initialization Period" which is given in figure. It can be seen that with the components chosen, the whole initialization process is in less than 1/100th of a second, so one may not be able to observe it easily without a storage scope. To reach 99% of the steady state current took just about 5 milliseconds.

We Can Find The Recommended Inductor Values In A

datasheet. An inductor is chosen from this range. The higher the value of L, the higher is the maximum output current because of the reduced ripple current. In general, the lower the inductor value, the smaller is the solution size. The inductor must always have a higher current rating than the maximum current because as the current increases the inductance decreases. If no inductor range is provided, the following equation is a good estimation for the right inductor: A good estimation for the inductor ripple current is 20% to 40% of the output current.

B) Capacitor Property

Capacitor stores energy in the form of electric field, and voltage across it, is responsible for the stored energy. Therefore voltage across capacitor cannot change suddenly.

Now let's say that after letting the system initialize with the switch closed (ON), the switch is now opened (OFF). The capacitor becomes important at this stage because the only possible path for the current to flow is forward through the diode and into the capacitor. Voltage across the capacitor will build up over time at a rate proportional to the current and

Inversely Proportional To The Capacitance (C1)

With the help of a voltmeter, the voltage across the capacitor is measured so that one can track the behaviour of the capacitor as the voltage changes. Note that voltmeter actually allows some current to flow. We usually can neglect this, but here in this case, it is considered as it is to be modelled. Let's say the voltmeter acts like a resistor with fixed resistance of Rload.

A Matlab Code Was Developed That Simulates The

circuit's behaviour and makes another plot which is entitled "Switch Opened after Initialization Period".
