Conduction Loss Calculation Matlab

Losses In Cascaded H-Bridge Multilevel Inverters

Abstract-Nowadays, voltage source multilevel inverters are being used extensively in industry due to its many advantages ,compared to conventional two level inverters, such as higher output voltage at low switching frequency, low voltage stress(dv/dt) , lower total harmonic distortion (THD), less electro-magnetic interference (EMI), smaller output filter and higher fundamental output. However, the evaluation of multilevel inverter losses is much more complicated compared to two level inverters. This paper proposes an on-line model for precise calculation of conduction and switching losses for cascaded h-bridge multilevel inverter. The model is simple and efficient and gives clear process of loss calculation. A single- phase 7-level cascaded h-bridge with IGBT’s as switching devices has been used as a case study of the proposed model. The

Harmonic

elimination in which the switching angles were determined using the Genetic Algorithm (GA). MATLAB-SIMULINK is used for the modelling and simulation.

Figure: System Model & Simulation Flow for Conduction Loss Calculation Matlab

Index Terms—Cascaded H-Bridge Multilevel Inverter (CHB- MLI), Conduction Losses, Switching Losses, Selective Harmonic Elimination (SHE).

Figure: System Model & Simulation Flow for Conduction Loss Calculation Matlab

Introduction

In the last decade, the use of multilevel inverters has been grown numerously in most of the industrial power applications. It is hard to connect one power semiconductor switch directly in utility applications that requires medium voltage and high power level. Hence, the concept of multilevel inverters came as an alternative to conventional inverters in such applications. The multilevel inverters became very attractive as they produce low harmonic component at low switching frequency. In addition, they result in lower losses, lower blocking voltage of switching devices, and low electromagnetic interference (EMI) .

Figure: System Model & Simulation Flow for Conduction Loss Calculation Matlab

There are basically three main commercial topologies of multilevel voltage-source inverters well placed in industry which are: cascaded H-bridge (CHB-MLI), neutral-point clamped (NPC-MLI) and flying capacitor (FC-MLI).

Among these topologies, the CHB-MLI is very widely used in industry for high power applications. It is used in high voltage and high power levels and it requires small number of devices, consequently, it has a reliable modular structure compared to the NPC-MLI and FC-MLI.

For Power System Planning And Multilevel Inverter

design, accurate calculation of inverter power loss is of great importance to evaluate system efficiency, reliability and system operating cost. The design engineer should calculate the inverter losses precisely. In fact, loss evaluation in multilevel inverter is not an easy task and much more challenging compared to conventional two level inverters.

This is mainly because that the current differ in each power switch in the inverter. This paper focuses on a precise modelling of switching and conduction losses in CHB-MLI.

Different methods were suggested in literatures to calculate the power loss in multilevel inverters. Some of these methods are based on online calculation from the simulated circuit and

Some Are Based On Deep Mathematical Analysis And

evaluation. In , each IGBT was modelled by characteristic curves using curve fitting exponential equations as a function of load current. In , a general scheme for calculating switching and conduction losses of power semiconductors in numerical circuits has been proposed. The model can be used online on the circuit simulation. Switching functions have been used in to model the inverter losses for three phase nine level cascaded h-bridge inverter in which the load was assumed to be mixed RL load and the modulation index was 0.85. All the previous papers used online modelling for calculating the losses by applying curve fitting to characterize the IGBT based on the datasheet. On the other hand, in ,

And , The Losses Of Multilevel Inverter Have Been

calculated based on mathematical model in which the voltage across the switch as modelled by a threshold voltage and a series resistance.

This Paper Implement A Model For Calculating

conduction and switching losses in CHB-MLI based on the method applied in with little modification to be applied for multilevel inverters. A very clear and efficient procedure is to be explained in details which should serve as a guide in loss evaluation for multilevel inverters. The proposed modelling will be based on online simulation in which the inverter losses are calculated precisely with much less computational efforts.

Basically, there are four types of losses in multilevel inverters which are: Conduction loss, Switching loss, OFF-state loss and Gate loss. The OFF-state and Gate losses are very small and normally neglected. Hence, in this paper only conduction and switching losses are considered throughout the analysis.

As it is most widely used in medium voltage, high power applications, the CHB-MLI has been considered for the analysis with IGBT’s as power switching devices. First, Selective Harmonic Elimination (SHE) technique is to be performed to determine the switching angles which give minimum harmonic distortion. Genetic Algorithm (GA) optimization method is used for solving the system of transcendental equations. Then, simulation is conducted to evaluate the conduction and switching losses based on the proposed modelling. Curve fitting equations are implemented to model the power switch mathematically as per the datasheet.

While Diode-Clamped (Dc-Mli) And Flying Capacitor

(FC-MLI) are widely used for industrial medium voltage- high power applications when just low number of levels (typically three) is required, Cascaded H-Bridge inverters (CHB-MLI) are most suitable for high voltage-high power, HVDC utility applications. Mainly due its modular structure which can be extended for high number of levels with no much complexity. Furthermore, with CHB-MLI, higher power and voltage capability can be achieved at lowest number of required devices compared to DC-MLI and FC- MLI. The CHB-MLI uses series connection of single phase h- bridge inverters with separate dc sources. The main idea is that each bridge cell will generate three different voltages and the output waveform can be synthesized by the sum of the voltages generated by each cell. The separate dc sources might be solar panel PV cells or fuel cells.

In this paper, a 7 Level CHB-MLI has been chosen to be investigated. The circuit layout for single phase 7-Level CHB-MLI is shown in Figure (1). The switching devices have been selected to be of IGBT type FZ1500R33HL3, which has a blocking voltage capability of 3.3 kV, and a maximum forward current of 1500 A and its shown in Figure(2).

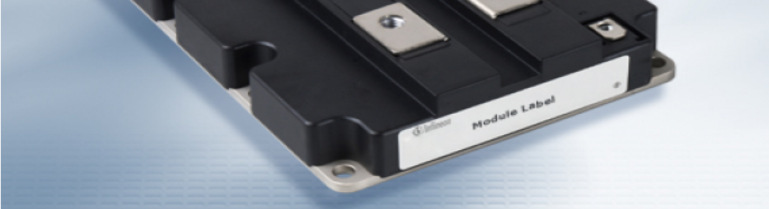

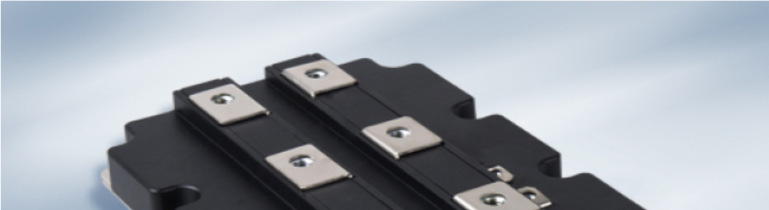

Datasheet for this type IGBT is given in . Typical applications of this IGBT are: Chopper Applications, Medium Voltage Converters, Motor Drives, Traction Drives, UPS Systems and Wind Turbines . Each cell is connected to a dc link supply of 100 V. Modulation index of (0.8) was used throughout the analysis. The inverter has been modelled in

Maltal-Simulink With Main Objective Of Precisely

calculating the conduction and switching losses of the inverter.

S12

Fig. 1. Single-phase 7-level cascaded h-bridge inverter circuit layout. 2.IGBT module FZ1500R33HL3 typical appearance .

Selective Harmonic Elimination (She)

To control the output of voltage waveform in multilevel inverters, different modulation techniques have been applied. These control techniques are classified mainly based on the switching frequency into low or high switching techniques.

Space Vector Control (Svc) And Selective Harmonic

Elimination (SHE) are low switching techniques in which the active power switch is commutated only one or two times within one cycle. On the other hand, various PWM are used for high switching techniques in which the power switch is switched many times within a cycle . In this analysis, SHE has been proposed for controlling the inverter as this technique has lower switching losses and less EMI because of its low switching . In addition, it can eliminate the dominant low order harmonic and hence minimize the size of the required filter at the inverter output.

SHE uses pre-defined switching angles to form the desired multilevel fundamental voltage and eliminate the predominant low order harmonics which results in minimizing the total harmonic distortion (THD). The switching angles are pre- calculated off-line and hence this is considered open loop control technique. Figure (3) shows the stepped-voltage waveform for 7-level CHB-MLI. It is clear that, there are 3 switching angles which can be pre-calculated in this case.

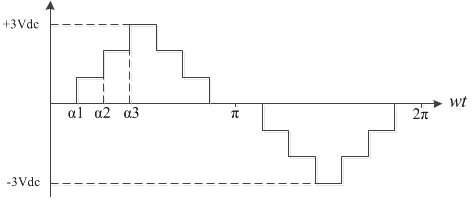

Fig. 3. Stepped-voltage waveform for 7-level inverter. Applying Fourier’s expansion, the stepped voltage wave form can be expressed in sum of sine and cosine periodic signals and a constant. The signal consists of odd and even harmonics. Due to the quarter symmetry of the waveform, the even harmonics and the dc constant are cancelled. Hence, only odd harmonics are considered. For balanced three phase systems all triplen harmonics are zero. Generally, The output



,,,…..  ∝ +  ∝ … . . + ∝ ! #$ (1) Where (S) is the number of H-bride cells of the inverter.

It is clear from Figure (3) that all switching angles are less than 90°, and are all in ascending order. In 7-level CHB-MLI

(2)

And it is possible to eliminate the 5th and 7th harmonic by solving the following system of non-linear equations where (mi) is the modulation index.

 ∝+  ∝+  ∝= 3*+ (3) 5 ∝+ 5 ∝+ 5 ∝= 0 (4) 7 ∝+ 7 ∝+ 7 ∝= 0 (5) Newton-Raphson iterative method has been applied to solve such system in practice. Key issue is that when the inverter level gets higher, it becomes more difficult to get to the solution. In addition, it requires good initial guessed values of the switching angles. In this paper, Genetic Algorithm (GA) has been applied to solve the system of transcendental equations . The objective function is to minimize the total harmonic distortion (THD) with the transcendental equations (3-5) are set to be minimization constraints. This should result eliminating the 5th and 7th harmonics. The optimum switching angles of the 7-level CHB-MLI under investigation at 0.8 modulation index are found to be 11.5° , 28.7° and 57.2° respectively using GA- toolbox in Matlab.

Power Loss Modelling

When operating power electronics devices that involve switching of semiconductor devices, there are mainly four types of power losses occur during this operation. These types are: 1) Conduction losses, 2) Switching losses, 3) OFF-state losses, and 4) Gate losses. The Off-state and Gate losses are very small and normally neglected. Hence, in this paper, only conduction and switching losses have been considered for the analysis.

Compared to two level inverters, the estimation of inverter losses is a complicated task for multilevel inverters. The usual conventional methods used to calculate the losses in two level inverters, are not suitable to be applied in the case of multilevel inverters. Main reason for this is that in multilevel inverters, each semiconductor devise has different current compared to other devices which implies different losses behavior for each one. This results from having different on-state ratio for each device for one leg during one period of output phase voltage. Furthermore, at higher number of levels, the switching frequency of each device is not the same which add more complexity to the estimation method.

In This Paper, A Simplified Model Is Proposed For

calculating the losses of CHB-MLI precisely. The proposed model uses the method applied in with little modifications. The operating temperature is assumed to be maximum at 150ᵒ. The model is based on on-line calculation in which

Matlab-Simulink Software Has Been Used For The

modelling. Mixed load of R=60 Ω and L=20 mH , has been considered for the analysis. The result compared to the case where the load is changing from purely resistive load gradually to purely inductive load. The purpose is to provide a comprehensive study of the inverter losses behavior at different load conditions.

A. Conduction Losses

For a semiconductor device, the losses which occur while the power device is on the on-state and conducting current, is defined to be the device conduction losses. In CHB-MLI, the conduction loss increases proportionally with the number of cascaded cells. At conduction, the power dissipation can be computed by multiplying the on-state saturation voltage by on-state current.

./01234+0 = |#3| .
0 (6) The absolute value is taken as the conducting current is always positive for the device. Most of the literatures usually are modelling the on-state voltage by inserting a voltage Vo, representing the voltage drop of the device called threshold voltage, and a resistor ron representing the current dependency in series with the ideal device. The main

Drawbacks Of This Modelling Approach Are :

1) Additional parameters to be added in series with the ideal switches, hence rebuilding the circuit partially.
