Design and implementation speed control system of DC Motor

Based On Pid Control And Matlab Simulink

Salman Jasim Hammoodi1, Kareem Sayegh Flayyih2, Ahmed Refaat Hamad3

Accepted Aug 4, 2019

In this paper, we first write a description of the operation of DC motors taking into account which parameters the speed depends on thereof. The PID (Proportional-Integral-Derivative) controllers are then briefly described, and then applied to the motor speed control already described, that is, as an electronic controller (PID), which is often referred to as a DC motor. The closed loop speed control of a Brush DC motor is developed applying the well-known PID control algorithm. The objective of this work is to designed and simulate a new control system to keep the speed of the DC motor constant before variations of the load (disturbances), automatically depending to the PID controller. The system was designed and implementation by using MATLAB/SIMULINK and DC motor.

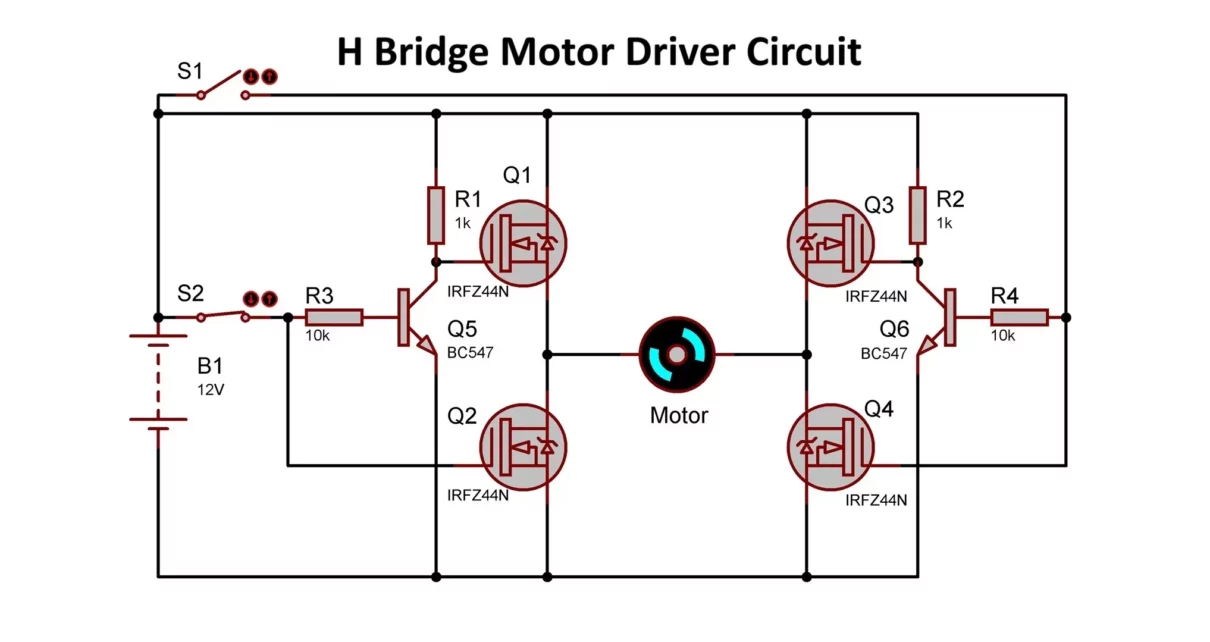

Figure: System Model & Simulation Flow for Dc Motor Speed Control Matlab

Speed Control

This is an open access article under the CC BY-SA license.

Al-Za’Franiya, 10074 Baghdad, Iraq

1.

Introduction

At present, most of the motors in the industry are handled directly from the electrical distribution lines, whether they are DC or AC motors. Because of this, the behaviour of the motor depends on the nature of the load coupled to the axis of the machine . In the case of a light load the motor develops a relatively high speed and a low torque because it is the load requirement. On the contrary, if a heavy or difficult to move load is available, the motor will move at a lower speed and deliver more torque as a higher load demands it .

Figure: System Model & Simulation Flow for Dc Motor Speed Control Matlab

As can be seen by directly connecting the motor to the AC or DC electrical network, its behaviour is defined and it will remain unchanged for a certain fixed voltage in the power supply line. However, in a large part of the industrial sector, there are processes in which the management of the operating characteristics of said machines is required, which is why parameter control devices such as speed and frequency variations are used. In the case of AC motors, these devices are commonly used and have a relatively low cost, however, when working with DC motors the variable speed drives have an excessively high cost which makes them little accessible to many industries that require its use .

Figure: System Model & Simulation Flow for Dc Motor Speed Control Matlab

In this paper to design and implementation speed control system of DC Motor based on PID control and Matlab Simulink, the motor is divided into two main parts the electrical part of the armature and the mechanical part [11, 12]. The armature is modelled as a circuit with resistance R connected in series to a conductor L, a source of voltage V and constant Kb of force against electromotive in the armature. The

128

mechanical part of the motor is the rotor which, when in motion, has a moment of inertia J, a Torque T, a viscous friction coefficient b, a position θ and an angular velocity bθ = ω . The PID controller is responsible for correcting the error it receives from the difference of the input signal and the output signal of the tachometer, the corrected error enters an amplification stage before entering the plant. In this paper the development of a speed and direction motor for an autonomous race robot is presented. Both controls use the PID control algorithm [13, 15-20].

Figure: System Model & Simulation Flow for Dc Motor Speed Control Matlab

The paper aims to provide a solution to the difficult access that economic conditions have for these automation technologies, developing an own speed control system for any DC motor that requires it, economically viable and applicable to any type of machine, of easy use and implementation in all types of industrial processes.

Figure: System Model & Simulation Flow for Dc Motor Speed Control Matlab

2.

The Basics Of Dc Motors

The history of the development of the construction of electric machines began in 1831 with the discovery of Faraday's law until the middle of the eighth decade of the last century. The DC motors are machines that convert electrical energy into mechanical energy, causing a rotary movement. There were several reasons for the prolonged popularity of dc motors. One was that DC power systems are common even in cars, trucks and airplanes. When a vehicle has a DC power system, it makes sense to use DC motors. DC motors were also applied when wide variations in speed were required. Before the widespread use of electronic power rectifier inverters, dc motors were not matched in speed control applications. Even if there were no dc power source, the solid-state rectifiers and the trimmer circuits were used to create the necessary power; dc motors were used to provide the desired speed control (induction motors with groups of solid-state controllers are now preferred for most speed control applications.) However, there are still applications where DC motors).

The dc motors are driven by a dc power source. Unless otherwise specified, it is assumed that the input voltage is constant, since this assumption simplifies the analysis of the motors and the comparison between the different types of them. There are five types of general purpose DC motors:



Independent excitation direct current motor.



Direct current motor in derivation.



Permanent magnet direct current motor.



Direct current motor in series.



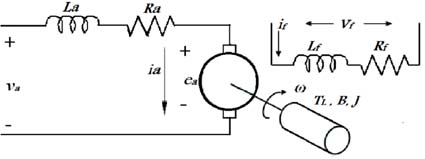

Composite direct current motor. The Figure 1 show the full equivalent circuit of the dc motor. The equivalent circuit in Figure 1 is similar to the generator circuit only the current directions are different. The operation equations are, (1) is present the Armature voltage equation .

(1)

The induced motor voltage and motor speed vs angular frequency of the motor is present in (2). The combination is present in (3) and the output power and torque are present in (4).



Design and implementation speed control system of DC Motor based on PID ... (Salman Jasim Hammoodi)

(4)

3.

3.1. The Control Systems

Automatic control is of vital importance in the world of engineering. In addition to being essential in robotic systems or modern manufacturing processes, among others applications, has become essential in industrial operations such as pressure control, temperature, humidity and viscosity, and flow in the processing industries. Figure 2 shows a generic block diagram of a control system, in the Laplace domain.

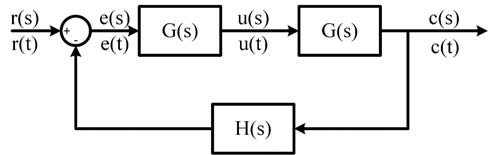

Figure 2. The Block Diagram Of A Control System

Typically, the feedback contains a sensor or transducer element that measures a physical parameter, such as speed or temperature, and converts it into a voltage or current. The basic function of a controller is to compare the real value of the output of a plant c(t), with the reference input r(t) (desired value), determine the error e(t), and produce a control signal that will reduce the error to a value close to zero.

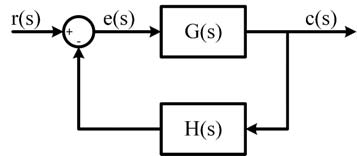

Figure 3 present the specifications for a control problem are often given in the time domain, and usually include a certain transient response and an error in state stationary, for a specific entry as is usually a step.

Figure 3. The specifications for a control problem One way to achieve this is by placing a transfer driver Gc (s), in the control loop, as shown in the Figure 3. The error signal E (s) is the input to the controller, and U (s) is the output of the same and at the same time the input to the plant, and the purpose of the controller is to make the output of the system follow the input. In Figure 4 we observe the different types of response according to the controller that is used.

130

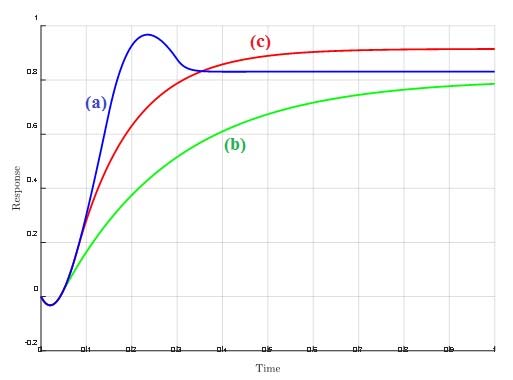

Figure 4. Response to the step of a closed-loop feedback system given by: (a) Controller P (b) Controller PD

3.2. The Pid Controllers Method

error is changing with respect to time. In this way, the controller can estimate future values of the error signal and compensate accordingly. It should be taken into account that even if the error is constant and the derivative term does not contribute, if it is variant in time this term can be used to reduce the offset called steady-state error. Another problem associated with the PD is that it works like a high-pass filter. Therefore, the PD controller amplifies the high frequency noise, which reduces the stability of the total system.

To eliminate the steady state error, an integral term is added. That term it gives the PID controller the ability to remember the past, also allowing an output non-zero for a null entry. So this controller allows to have a status error stationary equal to zero. In return, the integrator adds a pole in the function of closed loop, with which the stability of the system declines. From the above, the PID is an excellent controller. The

(5)

It should be clarified that if a mathematical model of the plant can be deduced, it is possible apply several techniques to determine the controller parameters, which comply with the transient and steady state specifications of the closed loop system. However, if the plant is so complicated that you cannot easily obtain your mathematical model, the analytical design model of the PID controller is possible. Then you have to resort to experimental procedures for the design of this type of controller. The process of select the parameters of the controller so that it meets the specifications of operation is known as tuning or tuning the controller. Ziegler and Nichols suggested rules for tuning PID controllers, that is, setting the values of Kp, Kd and Ki.

3.3. Types Of Pid Controllers

for PIDs The transfer functions for the different types of PID drivers are: a. PID not interacting or ideal form : is present in (6).

(6)

b. Interactive PID or series form : is present in (7).

(7)

c. PID parallel form : is present in (8).
