Sofiane Khelladi1, Khadidja Saci1,Abdelchafik Hadjadj1, and Achour Ales2 ABSTRACT In this paper, an optimization method of toroidal core-based Hybrid common mode chokes (HCMCs) for the design of an Electromagnetic interferences (EMI) filter is proposed. A dedicated algorithm is developed using MATLAB to characterize compact HCMCs that exhibit effective Common- Mode (CM) chokes with optimized leakage inductances by systematic variations in the winding patterns and geometric dimensions of their magnetic cores. It takes into consideration the physical limitations of these components as well as the constraints related to the design of EMI filters. The proposed algorithm allows through a small computational task to propose a variety of configurations for optimal HCMCs.

Finite element method (FEM) simulations are conducted on the HCMCs to extract their CM and leakage inductances. The results are compared with those calculated analytically and yield a good match. The performances of optimized HCMCs are evaluated through their implementation in the designed filter. All the cases of HCMCs including the smallest one allow the EMI filter to easily qualify a power converter to an electromagnetic compatibility (EMC) standard.

Index Terms

Electromagnetic interferences filter (EMI), Hybrid common mode choke (HCMC), Optimization algorithm.

He Proliferation Of Switch Mode Power Supplies

(SMPS) and their wide usage in all modern industrial and domestic energy applications are attributed to their high performances, compactness, and competitive prices .

However, Electromagnetic Compatibility (EMC) regulations require on these power devices to meet specific standards due to their high induced levels of electromagnetic interfer-

Ences (Emi) Mainly Conducted Common-Mode (Cm) And

Differential-Mode (DM) noises. This usually necessitates the implementation of passive EMI filters as they present the main countermeasure in the EMC arsenal against EMI due to their effective mitigation performance and their basic and low-cost conception process. On the other hand, EMI filters occupy a substantial portion of power converter volume and weight (up to 30%) . This comes back to the size of their CM and DM chokes in particular CM chokes (CMCs) which are usually the bulkiest filter components. Therefore, to achieve the design of compact and effective EMI fil- ters many optimization methods and integration techniques were vastly explored to reduce the size/number and weight of these components. In , the leakage inductance of a toroidal CMC is improved by inserting a smaller DM toroidal coil within. Although this structure reduces the vol- ume of the filter, it significantly heightens the total parasitic capacitance of the resulting choke. Similar to this approach, in the leakage inductance of a toroidal CMC is increased by inserting the latter into an EQ core made of MnZn ferrite, which enhances the DM filtering but still, the resulting structure will exhibit additional size and weight. Another approach described in suggests coating the outside of the CMC with a magnetic epoxy mixture which enhanced the leakage inductance. Yet, such component requires higher labor cost because of the fabrication and the coating process of the magnetic epoxy mixture. Moreover, in integration of a CM and DM inductor into a single magnetic core unit using EE-type and EIE-type cores was presented. This method helped a 69% reduction of the inductor size for single-stage EMI filter but still, this type of cores has a limited capacity of heat dissipation which affects their effi- ciency compared to discrete inductors. The work described in proposed the computation of the optimal volume of a toroidal CM inductor taking into account the problems related to the saturation of its core and the overlapping of the coil turns. This method achieved an optimal size for the CM inductor by providing a useful computation tool. The most frequently employed CMCs in commercial EMI filters are still constructed on toroidal cores owing to their low cost and wide availability according to . A toroidal CMC is usually realized with coupled inductors

56

whereas the DM inductance is achieved depending on the amount of required DM filtering either by actual discrete inductors or by the CMC parasitic leakage inductance.

This inductance depends on the CMC structure and has no physical size which limits the number of components and mounting area. Furthermore, since this inductance is an air-cored inductor, it never saturates at any level of current keeping sustainable filtering performance which favors the usage of a toroidal CMC for CM and DM noise suppression.

This inherent parasitical parameter has been addressed in several research papers, either as a constraint in the design of CMCs which is the case in – or to act as a formal DM

Inductor In Emi Filters Design As In –. References

, reported the designable parameter for a CMC.

This Parameter Defines The Cm And Dm Impedances Of

the CMC as well as its parasitic capacitances. The CMC

Dm Impedance Which Improves The Dm Noise Filtering

is defined by the CMC dimensions, the number of turns and the angle of its leakage inductances. However, due to their complex mechanical structures, toroidal CMCs provide leakage inductances with limited values ranging from 0.1 % to 2 % of their total values depending on the winding system. The CMCs with sectional winding exhibit a higher leakage inductance compared to CMCs with bifilar winding . Taking into account the features that this stray element offers, the concept of exploiting the leakage inductance of a standard toroidal CMC remains tempting compared to the aforementioned methods.

This paper presents an effective optimization approach intended for the design of EMI filters with compact and effective CMCs with optimized leakage inductances. The paper is structured as follows. Section II describes the design steps of the EMI filter. The HCMC optimization method is detailed in section III. Section IV is devoted to the application of the proposed optimization method in the design of an EMI filter dedicated to a power conversation system. Section V presents discussion. The conclusion of this work is given in section VI.

A. Sizing Of The Emi Filter

The EMI filter is constructed to fulfill the EMC standard requirements imposed on power converters by sizing its elements to provide the required mitigation of EMI. The design of the filter is based mainly on the levels of EMI disturbances and the EMC Standard that they are intended to qualify for. The proper sizing of the filter components is governed by several constraints related to power density, safety regulations, and the stability of the power electronic system. For the CM filter parameters, the value of its capacitors is limited by safety standards which define the maximum leakage current to earth thus, imposing the need to compensate by increasing the CM inductors value and thereby their sizes. The sizing of the DM filter parameters depends on the amount of DM noise to be attenuated taking into account the impact of its components impedance on the stability of the power conversion system. The design workflow of the EMI filter is summarized in the diagram shown in Fig. 1 including the optimization algorithm as an essential step to provide the recommendations for optimal HCMCs. The filter design procedure requires predefined

Parameters According To Emi Requirements I.E.:

• The EMC standards that EMI are intended to meet (e.g.

En 55032 Analog To Cispr 32);

• The conducted CM and DM EMI levels induced by the

• The Cm And Dm Filters Cutoff Frequencies (Fo_Cm,

fo_DM). The conducted CM and DM noises are evaluated separately to establish the key points in their frequencies spectra with respect to EMC limits and define the required CM and DM

(2)

Where (VLimit) is the limit defined by the standard and SM is a safety margin usually set to 6 dB to account for possible inaccuracies in conducted EMI estimation and stray inductive and capacitive components .

The filter topology is considered as a preliminary step in the filter design (e.g., 40 dB/dec for Γ type L-C single- stage, 60 dB/dec for Π or T type L-C single-stage... etc.).

Accordingly, fo_CM and fo_DM are delivered by (3):

(3)

where fo_CM/DM_h are the frequencies of the CM/DM har- monic components to be attenuated. ILfilter is the theoretical insertion loss of the filter depending on its topology .

With fo_CM/DM being defined, the required components forming the CM and DM sections of the filter are determined

Cdm = Cx1=Cx2 (5)

LCM_req and LDM_req are respectively the filter CM and DM required inductances, whereas CCM and CDM are the respective capacitances of its CM and DM sections. The design worflow of the filter is done with the following steps: • The pairs of components (LCM_req , CY) and (LDM_req, CX) that achieve the minimum required insertion losses profiles are determined according to EMI requirements

Where The Filter Cm And Dm Caps (Cy, Cx) Selec-

tion is done beforehand then their respective inductors

(Lcm_Req, Ldm_Req) Are Calculated Accordingly;

S. Khelladi et al.

57

• Based on the calculated pair of inductors (LCM_req, LDM_req) the proposed algorithm will define the best possible configurations of HCMCs with their feasible pairs of effective CM inductances and adequate leakage inductances taking into account their physical and

Geometric Limitations;

• The optimal HCMCs are chosen among the other cases

Used As Recommendations To Develop 3D Prototypes

then FEM simulations are carried out on each of them separately after including the material database of their

Magnetic Cores;

• The performances of optimized HCMCs are evaluated

The Designed Filter

model to qualify a power converter to an EMC stan- dard.

B. 3-D Fem Simulation Of The Hcmc

Three-dimensional (3-D) FEM simulations offer a powerful means to analyze electrostatic and electromagnetic problems linked to different power components and allow to model their behavior at high frequencies which is suitable for the characterization of CMCs. Usually, a proper adaptation of large or complex problems for a 3-D FEM simulation requires a certain degree of simplification to be made on the model’s structure to gain in simulation time and memory at the expense of accuracy. Considering this, the optimized HCMCs which reflect as close as possible the geometry of real choke (Fig. 2d) are modeled and treated separately.

The choice of the magnetic material is done beforehand by defining its main characteristics namely its real and complex magnetic permeability (µ′, µ′′) in the material model relative to the toroidal core. The 3-D FEM simulations performed on the HCMCs models took an average computational time of roughly 45 min for each case using a server comprising a CPU with 6 cores running each at 2.20 GHz and a 16 GB

A. The Hybrid Common Mode Choke

The CMC is the centerpiece in EMI filters and take a crucial part in their design. Its formed of two windings wound around a highly permeable core in the same direction for single-phase applications as shown in Fig. 2a. The magnetic field HCM induced by CM currents is cumulated within the toroidal core creating an impedance that acts against these currents. However, in a CMC, the leakage fluxes caused by the DM currents do not fully cancel out which creates magnetic leakage fields Hleak on each coil of the CMC (bleu curves) and defines its parasitic leakage inductance . Constructively, in the design of filters, this inherent parasitical parameter has been exploited by designers to act as a regular DM inductor which introduced the concept of HCMC. In Fig. 2b, d is the wire diameter estimated with respect to the power system rated current, e is the wire insulation thickness, and θ is the angular coverage of each winding. The CMC geometric parameters are shown in Fig. 2c where ID and OD are the inner and outer diameters of the core respectively whereas H is its height. Fig. 2d shows the 3D model of a CMC.

B. The Hcmc Cm Inductance

The sizing of a single-phase HCMC inductance to handle the CM and DM currents increase the design considerations due to the physical limits related to this device including saturation, high frequency operation, and others related to its geometric aspect. These considerations can be addressed by setting constraints on the design of this component to obtain its best performances. A single-phase CMC inductance is

(6)

where µ is the permeability of the core material. Ae and le are the effective cross-sectional area and the mean path length of the magnetic core respectively.

S. Khelladi et al.

(D)

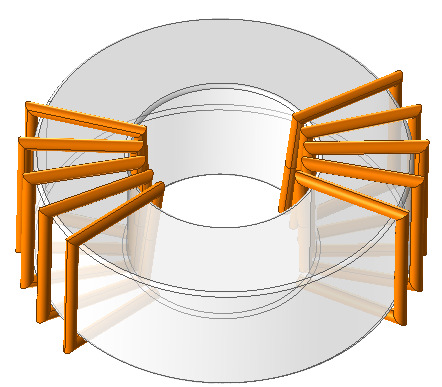

FIGURE 2: (a) Sectional wound CMC, (b) Cross-sectional view of the CMC showing the toroidal core window area, (c) Dimensions of the CMC, (d) 3D model of the CMC CMCs are built on magnetic cores destined to exhibit a good dissipative behavior against the noise signals energy and the overall size of these magnetic cores is related to their capacity to handle this energy. Moreover, the core’s permeability is strongly dependent on frequency, and knowing that its typical curves decrease with frequency for ferrite and nanocrystalline core materials, the design of a specific inductance that maintains its value at high frequency imposes the increase of the core size and/or the number of turns N according to (6). The nonsaturation limit of the core is set by ensuring that the maximum magnetic field in the inductor Hmax is always beneath the saturation magnetic field Hsat of the used material as illustrated in (7):

(7)

where Imax is the maximum CM current and “r” is the inner radii of the toroidal core. For a single layer CMC, a high number of turns N will cause the saturation of the core according to (7) and at the same time raise the problem of the winding that must fit through the core window. Hence to avoid saturation and guarantee the effective usage of the core window area there are two design constraints to ensure when sizing the CM inductor.

The constraint on the saturation is verified with respect to ID taking into consideration (7) and it’s defined as in (8):

(8)

Secondly, when designing a CM inductor on a toroidal core the effective use of window area implies enough space left between windings of different phases. It also imposes to ensure that the required number of turns will fit on one- half of the core as it has to be enough angular spacing between the turns of the windings to decrease the effect of the parasitic capacitances . Thus, the number of turns included in (8) needs also to be included in the following relationship which defines the minimum inner diameter of the core that fulfills the condition for effective use of window area.

(9)

To acquire the proper CM filtering the theoretical value of LCM for the designed HCMC should attain an effective value always equal or above the required inductance defined according to EMI specifications. For an input line filter with a given CM attenuation, a higher value of LCM in a given (LCM , CY) pair will push the filter cutoff frequency towards low frequencies which improves furthermore the attenuation of the filter and in the same time diminish the CM currents at low frequencies. Hence, the designed HCMC CM inductance must achieve (10).

(10)

with LCM determined by (6) and LCM_req as the minimum required CM inductance defined from the CM filter design specifications.

C. The Hcmc Leakage Inductance

The unwounded section of the core evaluated in degrees is one of the parameters affecting directly the leakage induc- tance of a toroidal core-based CM choke according to .

Based on the methodology described in the calculation of the leakage inductance of a single-phase CM inductor is done by multiplying the effective mean path length of the leakage path of each phase leff by the inductance of an air- gap toroid. Presuming that the leakage magnetic field paths follow the blue lines shown in Fig. 2a, leff is empirically derived for windings which span a section of the core above

(11)

The leakage inductance of each phase can be therefore

(12)

Considering a specific core size and taking into account (12), an increased number of turns is one way to exploit a larger leakage inductance, but this will require a small wire size that limits RMS currents. Such a manner will also cause high winding losses, temperature rise and will expose the magnetic core to saturation as mentioned before . Conversely, a low number of turns N will lead to small leakage inductance. Another approach will be to enlarge the core, but this will result in large and high-cost filters.

Hence, the control of saturation and the proper amount of leakage inductance impose a compromise in the design of S. Khelladi et al.

59

the HCMC. Furthermore, the stability of power electronic systems invokes the Middlebrook criterion for input filters

(13)

This latter impose on the output impedance of the input DM filter Zo to be much lower than the power converter input impedance Zin thus, bounding the allowed values of the required DM inductor LDM_req to a maximum value denoted as LDM_max.

The feasible pairs of the DM filter components (LDM, CX) which verify (13) are defined in the allowed ranges of values determined with the intersection of Zo and fo_DM axes in a reactance graph. Given the substitution of the DM inductor with the CMC leakage inductance which doesn’t exhibit any physical size, the choice of a minimum value of CX is preferred to gain the highest value of leakage inductance.

Accordingly, the HCMC will be designed to harness the highest value of leakage inductance on each winding defined as in (14).

D. The Hcmc Volume

Improving power density imposes a high-frequency opera- tion with compact size in the design of any component and knowing that inductors are typically the largest components in electronic power systems, the key to small size will be the use of smaller inductors. Accordingly, the global volume V of the HCMC mainly contributed by the magnetic core size in addition to wire size is evaluated with (15) as follow:

E. Development Of The Optimization Prosses

The sizing of the HCMC for a given CM and DM filters im- pose on its pair of inductances (LCM,Lleak) the constraints predefined with (10) and (14) respectively. The constraints on the saturation and the proper use of the window area of the core are verified with respect to ID through (8) and (9) respectively. The geometrical aspect of the HCMC which is affected by all these constraints gets reflected on the total volume of the HCMC evaluated with (15). The optimization algorithm of the HCMC taking into account all the constraints mentioned before is described through the flow chart illustrated in Fig. 3. The development of this

Hsat;

• Select wire diameter with respect to Iphase_max; • Perform an iterative variation of ID, OD, H, and θ alongside N which is varied to exploit the increase in

The Number Of Turns For A Smaller Magnetic Core;

• Check every combination of the varied parameters against the constraints defined with (8) then (9) respec-

Tively;

• Evaluate LCM and Lleak respectively for every case approved by the previous step then check against the

Conditions Set With (10) Then (14) Respectively;

• Evaluate with (15) the volume V for every case ap-

Proved By The Previous Step;

• The output parameters ID, OD, H, θ, N, for all ap- proved cases are considered as recommendations for the best HCMCs in terms of their inductances (LCM, Lleak) and their volumes.

These geometric parameters are used to develop 3D pro- totypes of the HCMCs then FEM simulations are carried out on each of them separately. The simulation results of their respective inductances LCM and Lleak are then compared with those computed analytically.

Lcm_Req , Ldm_Req

FIGURE 3: Flow chart of the HCMC optimization algorithm S. Khelladi et al.
