Fuel Cell Dc Dc Converter Matlab

accredited by DGHE (DIKTI), Decree No: 51/Dikti/Kep/2010

183

Received February 14th, 2011; Revised April 15th, 2011; Accepted April 23th, 2011

Converter

Ahmad Saudi Samosir*1, Tole Sutikno2, Abdul Halim Mohd Yatim3 Jln. Prof Sumantri Brojonegoro, Bandar Lampung, 35145, Indonesia, Ph./Fax: +62 721-701609/702767 Jln. Prof. Soepomo, Janturan, Yogyakarta 55164, Indonesia, Ph./Fax: +62 274-379418/381523 FKE-UTM, Skudai, 81310 Johor, Malaysia, Ph./Fax: +607-5535200/5566272

Abstrak

Sel bahan bakar adalah sumber energi alternatif baru yang memiliki prospek yang baik untuk pembangkitan energi listrik terdistribusi dan aplikasi kendaraan listrik. Namun, sel bahan bakar mempunyai respon yang lambat disebabkan respon elektrodinamik dan termodinakmik internal. Untuk mengoptimasi kinerja dari sistem sel bahan bakar, diperlukan sebuah konverter DC ke DC untul sel bahan bakar dengan pengendali yang sesuai yang dapat meregulasi aliran daya dan secara otomatik mengatur tegangan keluaran konverter. Paper ini mengusulkan sebuah teknik kendali baru untuk konverter daya DC ke DC sel bahan bakar. Dilakukan desain dari metoda kontrol yang diusulkan. Sebuah pendekatan baru untuk sintesa pengendali konverter berbasis teori pengendali evolusi dinamik di paparkan. Pada paper ini didiskusikan contoh sintesa pengendali konverter DC ke DC tipe boost. Kinerja dari pengendali evolusi dinamik yang diusulkan disimulasikan menggunakan Matlab-Simulink untuk kondisi perubahan beban.

Hasil simulasi menunjukkan bahwa teknik yang diusulkan adalah berkemampuan untuk mengendalikan konverter DC ke DC sel bahan bakar. Kata kunci: boost, konverter DC ke DC, pengendali evolusi dinamik, sel bahan bakar

Abstract

Fuel cells are new alternative energy resource that has a great promise for distributed generation and electric vehicle application. However, fuel cells have a slow response due to their slow internal electromechanical and thermodynamic response. To optimize the fuel cell system performance, a fuel cell DC-DC converter with an appropriate controller which can regulate the power flow and automatically adjust the converter output voltage is needed. This paper proposes a new control technique for fuel cell DC-DC power converter. Design of the proposed control method for fuel cell DC-DC power converter is provided.

A new approach for converter controllers synthesis based on dynamic evolution control theory is presented. In this paper, synthesis example of boost DC-DC converter is discussed. Performance of the proposed dynamic evolution control under step load variation condition is simulated under Matlab-Simulink environment. Simulation results show that the proposed techniques are capable for controlling fuel cell DC- DC converter.

Keywords: boost, DC-DC Converter, dynamic evolution control, fuel cell

1. Introduction

Due to economic problems and depletion of world fossil fuel supplies, renewable energy development for power generation received many attentions. Fuel cells are one of the alternative energy resources that have recently attracted a great deal of attention. Fuel cell is a device that converts the chemical energy of a fuel directly to electrical energy. Fuel cell has higher energy storage capability and is a clean energy source . Fuel Cell can serve as an emergency energy source during long-term power outages. Fuel cells can be used as a portable power system. The fuel cells are use in every aspect because of their clean and efficient way of supplying electric power. The fuel cells are used in the standalone purposes at homes, hospitals, industries and now are use in numerous vehicles. Compared with any other energy

184

production technology, the fuel cells have a wider range of applications. Their potential application ranges from systems of a few watts to megawatts. Among the various types of fuel cell, Proton exchange membrane (PEM) fuel cell is the most popular. PEM fuel cells show great promise for use in distributed generation electric vehicle applications. Compared with other distributed generation technologies, such as wind and photovoltaic (PV) generation, PEM fuel cells have the advantage that they can be placed anywhere within the distribution system, without geographic limitations, to achieve the best performance. In electric vehicles application, the increased desire for vehicles with less emission has made PEM fuel cells attractive for vehicular applications since they are essentially no pollutants emission and have high-power density and quick start .

PEM fuel cells are good energy sources to provide reliable power at steady state, but they have a slow response. This is mainly due to their slow internal electrochemical and thermodynamic responses . In order to optimize the fuel cell system performance, a fuel cell DC-DC converters is needed to develop for various applications. Another important issue is the need for appropriate control of fuel cell DC-DC converter which can regulate the power flow and automatically adjust output voltage of the converters to avoid rapid load voltage variations, which may lead to a reduction of the power quality of the system.

Based on the above issues, this paper proposes an approach for fuel cell DC-DC converter controller using dynamic evolution control. The controllers synthesis based on dynamic evolution control theory is presented. The dynamic evolution control exploits the non- linearity and time-varying properties of the system to make it a superior controller. A comprehensive simulation analysis was conducted to verify the performance of the controller.

The steady-state and transient response of the system is investigated. 2. Dynamic Evolution Controller Design for Fuel Cell DC-DC Converter

2.1 Fuel Cell Dc-Dc Converter System Model

A valid model for fuel cell and DC-DC Converter is introduced in . Circuit of this model is illustrated in Figure 1. The circuits consist of a fuel cell generator, the boost DC-DC converter and load. Using boost DC-DC converter, the provided output voltage to the load can be regulated to the required voltage. The output voltage can be controlled by change the duty cycle (d) of boost DC-DC converter.

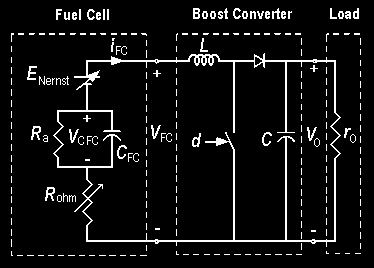

Figure 1. Circuit model of Fuel Cell and DC-DC Converter The circuit of system in Figure 1 can be analyzed based on the boost converter switch condition. When the switch is closed, the diode is reversed bias. Figure 2 shows the equivalent

Dynamic Evolution Control for Fuel Cell DC-DC Converter (Ahmad Saudi Samosir)

185

circuit of system when the switch is closed. Kirchhoff’s voltage law around the path containing

(1)

When the switch is opened, the inductor current cannot change instantly, so the diode becomes forward biased to provide a path for inductor current. Figure 3 shows the equivalent circuit of system when the switch is opened. Assuming that the output voltage VO is a constant,

The Switch Is Opened

The average inductor voltage must be zero for periodic operation. Expressing the average inductor voltage over one switching period,

(4)

The average duty cycle, D, is defined as the time relationship that the switch is on relative to the total switching period. From (4) at steady state it can be verified that the gain ratio between output and input

(5)

2.2 Synthesis of Dynamic Evolution Controller for Fuel Cell DC-DC Converter The dynamic evolution control theory has been described in reference and . In dynamic evolution control, the dynamic characteristic of system is forced to make evolution by following an evolution path. With the selected evolution path is an exponential function as shown in Figure 4, the value of the dynamic characteristic of system will decrease exponentially

To Zero By Equation

.

186

where, Y is the dynamic characteristic of system, YO is the initial value of Y, and m is a design parameter specifying the rate of evolution.

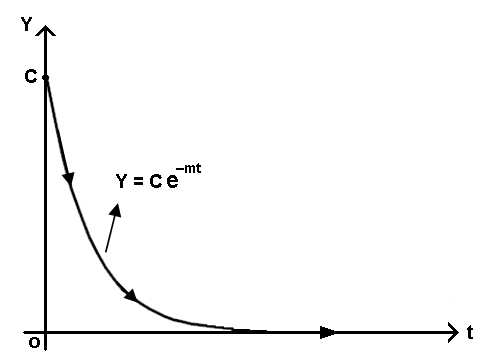

Figure 4. Dynamic Evolution Path

The dynamic evolution function of this controller can be written as

(7)

Synthesis process is done to obtain the control law that guarantees the dynamic characteristic of system decrease to zero by following the evolution path. In case fuel cell boost DC-DC converter, this control law corresponds to the duty cycle equation of the converter. This duty cycle equation α(vO,Vg,iL), represents α as a function of the state vO, Vg and iL. The duty cycle equation α(vO,Vg,iL) is obtained by analyzed and substituted the dynamic equation of the converter system into the dynamic evolution function (7).

Based on the state-space average model, the dynamics voltage and current of the fuel

(9)

where L is the inductance, C the capacitance, R the load resistance,

O

v the output voltage, and d the duty cycle, respectively. Rearranging (6), the output voltage of converter can be written as: .

(10)

The dynamic evolution synthesis of the controller begins by defining the state error function (Y). In power electronic application, Y can be selected as a function of error voltage or error current. Refer to , with the selected Y is a linear function of error voltage as (11)
