Suppressing Leakage Magnetic Field in Wireless Power

Transfer Using Halbach Array-Based Resonators

Abstract—Wireless power transfer has the potential to seamlessly power electronic systems, such as electric vehicles, industrial robots, and mobile devices. However, the leakage magnetic field is a critical bottleneck that limits the transferable power level, and heavy ferromagnetic shields are needed for transferring large amounts of power. In this paper, we propose a ferrite-less coil design that generates an asymmetric magnetic field pattern focused on one side of the resonator, which effectively reduces the leakage magnetic field. The key to enabling the asymmetric field pattern is a coil winding strategy inspired by the Halbach array, a permanent magnet arrangement, which is then tailored for wireless power using an evolutionary strategy algorithm. Numerical analyses and simulations demonstrated that the proposed coil structure delivers the same amount of power as spiral coils, while achieving an 86.6% reduction in magnetic field intensity at a plane located 75 mm away from the resonator pair and a power efficiency of 96.0%. We verified our approach by measuring the power efficiency and magnetic field intensity of a test wireless power system operating at 6.78 MHz. These findings indicate that our approach can efficiently deliver over 50 times more power without increasing magnetic field exposure, making it a promising solution for high-power wireless power transfer applications.

Figure: System Model & Simulation Flow for Resonant Wireless Charging Matlab

Index Terms—Wireless power transfer, leakage magnetic field, Halbach array.

W

IRELESS power transfer via magnetic field can seamlessly empower various electronics, but the leakage magnetic fields generated by these systems can cause negative effects, such as tissue heating and electromagnetic interference, which pose critical limita- tions on the transferable power level and application scenarios .

Figure: System Model & Simulation Flow for Resonant Wireless Charging Matlab

Ferromagnetic shields have been used to suppress those fields , but they are heavy and expensive and become lossy at frequencies exceeding a few MHz , . Therefore, there is a need for a resonator design that can suppress leakage magnetic fields without using ferromagnetic material and can also efficiently transfer power, especially for mobile applications where weight and cost are critical factors.

To address this need, we propose a ferrite-less resonator structure that generates an asymmetric magnetic field pattern focused on a single side of the resonator. This design enables efficient wireless power transfer and leakage magnetic field suppression, with the key feature being a parametrically optimized coil pattern that vertically arranges numerous helix and spiral coils wound in both the clockwise and counterclockwise directions. This winding generates a magnetic field pattern analogous to the Halbach array, an arrangement of This work was partially supported by JST ACT-X Grant Number JPM- JAX190F, JSPS KAKENHI Grant Number 23H03378, and Value Exchange Engineering, a joint research project between Mercari, Inc. and the RIISE.

The authors are with the Graduate School of Engineering, The Univer- including reprinting/republishing this material for advertising or promotional purposes, creating new collective works, for resale or redistribution to servers or lists, or reuse of any copyrighted component of this work in other works.

This is the accepted version of the manuscript. The final version is available

Suppress

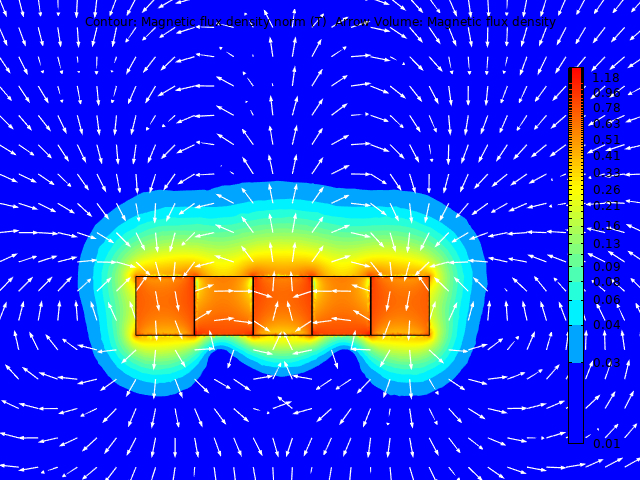

Fig. 1. Suppressing the leakage magnetic field using a resonator structure inspired by the Halbach array. (a) A Halbach array composed of five permanent magnets. The magnetic field on one side is enhanced, while it is suppressed on the other side. (b) Suppressing the leakage magnetic field using resonators inspired by Halbach arrays.

permanent magnets that focuses the magnetic field to a single side of the array (see Fig. 1). While prior literature has described coil structures and a ferrite shield structure inspired by the Halbach array, the presented coil designs can not simultaneously achieve field suppression and high-efficiency power transfer because these simple imitations disregard critical factors, such as power losses and the difference in field distributions between coils and permanent magnets. To overcome this limitation, we used the Covariance Matrix Adaptation Evolution Strategy (CMA-ES) algorithm to optimize the coil pattern for two design priorities: (a) leakage magnetic field sup- pression and (b) high power transfer efficiency. We also demonstrated how varying the weights of these two design priorities can affect the performance of the resonators, and these results were verified through Method of Moments (MoM)-based simulations. Finally, we built a wireless power transfer test system operating at 6.78 MHz and measured the leakage magnetic fields to confirm the results.

Ii. Halbach Array-Based Resonator

The Halbach array is an arrangement of permanent magnets, first proposed in 1973, which enhances the magnetic field of one side of the array, while suppressing the field on the other side , (See Fig. 1(a)). On the top side, the N and S poles of adjacent unit permanent magnets are clustered, virtually forming a large magnet that generates a far-reaching magnetic field. Conversely, the N and S poles are isolated on the bottom side and behave as small magnets that generate a quickly decaying magnetic field. Combined together, this makes the magnetic field focused on one side and suppressed on the other side of the magnet.

For application to wireless power, the permanent magnets need to be replaced with inductors that form an oscillating magnetic field, and a field analogous to the Halbach array can be composed by combining helix and spiral coils with various polarities . We can observe from the cross-section of axis-symmetric coils that helix coils can imitate vertical magnets, and the spiral coils can imitate horizontal magnets (See Fig. 2(a)). By connecting these helix and spiral coils in the correct polarity, we can form a resonator that generates a field analogous to the Halbach array (See Fig. 2(b)(c)(d)).

+

Fig. 2. Structure of the Halbach array-based resonator. (a) Replacing the permanent magnets of the Halbach array with helix and spiral coils. When the coils are combined, the magnetic field is enhanced on the upper side and suppressed on the lower side. (b) Parameterization of the Halbach array-based resonator. ri are the radii of each coil, ni are the number of turns of each coil, and h is the height of the resonator. (c) The Halbach array-based resonator with all helix and spiral coils configured. This structure is a series connection of five helices and spiral coils with capacitors inserted in series. (d) The position of the transmitter, receiver, and measurement plane, in which the magnetic field is measured. g is the distance between the resonators, and hm is the distance from the resonators to the measurement plane.

Iii. Optimization Method Using An Evolution Strategy

While it is possible to conceptually mimic the magnetic field distribution of a Halbach array using the coil structure outlined in section II, a straightforward design based on this concept may not be adequate to achieve high performance in wireless power systems.

Several critical factors for wireless power, such as power loss, are not considered, and the original Halbach array premises a 1-D array of square-shaped magnets rather than an axis-symmetric structure. The field leakage at the array edges is significant, and the magnetic field distribution of coils and permanent magnets is different. These issues are interdependent and challenging to address empirically. Therefore, we proposed incorporating an evolution strategy algorithm in the design process. A parameterized structure, an evaluation function, and an optimization algorithm are required to design a structure using an optimization algorithm.

Fig. 2(b) shows the parameterization of the coil structure. The coil comprises three helical coils and two spiral coils, encoded as a twelve-element vector⃗a = {⃗r,⃗n, h}. This vector includes the radius vector⃗r = {r1, r2a, r2b, r3a, r3b, r4}, the number of turns vector⃗n = {n1, n2, n3, n4, n5}, and the height h (scalar). Note that the outer helical coil’s radius is fixed to rcoil, and the spiral coils (coils 2 and 3) have two radii, i.e., inner and outer radii. To ensure physical validity and prevent interference, we imposed the following restrictions on the geometry: the radii were bounded by r1 < r4 < rcoil and ria < rib < rcoil (i = 2, 3); the height was set within 5 mm< h <100 mm; and the lower bounds of r1, r2a, and r3a were set to 3 mm. The radius of the entire coil rcoil was fixed at 150 mm, and the number of turns ni was restricted to integers between 0 and 5.

Secondly, the evaluation function was tailored to the specific requirements of the application, which for this study were (a) minimizing the leakage magnetic field and (b) maximizing power transmission efficiency. To this end, we defined the evaluation func- tion E as a weighted sum of two factors: the maximum magnetic field intensity on a measuring plane Hmax (as shown in Fig.2 (d)) and the maximum power transfer efficiency ηmax. The evaluation

(1)

Here, E is to be minimized during the design process, and w is a weighting factor determined based on the application’s requirements. In the optimization process, we calculated Hmax and ηmax using numerical analysis because performing electromagnetic field simula- tions is time-consuming and limits the feasible number of function evaluations. We defined efficiency as the maximum efficiency ηmax obtained when the load value is tuned to the value that maximizes

20 Mm

power transfer efficiency, assuming the maximum efficiency point tracking technologies developed in previous studies . We calculated ηmax based on the mutual inductance M and the copper losses of the two resonators r1, r2, where we computed M using Neumann’s formula and the copper losses by multiplying the wire length by the wire resistance of a unit length, considering the skin effect .

Hmax was the maximum magnetic field intensity in a measuring plane hm downward from the top of the transmitter, as shown in Fig. 2(d). As this field intensity depends on the operating conditions, we calculated it for a power delivery of 1 W to the load using Biot- Savart’s law.

Finally, the optimization algorithm was selected based on the properties of the input parameters and the evaluation function. For this study, the input parameters were a mix of real numbers (radii, height) and integers (number of turns), and the computation of Hmax required the selection of maximum value, which made the function non- differentiable. Therefore, we used the Covariance Matrix Adaptation Evolution Strategy (CMA-ES) –, which is known to be efficient and converge quickly under such conditions.

Iv. Optimization And Simulation Results

We conducted the optimization process by varying the weight w and plotted the resulting power transfer efficiency and leakage magnetic field in Fig. 3. To obtain these results, we iterated the optimization ten times with a limit of 10,000 function evaluations for each case and plotted the smallest value. The parameters used for this evaluation are listed in Table I. Each optimization converged after approximately 2,000 function evaluations. The figure demonstrates that a larger weight w places more emphasis on reducing the leakage magnetic field, resulting in lower efficiency, and vice versa for a smaller w.

Next, we further investigated the optimized resonator structure and compared it with previous designs by conducting electromagnetic simulations using the method of moments (MoM) simulations in FEKO. As for the proposed design, we used the optimized design resulting from parameters (w, hm) = (0.3, 75 mm) and compared
