Acta Universitatis Sapientiae

Electrical and Mechanical Engineering, 1 (2009) 53-63

Adrian Gligor

Manuscript received March 15, 2009; revised June 28, 2009. Abstract: Nowadays, the active filters represent a viable alternative for controlling harmonic levels in industrial consumers’ electrical installations. It must be noted the availability of many different types of filter configurations that can be used but there is no standard method for rating the active filters. This paper focuses on describing the shunt active filter structure and design. The theoretical concepts underlying the design of shunt active filters are presented. To validate and highlight the performance of shunt active filters a Matlab-Simulink model was developed. Simulation results are also presented.

Keywords: Shunt active filters, harmonic analysis, nonlinear control, instantaneous power theory.

1. Introduction

After a brief analysis performed on evolution of electric power consumption during the last two decades, it can be observed a change mainly on nature of electric power consumption and profile of consumers. The main causes are represented by introduction of new equipment and facilities to increase comfort in civil construction, new appliances and equipment in order to raise efficiency and diversification of production for industrial consumers, or coexistence in the same building of both households and some industrial consumers. We must also note the impact of the new sources of energy that can easily transform the consumer into power supplier. However, all these changes have led to the emergence of undesirable phenomena in all power system, accounting for the

A. Gligor

new challenges to be addressed by engineers and scientists involved in the power system design and management. Among the measures required there must be mentioned the need to adapt the existing electrical network to the new requirements and the introduction of new advanced methods of control, management and monitoring, in order to ensure the efficiency of electricity use.

The aims of this paper are to present a solution to improve the operation of consumers’ electrical installations, to reduce the electric power consumption and default costs allocated for the purchase of electricity and removing unwanted effects caused by the presence of harmonics. In order to achieve this, the main goal is to increase the power quality available for consumers. In the case of power consumers affected by the presence of harmonic pollution, power quality improvement can be achieved by implementing systems based on active filtering of the unwanted components. This type of automated system based on shunt active filter is presented in the following sections.

2. Operation principle of system based on shunt active filter Fig. 1 shows the schematic implementation of active power filter with static power converter.

Filter

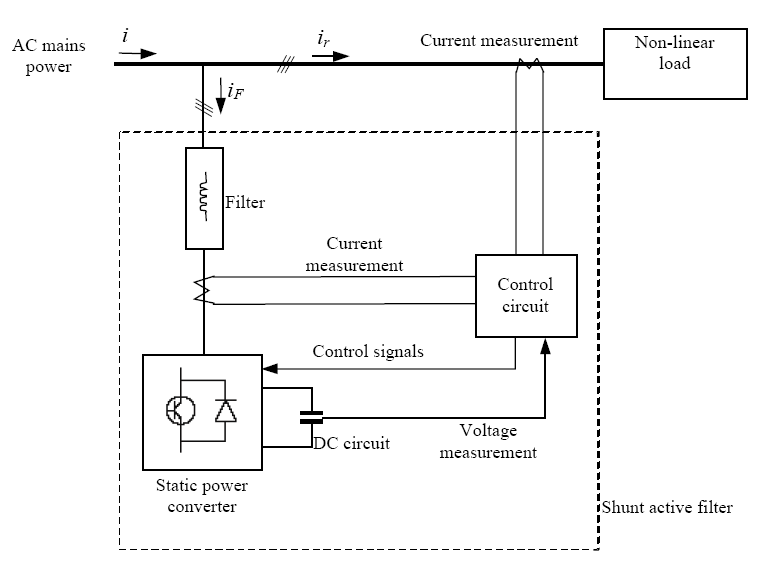

Figure 1: The configuration of a system with shunt active filter. In order to compensate harmonic pollution caused by a nonlinear receiver, the parallel active filter consists of a DC-link static power converter and an energy storage element.

55

The control circuit performs synthesis of the reference currents of the filter in a manner to compensate the undesired mains current components. Since currents synthesized by an active filter depend on the average voltage of the storage element, this one should be kept constant. This voltage control has to be provided by the filter control algorithm.

3. Structure of the active filter configured for control of harmonics

Levels

The controller has both the task of controlling the DC-link voltage and the task of controlling the three-phase current system of the active filter. This requires a complex control structure with two control loops, one for the iF current, which has to be synthesized and another one for the DC-link voltage.

The structure with two control loops is shown in Fig. 2. In this scheme the two controllers can be highlighted: RI – current controller – from the current control loop, and RT voltage controller from the DC-link voltage control loop.

Udc

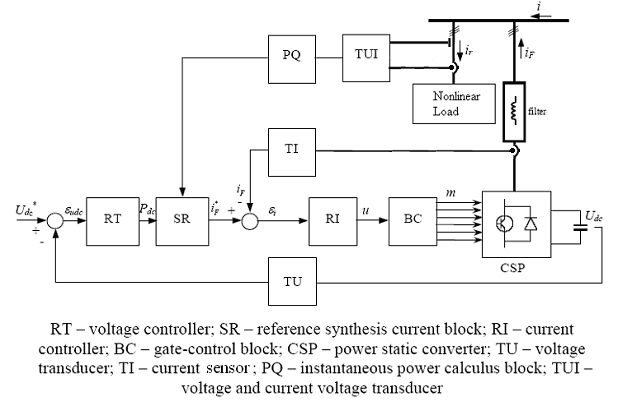

Figure 2: Block diagram of the system for control of harmonic current level based on active shunt filter. The voltage controller generates the signal Pdc based on the reference signal Udc* and on the feedback signal Udc provided by the voltage sensor TU. SR block, which generates the reference currents, based on signal Pdc and on instantaneous powers determined by PQ block, provides the reference for the current control loop. The PQ block has at its input the current and voltage

A. Gligor

signals provided by the TUI sensor from the circuit which supply the non-linear load. The RI controller from the current control loop synthesizes the control signal u, which is generated from the error signal i. This error signal (i) is obtained by comparing the signal provided by the SR block with the current measured at the input of static power converter (CSP). The control signal u is applied to the BC block, which generates the logic signal m needed to control the CSP block.

A. Synthesis of references from current compensation control loop based on the

Instantaneous Power Theory

Instantaneous power theory introduced by Akagi offers the methodology for determining the harmonic distortion , , , , .

(1)

where Ir1 represents the r.m.s value of the load fundamental currents ira, irb,

A

rai~ , rbi~ , rci~ are the polluting load current components.

In The Following There Will Be Noted:

.

,

,

,

,

Converting them into (-) coordinates, it results:

(3)

Assuming that the zero-sequence components of the three-phase systems are

C

.

(4)

In the case of the new two-phase coordinates, the instantaneous power is

(5)

If a new quantity is introduced, the so-called instantaneous imaginary power,



.



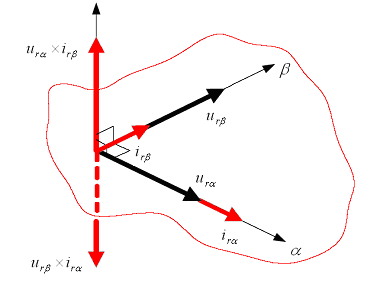

Figure 3: Determination of the instantaneous imaginary power. Equations (5) and (7) may also be rewritten in the form of a matrix as

P

which results in the expression of current ir in (,) system:

Where:

– p represents the component of the instantaneous active power absorbed by the nonlinear load associated to the fundamental of current ir, and voltage ur; – p~ represents the component of the instantaneous power absorbed by the nonlinear load associated to the harmonics of current ir and voltage ur; – q represents the component of the instantaneous imaginary power corresponding to the reactive power associated to the fundamentals of current ir

And Voltage Ur;

– q~ represents the component of the instantaneous imaginary power corresponding to the reactive power associated to the harmonics of the current ir and voltage ur.

If irA represents the fundamental active component of the absorbed current:

(11)

then the reference system of currents in coordinates (-) can be obtained in the

(12)

and the equivalent three-phase components will be, respectively:
