How soft repulsion enhances the depletion mechanism Lorenzo Rovigatti,1, 2 Nicoletta Gnan,3 Alberto Parola,4 and Emanuela Zaccarelli3, 2

Boltzmanngasse 5, A-1090 Vienna, Austria

2Dipartimento di Fisica, Sapienza Universit`a di Roma,

Piazzale A. Moro 2, 00185 Roma, Italy

3CNR-ISC, Uos Sapienza, Piazzale A. Moro 2, 00185 Roma, Italy

4Dipartimento Di Scienza E Alta Tecnologia,

Universit`a dell’Insubria, Via Valleggio 11, 22100 Como, Italy

Abstract

We investigate binary mixtures of large colloids interacting through soft potentials with small, ideal depletants. We show that softness has a dramatic effect on the resulting colloid-colloid effective potential when the depletant-to-colloid size ratio q is small, with significant consequences on the colloidal phase behaviour. We also provide an exact relation that allows us to obtain the effective pair potential for any type of colloid-depletant interactions in the case of ideal depletants, without having to rely on complicated and expensive full-mixture simulations.

soft-switching-inverter-matlab Diagram
Figure: System Model & Simulation Flow for Soft Switching Inverter Matlab

We Also Show

that soft repulsion among depletants further enhances the tendency of colloids to aggregate. Our theoretical and numerical results demonstrate that — in the limit of small q — soft mixtures cannot be mapped onto hard systems and hence soft depletion is not a mere extension of the widely used Asakura-Oosawa potential.

soft-switching-inverter-matlab Diagram
Figure: System Model & Simulation Flow for Soft Switching Inverter Matlab

Arxiv:1409.0903V2 [Cond-Mat.Soft] 12 Nov 2014

Colloidal particles can be considered as super-atoms , moving in a background fluid, and are usually described in terms of effective interactions . The latter are not fixed by chemistry but can be tuned almost arbitrarily by a careful design of the suspension , making soft matter systems display states and phases that have no counterpart in atomic and molecular systems . As an example, the polymeric nature of some colloidal systems allows for a fine tuning of their molecular architecture as well as their softness.

soft-switching-inverter-matlab Diagram
Figure: System Model & Simulation Flow for Soft Switching Inverter Matlab

Indeed, while hard-sphere (HS) colloids such as PMMA particles have become a favourite model system to study phase transitions and dynamics , more recently soft colloids have gained increasing attention. Among these, microgel PNIPAM particles have emerged as a prototype for soft repulsive colloids . While a consensus has not been reached yet about microgel effective interactions, comparisons with experiments have shown that they can be described by soft potentials .

soft-switching-inverter-matlab Diagram
Figure: System Model & Simulation Flow for Soft Switching Inverter Matlab

In addition to the possibility of changing the nature of colloidal particles themselves, a well-established way to tune colloidal interactions is to add a co-solute to the suspension, often in the form of non-adsorbing polymers or surfactants . The resulting depletion forces, controlled by the size and the concentration of the additives (also called depletants), give rise to an effective colloid-colloid attraction. Depletion interactions have been known for about sixty years since the pioneering works of Asakura and Oosawa (AO) and Vrij . In the case of a mixture of HS colloids and ideal polymers, with polymer-colloid HS interactions, the effective colloid-colloid potential can be derived analytically. This AO formulation has become the reference model system for depletion interactions and its use is widespread . For small depletant-to-colloid size ratio q the most unusual features of colloidal behaviour arise. Among these, we mention the metastability of the gas-liquid spinodal , which enhances nucleation and gelation , and the appearance of two different glasses separated by a reentrant liquid at packing fractions larger than a simple HS glass . On top of this, depletion plays an important role also in biological systems, from the folding of single biopolymers to systems where macromolecular crowding can significantly impact both structure and kinetics [33, 36–38].

In the last decade, considerable efforts have been devoted to the study of non-ideal colloid-polymer mixtures, building on the simple AO model with the aim of improving the description of polymer-polymer and polymer-colloid interactions.

Obtaining Reliable

effective potentials under these conditions requires sophisticated theoretical and numerical

2

calculations . Recent work has also been devoted to the effects induced by interactions between depletant molecules, such as the investigation of the phase behaviour of non-ideal mixtures of hard spheres with very short-range Yukawa tails and a few studies on the effect of attractive interactions on depletion forces . Moreover, when colloid- depletants interactions are not hard, as in all these systems, it has been shown that the depletion mechanism, which in the AO model is controlled solely by entropy, can become dominated by enthalpy [38, 50, 51].

Even though a qualitative difference between the AO model and depletion effects in non- hard systems has already been noted [38, 42, 46, 52], the generalisation of the AO mixture to the case of soft colloid-depletant interactions has not been thoroughly tested, except for the work of Zausch and coworkers , who have shown that for q = 0.8 the system can be assimilated to a HS mixture with an effective particle diameter. In this work we take a step forward and investigate the effects of softness in colloid-depletant interactions. Treating the depletant molecules as ideal, we show that even a small amount of softness produces a dramatic effect on the resulting depletion attraction at small q-values. By focusing on representative model systems for soft potentials, such as inverse power-law and hertzian potential, we calculate numerically and theoretically the effective interaction between soft colloids immersed in ideal depletants, in the case of colloid-depletant soft repulsion. We find that the resulting depletion attraction is strongly enhanced with respect to the AO case both in range and in depth, a feature that is generic for any kind of soft interaction. By comparing soft depletion with the corresponding AO case in terms of second virial coefficients, we show that, unlike one-component systems [53, 54], soft mixtures cannot be mapped onto hard ones. These results hold true also when interactions between depletant particles in the form of soft repulsion are considered. Our results have, thus, profound consequences on the phase behaviour of depletion-interacting soft colloids, which have not been really appreciated so far, except for few sporadic studies [42, 45].

Theory

Without loss of generality, the solvent-mediated effective pair potential can be formally expressed in terms of grand canonical averages in a pure depletant reservoir at fixed temper- ature T, volume V and activity zd . In the special case of ideal depletants (but arbitrary colloid-depletant interaction), this expression can be written in closed form as

(1)

where ρd is the reservoir depletant number density, vcd(r) is the colloid-depletant potential, β = 1/kBT and kB is the Boltzmann constant. Equation 1 reduces to the well-known AO potential between two colloids whose centres are at distance R when vcd is a pure hard-core interaction. By use of the convolution theorem in Eq. (1), Vdepl can be easily evaluated numerically by Fourier transform and added to the direct colloid-colloid interaction Vcc, to yield the total colloid-colloid potential Vtot = Vcc + Vdepl.

As representative models of soft spheres, we focus on interactions (both for colloid-colloid and for colloid-depletant) given by (i) an inverse power-law potential with exponent n, Vn(r) = ϵ (σµ/r)n, where ϵ = 1 is the energy strength in units of kBT and (ii) a hertzian potential, VHZ = λ (1 −r/σµ)5/2 Θ(σ −r), where Θ is the Heaviside step function and λ = 500kBT is the strength of the interaction (fixed by recent comparison with experiments).

Here the subscript µ refers to the three length-scales of the problem σc, σd and σcd, where

2

. A key role is played by the depletant-to-colloid size ratio, formally defined as q = σd/σc. As shown in the Appendix, for a steep power-law colloid-depletant interaction (n ≫1), the resulting effective interaction between two colloids can be approximated as

N

σcd and Qi are fourth degree polynomials in R −2σcd. This analytical result shows that an approximately exponential tail, absent in the celebrated AO expression, is generated by the softness of the direct interaction.

Soft-To-Hard Mapping

In order to compare Vdepl with the AO expression for hard colloid-depletant interactions, it is convenient to first map the colloid-colloid interaction into an effective hard-sphere potential. As usual, we define an effective colloidal hard-core diameter σc

Eff= Hσc By Imposing

the equality of second virial coefficients [53, 54]. Such an equivalence is known to faithfully reproduce the properties of the pure colloidal particle suspension at low density. We now ask whether an analogous mapping can be carried out for the colloid-depletant interaction, thereby reducing the system to the well studied AO model.

[Exp(−Βv (R)) −1]R2Dr

allows to compare different potentials V by means of a single parameter, which provides a measure of the two-body potential strength. It normally depends on temperature or, in the case of depletion interactions, on depletant density. It is now well established, thanks to the work of Noro and Frenkel , that the thermodynamic and static properties of a wide class of different potentials, including a hard-core repulsion plus a short-range attraction, are identical when different systems are compared at the same normalized second virial

(Σ) = 2Πσ3/3 And Σ The Hs Diameter. Thus,

we map the soft repulsion onto the HS system through the definition of an effective hard

2

(σeff). The use of this formula yields σeff= hσ, where h = 1.01818 for V36 and h = 0.9272 for VHZ with λ = 500kBT. In order to avoid the introduction of too many length scales, we adopt throughout the manuscript the convention that, σc, σd, σcd identify the characteristic lengths defining the soft particles. These are indeed the quantities directly accessible experimentally, e.g. for hertzian particles they correspond to the experimentally determined diameters (by means, for example, of dynamic light scattering ). When we compare to the AO case we then use the corresponding rescaled effective diameters, multiplying them by the factor h, which is potential-dependent. In the case of hard particles (and thus for the AO case) h = 1, by definition. Note that mapping Vcc onto an effective hard-core potential requires a rescaling of σc, while to map the depletant density or the AO range we need to rescale σd.

Simulations

To evaluate effective potentials we perform parallel runs of Monte Carlo (MC) simulations in the canonical ensemble of two large colloids of diameter σc in solution with small particles of size σd. We use umbrella sampling to constrain the distance between the two colloids : in each run, the two large particles can explore only a limited range ∆i of reciprocal distances, and the probability P(x, ∆i) to find the colloids at a given surface-to-surface distance x within such interval is computed. Since different runs are allowed to have a small overlap in the probed ∆i, we obtain the total P(x) by merging together all the P(x, ∆i) by means of a least-squares-based algorithm. Finally, we extract the effective potential from the relation βVdepl = −ln(P(x)) + C, where C is a constant that is set by imposing Vdepl(∞) = 0. We explore different cases in which the colloids interact between them and with the co-solute particles with different interaction potentials.

To test the validity of the calculated effective two-body potentials, we also perform MC simulations of a monodisperse system of colloids interacting with Vtot (thereby neglecting many body interactions) and compare them with the corresponding full binary mixture.

Due to the large number of depletant particles, especially at the small q-values studied here, we use brownian dynamics on GPUs to simulate the full mixture. For the one-component system we simulate Nc = 10000 colloids at a density ρσ3

Ch3 = 0.1,

interacting through Vtot = V36 + Vdepl, with Vdepl obtained from Eq. 1. For comparison, we also simulate the same system interacting with the AO potential given by

(3)

in the range hσc < r ≤2hσcd and 0 for r > 2hσcd.

Simulations At Ρdσ3

dh3 = 0.27. We recall that ρd is the depletant number density of a reservoir at fixed temperature T, volume V and activity zd.

In the full mixture case, the system is in thermal equilibrium with the depletant reservoir, and thus the two share the same activity zd. However, the presence of the colloids makes it so that the resulting depletant density of the system is not ρd but ρr

D = Αρd, Where The Factor

α = α(q, ρc) depends solely on the size ratio q and the colloid density ρc. We compute α by means of the free-volume theory , obtaining the value α = 0.93. We confirm this value by explicitly computing the excess chemical potential µex of the full mixture with the Widom

6

insertion method, since α = exp(−µex/kBT). Therefore, we simulate a system composed by Nc = 100 colloids and Nd = 250000 depletants with size ratio q = 0.1. The colloid number

Dh3 = Αρdσ3

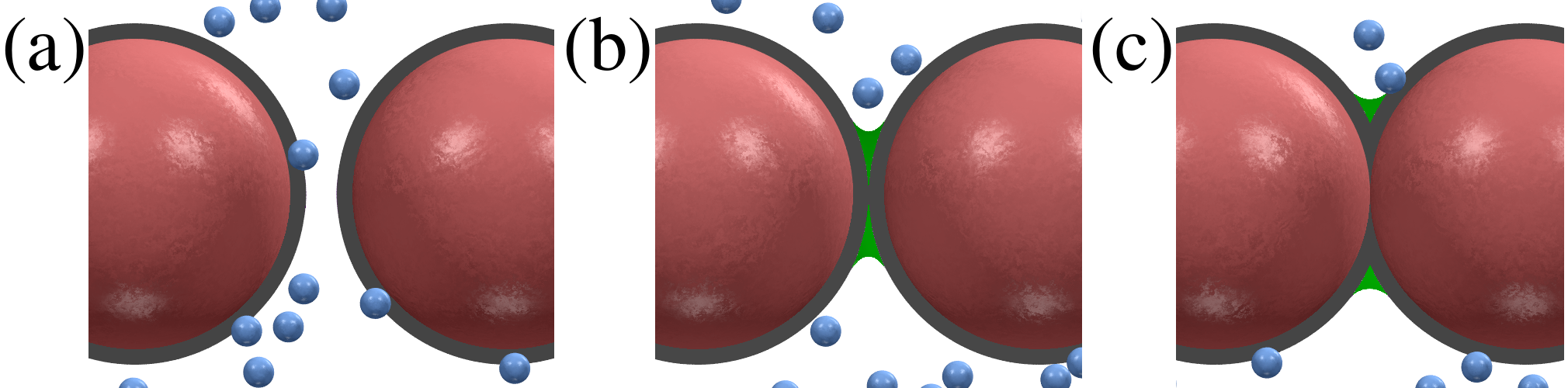

dh3 = 0.25. FIG. 1: (a)-(c): Cartoon of the system. (a) When two colloids (in red) are far apart, depletants (in blue) do not induce any interaction. (b) In the case of hard interactions, if the depletion layers (in black) do not overlap, the resulting effective interaction is null. In the case of soft interactions there is still a depletion area (in green) inducing a non-zero effective attraction. (c) Depletion is enhanced even when the two colloids are very close. (d): Numerical data for Vdepl between two large colloids interacting via V36 both between themselves and with the depletants, as a function of the surface-to-surface colloid distance x and for various values of the size ratio q (dashed lines with points). Full lines show the AO interaction. Inset: Numerical data for q = 0.1 at two different values of n. (e): q-dependence of Vdepl for n = 36 calculated with Eq. 1 (full lines), Eq. 2 (dashed lines) and numerical data (points). Inset: Vdepl from Eq. 2 rescaled onto the exact one of Eq. 1 using the ratio between contact energies.

Effective Potentials From Soft Depletion

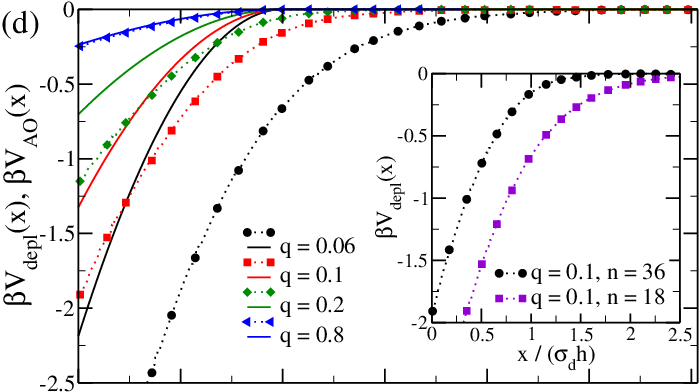

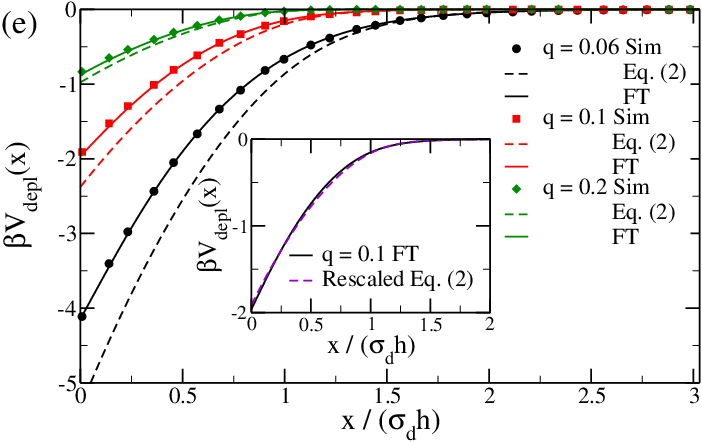

Fig. 1(d) reports Vdepl between two soft colloids for several values of q and fixed depletant

Density Ρdσ3

dh3 = 0.158. The two colloids interact through Vn, both between themselves and with the depletants. The latter behave as ideal among themselves. As clearly shown, particularly for small q, the potential is much more attractive than its AO counterpart.

Not only the contact energy decreases, e.g. by more than 30% in the case q = 0.1, but, most importantly, it develops a long-distance contribution which grows dramatically upon decreasing q.

Indeed, while for an AO mixture the range of the interaction is exactly σd = qσc, the corresponding soft version has as exponential tail with a range roughly twice as large in the low-q limit. The AO behaviour is recovered only at large q . Finally, decreasing n leads to an even larger discrepancy with AO (inset).

To provide a physical interpretation of these findings, we refer to the cartoons shown in Fig. 1(a)-(c). Within the standard AO picture, small particles are excluded from the large particles volume plus the volume of a corona of size σd/2 around them. When the surface- to-surface distance x between large particles is smaller than σd (and up to contact), the two coronas overlap, giving rise to a larger available volume for the small particles. In the case of soft interactions particles can (i) partially interpenetrate paying a small energy penalty and (ii) feel a residual repulsion from a colloid even when the latter is relatively distant, due to the potential tail. It is precisely this tail that causes the effect of increasing the effective attraction among larger soft spheres. Indeed, when large particles are found at x = hσd as in Fig. 1(b), the depletants that are in the region between the two colloids feel roughly twice the long-tail soft repulsion than those closer to one colloid only. As a result, depletants prefer to stay outside the region between the two colloids, thus producing a residual imbalance in the osmotic pressure that generates an attractive force even when colloids are located at a relative distance x > hσd. The range and strength of the tail are controlled by the functional form of the potential, making this effect more pronounced for softer particles, while naturally recovering AO for hard particles, i.e. for n →∞(see Appendix). Since this enhanced depletion depends entirely on the behaviour of the soft tail of the interaction potential, it is expected to be generic for any soft system. In addition, this effect is important

8

only for small q-values, because the range of the tail must effectively compete with the range of the effective potential. Thus, for larger q the potential is typically negligible even at a surface-to-surface distance σd, so that one still recovers the AO behaviour even for small n. This explains the findings of Zausch et al , who showed the equivalence between a soft and the AO mixture for q = 0.8. For small q values, on the other hand, our results show that a mapping between AO and soft depletion is not possible. We believe that this large effect of softness on the interaction potential between colloids could be experimentally observed through different experimental approaches. For instance, a direct way to obtain the potential mean-force can be achieved through the use of holographic microscopy , which allows to compute the histogram of distances (or, equivalently, the radial distribution function), of a diluted colloidal system in the presence of soft depletants. Also, a possible way to establish the effective depletion potential is by using confocal microscopy even in more dense colloidal systems, to compare the measured radial distribution function with theoretical/numerical predictions .

We now show that Eq. 1 quantitatively describes the numerical results. The comparison between the theoretical and simulation data is reported in Fig. 1(e), showing that the two sets fall on top of each other. In addition, we also plot the predictions obtained by the asymptotic formula in Eq. 2, which applies to the case of inverse power-law pair potentials.

Despite a systematic overestimation of the contact energy, the description of the data is qualitatively correct. Moreover, scaling the predictions to the contact energy of the exact results provides a very good agreement (inset of Fig. 1(e)), thus proving that soft depletion in this case has a ∼exp(−n x/σcd) tail for x/σd > 1 which is essentially controlled by n (and to a smaller extent by q). Therefore, this contribution is always present for finite n, and one can never recover the AO result, e.g. by a simple rescaling of ρd.

Consequences On Colloidal Phase Behaviour

As we mentioned before, potentials of different shape behave in an identical way when

Compared Using B∗

2 as a control parameter . Indeed, it was shown that such systems

Exhibit A Gas-Liquid Phase Separation At B∗

2 ∼−1.2 [22, 27, 56, 60–63].

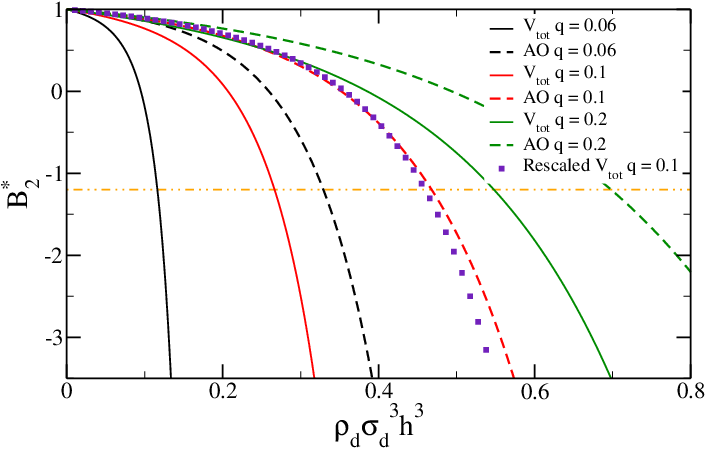

We Calculate B∗

2 for the total potential among colloids, Vtot = Vn + Vdepl, for different q values as a function of ρd. The results, reported in Fig. 2, clearly show the dramatic

Dh3 For Vtot = V36 + Vdepl

(full lines) and for the AO case (dashed lines). The dashed-dotted horizontal line indicates where colloids should phase separate according to the extended law of corresponding states. Filled squares are data for Vtot at q = 0.1 as a function of the depletant density, rescaled by a factor ≈1.72 that best fits the AO case, to highlight the different ρd dependence between the two. For n = 36, h = 1.01818.

consequences of softness, which leads to a significant decrease of the critical ρd with respect to the AO case. For small q, this decrease is of the order of a factor 2. Only for large n the AO behaviour is recovered (see Appendix). However, for small and intermediate n, a simple rescaling of the density or of the size ratio is not sufficient to reproduce the AO behaviour in the whole ρd range. Indeed, leaving ρd as a free parameter is not sufficient to rescale the soft and AO curves on top of each other, as shown by the purple squares in Fig. 2.

A perfect curve collapse is unattainable even for different soft potential, i.e. inverse power law interactions with distinct n exhibit different B∗

2 Ρd-Dependences Owning To The Peculiar

functional forms of the resulting Vtot.

2 Becomes Crucial In Order To Simulate The Full

mixture, a practice that is becoming more and more common thanks to the increasing usage of GPU computing . While the thermodynamics and structure of the depletants can be investigated via MC simulations by employing non-local update algorithms [68, 69], brownian dynamics simulations also allow to assess the dynamics of depletants and colloids.

To this aim, we consider an effective one-component colloidal system interacting with Vtot and compare it with the corresponding soft binary mixture. We find perfect agreement between the two, as shown in Fig. 3(a), where the two colloidal structure factors fall on top
