Abstract—This paper proposes a new integrated magnetics (IM) design for an isolated zero-voltage-switching (ZVS) Ćuk converter (IZCC). In this design, six magnets are wound onto a single magnetic core, and to minimize magnetic core size and losses, both direct current (DC) and alternating current (AC) flux cancellations are considered. The DC flux is fully cancelled, and the AC flux must be cancelled until a limited value such that the input and output inductor currents have enough ripple to provide the conditions for achieving ZVS on all switches. Therefore, the value of the coupling coefficients (CC) between the windings should be considered such that the minimum ripple to achieve ZVS for all the switches is available. The design is implemented on a simple magnetic U-core, and the CC values are specified based on the winding locations and arrangement. To validate the idea experimentally, a hardware prototype is proposed with a power of 0.5 kW, a switching frequency of 150 kHz, and a peak efficiency of 97.25%.

Inductors,

coupling coefficients, ZVS, flux cancellation.

I. Introduction

Passive components play a critical role in power conversion systems . These components primarily include magnets and capacitors. Magnetics are components that provide energy savings, isolation, voltage conversion, and filtering. Depending on the type of power electronics converter, the number of these magnetics could change. Therefore, the way of designing and implementing these components has a direct effect on the converter operation and performance .

Besides their importance in power conversion, magnetics also significantly affect converter volume and efficiency. The magnetics are usually bulky components that need to be designed properly . There are different approaches to efficiently and compactly designing magnetic components in power converters. The conventional approach is a discrete approach, in which each magnetic is designed with a separate magnetic core. Although this approach is simple, it requires more numbers of cores, and the cores need more volume, which affects the power density . Besides that, adding more magnetic cores increases the cost of components and also, and each core has its own core losses, which increases the overall losses .

To overcome the mentioned problems of the discrete approach in magnetic designs, the approach of integration of magnetics in a single core has been proposed . Although this approach increases the complexity in design, it helps in reducing the number of utilized cores and increasing the power density, and it can also be effective in reducing the losses as well . There are different approaches to integrating magnetics into a converter. The integration of the resonant inductor with the transformer in the resonant converters is one of the common approaches for increasing the power density and

Reducing Component Count And Cost . However, This

approach may come at the expense of increased core loss of the transformer and deteriorate the performance of the power

Conversion System . The References Shows

the integration of inductors in interleaved boost converters with directly coupled inductors (CI). However, the direct-coupled inductors approach reduces component count and cost, but the core tends to saturate, requiring a larger core, especially in high- power applications.

Flux cancellation in the IM design is the approach to reduce the losses and increase the power density . The flux cancellation includes two types: DC and AC flux cancellation.

The DC flux in the magnetic core is effective in increasing the core volume, and therefore, DC flux cancellation helps in

Reducing The Core Volume . However, In These

references, DC flux cancellation approaches have increased the AC current ripple, thereby increasing core losses. The AC flux is not only effective in the core volume, but it is also the cause of the core losses because the core losses are related to the flux density variations . , show the AC flux cancellation approach. In , it is shown that the current ripple in the input and output inductors can be eliminated by integrating the inductors with the transformer windings. Although this approach reduces core losses, the DC flux remains, preventing a reduction in core volume.

There are different types of IM designs to reach both AC and DC flux cancellation on a specific E core in that both inductors are wound on the center limb. However, the leakage inductor in this approach is very small, and an auxiliary inductor is needed to create more ripple. In order to adjust the current ripple and reach both AC and DC flux cancellation, the reference has proposed the IM design on a U core. In this approach, DC flux cancellation can be easily achieved with a negative CC, and the amount of AC flux cancellation can be adjusted based on the winding arrangement and location.

However, this approach is applicable when the inductor current waveforms are aligned and vary together. Reference narrated an IM approach for an isolated Ćuk converter. This approach uses the transformer windings solely for AC flux cancellation, with operation under hard-switching conditions. As shown, the CI itself can cancel current ripples at a certain value, and to achieve zero ripple in the inductor currents, the input and output inductor windings need to be integrated with the transformer windings. To make the Ćuk converter operate in a soft-switching condition, the reference

2

proposed an IM design approach with ZVS achievement, but this approach is not applicable to high-power applications due to increased circulating current, and also, the proposed IM structure helps only with AC flux cancellation. The other approach to making ZVS Ćuk is the proposed IZCC topology shown in Fig. 1 and reference . By adding auxiliary circuits and a resonant inductor to the isolated Ćuk converter, the modes of operation will change, with two additional modes emerging.

Therefore, the way magnetics are integrated for AC flux cancellation across all modes of operation needs to change. The approach proposed in for the isolated resonant Ćuk converter utilizes both winding and core sharing to achieve DC and AC flux cancellations. In this approach, the resonant inductor is not integrated with the other magnetics, and the AC flux cannot be cancelled in phase-shift modes. Therefore, the current ripples are not very controllable and cannot be completely cancelled.

Fig. 1. Izcc Topology With The Magnetics Box

To address the aforementioned problems, this paper proposes an IM design that integrates all six windings into a single core and uses resonant inductors (RIs) to cancel ripple across all operating modes. All the windings are wound on a single U- core. Adjusting the proper CCs between the windings is critical to have the desired amount of ripple cancellation and proper operation of the IZCC. As mentioned in and , the input and output inductor currents need to have a minimum ripple to achieve ZVS on all switches. This is crucial when the converter operates at a high switching frequency. Therefore, the winding arrangement on the core should be such that not only is DC flux cancellation achievable, but also the CCs are adjusted to minimize ripple in the input and output inductors' current, thereby enabling ZVS. Thus, all the magnetics are integrated into a single core, and DC and AC flux cancellation is also achievable. These conditions reduce core volume, losses, costs, and the number of components.

To our knowledge, there is no prior work on integrating the different types of magnetics into a single, simple U-core that achieves both DC and AC flux cancellation and ensures ZVS for all switches. As such, the main contributions of the study

Are As Follows:

1) Integrating all six magnetic windings of the IZCC on a single U core and winding arrangement such that both DC and AC flux cancellation happen in the magnetic core,

Besides Proper Operation Of The Converter;

2) Achieving ZVS on all the switches by adjusting the CCs such that the minimum current ripples are available for

Satisfying The Zvs Conditions; And

3) 43% reduction in core volume, besides improvement in efficiency in the designed IM compared to the IZCC operation with discrete magnetics design.

Ii. Im For Soft Switching

The AC flux cancellation in the IM design should be such that neither affects the overall operation of the converter nor increases converter losses, such as switching losses, especially when the converter operates at a high switching frequency.

Therefore, the proposed approach in needs to meet the soft- switching requirements. The IZCC topology is the ZVS version of the isolated Ćuk converter. This converter has four modes of operation, as shown in Fig. 2 the input and output inductor currents are not aligned at modes 1 and 3. Also, as shown in the transformer voltage waveforms in this figure, the transformer is zero in these two modes of operation. Additionally, when the DC flux of the CI is cancelled inside the core, the AC flux direction changes from positive to negative, and the transformer windings will not be able to cancel the inductors’ fluxes when their flux directions change because the transformer windings’ fluxes are always in one direction and only their values change.

Therefore, integrating transformers with input and output inductors for AC ripple cancellation is not applicable when DC flux cancellation is desired. Thus, another winding arrangement and integration approach is needed.

This paper proposes a new integration of magnetics in the IZCC to achieve not only DC flux cancellation but also AC flux cancellation across all modes of operation. In this approach, the input and output inductors are coupled to form CI, and the RIs are also integrated on the core to help cancel AC flux. The CI will perform DC flux cancellation and AC flux cancellation in two operational modes (2 and 4). The RIs are added to cancel the AC flux in the other two modes of operation that the CI cannot perform (modes 1 and 3). The transformer is also integrated with the other magnetics with a high coupling between the primary and secondary windings. It reduces the magnetizing flux to a level that does not affect the operation of the CI and RIs. The transformer is integrated on the same core to not only reduce the overall magnetics volume but also help stabilize converter operation.

This approach offers flexibility, allowing the coupling between any two windings to be adjusted to control ripple cancellation. As the IZCC will operate at a high switching frequency, it is essential to achieve soft switching across all switches to achieve high efficiency. As the ZVS conditions rely on the input and output inductor current ripples in IZCC, there should be a tradeoff between the amount of current ripple cancellation and the ability to achieve ZVS on all switches. The current ripple on the CI currents increases the core losses.

Therefore, a comparison of core and switching losses at different switching frequencies is needed to determine which is dominant and decide whether to prioritize core loss reduction or achieving ZVS on the switches.

As Shown In

Fig. 1, the IZCC converter is drawn with a magnetics box. This box has six magnetic windings, which are input (𝐿𝑖𝑛) and output (𝐿𝑜) inductors, primary (𝐿𝑟1) and secondary (𝐿𝑟2) side resonant inductors, primary (𝑇1) and secondary (𝑇2) windings of the transformer. These magnetics can be in different

3

integrated or discrete combinations. The magnetics box should be designed so that it does not affect the converter's operation. Fig. 2 shows the IZCC operation waveforms considering all discrete magnetics. The secondary side switches (𝑆𝑠1, 𝑆𝑠2) do the switching by a phase shift delay (𝜌𝑇𝑠𝑤) after the primary side switches (𝑆𝑝1, 𝑆𝑝2) turned off respectively. As can be seen in this figure, 𝜌 is the phase shift ratio and 𝑇𝑠𝑤 is the switching period. There are two duty cycle ratios for the primary (𝑑𝑝) and secondary (𝑑𝑠) side switches. The switching sequence for all types of discrete or integrated magnetics is the same as Fig. 2.

In , all modes of operation are proposed for discrete magnetics. In here, four of the main modes of operation are considered, as the deadtime modes can be ignored compared to the main modes.

Fig. 2. IZCC waveforms of operation considering discrete magnetics

In , A Complete Model Of The Izcc Converter Is

proposed, and based on the model, the ZVS conditions for the switches in IZCC are governed by (1)-(4). In these conditions, 𝐶𝑜𝑠𝑠 is the switch’s output capacitor, 𝑉𝐶𝑇𝑃 is the average value of the primary side of the auxiliary capacitor. 𝑉𝐶𝑇𝑆 is the average value of the secondary side of the auxiliary capacitor. 𝑡𝑑𝑏 is the deadtime between each complementary switch. 𝐼𝐿𝑖𝑛 is the average value of the input inductor current. 𝐼𝐿𝑜 is the average value of the output inductor current. ∆𝐼𝐿𝑖𝑛 is the ripple value of the input inductor current. ∆𝐼𝐿𝑜 is the ripple value of the output inductor current . Parameters 𝑖𝐿𝑟(𝑡0) to 𝑖𝐿𝑟(𝑡3) are the initial values of the resonant inductor current at each mode of operation. It is assumed that 𝐿𝑟2 is transferred to the primary side and is combined with 𝐿𝑟1 and them 𝐿𝑟= 𝐿𝑟1 + 𝑛2𝐿𝑟2, where, 𝑛 is the transformer turns ratio.

(4)

The initial values of 𝑖𝐿𝑟(𝑡0)-𝑖𝐿𝑟(𝑡3) are specified as (5) to

′ = 1 −𝑑𝑠, And 𝐼𝐿𝑖𝑛

and 𝐼𝐿𝑜 are the average values of the input and output inductor currents.

(8)

In (5) to (8), the expressions of the auxiliary capacitors

(10)

These equations are derived from the volt-second balance equations for the input and output inductor voltages. In these equations, 𝑉𝑖𝑛 is the DC input voltage and 𝑉𝑜 is the DC output voltage.

A. Ci Structure

As can be seen in Fig. 2, each of the input and output inductor currents (𝑖𝐿𝑖𝑛(𝑡) , 𝑖𝐿𝑜(𝑡)) has a DC value (𝐼𝐿𝑖𝑛, 𝐼𝐿𝑜) plus an AC ripple (2∆𝐼𝐿𝑖𝑛, 2∆𝐼𝐿𝑜) on it. These two types of currents create DC and AC fluxes inside their related magnetic core for each of the 𝐿𝑖𝑛 and 𝐿𝑜 which causes core losses and raises the core saturation limit. DC and AC flux cancellation approaches can help reduce the core saturation limit, allowing us to use a

4

smaller core and mitigate core losses. Therefore, integration of 𝐿𝑖𝑛 and 𝐿𝑜 could help in this regard. Fig. 3 shows the IZCC topology with coupling of 𝐿𝑖𝑛 and 𝐿𝑜 which are the CI. As shown in this figure, both inductors are wound on a U core, and the sign of the created fluxes from the 𝐿𝑖𝑛 and 𝐿𝑜 are in opposite directions and therefore can cancel each other. The created fluxes contain both DC and AC fluxes.

The DC fluxes can be easily cancelled, and the AC flux depends on the directions of the current ripple each time. If both currents are increasing or decreasing, the fluxes can cancel each other; otherwise, they add.

Fig. 3. The CI instructor for 𝐿𝑖𝑛 and 𝐿𝑜 in IZCC. 4. The IZCC waveforms considering the CI structure In IZCC, 𝜌 is an essential parameter for the power transfer and output voltage regulation . As shown in Fig. 2, the directions of 𝑖𝐿𝑖𝑛(𝑡) and 𝑖𝐿𝑜(𝑡) are not the same in modes 1 and 3, and therefore, their AC fluxes will be additive in these two modes of operation, as shown in the CI in Fig. By considering CI in the IZCC topology, the waveforms of the 𝑖𝐿𝑖𝑛(𝑡) and 𝑖𝐿𝑜(𝑡) in Fig. 2 changes to Fig. As can be seen in this figure, the slopes of 𝑖𝐿𝑖𝑛(𝑡) and 𝑖𝐿𝑜(𝑡) in modes 1 and 3 are more than the other two modes of operation. This is due to the effect of additive AC fluxes in modes 1 and 3. The additive AC fluxes directly affect current ripples within a short time, thereby increasing the current slope.

B. Cc And Current Ripple In Ci

Specifying CC is the key to determining the amount of ripple cancellation or addition in the input and output inductor currents. Fig. 5 shows the equivalent circuit of the CI. By applying Kirchhoff's Voltage Law (KVL) in each input and output side loops, their voltage equations are determined to be

(9)

By considering a conversion ratio of 1 (i.e., 𝑛= 1), in Fig. 5, the relation between the mutual inductance (𝐿𝑖𝑜) and the magnetizing inductance (𝐿𝑚) is as (10). The relations between the input, output open circuit inductances (𝐿𝑖𝑛, 𝐿𝑜), leakage inductances (𝐿𝑙𝑖𝑛, 𝐿𝑙𝑜) and 𝐿𝑚 are as (11). Equation (12) determines the CC between 𝐿𝑖𝑛 and 𝐿𝑜 which is 𝑘𝑖𝑜 .

(12)

In the symmetrical (balanced) ripple, 𝐿𝑖𝑛=𝐿𝑜=𝐿 and, therefore, from (10)-(12), the relations between CI leakage inductances (𝐿𝑙𝑖𝑛, 𝐿𝑙𝑜), 𝑘𝑖𝑜, 𝐿𝑚, and L are found to be

(14)

Therefore, from (9)-(14), the state space equations for the CI can be driven by (15).

(15)

From (15), the input and output inductor currents' slopes can

(16)

As can be seen in Fig. 4, 𝑖𝐿𝑖𝑛 and 𝑖𝐿𝑜 waveforms are linear

5

and, therefore, from (16), the input and output inductor current ripples (∆𝑖𝐿𝑖𝑛, ∆𝑖𝐿𝑜) in each mode of the operation can be found as (17). In these equations, ∆𝑡 is the time duration of each operating mode.

(17)

As shown in Fig. 5, the relation between 𝑖𝐿𝑖𝑛, 𝑖𝐿𝑜 and the magnetizing current (𝑖𝐿𝑚) is as (18). In this equation, the conversion ratio is one (𝑛= 1).

(18)

From (18) and (17) the magnetizing current ripple (∆𝑖𝐿𝑚) is obtained as (19).

(19)

As seen from (17) and (19), the ripples are related to the 𝑘𝑖𝑜, and by properly adjusting the 𝑘𝑖𝑜, the desired current ripples can be achieved. As can be seen in Fig. 4, the input and output inductors' currents have different ripples in each mode of operation. It can be confirmed from (17) as well. From (9), (10) and Fig. 4, the values of the 𝑉𝐿𝑖𝑛 and 𝑉𝐿𝑜 in each mode of the operation are as (20) and (21). And the value of ∆𝑡 in each mode from Fig. 4 is as (22).

{

𝜌𝑇𝑠𝑤 [𝑀𝑜𝑑𝑒𝑠 1]

(22)

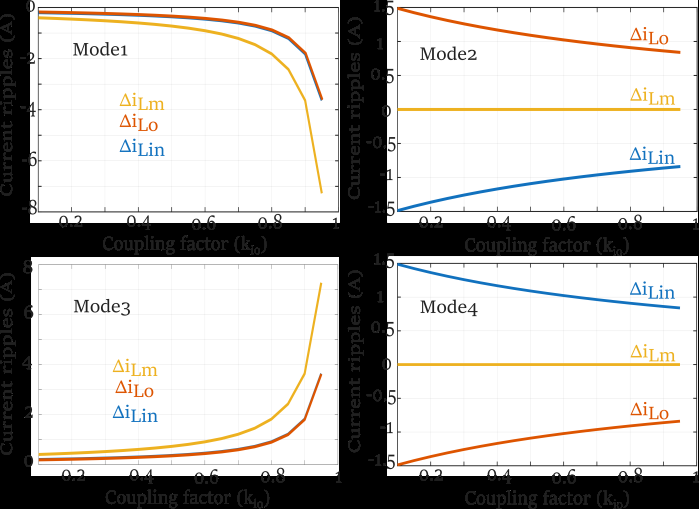

Fig. 6 shows the effect of 𝑘𝑖𝑜 on the input, output, and magnetizing inductor current ripples in four modes of operation for the IZCC. As can be seen in this figure, by increasing the value of 𝑘𝑖𝑜, the ripple currents for modes 2 and 4 decrease in both input and output inductor currents, whereas they increase for modes 1 and 3 in both currents. Thus, using only the CI in IZCC cancels the AC flux in two modes of operation and adds it in the other two; therefore, core losses cannot be mitigated.

A. Integration Of Ci And Resonant Inductors

As mentioned in the section IV part A, the AC fluxes are additive in modes 1 and 3. Fig. 4 shows that the resonant inductor's voltage (𝑉𝐿𝑟1(𝑡), 𝑉𝐿𝑟2(𝑡)) have their peak values during these two modes, and also, the resonant inductor's current (𝑖𝐿𝑟1(𝑡), 𝑖𝐿𝑟2(𝑡)) varies from positive to negative or vice versa. Therefore, these two inductors can be used to cancel flux Fig. 6. Input and output inductor current ripple variations based on the coupling

Coefficient (K) Changes

and thus ripple during modes 1 and 3. Fig. 7 shows the IZCC topology with the CI and RIs integrated on a core. Thus, the ripple cancellation can be achieved in all modes of operation.

Fig. 7. IZCC topology with the integration of CI and Ris

B. Full Im Structure

Although the RIs help in ripple cancellation at modes 1 and 3, they are additive at modes 2 and 4, and their flux can affect the CI's operation at those modes. Therefore, additional windings should be used to mitigate the effect of RIs in modes 2 and 4. In the Full IM structure, the transformer is also integrated with CI and RIs in this regard. Fig. 8 shows the IZCC topology with the IM structure. In the IZCC topology, the transformer must be designed with a high-value CC between the primary and secondary windings, and the RIs are then designed separately to provide flexibility for winding relocation and arrangement.

Fig. 8. Izcc Topology With Im Structure

Based on the IZCC operation, the sign of the CCs between every two windings should be as Table I. The IM winding arrangements should be such that the sign of the CCs between every two windings is as shown in this table. These signs come from the values of the current and the voltages from Fig. 4 and the necessity of some signs to be positive or negative. For example, the CC sign for the CI or the transformer windings
