Admittance Control Robot

Abstract

The nasopharyngeal (NP) swab sample test, commonly used to detect COVID-19 and other respira- tory illnesses, involves moving a swab through the nasal cavity to collect samples from the nasopharynx. While typically this is done by human healthcare workers, there is a significant societal interest to en- able robots to do this test to reduce exposure to patients and to free up human resources. The task is challenging from the robotics perspective because of the dexterity and safety requirements. While other works have implemented specific hardware solutions, our research differentiates itself by using a ubiquitous rigid robotic arm. This work presents a case study where we investigate the strengths and challenges using compliant control system to accomplish NP swab tests with such a robotic configuration.

To accomplish this, we designed a force sensing end-effector that integrates with the proposed torque controlled compliant control loop. We then conducted experiments where the robot inserted NP swabs into a 3D printed nasal cavity phantom. Ultimately, we found that the compliant control system outper- formed a basic position controller and shows promise for human use. However, further efforts are needed to ensure the initial alignment with the nostril and to address head motion.

Ntroduction

From the outset of the COVID-19 pandemic, the appeal to applying robots in the place of human health- care workers has increased substantially. A major occupational hazard for healthcare workers is contracting illnesses from the patients they are treating; especially via highly contagious air-born spread illnesses like COVID-19. Robots deployed in healthcare have the advantage of being immune to illnesses, and would thereby be useful to protecting the healthcare workers and preventing downtime . In cases where train- ing consistency is a concern , robotics can provide a way to standardize care. However, close-contact healthcare tasks are challenging workspaces for robots because of safety considerations and the need to meet medical objectives with the constraints of the robotic hardware.

robots. The task involves inserting a thin, flexible swab through the nasal cavity until it reaches the na- sopharynx at the anterior (just above the back of the throat). The task is challenging because the swab has to navigate around anatomical obstacles in the nasal cavity; namely the nasal septum (the wall that divides the left and right passages of the nose) and the inferior turbinates (the curved bony structures). The ideal path for the swab to travel is between the nasal palate and the inferior turbinates (example also later shown in Fig. 4); deviation from this path is unlikely to reach nasopharynx and can cause discomfort or injury if the swab impacts sensitive anatomy such as cribriform plate and the various nerve clusters in the nasal cavity . From a control perspective, it is an interesting task because once the swab enters the nose, it becomes visually unobservable, so any adjustments must be based on measured forces applied to the swab.

Arxiv:2408.11688V1 [Cs.Ro] 21 Aug 2024

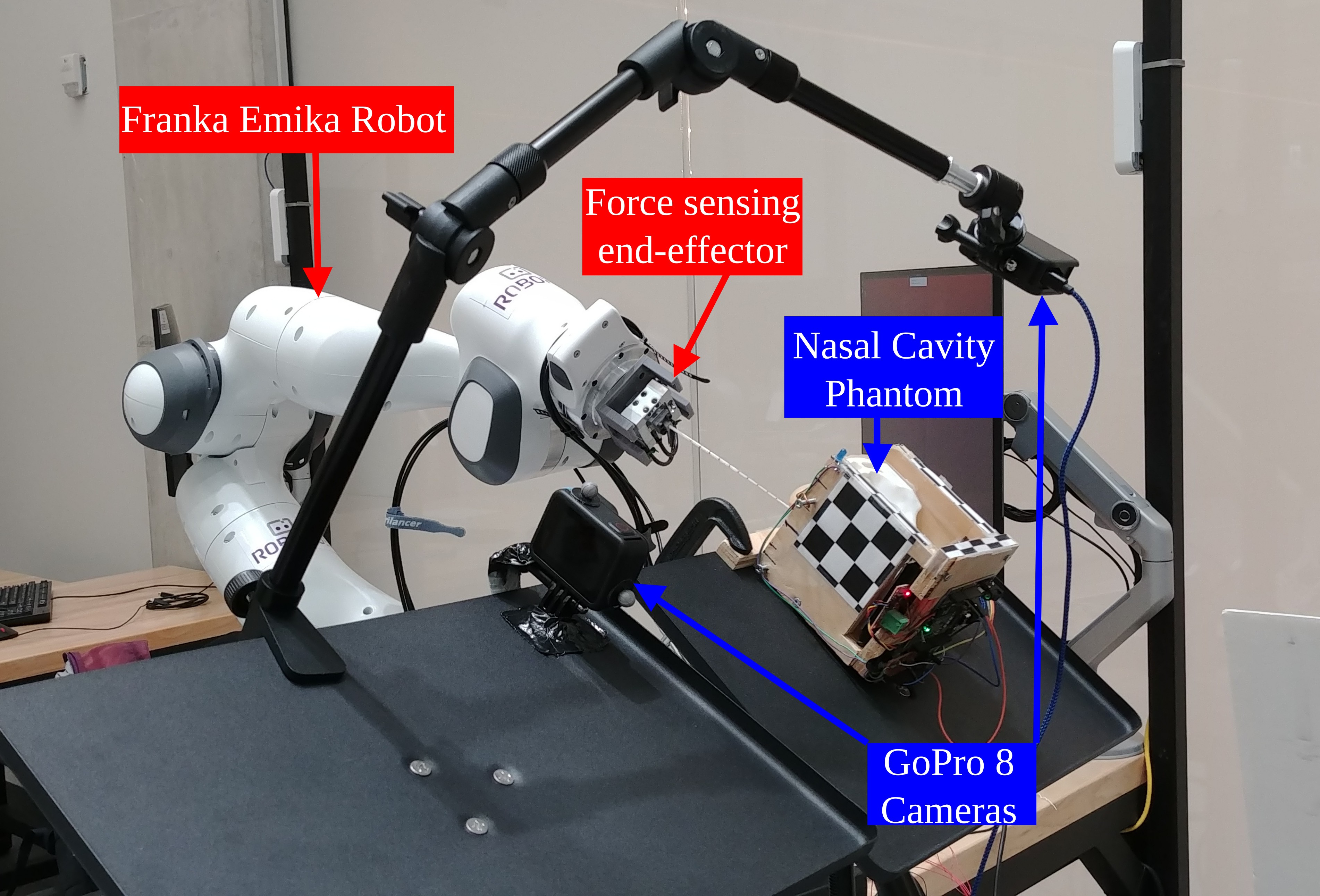

Figure 1: Nasal cavity apparatus arranged next to the Franka Emika Robot arm with the proposed force sensing swab end-effector attached. Two GoPro cameras are used to observe the outcome of the insertions and are not part of the control loop.

Applying robots to different types of swab sampling tasks has received increasing attention from the robotics and biomedical engineering community. Park et al. conducted a study where the forces of a practitioner were recorded using a handheld instrument on a phantom. Hwang et al. implemented a visual- servo and control system, which uses deep-learning models to detect the nose and guide the robot to more accurate positioning at the nostril prior to insertion. Li et al. also implemented visual-servo methods for NP swabs using a hierarchical decision network strategy. designed a 3-DOF robot with an endoscopic camera to perform oropharyngeal swab tests via teleoperation. Chen et al. designed another teleoperated soft-rigid hybrid robot that features a compliant fiber Bragg grating integrated manipulator to adapt to disturbances during nasopharyngeal or oropharyngeal swab tests. Maeng et al. created a custom NP sampling robot featuring a remote center of motion mechanism in order to compensate for sudden forces by the patient during the procedure. Zhang et al. created a platform centred around a humanoid dual-arm robot for NP swab sampling. Their system utilized a combination of RGB-D cameras, LIDAR scanners, and a force-torque sensor to perform the task on humans, with results indicating it was very effective at gathering PCR samples. There are also some commercial attempts at robotic swabbing.

Lifeline robotics (Odense, Denmark) take on the related, but distinct task of oropharyngeal swabbing using a UR5 robot. Franka Emika (Munich, Germany) built a swabbing station surrounding their robot, but to do NP swabs based on a 3D visual scan of the face, but appears to do the test without any force sensing feedback .

Many of the developments listed above have integrated or developed custom robotic hardware in order to do the swabbing test. Instead, we consider an alternative scenario where a single collaborative arm could be delegated to a multitude of healthcare tasks that require close contact with a patient (e.g., temperature test- ing, needlework, sample collection). Specifically, we look to use a rigid manipulator robot to autonomously collect NP swab samples, under the scenario that the hardware could generalize to other tasks by utilizing the same instruments that a human worker would use. While the full NP test consists of three stages, a) inserting the swab through the nasal cavity until it reaches the nasopharynx b) rotating the swab on the na- of the test. The constraints from this scenario provide an interesting challenge because the contact forces in these tasks would need to be regulated by the control law rather than relying on mechanical compliance from specifically designed manipulators. With respect to these challenges, we contribute by conducting a case study to examine the suitability of a robotic arm in this scenario using an admittance control system. We first describe our design of a low-cost, high accuracy force sensing end-effector that fits onto the flange of a collaborative robotic arm. We then describe our design of a system featuring a force-feedback torque control law to execute the insertion stage of the NP swab test. Finally, we engage in experiments with the robot on a 3D printed phantom of a human nasal cavity and compare its performance with a baseline position controller to determine the effectiveness of the setup for performing NP swab tests.

Aterials And Methods

The hardware used in this study consist of the collaborative robotic arm platform, the custom designed force-sensing end-effector where the NP swab is mounted, and the nasal cavity apparatus.

Ollaborative Robot Arm

The robotic platform used in this work is the Franka Emika Robot “Panda” arm (Franka Emika, Munich

(1)

where M is the mass inertia matrix, C is the Coriolis effects matrix, g is the gravitational vector, τ is the torque vector, ¨q, ˙q, q are the joint acceleration, velocity, and position vectors. The arm has 7-DOF and is designed as a collaborative robot that is meant to be used to perform tasks in conjunction with humans.

We implement our control method, described in subsection 2.7, using the franka-ROS API with the torque controller interface, which provides all of the model parameters listed above. While we chose to use the Panda due to its ubiquity, it should be noted that our work could generalize to similar collaborative arms on the market.

Force Sensing End-Effector

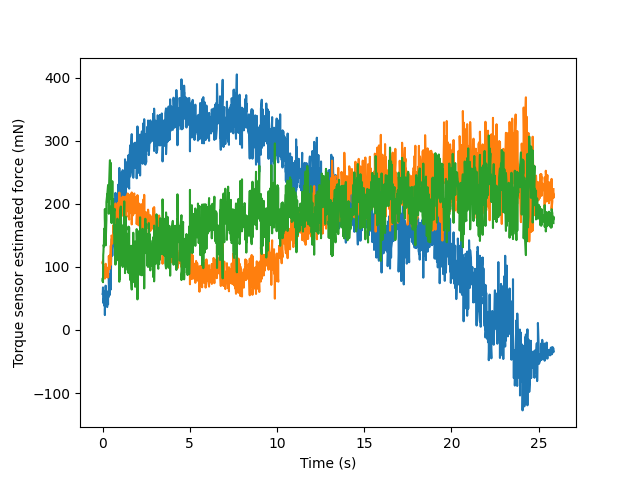

While the Panda has torque sensors on each of its joints, it quickly became clear that these were ill-suited to measure the relatively small forces applied to the NP swab. We moved the arm without an end-effector along the trajectory described in Section 2.6 and observed that the measured torques projected as force onto the end-effector, shown in Fig. 2, reach noise levels between 40 mN to 60 mN standard deviations. In addition, model errors cause non-stationary drift because when the arm changes configuration the uncompensated weight of the links get erroneously interpreted as external torque. Under these conditions, it is clear that any low magnitude forces that would be transmitted through a swab would be swallowed up by these disturbances if we were to solely rely on the built-in torque sensors. Therefore, we designed a custom end- effector to mount a NP swab and sense the 3 axial forces applied to it. We integrate a GPB160 10 N capacity tri-axial strain gauge loadcell (Galoce, Shaanxi, China) onto a 3D printed housing to be mounted onto the Panda’s flange. A 3D printed mount that fits the end of an NP swab is affixed to the exterior facing side of the loadcell (The 3D print STL files are available in the supplementary data). We adopt a fairly simple electronics setup: each of the leads from the load cell axes are soldered into an HX711 Wheatstone bridge in Fig. 3. A ROS node was created to publish the values sensed from the three axes via the controlling computer. Overall, the entire cost of the materials for the sensorized end-effector was less than $300 USD, which makes it an affordable solution, provided a robot arm is already available. The base of the end-effector was 3D printed with PLA to screw into the Panda’s flange (DIN ISO 9409-1-A50). This base piece could easily be adapted and reprinted to other mounting flanges on other robots. While this prototype is made with swabs as the application, we foresee that other tools could be attached to the loadcell that could enable other medical tasks.

In practice, the implementation is sufficiently sensitive because of the fine capacity of the loadcell. The electronic noise present in the signal remains quite low as well, having a standard deviation of about 1 mN that is further low pass filtered for reasons described in subsection 2.5. However, one detail that requires special attention is the impact of gravity on the readings. As the end-effector changes orientation, the forces due to gravity will need to be subtracted within the end-effector frame in order to isolate the raw forces applied to the swab. In an ideal case, we would subtract the weight attached to the loadcell. However, the wires leading from the loadcell create non-trivial effects on the readings as their tension changes with gravity.

The net force read on the loadcell can be described as

(2)

where F is the external force vector applied to the swab, G is the force gravity vector as a function of the end-effector orientation o = (ox, oy, oz), and Z is the bias offset. We devised a calibration routine where the end-effector is moved to nine different orientations with no external force (F = 0). The gravitational force is estimated with a multiple linear regression model. The regression analysis found significant effects by the non-zero terms in the A ∈R3×4 matrix written below, with one significant interaction term oyoz for Gy.

(3)

Finally, we can solve for the parameters of the gravitational + offset model via a least squares problem over

(4)

The fit for this calibration procedure is quite good, achieving R2 > 0.9999, indicating that this method can effectively eliminate the gravitational effects. Figure 2: Observed noisy task-space force measure- ments when using the FR internal torque sensors.

This Demonstrates The Necessity Of Designing An

end-effector with an external loadcell that is sen- sitive enough to observe forces transmitted by the swab.

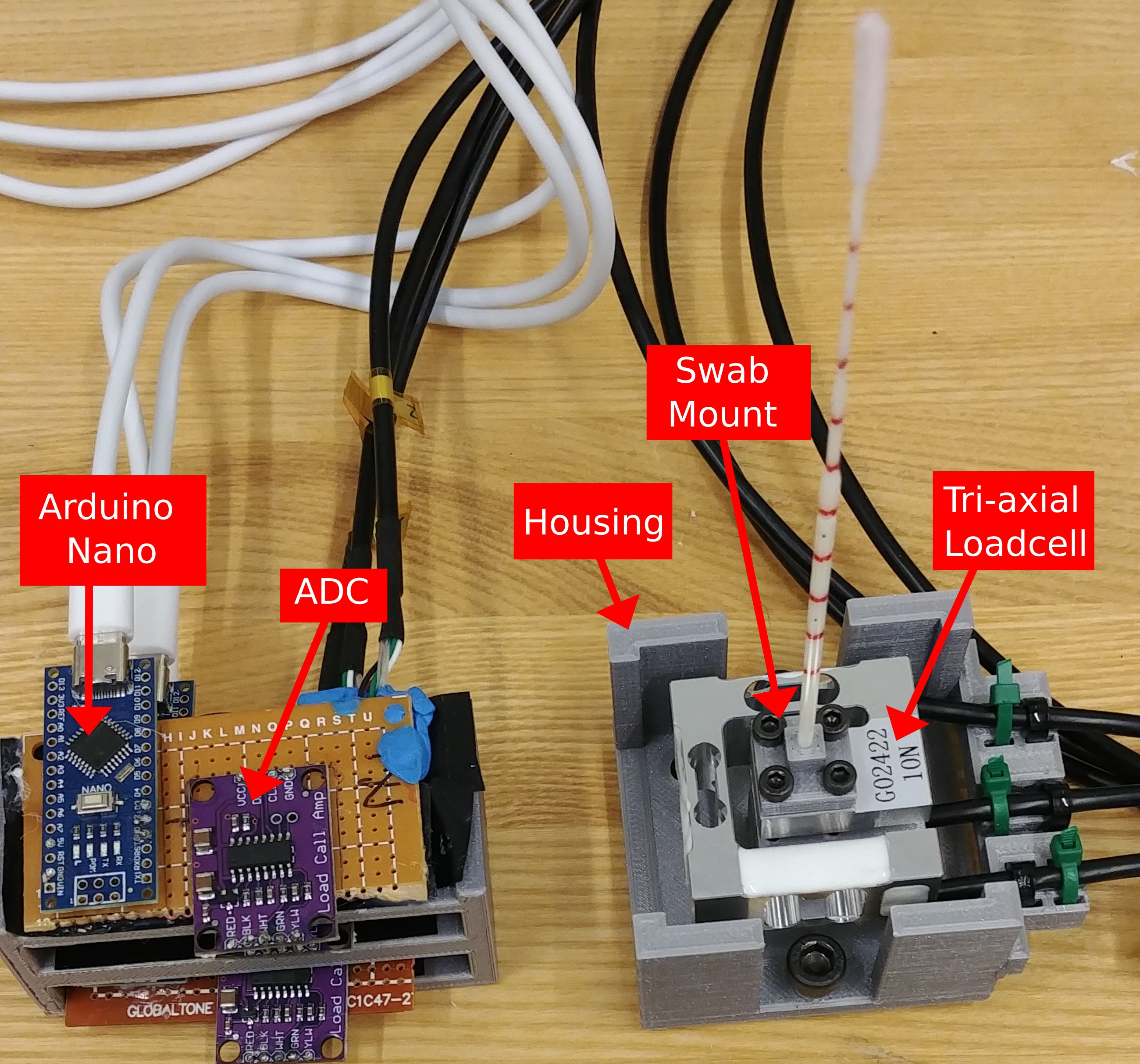

Figure 3: Components of the custom end-effector. Left: Wheatstone bridge amplifier and digital con- version circuit. Right: the tri-axial loadcell inter-

The Red Stripes On The Swab Are Labelled To Gauge

distance in experiments, but do not have any func- tional purpose related to the controller.

Nasal Cavity Apparatus And Experiment Setup

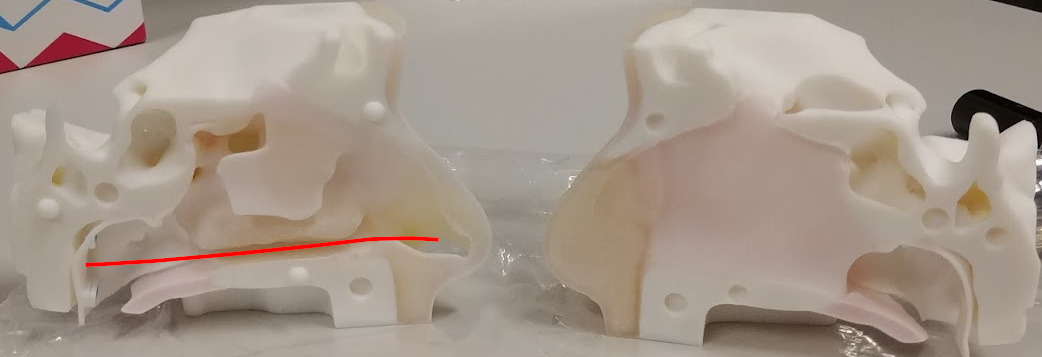

The other component used in this work is the nasal cavity phantom that is used to evaluate the proposed methods. We use the 3D printed nasal cavity phantom (shown in Fig. 4) designed by Sananès et al. , that was printed with a PolyJet 3D printer using the rubber-like Agilus 30 to print the fleshy tissue within the nasal cavity. The figure also shows the ideal path a swab should follow, leading from the nostril to the nasopharynx. The phantom is placed into an open fitting container and was augmented by gluing a force Figure 4: Nasal cavity phantom used for validation experiments. The red line highlights the path to reach the nasopharynx from the nostril.

Termination Observer

Figure 5: Block diagram for the proposed NP swab insertion system. sensing resistor (FSR) onto the nasopharynx. The apparatus was clamped to a tripod so that it could be re-positioned and reoriented freely. Two GoPro Hero 8 cameras were used to record the experiments and were aligned with an adjacent tripod such that they faced the apparatus in the top-down and sideways directions. Fig. 1 shows a photo of this setup.

Ontrol System

The proposed system consists of four components: a force filter for the loadcell readings, a waypoint trajectory generator, the torque control law, and an observer to determine when the insertion procedure is completed. A block diagram summarizing the interaction between these components is shown in Fig. 5. Each of these components are described in the following sections.

Force Filtering

As described in subsection 2.2 the loadcell force readings already have a low level of noise. However, it is still desirable to filter the force signals because of the impulses that occur from intermittent contacts between the swab and the nasal cavity. If a force-feedback controller were to react directly to the impulses, motion becomes jerky and unstable as it rebounds between these intermittent contacts, which is undesirable and dangerous behaviour to have within the nasal cavity. We therefore use the filter

(5)

Figure 6: Example of the force filter response to a 0.5 N step function with α = 1, α = 3, and α = 5. where F is the raw force measurement coming from the loadcell, f is the filtered signal that will be used in the control system, and α ≥0 is the response rate. This is a continuous implementation of an exponential moving average filter; Fig. 6 shows an example of how α influences the step response. Ultimately, we want the filter to attenuate sudden changes in force and respond to consistent levels of force. Having a delayed response in f is ideal because this encourages the controller to make gradual adjustments and discourage jerky and unstable motion. In our experiments we chose α = 1 because it provided the response we desired.

Waypoint Generation

From our previous work , we studied the deformation of NP swabs as they were inserted through the nasal cavity and found the optimal linear trajectory to insert at to minimize swab deformation. We build on these ideas by projecting a linear task-space trajectory to follow in the arm’s workspace. We take insertion at a 28 degree decline angle (c.f. ) over 20 cm, selecting 32 points along this line and solving for continuous joint configurations (q) with inverse-kinematics using RBDL-Casadi . Cubic splines were fit between each of the points, having coefficients {ci} with respect to the path parameter s. The desired nominal joint

(6)

where ci is the coefficient vector that corresponds to the spline within the domain of s. These splines are all computed offline, and the coefficients are used during runtime to determine the associated goal positions, velocities, and accelerations.

We design the progression of s with respect to time as

(7)

where σ is the sigmoid function; the scalars νs and ¯sz influence the scale and offset of the sigmoid response. The purpose of this formulation is to allow the nominal trajectory to respond to disturbances via the force reading fz, which faces the direction the swab will be moving along. When there is little fz, the sigmoid remains unsaturated and the trajectory proceeds normally. When there is high fz, the sigmoid becomes saturated and the trajectory slows down to allow time for the controller, described in the subsection 2.7, to make adjustments and respond to the disturbance. We set ¯sf = 0.33 and νs = 12; based on experimentation, these values allowed the trajectory to slow down on when it encountered early contacts without stopping completely.
