Autonomous Drone Navigation

Autonomous Navigation System For A Delivery Drone

Victor R. F. Miranda1 · Adriano M. C. Rezende1 · Thiago L. Rocha1 · H´ector Azp´urua2,3

· Luciano C. A. Pimenta1 · Gustavo M. Freitas1

Abstract The use of delivery services is an increasing trend worldwide, further enhanced by the COVID pandemic. In this context, drone delivery systems are of great interest as they may allow for faster and cheaper deliveries. This paper presents a navigation system that makes feasible the delivery of parcels with autonomous drones. The system generates a path between a start and a final point and controls the drone to follow this path based on its localization obtained through GPS, 9DoF IMU, and barometer. In the landing phase, infor- mation of poses estimated by a marker (ArUco) detection technique using a camera, ultra-wideband (UWB) devices, and the drone’s software estimation are merged by utiliz- ing an Extended Kalman Filter algorithm to improve the landing precision. A vector field-based method controls the drone to follow the desired path smoothly, reducing vibra- tions or harsh movements that could harm the transported parcel. Real experiments validate the delivery strategy and allow to evaluate the performance of the adopted techniques.

Preliminary results state the viability of our proposal for au- tonomous drone delivery.

Keywords Autonomous Drones · Unmanned Aerial

Vehicle Delivery · Path Planning · Localization · Vector

Ntroduction

Autonomous robots have been studied for a long time, and the rising demand for automated solutions for real-world 1 Escola de Engenharia, Universidade Federal de Minas Gerais.

E-Mail:

problems has accelerated research in the area. Such prob- lems involve housekeeping tasks (vacuum and lawnmower robots), military missions (rescue, patrol, attacks), security applications (surveillance, exploration), industrial operations (production and logistics), among others.

In the past few years, the online shopping market has grown significantly, and ever since, retail and mail compa- nies seek to make autonomous drone delivery a reality. The global online food delivery services reached $136.4bn in 2020, a 27% increase from the same period in 2019 (AJOT, 2021). This increase should continue in the following years with an expectation of $182.3bn in 2024. As a result, deliv- ery services face a high demand for orders and sometimes cannot maintain a short delivery time. Thus, new and inno- vative means of transportation must be developed to increase efficiency and cope with the increasing demand.

Autonomous delivery presents itself as a very convenient alternative, particularly in social isolation periods, such as those experienced by many countries in 2020 and 2021 due to the COVID-19 pandemic. In situations like this, physical contact between people should be reduced as much as pos- sible, especially with people from risk groups. Therefore, the transportation of goods by autonomous quadrotors could prevent any physical contact with the customer, thus main- taining the World Health Organization (WHO) recommen- dations and preventing the proliferation of the virus.

Some of the world’s biggest companies, such as Ama- zon, UPS, and Alphabet, are making advances toward drone delivery services. According to Schneider (2020), FlightFor- ward, the UPS branch responsible for drone flights, has al- ready achieved air carrier certification, which allows it to deliver small packages with drones. Wing, a division of Al- phabet, launched the United States’ first small commercial delivery service in Christiansburg, Virginia. These achieve- ments happened in late 2019 and show that the market for drone delivery is undoubtedly gaining ground worldwide.

In late 2020, Brazil’s National Aviation Agency (ANAC)

Arxiv:2106.08878V1 [Cs.Ro] 16 Jun 2021

Victor R. F. Miranda1 et al. granted the first authorization to a private company, Speed- Bird, to perform drone cargo tests in Brazillian urban areas

(Anac, 2020).

In this context, this paper presents a methodology for en- abling autonomous drone deliveries. After generating a path between two points of interest, the drone’s location is ob- tained through its GPS (Global Positioning System), 9DoF IMU (Inertial Measurement Unit), and a barometer. A vec- tor field control algorithm then guides the quadrotor into the desired path. However, in drone delivery, reproducible safe landings in urban areas are a critical challenge. In that re- spect, we propose an Extended Kalman Filter (EKF) algo- rithm that fuses planar visual marker and Ultra-Wideband (UWB) localization strategies with the drone’s software pose estimation to improve landing accuracy. The visual localiza- tion uses the ArUco markers , and the UWB localization is estimated via multilateration with multiple UWB anchors over the landing area. The proposed method explores the techniques described in Rezende et al. (2019), initially de- veloped for high-performance autonomous drone racing, to create a practical and robust real-world system for drone de- livery services. Real experiments validate the feasibility of the proposed strategies.

The remainder of the paper is structured as follows. First, the related works are presented in Section 2. Section 3 de- scribes the problem of delivery with autonomous drones, and Section 4 presents the methodologies used to accom- plish this task. The results obtained are discussed in Sec- tion 5. Finally, conclusions are presented in Section 6, to- gether with future research perspectives.

Related Works

Given the increasing demand involving autonomous air trans- port of cargo over short distances, several studies address different strategies for load transportation and other com- mon problems in this type of task. Drone delivery is an emerg- ing field, gaining attention in the academy and industry given the numerous challenges to overcome to perform success- ful missions in urban environments, such as guidance, tra- jectory planning, control, localization, obstacle avoidance, and safe landing, especially when global localization is not available or is unreliable (Yoo et al., 2018). Parcel deliv- ery using drones is also gaining attention, given the envi- ronmental benefit of aerial platforms against standard truck delivery (Koiwanit, 2018).

Regarding the control methods for load transportation applications, Raffo and de Almeida (2016) propose a ro- bust nonlinear control technique for load transportation us- ing quadrotors. Despite proving asymptotic stability, they consider a cable-suspended transport system susceptible to external disturbances due to the wind and drone maneuvers.

Similarly, Z´u˜niga et al. (2018) present cooperative cable- suspended load transportation, using multiples drones with consensus strategies. This approach reduces in 60% the ca- ble oscillations. Unlike these approaches, we use a trans- portation system with the load attached to the drone’s body, reducing disturbances due to the cargo movements, and a control method that minimizes aggressive maneuvers when following the path.

Several other control strategies are present in the liter- ature for autonomous drone operations. However, most of them focus on ensuring the drone’s stability at the lowest level, acting on the motors to follow a trajectory (Almakhles, 2019). The present work considers that the drone already has the lowest level controller properly tuned to guarantee the desired angular velocities. Therefore, we adopt the ap- proaches presented in Rezende et al. (2020) and Gonc¸alves et al. (2010) to define our high-level control strategy, also commonly called guidance. Rezende et al. (2020) propose a nonlinear path control method based on artificial vector fields that consider the robot’s dynamics. Gonc¸alves et al.

(2010) present a theory to generate the vector field in Rn, which can be used considering the three-dimensional case. Recent works dealing with drone delivery have focused on route optimization (Chiang et al., 2019), optimal charg- ing station location (Hong et al., 2018), and the mixture of traditional aerial routes with drone-carrying truck routes (Chang and Lee, 2018; Boysen et al., 2018). However, a holistic analysis of the requirements of a suitable delivery platform is often overlooked. Motivated by this, we propose a navigation system for complete autonomous delivery tasks using drones, focusing on the practical aspects of safe drone landing.

Traditional protocols and drone landing methods rely on expensive equipment such as DGPS or RTK GPS or do not satisfy the precision and robustness needed for drone land- ings in urban areas. Visual localization methods could aid in locating the landing area accurately, even in partially clut- tered scenarios, using equipment already deployed in the platform, for instance, RGB cameras. Planar markers such as the ArUco (Garrido-Jurado et al., 2014), can generate ro- bust pose estimation from heights up to 30 m and are a fea- sible solution for drone landing (Wubben et al., 2019; Marut et al., 2019). Many landing solutions using planar markers change the flight behavior to use only ArUco localization when in range instead of performing fusion sensing. Despite the low-cost, low-power consumption of visual localization using planar markers, they are more prone to environmental interference such as low light conditions, snow, dust, rain, and fog. Therefore, visual planar markers require constant maintenance to keep them fully functional. A different vi- sual approach for robust landing in vision-compromised en- vironments uses active Infrared (IR) beacons located at the landing platform and a special IR camera for detecting them

Autonomous Navigation System For A Delivery Drone

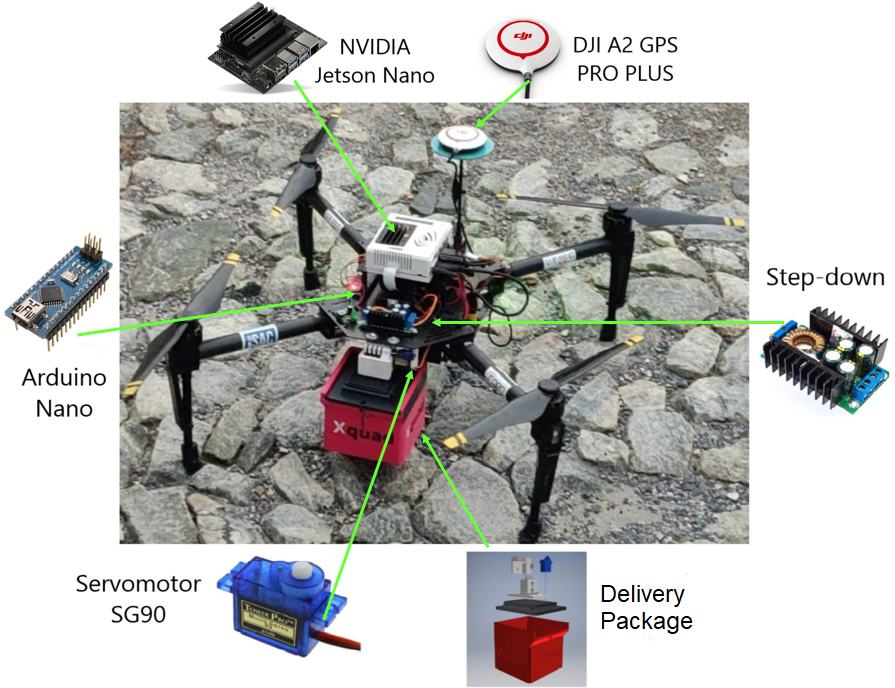

Fig. 1 Drone used for the autonomous delivery and its components. from afar (Nowak et al., 2017). These methods can work without external illumination but could be imprecise at di- rect sunlight or other IR emission sources.

Other types of localization systems that are less prone to environmental interference are wireless-based localiza- with Ultra-Wideband (UWB) systems using the Time-of- Flight (ToF) principle to estimate distances with centimeter precision. Drones could exploit these localization systems for indoor localization in cluttered environments such as in Tiemann and Wietfeld (2017) and Tiemann et al. (2018).

Key benefits of these types of wireless localization technolo- gies are that they could work even in visually degraded sit- uations, are easily scalable to multiple platforms (Nguyen et al., 2016), and are particularly robust to walls and reflec- tions, increasing the possible range of real-world situations where they can be applied. Recent works have fused UWB and vision localization for drone landing based on recursive least square optimization (Nguyen et al., 2019).

Our work differs from the previously mentioned ones since we propose a complete platform for drone delivery and compare popular localization methods for UAV platforms such as GPS, visual, and UWB localization in the landing phase. We also propose a sensory fusion of multiple exter- nal localization techniques given the sensing capabilities al- ready available on the UAV, including GPS, 9DoF IMU, and barometer. An Extended Kalman Filter improves landing ac- curacy considering fixed location platforms in urban areas.

Autonomous Drone Delivery

This section describes the autonomous delivery problem with drones and specifies the hardware and software used for de- velopment.

Problem Description

The problem addressed involves transporting small parcels between two points of interest using a drone in autonomous mode without receiving commands from a human pilot. We have considered obstacle-free environments and assumed dis- tances compatible with the drone endurance (maximum time of flight). Besides, since it is essential for delivery drones to carry fragile objects without abrupt movements, we have adopted a grasped transportation mechanism that reduces the risks of vibrations or unexpected package drops.

At first, residential regions will be the primary landing locality for delivery tasks; therefore, the drone must have the ability to land with accuracy in restricted and narrow areas to prevent unexpected accidents or injuries. The tests were performed considering a 1x1m landing platform.

Hardware

The DJI Matrice 1001, illustrated in Figure 1, allows devel- opers to implement their codes to control the drone. All sen- sors that come with the drone by default are used, includ- ing GPS, 9DoF IMU, and a barometer. These are respon- sible for helping to estimate the drone’s position in global coordinates (latitude and longitude), orientation, and height.

The drone’s flight board is responsible for transmitting in- formation from the sensors to another device, in addition to receiving control commands and sending them to the brush- less motors. In addition to the flight controller board already available on the drone, a Jetson Nano2 is responsible for data processing, path planning, and the quadrotor high-level con- trol.

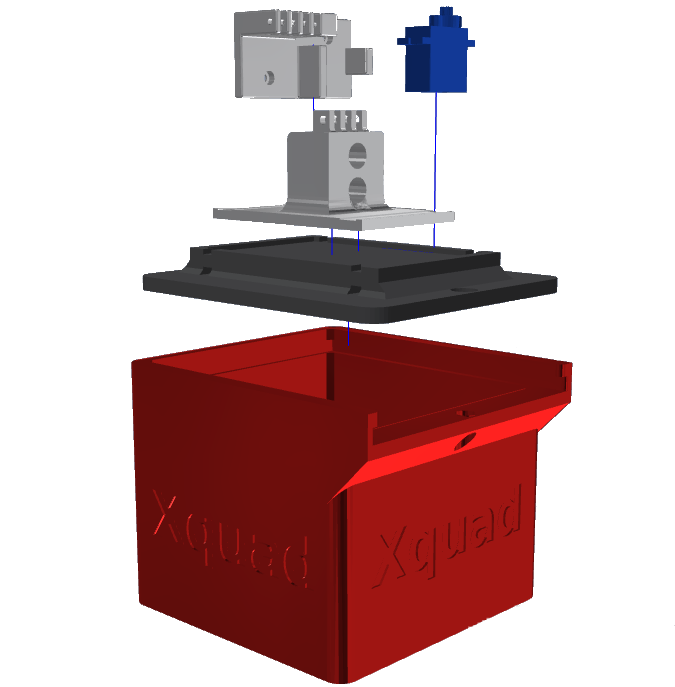

We also developed a 3D model of the box used for de- livery, as shown in Figure 2a. Its coupling mechanism uses a servo motor, as illustrated in Figure 2b. An Arduino Nano is connected to the Jetson board to control this servo mo- tor, placing it in the position of coupling or decoupling the box on the drone. The schematic of Figure 3 illustrates the connections between the equipment and drone used during experiments.

Considering that the landing site used in the experiments has 1x1 m and that the horizontal accuracy in the drone’s lo- cation using GPS is approximately 2m, it is necessary to use additional sensors to assist the drone in making a safer and more accurate landing. For that, we verified the appli- cation of the following sensors in experiments using the real drone: (i) a RaspberryPi Camera v2.0 pointing downwards, together with ArUco markers combination on the landing platform, and (ii) Ultra-wideband (UWB) devices anchored 1DJI Matrice 100 - https://www.dji.com/br/matrice100

Machines/Embedded-Systems/Jetson-Nano/

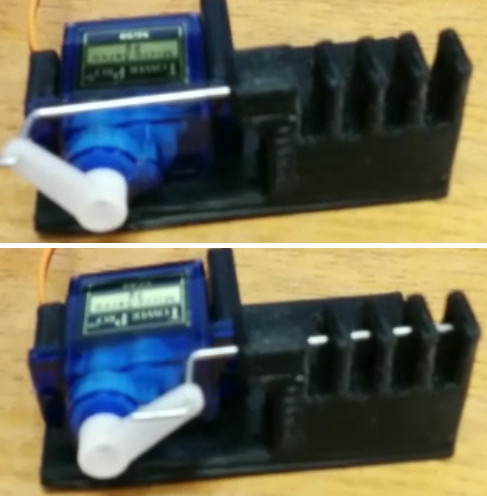

Victor R. F. Miranda1 et al. Fig. 2 Coupling mechanism using a servo motor with a package used for cargo delivery: (a) exploded delivery box, and (b) the servo cou- pling mechanism.

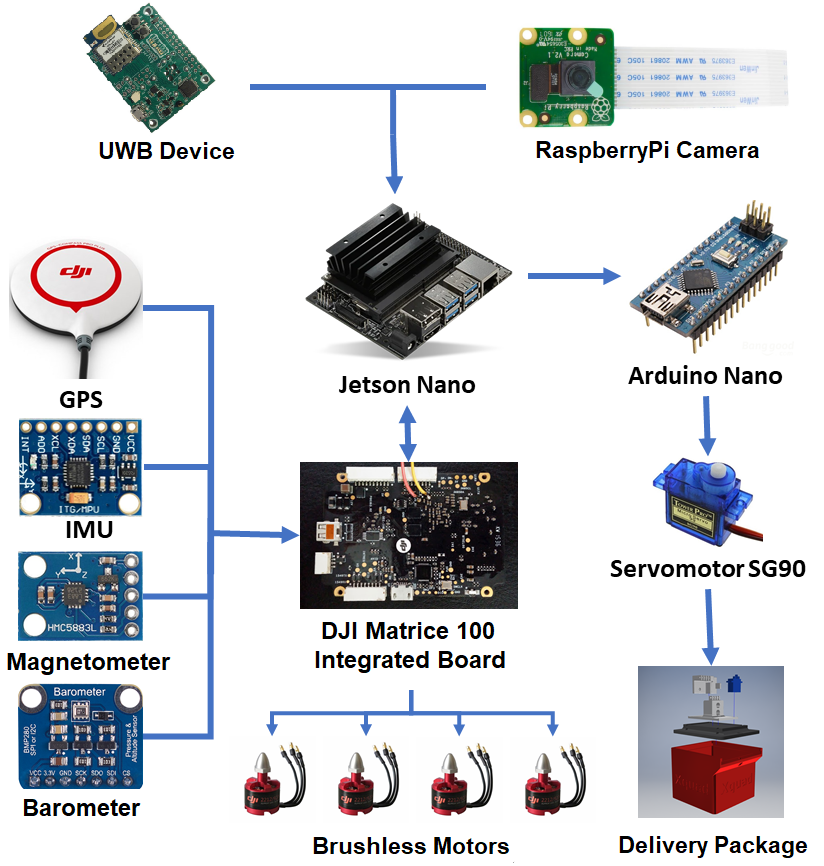

Fig. 3 Connection between the drone embedded equipment. at the landing site, and a device of the same type attached to the drone. In both cases, it is possible to obtain additional information on the drone’s position with respect to the plat- form during landing and improve the localization by fusing all these data.

Software

The Operating System used is Ubuntu 18.04 together with ROS 1 (Robot Operating System). The ROS package pro- vided by DJI called Onboard-SDK-ROS3 establishes com- package allows sending commands to the embedded con- trol system and provides data from the sensors present on the drone, such as GPS, 9DoF IMU, and barometer, in addi- tion to estimating the drone’s position and orientation in an online fashion. For the identification and estimation of the 3Onboard-SDK-ROS - https://github.com/dji-sdk/Onboard-SDK-

Ros

ArUco’s pose, specific algorithms from the OpenCV4 are used. In the case of UWB devices, an algorithm uses the dif- ference between the time of arrival (TDoA) of the signal for each device to compute the drone’s position with respect to the landing site.

Ethodology

In order to satisfy the problem requirements, such as reduc- ing the delivery time while avoiding abrupt movements and with a safe landing, we propose a solution divided into three distinct tasks: (i) path planning, (ii) localization, and (iii) control.

Path Planning

The proposed path planning strategy simplifies autono-mous drone delivery. First, the method considers the altitude, lat- itude, and longitude data to define the drone’s geographical location. For test purposes, the covered distances are short, such that a flat Earth model can be considered. Thus, we transform the angles of latitude and longitude into measure- ments of distance. The drone’s position is then initially rep- resented with respect to the Earth’s reference frame FE.

Consider that the drone’s starting point is ps ∈R3 and that the load delivery point is pf ∈R3. Without loss of gen- erality, it is possible to assume an inertial coordinate system

Fi That Respects Two Conditions:

1. The path’s end point is the origin, i.e. pf = 0; 2. The x axis of the coordinate system FI is in the the hor- izontal plane, pointing in the direction of the final point,

I.E. ˆX ∥Πxy(Pf −Ps), Where Πxy(·) Represents The

projection in the xy plane. The inertial reference frame FI is easily obtained through two operations: a translation with respect to FE, in order to satisfy condition 1; and a simple rotation in the z axis to satisfy condition 2.

The proposed path planning method computes a smooth reference path connecting the two points ps and pf. The strategy consists of creating 5 path sections: (i) vertical as- cending line; (ii) arc of a circle; (iii) horizontal line towards the platform; (iv) arc of a circle; (v) vertical descending line.

In order to allow a smooth transition between sections, space is divided into 5 sectors Si, i = 1, 2, 3, 4, 5. Each path sec- tion is associated with one sector. The definition of the sec-

D

Fig. 4 Sectors S1, S2, S3, S4 e S5, defined in equation (1).

(1)

where h is the drone fly height (with respect to FI), r is the radius of the transition arcs, and d is the horizontal separa- tion between ps and pf. Starting and final points, sectors, and variables defined here are illustrated in Figure 4.

Ocalization

The Onboard-SDK-ROS package provides a georeferenced estimate of the drone’s global orientation and position (DJI- SDK Pose). This information comes from the sensory fusion of the available GPS, 9DoF IMU, and barometer, which re- sults in an accuracy of approximately 2m. Such an estimate is good enough when on a cruise flight and was therefore used throughout the flight. However, this may be insuffi- cient when landing on a 1x1 m platform like the one pro- posed in this work, whose dimensions are less than the posi- tion estimate’s accuracy. Besides, if the landing pad position changes or the georeference is not precise enough, the drone might not be able to land at the right location using GPS localization alone.

For these reasons, it is necessary to obtain additional in- formation that allows the improvement of the drone’s es- timated position with respect to the landing site. This pa- per presents a sensor fusion strategy to improve localiza- tion by merging the DJI-SDK pose estimation with infor- mation from: (i) an ArUco marker detection technique; and (ii) multilateration using Ultra-wideband (UWB) communi- cation devices.

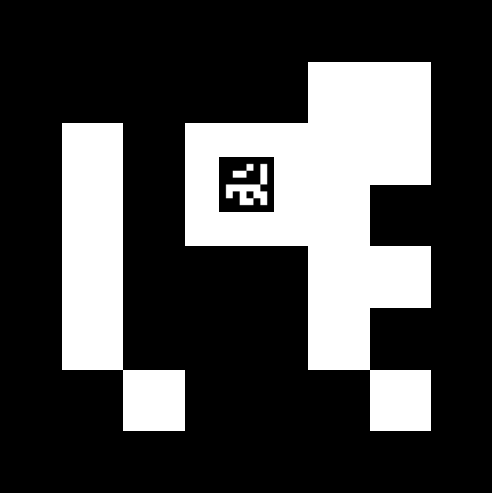

Fig. 5 Modified ArUco marker. An smaller marker is placed in a big- ger one.

Aruco

For the use of the marker detection technique for localiza- tion, ArUco markers were printed and placed on top of the landing platform. A camera attached to the drone, pointing downwards, provides images of the marker during landing.

ArUco markers have features that facilitate their identifica- tion in the image, such as well-defined borders and high color contrast. In addition, the markers do not present ambi- guities in their orientation.

Thus, specific OpenCV algorithms identify the ArUco, as well as estimate the relative pose of the marker with re- spect to the camera. This last step is done by solving the problem of PnP (Perspective-n-Point), which proposes to estimate the three-dimensional pose of a calibrated camera given a set of 3D points and their corresponding 2D projec- tions on the camera plane.

It is possible to find the pose that minimizes the projec- tion errors of the points on the camera plane by knowing the actual size of the marker and the intrinsic calibration param- eters of the camera. These points must be distinguishable from each other, and in this case, the corners of the ArUco and its orientation allow for differentiating each of its four corners before sending to a PnP solver algorithm (Lepetit et al., 2009; Hesch and Roumeliotis, 2011).

There are works in the literature that address strategies to improve the detection of the markers. A common method is to merge different AR markers to create a group that pro- vides a better pose estimation, minimizing noise and occlu- sion, as presented in (de Santana et al., 2019). Large ArUco markers can be detected from high altitudes. However, when the drone is approaching the platform, this ArUco is quickly lost by the camera. On the other hand, a smaller ArUco has the advantage of being detectable when the drone is close to the platform (if there is no high horizontal error), even though it is difficult to be detected at high altitudes.

To improve the marker detection range at high and low al- titudes, we considered a modified ArUco marker that has a smaller marker (0.09x0.09m) inside a larger one (0.8x0.8m).

Figure 5 shows this modified ArUco. The inclusion of the smaller marker may harm the detection of the larger one. Nonetheless, in our tests, this problem did not occur.

Victor R. F. Miranda1 et al.

Ultra-Wideband (Uwb) Devices

Although the ArUco marker detection provides a good pose estimation, the method is not robust for detection in low- light environments or under visual occlusion situations. For this reason, we consider using another localization based on ultra-wideband devices, which works on these conditions and increases the landing strategy robustness.

Devices based on ultra-wideband wireless technology are commonly used for low-energy IoT communication or localization. This technology uses radio waves with a band- width greater than 500MHz, which reduces the loss due to obstructions and reflections of the environment, consequently increasing the security of transmissions (Sahinoglu, 2008).

UWB-based localization systems can be used indoors and outdoors, with an accuracy of up to 20cm, according to some manufacturers. In this method, multilateration al- gorithms estimate the position xT , yT and zT of a mobile device (called tag) with respect to a fixed reference, where other devices (called anchors) are located.

N This Paper, We Use Decawave Dwm10015 Uwb De-

vices to estimate the position of the drone with greater preci- sion when approaching the landing platform. A minimum of five devices are required for the algorithm to work, one tag embedded in the drone and four anchors in known positions; one of these devices is set as the base anchor.

The position is calculated based on the distance of the tag with respect to the anchors, which comes from the Time Difference of Arrival (TDoA) of the transmitted signal, mul- tiplied by the speed of signal propagation (speed of light), as presented in (Sayed et al., 2005).

Consider a set of enumerated UWB devices, where index 0 represents the tag placed on the robot, index 1 the base anchor (or main anchor), and the higher indexes the other anchors used on the system. The distance di1 from the i-th

(2)

where ti is the instant of time the signal sent by the tag reaches anchor i, and t1 is the instant of time this signal reaches the base anchor. Light speed is c and the number of anchors is N, such that N ≥4. Distances in equation (2) result on an intersection region that represents the Tag’s po- sition, obtained as the solution of the following set of equa-

Development-Board/

where Ji = (xixT + yiyT + zizT ) and d1 is the distance from the tag to the base anchor. Considering t0 the instant of time the signal is sent by the tag, d1 can be computed as

(4)

To use Decawave devices, a maximum distance of 10m must be kept between the anchors and the tag. This method- ology does not estimate orientation, whereas the ArUco es- timation does.

Sensory Fusion

One way to improve the localization and more accurately estimate the drone’s position, orientation, and speed states, is to use information from several sensors. Sensory fusion methods use data from different devices to obtain more ac- curate information on the states of interest. For instance, the software on the DJI Matrice 100 uses data from the GPS, 9DoF IMU, and barometer to provide the drone’s pose and speeds (DJI-SDK pose).

One of the most common fusion methods is the Extended Kalman filter (EKF) (Thrun et al., 2000). In this sense, the PnP estimation of the ArUco’s marker location and the UWB localization are merged with the DJI-SDK pose data to allow a more accurate landing. As the sensors provide data refer- ring to coincident states, a bias is considered in the position estimated by GPS.

It is possible to divide Kalman’s Extended fusion and filtering method into two stages: Prediction and Correction. For simplicity, the equations are presented with the notation b ←a indicating that b is updated with the value of a.

The prediction step in the discrete EKF involves the state

(6)

where f represents the state propagation model, which in- volves current estimate ¯x, the input vector u and the timestep ∆t. Matrix F ≡F(¯x, u, ∆t) is the partial derivative of f with respect to ¯x, and matrix G is the partial derivative of f with respect to u. Matrix Qu is the covariance matrix as- sociated with input vector u, and Qf is a covariance matrix associated with the model.

(8)

where w is the measurement vector and h(¯x) is the mea- surement model, which represents the expected value of w given the current estimated state ¯x. Matrix H is the Jacobian of h(¯x), and I is an identity matrix. Finally K represents the
