Backstepping Control Robot

Abstract—This paper presents an adaptive neural network (NN) control of a two-degree-of-freedom manipulator driven by an electrohydraulic actuator. To restrict the system output in a prescribed performance constraint, a weighted performance function is designed to guarantee the dynamic and steady tracking errors of joint angle in a required accuracy. Then, a radial-basis-function NN is constructed to train the unknown model dynamics of a manipulator by traditional backstepping control (TBC) and obtain the preliminary estimated model, which can replace the preknown dynamics in the backstepping iteration.

Furthermore, an adaptive estimation law is adopted to self-tune every trained-node weight, and the estimated model is online optimized to enhance the robustness of the NN controller. The effectiveness of the proposed control is verified by comparative simulation and experimental results with Proportional–integral- derivative and TBC methods.

Neural

network (NN) control, prescribed performance constraint (PPC),

Anipulator Is A Typical Robotic Plant That Is

widely used in industrial, aeronautics, and astronautics April 16, 2018; accepted June 27, 2018. Date of publication August 30, 2018; date of current version December 10, 2019. This work was supported in part by the National Natural Science Foundation of China under Grant 61801094, Grant 61522105, Grant 51775089, Grant 61305092, and Grant 51205045, in part by the Fundamental Research Funds for the Central Universities, China, under Grant ZYGX2015J118 and Grant ZYGX2016J160, in part by the Open Systems under Grant GZKF-201515, and in part by the China Post-Doctoral Science Foundation funded project under Grant 2017M612950. (Qing Guo

Yi Zhang.)

of Electronic Science and Technology of China, Chengdu 611731, China, Education, School of Life Science and Technology, the Center for Information of Electronic Science and Technology of China, Chengdu 611731, China

Nsw

Color versions of one or more of the figures in this article are available Digital Object Identifier 10.1109/TNNLS.2018.2854699 engineering, as it has a superior load-lifting capability and can replace the human operation in high-risk environment.

Generally, a manipulator has two types of driven modes, i.e., full-actuated joints , and underactuated joints . The latter is more difficult than the former, since both kinematic and dynamic constraints are integrated in the under- actuated motion system, which cannot directly adopt conven- tional Euler–Lagrange method. Thus, model complexity and uncertainty degrade the controller robustness. To handle model constraint and system uncertainty, neural network (NN) control is popular to be used in discrete nonlinear systems , hypersonic flight vehicle , mobile manipulators , and fixed-base manipulators . Karaka¸soˇglu et al. origi- nated a supervised learning scheme that employs a simple distributed updating rule for the online identification and decentralized adaptive control. Subsequently, Man et al.

proposed a robust adaptive sliding mode control with a radial- basis-function neural network (RBFNN) for rigid robotic manipulators to achieve the robustness and asymptotic error convergence. Yang et al. investigated the teleoperated robot systems and presented many novel control techniques, such as RBFNN, wave variable, and variable gain control to eliminate the negative effects caused by communication delays and dynamics uncertainties existing in robot systems and human operators. Cao et al. presented an approxi- mate optimal control integrating with NN to realize the path control of underactuated snake robots. Chen proposed a robust adaptive control based on a dynamic neural-fuzzy structure in a fixed-base manipulator to avoid the problems of overfitting and underfitting existed in the trained network.

Subsequently, Wai and Muthusamy presented a fuzzy-NN controller with backstepping and sliding mode to improve the position tracking performance of a two-link robotic manipula- tor driven by a dc servomotor. Patiño et al. proposed a feedback adaptive neurocontroller for PUMA-560 robot, which combines feedforward NNs with adaptive and robust control techniques. The advantage of this neurocontroller is that the parameter adaptation is faster than that in the case where the learning capability of the full NN is used for the adaptation task. Yue et al. presented an NN with terminal sliding mode control used in wheeled mobile robots. In this reference, the uncertain ground friction model is identified according to the required performance. Then,

He Et Al. , Proposed An Adaptive Nn Control To

estimate the unknown modeling uncertainty and environmental GUO et al.: NEURAL ADAPTIVE BACKSTEPPING CONTROL OF A ROBOTIC MANIPULATOR WITH PPC disturbance. Chen et al. presented an adaptive neural control strategy for multiple-input-multiple-output nonlinear systems to handle the nonsymmetric input nonlinearity and the constrained states. Meanwhile, Sun et al. employed an adaptive NN in a flexible robotic manipulator to suppress

Adopted Adaptive Rbfnn

control to improve the position tracking performance of the coupled motor drives system. Dutta et al. presented a single-network adaptive critic-based controller for continuous- time systems with unknown dynamics in a policy iteration framework. This control algorithm is verified in a commercial robotic manipulator experiment.

In order to constrain the state and output of nonlinear systems, Tee et al. , proposed barrier Lyapunov func- tion (BLF) to restrict system states in a prescribed constraint domain. Then, Ren et al. adopted BLF integrated with an adaptive neural controller to improve the dynamic behavior of BLF to restrict the tracking error in the arbitrary accuracy of the robotic manipulator and improved the robustness of the NN controller. Meanwhile, he also adopted adaptive neural control and distributed parameter control in the robotic manipula-

Tor . He Et Al. , , Have Successfully Proposed

novel adaptive NN controllers (ANNCs) for the robots with constraints, where the stability of the closed-loop system is also proved. Then, Yang et al. constructed a prescribed tracking performance requirement function integrated with BLF to guarantee both transient and steady-state tracking per- formance of the dual-arm robot. Zhang studied the mul- tiloop integral controllability of a multiple-input-single-output system to guarantee decentralized unconditional stability under control-loop failure as well as to achieve offset-free tracking performance. Guo et al. derived an observer bandwidth constraint to compromise between the dynamic performance and the maximal load capability of the electro-hydraulic system. However, the input constraint is not considered in control design, which may result in larger control magnitude than the traditional controller. In practice, perhaps the input saturation is a serious problem, which should be avoided in compromise between the dynamic response performance and the input saturation, especially the initial dynamic response with large state error.

On the other hand, to guarantee the tracking error with convergence rate no less than a prespecified value, Bechlioulis and Rovithakis proposed an adaptive control with pre- scribed performance constraint (PPC) to overcome the loss of controllability issue with input saturation. Subsequently, Zhang et al. adopted PPC to restrict the angle of attack of hypersonic vehicle, which can be more easily applied to handle both static and time-varying constraints than the BLF-based methods. The advantage of PPC is that it converts the original constrained system into an equivalent one without constraints by a weighted performance function. All the system states in the closed loop are uniformly ultimately bounded while the prescribed output constraints are held. Hence, the differences of two mentioned constraint holding techniques are summa- rized as follows.

1) The PPC is constructed by an adjustable weighted per- formance function , which is positive and monoton- ically decreasing, while the BLF is a clear logarithm function form .

2) Both techniques are suitable for both time-invariant output/state constraint and the time-varying constraint

, . The Function Derivation For The Time-Varying

constraint of PPC is more convenient than the logarithm derivation of BLF. Nevertheless, for time-invariant con- straint, the difference of structural complexity can be neglected.

3) Considering the physical control saturation, the out-

By The Appropriate Design Of Weighted Performance

function. 4) The initial output error of PPC can be allowed in a larger scope and the negative effect to the system stability is not relatively sensitive.

Thanks to the research development of motion control of NN-based manipulator control , , the study is supplied valuable intention. In this paper, inspired by the adaptive NN control proposed in and the prescribed tracking performance function in , an adaptive NN control is used in the two-degree-of-freedom (Two-DOF) manipulator driven by electrohydraulic actuators (EHAs). Different from these references, the EHA model is considered in the robotic systems, which implies that the model order is increased from two to three. In this condition, model uncertainties caused by the mechanical structure are more obvious than that of without actuator model, which will decline the output performance of a manipulator. Furthermore, to the best of our knowledge, the robotic manipulator has not been driven by an EHA with PPC technique until now. Simultaneously, an RBFNN is adopted to train the unknown model dynamics emerged in backstepping iteration. Furthermore, considering the parametric uncertainty existed in the manipulator model, an adaptive estimation law is designed to self-tune every trained-node weights of the RBFNN to enhance the proposed controller robustness. The comparison simulations and exper- imental results with the other two common controllers have verified the effectiveness of the proposed controller in terms of the tracking angle performance and the control current output by the servo valve of an EHA.

The remainder of this paper is organized as follows. The manipulator plant is described in Section II. The adap- tive NN control is designed in Section III, including PPC, traditional backstepping control design, the model training by RBFNN, and the adaptive estimation law of node weights.

The simulation and experimental results demonstrated on the joint motion of the Two-DOF robotic manipulator are given in Sections IV and V, respectively. Finally, the conclusion is drawn in Section VI.

Plant Description

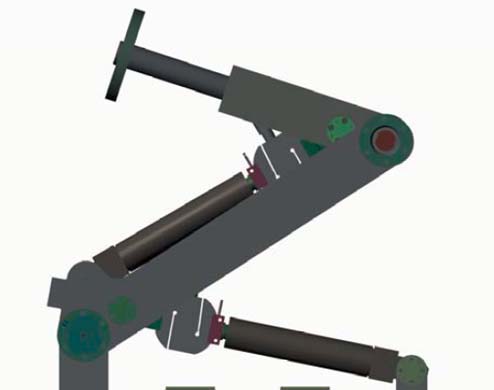

A Two-DOF robotic manipulator is comprised of an upper arm, a forearm, a disc load, and a fixed torso, as shown as in Fig. 1. The shoulder and elbow joints can be driven to rotation by two EHAs.

Fig. 1. Single-rod EHA control mechanism. In the pressure loop of this EHA, the load pressure pL of the hydraulic cylinder is controlled by the spool position xv of a servo valve. Since the cutoff frequency of a servo valve is far greater than the control system bandwidth, the valve dynamics can be neglected in model construction as follows:

(1)

where Ksv and u are the gain and control current of the servo valve, respectively.

(2)

where a1, a0, and b0 are the hydraulic model parameters.

(3)

where li(qi) (i = 1, 2) are the two dynamic force arms, and Ap is the cylinder ram areas. According to triangle geometry rule, the corresponding

(4)

where ci(qi) is the dynamic cylinder length, κi and ς are the installing locations of two cylinders, and ϵi is the bias angle of cylinder for i = 1, 2.

Definition 1: For convenient expression, two operators

“⊙” And “⊘” Are Defined As Follows:

β ⊙γ = [β1, β2, . . , βn]T ⊙[γ1, γ2, . , γn]T

= [Β1Γ1, Β2Γ2, . . . , Βnγn]T

β ⊘γ = [β1, β2, . . , βn]T ⊘[γ1, γ2, . , γn]T = [β1/γ1, β2/γ2, . , βn/γn]T . The dynamic model of a Two-DOF robotic manipulator

(7)

where q = [q1, q2]T , ˙q, and ¨q are the angular position, velocity, and acceleration, τ = [τ1, τ2]T are the joint torque provided by two EHAs, fv(q) = μ[sgn(˙c1(q1)), sgn(˙c2(q2))]T is the viscous resistance, μ is the viscous coefficient of hydraulic oil, H(q) is the symmetric positive definite iner- tia matrix, “⋆” denotes the same transpose element of H, C(q, ˙q)˙q is the Coriolis force element, G(q) is the gravita- tional force, m1 is the upper arm mass, including cylinder, m2 is the forearm mass, m f is the disc load mass, Li is the corresponding link length, Lc1 is the distance from shoulder joint to the center of mass of upper arm, Lc2 is the distance from elbow joint to the center of mass of forearm, Ii is the moment of inertia rotating respective center of mass of i link, and g is the gravity constant.

=

[x11, x21]T = [q1, q2]T , x2 = [x12, x22]T = [˙q1, ˙q2]T , and x3 = [x13, x23]T = [pL1, pL2]T , then the state-space model

(8)

where v = Ksv(a1 ˙u + a0 u) is considered to be the indirect control variable of this manipulator system. Remark 1: Without loss of generality, some model para- meters in (8), such as ni (i = 1, . . , 5) and μ, are usually uncertain or inaccurate, which can be handled by NN learning in control design.

Property 1 : Since H(q) is symmetric positive definite matrix, the matrix ˙H(q) −2C(q, ˙q) is skew symmetric. Problem 1: Considering the dynamic model (8) of a manip- ulator with parametric uncertainty mentioned in Remark 1, an ANNC is designed to guarantee the output state x1 tracking the demand input x1d. Furthermore, the tracking error x1−x1d is restricted in a prescribed performance.

Ontrol Design

The proposed controller is designed based on the TBC method together with the output constraint holding technique GUO et al.: NEURAL ADAPTIVE BACKSTEPPING CONTROL OF A ROBOTIC MANIPULATOR WITH PPC

A. Prescribed Performance Constraint

Different from the BLF, the tracking error constraint is realized by a designed weighted performance function ρ(t), which can guarantee the control variable u not beyond required saturation.

The two tracking errors of this manipulator are defined as

(9)

If xi1 is constrained in xi1(t) ∈(xi1 min, xi1 max), and xi1d has a definite boundary xi1d min ≤xi1d ≤xi1d max, then

= Xi1 Max −

xi1d min > 0 are two constants.

Efinition 2 : A Smooth Function Ρ(T) = (Ρi(0) −

ρi(∞))e−λt+ρi(∞) is called a weighted performance function if: 1) ρ(t) is positive and monotonically decreasing;

) Lim

x→∞ρ (t) = ρ∞> 0; and 3) ρ (∞) < ρ (0) < 1. Lemma 1 : If a weighted performance function ρ(t) is

(11)

then ei(t) is constrained in (ki, ¯ki). In fact, if ei(t) ≥0, then ei(t) ≤ei(t)/ρi(t) < ¯ki. On the other hand, if ei(t) < 0, then ki < ei(t)/ρi(t) < ei(t).

Thus from Lemma 1, the PPC kiρi(t) < ei(t) < ¯kiρi(t) can be used to define the system state errors as follows:

(12)

where T (·) is a smooth function and T −1(·) is its inverse function. Theorem 1 : The smooth function T (·) is monotoni- cally increasing and holds the following properties:

(14)

Since ki < 0 and ¯ki > 0, dT/dzi1 > 0. Hence, T(zi1) is monotonically increasing. Furthermore, due to the PPC

< T(Zi1) <

¯ki is held. As zi1 →±∞, T (zi1) approaches its up and down boundaries ¯ki and ki, respectively. If zi1 = 0 is substituted into (12), then

T(0) = 0.

Remark 2: From Theorem 1, the PPC kiρi(t) < ei(t) < ¯kiρi(t) of the tracking error ei(t) can be transformed into the system state error arbitrarily varying on the scale −∞< zi1(t) < +∞.

Zi3 = Xi3 −Αi2

where αij is the virtual control variable emerged in the backstepping control design. For convenient derivation, many 2-D vectors are defined as z j = [z1 j, z2 j]T ( j = 1, 2, 3), α j = [α1 j, α2 j]T ( j = 1, 2),

(16)

Step 1: From (11), the derivative of z1 is given by

R2×2 Is A Positive Defi-

nite constant matrix, then the derivative of V1 in (16) is

(19)

Step 2: Substituting Property 1 into the derivative of V2,

+Zt

3 (Apl ⊙z2 + v −b0x3 −˙α2).

(25)

Remark 3: From (16) and (25), the control variable v (24) integrated with the virtual controls α1 (18) and α2 (21) can not only guarantee all the system errors zij (i = 1, 2, j = 1, 2, 3) asymptotic to zero but also restrict the dynamic errors e1 and e2 in the PPC kiρi(t) < ei(t) < ¯kiρi(t).

Adaptive Neural Network Controller

According to Remark 1, some parametric uncertainties exist in the matrices H, C, G, and fv, which lead to negative effect in the virtual control α2 (21) and the final control variable v (24). Thus, an adaptive NN is adopted to handle these unknown dynamics.

: A Class Of Rbfnn Is Usually Used To

estimate an unknown continuous function fi(X) as follows:

(26)

where X is the input vector, Wi is the weight vector with the ki nodes of the RBFNN, Si(X) = [s1, s2, . . , ski ]T is the Gaussian basis function vector, and εi(X) is the estimation error of the RBFNN, which is bounded by |εi(X)| < εmax for i = 1, 2, and εmax is an unknown boundary.

(27)

where μ j is the center of the receptive field and σ j is the width of the Gaussian function .

Of The Rbfnn Is Defined As

X = [x1, x2, α1, ˙α1]T , then the RBFNN estimation W T S(X) can be trained by sufficient sample data to approximate the

(28)

where F is the model uncertainty by model parameters ni (i = 1, . . , 5) and μ is mentioned in Remark 1. Simultaneously, to enhance the robustness of the RBFNN controller, an adaptive estimation law for the weight vector Wi

Is The Adaptive Estimated Value Of The Ideal

weight Wi, and i > 0 and ηi > 0 are the diagonal matrix and constant gains of the adaptive estimation law. Remark 4: The weight estimation ˆWi is online self-tuning by (29) based on a preliminary training value Wi(0) of the designed RBFNN, which can eliminate the negative effect of parametric uncertainties existed in H, C, G, and fv.

If the adaptive weight estimation law (29) is considered in backstepping iteration, then the virtual control α2 (21) is

(30)

Theorem 2: Considering the manipulator model (8), if the RBFNN controller is designed as (18), (24), (28), and (30), together with the adaptive weight estimation law (29), then the system state errors (12) and (15) are all ultimate boundary and the error convergence domain is an hypersphere Hr, i.e.,

(31)

where λ∗and δ are the positive constants, and V3(0) is the initial system state error, ∀t > t f (t f is a finite time). Proof: Consider the candidate Lyapunov functions of (8)

(32)

where ˜Wi = Wi −ˆWi is the self-tuning weight error of Wi.

, 2) And The Final

control variable v can also be derived by the derivatives of Vi(i = 1, 2, 3). Different from the backstepping iteration in Section III-B, substituting (28) into (20), the derivative ˙V2 is given by

(34)

Substituting the revised virtual control α2 (30), the adaptive weight estimation law (29), and Young’s inequalities (34)

(35)

GUO et al.: NEURAL ADAPTIVE BACKSTEPPING CONTROL OF A ROBOTIC MANIPULATOR WITH PPC Fig. 2. Block diagram of the adaptive NN control scheme.

Similar to Step 3, if the control variable v (24) is substituted

Where The Positive Constant Δ = ∥Ε∥2/2 + 2

i=1 σi∥Wi∥2/2. When premultiply and postmultiply the inequality (38)

(40)

Now substituting (32) into (40), and let t > t f , the error convergence domain Hr in (31) is obtained. Furthermore, the size of Hr mainly depends on the element δ/λ∗. Thus, the increased control gains Ci(i = 1, 2, 3) and the parametric estimation gains i(i = 1, 2) can arbitrarily shrink the size of Hr as t →∞.

From (1), (2), and the indirect control variable v in (8), the actual control current u of the servo valve is given by

(41)

Fig. 2 shows the block diagram of the proposed adaptive NN control scheme. The RBFNN (28) is trained by the system states x1 and x2, the virtual control α1, and its derivative ˙α1 in the traditional backstepping iteration from (18), (21), and (24),

Some Mechanical And Hydraulic Parameters

which can obtain the preliminary weight value Wi0 and the RBF Si(X) for i = 1, 2. Then, the actual weights ˆWi(i = 1, 2) are online self-tuning by the adaptive weight estimation law (29), which compensates the inaccurate dynamic model in (8). According to the PPC (11), the ANNC u (41) is constructed by (18), (24), and (30) to guarantee the dynamic performance of the manipulator system (8).

Simulation

To verify the proposed ANNC in simulation, some nominal mechanical and hydraulic parameters of this robotic manipu- lator are shown in Table I. The hydraulic parameters a1, a0, and b0 are simplified from the linear load pressure model pL controlled by the valve spool position xv .

Q1 ≤115.76◦And 47.85◦≤Q2 ≤135.92◦. The Prescribed

performance boundaries of two tracking errors k1 = k2 =

= 100◦. Three Parameters Of The

weighted performance function are ρ(0) = [0.95, 0.95]T, ρ(∞) = [0.02, 0.02]T, and λ = 0.5. The control gains are designed as C1 = diag{1, 1}, C2 = diag{10, 10}, and C3 = diag{2000, 2000}. The approximate order of magnitude for these control gains is determined by the virtual controls (18) and (21) and the final control (24). For the RBFNN estimation, 68 and 57 nodes are used for each Si(X) with centers selected in the area of [−1, 1] with 8-D grids. The variances of centers

Are Σ 2

j = 1, ( j = 1, . . , ki). Two diagonal matrix gains of the adaptive estimation law are 1 = 20 × I68 and 2 = 20 × I57, where In denotes the n × n identity matrix, η1 = η2 = 0.02.

These matrix gains are well tuned, considering both the fast convergent weights and the desirable tracking performance. To illustrate the problem, the proposed ANNC based on (18), (24), (30), and (41) is compared with the following two controllers as follows.

1) Proportional–integral-derivative (PID) controller u =

(Yd −X1)Dt +Kd ( ˙Yd −X2), Where The

control gains kp = 140, ki = 17, and kd = 7 have been well tuned to guarantee fast responses of two robotic joint angles.

2) The traditional backstepping controller (TBC) based on (18), (21), (24), and (41).

A. Comparison With Pid Control

Two sinusoidal demands of the joint angles are q1d = 33 sin(1πt) + 72.8◦and q2d = 34 sin(2πt) + 91.9◦. The com- parison results of the two controllers are shown in Figs. 3–5.
