Dexterous Manipulation

Project Web: https://sites.google.com/view/dexterous-cable-manipulation/home Fig. 1: Our designed hand pulling the cable from right to left. (a)-(c): The hand performs a pre-grasp motion to position the cable correctly. (d): The left-side thumb and index finger grasp the cable. (e): The middle finger bends to hook the grasped cable. (f)-(h): The left-side thumb and index finger drag the cable to the left, and the right-side thumb and index finger hold the cable to prevent it from sliding back.

Abstract—Humans use their hands to dexterously manipulate cables to perform various tasks, like grasping cables, moving cables in hand without dropping them, bending the cable into a U shape for hooking and so on. Existing research that addressed cable manipulation relied on two-fingered grippers, which make it difficult to perform similar cable manipulation tasks that humans perform. This is due to the limited dexterity of a two- fingered gripper, which can only grasp and release a cable without additional manipulability. Thus, we need a multi-fingered hand, which is much more dexterous than a two-fingered gripper.

However, unlike dexterous manipulation of rigid objects, the development of dexterous cable manipulation skills in robotics remains underexplored due to the unique challenges posed by a cable’s deformability and inherent uncertainty. In addition, using a dexterous hand introduces specific difficulties in tasks, such as cable grasping, pulling, and in-hand bending, for which no dedicated task definitions, benchmarks, or evaluation metrics exist. Furthermore, we observed that most existing dexterous hands are designed with structures identical to humans’, typically featuring only one thumb, which often limits their effectiveness during dexterous cable manipulation. Lastly, existing non-task- specific methods did not have enough generalization ability to solve these cable manipulation tasks or are unsuitable due to the designed hardware. We address these three challenges in real- world dexterous cable manipulation in the following steps: (1) We first defined and organized a set of dexterous cable manipulation tasks into a comprehensive taxonomy, covering most short- horizon action primitives and long-horizon tasks for one-handed cable manipulation. This taxonomy revealed that coordination between the thumb and the index finger is critical for cable manipulation, which decomposes long-horizon tasks into simpler primitives. (2) We designed a novel five-fingered hand with 25 degrees of freedom (DoF), featuring two symmetric thumb- index configurations and a rotatable joint on each fingertip, which enables dexterous cable manipulation. (3) We developed a demonstration collection pipeline for this non-anthropomorphic hand, which is difficult to operate by previous motion capture methods. Given only one demonstration on one specific cable for each manipulation, among 8 primitives, our method achieved 88% success rate of demonstration replaying on three cables of the same material but various diameters and over 75% success rate on three cables of very different materials, stiffness, and diameters. Based on collected primitive demonstrations, we developed finite state machines (FSM) that enabled the robotic hand to execute complex long-horizon tasks without requiring prior demonstrations of the complete trajectories. Among four long-horizon and complicated manipulations, we achieved a 64% success rate of demonstration replaying on the cables of the same materials and various diameters. Our robotic hand achieved performance comparable to human baseline dexterity in both primitive actions and long-horizon tasks. Through human-guided transitions between primitives, the robotic hand demonstrates

Arxiv:2502.00396V2 [Cs.Ro] 6 Feb 2025

robust long-horizon manipulation capabilities even under diverse external disturbances. Index Terms—Manipulation taxonomy, cable manipulation, dexterous manipulation, multi-fingered hand design.

Ntroduction

The manipulation of cables, deformable linear objects in a formal description, is a fundamental task across diverse settings - from precise movements in surgical procedures to everyday handling in offices and homes, as well as critical ap- plications in manufacturing and various industries [68, 43, 58].

Previous works demonstrated that cables can be manipulated in versatile but specific ways with one or two grippers mounted on robot arms, e.g., cable insertion [61, 52, 67], cable slid- ing and following [45, 60], cable knotting [38, 29], cable untangling , cable waving [11, 51], cable routing [25, 31], cable coiling and wrapping for packing and storing [34, 33], cable shape control and planning in 2D and 3D[55, 59, 32] and so on. However, a significant gap still exists between robotic cable manipulation and human-level dexterity. We demonstrate the gap by considering a manipulation case: a human wants to insert a USB connector into a computer port, and they first grasp the middle part of USB cable, slide the cable to reach the USB port connector, adjusts the connector’s position and orientation, and finish insertion. In the above- mentioned task, humans use their dexterous hands to perform versatile manipulation skills, allowing them to handle cables in numerous ways without the need for specialized tools or being limited to particular tasks. This versatility highlights the limitations of current robotic approaches, e.g. using a robot gripper, which lack the adaptability and dexterity inherent in human hands and cannot perform either in-hand manipulation or long-horizon manipulations. Although some grippers with task-specific modifications can perform a certain dexterous cable manipulation, e.g. a gripper with tactile sensors for in-hand cable following [45, 60], such modifications highly depend on the hardware designs for specific tasks without generalization like human hands.

One straightforward way to begin to bridge the gap be- tween robot and human manipulation of cables is to analyze and understand how humans manipulate cables. Investigating robotic successes on dexterous manipulation on rigid objects demonstrates some commonalities: multi-fingered hands were mainly used with high dexterity on tasks that were already well-defined in studies on human manipulation, e.g. in-hand object reorientation [10, 9, 22], multiple object grasping , and so on. To explore how humans manipulate objects, previ- ous researchers developed taxonomies of rigid object grasping and manipulation [14, 17, 28, 4]. These taxonomies can help segment, classify, and label different types of primitives or grasping poses among datasets from humans and provide a better understanding and analysis of human behaviors, for the benefit of enlightened robotics research. By manually defining primitives, task and motion planning can be proposed to address long-horizon manipulation of rigid objects with low level primitives and high level planners [19, 35, 36, 16, 49].

Inspired by this rigid object research, for dexterous cable manipulation (DCM) we propose a cable’s dexterous manip- ulation taxonomy (Cable Dexonomy, see Section III.).

Built on the taxonomy for DCM, the second goal is to develop an improved end-effector. Human hands can perform dexterous cable manipulation in many ways without needing specific end-effectors or limitations to particular tasks. As for robotic cable manipulation, there is much previous research into cable manipulation [61, 52, 67, 45, 38, 29, 60, 50, 11, 51, 25, 34, 33, 55, 59, 32], but they all used either one or two two-fingered grippers, and most grippers grasp cables firmly without relative motions between the cable and the gripper unless released, except [45, 60], which used tactile sensors that allowed sliding between the cable and the gripper.

Using dexterous hands to manipulate cables is still under- explored, and one notable reason is both the dexterous hand and the cable have exceptionally high degree-of-freedoms (DoFs), which make the control extremely difficult.

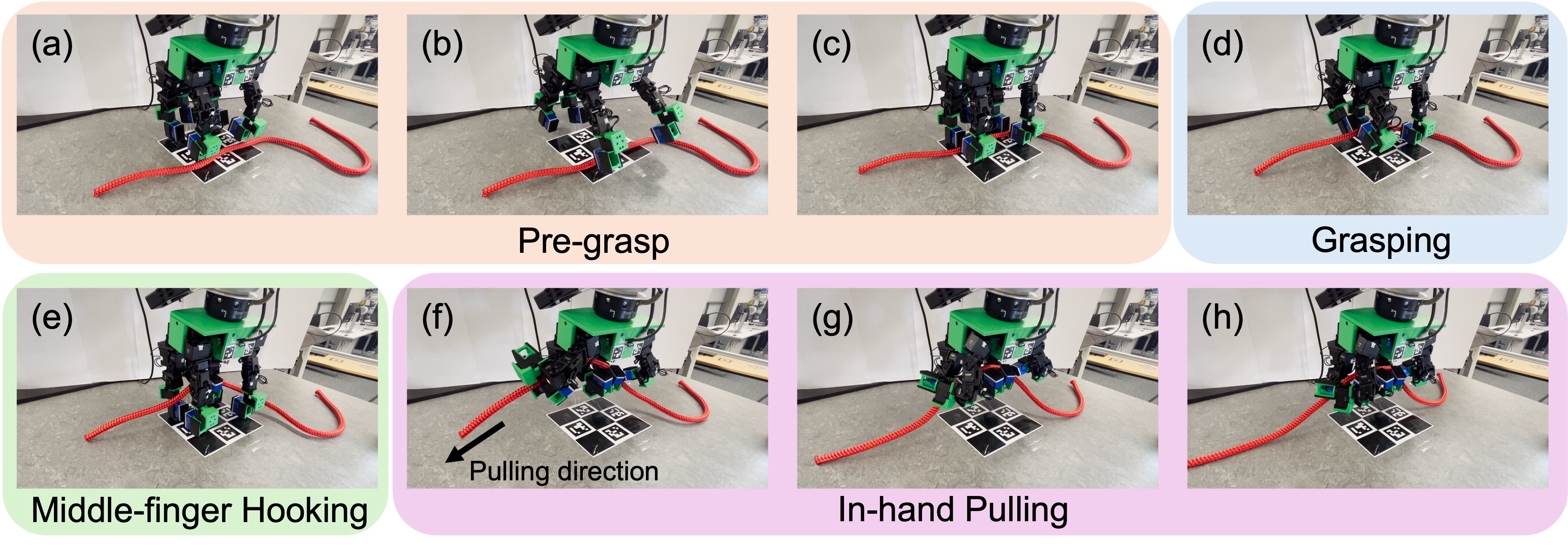

The example in Figure 1 shows that using a multi-fingered hand to manipulate the cable has many benefits. The hand manipulates the cable in a dexterous way by first pre-grasping the cable into a more convenient position, grasping it, hooking it with the middle-finger, and performing in-hand pulling to move the cable along the hand. If a two-fingered gripper were used instead of the hand, it would be necessary to move the whole arm to perform pre-grasp and grasping and it would also need support from the table to perform the cable sliding for releasing and re-grasping. These benefits also happen in different scenarios with similar behaviors.

One notable thing about the hand shown in Figure 1 is the hand has two new features compared to anthropomorphic hands: two symmetrically placed thumbs and rotatable finger- tips. These improvements were identified as a consequence of the taxonomy study. This will be further discussed in Section Given the Cable Dexonomy and the hand designed for dexterous cable manipulation, the third problem arises: how to control the new hand to enable it to perform various DCM tasks. As far as we can tell, all previously published solutions are task-specific without having (or at least demonstrating) the potential to generalize to different tasks. Considering the enormous types of cables and associated dexterous manipu- lations, proposing new solutions for each new manipulation task is time-consuming and unrealistic. For a general-propose solution for various manipulations, either optimization-based methods or learning-based methods have demonstrated their potential [41, 40]. However, the former requires a careful construction of optimization equalities, and the latter one needs specific reward engineering and meanwhile sim-to-real transferring is another challenge [3, 22]. Recently, imitation learning-based methods have become very popular for robotic manipulation with single or dual arms, e.g. Action Chunking Transformer [64, 65], Diffusion Policy , with a multi- fingered hand and Dexterous Imitation Made Easy , See to Touch , on an anthropomorphic hand. However, these methods, requiring motion capture or teleoperation, are almost impossible to use for dexterous cable manipulation, which is a multi-contact problem and requires intensive haptic feedback.

So far, we have not seen any method that can collect in-hand demonstrations of dexterous manipulation of cables with an anthropomorphic hand, let alone with a hand whose dexterity is beyond the usual anthropomorphic design.

Therefore, to address the control problem by using imita- tion learning, we proposed a special data collection pipeline, together with a finite state machine that can execute primitives to perform a long-horizon manipulation. (See Section V.) We do not propose or implement an autonomous manip- ulation system in this paper. The goal of the experiments is to show that: 1. The proposed demonstration collection pipeline is well established and capable of replaying primitive and long-horizon actions on different cables with different configurations. 2. A good cable taxonomy could lead to a good performance of long-horizon manipulations with clearer strategies and sub-steps. 3. A good hardware design that can perform these dexterous manipulation with a high success rate.

4. The potential of collecting a large scale of demonstration dataset to train a learning-based manipulation policy. To conclude, this paper makes three contributions: • A proposal for a dexterous cable manipulation taxonomy (Cable Dexonomy - Section III).

• An improved multi-fingered hand with one additional thumb and rotatable fingertips in symmetric structure in- spired by Cable Dexonomy, which is capable of perform- ing various dexterous cable manipulation tasks. (Section

)

• An effective demonstration collection pipeline using the designed hand to identify and implement manipulation primitives and replaying long horizon tasks with finite state machines according to the Cable Dexonomy with unseen cables. (Section V).

Research Background

Dexterous manipulation refers to turning and shifting of objects to change their positions and orientation in the hand through the motion of the palm and fingers given a reference configuration [37, 6]. Compared to gripper-based manipulation, dexterous manipulation usually involves a multi- fingered hand to perform in-hand manipulation, including dexterous grasping , in-hand object reorientation [10, 9, 3], in-hand finger motion planning , grasped object shape

Estimation , Tossing , Catching , Multiple Object

grasping , solving Rubik’s cubes , rotating Baoding balls and so on. Another way of performing dexterous manipulation is called extrinsic dexterity . With the help of gravity or extrinsic contacts with environment, like tables or walls, end-effectors can perform more dexterous manipulation including object flipping [46, 23]. In this work, we focus on dexterous manipulation with a multi-fingered hand, but we still discussed how contacts with environment benefit in-hand dexterous manipulation.

Manipulation taxonomies have been proposed to classify different types of human grasping and manipulation, due to the many and complex manipulations possible with different objects and with different goals. Cutkosky et al. first developed a taxonomy for power and precision grasps based on the concept of virtual fingers . Feix et al. extended human grasping taxonomies into The GRASP Taxonomy with 33 different grasp types . Beyond human grasping, there are several works on taxonomies for labeling and segmentation of videos of human object manipulation [28, 4, 7, 8]. These manipulation taxonomies have two advantages: 1. a robotic manipulation benchmark, and 2. introducing long-term ma- nipulation by composition of short-term primitives.

Cable manipulation has been explored in various way, including cable insertion [61, 52, 67], cable following and sliding [45, 60], cable knotting [38, 29], cable untangling , cable waiving [11, 51], cable routing [25, 31], cable coiling and wrapping for packing and storing [34, 33], cable shape control in 2D and 3D[55, 59, 32] and so on. For these tasks, the most frequently used end-effectors are parallel jaw grippers or similar end-effectors that can firmly grasp the cables without relative sliding. However, fixed grasps of cables prevent the robot from performing DCM due to the restricted action space, She et al. used a gripper with tactile sensors to do cable following, allowing the gripper to reach one end-tip of the cable by sliding along it. Yu et al. performed a similar manipulation using the thumb and a single index finger on a multi-fingered hand equipped with tactile sensors on the fingertips, but did not further explore the use of all fingers or other tasks. For both methods, sliding the gripper along a cable, rather than pulling the cable through the hand, requires two strong assumptions: one end of the cable is fixed, and the hand is moved by the robot arm rather than staying static to perform in-hand manipulation.

In this paper, we show that using a 5-fingered hand without tactile sensors can perform not only one hand cable pulling, but also several other in-hand cable manipulation tasks.

Taxonomy Of Dexterous Cable Manipulation

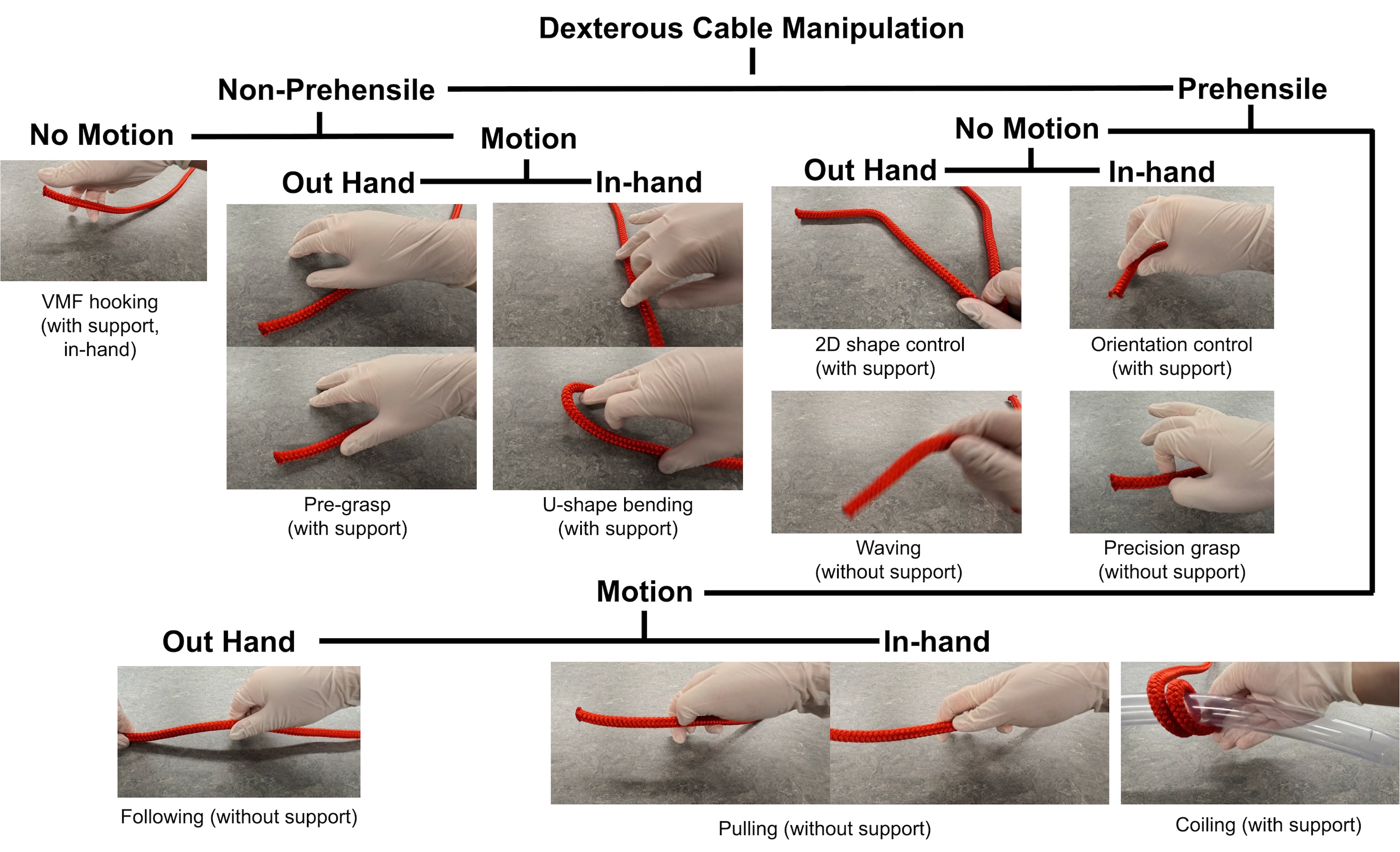

This section introduces a proposed Cable Dexonomy (Dex- terous cable manipulation Taxonomy) from the human per- spective.

A. Cable Dexonomy Tree

Previously, a hand-centric manipulation taxonomy was pro- posed to classify different in-hand rigid object manipulation tasks , given 6 criteria used to define the task. There are 4 criteria shown in Figure 2: prehensile or non-prehensile, motion or no motion, in-hand or out-of-hand, and with or without support. Figure 4, shows that the fingers used during manipulation can be summarized into three types. Figure 3, displays the different goal configurations that the cable may reach during dexterous manipulation.

Next, we describe how Bullock et al’s scheme is adapted for cables and dexterous manipulators. We propose several cable-specific extensions for the criteria mentioned above: 1. Prehensile refers to having more than one contact point and having contact forces that can stabilize the cable without Fig. 2: Human DCM with Prehensile (or not), Motion between fingers and the cable (or not), In-hand or out-of-hand, and Support from the external contact (or not).

external forces like gravity or ground support . 2. Motion indicates active movement exists between the hand and the cable. 3. In-hand means the manipulation mostly happens inside the hand space between fingers and the cable, and its opposite, out-of-hand, refers to the movement of the whole arm or the wrist without considering the fingers’ actions.

4. With support means that the cable is supported by an external contact, such as lying on the table or the ground. 5. Used fingers indicates which fingers and how many are used to perform the manipulation. Two additional terms are introduced: virtual middle finger (VMF) and thumb-index combination (TIC). Virtual fingers (VF) were proposed by

Utkosky And Used In The Grasp Taxonomy , Which

refers to several fingers working together as a functional unit. More specifically, a VMF includes at least one middle finger possibly with the ring finger and the little finger, shown in Figure 4. The thumb-index combination (TIC) refers to the most frequently used two fingers among many tasks, i.e. the thumb and the index finger. [VMF+Palm] indicates using the VMF and palm to grasp the cable without the ability to control the cable’s pose (shown in Figure 4), whereas one TIC can grasp the cable with the ability to control its pose. Different from The Grasp Taxonomy, we do not assign the palm to a virtual finger. 6. Goal configuration describes the target state of the cable.

The configuration descriptions of the 4 types are: 1) pose change of the local part, 2) overall geometric shapes, 3) hand- cable relative position, and 4) topological information. Though a long thin cylinder’s motion was discussed by Bullock et al.

, cables are much more complicated than cylinders due to their relative smaller radius and possible shape deformation. ‘Pose change’ refers to a local movement of the cable in orientation or position in three dimensions. ‘Overall geometric shapes’ refers to the cable shape control problem, such as mak- ing a cable straight or into a U-shape. The ‘hand-cable relative position’ refers to how the cable is placed with respect to the hand, e.g., the cable is placed between the thumb and the index finger for future grasping. ‘Topological information’ refers to adjacency relations among intersections during knotting and untangling [48, 20]. Figure 3 shows the criteria for these four types of goal configurations. Some primitives are complicated so they may have multiple goal configurations. For example, the goal configuration of precision grasping usually contains hand-cable relative position and a Z-axis position control by lifting the cable.

B. Common Manipulation Tasks

Table I displays some common manipulation tasks and their categories according to the proposed Cable Dexonomy, together with their corresponding research which used grippers or a multi-fingerd hand that can be moved by the robot arm.

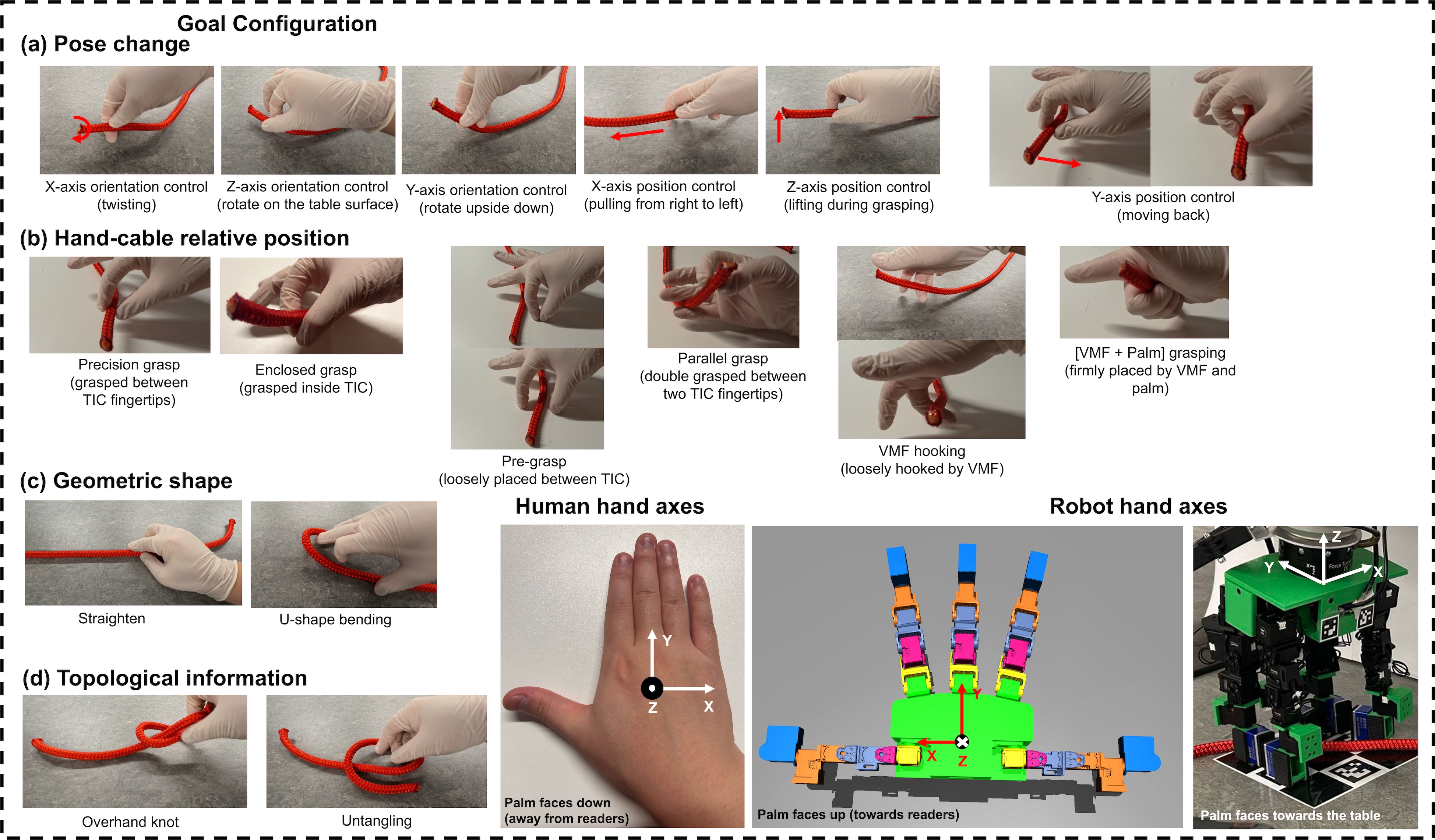

Because a jaw-parallel gripper grasps the cable firmly during Fig. 3: Four types of goal configurations. The coordinate system shown at the lower right is the same for the human hand, our rendered robot hand, and our real-world robot hand.

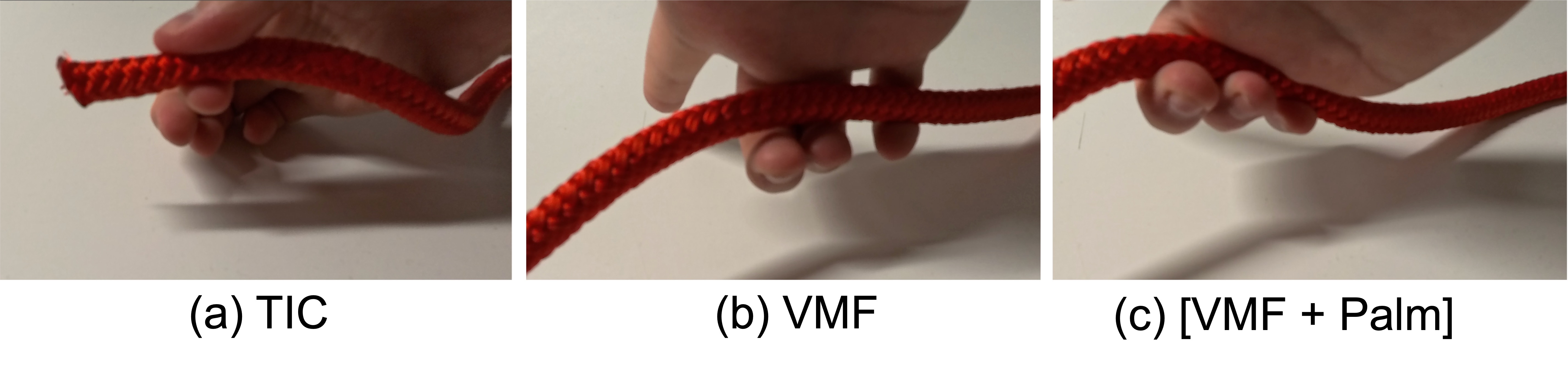

Fig. 4: Three types of combinations of fingers. (a) TIC: the thumb and the index finger combo. (b) VMF: virtual middle fingers can be a combination of the middle finger, the ring finger, and the little finger. (c) [VMF+Palm]: using VMF and the palm for extra grasping, can be replaced by another TIC if exists.

manipulation, a human hand can also perform this with one TIC or [VMF + Palm]. Thus, our Cable Dexonomy also covers some previous studies that used jaw-parallel grippers by clarifying the used fingers. Some examples are:

• 2D Shape Control On The Table: Yan Et Al. Used

a gripper to control the cable’s 2D shape by picking and placing. This can be performed with a TIC using a precision grasp.

• 3D shape control in the air: Yu et al. used dual grippers with two arms to control the cable’s 3D shape.

With Two Tics Or Two [Vmf + Palm] That Can Freely

move in the air, we can still perform 3D shape control. • Cable pulling: Two grippers can grasp and release the cable as an alternative way to move it to the target position, and meanwhile two TICs can perform the same behavior.

• End-tip orientation control: One gripper/TIC that is at- tached to a robot arm can freely control the orientation of the cable’s end-tip. However, if the hand base is fixed,

We Use A Tic To Grasp The Cable, And Vmf To Pivot

it by applying a force on the other side. This can be performed with a gripper loosely grasping the cable (This can be achieved by a gripper with tactile sensors .) and another additional finger to pivot the other side of the cable to rotate its end-tip.

These cases indicate that cable manipulation with one or multiple grippers mounted on a robot arm can be performed using a multi-fingered hand such as the one presented here.

Omposition Of Long-Horizon Tasks

Long-horizon tasks are those that require a sequence of short-term actions (primitives). They are mostly complex and require a high-level planner to execute primitives in the correct order [19, 8]. How to decompose a long-horizon task is crucial to solve the task. The primitive actions of the Cable Dexonomy allow the decomposition of many long-horizon tasks into a sequence of several primitives. One long-horizon task example is Cable pulling, as in Figure 5. The hand performs pre-grasp, grasping, middle-finger hooking, and cable pulling repetitively until reaching the end-tip.

TABLE I: Example tasks classified according to 6 criteria. ? for unknown solutions because knotting or untangling normally requires two hands which are much more sophisticated than the case of using one hand. TIC is the combination of the thumb and the index finger, VMF is the virtual middle finger. ∗indicates that the cited research used a moving end-effector rather than a fixed-base. † means that 3D shape control is not designed for single hand manipulation unless one end is fixed.

Topology

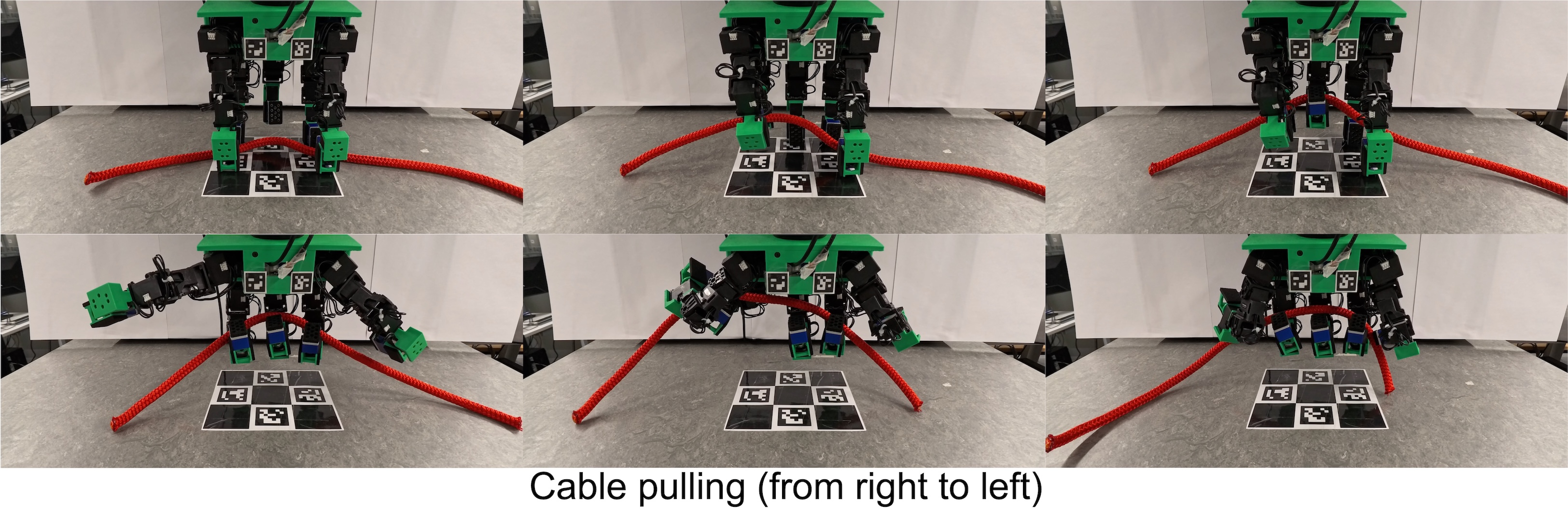

Fig. 5: Demonstrations of cable pulling. See the appendix for other long-horizon manipulations.

Hardware Design

Many other hands are not open-source or available for purchase yet, such as the Tesla Optimus’s hands. These hands have the closest similarity to human hands: one thumb and a subset of the remaining four fingers, and are named Anthropomorphic hands. There are also other multi-fingered hands that are not human-like. D’Claw hands have four identical index fingers, evenly distributed on a circle. Among these multi-fingered hands, the Leap hand and the D’Claw hand are often the best choices because they are cheap, open- sourced, and dexterous with high DoFs. However, the original D’Claw only has three joints on each finger, and identical fingers without any thumb make pincer grasping difficult, so we chose to use the Leap Hand as the basis for an extended hand design.

We use the same thumb and index fingers from the Leap Hand , but made several changes. Although we still use DYNAMIXEL XC330-M288-T servo motors as the actuators, Fig. 6: A top view from the hand palm side and a side view from the right thumb side of the 2-thumbed hand rendered in MuJoCo. The red dot indicates the joint positions on each identical finger. The last blue link is the rotatable fingertip.

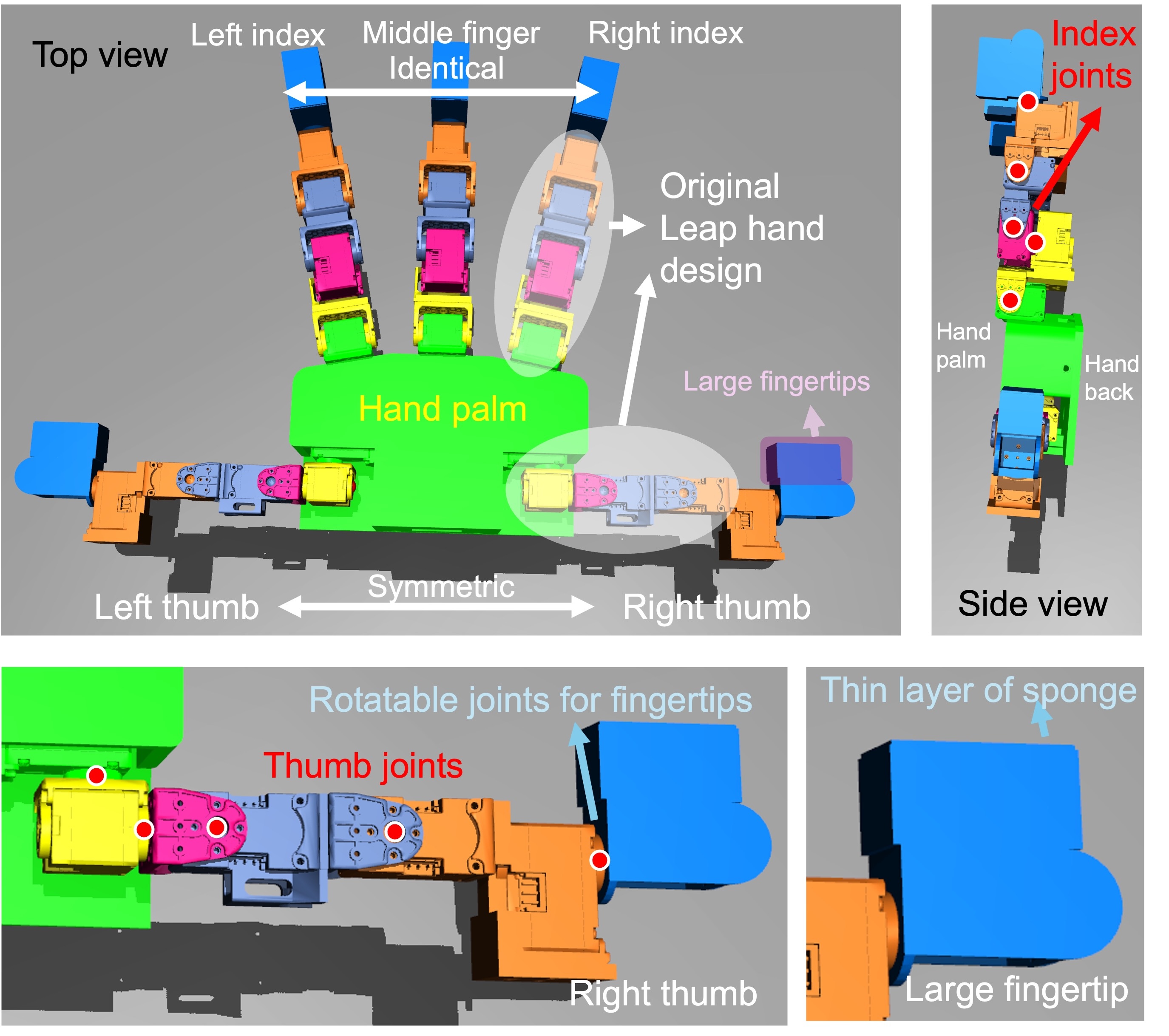

The white areas are the finger designs from the Leap Hand. The two thumbs have symmetric structures and the other three fingers have identical structures. The hand back is mounted to the last joint of the robot arm. All fingertips are the same size with a thin layer of sponge on each.

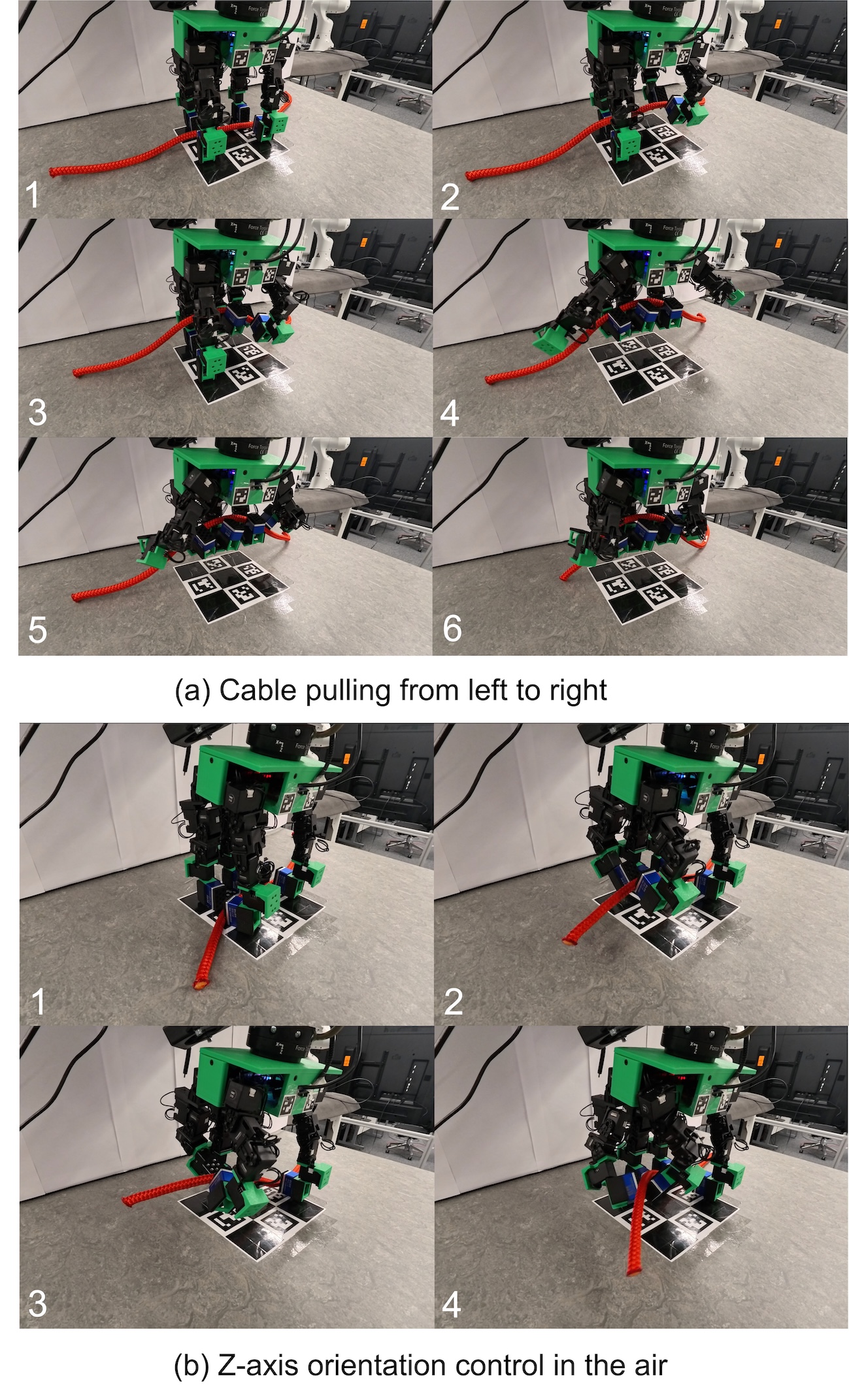

Fig. 7: Two manipulations to display advantages of our de- signs, where each step is arranged in numerical order displayed in each image. (a) Cable pulling from left to right with the help of the additional thumb and the symmetric structure with the collected demonstration which is in a different pulling direction. (b) Z-axis orientation control in the air with the rotatable fingertips to avoid relative displacement between the cable and two fingertips which can cause cable slipping away.

we used 25 motors instead of 16 motors which the Leap Hand used. Two thumbs are designed in symmetric positions and the hand has five fingers in total. Each finger has one additional rotatable fingertip, and therefore contains five actuators.

This section answers two questions: 1. Why is the original Leap hand (and other commonly used anthropomorphic hands) not a suitable design for dexterous cable manipulation (DCM)? 2. How can the Leap style of hands be improved for better

A. Dual-Thumb

Inspired by the Cable Dexonomy in Section III, we sum- marize the frequency of used fingers in different primitives: 1. TIC is the most frequently used finger configuration, and almost all manipulations require TIC. 2. Most DCMs are symmetric about the Y-axis, e.g., the only difference between cable pulling from left to right and from right to left is the pulling direction. However, if an anthropomorphic hand that is asymmetric about the Y-axis is used, two different control policies are needed to perform the same tasks with different manipulation directions. Zhaole et. al explored this in the simulation . Another example is performing USB insertion, where the plug is on the other side of the TIC.

Here, the hand needs to flip upside down to move the TIC near to the plug, because the little finger, which grasps the cable against the palm, does not have the ability to control the cable orientation. For DCMs that are sensitive to the TIC’s location, implementing two TICs in a symmetric layout is a good solution to keep the symmetric manner of DCM (see the design in Figure 6). We also show a benefit that symmetric manipulations only require one demonstration for two opposite direction manipulations in Figure 7 a.

A notable work added an additional prosthetic thumb onto a human hand, which can affect object manipulability , including holding a cup to do in-hand liquid pouring into the grasped cup. The multi-fingered design proposed here is the first one to confirm that adding an additional thumb can help extend robotic manipulability (as contrasted to the human manipulability explored in the previous research).

B. Rotatable Fingertips

When a human hand performs a pincer grasp on a cable, the skin of the fingertips will deform to cover the surface of the cable to make a larger contact area for more robust grasping. Thus, designing a better fingertip can increase the stability of cable grasping. We add an additional rotation joint to the fingertip to make such a grasping pose available in more configuration states. When performing cable orientation control, the rotatable fingertips also help rotate the cable about the Z-axis without relative sliding between the cable and two fingertips, which cannot be performed by a cylinder-shaped fingertip. Overall, one additional joint added to each hand can provide more manipulability.

Many tactile sensors have a relatively flat surface, like GelSight . Although we do not mount any tactile sensors, our rotatable fingertip design has the potential of mounting flat tactile sensors on it. E.g. NeuralFeel rotated their ring finger’s fingertip 90 degrees towards the in-hand operation space. With rotatable fingertips, such adjustments can be performed during manipulation in real-time. In additional to Z-axis orientation control on the table, our hand performed this task in the air, shown in Figure 7 b. When rotating the cable, if there is relative displacement between the fingertip and the cable, the cable will slowly slip downward and eventually drop from the TIC. The additional rotatable joint on the Fig. 8: Two demonstrators drag the hand fingers to record the finger joint trajectories.

fingertip avoids this and provides better manipulability in such a difficult task.

Emonstration Collection Pipeline

This section introduces the proposed demonstration data collection pipeline. There are three stages: 1. human short- term primitive demonstration data collection, 2. demonstration replay, and 3. building finite-state machines for long-horizon manipulation.

A. Demonstration Collection

Since the proposed hand has a different structure than the human hand and more degrees of freedom, common demonstration methods are not applicable, like motion capture with a mocap glove or a RGBD camera [5, 42]. Instead, one or more people cooperate to gently drag the robot fingers in the same style as kinesthetic teaching of robot arms, shown in Figure 8.

The goal joint angle positions are set to be equal to the actual joint angles with a relatively low joint stiffness to make dragging easier and smoother. Once one or two fingers are temporarily fixed, we pause the collaborative mode and increase the joint stiffness to avoid unnecessary finger move- ments. During human demonstration data collections, only the joint angle trajectories are recorded. These trajectories will be used as actions in the demonstration replay later.

The advantages of using dragging for demonstrations are: 1. finer motor control recording of those dexterous manipulations than previous mocap-based methods, 2. eliminates the need for mapping from the human finger joints to the robot hand joints, and most importantly 3. it allows recording demonstrations from designs which are different from human hand structures.

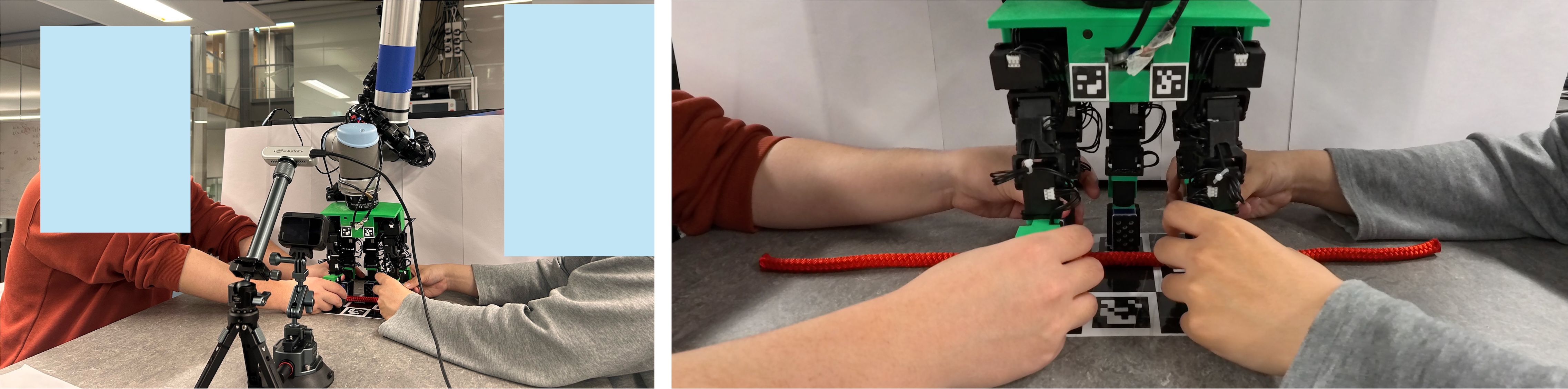

Two human demonstrators are needed to drag all five fingers, one to control one pair of TIC and the middle finger, and another to control the other TIC.

B. Demonstration Replay

In this stage, the demonstration data is replayed according to the collected joint angle trajectories without any changes or human interventions to identify the successful demonstrations except for some compensation to the thumb and index finger joints due to the low maximum torque of the hand motors.

PID position control was used to make the motors follow the joint trajectories from the demonstrations, with a control rate of 30 Hz.

This includes the first and the third joints (the order is determined from the proximal to the distal on each finger) of Fig. 9: Cable Dexonomy Finite State Machine for Cable Pulling.

two index fingers and the second and the third joints of two without evaluating its robustness in other scenarios or on other cables, and only the actual joint angles and cable key point positions were recorded. Each collected human demonstration can be replayed several times with different initializations of cable shapes and positions for more data. Although we do not apply learning-based methods here, the collected data can possibly be used to train the agent with an imitation learning algorithm, such as ACT [64, 65] and Diffusion Policy , or one-shot reusable learning strategies .

The replay stage will show that the hand is capable of per- forming DCM and that a usable demonstration data collection is available (which may also be suitable for learning-based algorithms).

Ong-Horizon Manipulation

Collecting demonstrations of long-horizon manipulation is difficult, since any failure that occurs during the demonstration leads to total failure. Based on the Cable Dexonomy, long- horizon DCM instances are decomposed into a sequence of basic primitives. To reduce the collection time and increase the success rate of demonstration data collection, only short- term primitives were collected and by combining these allows long-horizon manipulations without prior full long-horizon demonstrations.

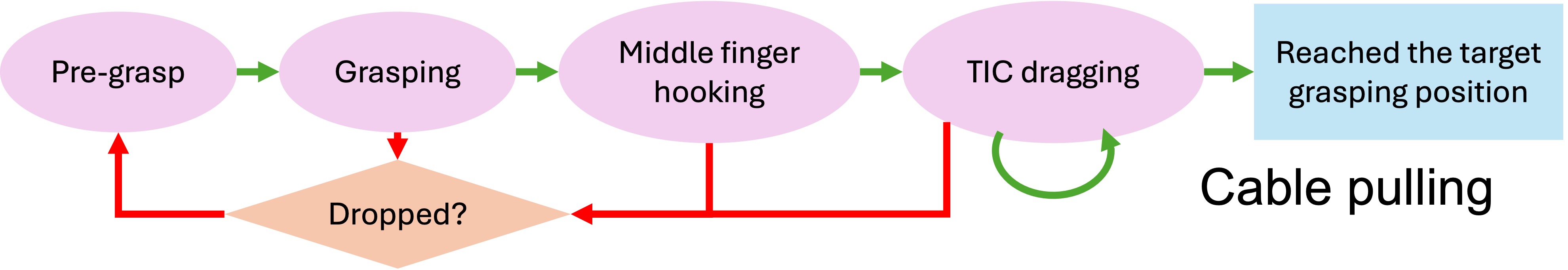

Four long-horizon tasks are considered here, each with their own Finite State Machine (FSM): 1. Cable pulling, 2. Cable U-shape bending and grasping, 3. Cable direction flipping, and 4. Cable in-hand insertion. The FSM graph of cable pulling is shown in Figure 9, and the rest FSM graphs and experiment figures can be found in the appendix and the video.

With the help of the FSM, we demonstrate that the new hand is capable of performing long-horizon tasks. The demonstra- tion data collection of long-horizon tasks is also available.

Experiments

This section presents real-world experiments applying dif- ferent primitives to different cables.

A. Experiment Setup

The hand and the camera are placed as shown in Figure 10

A. Here Are Some Details:

Workspace. The hand base is placed in a tilted pose to let the index finger and thumb finger exactly hang above the table without collision during manipulation. This can be seen in Figure 10 b. The cable was randomly placed in the in-hand space, also shown in Figure 10 b, and it is not always placed
