Distributed Robot Control

Received: 27 July 2021; Accepted: 27 September 2021 Abstract: The design of controllers for robots is a complex system that is to be dealt with several tasks in real time for enabling the robots to function indepen- dently. The distributed robotic control system can be used in real time for resol- ving various challenges such as localization, motion controlling, mapping, route planning, etc. The distributed robotic control system can manage different kinds of heterogenous devices. Designing a distributed robotic control system is a chal- lenging process as it needs to operate effectually under different hardware config- urations and varying computational requirements. For instance, scheduling of resources (such as communication channel, computation unit, robot chassis, or sensor input) to the various system components turns out to be an essential requirement for completing the tasks on time. Therefore, resource scheduling is necessary for ensuring effective execution. In this regard, this paper introduces a novel chaotic shell game optimization algorithm (CSGOA) for resource sche- duling, known as the CSGOA-RS technique for the distributed robotic control system environment. The CSGOA technique is based on the integration of the chaotic maps concept to the SGO algorithm for enhancing the overall perfor- mance. The CSGOA-RS technique is designed for allocating the resources in such a way that the transfer time is minimized and the resource utilization is increased.

The CSGOA-RS technique is applicable even for the unpredicted environment where the resources are to be allotted dynamically based on the early estimations. For validating the enhanced performance of the CSGOA-RS technique, a series of simulations have been carried out and the obtained results have been examined with respect to a selected set of measures. The resultant outcomes highlighted the promising performance of the CSGOA-RS technique over the other resource scheduling techniques.

Keywords: Distributed robotic control system; resource scheduling; load balancing; resource utilization; metaheuristics; shell game optimization This work is licensed under a Creative Commons Attribution 4.0 International License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Ntroduction

In the recent years, due to the high control performance, high reliability of the distributed control systems (DCS), low implementation costs, and reconfiguration flexibility, they have been extensively used in various areas. There are several benefits in utilizing a DCS in the robot collection procedures .

These systems are capable of controlling a wider range of heterogeneous devices and do so on greater physical distances. Such a scheme might be very modular and can therefore support multiple devices. The implementation and design of a DCS that works efficiently and effectively in various hardware configurations and computations may be a nontrivial task . For instance, one of the most important consideration here is to ensure the accessibility of resources by the various components in the system

For

accomplishing their task efficiently . Not all resources can adapt to several concurrent access requests at the same time, and several resources on the other hand can manage only a single request at a particular time instant. Another problem here is to define an appropriate procedure for the distribution of requests for the concerned resources inside the entire system. This procedure in a way ensures the balancing conditions of the computation and the resource loads and further confirms that none of the components in the system are charged beyond the defined levels. A DCS was established for handling the collection of small mobile robots possessing the required computing capabilities and restricted on-board sensing ranges . Fig. 1 illustrates the overview of the robotic control model.

The robots should be capable of working with teams: this ability assures that a large physical area could be surveyed by the robots and hence could provide a degree of redundancy by pointing out the robots that are either deactivated or the ones that are unable to complete their tasks on time. Moreover, the robots must function independently. Because of the weight and size constraints of the Scout's design, the computation hardware that is accessible on a Scout is constrained with a limitation of 2 8-bit microcontrollers . For utilizing the processor resources, several tasks often run on a processor. The scheduling algorithms of this task not only affects the utilization of a processor but also controls the system's performance . The optimum scheduling methodology opted for the multiprocessors is the NP hard, hence the heuristic algorithms are often adopted for the allocating tasks. A technique employed for scheduling the tasks in the distributed systems is the integration of the scheduling algorithms for the uniprocessor and the static task distribution algorithms . Followed by which, the system would start functioning, whereas, the processor assigned tasks would be observed to remain unaltered. The algorithms are simpler and the offset of the scheduling algorithms are smaller. Another type of allocation algorithm is the dynamic

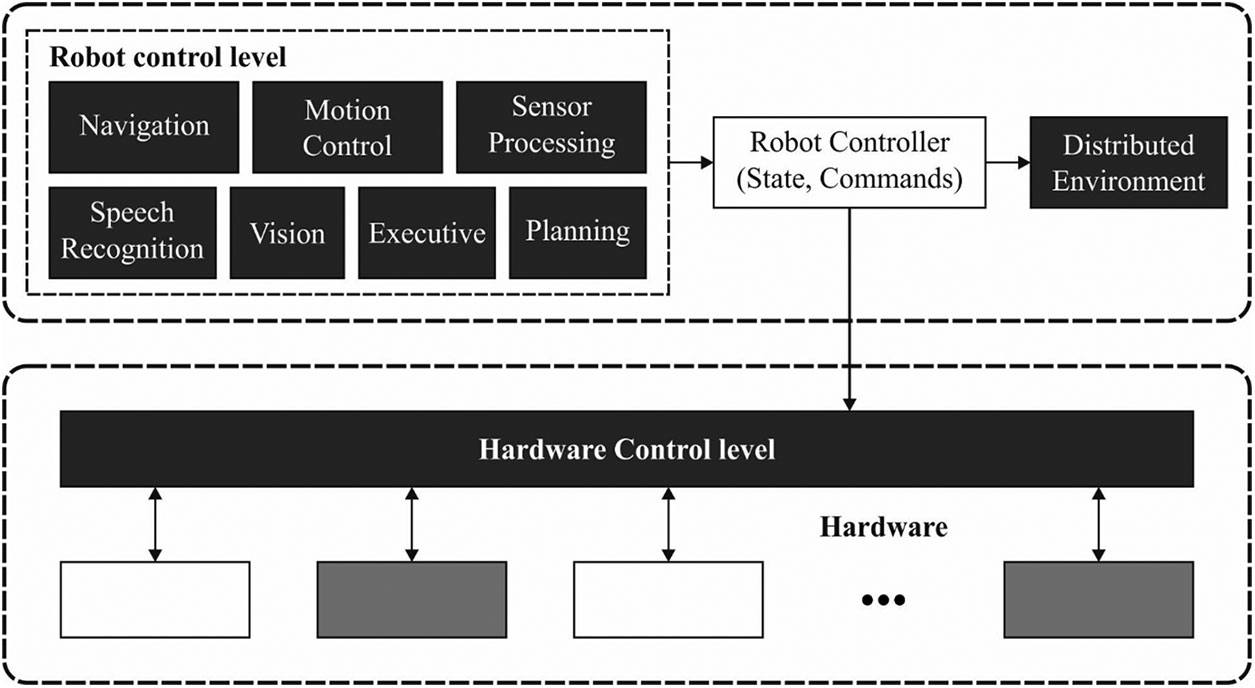

Figure 1: Overview Of The Robotic Control System

allocation algorithm. The tasks in this case might migrate to the processor during the run time of the system. The algorithms are capable of achieving the required optimal objective functions such as the control performance of system, processor utilization, and so on. However, the algorithms are observed to be highly complicated with bigger offsets and the foreseeability of the algorithms appear to be weak.

This study emphases on the dynamic allocation of resources during the runtime instead of analyzing the resource requests offline, it encourages for plan changes when the requests are not fulfilled. Especially, this method is appropriate for an unpredicted environment in which the resources should be assigned in a dynamic manner that cannot be anticipated before. Load schedule is thus determined as the procedure for balancing, providing, and allocating the load in DCS effectively. The primary objective is to decrease the transmission time and the overall cost acquired for scheduling the load in the scheme. The scheduling of the load is executed by different scheduling methods. The scheduling algorithm is determined based on the dynamic and static nature of the load. Also, they are categorized into the non-heuristic and the heuristic types. The Meta heuristic algorithm plays a significant role in scheduling the load through an appropriate search procedure. At present, to conquer the disadvantages, several scientists have resolved this challenge by utilizing the optimization algorithm. However, this methodology fails to achieve the required processing cost, completion time, and load related attributes efficiently. To combat this problem, a group of metaheuristic-based load scheduling algorithms have been proposed for the DCS robotic environments.

This paper introduces a novel chaotic shell game optimization algorithm (CSGOA) for resource scheduling called as the CSGOA-RS technique for the distributed robotic control system environment. The CSGOA technique is based on the integration of the chaotic maps concept to the SGO algorithm to enhance its overall performance. The CSGOA-RS technique has derived a fitness function involving three different parameters such as the make span, the reliability cost, and the mean flow time (MFT) for the allocation of resources in such a way that the resource utilization can be considerably improved. The CSGOA-RS technique is valid even for the unforeseen environment where the resources are to be allotted dynamically using the prior estimations. The performance of the CSGOA-RS technique can be examined under different aspects and the results can be discussed extensively.

Iterature Review

Lee et al. proposed the architecture for balancing the workload and the competency adjustments in the multirobot task distributions. Competency represents the capability of a robot for executing a task based on its cost and quality, and the workload balancing mechanism represents the allocation of workloads between the robots. This method considers the cost and quality of a robot for a task and thereby adjusts them according to the changes in the environment. For balancing the workload, this method uses the idea demonstrates that this model could alter the competency levels according to the changes in the environment and allocate workloads between the robots in a balanced way. Goyal et al. addressed the of reducing the schedule resources and power consumption levels for enhancing the efficacy of the server.

Also, Load balancing appears to be a significant part of cloud technique as it encourages for balanced load allocations between the servers for satisfying the user requirements. This study has made use of various optimization methodologies such as the PSO, CSO, BAT, CSA, and WOA for balancing the load, energy efficacy, and resource scheduling for creating an effective cloud platform. Blankenburg et al.

proposed a distributed multi-robot control framework that addresses the above mentioned problems and accomplishes the succeeding participations: i) it permits for the online and dynamic distribution of robots to the various phases of the task, ii) it makes sure that the collaborative robot scheme would follow the individual task constraints and iii) it permits for opportunistic, flexible task implementations in distinct environment conditions. This framework utilizes a distributed messaging scheme for allowing the robots to interact with each other. Every robot uses its team member and own state for monitoring the growth on a provided task and recognizes the appropriate subtask for executing an activation spreading methodology.

Zhu proposed a solution to the fairness problems in multitype resource allocations for the multirobot methodologies possessing multiple resource requests. They employ DRF principles in this solution for 2 distinct schemes: STR-MRT and MTR-SRT. In STR-MRT, the robots can execute only individual tasks at a time, task is separable, and for accomplishing the entire set of tasks they would require an increased number of robots. In MTR-SRT, the robots are capable of executing multiple tasks at a time, tasks here are inseparable and the entire set of tasks can be accomplished by a single robot. Delgado et al.

offered a complete procedure in the event of realizing the OES on the basis of public domain real world on the interrupt response time, periodicity, scheduling ability, and task synchronization i.e., with respect to the critical metrics for determining the reliability and stability of the real-world regulators. Maoudj et al. handled the growth of a DMAS for controlling and scheduling RFAC. In this technique, a method for solving the key challenge decision problems in RFAC was proposed and implemented. These problems are thus interrelated to the product operation scheduling features that relies on the sequencing and allocation aspects on the robots while fulfilling the robot and product based limitations under the make span minimization. The presented DMAS addresses this problem with the help of a cooperative methodology that is supported by 3 different types of independent control agents, namely, the local agent, the remote agent and the supervisory agent. Yuan et al. proposed a G/G/1 queuing scheme for analyzing the efficiency of the server in DGC. Based on the single objective constraints the optimization problems are solved and formulated by a presented SBA, this is done for identifying the SBA that could minimize the energy cost of a DGC supplier by optimally assigning the tasks of heterogeneous applications amongst the various DGCs. It further specifies the running speed of the servers and the amount of power on the servers in every GC while confronting the respond time limitations of the tasks of each of the individual applications.

Gultekin et al. proposed a second order cone programming formulation for detecting the Pareto efficient solutions. The conic formulation was capable of detecting the robotic schedules for the smaller cells with limited number of machines in moderate computational time durations. This approach could produce a huge set of accurate Pareto effective solutions in a shorter computation time. Wang et al.

addressed the multi robot task scheduling mechanism for 2 types of robots arising from the heterogeneous robotic order fulfillment system. The heterogeneous multi robot scheme consists of 2 kinds of robots with complementary and specialized abilities for achieving long cycle and multi-station order fulfilment tasks on a logistic network. Such problems are very complex due to the innate complex schedule constraint of the tasks and hence coupled based on the temporal–spatial relationships among the robots. This procedure would then be followed by the construction of a set-theoretic and mixed integer linear programming problem formulation mechanism, this essentially makes use of the coupled

The

heterogeneous robots, i.e., unlike the techniques proposed in the present studies. Sun et al. proposed 2 new robotic job shop scheduling methods using deadlock and robot motion considerations (RJSPDT). The presented method concurrently considers the scheduling of tack operations and motion of the robots with an aim of minimizing the make span. Two modeling methods have been employed here, namely, the conventional position and the new network based approaches i.e., stimulated by the aviation scheduling work. Fu et al. focused on the online scheduling and charging approaches of the robots in warehouses using the unknown moving paths. Initially, the storage scenarios here would be abstracted to a grid methodology. Next, the shortest path algorithms would provide priority to the robotic tasks based on the coordinate differences. Later, the minimal service quantity of the MC would be defined by the arbitrary simulations.

In He et al. , developed the distributed cooperative controllers for a selected set of scenarios. Here, certain aspects such as the manipulability enhancement, transport of the object, and obstacle avoidance are attained online with a new optimization-based methodology. As the local controllers don't require another robot for transmitting the method or for joining the space data, the systems appear flexible with communication costs. Fang et al. used an interconnected undirected graph for describing the multiple convex set built for the joint physical limit, inequality constraints are derived for avoiding the obstacles, and equality constraints are derived for tracking the required paths. New distributed neurodynamic based algorithms are evolved for solving the complicated problems in real-world, hence it is necessary to have a

Background Information: System And Task Models

The control loop must be capable of transmitting the required control signals to the concerned process, it should effectively compute the control signals and acquire the required data from a physical procedure. Such functions have been found to influence one another forming loops, these loops are named as loop tasks as they represent a task in the system. As the period of these loop tasks tend to differ to a specific extent they would not be set prior to the initialization of the process . DCS operates on several processors through a transmission network. Various processors are adapted in DCS for realizing different types of control tasks, therefore DCS is heterogeneous, i.e., the implementation time is distinct on distinct processors. Depending on this, the processor and loop task models have been provided below.

Definition 1. Loop tasks set in DCS indicates S = {τ1, τ2, …, τn}(n ≥2). Where τi ∈S represents the ith loop task and is quintuple.

I

and T represents the implementation time, the minimum sampling period, the maximum sampling period, and the sampling period of the loop task τi correspondingly. Pr implies the processor to which the loop task τi is assigned.

Definition 2. DCS is defined as a processor set Ω that operates on a network: Ω = {Pr1, Pr2, …, Prm} (m ≥2), Pri = (ρ, u), where ρ and u represents the processing ability coefficients and the utilization of the processor Pri correspondingly.

For a loop task, the implementation time vectors are presented as follows. Definition 3. In DCS, τi.C is determined as a vector si:C ¼ ½si:Cð1Þ; si:Cð2Þ; . . ; si:CðmÞ, whereas τi.C( j) denotes the implementation time of the loop task τi on the processor Prj.

Definition 4. The processing ability coefficients represent the performance speed of the loop tasks on a processor. In heterogeneous DCS, processors are elected as regular processors, denoted as Prnor, and its processing ability coefficients are represented as one. The processing ability coefficients of Pri is given below

(2)

Whereas τj.C(Prnor) represents the implementation time of the loop task τj on a regular processor and τj.C(i) indicates the implementation time of the similar loop tasks on the processor Pri. Definition 5. When each loop task in DCS completes before the assigned deadlines then the DCS can be categorized under the schedulable type.

This study is based on the following succeeding rules:

I)

The required number of loop tasks and processors are to be set.

Ii)

The deadline of the loop task is equivalent to their period.

Iii)

Loop tasks are independent of one another.

The Proposed Model

In this study, an effective CSGOA-RS technique has been developed for scheduling the resources proficiently in the distributed robotic control system. The CSGOA-RS technique is intended to allot the resources in such a way that the transfer time is minimized and the resource utilization is increased. In addition, the CSGOA-RS technique has derived a fitness function involving three parameters namely the make span, the reliability cost, and the mean flow time (MFT) for the allocation of resources in such a way that the resource utilization is considerably improvised. The detailed working of the CSGOA-RS technique has been elaborated in the succeeding sections.

Esign Of Csgoa Technique

The shell game was inspired by inventing a novel optimization technique called as the Shell Game Optimization (SGO). Therefore, the subsequent statements are considered:  During this game, one person would be assumed as the game operator.

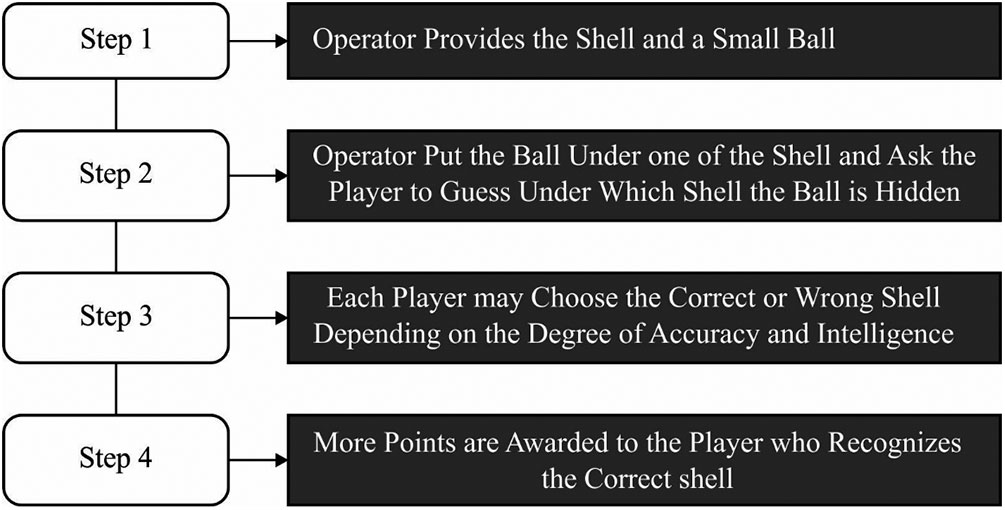

 3 shells and 1 ball would be assigned to an operator.  All players would be provided with 2 opportunities for guessing the correct shell. For the mathematical representation of the SGO algorithm, a set of N people would be considered as the game players. In Eq. (3), the place ‘d’ of a player ‘i’ would be demonstrated as xd

(3)

At this time, Xi is actually an arbitrary value to the problem variable. According to Xi, the value of the fitness function (FF) can be estimated for all the players. Fig. 2 illustrates the steps involved in the SGO techniques. After computing the FF value for all the players, the game operator would select 3 shells in such a way that most of the shells are connected to the location of an optimum player, 2 other shells would be selected arbitrarily using Eq. (4).

(4)

where Xbest implies the place of minimal (in minimization issues) or maximal (in maximization issues) fitness, Xk1 and Xk2 are places of 2 members of the population. k1 and k2 represent the arbitrary numbers among [1-N] that are selected arbitrarily. After computing the FF and recognizing the shell for all the players, the aspects of intelligence and accuracy of the players would be estimated in this phase . All the players would guess that the shell dependent upon the players are inspired based on the fitness accuracy and intelligence. The accuracy and intelligence normalization value is represented by Eq. (5).

(5)

where AIi represents the accuracy and intelligent of the players i and Xworst refers to the place of minimal (in maximization issues) or maximal (in minimization issues) fitness levels. At this point, the player would be prepared to guess the ball. The game is to be played with 3 shells and all the players would be provided with only 2 chances, the players can make use of the available 3 states of guesses. In the beginning state, an initial guess would be correct and the place of ball could be recognized easily. In the second state, the player making a wrong guess in the primary selective state can guess the place of the ball the second time. Finally, in the third state, when both the guesses of the player go wrong, the player turns out to be unsuccessful in recognizing the place of the ball. The guess vector detailed by Gv is inspired as in Eq. (6) for all the players.

(6)

The probability of selecting most states to the shell selective is inspired by Eq. (7).

(7)

where rg1 signifies the feasibly of a correct guess at the initial selective and rg2 indicates the feasibly of a correct guess the second time. Eventually, the Xi vector that is considered as the place of the members of the population is upgraded with the Eqs. (8)–(11).

(11)

where ri represents the arbitrary value in the range of , dxd

I;Shell3 Are The Movements Of

dimensional ‘d’ of the player ‘i’ according to shell1, shell2, and shell3.

Begin

Initialize the random formation of the primary population Xi

Ompute The Fitness Value Of The Agent

Choose the ith member of 3 shells Xishell1, Xishell2, Xishell3

Upgrade The Place Of Dimension Of The Ith Member

If each member is upgraded, go to step 10 else go to step 2

End

Chaotic maps are efficient enough in enhancing the solution quality of the SGO algorithm in resolving is dynamic model that is non-periodic, non-converging, and bounded in nature. The nature of chaos is obviously arbitrary and unpredictable, and it can retain an element of regularity. The chaos utilizes the chaotic variables instead of the arbitrary variables. Many functions (chaotic maps) and some parameters sequences are created easily by altering their primary conditions. Also, this sequence is deterministic and reproducible. In addition, it is extremely sensitive depending upon their primary conditions and parameters. An extensive variation of the distinct chaotic maps is accessible in the optimization domain.

In this proposed work, 10 very extensively utilized chaotic maps have been employed . The mathematical modulation of these chaotic maps thus utilized have been explained in the subsequent subsections. The chebyshev map has been expressed in Eq. (12).

(12)

The circle map is a 1D map that is a member of the dynamical schemes on a circle and is initially determined by the Andrey Colmogorov. This map is determined as:

(13)

This formula is created with chaotic numbers amongst (0, 1) by utilizing Par = 0.5 and b = 0.2. Par is employed in the form of control parameters. The formulas of the Gauss map are determined as:
