Abstract

Human-robot teaming offers great potential because of the opportunities to combine strengths of heterogeneous agents. However, one of the critical challenges in realizing an ef- fective human-robot team is efficient information exchange - both from the human to the robot as well as from the robot to the human. In this work, we present and analyze an augmented reality-enabled, gesture-based system that sup- ports intuitive human-robot teaming through improved in- formation exchange. Our proposed system requires no ex- ternal instrumentation aside from human-wearable devices and shows promise of real-world applicability for service- oriented missions. Additionally, we present preliminary re- sults from a pilot study with human participants, and high- light lessons learned and open research questions that may help direct future development, fielding, and experimentation

Ntroduction

Human-robot teaming has become the focus of much re- search because it offers great potential for completing var- ious service-oriented missions more robustly and efficiently by combining the strengths of heterogeneous agents. Inher- ently, human-robot teaming encompasses both human-robot interaction (HRI) and shared mission execution as it requires agents to coordinate, cooperate, and collaborate in order to achieve a common goal. One of the core challenges to realiz- ing effective teaming is improved information exchange be- tween people and robots because of various mission require- ments including correct mental models, calibrated trust, and enhanced situational awareness (Szafir 2019). The challenge of team-focused communication is especially complex be- cause it requires consideration of information flow in both directions, i.e., from the human to the robot as well as from the robot to the human.

Information flow from the human to the robot is critical to teaming because it provides the human with a way to in- form the robot of the prioritized mission goals that may dy- namically change over time as new information is acquired.

This often times is in the form of commands and, as a result, Copyright c⃝2019, Association for the Advancement of Artificial Intelligence (www.aaai.org). All rights reserved.

necessitates solutions that enable fast, expressive, natural communications that convey meaningful task information. Previous efforts have considered several intuitive modalities for human-to-robot communication; including, natural lan- guage (Huang et al. 2019), gestures (Elliott, Hill, and Barnes 2016), and multi-modal communication (Cacace, Finzi, and Lippiello 2016). Ultimately, streamlined interactions allow for the human to have greater control over their robotic teammates and ideally should be as effortless as communi- cating with another human counterpart.

In the other direction, information flow from the robot to the human provides enhanced situational awareness so that high-level decisions made by the human are more in- formed. When equipped with sufficient artificial intelligence (AI) and resourceful decision-making capabilities, robots can autonomously collect information and perform tasks that would otherwise be too dangerous, time-consuming, or mundane for humans. The essential questions are then: what mission-critical data should be provided to the human, and how should this information be displayed? Data sharing and visualization must be well-defined and non-intrusive in or- der to maximize understandability and minimize the threat of overloading the human. The literature has already de- veloped design spaces and taxonomies for working in real- ity, augmented reality (AR), virtual reality (VR), and mixed reality (MR) environments to optimize data visualization (Williams, Szafir, and Chakraborti 2019). To this end, re- searchers have proposed solutions for HRI including AR in instrumented environments (Walker et al. 2018), VR for dex- terous manipulation tasks (Whitney et al. 2018), and MR in- terfaces for deictic gesture and natural language (Williams et al. 2019) and human-programmed robot motion (Gadre et al. 2019).

Here, we propose a technology specifically designed to address the two-way communications challenge of human- robot teaming. We utilize a glove with gesture recogni- tion for human-to-robot communication, and an AR head- mounted device (AR-HMD) to enable robot-to-human com- munication. We developed autonomous behaviors so that the robot can support collaborative missions and accept human-issued commands for dynamic, expedited opera- tions. Since the robot projects its received commands, au-

Arxiv:1909.06415V1 [Cs.Ro] 13 Sep 2019

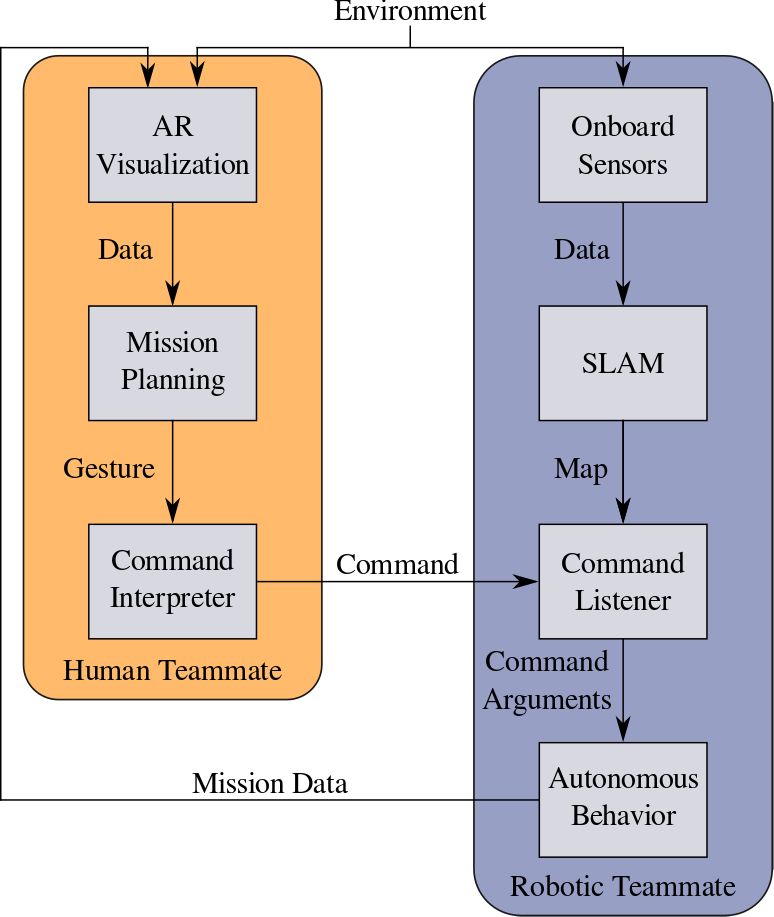

tonomous plans, and actions in the AR-HMD display, our system as a whole can be thought of as an MR-based so- lution. By building on our previous works (White and Hill 2018), (Reardon, Lee, and Fink 2018), (Reardon et al. 2019), and marrying wearable devices with artificial intelligence and tactical data visualization, we develop a system that en- ables intuitive human-robot teaming with no external instru- mentation and has applicability to service-oriented missions in real-world environments. Our contributions are three- fold. First, we present the hardware and software architec- ture of our proposed system for both the human and robotic teammates in the subsequent three sections. This includes our AI-based algorithms, proposed command set, and cor- responding gestures. Second, in the Field Experiment sec- tion, we highlight preliminary results from our pilot study with human participants in order to glean insights regard- ing usability and show emergent use cases and modalities of our human-robot teaming system. Finally, in the Lessons Learned section, we analyze our experimental HRI field study and identify open questions for tools that support AI- focused HRI to help focus practitioners and researchers in the advancement of future technologies.

System Design

A critical component to any fieldable, human-robot sys- tem is intuitive control. To achieve this, both the human and robot teammates must individually possess the proper hardware and autonomous decision-making capabilities that enable efficient sharing of data and two-way communica- tion. The robot must collect and present data in a human- understandable fashion as well as provide sufficiently- autonomous behaviors in order to execute human-provided commands. This requirement necessitates the development of AI and robust autonomy. Additionally, the human must be able to issue commands in a fast and accurate manner, and have sufficient understanding of the mission require- ments so that commands are relevant. By defining the nec- essary requirements and outfitting both the human and robot teammates, we have developed such a system that enables autonomous, cooperative exploration and simultaneous data acquisition for enhanced situational awareness with virtually no a-priori training or environmental information. It is im- portant to note that no external instrumentation or modifica- tion of the unstructured, operational environment is required by our system. A high-level system diagram, which is ex- plained in greater detail in the following sections, is shown in Figure 1.

Outfitting The Robotic Teammate

We treat the robotic agent as a subordinate, but capable teammate for the human. In a realistic deployment, the robot will likely be tasked to achieve enhanced situational aware- ness, improved safety through increased standoff distances, and expedited services important to a human or larger team.

Thus, it is crucial for the robot to prioritize commands is- sued by the human; however, it must also be able to make intelligent decisions autonomously to alleviate the human of the burden of constant supervision. In the subsequent sec- Figure 1: System diagram of our proposed AR-enabled, ges- ture control system for intuitive human-robot teaming.

tions, we first describe the hardware we found necessary for the robot to have access to mission-critical data, and then describe the software components we developed to enable autonomous decision-making.

Hardware

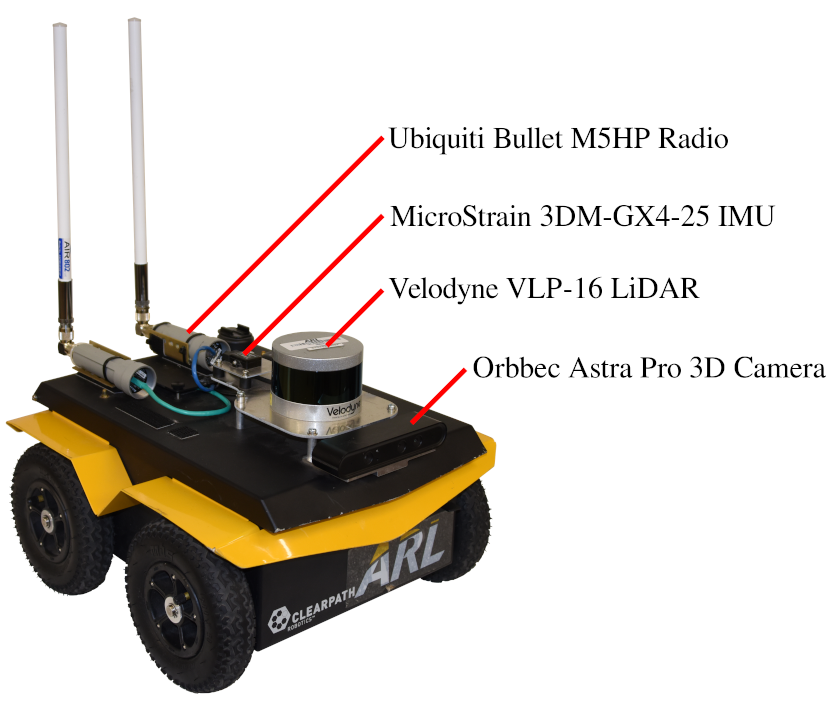

For this effort we used a Clearpath Jackal robot as a sur- rogate for a robotic teammate. This wheeled platform is 0.508 × 0.430 × 0.250 m, travels at a maximum velocity of 2.0m/s, and serves as a mobile base for our various sensors.

On board the chassis is an Intel Core i5-4570TE CPU, which runs Ubuntu 14.04 and the Robot Operating System (ROS) Jade (Quigley et al. ). We installed on the Jackal a Velo- dyne VLP-16 Light Detection and Ranging (LiDAR) sensor, which has 16 channels with a range of 100m that collect ap- proximately 300,000 points per sec in a 360◦horizontal field of view and a 30◦vertical field of view. For improved map- ping and state estimation performance, we installed a Mi- croStrain 3DM-GX4-25 inertial measurement unit (IMU).

To improve situational awareness and record experimental video, we installed an Orbbec Astra Pro 3D camera that pro- vides RGB-D data, although it was not relied upon for the autonomous behaviors in this work. For communications be- tween the human and robot, we used a Ubiquiti Bullet M5HP 5GHz WiFi radio. The robot, equipped with its sensors, is shown in Figure 2.

Autonomous Behaviors

The basis of our autonomous behaviors is a robust Simulta- neous Localization and Mapping (SLAM) solution. We use a pose graph-based approach to project the 3D point clouds from the robot’s LiDAR into a 2D occupancy grid (Rogers, Fink, and Stump 2014). The robot tracks its poses, i.e., loca- Figure 2: The configuration of the platform and sensors that serve as the robotic teammate.

tions and orientations along a trajectory, and integrates data from its IMU in order to localize and build a map in real- time without any a-priori information. Our approach man- ages the growth of inevitable sensor drift and does not rely on an external reference frame like GPS.

Equipped with the ability to build accurate maps and localize reliably, the robot can then execute higher-level, autonomous capabilities. First, the robot is capable of au- tonomous planning and navigation using the ROS-based ar- chitecture from our previous work (Gregory et al. 2016). Our software suite leverages a global motion planner, local plan- ner, and local controller to plan and execute kinematically- feasible routes to a designated pose, which effectively en- ables obstacle-aware autonomous navigation.

Additionally, we implemented autonomous exploration using an information-theoretic, frontier-based approach (Fung et al. 2016). Frontiers are defined as the boundary of known and unknown space in the robot’s occupancy grid (Yamauchi 1997). The robot analyzes the current state of its map, designates frontiers, and then evaluates the utility of navigating to each frontier. As with our previous work, we define the frontier utility as the amount of expected in- formation to be gained minus the amount of effort that is required. Information gain is measured as a function of new map cells for which LiDAR data will probabilistically be collected and effort is quantified by the length of the planned path from the robot’s current position to the frontier. In ef- fect, our approach to exploration seeks to minimize the en- tropy of the robot’s graph by greedily navigating to places with the most unknown space. To help expedite the explo- ration process and provide the human with the ability to di- rect where they would like the robot to collect data, we have defined a keep-in region in our exploration implementation.

Frontiers can only be created and selected if they are con- tained completely within the bounds of the keep-in area. For simplicity, this region is defined as a circle, parameterized by a center location and a radius; however, our system supports the definition of any convex polygon for the keep-in region.

It is also important to note that all of our autonomous ca- pabilities are platform agnostic and require a minimum set of common sensors consisting of a LiDAR and IMU. No camera data, GPS, communications, off-board processing, or post processing are required for the autonomous behav- iors described in this section.

Outfitting The Human Teammate

In the context of human-robot teaming in this work, the hu- man is viewed as the high-level decision-maker to progress the specific mission-of-interest. This is because the human is able to incorporate mission requirements, context, intent, and preferences. As a result, the ability to task the robotic teammate intuitively, quickly, and accurately is crucial to ac- complishing the mission efficiently.

Hardware

The human, without additional equipment, cannot issue commands that are optimized for teaming in unstructured environments. One approach to sending commands could be for the robot to sense the human using imagery or Li- DAR data; however, this requires constant line-of-sight op- erations, which is inefficient and impractical in many large, real-world environments. Instead, we take a distributed, sensors-based approach to issuing commands by outfitting the human with an AR-HMD and a gesture glove. We use the Microsoft HoloLens AR device to overlay information collected by the robot into the view of the human in order to maximize situational awareness and aggregate the knowl- edge of both agents. The HoloLens device builds a local map of its surrounding environment, which we use to align and localize with the robot’s map. The critical challenge, but necessary component, to enable a human wearing an AR- HMD and a robotic teammate to accurately share map data is online, mutual alignment of coordinate frames. We lever- age advancements from our previous work to do this in a robust way (Reardon, Lee, and Fink 2018). We also make use of the Manus VR gesture glove, which uses built-in re- sistive sensors to track individual finger movement as well as an IMU to improve the accuracy of state estimation. Whilst the gesture glove uses a Bluetooth radio to transmit data to a receiver dongle, the driver software requires Microsoft Win- dows for operation. As such, our system utilised an Intel Compute Stick which then communicated an interpreted sig- nal to the robot over a 5GHz radio via a TCP socket. Future development will improve the ability to handle the signal at a lower level thereby improving battery and CPU usage and device and gesture glove that was used to outfit the human are shown in Figure 3.

Ntuitive Commands

Once outfitted with a gesture glove, the human’s finger and hand movements can be tracked; however, there is still a paramount design decision for realizing an effective human- robot team and that is: what commands are necessary and what gestures should be used for each command? Com- mands need to be sufficiently different so that they can be interpreted quickly and accurately, but a large set of com- plex commands can become burdensome for the human to

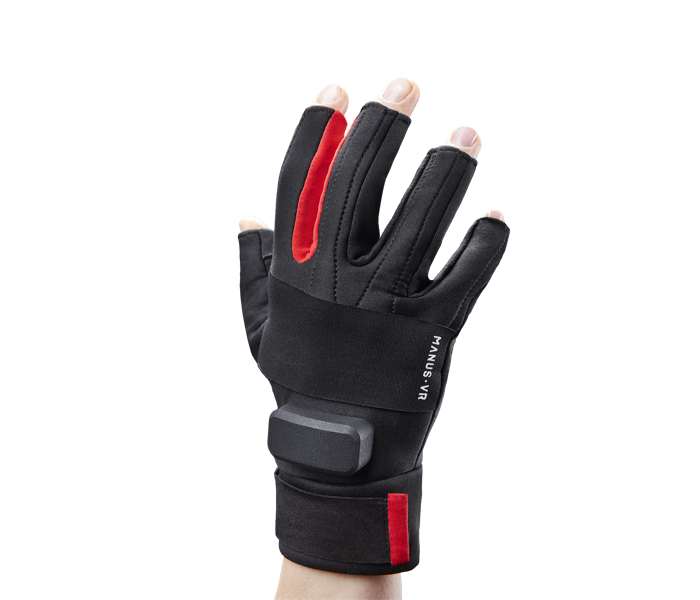

(B) Manus Vr Gesture Glove

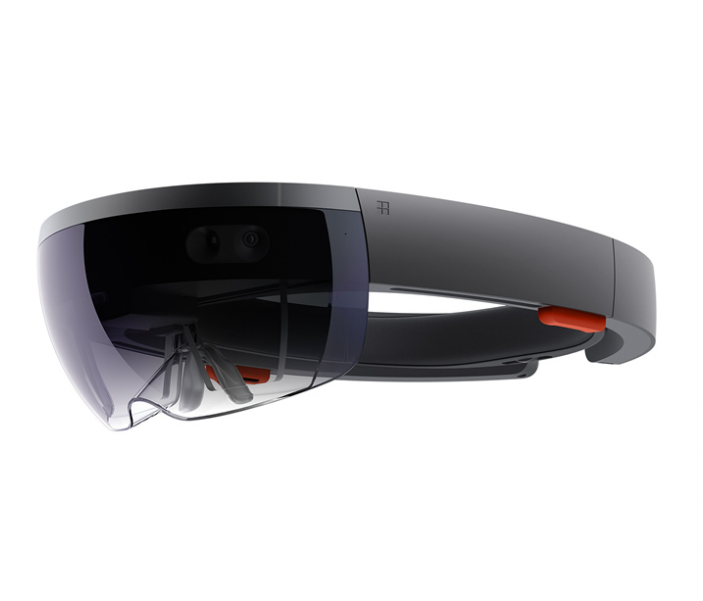

Figure 3: The hardware used to outfit the human teammate and enable intuitive gesture command with enhanced situa- tional awareness.

remember or require more time to train and learn. We do not seek to derive the optimal set of commands or gestures for all missions, but rather present a feasible solution and eval- uate its usefulness as a first step towards understanding the requirements for optimal gesture control. Here, we propose a set of four commands that provide sufficient, foundational control and, for each, describe our gesture design, as shown in Figure 4.

To begin, we define a gesture for indicating that a com- mand is to be issued. Since the human will naturally use their hands through out a typical mission to do things other than sending commands, it is imperative that the gesture controller only issue commands when the human intends on it. Otherwise, every hand movement could be misinterpreted and commands would be sent erroneously. The human indi- cates to the gesture glove that the next sequence of finger and hand movements correspond to a command by making a fist provide vibro-haptic feedback to the user through a short vi- bration in the glove to notify the human that a command is ready to be received. In this case, the vibration pattern was a single quick pulse. Once the glove vibrates, the human is able to do a hand gesture corresponding to one in our de- fined set and issue a command of their choosing. Should the gesture not be recognised the system is able to notify the op- erator by providing a single long pulse, indicating a failed recognition of the intended gesture.

1) Traverse Command: An elementary command for task- ing a robot is autonomous navigation control, referred to here as traverse or “goto.” This command allows the human to task its teammate to navigate from the robot’s current lo- cation to a designated goal location, e.g., path planning and autonomous navigation around obstacles. This provides the human with a method by which the robot can rapidly be in- structed where to move, but balances workload because the human is not required to manually drive the robot to the goal.

Furthermore, the traverse command is the basis for many higher-level applications because so many capabilities re- quire autonomous navigation to a specific location. For the traverse command, we chose a natural gesture that captures (a) The traverse command, with three options for designating the distance of the destination relative to the human.

(b) The explore command, with three options for designating the distance of the keep-in region, issued by moving the “pointing” fingers of the traverse command.

(D) The Return

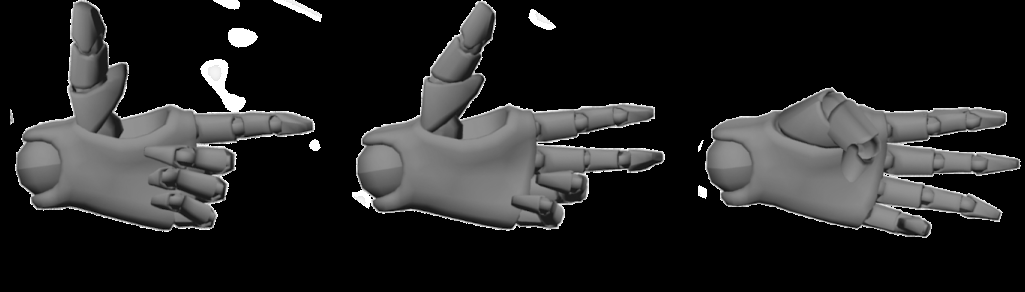

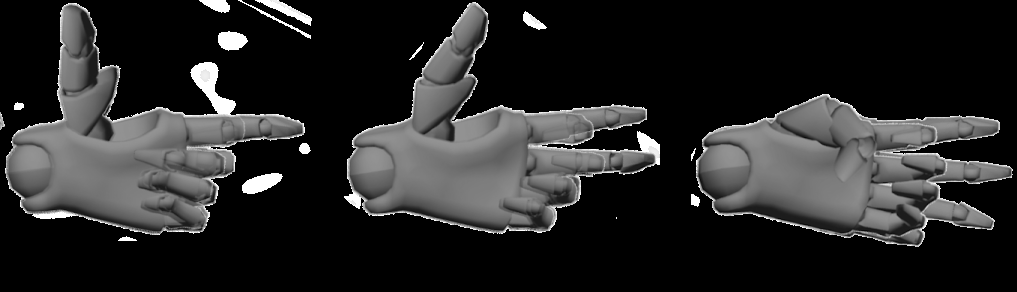

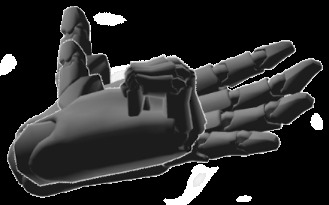

command. Figure 4: The proposed command set and corresponding gestures used in our system.

the essence of fast, point-and-go tasking, and take inspira- tion from tactical hand signaling used in the military. We chose to use the gesture of pointing to issue a traverse com- mand and used the direction of the human’s gaze, as mea- sured by the AR-HMD, to issue the location and orientation of the goal destination. We increased the expressivity of the traverse command by providing the human with three dis- tances for which the robot could be task. These were near, medium, and far, corresponding to 2.0, 4.5, and 7.0m from the human’s current position. To designate one of these three options, the human used one, two, or three fingers, respec- tively. Importantly, this value could be set in the field to suit the environmental context. For example, a far location may extend to 1000m in an open field, yet only 10m in an indoor environment.

) Explore Command: A More Sophisticated Command

that a human would likely require in a real-world mission involving human-robot teams is the ability to instruct the robot to explore a region of the environment. This removes the burden of point-to-point control and allows the human to multi-task because the robot is autonomously deciding where to navigate next. At its core, exploration is a series of traverse commands, except that the robot is intelligently assigning itself goal locations. This command leverages our information-theoretic exploration capabilities and synthe- sizes the human’s desire for rapid data acquisition with the robot’s autonomous behaviors. To issue this command, the human gestures in a similar fashion for the traverse com-
