Mecanum Wheel Robot

finite-time control law using backstepping technique to perform stabilization and trajectory tracking objectives for a FWMR system. A rigorous stability proof is presented and explicit computation of the finite-time is provided. For tracking objective, we demonstrate the results taking an S-shaped trajectory inclined towards collision avoidance applications. Simulation validation in real time using Gazebo-ROS on a Mecanum robot model is carried out which complies with the theoretical results.

Four Wheeled Mecanum Robots (Fwmrs) Exhibit The

ability to navigate freely in all directions on a flat surface. This omnidirectional mobility feature makes them widely employed in various contexts, including industrial opera- tions, constrained environments like warehouses, inspection zones, search and rescue missions, cleaning duties, and assistive robots (Zhang et al., 2023). Hence, across vari- ous sectors such as manufacturing, logistics, and unmanned warehousing, the mecanum wheel robot is renowned for its remarkable ability to execute zero-radius turns effortlessly in any direction as well as its adeptness in navigating within confined spaces (Taheri and Zhao, 2020). Its widespread adoption is a testament to its versatility and efficiency, making it a cornerstone technology in modern industrial operations. Consequently, FWMR’s have garnered signifi- cant attention in research circles. To enable the mobile robot to follow the desired trajectory accurately, it is imperative to develop precise tracking controllers. A model predictive control strategy equipped with compensation for friction is designed in (Conceição et al., 2013) to facilitate tracking objective. Output-feedback strategy tailored with continuous sliding mode controllers is employed in (Ovalle et al., 2019) for addressing the robust trajectory tracking challenges en- countered by FWMR. A sliding mode controller derived through backstepping technique tailored for robust control of FWMR is presented in (Thi et al., 2019). A variant of computed-torque control approach is developed in (Vázquez and Velasco-Villa, 2008) for addressing the tracking control objective of FWMR. Researchers have developed a dif- ferential sliding mode controller aimed at facilitating the movement of an omnidirectional mobile platform in (Viet et al., 2012). A robust adaptive terminal sliding mode control scheme is designed in (Feng and Wang, 2021) specifically to address the tracking challenges encountered by an FWMR

Orcid(S): 0000-0001-5232-1314 (A. B)

targeted for examination of aircraft skin. Regarding tran- sient performance, which aims to limit the tracking error within a specified range, a widely adopted strategy involves employing an error transformation function. This technique is illustrated in (Hu et al., 2020) to ensure the transient performance of underactuated surface vessels for executing trajectory tracking. In (Shi et al., 2020), the concept of an error transformation function is presented, which effectively converts the constrained tracking objective into an uncon- strained stabilization problem for marine surface vessel.

Additionally, in (Sui et al., 2020), a performance function based on finite-time is implemented to converge the tracking errors within a specified range in the context of tracking problems involving systems with uncertain dynamics. The conventional asymptotic stability theory can solely ensure the asymptotic stability of a control object concerning finite- time convergence. The emergence of finite-time stability theory aims to achieve stabilization within a finite duration, ensuring that the tracking error converges within a bounded interval. Initially proposed by (Bhat and Bernstein, 1998), subsequent variants of finite-time stability theory (Wang et al., 2017; Shen and Xia, 2008; Yu et al., 2005; Zhu et al., 2011; Bohn and Sanyal, 2016) have been introduced for enhanced practical application. In (Li et al., 2019b), a finite-time adaptive neural controller, with optimized design parameters, is developed to address the finite-time optimal A finite-time tracking objective is addressed for a class of nonlinear Multi-Input and Multi-Output (MIMO) systems in (Li et al., 2019a) using neural networks in an adaptive setting, whose performance depends on the number of train- ing samples considered. Despite the inherent advantages of extreme manueurability of FWMR, the practical implemen- tation or realistic simulation of the Mecanum wheel robot faces significant hurdles in control, a critical aspect marked by numerous challenges. Factors such as nonlinearity, ex- ternal perturbations, uncertainty etc., renders conventional control techniques inadequate for meeting stringent trajec- tory tracking demands. Furthermore, issues like significant drift from intended trajectories, oscillatory nature of control

Finite-Time Trajectory Tracking Of A Fwmr

signals and time delays may arise as a consequence. Conven- tional control schemes often face difficulties to effectively tackle tracking control issues under these complex practi- cal conditions resulting in inefficiencies, inaccuracies, and unreliability in handling control tasks (Tang et al., 2024).

Based on an elaborative literature survey, there is not much adequate research implemented in the validation of finite- time trajectory tracking controllers in a realistic simulation environment for FWMR system. Towards this effort, our

Contributions Are As Follows:

1. We present a finite-time backstepping tracking control to track a desired non-trivial trajectory. The proposed control law is finite-time continuous and gives finite- time global convergence of states to the equilibrium.

2. A closed loop stability proof in finite-time setting with an explicit computation of finite-time is provided. 3. An estimation of upper norm bound of disturbance torque that can be tolerated with the proposed con- troller is provided and a case study associated with the same is demonstrated in the simulation analysis.

4. The proposed control algorithm is validated in rGazebo ROS realistic simulation platform inorder to demon- strate the efficiency of the controller under such practical conditions as outlined above.

5. We also present a comparison of finite-time and asymptotic control results for the FWMR carried out in Gazebo-ROS.

Organization of the paper is as follows: Section 2 and 3 discusses the mathematical preliminaries and system model respectively. The theoretical developments are presented in section 4 followed by simulation results in 5 and conclusions in section 6.

Athematical Preliminaries

In this section, we present the key elements necessary for the theoretical developments outlined in this paper. Notations: ℝ𝑛denotes the Euclidean space of dimension 𝑛. For any matrix 𝐾, 𝐾𝑇and 𝐾−1 denotes its transpose and inverse respectively. 𝜆𝑚(⋅) and 𝜆𝑀(⋅) denotes the minimum and maximum Eigen values of a given matrix respectively.

We denote ‖ ⋅‖ as the standard Euclidean 2-norm of a given vector and log(⋅) represents the logarithmic function.

⊂ℝ𝑛being An Open Neighbourhood Of The Origin And

𝑓(0) = 0. This implies that 𝑓−1(0) ≜{𝑥∈∶𝑓(𝑥) = 0} is non-empty. A 1 (continuously differentiable) function

𝑥∶→Is A Solution Of (1) On The Interval ⊂ℝ,

if 𝑥satisfies (1) ∀𝑡∈. The function 𝑓being continuous implies that ∀𝑥0 ∈, ∃𝑡0 < 0 < 𝑡1 and a solution 𝑥(⋅) of (1) defined on 𝑡∈(𝑡0, 𝑡𝑓) such that 𝑥(0) = 𝑥0. Suppose for all initial conditions, (1) possess unique solution except at the origin (Bohn and Sanyal, 2016). This implies that for every 𝑥∈⧵{0}, ∃𝑡2 > 0 and a unique solution 𝑥(⋅) of (1) defined on [0, 𝑡2) satisfying 𝑥(0) = 𝑥0.

Proposition 1. (Bhat and Bernstein, 1998) Let ⊆be an open neighbourhood of origin and let (𝑥) ∶∖{0} →ℝ+ be the finite time. Suppose the following statements hold.

Lim

𝑡→(𝑥) 𝜅𝑡(𝑥) = 0 implies finite-time convergence.

𝑥∈𝛿∖{0}, 𝜅𝑡(𝑥) ∈𝜖∀𝑡∈[0, (𝑥)]. This Yields

Lyapunov stability. Then, the origin is said to be a finite-time stable equilibrium of (1). It will be globally finite-time stable if = = ℝ𝑛.

Lemma 1 ((Bhat and Bernstein, 1998)). Let 𝑐> 0 be a

Positive Real Number, 𝛼∈(0, 1) And 𝑉∶→ℝbe A 1

function. Suppose ∃a neighborhood ⊂such that 𝑉is positive definite on anḋ 𝑉+𝑐𝑉𝛼is negative semi-definite

𝜕𝑥𝑓(𝑥). Then, The Origin Is Said To Be

finite-time stable equilibrium of (1). Furthermore, if (𝑥) is

The Finite-Time, Then (𝑥) ≤

𝑐(1−𝛼)𝑉(0)1−𝛼∀𝑥∈. Lemma 2 ((Khalil, 2002) Rayleigh-Ritz inequality). Con- sider a symmetric positive definite matrix, 𝑃∈ℝ𝑛×𝑛and let 𝜆∈ℝ𝑛be the eigenvalues of 𝑃. Then the following

∀𝑥∈ℝ𝑛,

holds, where, 𝜆𝑚(⋅) and 𝜆𝑀(⋅) denotes the minimum and maximum eigenvalues respectively. Lemma 3. Suppose 𝑎1, 𝑎2 are positive real numbers and let

+ 𝑎𝑐

2). Proof. To aid the proof, we make use of the subadditivity property of a concave function.

Subadditivity of a function: A function 𝑓∶ℝ≥0 ⊇→ℝ is said to be subadditive on if ∀𝑎1, 𝑎2 ∈such that 𝑎1 + 𝑎2 ∈, the following inequality holds: 𝑓(𝑎1 + 𝑎2) ≤ 𝑓(𝑎1) + 𝑓(𝑎2).

Concavity: Let 𝑐∈[0, 1] and 𝑎1, 𝑎2 ∈, a concave function

(2)

is subadditive. Choose 𝑎2 = 0 in (2), this yields 𝑓(𝑐𝑎1) ≥

𝑓(𝑎1) = 𝑓(𝑐(𝑎1 + 𝑎2)) ≥𝑐𝑓(𝑎1 + 𝑎2)

𝑓(𝑎2) = 𝑓((1 −𝑐)(𝑎1 + 𝑎2)) ≥(1 −𝑐)𝑓(𝑎1 + 𝑎2).

Adding The Above Two Equations Yields,

𝑓(𝑎1 + 𝑎2) ≤𝑓(𝑎1) + 𝑓(𝑎2) ⟹subadditivity.

And 𝑓(𝑎1 + 𝑎2) =

(𝑎1 + 𝑎2)𝑐, yields the proof.

Onsider A Four Wheeled Mecanum Robot (Fwmr)

model shown in Figure 1. It forms a unique type of om-

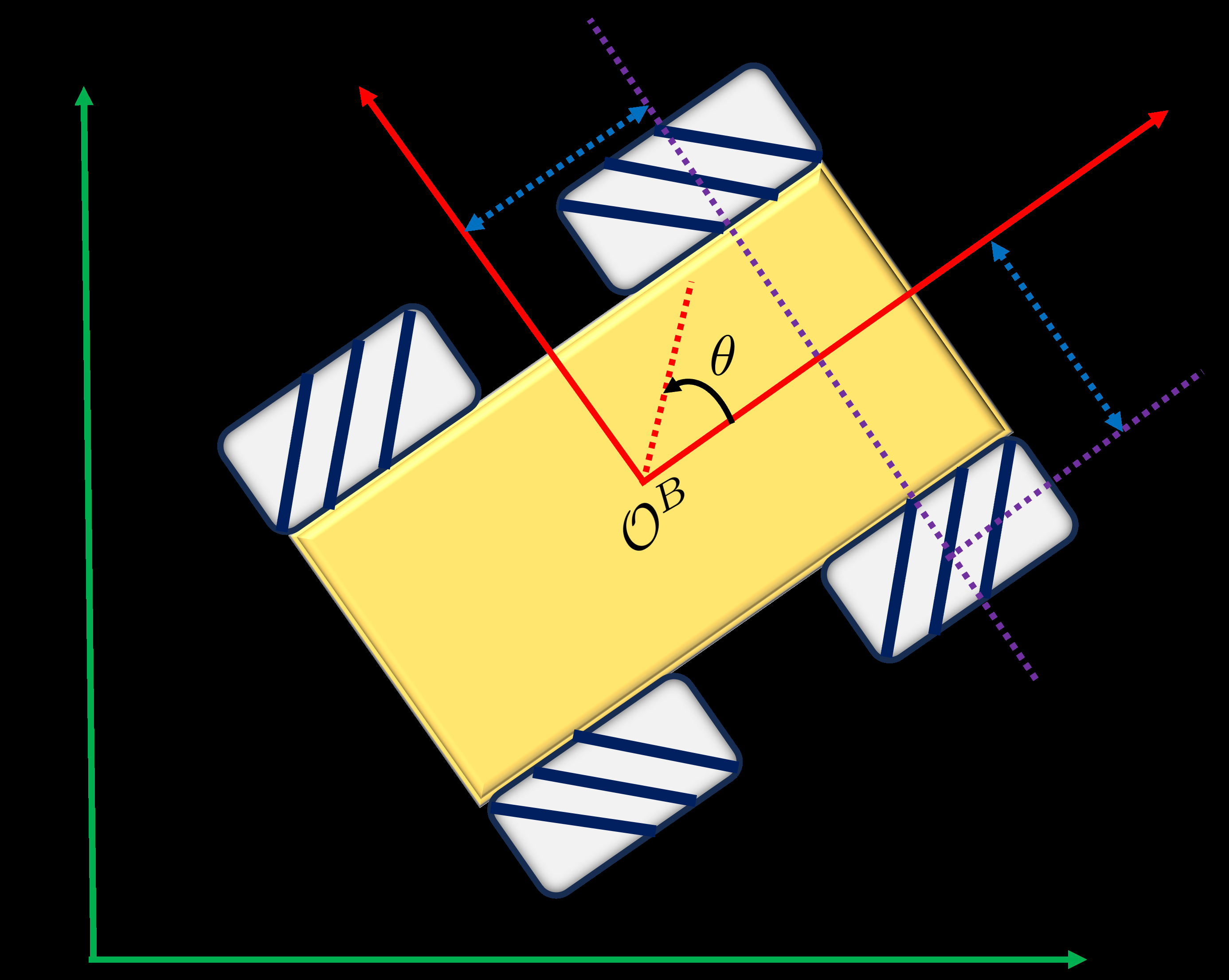

: Schematic Representation Of A Four Wheeled

Mecanum Robot. nidirectional mobile robot, characterized by a rectangular configuration with four specialized mecanum wheels placed symmetrically at the corners. Each mecanum wheels are equipped with a series of passive rollers along its circum- ference. These rollers are typically oriented with their axis of rotation at an angle of 45◦with the wheel roll axis.

This distinctive design affords FWMR an additional degree of freedom compared to the conventional wheeled mobile robots. Consequently, FWMR possess the capability to ma- neuver in any direction without necessitating reorientation.

It contains four mecanum wheels anḋ 𝜃𝑖is the angular velocity of the robot 𝐵. 𝑙1 and 𝑙2 are the lengths from the center of mass and center of wheels of FWMRs. In order to describe the pose of the vehicle, we consider two coordinate frames which are mutually orthonormal to each other. Suppose (𝑋𝐵, 𝑌𝐵) denotes coordinates of position expressed in vehicle fixed frame 𝐵located at the center of mass of the vehicle. Let (𝑋𝐼, 𝑌𝐼) be the corresponding coordinates expressed in earth fixed frame 𝐼as shown in

Figure 1. Suppose 𝑞= (𝑥, 𝑦, 𝜃) ∈⊂ℝ2 × [0, 2𝜋)

denotes the pose of the vehicle expressed in 𝐼frame and leṫ 𝑞= (̇𝑥,̇ 𝑦,̇ 𝜃) ∈ℝ3 denotes the corresponding inertial fixed velocity of the robot. The transformation which relates the

(3)

where, 𝑄∈ℝ3×3 represents the transformation matrix anḋ 𝑞𝐵represents the robot velocity in 𝐵frame. Let 𝜌= (𝜃1, 𝜃2, 𝜃3, 𝜃4) represents the angular position of the wheels.

Wheel coordinate velocities can be related to body coordi- nate velocities using simple geometrical relationship from

,

where, 𝐽is the transformation matrix. 𝑙1 and 𝑙2 are the distance of center of mass of the robot from the respective wheel centers as shown in Figure 1. Wheel coordinate

(4)

where, 𝐽† denotes the right pseudo inverse of 𝐽. Dynamical model of FWMR obtained using Lagrange D’Alembert’s formulation (Yuan et al., 2020; Huang and Lin, 2019; Zhao

, 𝐷= Diag(𝐷1, 𝐷2, 𝐷3, 𝐷4) And

Γ = 𝑚1 + 𝑚2 + 𝐼𝑚. Control input, 𝜏≜(𝜏1, 𝜏2, 𝜏3, 𝜏4) ∈ℝ4 represents the torques acting on four wheels of the robot; 𝐼𝑚and 𝐼𝑧denotes the moment of inertia of wheels and the robot respectively; 𝑚denotes mass of the robot; 𝑟is the wheel radius; 𝐷𝑖’s are viscous friction coefficients of the four wheels; 𝜏𝑑∈ℝ4 forms the external disturbances including static friction. Using kinematics (3) and (4), we

(7)

To make ease of control synthesis, we apply a transformation to convert the above four-dimensional torque expressed in wheel coordinates into body fixed torque in ℝ3. Multiply by

Which Can Be Expressed As,̈

𝑞𝐵= −𝐽𝑀−1𝐷𝐽†𝑄̇𝑞𝐵+ 𝐽𝑀−1𝜏+ 𝐽𝑀−1𝜏𝑑.

(8)

For notational simplicity, let 𝜂= 𝑞and 𝜈=̇ 𝑞𝐵. Then, the second-order unperturbed (𝜏𝑑= 0) dynamical system can be

(9)

where,̄ 𝑄= 𝑄𝑇, 𝐹(𝜂) = −𝐽𝑀−1𝐷𝐽†𝑄and̄ 𝜏= 𝐽𝑀−1𝜏. One can observe that the dimension of control input is now reduced from four to three which makes the subsequent controller synthesis easier.

These two equations governing the kinematics and dynamics of FWMR represents the complete system dynamics which serves as the starting point for the synthesis of finite-time tracking control law which is discussed in the next section.

Finite-Time Trajectory Tracking Of A Fwmr

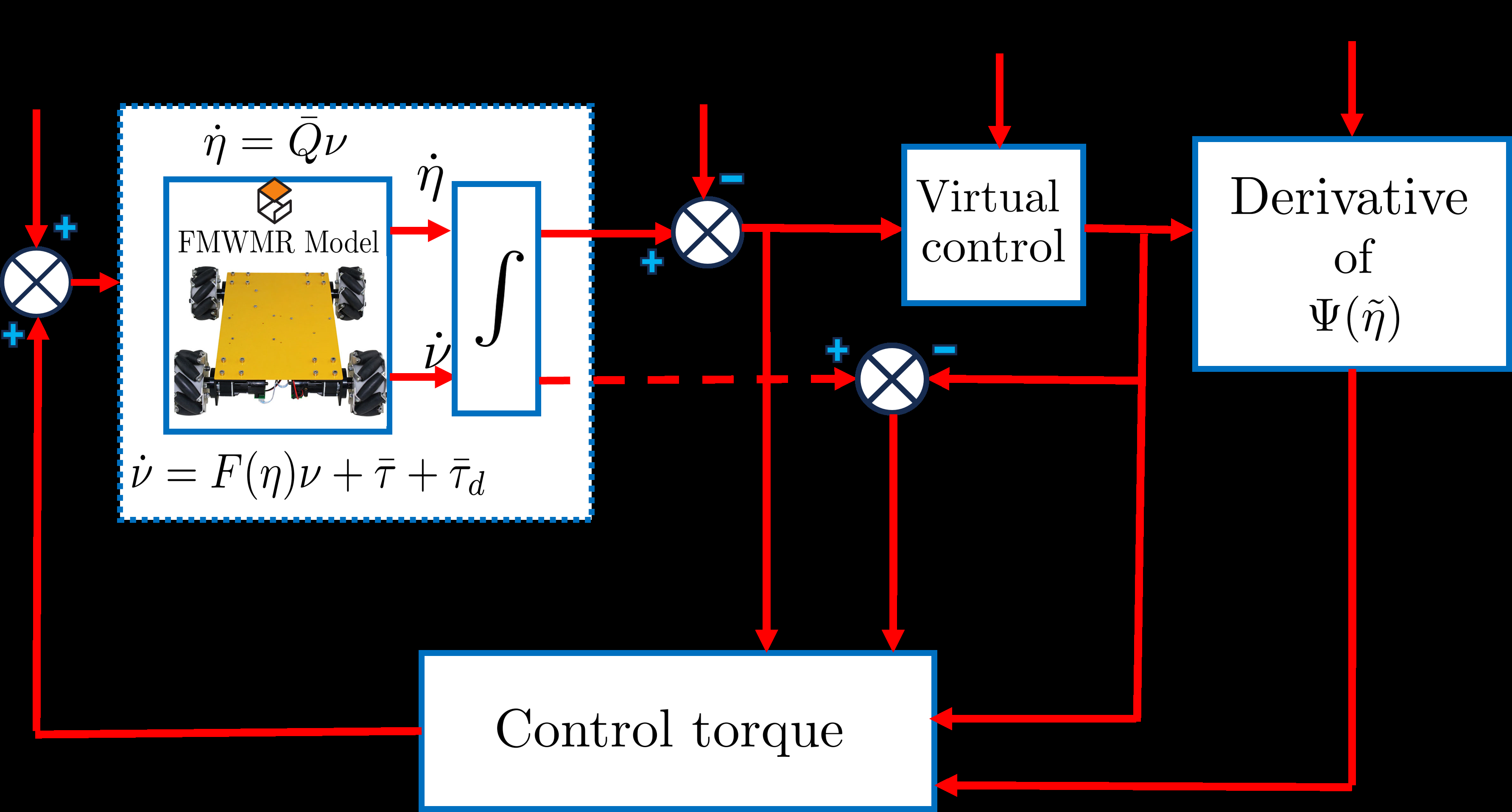

Figure 2: Schematic representation of the proposed control architecture. Assumption 1. The desired center of mass position and orientation of FWMR, 𝜂𝑑(𝑡) is 2 with its first and second derivatives are bounded.

Problem statement 1. Consider the dynamics (9), with the feedback law̄ 𝜏. Given a desired trajectory 𝜂𝑑(𝑡) satisfying Assumption 1, our aim is to design the feedback law̄ 𝜏, such that the vehicle pose error,̃ 𝜂(𝑡) ≜𝜂(𝑡) −𝜂𝑑(𝑡) converges to the origin in finite-time.

With The Complete Dynamical Model Of Fwmr De-

scribed in section 3, designing a finite-time tracking control law using backstepping technique is outlined in this section. A schematic representation of the proposed control archi- tecture is shown in Figure 2. Let 𝜂𝑑∈denotes desired pose (position and orientation) of the vehicle in 𝐼frame.

Suppose 𝜈𝑑∈ℝ3 anḋ 𝜂𝑑∈ℝ3 be the desired velocities of the robot expressed in 𝐵and 𝐼frames respectively. We define the tracking error for pose of the vehicle as,̃ 𝜂≜ 𝜂−𝜂𝑑∈satisfying assumption 1 . Consider a Lyapunov function 𝑉1 ∶→ℝfor the configuration error subsystem,

(10)

Next we choose the virtual control, Ψ(̃𝜂) ∈1 for position

(11)

where, 𝐾𝜂∈ℝ3×3 is a symmetric positive definite matrix and the parameter 𝛼is further chosen (refer, Lemma 4) to ensure the boundedness of feedback torque input designed through backstepping procedure. We denote the virtual ve- locity error for velocity subsystem as, 𝑧2 ≜𝜈−Ψ(̃𝜂). Thus in terms of transformed error coordinates, the system (9) can

𝜂= 𝑄(𝑧2 + Ψ(̃𝜂)) −̇ 𝜂𝑑,̇

𝑧2 = 𝐹(̃𝜂)(𝑧2 + Ψ(̃𝜂)) −̇ Ψ(̃𝜂) +̄ 𝜏.

(12)

Suppose 𝜆𝑚(𝐾𝜂) denotes the minimum eigenvalue of 𝐾𝜂,

Therefore, By

making use of Lemma 1, configuration error subsystem,̃ 𝜂 is finite-time stable about the origin with the convergence

, 𝜂

denotes the finite-time for configuration error subsystem and 𝑉1(̃𝜂(0)) represents the Lyapunov function evaluated at 𝑡= 0.

Emma 4. Range Of 𝛼is 1

2 < 𝛼< 1 for the system (12). Proof. To see this, consider the derivative of virtual error

)

. Under the limiting case,̃ 𝜂→0 and 𝑧2 →0 on the functioṅ Ψ(̃𝜂), L-Hospital’s rule is applied on the second term of (14).

Finite-Time Trajectory Tracking Of A Fwmr

From this, and (11) yields the range of 𝛼> 0, while the limiting case applied on the fourth and fifth terms of (14)

Stability Analysis

Next, we explain the development of proposed feed- back torque designed using backstepping principles and the closed loop stability analysis with the controller yielding finite-time global convergence of states to the equilibrium.

Theorem 5. Consider the reference trajectory 𝜂𝑑(𝑡) ∈ satisfying Assumption 1, and the transformed closed loop dynamical model of FWMR (12). With the feedback torque

(1−𝛼) , (15)

where, 𝐾𝑧∈ℝ3×3 is a positive definite matrix anḋ Ψ(̃𝜂) is defined in (14), the resulting closed loop system (12) is globally finite-time stable around the equilibrium (̃𝜂, 𝑧2) = (0, 0). Consequently, the states (𝜂, 𝜈) will converge to the desired trajectory (𝜂𝑑, 𝜈𝑑).

Proof. To obtain backstepping controller, consider the Lya- punov function for velocity error subsystem 𝑧2 as 𝑉2 ∶ℝ3 →

𝑉2 =𝑧𝑇

(𝐹(̃𝜂)(𝑧2 + Ψ(̃𝜂)) +̄ 𝜏−̇ Ψ(̃𝜂)).

(16)

Next we choose a Lyapunov function for the total system, 𝑉∶× ℝ3 →ℝas 𝑉(̃𝜂, 𝑧2) = 𝑉1(̃𝜂) + 𝑉2(𝑧2). Taking the

‖‖𝑧2‖‖

(1−𝛼) . From Lemma 4, feedback torque (15) is bounded for the pre- scribed range of 𝛼. Suppose, 𝜆𝑚(𝐾𝑧) denotes the minimum

,

where, in the last inequality, taking 𝑐2 = 𝜆𝑚(𝐾𝑧)2𝛽and

),

where, it is straightforward to see that the above inequality will be always satisfied with the choice of 𝑐= min(𝑐1, 𝑐2) for any initial states (̃𝜂(0), 𝜈(0)). Next, we make use of Lemma

) ≤−𝑐(𝑉1 +

𝑉2)𝛽≤−𝑐𝑉𝛽. Therefore, by using Lemma 1, the overall system represented by (12) with the closed loop feedback torque (17) is globally finite-time stable with the guaranteed

(19)

where, 𝑉0 ≜𝑉(̃𝜂(0), 𝑧2(0)) is the Lyapunov function evalu- ated at time 𝑡= 0. This yields the proof. Corollary 1. Control law (15) is continuous and gives finite- time global convergence of the states to the equilibrium for

𝛼∈( 1

2, 1]. Proof. Continuity of the control law (15) for 𝛼∈( 1

, 1)

can be seen directly from Lemma 4. In order to show that the continuity also holds for 𝛼= 1, evaluate the partial derivative of control input̄ 𝜏(15) with respect to 𝛼and then equate it to the limiting value of 𝛼= 1. Computing the partial derivative of (15) with respect to 𝛼yields,

Finite-Time Trajectory Tracking Of A Fwmr

−̄𝑄𝑇𝐾𝜂̃𝜂̃𝜂𝑇̇̃ 𝜂(𝛼−1)‖̃𝜂‖𝛼−3 −𝐾𝑧𝑧2‖𝑧2‖𝛼−1) .

)

−̄ 𝑄𝑇𝐾𝜂̃𝜂̃𝜂𝑇̇̃ 𝜂((𝛼−1)‖̃𝜂‖𝛼−3 log(‖̃𝜂‖) + ‖̃𝜂‖𝛼−3)

−𝐾𝑧𝑧2‖𝑧2‖𝛼−1 Log(‖𝑧2‖)

Subsequently, evaluating the above derivative for the limit

−̄ 𝑄𝑇𝐾𝜂̇̃𝜂−𝐾𝑧𝑧2 Log(‖𝑧2‖),

which shows that the control law is continuous in the range

, 1) And It Also Holds When 𝛼= 1. This Signifies

that the vector field on × ℝ3 given by the dynamics (12) under the influence of control torque (15) is continuous with respect to the parameter 𝛼in the prescribed range

( 1

2, 1]. Therefore, the flow of closed loop feedback system is

, 1]. Hence, Integrating This

with the global finite-time convergence result of Theorem 5 yields the proof. Note that, 𝛼= 1 represents the asymptotic controller. We analyzed the continuity of̄ 𝜏at 𝛼= 1 to express it within a general framework such that it can be derived as a subcase of the proposed finite-time controller.

Robustness Analysis

For the unperturbed system (12), we have proved the finite-time global convergence of system states to the desired equilibrium. For demonstrating the robustness of the pro- posed controller in the presence of disturbances, we recast the dynamical equation which follows from (8) as,̇̃

(20)

where,̄ 𝜏𝑑denotes the constant bounded disturbance torque acting on the system. We explicitly provide an expression for the maximum norm bound of the disturbance torque expressed using a desired side of neighbourhood about the equilibrium point that can be tolerated for the system states to yield the finite-time global convergence result elucidated in Theorem 5.

Corollary 2. Consider the closed loop perturbed system (20) with the control torque (15). Suppose, ⊂× ℝ3 be a closed neighbourhood of the origin defined by,

‖̃𝜂‖ ≤Δ̃𝜂, And ‖𝑧2‖ ≤Δ𝑧2,

where, Δ̃𝜂and Δ𝑧2 are bounded finite positive constants that defines the size of neighbourhood . If the maximum norm

(21)

then the closed loop feedback system (20) converges to the neighbourhood . Proof. The proof follows from the Lyapunov stability anal- ysis discussed in Theorem 5. Taking the time derivative oḟ 𝑉(̃𝜂, 𝑧2) =̇ 𝑉1(̃𝜂)+̇𝑉2(𝑧2) along the perturbed dynamics (20) under the influence of control torque (15) yields,̇

(1−𝛼) + 𝑧𝑇

2̄ 𝜏𝑑. Compared to the unperturbed dynamical system, the extra term in the time derivative of 𝑉(̃𝜂, 𝑧2) arises as a con- sequence of the disturbance torque affecting the system.

Taking the upper bound on the extra term containing the

T Can Be Further Expressed As,̇

𝑉(̃𝜂, 𝑧2) ≤−𝜆𝑚(𝐾𝜂)‖̃𝜂‖(1+𝛼)−𝜆𝑚(𝐾𝑧2)‖𝑧2‖(1+𝛼)+Δ𝑧2Υ. Consequently, evaluating the upper bound oḟ 𝑉(̃𝜂, 𝑧2) along

𝑧2

+ Δ𝑧2Υ. Hence, along the boundary of , the time derivative of Lyapunov function 𝑉(̃𝜂, 𝑧2) will be negative definite if the

(22)

is satisfied, which is sufficient to ensure that the trajec- tories originating from outside and in the domain of convergence of the equilibrium will eventually converge to . Further, equation (21) follows from (22) and hence the proof.

Remark 1. It is important to note that, within a closed neighborhood of the equilibrium (origin), the desired size of , as characterized by Δ̃𝜂and Δ𝑧2, will be less than unity. According to (21), in the finite-time scenario where

, The Maximum Disturbance That Can Be Tolerated

is greater in comparison with the asymptotic case where 𝛼= 1. This highlights the improved robustness capabilities of the proposed finite-time controller. In the next section, we carry out a case study including tracking the given mobile robot along a straight-line path with a humped obstacle placed along the path in order to illustrate this situation in our simulations. This impediment influences the system as an external disturbance. Therefore, in order for the system to go along the path, it must resist the extra disturbance torque.

Simulation, Case Studies And Discussions

In this section, we present the real-time simulation which captures the hardware implementation of FWMR system. For this, we make use of Gazebo-ROS simulation platform.

ROS is an open-source middleware employed in the de- velopment of robot software. Gazebo is an efficient real- time robotic simulator equipped with a complete toolbox of development libraries and cloud services to enable the simulation of physical designs in more realistic environ- have used Nexus 4WD Mecanum Simulator (nex): A ROS Repository for the robot description and gazebo simulation of the 4WD mecanum wheel robot. It contains two packages: Nexus 4wd mecanum description (having URDF model and robot meshes) and nexus_4wd_mecanuum_gazebo (having launch files and controller scripts written in python), which we have configured according to our objectives. The pack- age nexus_4wd_mecanuum_description contains the launch files which loads the nexus 4WD mecanum robot description parameter and the robot state publisher. Gazebo plugin for simulating the controller and launch files for running the simulation are contained in nexus_4wd_mecanuum_gazebo.

Real-time simulation results are visualized using plot jug- gler: an application to plot logged data. Gazebo-ROS ar- chitecture encompassing all these are outlined in Figure 3.

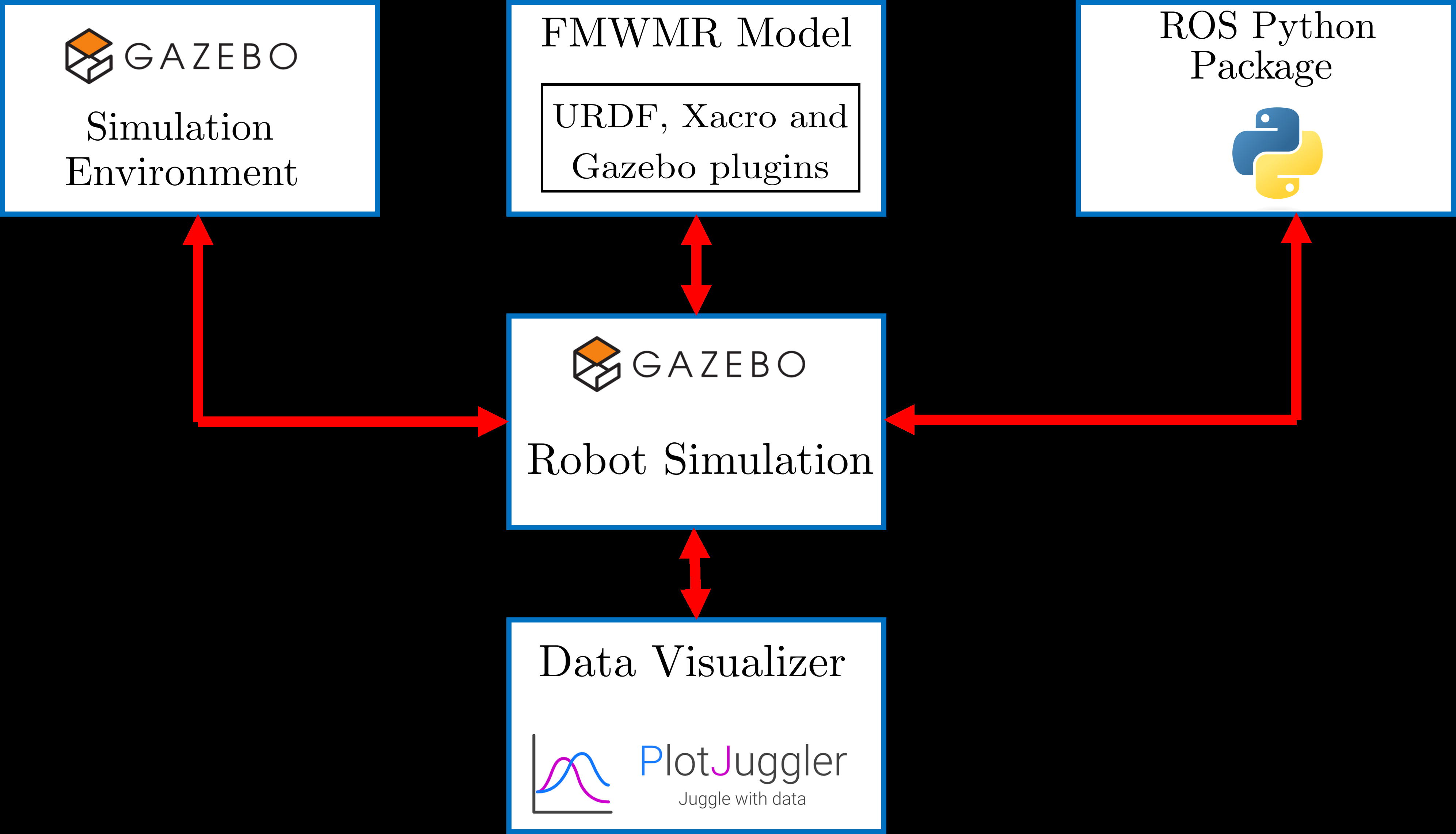

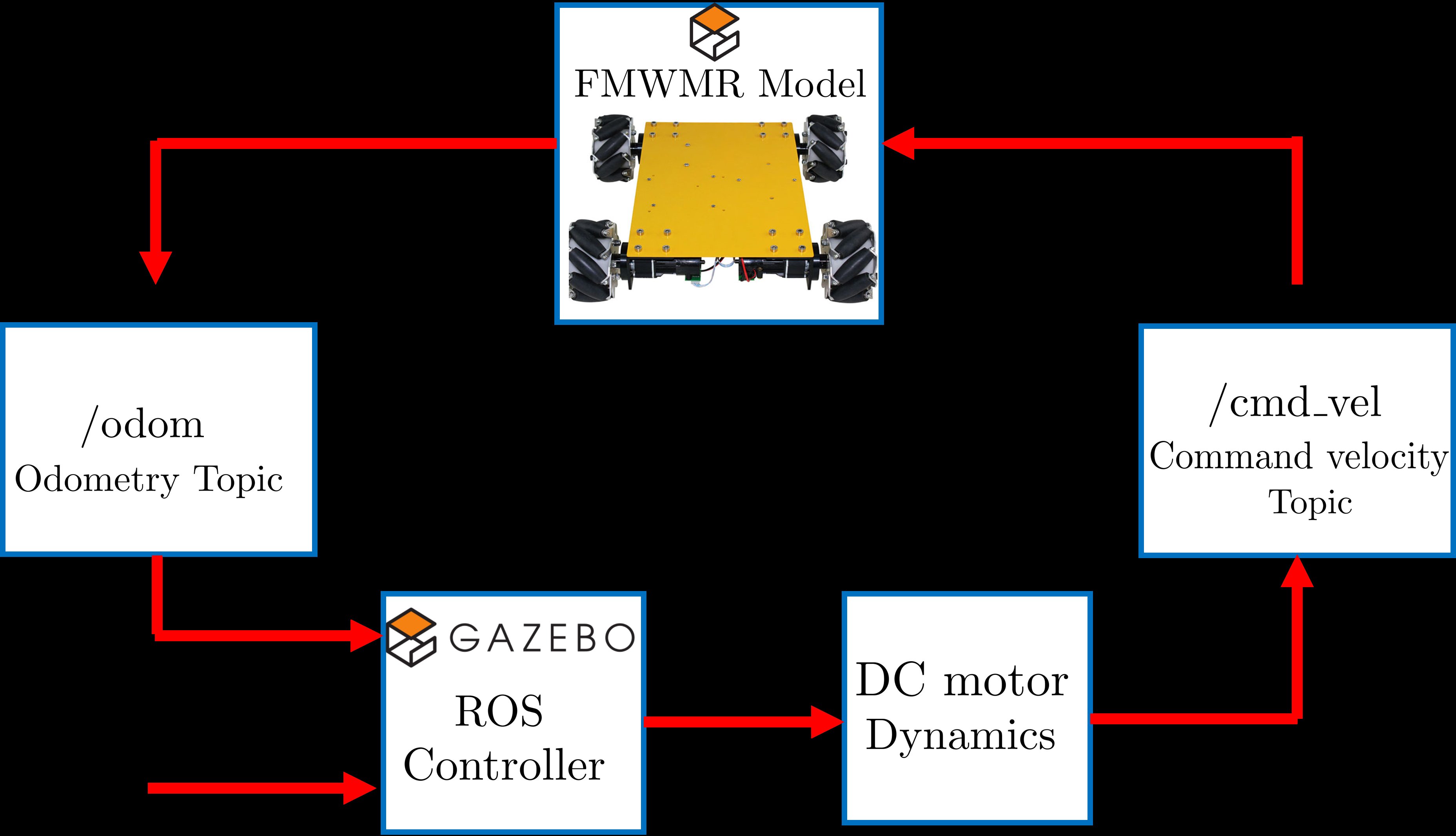

Communication of messages in Gazebo-ROS through the

Figure 3: Gazebo-Ros Architecture

ROS subscriber and publisher nodes are shown in ROS computation graph (Figure 4) generated through GUI plugin, rqt_graph.

Figure 4: Ros Computation Graph

which subscribes to odometry messages from Gazebo plu- gins to gather vehicle pose and velocity informations and Figure 5: Closed loop control architecture of the system a publisher node, ∕cmd_vel which publishes velocity com- mand (translational velocities along 𝑥and 𝑦directions and yaw rate about 𝑧-direction) as a twist message which forms the actuation signal to the robot model. The /gazebo_gui topic is specifically associated with the graphical user inter- face (GUI) of Gazebo. This topic is used to communicate in- formation between ROS and the Gazebo GUI. It can be used for various purposes, such as sending commands to control the simulation, receiving sensor data from simulated robots, or updating the visualization of the simulation environment in the GUI. A closed loop control architecture with the designed controller is depicted in Figure 5. The subscriber node block receives the measurement signal (vehicle pose and velocities) from Gazebo mobile robot URDF model by subscribing to ∕odometry topic. These robot states and velocities along with the desired states are fed to the finite- time backstepping ROS controller block which computes the necessary control torques. These torques are then incorpo- rated to update the position and velocity states in discrete- setting (choosing a sampling time of 0.01s) approximated using Euler’s backward difference scheme. The computed torque signals are transformed to required motor velocities using DC motor dynamics generating the motor control velocities which are then published through command ve- locity topic, ∕cmd_vel. These command velocities form the actuation signal for the Gazebo URDF mobile robot model.

This completes the closed loop control architecture. Remark 2. Gazebo-ROS provides built-in support for pub- lishing velocities, making it straight forward to interface controller and evaluate it’s performance within a ROS ecosystem. The command velocities will be converted into torques by means of a plugin for force-based move. It will generate output torque and forces to be applied to the base link of the robot, using velocity commands as input. Our future work will involve implementing the developed control strategy on a physical FWMR system where, direct torque commands will be applied for real-world validation.

Now, We Present The Gazebo-Ros Simulation Results

with the developed finite-time backstepping controller (15). We present the comparative assessment of finite-time and

Quantitative Comparison: Case 1

asymptotic controllers for achieving stabilization and track- ing control objectives. Asymptotic feedback law can be ob- tained by setting 𝛼=1 in (15). Two scenarios are presented: a point stabilization problem and a tracking control problem.

Ase 1: Point Stabilization

Here, we consider the problem of stabilization of sys- tem states and velocities to origin from an arbitrary initial condition. Though this is a sub case of tracking it is not trivial since we carry out this objective in our simulation for demonstrating few analytical results on the effect of tuning parameters such as control gains and finite-time parameter 𝛼on system performance. Initial errors for system states is chosen as: (̃𝜂(0), 𝑧2(0)) = (5, −4, 𝜋∕4, 1, 0.5, −0.5). For these initial conditions, theoretically calculated guaranteed finite-time from (19) is around 6.4031s. Figures 6 to 8 shows the position and orientation stabilization errors. The practical value of average finite-time calculated for pose sta- bilization (|̃𝜂| ≤10−6) is about 4.24s for finite-time case. For asymptotic case, the average convergence time for the same was found to be around 10.03s. The error in velocities, 𝑧2 for subsystem 2 is shown in Figures 9 to 11. Practical value of average convergence time for |𝑧2| ≤10−6 is obtained around 4.51s while for the same convergence criteria, it is obtained around 12.62s for the asymptotic case. This clearly indicates the faster convergence capabilities of the proposed finite- time strategy in contrast with the conventional asymptotic feedback control law. Figure 12 shows the control inputs (forces and torque) applied to the base link of the robot which becomes zero at steady state once the states converges to the desired values. A quantitative comparison in terms of convergence time and control effort is provided in Table 1.

𝑘=2 |̄𝜏𝑘(𝑖) −̄ 𝜏𝑘−1(𝑖)|,

where 𝑖= 1 to 3 and 𝑁is the number of samples) as a measure for quantitative evaluation of control effort. This is indicative of control signal fluctuations which should be as low as possible to prevent actuator wear and tear. TV measure is found to be low for finite-time case compared to the asymptotic case thereby indicating the efficiency of our proposed controller in terms of actuation.

5.1.1. Guidelines for tuning the controller weights 𝐾𝜂

And 𝐾𝑧

We present the analytical results to examine how varying the tuning parameters 𝐾𝜂and 𝐾𝑧impacts the system per- formance measures (the finite-time) and TV. Specifically, we characterize the tuning gains 𝐾𝜂and 𝐾𝑧in terms of the parameters 𝜆1 and 𝜆2 as follows: 𝐾𝜂= diag(𝜆1, 𝜆1, 0.5𝜆1) and 𝐾𝑧= diag(𝜆2, 𝜆2, 0.5𝜆2). Figure 13 illustrates a surface plot showing how and TV vary with changes in 𝜆1 and 𝜆2.

Figure 6: Case 1: Pose error̃ 𝜂(1) corresponding to 𝑥-position with time; convergence time for |̃𝜂(1)| ≤10−6 is obtained around 4.35s and 10.2s for finite-time and asymptotic cases respectively.

Figure 7: Case 1: Pose error̃ 𝜂(2) corresponding to 𝑦-position with time; convergence time for |̃𝜂(2)| ≤10−6 is obtained around 4.24s and 10.1s for finite-time and asymptotic cases respectively.

Figure 8: Case 1: Pose error̃ 𝜂(3) corresponding to yaw angle with time; convergence time for |̃𝜂(3)| ≤10−6 is obtained around 4.12s and 9.8s for finite-time and asymptotic cases respectively.
