Multi Robot Coordination

Compositional Coordination for Multi-Robot Teams with Large

Anguage Models

Zhehui Huang1, Guangyao Shi1, Yuwei Wu2, Vijay Kumar2, Gaurav S. Sukhatme1 Abstract— Multi-robot coordination has traditionally relied on a mission-specific and expert-driven pipeline, where natural language mission descriptions are manually translated by domain experts into mathematical formulation, algorithm design, and executable code. This conventional process is labor- intensive, inaccessible to non-experts, and inflexible to changes in mission requirements. Here, we propose LAN2CB (Language to Collective Behavior), a novel framework that leverages large language models (LLMs) to streamline and generalize the multi-robot coordination pipeline. LAN2CB transforms natural language (NL) mission descriptions into executable Python code for multi-robot systems through two core modules: (1) Mission Analysis, which parses mission descriptions into behavior trees, and (2) Code Generation, which leverages

To

generate robot control code. We further introduce a dataset of natural language mission descriptions to support development

And

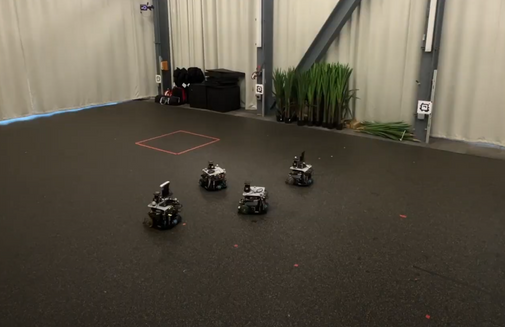

real-world environments demonstrate that LAN2CB enables robust and flexible multi-robot coordination from natural language, significantly reducing manual engineering effort and supporting broad generalization across diverse mission types.

Ntroduction

Problem: Multi-robot coordination for complex collective behaviors, including coverage, formation, foraging, and ex- ploration, has been extensively studied for decades –.

However, most prior coordination methods target a specific and narrowly defined coordination task. This highlights the need for a general and unified framework that can address a wide range of coordination problems in a systematic way.

The conventional multi-robot development pipeline starts with a natural language (NL) problem description, enabling both expert and non-expert users to specify objectives and constraints. An expert translates this description into a math- ematical formulation, typically as an optimization problem, which inevitably requires additional assumptions. Following this, a domain expert designs algorithms to solve the for- mulated problem, which are subsequently implemented and validated on robotic hardware. However, this pipeline has three limitations: It is labor-intensive, inaccessible to non- experts, and inflexible. The first two limitations are apparent due to the significant use of skilled experts, despite the repet- itive nature of problem formulation, algorithm design, and code implementation. The third becomes apparent when even 1 Zhehui Huang, Guangyao Shi, and Gaurav S. Sukhatme are with

Ission Description

Fig. 1. LAN2CB is an LLM-assisted multi-robot framework that converts mission descriptions into structured representations (e.g., behavior trees), assigns roles and priorities to each robot, and automatically generates executable code to accomplish complex missions. A mission change does not require human intervention since new code is generated automatically.

NL means natural language. user- or expert-provided content.

-

generated mission representations. LLM-generated code. minor changes to the problem statement or new requirements emerge, as the entire pipeline must be manually redesigned.

Claim: We posit that recent advances in large language models (LLMs) can be leveraged to alleviate these three lim- itations. Specifically, the use of such models can significantly reduce human expert effort and enhance the flexibility of multi-robot coordination systems –.

Background: LLMs are trained on massive amounts of text data to understand and generate human-like language, allowing them to interpret natural language prompts, perform contextual reasoning, and produce coherent responses or

Actions In Both Visual And Linguistic Tasks –. In

robotics, LLMs are increasingly being used to improve high- level decision-making, task planning, and human-robot in- teraction –. Applications include interpreting natural language instructions, generating structured plans, assisting in code generation for robot control, and enabling dialogue- advantages of LLMs in robotics include their flexibility, ability to adapt to new tasks without extensive retraining, and capacity to bridge the gap between human intent and machine execution, thereby significantly reducing the need for manual programming and domain-specific engineering.

Contributions: 1. We propose, implement, and thoroughly evaluate an LLM-based framework, Language to Collective Behavior (LAN2CB), which addresses the limitations of the traditional pipeline and turns natural language mission descriptions into executable plans and Python code for robot

Arxiv:2507.16068V3 [Cs.Ro] 22 Oct 2025

first module is MISSION ANALYSIS, which takes the mission specified in natural language as input, identifies the necessary tasks to be completed, and analyzes the dependency between tasks. The output of the first module, all ready-to-run nodes from a behavior tree, is given to the second module CODE GENERATION, together with a pre-constructed knowledge base, to generate executable code for robots. 2. We design a dataset of natural language mission specifications for multi- robot coordination. 3. Our experiments, both in simulation and hardware, demonstrate that LAN2CB produces effective multi-robot coordination from natural language. They also show that LAN2CB is flexible and extendable, obviating the need to design from scratch whenever the mission changes and providing a standard format to incorporate existing knowledge into its knowledge base.

A. Multi-Robot Coordination

Multi-robot systems can solve large tasks efficiently through cooperation, coordination, or collaboration . Prior work has shown that these approaches enable robots to contribute effectively to overall team performance, either through global control strategies or by relying on local observations and decentralized decision-making [31, 32].

As tasks become more complex, task-level coordination has received growing attention, where high-level goals are decomposed into interdependent sub-tasks that are allocated

And Executed Collaboratively By The Team –. For

example, Messing et al. introduced a four-layer structure covering task planning, allocation, scheduling, and motion planning to simplify decision-making. More recent work applied learning-based methods to multi-robot coordination by leveraging neural architectures such as graph attention

Networks For Scheduling And Heterogeneous Policy

networks for communication and collaboration in diverse robot teams . However, most existing approaches remain limited to specific tasks and lack the generalization to handle more dynamic objectives, understand natural language, or perform higher-level reasoning abilities.

B. Integrating Llms In Robotics

1) Single-Robot Integration: Recent work has explored integrating LLMs with single robots to enable more intuitive human-robot interaction and high-level task planning. These approaches leverage the language understanding and reason- ing capabilities of LLMs to interpret natural language com- mands and translate them into executable actions. Because natural language is inherently tied to contexts and semantics, LLMs are particularly effective in understanding tasks such as navigation, exploration, and instruction following. In these scenarios, LLMs can help robots ground language inputs into spatial or semantic representations that guide behavior

In Complex, Partially Known Environments –. In

addition, real-time resilience and anomaly detection have been integrated into LLM-based robotic pipelines to improve robustness in dynamic and unforeseen situations.

2) Team-Level Integration: Extending LLMs to multi- robot systems introduces challenges in coordination, com- munication, and scalability, with research still in the early stages exploring their use for flexible, robust multi-robot coordination . Some works use LLMs to translate natural language into formal representations –, but they are limited to simple missions and cannot handle multi-robot teams or decomposable long-horizon tasks. Others propose prompt-based frameworks for multi-robot coordination us- ing LLMs [27, 28]. For instance, Zhao et al. introduced RoCO , where robots coordinate via interactive dia- logues. However, such frameworks face limitations with large robot teams (e.g., ≥10) and complex language-based mis-

Sions. Shyam Et Al. Proposed Smart-Llm , An Llm-

based task planner for multi-robot teams with task decompo- sition and allocation, but it lacks domain knowledge, limits generalization beyond in-context examples, and cannot han- dle motion-level language commands. Our work is closely related to GenSwarm , which translates natural language task descriptions into executable Python code. While both aim to enable language-driven multi-robot coordination, our framework differs in two key ways. First, our modular design supports a broader range of coordination problems, including multi-team tasks with interdependencies and trigger events, unlike GenSwarm’s focus on simple, single-team scenarios.

Second, we incorporate a structured knowledge base to guide the LLM, enhancing extensibility, whereas GenSwarm relies solely on in-context learning, limiting generality.

Problem Statement

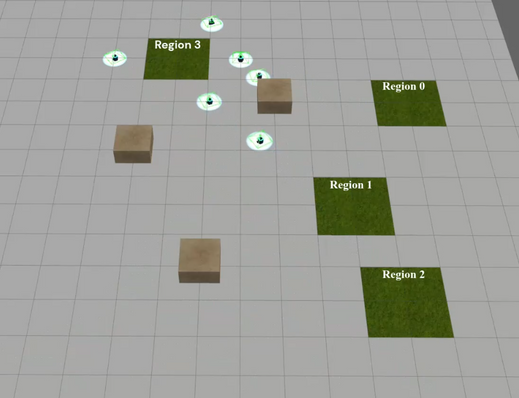

Consider an environment with N robots. Given natural language mission descriptions from users, our goal is to develop a system that can automatically control robots to accomplish these missions without further human interven- tion. We focus on two fundamental categories of missions: 1) goal-approaching missions, such as geometric formation or region visitation, and 2) herding missions, where robots must guide dynamic objects into specific regions or achieve a specific coverage percentage of an area. Mission diversity is introduced by systematically varying key dimensions,

Resulting In A Broad Spectrum Of Possible Tasks:

1) Coordination Strategies: Missions may require robots to coordinate, form a range of geometric patterns (e.g., lines, circles, characters), visit assigned regions, track dynamic targets, or herd dynamic objects.

2) Motion Patterns: Robots may be required to execute various motion trajectories, such as moving in straight lines, zigzagging, or spiral paths.

3) Constraints: Additional requirements can be imposed, such as entering a region from a specific direction or adhering to prescribed durations for actions.

4) Trigger: Tasks can include trigger conditions that allow actions to be terminated or modified in response to environmental events. For example, if a robot comes within a specified distance (e.g., 1 meter) of a forbidden region, it needs to switch to another task.

This mission consists of two robot groups working in parallel with a trigger mechanism. Group 1: ['/robot_0', '/robot_1', '/robot_2'], Group 2: ['/robot_3', '/robot_4', '/robot_5']. Group 1 robots must visit the following points: [-1.0, 5.0], [1.0, 5.0], [0.0, 6.0].

Group 2 robots must form a circular formation around region_1. Circle center: located at the center coordinates of region 1; Circle radius: (half the size of region_1) + 1.0. The three robots should be evenly distributed around the circle perimeter (120 degrees apart).

If any robot from Group 1 comes within 1.5 units of any forbidden region, Group 1 robots immediately stop visiting positions and move to region 0. Group 2 continues their circle formation task normally. After Group 2 completes their circular formation, it takes over the original Group 1 point visitation task.

Ission Structuring Template

Please polish and structure the mission description using the following template:

**Mission Description:**

This mission consists of [number_of_phases] phases focused on [brief_phase_overview].

- **Task [Task_Number]:** [Task Title]

* task_description: [Detailed description of which specific robots perform what

Actions.]

* finish_condition: [Clear criteria that indicate when this task is successfully

**Mission Description:**

This mission consists of 2 phases, executed in parallel initially, focused on point visitation and circle formation with an intermediate trigger-based handoff mechanism. **Phase 1: Parallel Group Tasks with Trigger Mechanism**

- **Task 1: Target Point Visitation By Group 1**

* task_description: Robots '/robot_0', '/robot_1', and '/robot_2' (Group 1) each visit their designated points: - '/robot_0' to [-1.0, 5.0] - '/robot_1' to [1.0, 5.0] - '/robot_2' to [0.0, 6.0]. * trigger_condition: If any Group 1 robot approaches within 1.5 units of the edge of 'forbidden_0' region, all Group 1 robots must immediately cease point visitation and relocate to the center of 'region_0', each with a unique 0.5-unit offset from the center to avoid collisions.

* finish_condition: Each robot is within 0.1 units of their assigned target point, unless preempted by the trigger condition. ....

Ependency Description

Action Nodes: Group 1 ('/robot_0', '/robot_1', '/robot_2') visits assigned points ([-1.0, 5.0], [1.0, 5.0], [0.0, 6.0]) Group 2 ('/robot_3', '/robot_4', '/robot_5') forms a circle around region 1.

"Status": "Idle",

"robot_ids": ["/robot_0", "/robot_1", "/robot_2"], "points": [[-1.0, 5.0], [1.0, 5.0], [0.0, 6.0]], "region_ids": [], "trigger_condition": "Trigger if any robot comes within 1.5 units of the edge of any forbidden region, Once triggered, group 1 robots need to stop visiting points and move to region_0, and group 2 robots need to take

Over Visiting Points After Form Circle.",

"finish_condition": "Finish if all robots visit their assigned points.", ... }, ...

"Key_Action": "",

"task_name": "Group 1 visit points, Group 2 forms circle",

"Status": "Idle",

"finish_condition": "Finish if all children nodes are finished.", ...

"Status": "Idle",

"robot_ids": ["/robot_0", "/robot_1", "/robot_2"],

"Region_Ids": [],

"trigger_condition": "Trigger if any robot comes within 1.5 units of the edge of any forbidden region, Once triggered, group 1 robots need to stop visiting points and move to region_0, and group 2 robots need to take over visiting points after form circle.", "finish_condition": "Finish if all robots visit their assigned points.",

Def Mission_Finish_Condition_Generation(

robot_positions: Dict[str, List[float]], object_positions: Dict[str, List[float]], forbidden_region_info: Dict[str, Dict[str, Any]], regular_region_info: Dict[str, Dict[str, Any]], room_range: Dict[str, float], done_info_dict: Dict[str, Any]

# Returns: Tuple Containing:

# - bool: Mission has finished or not. True if finished, False if not finished. # - Dict[str, Any]: Updated done_info_dict with persistent state information. This is used to track the progress of the mission. ...

Trigger Condition Code

def trigger_condition_generation( robot_positions: Dict[str, List[float]], object_positions: Dict[str, List[float]], forbidden_region_info: Dict[str, Dict[str, Any]], regular_region_info: Dict[str, Dict[str, Any]], room_range: Dict[str, float], action_node_list: List[Any], done_info_dict: Dict[str, Any]) -> Dict[int, bool]: # Returns: Dictionary mapping each action node index to a boolean indicating whether the trigger condition is satisfied (True) or not (False).

# Check The Trigger Condition Of Each Action Node

# If the trigger_condition is an empty string, return False. # If the trigger_condition is not an empty string, implement the logic.

For Action_Node In Action_Node_List:

trigger_condition = getattr(action_node, 'trigger_condition', '') ...

Action Node(S) Finish Condition Code

def finish_condition_generation(robot_positions: Dict[str, List[float]], object_positions: Dict[str, List[float]], forbidden_region_info: Dict[str, Dict[str, Any]], regular_region_info: Dict[str, Dict[str, Any]], room_range: Dict[str, float], action_node_list: List[Any], robot_details_dict: Dict[str, List[Dict[str, Any]]]) ->

Ict[Str, Bool]:

# Returns: Dictionary mapping robot namespaces to completion status (True if finished). ... def all_robot_execution(robot_positions: Dict[str, List[float]], object_positions: Dict[str, List[float]], forbidden_region_info: Dict[str, Dict[str, Any]], regular_region_info: Dict[str, Dict[str, Any]], room_range: Dict[str, float], robot_key_action_dict: Dict[str, str]) -> Dict[str, List[Dict[str, Any]]]: # Returns: Dict mapping robot IDs to their motion plans with waypoints and constraints # --- Step 0: Filter robots to only those in this node's group --- group_1_robot_ids = ['/robot_0', '/robot_1', '/robot_2'], group_2_robot_ids = ... ; group_1_robot_positions = {rid: robot_positions[rid] for rid in group_1_robot_ids if rid in robot_positions}, group_2_robot_positions ...

# --- Step 1: Goal Generation ---

visit_point_list = [[-1.0, 5.0], [1.0, 5.0], [0.0, 6.0]], group_1_goal_positions = visit_points_func(...

# --- Step 2: Goal Allocation ---

group_1_allocated_goal_positions = default_goal_allocation(group_1_robot_ids, group_1_goal_positions) ...

# --- Step 3: Generate Robot Goal Condition ---

# No constraints, just use the allocated goals as conditions with direct goal_positions. group_1_robot_goal_condition = group_1_allocated_goal_positions

# --- Step 4: Group Robot Motion Generation ---

motion_info_dict = motion_generation(group_1_robot_positions, group_1_robot_goal_condition, object_positions, regular_region_info, forbidden_region_info, room_range, group_1_robot_goal_condition) ...

Node Reselection

Fig. 2. A comprehensive demonstration of LAN2CB. human-provided content.

LLM-generated mission descriptions. LLM-generated code. 5) Task Finish Condition: Each atomic task has a clearly defined completion criterion, such as reaching a des- ignated position within a user-specified tolerance or herding objects within a given range of the target region.

6) Mission Finish Condition: Mission completion is de- fined more broadly, either by the successful completion of all constituent atomic tasks or by satisfying higher- level objectives (e.g., achieving at least 60% coverage of a specified region).

Ethod

The LAN2CB workflow consists of the following stages,

Illustrated In Fig. 1:

1) Mission Analysis: Given natural language mission

Descriptions From Users, The Llm Autonomously De-

composes missions into atomic task specifications and analyze inter-task dependencies. For each task, the LLM extracts robot assignments, relevant constraints, triggers, finish conditions, contextual hints, and other contextual requirements. Tasks that are immediately executable are then identified and forwarded to the next stage.

2) Code Generation: Based on the mission description, the system first generates the mission finish condition, which is generated once for the entire mission cycle.

For each selected task, considering its constraints, trig- ger conditions, finish conditions, and hints, the system separately generates code for: (a) robot execution, (b) trigger conditions, and (c) task finish conditions.

3) Execution: The generated code is deployed to the robots for execution. During run-time, if any trigger condition or task finish condition is met, the workflow transitions to stage 4. If the overall mission finish condition is satisfied, it proceeds directly to stage 5.

4) Mission Progress Update: Upon receiving execution results, the system uses the LLM to update the status of each task, then returns to stage 1 for further analysis and potential replanning if necessary.

5) Mission Completion: Once the mission finish condition is met, the mission is formally marked as complete.

Node Type

Parallel | Sequence | Action.

Task Name

Concise task description of the node.

Status

Idle | Running | Success | Failure.

Finish Condition

Condition(s) for determining task completion.

Action Type

visit points | follow targets | herd.

Robot Ids

List of robot IDs this action node will control.

Object Ids

List of object IDs related to the action node.

Region Ids

List of region IDs related to the action node.

Points

List of points related to the action node.

A. Mission Analysis

Mission analysis consists of two key phases: mission un- derstanding and ready-to-run action node selection. However, user-provided natural language mission descriptions often omit explicit definitions of atomic tasks and their execu- tion dependencies. As a result, directly prompting LLMs for general mission understanding can yield incomplete or ambiguous task specifications and may overlook critical execution dependencies. To address these challenges, the mission understanding phase begins by standardizing the mission description using an expert-provided template. We then perform dependency analysis to explicitly extract task relationships, which serve as the basis for a comprehensive mission analysis. Afterward, the LLM selects ready-to-run action nodes based on the results of the dependency and comprehensive mission analyses.

Dependency Analysis: To initiate dependency analysis, we prompt the LLM to extract all atomic tasks from the mis- sion description, initially disregarding trigger conditions and any tasks that may be activated post-trigger. The LLM then analyzes the dependency relationships among these atomic tasks. If triggers are activated during execution, we re-invoke the LLM to update the dependency analysis accordingly.

Comprehensive Mission Analysis: Building on the results of dependency analysis, we combine these atomic tasks and their dependencies with the standardized mission description to prompt the LLM for comprehensive mission analysis. The mission is represented in a behavior tree structure, with the overall mission as the root and atomic tasks as action nodes.

Non-leaf nodes of type Parallel or Sequence capture task execution topologies according to dependencies. For each node, we instruct the LLM to generate a unique index, identify the node type, task name, status, constraints, trigger conditions, finish conditions, hints, and children. For action nodes, the LLM also specifies the action type as well as the associated robots, objects, regions, and points. See Tab. I for detailed field descriptions of the BehaviorTreeNode.

Ready-to-Run Action Node(s) Selection: After construct- ing the complete behavior tree and integrating the depen- dency analysis results, we ask the LLM to identify action nodes that are immediately executable. Specifically, these are nodes for which all preconditions are met. The ready-to-run action nodes are then selected and forwarded for downstream processing, code generation. This approach ensures that robot actions are initiated only when all prerequisite tasks and constraints have been resolved, thereby supporting safe and efficient mission execution. After selecting action nodes that are ready-to-run, we instruct the LLM to update the status of all nodes in the behavior tree, marking the selected nodes and their parent nodes as Running.

B. Code Generation

After mission analysis and the identification of ready-to- run action nodes, we prompt the LLM to generate Python code to control all robots in the environment. The code generation process consists of four key components, executed synchronously with the robots’ control loop (Fig. 1 and 2): 1) Robot execution code generation; 2) Trigger condition code generation; 3) Action node finish condition code gen- eration; 4) Mission finish condition code generation.

Robot Execution Code Generation: Recent works have shown that LLMs can effectively assist code generation – . However, to improve success rates and mitigate hallu- cinations, it is more effective to provide core functions in advance and expose them as APIs, rather than asking the LLM to generate all code from scratch . To this end, we construct a meta behavior library for robot execution. To ensure flexibility and the capability to process multiple action nodes simultaneously, the meta-behavior library comprises

Three Sub-Libraries:

• Goal Generation: Provides primitives for three fun- damental behaviors: (a) visiting points, (b) following targets, and (c) herding.

• Goal Allocation: Offers two strategies for mapping generated goals to robots: (a) a default mapping that assigns goal positions based on robot IDs, and (b) a minimal conflict strategy that assigns goals to minimize trajectory intersections, assuming straight-line move- ment from start to goal.

• Motion Generation: Generates feasible paths from start to goal, considering environmental constraints. For each waypoint, the function not only outputs the position but also constraints such as maximum speed for approach.

This modular design allows the LLM to compose robust execution code for all selected action nodes, promoting Trigger Condition Code Generation: For each action node, LLMs are prompted to implement the corresponding trigger condition. If no trigger is specified, the function always returns False. Otherwise, the LLM encodes the trigger logic using available environmental information, in- cluding robot and object states and region properties.

Action Node Finish Condition Code Generation: For

each selected action node, the LLM generates code to evaluate whether the node’s specified finish condition has been met. For example, if the task is to visit three points, the action node is considered complete when all three points have been visited.
