Ros Robot Operating System Project

Abstract

Nowadays, prognostics-aware systems are increasingly used in many systems and it is critical for sustaining autonomy. All engineering systems, especially robots, are not perfect. Absence of failures in a certain time is the perfect system and it is impossible practically. In all engineering works, we must try to predict or minimize/prevent failures in the system. Failures in the systems are generally unknown, so prediction of these failures and reliability of the system is made by prediction process. Reliability analysis is important for the improving the system performance, extending system lifetime, etc. Prognostic and Health Management (PHM) includes reliability, safety, predictive fault detection / isolation, advanced diagnostics / prognostics, component lifecycle tracking, health reporting and information management, etc. This study proposes an open source robot prognostic and health management tool using model-based methodology namely” Prognostics and Health Management tool for ROS”. This tool is a generic tool for using with any kind of robot (mobile robot, robot arm, drone etc.) with compatible with ROS. Some features of this tool are managing / monitoring robots’ health, RUL, probability of task completion (PoTC) etc. User is able to enter the necessary equations and components information (hazard rates, robot configuration etc.) to the PHM tool and the other sensory data like temperature, humidity, pressure, load etc. In addition to these, a case study is conducted for the mobile robots (OTA) using this tool.

Keywords reliability estimation · prognostics and health management · robotics · robot operating system ·

Ntroduction

It is indicated that human employees add significant cost to the company with training and memorizing the tasks. However physical robot does not add additional or incremental cost in operations. With decreasing cost in data computing and electronics and AI-based algorithms in executing tasks, robots have started having advantage against human employees both in cognitive and analytical works. On the other side, beyond the development, sustainability of these robots are critical in operations. Robots which have critical role in operations can lead significant expenses to the companies. Unknown errors and unexpected failures can restrain operations or cause work losses in production. In this manner, Prognostics and Health Management (PHM) have become important tool for maintaining effective operations.

Reliability generally shows how successful a system is in performing its intended function. In order to increase the system performance, intensive studies are carried out on reliability models and analytical tools to reveal system health. It is true that the consequences of unreliability in engineering can be very costly and often tragic. In a changing world, reliability becomes more important to ensure that systems operate with high performance and gain functionality. Reliability engineering is applied in many fields such as defense industry, robotics industry, aerospace industry etc. The current generation of mobile robots have poor reliability. In order to design more reliable robots, we need analytical tools for predicting robot failure. The shift towards the Robot centered production also creates demand for highly accurate, reliable and cost-efficient robot solutions and importance of the robots increase in industrial applications. Reliability and maintenance of these robots are getting more critical. Especially, with emerging complex applications in factory floor like robot-robot operations and human-robot operations, it is important to know reliability and status of robot. While Human-Robot interactions are increasing with building complex systems, It is indicated that more complex operations create more reasons faults and failures to occur . These faults and failures can cause unexpected loss in efficiency, quality and productivity. In order to minimize these fault and failures, health of the system and all sub-systems should be monitored.

5000.2 policy document as a defense acquisition. This policy states that “program managers shall optimize operational readiness through affordable, integrated, embedded diagnostics and prognostics, embedded training and testing, serialized item management, automatic identification technology, and iterative technology refreshment”. Also, in , it is indicated that maintenance is a critical part of production. Thus, Prognostic system development and enabling PHM has become a necessity in all operations. In these situations, Prognostic and health management systems have gained importance as a result. There is a great motivation in PHM plans to apply industrial robotic applications in academy and industry .

This study proposes an open source robot prognostic and health management tool using model-based methodology namely” Prognostics and Health Management tool for ROS”. This tool is a generic tool for using with any kind of robot (mobile, arm, drone etc.) compatible with ROS. Some features of this tool are managing / monitoring robots’ health, RUL, probability of task completion (PoTC) etc. User is able to enter the necessary equations and components information (hazard rates, robot configuration etc.) to the PHM tool and the other sensory data like temperature, humidity, pressure, load etc. In addition to these, a case study is conducted for the mobile robots (OTA) using this tool. In these following sections, Part 2 explains previous work on PHM. Next, Part 3 provides background and hazard rate calculation formulas for PHM tool infrastructure. Part 4 explains PHM tool and provides a guide. Part 5 introduce case study for PHM tool and Part 6 provides overall conclusion.

Previous Studies

The goal of maintenance includes 2 types of maintenance types. In literature, PHM goes beyond these applications with correct future predictions. In literature, there are methods and applications are made for estimating robot reliability and assessing RUL. In this area, early comprehensive study on PHM is made by Ahmad and Kamaruddin presents overview on time-based maintenance (TBM) and condition-based maintenance (CBM). In time- based maintenance, equipment is assumed to be have predictable failure behavior and characteristic. Time-based maintenance methods fall behind the modern technological trends in today’s technology . In complex technologies where components have no characteristics of failure, condition-based maintenance which is also known as predictive maintenance become most popular maintenance technique. In condition-based maintenance, trend is going towards the advanced technologies via PHM. PHM is mostly referred as preventative maintenance which is developed for component/system safety . In 2006, detailed overview about PHM and its benefits is given by Vichare and Pecht . In current state of PHM applications, Product PHM is more popular than Process PHM. In current status, PHM techniques are mostly developed for components or equipment. There is lacking innovation on overall system level PHM and robot reliability methods .

In 2002, Shetty et al. presented work on remaining life assessment of a shuttle remote manipulator system. this study applied PHM methodology for end effector electronics unit of the robot arm system. Thermal and vibration loads are used for damage models and prognostics estimated that electronic units can operate another 20 years.

Another prognostic study applied for aerospace domain is done by Mathew et al. . In this study, prognostic remaining-life assessment task for rocket booster circuit cards is done. In study, estimation of the number of future missions that circuit card can operate which is called as virtual PHM process is depend on 5 stages. Design capture and model analysis, life cycle load history characterization, load transformation on the card, damage assessment on each card component and estimation remaining useful life of circuit card. In study use case, virtual remaining life assessment process provided outcome of the circuit can operate 39 more missions on aerospace. Another study made by Nasser and Curtin takes power supply failures into consideration. This study focuses PHM application on solder degradation, solder fracture and fatigue. Study introduces this PHM technique in 5 steps; 1) acquiring sensor data (temperature, vibration, Gvalue), this translates into Thermal and Vibration map. 2) Finite Element stress analysis 3) conducting status prediction for each point 4) prognostic health prediction for Power supply system. Proposed method predicts remaining life of power supply system with over 85% confidence. In another study, micro- programmable module is customized for health and usage monitoring. In case study, presented method collects analyses CPU temperature, HDD temperature, ambient temperature, CPU usage and, fan condition of the laptop in use. With the acquired data, guideline for laptop damage accumulation and remaining-life estimation is proposed .

For the machining operation, Biehl et al. proposed thin film sensor system which resistance changes are depend on various preload forces and causes systematic manufacturing errors. These measured results help monitoring of the ball screw drivers’ health.. In , a study made for detecting degradation of machine components, a method including Internal Measurement Unit (IMU) for identifying translational and angular errors in robot arm movements.

For this method, accelerometer and rate gyroscope data is used. With collected data, IMU have detected micrometer and microradian level degradation on robot arm end. Writers indicates that with coupling standards and validation of the system, Industrial IMU can provide real-time equipment health prediction and prognostics. In paper , Zhang and Han worked on reliability of robotic manipulator. Their study proposed reliability analysis method with taking randomness in link lengths and joint angles into account to prognose kinematics reliability. The proposed reliability method is based on Dimension Reduction and Saddlepoint Approximation. In industrial robotic manipulator, DR achieves good accuracy in randomness and SPA ensures final reliability. However, writers have concern in encountering real applications and these methods need future improvement . Similar problem is also have taken into concern in . The uncertainty in link dimension variables and joint clearances is also took account as a problem. Denavit–Hartenberg method is used in kinematic models which system assumed to be have uncertain variables. Then, Sobol sensitivity analysis method implementation showed that parameters have huge impact on positioning accuracy of end-effector and sensitivity of variable errors are analyzed. This analyses method uncovers reliability framework of robot. In experiment in simulation shows that proposed method provides reliability in position error and joint rotation errors in robot designs. In the other hand, for positioning reliability and multipoint trajectory analysis, this method is still lacking . Future study made by Wu et al. provides new method for comprehensive evaluation of the positional accuracy. In their novel method, external 3D position measurement of point and trajectory is obtained with sparse gid numerical integration and saddle point approximation methods. Kinematic error models are also obtained with these methods. To assess reliability of the robot kinematic accuracy, extreme value distribution of response is applied. Dissolve eigen-decomposition of covariance matrix for three coordinates of positional point is implemented for correlation three coordinates. Also, probability density function and probability of failure calculations are used for saddle point approximation. To prove effectiveness of the method, 4 different examples are proposed. However, since the method is depending on integration and weights in grid integration method. Proposed method is not applicable for various cases.

There are some studies that provides system-level PHM methods. Adaptive Multi-scale PHM (AM-PHM) is one of these methods proposed for robotic assembly processes in smart manufacturing system. This method applies AM-PHM in every decision point of holistic system. Method takes job requirements in operations and reports performance and health estimates to upper level structure. Decisions are based on current and projected health states of the system. AM-PHM information domain consist of machine level, work cell level and assembly line level PHM structure. layers from low to higher levels provide machine level health to assembly Line level health information . A study by Qiao et al. provides quick robot health assessment methodology for enabling PHM. In this study Positional (position and orientation accuracy) health changes are taking into consideration. For the assessment of the robot health, fixed loop motion test method is developed. In this method, 7-D information (X, Y, Z, roll, pitch, yaw, and time) is analyzed. With provided error modelling, users can assess the robot positional health faster with higher accuracy. Another study proposes top level and component level PHM for detecting robot performance degradation including robot tool center accuracy degradation. In this study, four dimensional PHM is presented. In study cost function works on solving robot error model to identify root causes of faults and failures. Similar to previously presented study, 7-D information is used for health analysis. At next, in Prognostics, Health Management and Control (PHMC) project, representative manufacturing robot work cells are proposed as use case options in physical test beds for PHM systems development..

There are solutions in market aiming for PHM. First one of these solutions is FlexPro. FlexPro is data analyzation and presentation program that includes fast data search, data transfer in various standards, analysis procedures for measured data and processing measurement values in multi treaded workflows. FlexPro can be used as a sub-system for developing PHM solutions. However, program itself is not capable of implementing PHM technologies. Reliability workbench is a software in development since 1980s and provides block diagram reliability analysis, fault tree and common important analysis methods, standards for supporting system analysis.

Reliability workbench provides accurate system reliability predictions but for the prognostic side this software is still lacking. ITEM ToolKit is a reliability software includes comprehensive reliability prediction and reliability analysis modules. Software can assess maintainability and safety of electrical/mechanical components of the system.

ITEM ToolKit platform offers scalable analysis with including modules can be purchased. Fusce MADe is a software for enabling better decisions about designing and supporting safety in workspace and mission critical and maintainability analysis, safety and risk assessment and PHM for designing/validating diagnostic requirements for CBM. PHM method has generation of sensor sets utilizing a genetic algorithm analysis on maximum coverage.

PHM module provides model-based approach, automated sensor set generation and diagnostic decision support. Also MADe provides sensor allocation and optimization. When all sensors are allocated, the parameters of each sensor are entered to enable optimization based on user inputs. MADe also provides diagnostic with identifying specific failures in system. ALD’s Reliability software is a suite for reliability prediction, Availability, maintainability analysis, Safety Assessment, Quality Management, Safety Management and Industrial Process Control. ALD Reliability software has MTBF Calculator, Fault Tree Analyzer and PHM commander in it. PHM commander provides failure diagnostics performs before and after failure occurs and prognostics provide early failure detection. ALD PHM solution also supports data driven approach for prediction RUL. Calce PHM maintenance planning tool is a stochastic decision model which determines schedule of the maintenance times. System models enable optimal health monitoring, life consumption monitoring. This tool can be used in optimizing safety margins and determine best ROI studies on single system. Tool includes computed metrics which are; life cycle cost, avoided failures and operational availability.

Efinitions And Preliminaries

In this section, the calculation of the hazard rate and reliability values of a robotic system and the configurations (serial, parallel, etc.) of the mechanical or electrical equipments in the robot are explained in detail. At the same time, the probability of completing a task that comes to the robot is calculated based on the reliability value of the robot.

Hazard rate calculation formulas for the mechanical and electrical equipments in the robot are explained in Section 3.1. The serial/parallel configuration of the equipments in the robotic system, the reliability calculation of the robot and the Life Distribution Models used in calculating the reliability are explained in Section 3.2. And finally, the calculation of probability of the robot completion a task is explained in Section 3.3.

Hazard Rate Calculation Of System

A robotic system consists of many equipments and with their configurations. These components can simply be the battery, power control unit, wheels, motor control unit, sensors etc. By calculating the hazard rate values of each components, the hazard rate of overall system can be calculated. Component specific hazard rate calculation formulas are used to calculate the hazard rate value of each electrical and mechanical components.

PHM Tool contains hazard rate calculation formulas for some electrical and mechanical equipments by default. These components are given in Table 1. Table 1: Electrical and Mechanical Equipments in PHM Tool

Echanical Equipment Hazard Rate Formulation

In this section, hazard rate value calculation of used mechanical equipments in OTA is given though the all equipments in Table 1 are in PHM Tool. Most of the hazard rate calculations are taken from . The study contains more detailed information about the calculations.

i. Bearings: In OTA, bearings are used in the mobility module. The bearing failure rate can be expressed as eq. (1). Also, the variables of bearing hazard rate calculation formula are shown in Table 2:

(1)

Table 2: Variables are used in calculation of bearings hazard rate

𝐶𝑆𝐹

Multiplying factor for operating service conditions

𝐶𝐶

Multiplying factor for lubrication contamination level ii. Electric Motors: In OTA, electric motors are used in the mobility module. The total motor system failure rate is the sum of the failure rates of each of the parts in the motor as shown in eq. (2). Also, the variables of

Eq. (2) Are Shown In Table 3:

λ𝑀= (λ𝑀,𝐵∗𝐶𝑆𝐹) + λ𝑊𝐼+ λ𝐵𝑆+ λ𝑆𝑇+ λ𝐴𝑆+ λ𝐵𝐸+ λ𝐺𝑅+ λ𝐶 )

(2)

Table 3: Variables are used in calculation of electric motors hazard rate

Λ𝑀,𝐵

Base failure rate of motor, failures/million hours

Λ𝑊𝐼

Failure rate of electric motor windings, failures/million hours

Λ𝐵𝑆

Failure rate of brushes, 3.2 failures/million hours/brush

Λ𝑆𝑇

Failure rate of the stator housing, 0.001 failures/million hours

Λ𝐴𝑆

Failure rate of the armature shaft, failures/million hours

Failure Rate Of Capacitor (If Applicable)

iii. Battery: The battery failure rate can be expressed as:

(3)

The value λ0 will be obtained using the Table 4.

Electrical Equipment Hazard Rate

In this section, calculation of electrical equipment’s hazard rate is given. All hazard rate calculation is taken from . The study contains more detailed information about the calculations. In this section, all part quality and environment factor values are depending on the Table 5 that is given below.

The quality of an electrical equipment has a direct effect on its failure rate and is seen as the π𝑄 quality factor in the failure rate calculation of the equipment. Some electrical components with their quality designators are shown in Table 5.

Table 5: Parts with Multi-Level Quality Specifications

Icrocircuits

SI B, B-1, Other: Quality Judged by Screening Level

R, P, M, L

In calculating the hazard rate of electrical equipments, the environmental impacts on reliability is provided by the environmental factor, π𝐸. There are three ground environments in literature; benign, fixed and mobile . According to Military Handbook these environments explained as; “Benign grounds (GB) are non-mobile, and test equipment, medical electronic equipment, business and scientific computer complexes, and missiles and support equipment in ground silos.”, “Fixed grounds (G𝐹) are moderately controlled environments such as installation in permanent racks with adequate cooling air and possible installation in unheated buildings; includes permanent installation air traffic control radar and communications facilities.” and “Mobile grounds (G𝑀) are equipment installed on wheeled or tracked vehicles and equipment manually transported; includes tactical missile ground support equipment, mobile communication equipment, tactical fire direction systems, handheld communications equipment,

Laser Designations And Range Finders.”

i. Capacitor: In OTA, capacitors are used in the many modules such as power, sensing and communication. The capacitor failure rate can be expressed as eq. (4) and variables are used in capacitor hazard rate

(4)

Table 6: Variables are used in calculation of capacitor hazard rate

Environment Factor

ii. Diode: In OTA, diodes are used in power module. The diode failure rate can be expressed as eq. (5) and

(5)

Table 7: Variables are used in calculation of diode hazard rate

Base Failure Rate

iii. Inductor: In OTA, inductors are used in the power module. The inductor failure rate can be expressed as eq. (6) and variables of eq. (6) are shown in Table 8:

(6)

Table 8: Variables are used in calculation of inductor hazard rate

Environment Factor

iv. Fuse: In OTA, fuses are used in the power and communication modules. The fuse failure rate can be expressed as eq. (7) and variables of eq. (7) are shown in Table 9:

(7)

Table 9: Variables are used in calculation of fuse hazard rate

Environment Factor

v. Resistor: In OTA, resistors are used in the many modules such as power, sensing and communication. The resistor failure rate can be expressed as eq. (8) and variables of eq. (8) are shown in Table 10:

(8)

Table 10: Variables are used in calculation of resistor hazard rate

Environment Factor

vi. Rotating Devices, Motors: The rotating device failure rate can be expressed as eq. (9) and variables of eq. (9) are shown in Table 11. For more details about the variables, see the reference :

(9)

Table 11: Variables are used in calculation of rotating devices, motors hazard rate

𝛼𝑊

Weibull Characteristic Life for the Motor Windings vii. Connectors, General: In OTA, general connectors are used in the many modules such as power, sensing and communication. The connector (general) failure rate can be expressed as eq. (10) and variables of eq.

(10)

Table 12: Variables are used in calculation of general connectors hazard rate

Environment Factor

viii. Connectors Sockets: In OTA, sockets are used in the power module. The connector (socket) rate can be expressed as eq. (11) and variables of eq. (11) are shown in Table 13:

(11)

Table 13: Variables are used in calculation of socket hazard rate

Environment Factor

ix. Quartz Crystals: In OTA, quartz crystals are used in the power and communication modules. The crystal quartz failure rate can be expressed as eq. (12) and variables of eq. (12) are shown in Table 14:

(12)

Table 14: Variables are used in calculation of quartz crystals hazard rate

Environment Factor

Configuration and Reliability estimation of System In this section, calculation of the reliability of a robotic system, configuration of the system and life distribution models used when calculating reliability are explained in detail.

Onfiguration Of System

Over the years, reliability researchers working and developed various reliability assessment methods and techniques. Some examples of these methods and techniques are reliability block diagram, network diagram, fault tree analysis (FTA), failure modes and effective analysis (FMEA), hazard rate and operability (HAZOP), etc. The implementation of these methods and techniques depends on factors such as the specific need, the tendency of the diagrams which usually corresponds to the physical arrangement of items in the system. It is often used to model the impact of item failures on system performance. The major advantage of using the reliability block diagram approach is the ease of reliability expression and evaluation. In this section, only reliability block diagrams are explained. Using hazard rates of components, usage time of components and configuration (series, parallel) of system we may estimate reliability of robots. General information about the reliability block diagram representation is taken from references and .

Series System: A reliability block diagram is in a series configuration when the failure of any block results in a system failure. Accordingly, for the functional success of a series system, all blocks must operate successfully during the intended task period of the system. Figure 1 shows N series reliability block diagram.

(13)

where 𝑅𝑖(𝑡) represents the reliability of the ith block. Parallel System: In a parallel configuration, only failure of all blocks results gives system failure. Accordingly, the success of only one block will be sufficient to guarantee the success of the system. Figure 2 shows N block parallel system block diagram.

Ife Distribution Models

Life distribution models required for the model-based method were obtained. Thus, by selecting the appropriate model, the reliability of the system with known failure rate will be obtained. There are six different life distribution models in the literature such as Exponential, Weibull, Gamma, Normal, Lognormal and Extreme value . However, "Exponential" and "Weibull" life distribution models were used in the developed PHM tool within the scope of this study. Therefore, only Exponential and Weibull life distribution models are explained in this section. For other life distribution models, you can review the reference .

In this section, we discussed model-based methodology and most commonly used life distribution models are At initially, it is useful to look at some metric definitions that is given in Table 15 .

𝑎

, to evaluate the likelihood of a failure occuring

𝑏

, to evaluate the likelihood of a failure occuring by time b.

𝑅(𝑡)

Exponential Distribution: It is most commonly used in reliability analysis. This distribution can be attributed to primarily simplicity (constant hazard rate model), which corresponds to a realistic situation. It is widely used in electronics and probabilistic modeling. Equations related with this distribution given below.

(19)

Weibull Distribution: All three regions of the bathub curve can be represented by Weibull distribution and it is commonly used in many basic components such as capacitors, relays, bearings, etc. Equations related with this distribution given below.

(23)

Features of Weibull distribution over a range of 𝛽 values are given in Table 16 : Table 16: Features of Weibull distribution over a range of β values

Reliability Estimation

Reliability generally shows how successful a system is in performing its intended function. In order to increase the system performance, intensive studies are carried out on reliability models and analytical tools. It is true that the consequences of unreliability in engineering can be very costly and often tragic. In a changing world, reliability becomes more important to ensure that systems operate with high performance and gain functionality. Reliability engineering is applied in many fields such as defense industry, robotics industry, aerospace industry etc. The current generation of mobile robots have poor reliability. In order to design more reliable robots, we need analytical tools for predicting robot failure. Reliability is the probability of the system performing its intended function under the specified operating conditions for a specified period of time. Mathematically, the reliability function R(t) (See eq. 13) is the probability that a system will work successfully without failure in time intervals between 0 and t .

(24)

where T is random variable representing the failure the probability that a failure was caused by a component type c is simply in eq. (14).

(26)

where R(t) is the reliability function, and F(t) is the unreliability function. The failure rate function (hazard function), is very important, because it specifies the rate of the system aging and also shows rate of change over the life of a component. Failure rate function is given in eq. (27)

(27)

where, 𝜆(𝑡)𝑑𝑡 indicates the probability that a device with age t will fail at small interval from time t + dt. If the hazard rate function follows an exponential distribution with parameter λ, the hazard rate function;

(28)

This means that the hazard rate function of the exponential distribution is constant which means the system does not have an aging property. The reliability function and the hazard rate are related as (if lifetime distribution

(29)

MTTF is the expected value of the reliability and related formulas about reliability, failure rate and MTTF are given in eq. (30) and eq. (31) respectively.

Probability Of Task Completion Calculation (Potc)

Long-term autonomous operations of the robot is very important for the industrial applications. Reliability is very important concept to sustain autonomy in these industrial areas. Mobile robot’s reliability depends on the subsystem, components and parts failure rate, usage time of these components, and environmental conditions. In order to increase the lifetime of mobile robots, prognostics-aware systems can be used. At these systems, robot should have known reliability and task completion probability. The probability of task completion (PoTC) is a metric that shows how successful mobile robots have completed a given task. PoTC could be used for lifetime extension of the system, sustaining autonomy, task allocation for multi-robot systems etc. by using reliability of robot and distance travelled along task. The lifetime of the robot maybe increased if the robot is capable of knowing health status and making task selection decision accordingly. Thus, using the reliability during decision making results sustainable autonomous operations for the robot. Probability of task completion (PoTC) for the robot is calculated by eq. (32).

(32)

Where R and d are reliability of robot and total distance travelled by robot for given task respectively. 4.

Prognostics And Health Management Tool

performed on each tab are described in detail in this section. Basically 2 different operations are performed in the PHM Tool:

System Analysis And Monitoring

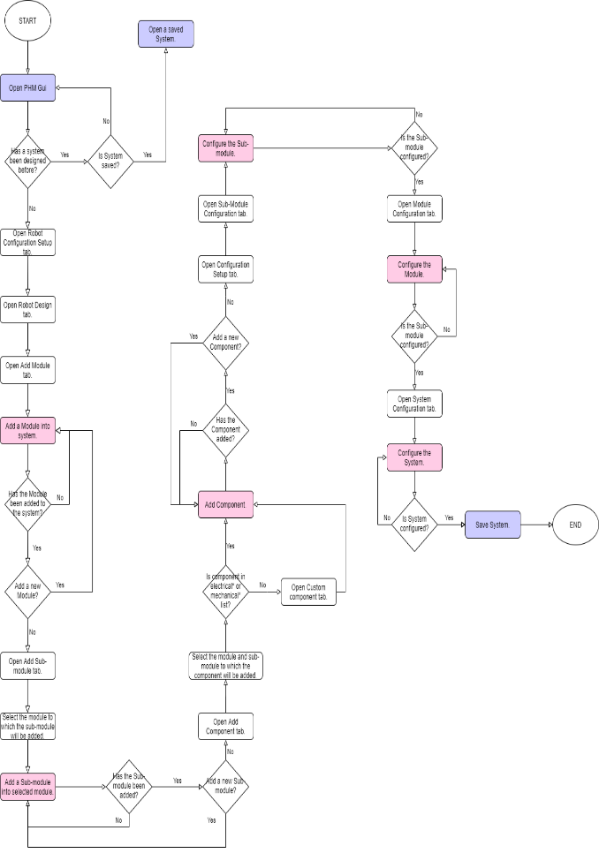

Robot configuration operations are performed in “Robot Configuration Setup” tab. The flowchart of the operations performed on the “Robot Configuration Setup” tab is shown in Figure 3. Figure 3: Flowchart of "Robot Configuration Setup" tab
