RoSE: A Robotic Soft Esophagus for Endoprosthetic Stent Testing Dipankar Bhattacharya1,2 , Sherine Jesna V. A.1,2, Leo K. Cheng2,3,4, Weiliang Xu1,2,4 Project page: https://bhattner143.github.io/rose-stent.github.io/

Abstract

Soft robotic systems are well suited for the developing devices for biomedical applications. A bio-mimicking robotic soft esophagus (RoSE) is developed as an in vitro testing device of endoprosthetic stents for dysphagia management. Endoprosthetic stent placement is an immediate and cost-effective therapy for dysphagia caused by malignant esophageal strictures from esophageal cancer. However, later stage complications, like stent migration could weaken the swallow efficacy in the esophagus. The stent radial force (RF) on the esophageal wall is pivotal in avoiding stent migration. Due to limited randomized controlled trials in patients, the stent design and stenting guidelines are still unconstructive. To address the knowledge deficit, we have investigated the capabilities of the RoSE by implanting two stents (stent A and B) of different radial stiffness characteristics, to measure the stent RF and its effect on the stent migration. Also, endoscopic manometry on the RoSE under peristalsis has been performed to study the impact of stenting and stent dysfunctionality on the intra-bolus pressure signatures (IBPSs) in the RoSE, and further its effects on the swallowing efficacy. Each implanted stent in the RoSE underwent a set of experiments with various test variables (peristalsis velocity and wavelength, and bolus concentrations). In this paper, the conducted tests are representatives to show the application of RoSE to perform a wide-ranging assessment of the stent behavior. The usability of RoSE has been discussed by comparing the results of stent A and B, for various combinations of the test variables mentioned above. The results have demonstrated that the stiffer stent B has a higher RF, whereas, stent A maintained its RF at a low profile due to its lesser stiffness. The results have also implicated that a high RF is necessary to minimize the stent migration under prolonged peristaltic contractions in the RoSE. For the manometry experiments, stent A slightly increased the IBPS, but the stiffer stent B significantly decreased the IBPS, especially for the higher concentration boluses. It was found that if a stiffer stent buckles, it can reduce the swallow efficacy, and cause recurrent dysphagia. Therefore, RoSE is an innovative soft robotic platform capable of testing various endoprosthetic stents, thereby offering a solution to many existing clinical challenges in the area of stent testing.

Keywords: stent migration; radial force; soft robotics; robotic esophagus; biomimetics

Ntroduction

Swallowing is a complex but orderly physiological process transporting saliva or food from the mouth to the stomach. The swallowing physiology and anatomy are elucidated with the critical insights from the in vivo studies.1 Any esophageal impairment compromises the efficiency of 4 Medical Technologies Centre of Research Excellence, Auckland 1010, New Zealand.

This is the author accepted manuscript (AAM). The Version of Record is available at: Citation: Bhattacharya D, Ali SJV, Cheng LK, Xu W. RoSE: A Robotic Soft Esophagus for Endoprosthetic Stent Testing. Soft Robotics. 2021;8(4).

swallowing, is known as dysphagia.2 Severe pathologies, for instance, benign esophageal strictures from various injuries, esophageal cancer, and esophageal perforations, distressing lumen patency explicitly leading to dysphagia. Unaccompanied by comprehensive care, a vicious cycle materializes as malnutrition and dehydration aggravating the dysphagia itself, subsequently increasing morbidity and even mortality.3 The standard clinical practices involve evaluation of the etiology of the swallowing deficit using perception studies, and in vivo analysis, followed by intervention strategies for nutritional support.4 Depending upon the severity, the method of maintaining nutrition, varies from oral dietary supplements, texture modified foods, implanting nasogastric feeding tubes, surgical correction, endoscopic dilation

Of The Sphincters, And Esophageal Stenting.2, 5

The textured food modification is observed to maintain nutrition in the dysphagia and to improve swallowing safety and efficacy.2, 5 In altered food swallowing, videofluoroscopy and manometry are considered as gold standards to study the temporal-spatial aspects of bolus geometry and intrabolus pressure, respectively. In an esophageal peristaltic transport of food bolus, the manometry recordings can be distributed into two intraluminal pressure segments. In the first segment, within the bolus fluid, the recorded pressure is solely due to the bolus hydrodynamic pressure, which is also known as the intrabolus pressure signature (IBPS). At the tip of the bolus tail, the pressure undergoes a transition from IBPS to esophageal direct contact pressure with the manometry catheter, which can be regarded as the second segment. The maximum IBPS occurs at the bolus tail tip, and after which, no bolus fluid exists, leading to direct contact pressure. Since pressure cannot be transmitted axially in the absence of bolus fluid; thus, these two segments are independent of each other.6 Videofluoroscopy, and manometry techniques are used hand in hand to determine the maximum IBPS. The shortcomings of these techniques are X-ray radiation exposure and catheterization (inserting a manometry catheter) that accumulate to the efforts of swallowing and the general health of

Subjected Individuals.7

Malignant and benign esophageal strictures from esophageal cancer, can be addressed with the endoprosthetic stent placement, commonly known as esophageal stenting.8 The earlier use of uncovered stents for palliation was limited and contributed to in situ erosion, occlusion, and fistulation. However, with the advent of fully coated removable self-expandable plastic stents (SEPSs), self-expandable metallic stents (SEMSs), and biodegradable stents, remarked new applications with changeable success.9 These stents designate a novel, alternative, immediate, and cost-effective therapy for managing adequate oral nutrition during dysphagia. A silicone covered SEMS is a tubular braided mesh of interwoven helical springs made of corrosion- resistant materials, like nitinol, stainless steel, and polymers.10 These stents are proven to be efficient endoprosthetic management for both malignant and benign esophageal strictures, as they could hold open the esophagus and hence, relieve the impediments of compromised lumen patency in such cases (Fig. 1). Furthermore, the insertion procedure of a SEMS is less traumatic because of its flexibility, and it can be readily compressed into a smaller delivery system.10-12.

However, this method of palliative treatment does have its inadequacies, and one of the significant shortcomings is stent migration, caused due to the interactions of an implanted stent with the continuous peristaltic contractile forces of the esophageal wall.13 The stent deployment has reported about 30-50% long term success rates, with migration being the main associated complication in most of the failure cases.14, 15 The efforts to mitigate pain and migration, to improve stent removability and flexibility, and to ensure stent patency have revolutionized the SEMS designs. The evolution of the stent design has made stenting a more effective treatment in both benign and malignant esophageal diseases. However, in the event of esophageal stent implantation, manometry and videofluoroscopy on the patients are less preferred for a compelling study on bolus geometry, IBPS, and stent inadequacies (such as stent migration), because the techniques are not very comforting for the patients, and there are major ethical concerns associated with such kind of studies. Despite recent technological innovations in this field, evidence to show which stent design is better than the other is confined to a few randomized controlled trials in patients with malignant esophageal strictures.16 The SEMSs have been found considerably similar to the esophageal prostheses.17According to the current US FDA review guidance for esophageal and tracheal prostheses devices bench testing of esophageal prostheses is needed to establish substantial equivalence.18 The review guidance has recommended six different stent testing protocols. They are as follows: 1) Compression force testing: It measures the force required by the stents for compression. 2) Expansion force testing: It measures the force exerted by the stents during expansion. 3) Corrosion testing: It tests the compatibility of the stent materials with the corrosive environment in the esophagus. 4) Tensile strength tests: If a stent includes a bonded or welded part, then this test needs to be performed. 5) Deployment testing: It validates the accuracy and repeatability of the stent delivery system. 6) Dimensional testing: It verifies the dimensional reproducibility of the stents after deployment. The first four tests are related to stent performance after its deployment, and the last two tests are relevant in terms of the insertion procedure. The compression and expansion force testing of the stent includes stent radial force (RF) measurement, which is crucial in designing a stent for maintaining the in situ lumen patency, which is, unfortunately, still an unknown parameter due to the poorly understood association of the RF and clinical outcomes (Fig. 1A).11, 12 Since the adequate data on migration issues, critical complications, and morbidity in stent deployment, as well as extraction, are lacking, the stenting acting on the esophageal wall is the opening RF applied by the stent per unit contact area of the stent (𝜋𝑑𝑒𝑙𝑒). The internal pressure accounts for the stress in the esophageal wall, known as the circumferential (hoop) stress (𝜎𝜃,Fig. 1B).19 RF assures proper fixation of the stent in the esophagus, and an essential factor in limiting stent migration.

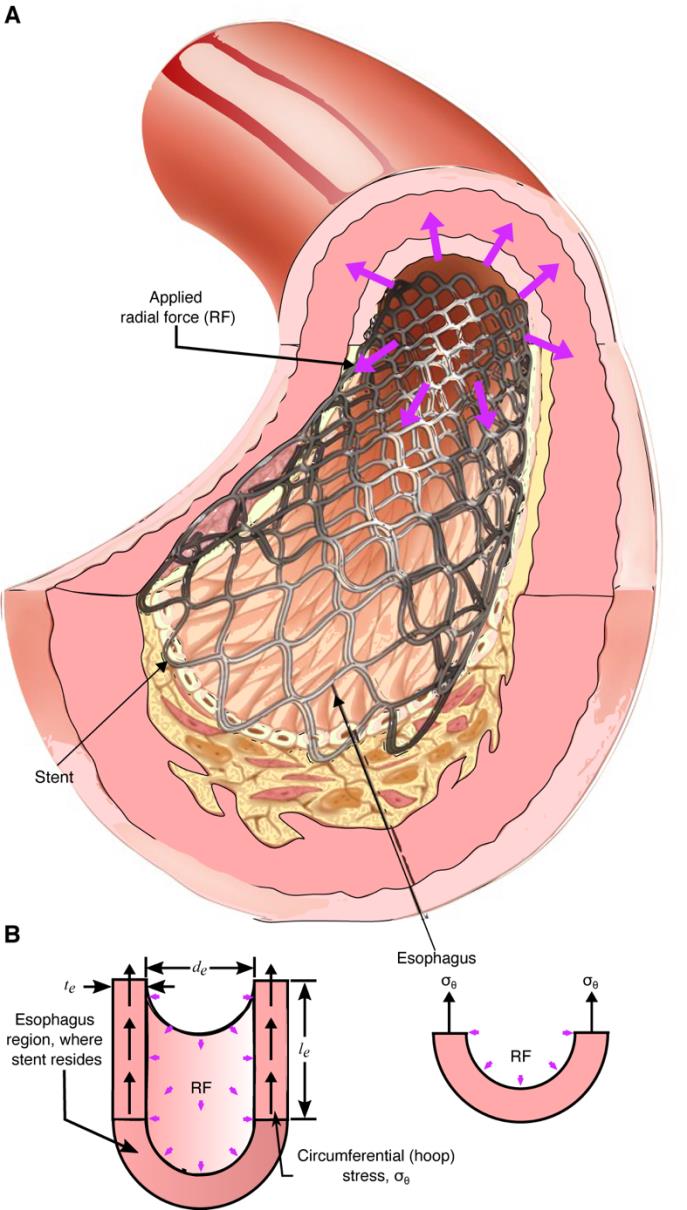

Fig. 1. Cross-sectional view and free body diagram of an esophagus with an implanted stent. (A) Schematic of isometric view showing the cross-section of an esophagus with an implanted stent. The purple blue arrows represent the radial force (RF) applied by the stent. (B) Free body diagram of the esophagus region, where the stent resides. The hoop stress, 𝜎𝜃 is given by 𝑝𝑑𝑒/2𝑡𝑒, where 𝑝 is the applied pressure, and equal to RF/𝜋𝑑𝑒𝑙𝑒.19 While a considerable amount of literature is available on novel stent designs, little attention has been paid on comparing the differences in RF and its clinical impacts among the available stents in the market. An investigation in such a direction could potentially play a pivotal role in dealing with the migration and symptoms of pain. The mathematical modeling of the stent interaction with the vessel wall, provided in various studies, could be useful for predicting the mechanical properties of the stent. Still, the studies fail to embrace the esophageal peristalsis complexity and precisely replicate the association between the esophageal wall and the stent.

The analytical model of the stent based on the theory of virtual work by Jedwab and Clerc 20 is useful for predicting the mechanical properties of a stent (such as the RF), but it model fails to provide any implication of stent migration with its mechanical properties. Hirdes et al.11 evaluated RF of several commercially available stents, but the author could not offer clear evidence to show that high stent RF can prevent stent migration. Likewise, numerous numerical studies have focussed solely on explaining the mechanical deformation of the stent inside the host tissue.21, 22 Very few numerical models have examined the interaction between the stent and the esophagus under peristalsis.15, 23 Garbey et al.15 analyzed stent migration in a numerical esophageal model with stent flare design, stent length, diameter, and radial stiffness but not directly with stent RF. Mozafari et al.23 identified flared stent ends, and a higher frictional coefficient of the stent can have a considerable impact on mitigating stent migration. The study was done with an FEA built esophagus, under axial pulling (peristalsis was not considered). In Soft robotics in vitro models has proved to be a complementary and supplemental approach to mathematical models, and clinical studies to investigate the human physiology and to validate medical procedures.24 The excellent adaptability of soft robots to their environment has been explored in the recent decades, leading to the development of next-generation soft materials and soft actuators, soft stretchable electronics, and control, and processing.25-28 Soft robotics also widens the opportunities for developing devices in the field of biomedical applications, such as therapeutic devices,29 rehabilitation devices, and prostheses,30 devices for training and biomechanical studies.31 With Kobayashi et al.32 pioneering the robotic swallowing simulator works, the studies in silico and in vitro model of esophageal phase have provided reasonable mechanistic insights for many interesting archetypes observed in the in vivo investigations of the human swallow physiology.33 Hence a bio-mimicking robotic soft esophagus (RoSE) is developed as an esophagus simulator with extended biomedical applications.34 In the medical domain, testing bolus formulation and transport are hindered by the inter-person swallow and the inter-swallow variability in human test subjects.35 Variations in muscle actuation strength and peristalsis wave speed greatly influence the manometry captured IBPS in the subjects; thus, testing and measuring the swallow efficacy in a man is qualitative. In the mathematical field, the modeled boluses do not reflect the complicated behavior of bolus materials such as multi-phase flow and non-Newtonian property.36 Besides, it is challenging to model the shear fields generated by peristaltic actuation and their associated time-shear dependent behavior. The soft-bodied robot, RoSE (Fig. 2) can physically mimic the human swallowing action, by generating peristaltic waves (Fig. 2), to transport the food bolus along the conduit. Unlike other in vivo methods, RoSE offers a more steady swallowing behavior and does not hold the risk associated with testing actual human subjects.34 RoSE bridges the gap between clinical and mathematical modeling fields, and it is proposed to deform materials to achieve clinically significant rheometry more faithfully. Besides, RoSE could vary the bolus parameters and the peristaltic parameters (such as wave speed and wavefront length) independently, which is crucial to comprehend the effect of these variations as a fit to a broader bolus formulations were tested on the RoSE with manometry and videofluoroscopy. The manometric pressure profiles achieved are comparable to human swallowing behavior.37 Since RoSE can physically mimic the human swallowing behavior; thus, instead of actual patients, RoSE can be used to conduct the study on the various stent designs and their inadequacies before implanting them in patients with malignant and benign esophageal strictures. Besides, to evaluate swallow efficacy, RoSE can also be used to study the effect of stenting on IBPS of different texture modified foods for dysphagia patients.

This study aims to investigate the following capabilities of RoSE, 1) to perform experiments on two stents having different radial stiffness characteristics for evaluating their respective RFs, 2) to study the effect of the RFs on the migration of the stents, 3) to learn the impact of the reduction of RoSE conduit diameter caused by stent deployment on IBPS, and 4) to analyze the effect of stent dysfunctionality on bolus transport, and hence, swallow efficacy.

The RoSE stent testing protocols provides a novel in vitro platform to perform a wide-ranging assessment of the stent behavior. Besides, the protocols are capable of generating spatio- temporal peristaltic waves of different characteristics in the RoSE conduit. In this study, commercially designed stents are subsequently deployed in the RoSE and analyzed to validate the above-vested capabilities of the Mechatronics device. Along with the circumferential loading of the stent, studies on the effect of stent implantation on bolus transport, under peristaltic contractile forces are done by controlling the RoSE conduit deformation.

The analysis of the bolus pressure signatures with stenting in a soft-robotic in-vitro platform, like the RoSE, has extended our knowledge of swallow efficacy after stent implantation during dysphagia. Besides, this study has also done endoscopic manometry in the presence of stents, and it has also considered esophageal peristalsis for stent-related measurements. To the best of our knowledge, studies correlating the effect of stent implantation and dysfunctionality on swallow efficacy with parameters (such as IBPS and IBPS gradient) that can be measured, still does not exist. Little is known about the IBPS and IBPS gradient due to the implantation of stents and their dysfunctionality. Much of the research up to now are clinical studies.

Investigating stent RF has been a continuing concern within the clinicians and the scientific community. It has been challenging to fully predict the clinical outcome of a stent based on its RF and bolus pressure signature data.11 However, the presented results show that RoSE can provide a platform to assess various stent behaviors, that can help the researchers and the endoscopists to elucidate the patency of the stents in the occurrence of unfavorable events, during and after the stent implantation. Also, the results comparing the efficiency of the stents could aid the endoscopists in the selection of a suitable stent for an individual patient, which is otherwise guided solely by their experience and availability of the stents. The results will also aid in the optimization of future stent designs to improve the behavior of the stent during deployment and to mitigate migration.

Rose Actuator, Design And Materials

RoSE actuator has 12 layers (L1, L2, ..., L12) of regular and repeating pneumatic hollow chambers arranged horizontally along the axis of the device, with a whorl width of 10 mm each (Fig. 2). Each layer has four chambers arranged axis symmetrically, and have whorl boundaries of 5 mm thickness with theoretically identical properties (Fig. When pressurized with air, the four chambers expand and closes the cross-sectional area of the food passage and push off the housing structure to cause the radially occlusive peristaltic motion, mimicking circular muscle activation. Though the actuation in RoSE is distributed, by reducing the actuator chamber width, whorl boundary and conduit thickness, continuous peristaltic actuation is achieved (Fig.

2). The actuator design specifications are based on the FEA analysis conducted by Chen et al.38 Table 1 provides the quantitative and qualitative characteristics of RoSE, which are required for performing stent RF and migration, and stent implanted RoSE swallow efficacy testing.

Fig. 2. Side and top sectional view of robotic soft esophagus (RoSE). The left and right drawings reflect the longitudinal and axis-symmetric arrangement of the chambers, respectively. Table 1: Quantitative and qualitative characteristics of RoSE

Kpa

Pneumatic pressure required to achieve medical wave

Overlapping-Sequential

RoSE is fabricated using custom-designed mold and housings, which are rapid prototyped via fused deposition of acrylonitrile butadiene styrene (ABS) plastic (Fig. 3A). An RTV silicone rubber material (Ecoflex 0030, Smooth-on, USA) is chosen to build the actuator (Fig. 3B). The silicone rubber was chosen for its low 100 % modulus and pour viscosity, high tear resistance, and surplus elongation at break (900 %), which is needed during actuator deformation. In addition, RoSE design is based on the idea of actuating many layers in a subsequent overlapping manner, which mimics the esophagus in recruiting muscles in a rostro-caudal way, to achieve peristaltic transport smoothly. The multi-casting fabrication procedure of the RoSE is shown in Fig. 3A to F.

Fig. 3. Multi-casting fabrication procedure of RoSE. (A) The actuator mold and housing are rapidly prototyped by the printing method from ABS plastic (Elite Printer, Dimension, USA), and the initial assembly is built. (B) In vertical orientation, the conduit and the chambers are constructed by casting silicone rubber (Ecoflex 00-30, Smooth-On, USA). (C) After the silicone cured, the chamber place holders and the plastic rod is removed. (D) In horizontal orientation, four outer castings of silicone are made to seal the chambers from the sides. (E) Four outer casings are added to confine the chamber deformation within the conduit. (F) Pneumatic tubes and tees are connected to provide air pressure to the whorl of chambers (G) Final assembly of RoSE.

Rose Firmware Protocol

Custom firmware modules, written in Python 3.7, are developed on Raspberry Pi 3B+ to assert the robot, with independent, continuously variable, pressure input (Fig. 4). The RoSE firmware module is divided into two significant sub-modules: A) Symmetric actuation protocol, for simultaneous inflation and deflation of the RoSE conduit, to continuously record the radial force during contraction and expansion of stents. B) Peristaltic actuation protocol, for generating spatio-temporal waves in the RoSE conduit, to learn the stent migration and effect of stenting on the IBPS (Fig. The user can select an appropriate testing protocol module by following the prompts on the IDLE (Python’s integrated development and learning environment) shell window. Each testing protocol (sub-module) selects a CSV file where 8-bit digital values corresponding to a pressure range are stored for L1, L2, ..., L12 layers of RoSE.

Fig. 4. Flow chart illustrating system description of RoSE. RoSE firmware protocol is capable of generating two different actuation trajectories (symmetric and peristaltic actuation) based on the input commands of the user. The firmware protocol for symmetric and peristaltic actuation, developed on Raspberry Pi 3B+, is enclosed within the red and green dashed lines, respectively. The blocks outside the dashed lines represent the RoSE hardware, which consists of interfacing ADC and DAC board, assembly of pneumatic valves, and sensors such as TOF and valve in-built pressure sensor.

Pneumatic pressure to RoSE is regulated in open-loop by an electro-pneumatic interface which consists of a series of 12 pressure regulating proportional valves (ITV-0030-3BS, SMC, Noblesville, IN, USA), and an interfacing ADC (MAX11605, Maxim Integrated, San Jose, CA, U.S.) and DAC (AD8802, Analog Devices, Norwood, MA, USA) board, interfaced with the Pi (Fig. 5). The Pi communicates over SPI and I2C with the DAC and ADC, respectively, to perform assertion and feedback measurement. The DAC converts 8-bit digital values, stored in the CSV files, to voltage levels, which controls the valves. The ADCs are then used to receive various sensor outputs such as in-built valve pressure sensor and force sensing potentiometer (FSP01CE, Ohmite, active area – 10 x 13 mm2). The valve pressure sensors are used to record the chamber pressure-time trajectory (Plot A and B, Fig. 4).

Fig. 5. Schematic and image of the electro-pneumatic interface controlling RoSE. An assembly of 12 proportional pneumatic valves, sourced by compressed air supply, are implemented to control the pressurization of 12 layers of RoSE. The valves assembly is controlled by an custom-built interfacing ADC and DAC board, connected to a Raspberry Pi 3B+. Firmware protocols are developed on the Pi with Python (v3.7) to actuate RoSE with independent, continuously variable pressures.

In symmetric actuation, layers L1 to L12 of the RoSE were actuated, with the same pressure input, from 11 KPa to 71.5 KPa in 1 KPa increments. In a CSV file, 8-bit digital values corresponding to the pressure range is stored (File A, Fig. 4). Each value was held for 5 s to check the repeatability of the sensors (data was collected at 1-second interval) and to allow the chambers to reach their settling deformation.

For manometry, and migration experiments, three adjacent RoSE layers are sinusoidally actuated with multi-level pressures to achieve the spatial-temporal aspects of peristalsis waves. In the peristaltic actuation protocol, the displacement of the conduit can take the shape of a sinusoid with complete occlusion at the point where the minima of the sinusoid occur. By displacing the sinusoid from L1 to L12 in small increments, continuous peristalsis wave in RoSE was achieved. The sinusoid can be represented by (1).

(1)

where 𝐻(𝑥,𝑡) is the time-dependent conduit radius (mm),  is the minimum conduit radius (mm),  is peak-to-peak peristalsis wave amplitude (mm), c is peristalsis wave velocity (mmps), /2 is sinusoidal wavefront length (mm), x is conduit axial displacement (mm), and t is time (s) .

From the IDLE shell window, the user can define the peristalsis wave speed (c) and wavefront length (/2). Each combination of the wave speed and wavefront length selects a specific CSV file (File B, Fig. 4) that stores a set of 8-bit digital values to impose a time-variant pressure trajectory between adjacent RoSE layers (Plot B, Fig. 4), so that RoSE conduit can displace in a peristaltic manner. For complete occlusion, an operating pressure range of 11 KPa to 71.5 KPa was used. The actuation and the continuity of peristalsis pattern are verified using medically inspired techniques such as videofluoroscopy,37 articulography,34 and image

Stent Configuration

Fifteen commercial, covered SEMSs having distinct structures, cover materials, and cover material patterns, and similar dimensions were initially tested for stent migration in RoSE. Based on the maximum and minimum recorded migration, candidate stents: stent A and B were selected for further measurement and analysis of different stent-related parameters (such as stent RF, radial stiffness and migration), and bolus pressure signatures in RoSE with and without the stents.

The commercial stent A and B with different radial stiffnesses, under test, are cylindrical with flares at both ends, covered in silicone, and braided from a single thread of highly elastic nitinol wire of 0.10 mm diameter (Fig. 6). When fully expanded, the main body of the stents measured 110 mm in length and 23 mm in diameter. The flare ends are 10 mm in length and 5 mm wider in diameter than the body.

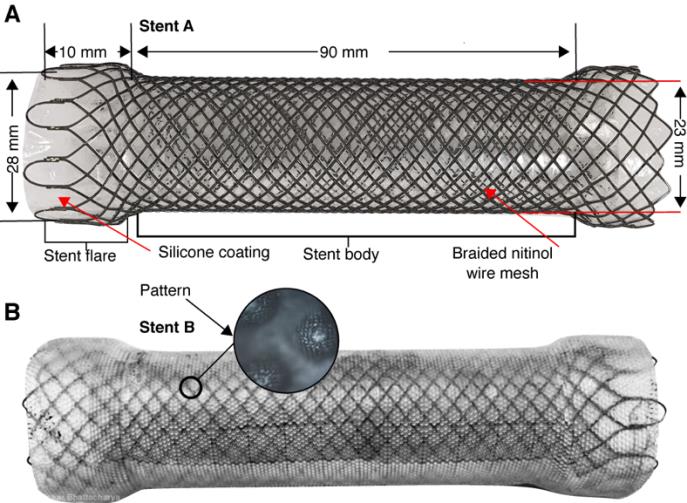

Fig. 6. Silicone covered self-expandable metallic stents (SEMSs). (A, and B) Stent A and B have a mean radial stiffness of 1.55  0.24, 3.13  0.53 Nmm-1 respectively. Although both the stent has the same nitinol braided wire mesh configuration, the silicone coating thickness and pattern are different. Stent A has no pattern on its silicone cover, while stent B has much thicker silicone cover with a pattern on it.

Food Bolus

Synthetic boluses of starch-thickened water (Altrix Rapid Thickener, Douglas Nutrition Ltd, New Zealand), have been used as a clinically significant substitute to masticated boluses throughout experimentation. Boluses were formulated on a concentration basis (72, 108, 144 gL−1) by thorough mixing, after which they were left to stand for an hour to stabilize. The settling time allowed the starch granules to take up water and achieve a stable structure which directly affects the rheological properties of the boluses. These boluses formulations covered the range from syrup thin to pudding thick based on the product specification as per International Dysphagia Diet Standardization Initiative (IDDSI) specification.5 All the formulations of the starch-thickened water have exhibited shear thinning behavior. Due to this non-Newtonian effect, the viscosity will be depended on the flow characteristics such as peristalsis wave velocity. In this study, the three used bolus concentrations mixes are labeled as bolus I, bolus II, and bolus III, respectively (Table 2).

Table 2. Characteristics of the starch-thickened food boluses.

(Gl-1)

The protocol of stent RF and migration measurement To ensure prolonged functionality of the esophageal stent in the face of the repetitive peristaltic contractile forces associated with the peristalsis, a high RF and fatigue strength, corrosion resistance, and deformability are required. After the deployment of the stent in RoSE conduit (Fig. 7 A, to C), the stent apply an opening radial pressure to the conduit wall, resulting in a hoop (circumferential) stress in the wall, increasing its diameter.19 A similar phenomenon occurs in a stent implanted esophagus (Fig. 1). The pressure is associated with the stent RF on the RoSE conduit wall as it tries to expand back to its initial diameter. The pressure can be defined as the stent opening RF acting on the conduit wall per unit cross-sectional area of the RoSE conduit (Fig. 7C) whereas, the hoop force (HF) is the hoop stress multiplied by the cross- sectional area of the RoSE conduit wall, where the stent resides (footprint of the stent).

Similarly, radial pressure on the stent imposed by the RoSE contraction, generates RF and HF on the stent wall (Fig. 7 D to F). Fig. 7. Experimental setup to measure the radial force (RF) exerted by a stent on RoSE conduit. (A) Schematic of the experimental setup used for measuring the stent RF. Firstly, the testing protocol comprised of implanting a force-sensing potentiometer (FSP), followed by the subsequent deployment of the stents. Secondly, all the RoSE layers (L1, L2, ..., L12) were inflated and deflated cyclically with the same air pressure to generate cylindrical contractions, and expansions respectively. (B) Endoscopic image showing the cross-sectional view of the RoSE conduit during contraction, captured from the distal end of the RoSE. (C) Schematic showing the position of the stent and the FSP inside the RoSE conduit. The purple arrows represents the opening force applied by the stent. (D, and E) Schematic showing the side and top view of the stent-FSP implanted RoSE under contraction (blue arrows are representing the loading on the stent). (F) Free body diagram of the stent to represent RF and HF.

The RF can be classified into: 1) Radial resistance force (RRF): RRF can be defined as the stent resistance to the loading when the RoSE conduit (esophagus) is contracting (RRF is the RF shown in Fig. 7 D to F). 2) Chronic outward force (COF): When the RoSE conduit (esophagus) is expanding, the force exerted by the stent to regain its original diameter during its unloading (Fig. 7C) is known as COF. RRF and COF are forces associated with the loading and unloading of the stents, respectively.

By using a force-sensing potentiometer (FSP01CE, Ohmite, active area – 10 x 13 mm2) sensor, the RF exerted by the stent on the RoSE conduit wall was measured (Fig. 7). After lubricating the conduit of the RoSE with artificial saliva (Aquae Dry Mouth Spray, Hamilton), the stent under the test was deployed from the distal side of the RoSE by using an intruder sheath and a retrieval thread fastened to the proximal end of the stent. While holding the stent with a rat tooth forceps from the distal side of the RoSE, and by withdrawing the intruder sheath gradually from the proximal end of the RoSE, the stent was released slowly in the conduit. Owing to the stent stored strain energy, it self-expanded and exerted an RF on the conduit wall, and hence on the FSP sensor, which readily hooped around the stent (Fig. 7E, Movie S1). To achieve uniform axial displacement during compression, both the stent ends were allowed to move freely.

To ensure a consistent reference configuration, the stent center was positioned to coincide with the distal end of FSP active region having a width of 𝑊𝑓 (Fig. 7C). The 3 mm smaller diameter of the RoSE conduit from the stent body caused transverse loading of the stent which deformed the stent both axially and radially. If 𝑙𝑠 and 𝑑𝑠 are the new deformed length and diameter of the stent respectively, and if 𝐹𝑓 is the force recorded by the FSP, then stent radial pressure (𝑃𝑠) can

(1)

By considering uniform diameter throughout the stent, the lateral surface area of the stent is given by, 𝐴𝑠= 𝜋𝑑𝑠𝑙𝑠. Hence, the stent RF (𝐹𝑠) can be written as:

(2)

Eq. (2) is also applicable for stent loading (contraction) and de-loading (expansion) under symmetric actuation of RoSE (Fig. 7D). The stent radial stiffness (𝑘) can be defined as how much diameter of the stent is reduced by the application of the force exerted by the RoSE conduit. The stiffness signifies the effectiveness of the stent in resisting diameter change during RoSE contraction and expansion. By differentiating (2) with respect to 𝑑𝑠 and taking its

(4)

For measuring the elongation strain of the stent during the pressurization cycle, a time of flight (TOF) sensor was mounted vertically at the distal side of the RoSE. By using a nylon thread through a pulley, a vertically displacing paperboard marker was connected to the distal end of the stent. The TOF sensor was used to record the displacement of the marker (stent elongation) in the vertical direction (Fig. A1 A of Supplementary Materials). Finally, the elongation strain was calculated by the change in the marker displacement (stent length) per unit stent’s initial length.

The RF stent testing protocol included symmetric actuation of the RoSE layers from L1 to L12, with the same pressure simultaneously (Fig. A1 B of Supplementary Materials, Movie S1). Within the RoSE conduit, stent A and B were expanded to a diameter of 19.7 mm and 18.7 mm and then compressed to a diameter of 11.7 mm and 7.2 mm respectively.

For stent migration testing, instead of symmetric actuation, RoSE was actuated with peristaltic actuation which includes spatio-temporal sinusoidal peristalsis waves of different characteristics (Table 3, Fig. A1 C of Supplementary Materials). The migration studies elucidated the contributions of stent RF, bolus concentrations, and peristaltic wave trajectories of RoSE towards the stent migration in terms of both displacement and direction. To ensure repeatability, all the RF and migration experiments were conducted five times.

Table 3. Manipulated parameters to cover a range of swallowing scenarios.

, 30, 40 Mms-1 6

Wavefront lengths 40, 50, 60 mm

Rose Manometry Protocol

In RoSE manometry protocol, RoSE was implanted with a stent, and a manometric motility catheter (P3315205CC152, Sandhill Scientific, USA) positioned akin to the clinical in vivo observations (Fig. 8, A and B).6 The pressure signatures, intrabolus and intraluminal, associated with each swallow was captured using the manometric motility catheter and data acquisition system (S98-200C, Sandhill Scientific, USA). The catheter is a long flexible tube with a 4 mm diameter, which consists of 5 pressure sensors evenly spaced at 50 mm. The swallow investigation was carried out by aligning one of the sensors to the layer L4 of the RoSE (Fig.

8A). Due to the limited visibility inside the conduit, the configuration was achieved according to the dimension of the RoSE and the catheter. RoSE was kept in a supine position to evade the effect of gravity on the transport of the food boluses. Feeding pipes were connected at both ends of the RoSE conduit, and by using a funnel, bolus was fed to the RoSE through the left pipe.

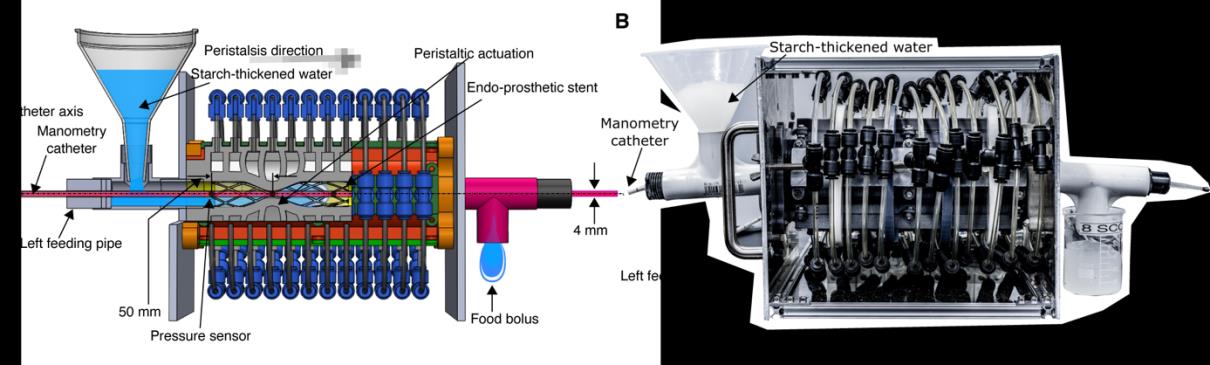

Fig. 8. RoSE manometry test setup to measure bolus swallow pressure signatures. (A, and B) Schematic, and image of the manometry test setup to statistically analyze the mean maximum intrabolus pressure (IBPS), and the IBPS gradient as a function of bolus concentration, peristalsis wave velocity, and stent placement (before and after).

The peristaltic actuation described in RoSE firmware protocol generates peristaltic waves of various wavefront lengths and velocities (Table 3). The wave generates a contractile force that squeezes and pushes the bolus from left to right of the RoSE conduit, with or without the presence of a stent (Fig. 8). The manometry protocol has been implemented to inspect the macro bolus behavior under peristalsis (Movie S2). During the bolus transport, the pressure signature recorded by the catheter pressure sensor in the presence of the bolus, near the bolus tail, is known as IBPS whereas, the intraluminal pressure signature (ILPS) is the overall contact pressure (IBPS and RoSE-catheter contact pressure) recorded along the catheter axis. The peak ILPS describes the normal contact pressure exerted by the RoSE lumen on the manometry catheter. Due to the non-Newtonian nature of the bolus fluid behavior and different peristaltic deformation characteristics owing to various wave velocities and wavefront lengths, the IBPS gradient in the region of bolus tail is an essential indicator of RoSE swallow efficacy.

The RoSE manometry protocol is designed to study the impacts of stent stiffnesses, bolus viscosities, peristaltic wave velocities, and wavefront lengths on the IBPSs (Table 3) and its gradient. The manipulated parameters (Table 3) are designed to cover a range of different
