Abstract

Bio-engineered robots are under rapid development due to their maneuver ability through uneven surfaces. This advancement paves the way for experimenting with versatile electrical system devel- of a versatile Printed Circuit Board (PCB) as the main system that allows for the control of twelve stepper motors by stacking low-budget stepper motor controller and widely used Micro-controller unit. The primary motivation behind the design is to offer a compact and efficient hardware solution for controlling multiple stepper motors of a quadruped robot while meeting the required power budget.

The research focuses on the hardware’s architecture, stackable design, power budget planning and a thorough analysis. Additionally, PDN (Power Distribution Network) analysis simulation is done to ensure that the voltage and current density are within the expected parameters. Also, the hardware design deep dives into Design for manufacturability (DFM). The ability to stack the controllers on the development board provides insights into the board’s components swapping feasibility. The control systems of multi-axis applications for bio-inspired robot offering a convenient form factor and a reliable performance.

Keywords Printed Circuit Board (PCB) · PDN Analysis, Hardware Design · Arduino Programming

Hardware Name

CHIGLU Modular Hardware for Stepper Motorized Quadruped Robot.

Hardware Type

Modular Hardware as PCB-Motherboard for Stepper Motorized Quadruped Robot.

Arxiv:2408.14125V1 [Cs.Ro] 26 Aug 2024

CHIGLU: A Modular Hardware for Stepper Motorized Quadruped Robot — Design, Analysis, Fabrication, and

Ntroduction

In recent years, quadruped robots have garnered significant attention from researchers and developers due to their ability to traverse rough terrains with greater energy efficiency compared to wheel-based robots. Among the various studies conducted on quadruped robots, numerous researchers have focused on the design and development of different control [1, 2, 3] .

HyperDog is a newly developed quadruped robot built on the ROS (Robot Operating System) platform, featuring servo motors as actuators for the legs and an STM32 microcontroller . The research briefly discusses the electrical system, highlighting its simplicity attributed to the low power demands of the servo motors. Consequently, the circuit board design is simple as there is no high voltage power needed for the use case of servo motors and does not necessitate complex calculations.

The most suitable approach to building a quadruped robot involves using brushless DC (BLDC) motors, due to its presented an open-source torque-controlled legged robot system to teach robotics to high school interns. In this project . They have used multiple brushless motor drivers. However, there is not any publicly available information provided on whether they used a full onboard motherboard system to connect all the electrical peripherals or how the electronic design automation was achieved in this scenario . Most of the higher-end quadruped built robotic systems utilize torque and higher power density, which is why these motor types are used to build agile robots like MIT’s Mini Cheetah , Zurich’s ANYmal , and KAIST HOUND . However, there are not enough resources or materials based on quadruped robots with stepper motor built. Even with the widespread use of BLDC motors for their torque and weight-holding capabilities in this use case scenario, research shows that the stepper motors are still a promising option due to their economical cost and the feasibility of using driver ICs, ensuring they remain affordable and accessible [13, 14, 15, 16].

We propose to design and fabricate a motherboard controller for this operation. The controller printed circuit board (PCB) is designed to meet the required power budget (see Fig. 2). We have also analyzed it with a PDN analyzer for validation and to gain insights in the pre-fabrication stage.

The controller board is designed focusing on expansion capability, modularity, and compactness, without compromising on the support for essential components (see Fig. 1). We accomplished the design requirements in a densely packed two-layer stacked PCB, which has given us a competitive edge in terms of design and cost-effectiveness. The designed board is uniquely small (less than the size of a 6-inch pizza, measured diagonally) to fit into both small and larger-scale quadruped robots’ cores. Most of the components on the board are stackable, allowing for open-source development and the ability to quickly hot-swap peripherals. This controller board is suitable for any 12-DoF capable stepper motor-based quadruped robot build.

The control strategy for this system is a distributed design scheme. For controlling each motor, we have chosen the Arduino Mega PRO MCU as the lower control processing unit. The upper control processing unit is a Linux-based computer, which is used for motion planning, posture control, and gait control, and it communicates with the lower computer over serial communication. This work focuses on the lower control unit; hence, signal acquisition and power distribution in this system will be considered. Our motherboard design condenses all required peripherals for control and feedback into an all-in-one solution. The system is designed to take one 12V DC power supply, which can drive 12 DRV/TMC series motor drivers, supply 12V directly to 12 stepper motors, and also power built-in peripherals in what we call a stackable shield board solution. Besides the 12V power signal, we have included two more power signals: 5V to power low-signal peripherals such as feedback encoders, indicator LEDs, and TMC2208 silent motor controllers, and 9V to power the MCU unit. The main challenge of this control board design is how densely we can populate peripheral footprints in both a thermally and electrically efficient manner while keeping the size compact. To ensure proper power and signal transmission through traces, we used a PDN analyzer before designing and fabricating our circuit board. To the best of our knowledge, recent studies and developments of control boards have skipped power density validation, which may cause power deficiencies and improper functioning of the robot.

Our research indicates that developers prefer BLDC motors for building quadruped robots due to their significant torque and speed capabilities , . However, stepper motor-based quadruped robots can offer more precise positioning compared to BLDC-based designs, as stepper motors utilize micro stepping and can lock into position without drawing additional current , a feature not typically found in BLDC systems , . In our research, we have found very limited options in recent studies in which custom-made motherboards are specifically designed for quadruped robots to power and control multiple stepper motors . To mitigate this limitation, our study centers on the design, analysis, and fabrication of a motherboard with the necessary functions and capabilities to control CHIGLU: A Modular Hardware for Stepper Motorized Quadruped Robot — Design, Analysis, Fabrication, and

A Preprint

a full-fledged 12-DoF stepper motor-based quadruped robot. An additional challenge in this design and fabrication process was to meet the power budget requirements. This open-source board can also serve as a valuable resource for researchers and developers, facilitating its use in various applications.

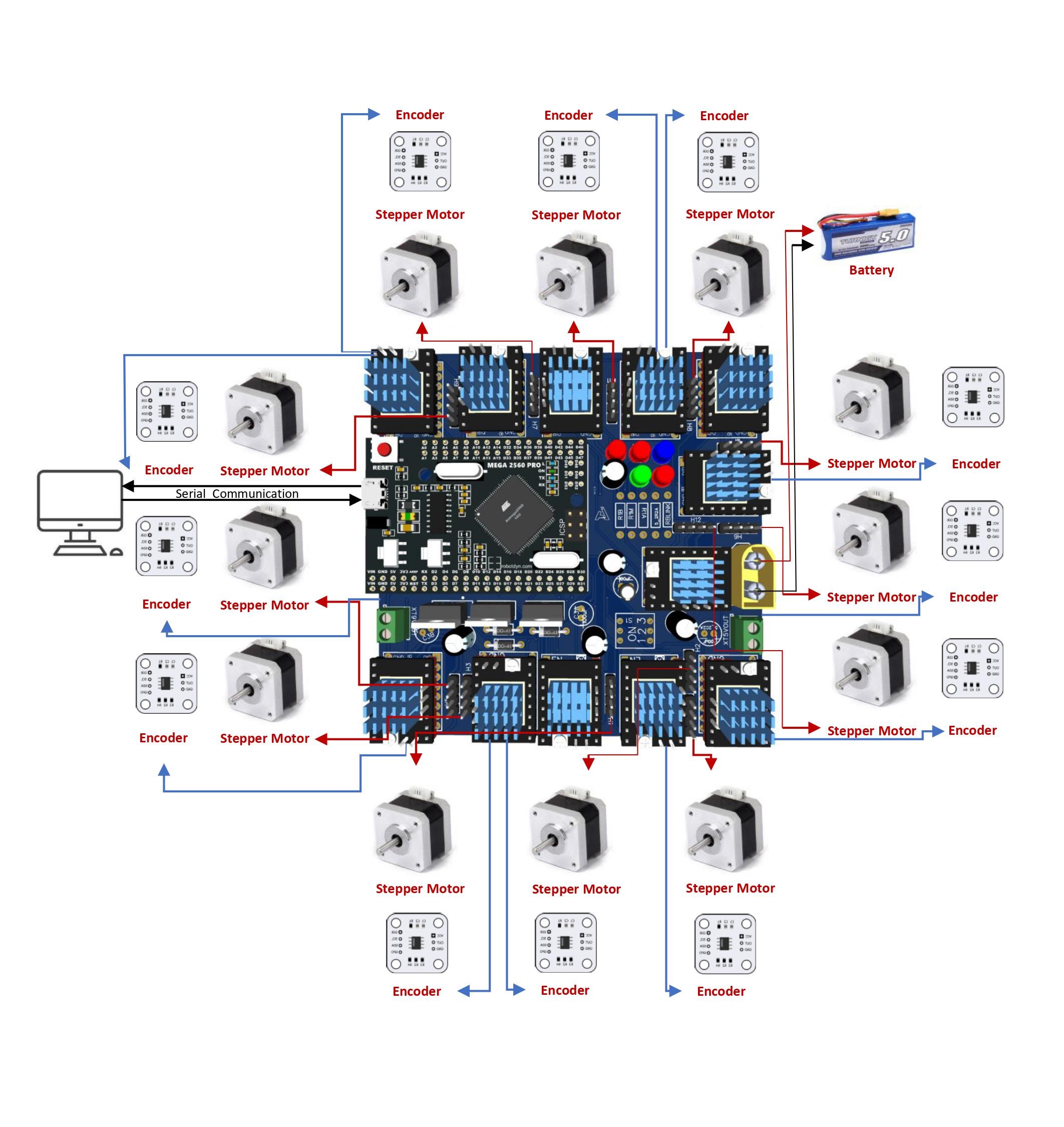

Figure 1: The control scheme of proposed quadruped robot CHIGLU: A Modular Hardware for Stepper Motorized Quadruped Robot — Design, Analysis, Fabrication, and

Hardware Description

We have designed our PCB to meet certain requirements. Salient features of the PCB motherboard include: 1. Integration of Arduino Mega PRO mini-Board, which is more compact than Arduino Mega. An SMD-based Arduino Mega MCU shield optimizes space usage.

2. Compact dimensions, measuring less than the diagonal size of a 6-inch pizza. We concentrated on making the board as compact as possible to ensure this. 3. Incorporation of inboard chopper functionality for efficient power conversion (12V to 5V & 9V) utilizing L7805 & L7809 (see Fig. 2).

4. Required output current and impedance accuracy for driving 12 stepper motors. 5. Utilization of twelve AS5600 Encoder Pinouts for angle feedback. 6. Inclusion of a 3-bit DIP switch and LED indicators for control and status indication.

7. Implementation of inbuilt reverse current protection for added safety measures. 8. Meeting the power budget estimation as stated in Fig. 2. The printed circuit board has been designed using EasyEDA and further analyzed with the PDN Analyzer in Altium Designer. The designed requirement states of controlling a 12-DoF quadruped robot, in which each leg has 3 motors equipped for three degrees of freedom meaning we need at least 24 I/O (Input/Output) pins for the motor signals only.

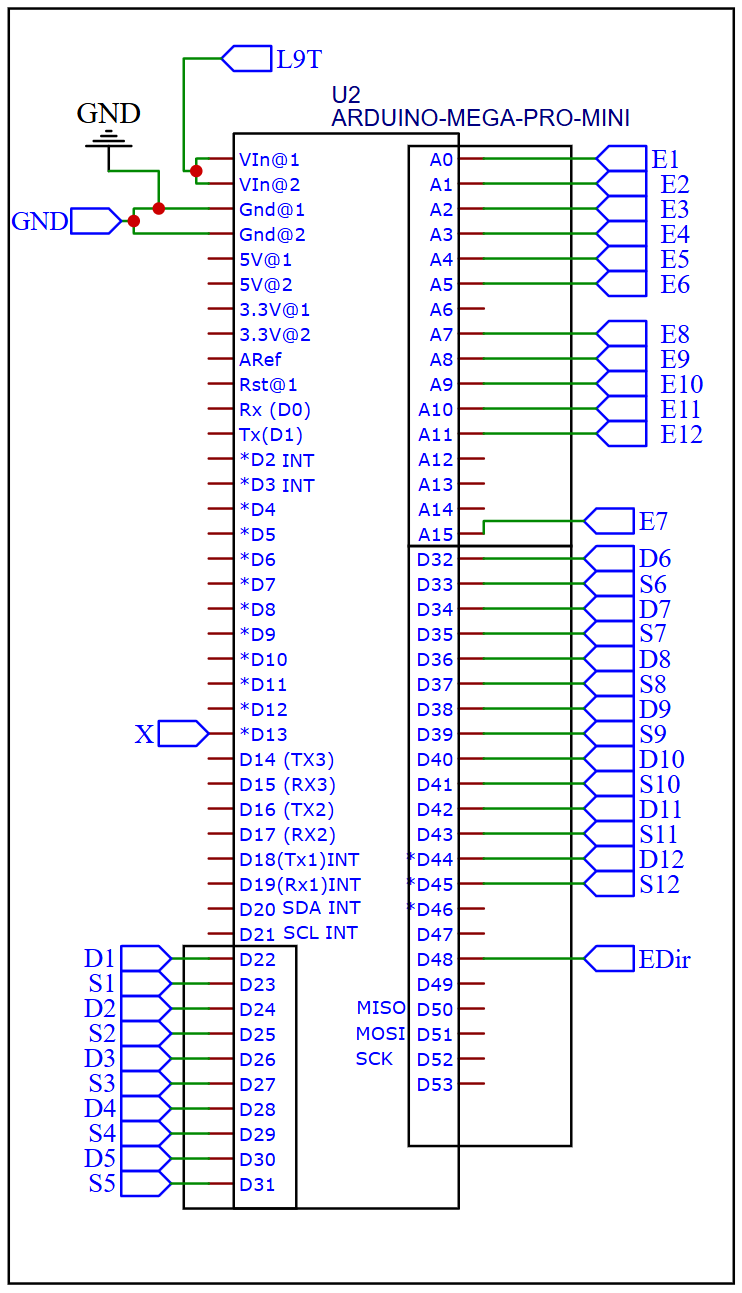

Hence, we need the maximum number of I/O capable MCU (Microcontroller Unit). For this reason, the widely available and cost-efficient ATmega2560-based Arduino Mega MCU is our best choice. The SMD-based Arduino Mega PRO offers the same MCU at a 16MHz clock speed with 54 digital I/O pins, where 15 pins are capable of producing PWM (Pulse Width Modulation) signals. This effectively meets the desired I/O pin requirements within a small form factor.

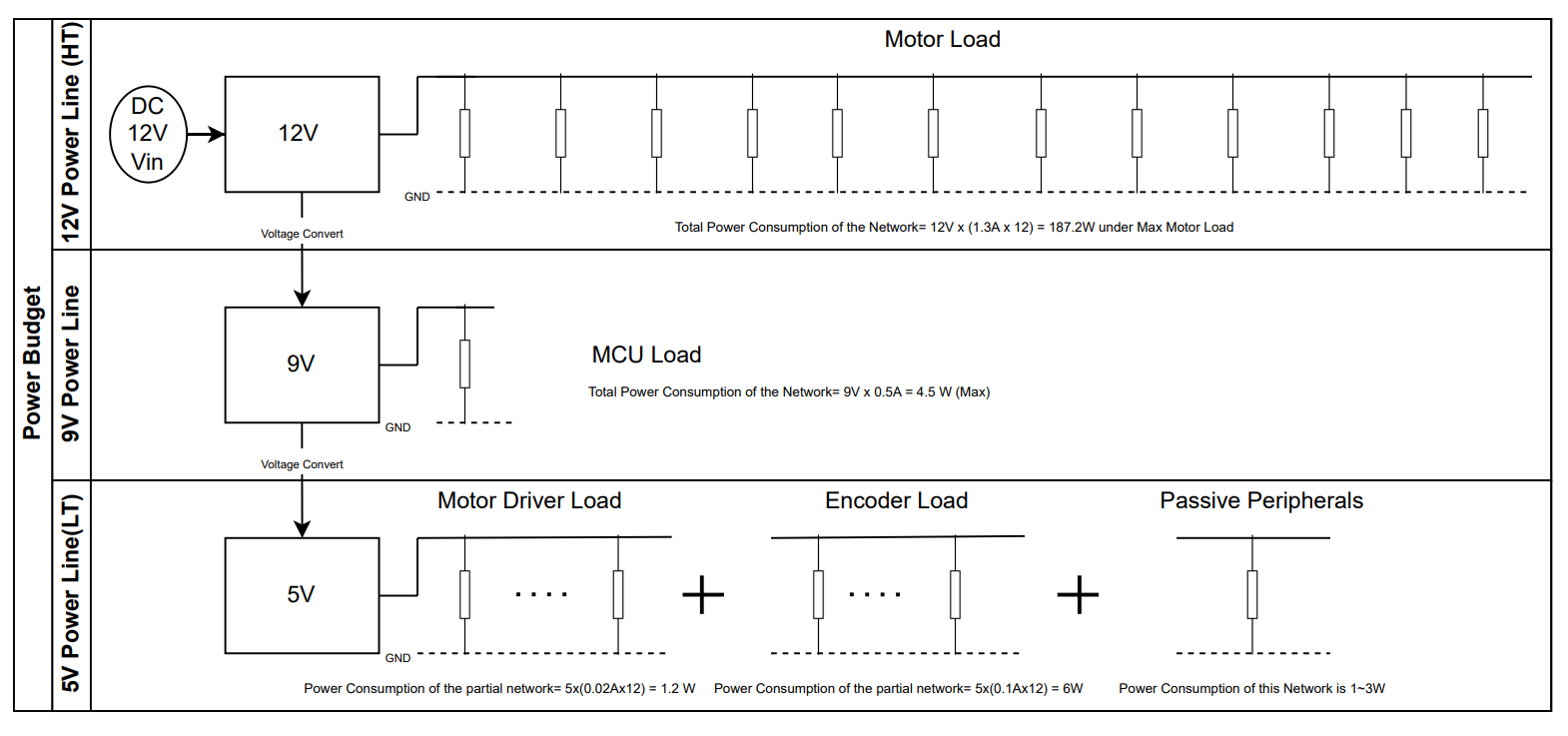

The power signals carried in this PCB are crucial because the traces must be capable of carrying the large amount of current required for each stepper motor to work properly. To meet this challenging requirement, we have used a PDN analyzer to visually verify and observe each trace’s current density and voltage drop across the board. We then completed the routing of the PCB layout. To meet the demand for the hardware, we have chosen FR4(Flame retardant material) which has a good strength-to-weight ratio and also HASL (Hot Air Solder Leveling) surface finish for the manufacturing. FR4 is known for its flame-retardant properties and robust strength-to-weight ratio which ensures that the PCB can withstand the high currents required by stepper motors, maintaining reliability under load. HASL (Hot air solder leveling) surface finish also enhances solder-ability and ensures robust electrical connections, crucial for efficient power transmission and reliable operation of the PCB hardware.

A Preprint

Table 2: Major Power Net Port and Connected Peripherals

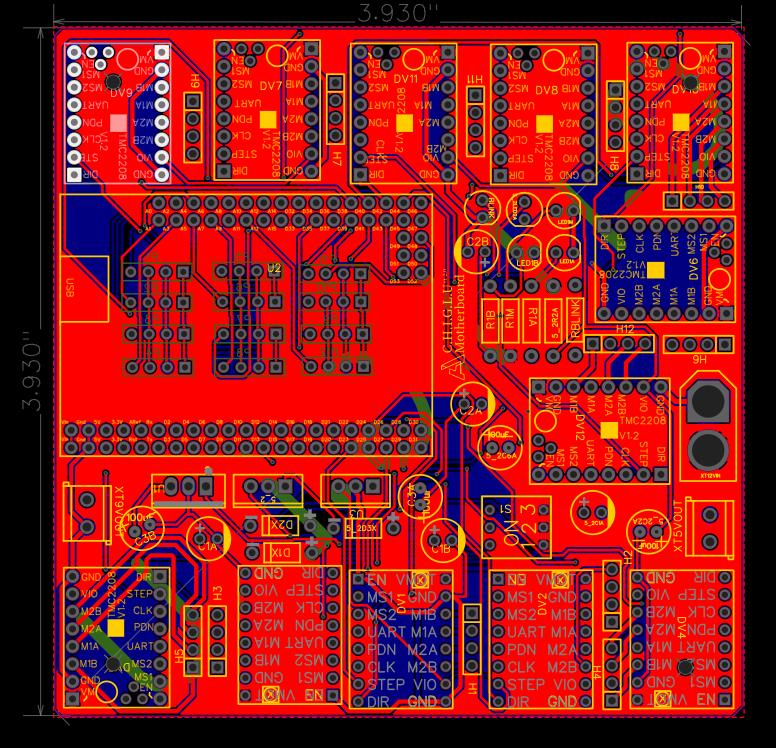

Figure 3: Layout Of The Design

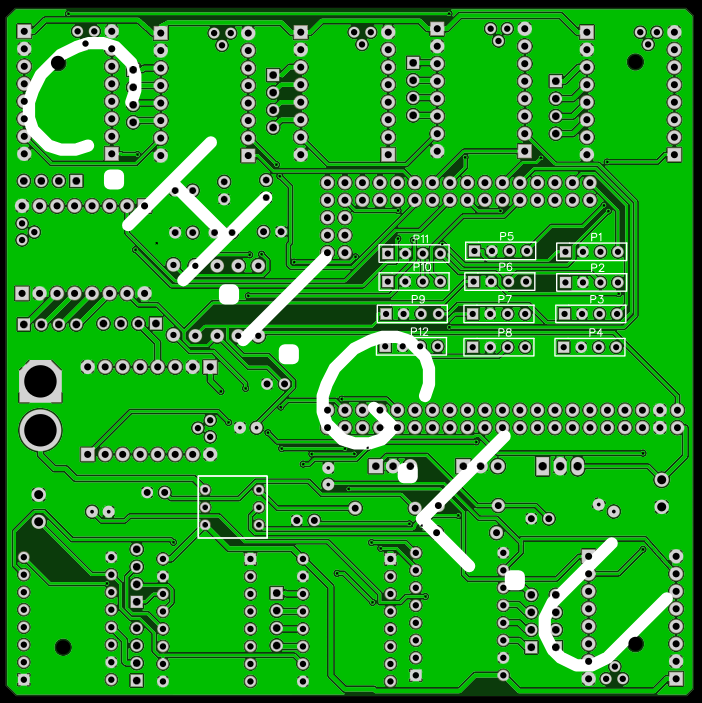

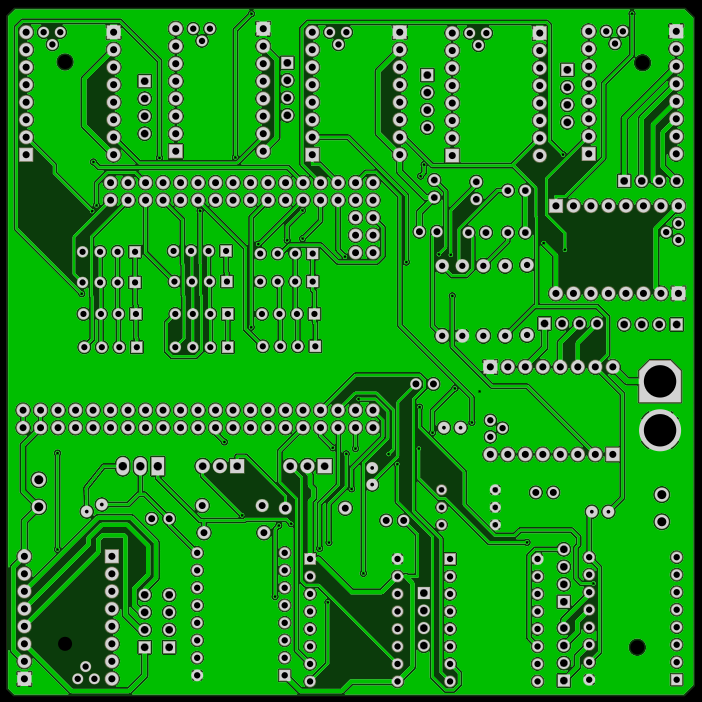

In the layout design, we meticulously routed the tracks, as illustrated in Fig. 3 and Fig. 5. The major NETs are defined in Table 1. Initially, we routed the HT Net, as specified in the schematic. By HT Net, we mean the high-tension voltage trace, which includes the stepper motor’s power line and also links to the power converter IC’s input. Since this trace draws a maximum amount of current, we have to set the width of this trace to more than 15 mil which we have theoretically calculated in the validation and characterization section to transfer the required amount of current rated by the motor. Later, we will validate this with the PDN analyzer. We have densely integrated a large number of Net layers during routing. For any traces that are not part of a power plane and are under 12V, we used a width of 10 mil, which is sufficient for running low-powered peripherals. Consequently, we have connected nets labeled LT, LTX, motor drivers, and encoders (see Table 1) and and L9T to the MCU (Micro-Controller Unit). As depicted in the 3D view (see Fig.

4.), the top layer has all the basic peripherals connected to the top side of the PCB. On the other side of the PCB, we printing costs by implementing the maximum number of components within two layers. CHIGLU: A Modular Hardware for Stepper Motorized Quadruped Robot — Design, Analysis, Fabrication, and

A Preprint

Figure 4: 3D View (Front and Back) of the Designed Printed Circuit Board The circuit board is designed to draw power from a 12V supply, making it compatible with any 12V, 3S LiPo battery that can be connected directly from the battery to the hardware board. To power the Arduino Mega Pro, we chose to convert the 12V power supply to 9V. This is because the Arduino Mega development board’s inbuilt power converter will handle the conversion from 9V. We opted to power the Arduino Mega with 9V to ensure stability; in case of any power fluctuations or voltage drops, the Arduino can continue running since we are supplying more than the minimum required voltage of 5V.

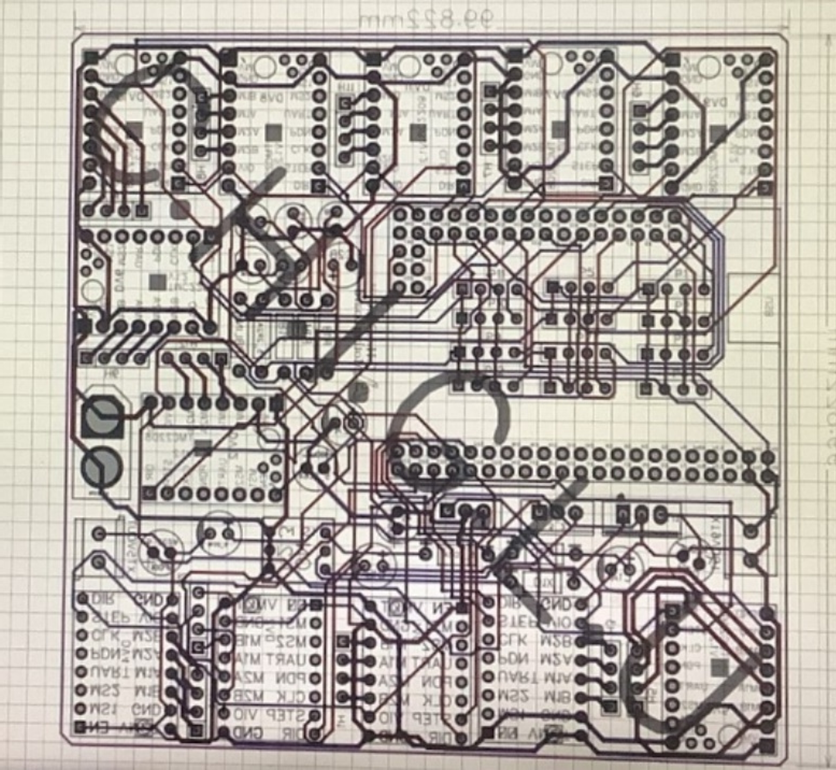

Figure 5: X-Ray View

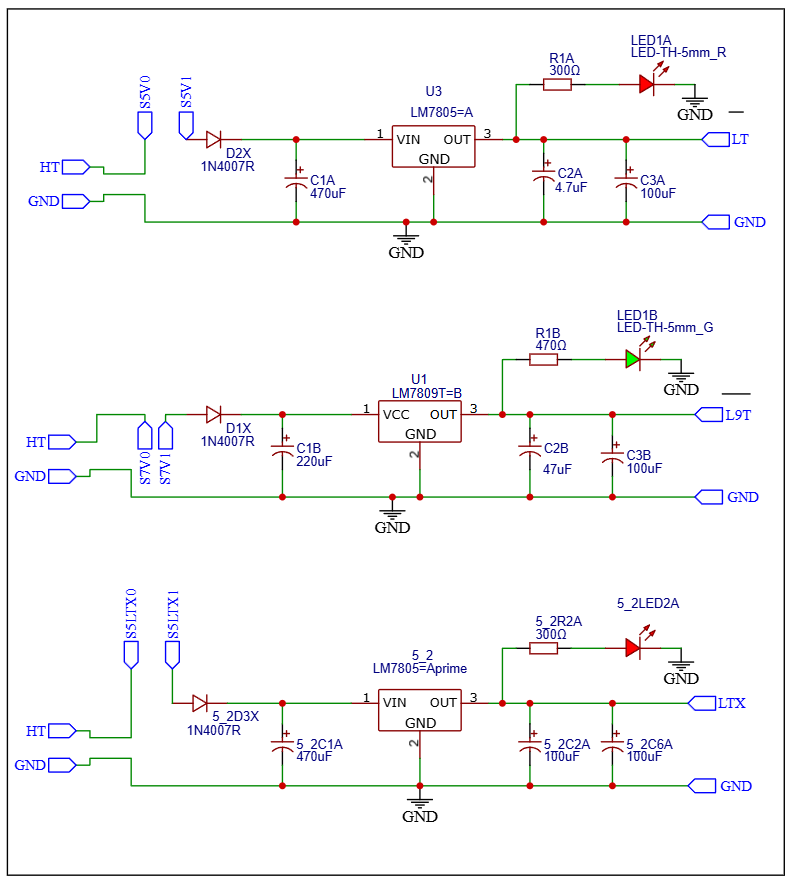

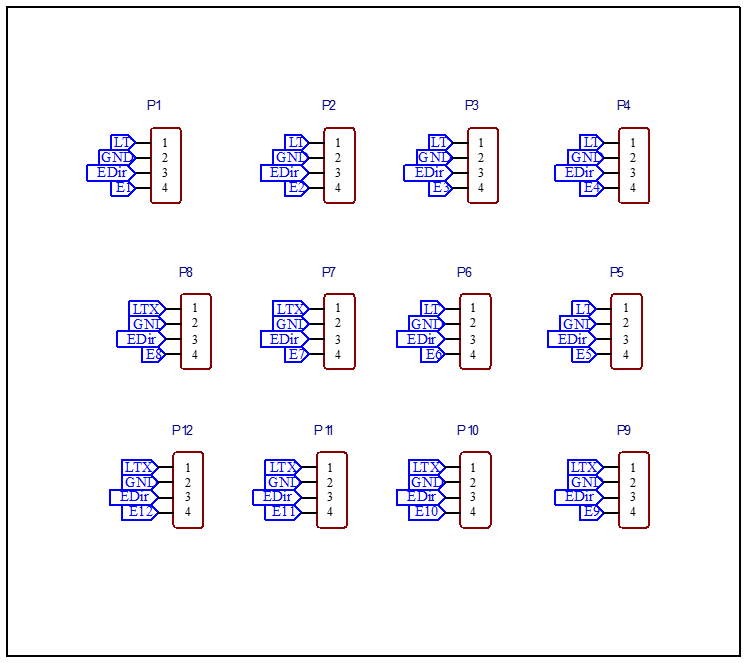

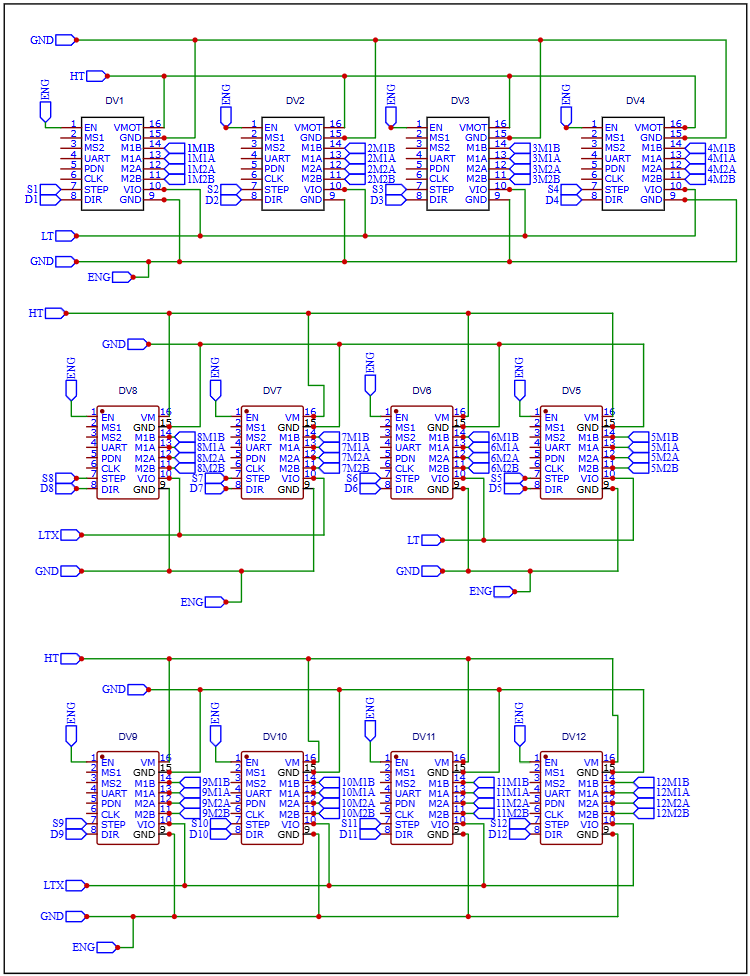

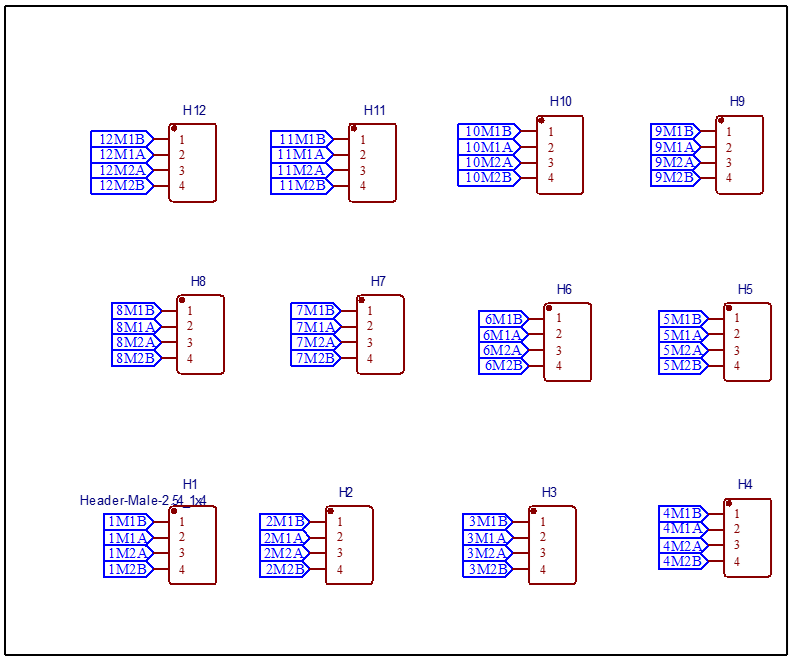

In the schematic shown in Fig.13., we have implemented three buck converters using widely available L7805 and L7809 series power MOSFETs to support low-powered peripherals. In Fig. 7 and Fig. 13, these blocks also include LED status indicators for MCU activity, power converter signals, and main power board signals. In the schematic (see Fig. 10), we have interfaced the Arduino MCU with connected peripherals, including motor driver signals and analog and digital signals. Additionally, a header pin has been added in the schematic for faster and hot-swappable motor driver stacking (see Fig. 10) and connecting encoders to the board (see Fig. 12). 9) we have connected 12 motor controllers powered in a parallel connection similar to a bus bar. We supplied 5V power from the converted 5V source, as indicated by the LT and LTX Net ports (see Table 1) connected to VIO pins, along with a common ground (GND). To ensure proper power delivery, we utilized two buck 5V circuits for efficient power conversion and transmission to the motor drivers to keep it empowering in case of voltage fluctuation. Hence, we have reinforced two power converters (Netport LT and LTX) to support all the peripherals. We have added 5V and 9V power outputs in the board to extend the board’s power-extending capability (see Figure 8), and also to cut off all the operations and to ensure safety we have also implemented kill switch (power switch) (see Figure 6) and a LED to see the observe the CHIGLU: A Modular Hardware for Stepper Motorized Quadruped Robot — Design, Analysis, Fabrication, and

A Preprint

status when uploading code (see Figure 7). The enable pin in the schematic (see Figure 9) can be either set to active high or active low, for our purpose we have set all the drivers enable pin to active low. Now, the biggest challenge is how to densely populate these peripherals and accommodate these footprints to meet the power budget (on a small-scale PCB. We didn’t use any SMT components, even though they would have saved space. Instead, for ease of soldering and the open source and easy DIY (do it yourself) feasibility we have opted for a full through-hole component design. The routing intricacies of this design involve sophisticated DRC (Design rule check) to achieve such complex routing design architecture. We have kept a minimum track width of 15mil, clearance of 10mil, via diameter of 24mil, and via drill 12mil minimum width in routing while considering clearance, pad-to-pad distance, thermal integrity, pad-to-track distance and ensuring proper impedance through the track lines.

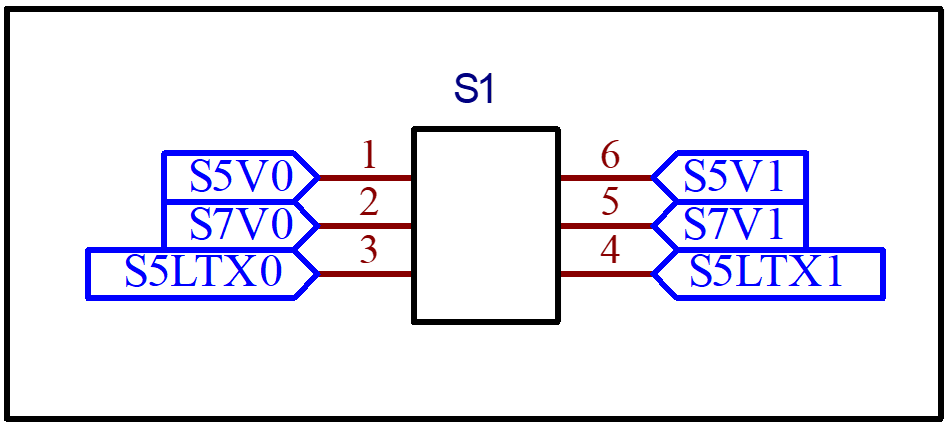

Figure 6: Power Switch

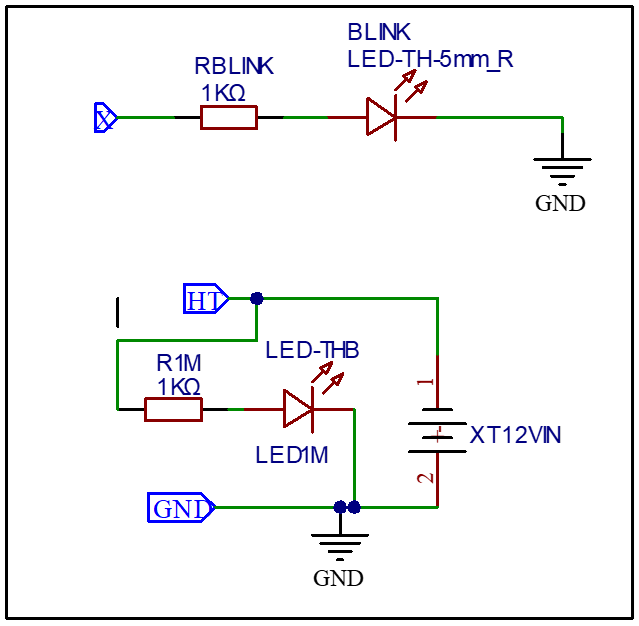

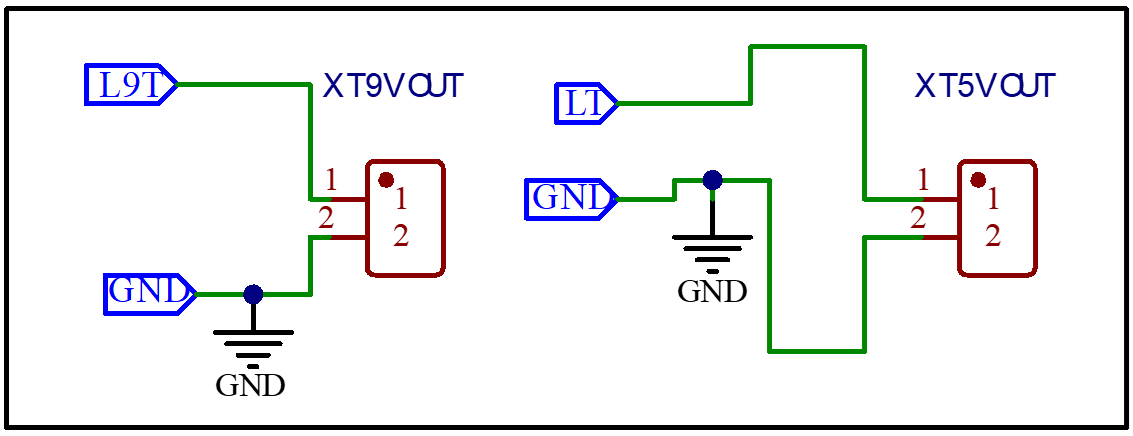

Figure 7: Power Input connector (DC 12VIN) and Indicator LED Figure 8: Board Power Extension Output (9V and 5V) Schematic CHIGLU: A Modular Hardware for Stepper Motorized Quadruped Robot — Design, Analysis, Fabrication, and

A Preprint

• BOM.xlsx - A spreadsheet file containing a bill of materials for a project or product, detailing components, quantities, and specifications. • Box_Assembly.20240604-205600.FCBak - A backup file of enclosure assembly project containing saved configurations.

• Box_Assembly.FCStd - A CAD file in FreeCAD format, representing assembly of the enclosure structure. • Enclosure.20240604-210120.FCBak - A backup file of the enclosure containing saved configurations. • Enclosure.FCStd - A FreeCAD file representing assembly of the enclosure.

• Enclosure_lid.20240604-210120.FCBak - A backup file of the enclosure lid containing saved configura- tions. • Enclosure_lid.FCStd - A FreeCAD file representing assembly of the enclosure lid.

• PCB_enclosure_final.20240604-212250.FCBak - A backup file merging the enclosure with the lid for the enclosure assembly project, storing saved configurations. • PCB_enclosure_final.FCStd - A FreeCAD file representing assembly of the enclosure (enclosure lid included).

• Automatic Optical Imaging Data.rar - AOI (Automatic Optical Imaging Layer). • CAM.PNG - A png file showing layers in CAM process. • CAM_bot.dpf - Manufacturing file: PCB bottom layer.

• CAM_drill.dpf - Manufacturing file: Drill layer. • CAM_maskb.dpf - Manufacturing file: PCB bottom-mask layer. • CAM_maskt.dpf - Manufacturing file: PCB top-mask layer.

• CAM_outline.dpf - Manufacturing file: PCB’s outline. • CAM_silkb.dpf - Manufacturing file: PCB bottom legend print layer. • CAM_silkt.dpf - Manufacturing file: PCB top Legend Print layer.

• CAM_top.dpf - Manufacturing file: PCB top layer. • Drill Gcode.ex1 - A G-code file used for CNC drilling operations. It contains instructions for the machine to drill holes at specified locations and depths in a material.

• Layout Altium version.pcbdoc - A PCB layout document created using Altium Designer. It contains detailed information about the placement of components and routing of electrical connections on a printed circuit board.

• rout Gcode.ex1 - A G-code file used for CNC machining or 3D printing. It contains instructions for the machine to execute specific movements and operations to create a designed part or pattern. • Schematic EasyEDA version.json - A JSON-format document created using EasyEDA, an online EDA tool. It contains schematic information for an electronic circuit, detailing component connections and attributes in a structured JSON format.

• Schematic Altium version.schdoc - A schematic document created with Altium Designer. It contains the circuit diagram and details the electronic components and their interconnections for a specific design. • Layout EasyEDA version.json - A JSON-format document created using EasyEDA. It contains layout information for a PCB design, detailing component placements and routing paths in a structured JSON format.

Bill Of Materials Summary

The Bill of materials file includes the cost of the bills of all the components used in this design and is available here:
