F. Dettùa. S. Formentina And S. M. Savaresia

aDipartimento di Elettronica, Informazione e Bioingegneria, Politecnico di Milano, Piazza Leonardo da Vinci 32, 20133, Milano, Italy.

Abstract

Vehicular control systems are required to be both extremely reliable and robust to different environmental conditions, e.g. load or tire-road friction. In this paper, we extend a new paradigm for state estimation, called Twin-in-the-Loop filtering (TiL-F), to the estimation of the unknown parameters describing the vehicle oper- ating conditions. In such an approach, a digital-twin of the vehicle (usually already available to the car manufacturer) is employed on-board as a plant replica within a closed-loop scheme, and the observer gains are tuned purely from experimental data. The proposed approach is validated against experimental data, showing to significantly outperform the state-of-the-art solutions.

Parameter estimation; state estimation; driving simulator; sensors; signal processing.

Ntroduction

The Twin-in-the-Loop (TiL) framework has been recently proposed for vehicle dynam- ics control and estimation of unknown states and variables . In this innovative framework, an high-fidelity off-the-shelf vehicle dynamics simulator is employed in a control/estimation loop - thanks to the recent developments in on-board hardware plat- forms 1. Being the simulator a commercial product, we assume it to be a black-box, i.e. we can only extract its outputs given some inputs, but we are not able to access its equations and update rules directly. With regards to the TiL estimator, the authors in showed how the presented algorithm is able to estimate both unmeasured states (e.g. vehicle sideslip) and other unknown variables, such as the tire-road forces. How- ever, they did not address the estimation of time-varying parameters; in fact, modern vehicle dynamics controllers are strongly based on time-domain models of the process . Due to the variability of conditions during the daily use of a vehicle - e.g.

the most common case being the payload - such controllers can underperform, or even destabilize the system, if such variations are not properly addressed. Hence, following a well established research trend on vehicle state and parameters estimation, we build 1For example, https://www.vi-grade.com/en/products/autohawk/.

Related works. Existing literature solutions for four-wheeled vehicles on-line pa- rameter estimation can be broadly split among direct sensing and software sensing ones. In the first class of solutions, a sensor for the measurement of the variable of interest is used (e.g. , where the mass is estimated via strain gauges on the suspensions).

The second class of solutions features instead the estimation of unmeasurable variables via production available sensors (i.e. without adding new piece of hardware). If we focus on software sensing algorithms, we find many solutions in the literature - where we cite here the most relevant contributions in the past years - , which can be categorized according to four axes: estimated quantities, employed sen- sors, used estimation algorithm, and employed model. Other important contributions design software sensing with an highly specific goal, like rollover risk evaluation : we do not consider them in this review.

On the estimated quantities side, the mass M is indeed the most important vehicle parameter, and is always considered in the cited works; vehicle yaw inertia Jzz is then considered in , while roll and pitch inertia Jxx, Jyy are considered in . Other estimated parameters include longitudinal , lateral or vertical center-of-mass position variation. The tire-road friction coefficient is estimated in - however, this parameter is different in nature from the other considered in the literature, as its variations are not imputable to a variation of the vehicle load conditions, but rather to the terrain.

With regards to the sensing layout, one common denominator is the use of classical production vehicle sensors, like gyroscopes or Inertial Measurement Units (IMU); yaw rate, which is a gyroscope output, is employed in all the cited articles but . Ac- celeration information is used in all references; use three acceleration sensors, to be placed above the unsprung masses. Other considered sensors include wheel angu- lar speed , suspension displacement , GPS position measurements and vehicle longitudinal speed .

Moving further to the considered estimation algorithm, most works are based on Kalman Filtering (KF) , specifically declined - except for - in its Dual formulation; Dual KF is based on two separated observers, one devoted to classical state filtering, and the other one solely devoted to parameter estimation, to be switched-offonce a good estimate of said parameters has been reached. propose a similar formulation, where the correction law is computed via a particle filter. On the other hand, propose a different approach, based on the use of free decay responses of the vehicle - more similar to a classic identification algorithm rather than to a state observer.

Finally, when coming to employed plant replica, the simplest model is the single- track, which is however only used in , as it fails to capture most of vehicle dynamics non-linearities. The most common model is the double-track ; the latter can be enhanced with roll dynamics, as in , or wheel dynamics , depending on the estimation target or the available measurements. consider a full vehicle model - i.e. featuring also unsprung mass dynamics, roll and pitch dynamics. Finally, the most complex model is the one proposed in : the authors consider a multibody model - featuring 14 states.

Contributions. From the literature review, an important point emerges. As also pointed out in , classical vehicular state observers are based on simplified models of the variables to be estimated: an ad-hoc model for each variable is required, and each model has to be accurately calibrated. Given that approximately 75% of the time of a control system design project is devoted to modelling, as indicated in , the resulting procedure turns out to be cumbersome. Let this apart, consider that any estimator is based upon a set of hyperparameters controlling its behaviour - e.g.

the noise covariances in Kalman Filters. Generally speaking, the more complex an estimator is, the longer the hyperparameter selection is. Relying on simple correction laws is thus beneficial in the implementation phase.

In TiL framework we employ a single model - a digital twin - for each variable to be estimated: this solves the problem of designing ad-hoc models and of having many models running at run-time on the same estimation algorithm. The model calibration phase comes for free when using a digital twin, in the assumption that a car manu- facturer already has a library of simulators for their production vehicles. On the other hand, the correction algorithm complexity is now shifted to the model fidelity: the more faithful to the real system the model is, the less intense - and thus simple - the correction need to be. The authors in actually show as a linear and time-invariant correction law is sufficient to outperform the benchmark.

Matter-of-factly, the authors in consider an high-fidelity model of the plant as in TiL framework: however, being the considered model a white-box, the authors are able to directly compute the update rules via a Kalman Filter-like algorithm. This is not possible in TiL, as the underlying model is a black-box, and the correction law, although linear, has to be tuned via model-free approaches .

With respect to the research in , we extend the TiL framework to the estimation of varying parameters, providing insights on how the correction law has to be designed, and on the feasibility of the approach in terms of robustness to measurement noise and uncertainty.

The paper is structured as follows. In Section 2 we provide to the reader some preliminaries on the TiL estimator. Section 3 defines the problem of varying mass and moment of inertia, and its estimation. Then, in Section 4 we conduct an in-depth analysis of the parameters estimation problem by independently considering set of variables, providing sensitivity analyses to uncertainty and noise. Section 5 shows an application of the described and simulated framework on experimental data, while Section 6 concludes the manuscript with a few considerations.

Twin-In-The-Loop Observer Architecture

proposed an unified estimator for all the variables of interest in vehicle dynamics control. In such an architecture (see Fig. 1), the two main features are the following • The vehicle simulator, an high-fidelity plant replica, whose equations are a black- box.

• The closed-loop correction, based upon available measurements, perturbs the model in order to properly estimate unknown variables. The detailed architecture of the complete observer is given in Fig. 2. Generically speaking, the simulator states at time k are updated according to the following equa-

(1)

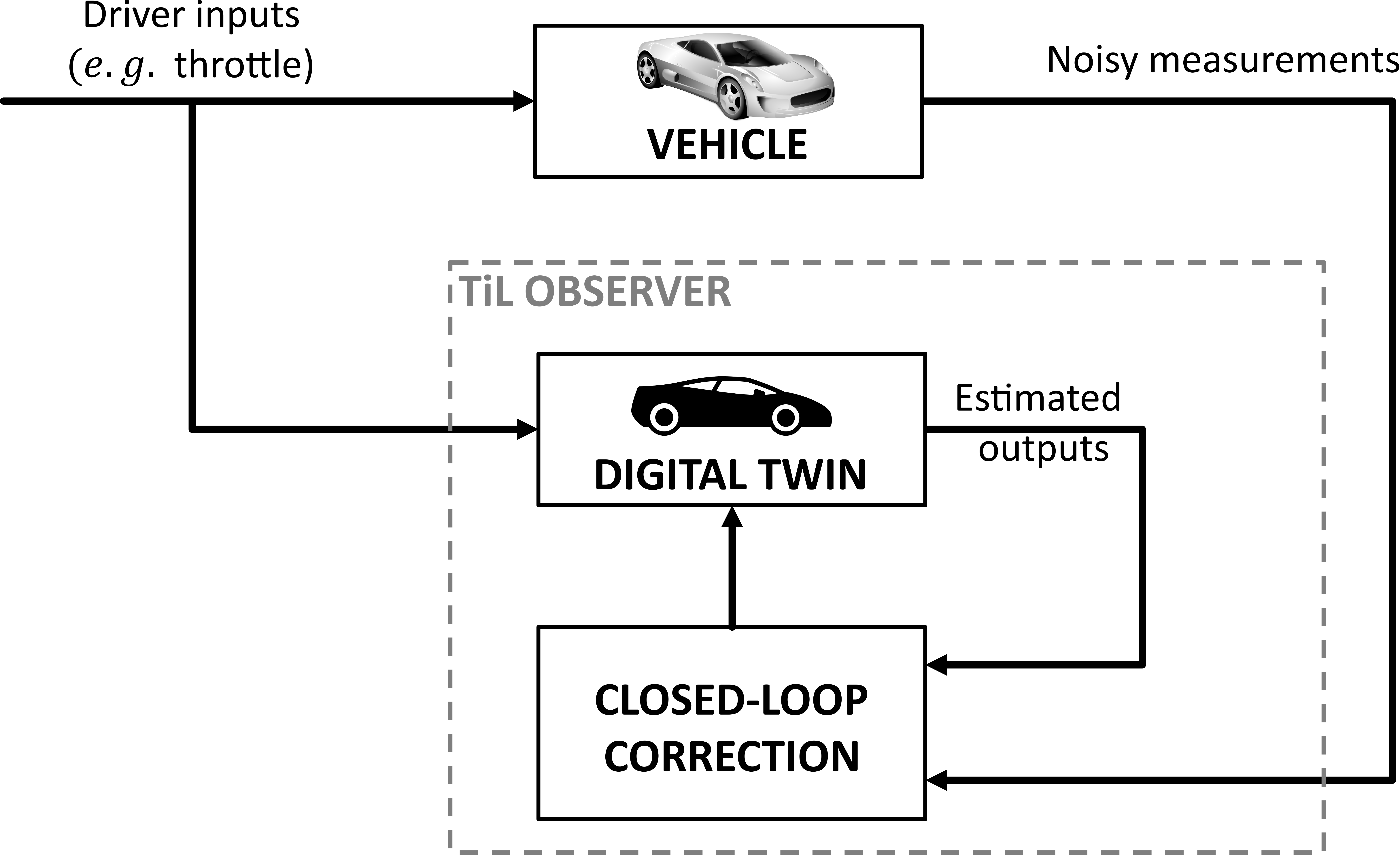

Figure 1. Twin-in-the-Loop estimation scheme. where f, g, h are unknown (possibly nonlinear) functions, y ∈Rny is the set of measurable outputs, x ∈Rnx is the set of internal states of the simulator, z ∈Rnz is a set of additional variables to be estimated and p is a set of constant parameters. We denote ˜νk an a-priori estimation for a certain variable νk: then closed-loop correction updates the a-priori estimates, and generates a-posteriori ones ˆνk - as in the widely known Kalman Filter formulation.

The authors in extend the state vector to estimate tire-road contact forces; more specifically, the additional variables z are estimated by correcting the nominal values

(2)

The artificial variable δˆzk is described by a fictitious constant dynamics equation δ˜zk+1 = δˆzk.

(3)

The latter assumption is widely used in case the parameters to be estimated are slowly varying. Overall, the set of states, including internal and extended ones, now reads

Δzt

. At this point, the innovation term at step k, consisting in the mismatch among measured (yk) and a-priori estimated outputs (˜yk) is to be used to correct the state vector xaug. The innovation is mapped onto the states via a linear

(4)

However, we will show in the following that the linear formulation is inadequate for the estimation of certain parameters, e.g. the vehicle mass or inertia. Let us thus define a Figure 2. Twin-in-the-Loop complete estimation architecture, featuring correction of simulator states and augmented states.

(5)

where K ∈Rnx×ny maps the innovation onto the nominal states, and K (yk) ∈Rnz×ny maps the innovation onto the extended states. 3. A parameter estimation case study: the uncertain load setting Figure 3. Vehicle top view, considering differently added additional masses.

Among the physical parameters defining a vehicle, mass and inertia might signif- icantly change due to different load conditions, while being extremely important in estimating such parameters in a road vehicle via the TiL estimator architecture. Con- sider the 5-seats vehicle in Fig. 3. Such vehicle can be loaded with additional masses.

On the mathematical perspective, we assume each of the mi, i = 1, . . , M to be a point mass, characterized by a certain position pmi =

In The Refer-

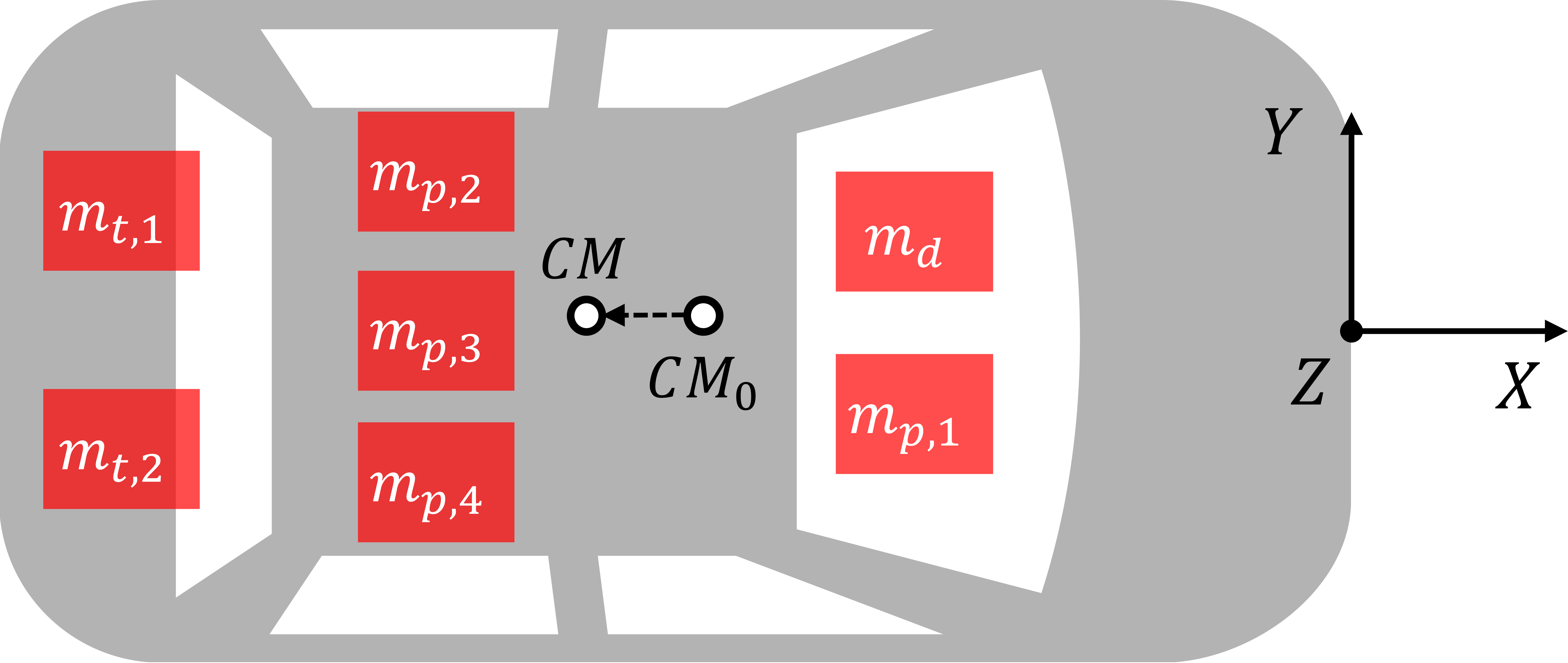

ence frame defined by axes X, Y, Z - as displayed in Fig. 3. If we assume that the vehicle chassis can be modeled as a rigid body with its mass concentrated in a single point - a common assumption in vehicle dynamics - the center-of-mass of such system

(6)

whereas m0 denotes the original lumped mass of the chassis. Indeed, the center-of- mass including additional masses - CM = (dx, dy, dz) - is going to be different from the original one - CM0 = (d0,x, d0,y, d0,z). The new lumped mass is then simply defined

(7)

Consequently, the chassis moments and products of inertia change due to the mass variation and the re-defined center-of-mass . Considering the Huygens-Steiner the- orem , we obtain the new moments/products of inertia, defined with respect to CM; this is done starting from the ones defined in CM0 and taking into account the newly added masses. E.g., for the moments of inertia - Jxx, Jyy, Jzz - one has

(8)

whereas Jxx,0, Jyy,0, Jzz,0 represent the chassis nominal moment of inertia, and δ (x1, x2) = (x1 −x2)2. Also product of inertia variations - e.g. Jxy- can be quanti- fied analytically in a similar way; for the load conditions considered in the case study - realistic ones for road vehicles - we don’t have significant variations of these parameters.

Now, let us consider again scheme of Fig. 1: the high-fidelity digital twin is modelled with a set of nominal parameters, i.e. lumped mass, inertia, and center-of-mass loca- tion. The real vehicle is instead loaded with additional masses, and thus ”perturbed” from the nominal parameters set.

In , the authors design a closed-loop correction so as to force the simulator states to be identical to the ones of the real vehicle, regardless of the reasons leading to differences between the two instances of the vehicle. On the other hand, in the present work we shift the philosophy, trying to estimate also the exact differences among the two instances.

Table 1. Nominal Vehicle Mass, Inertia

and CM parameters. Additional load param.

Kg

Table 2. Additional load parameters. In this Section, we demonstrate the TiL methodology for the case study of Section 3. For a better assessment of the potentialities and limitations of the present method, we conduct a preliminary analysis in a controlled simulation environment. The nom- inal chassis parameters of the considered vehicle are given in Table 1. Said nominal parameters also include the presence of a driver (md in Fig. 3). The parameters are those of a generic sport utility vehicle, which is modeled in VI-CarRealTime (CRT) simulation environment . The nominal vehicle model is perturbed by adding masses according to the scheme of Fig. 3; the values of such loads are given in Table 2. For this new configuration, the center-of-mass, mass and inertia can be analytically com- puted according to what described in Section 3; the new values for the most relevant parameters are in Table 3.

We apply the TIL architecture to the problem herein, defining the complete extended Perturbed param.

+5.3 %

Table 3. Perturbed vehicle parameters.

(9)

where x is the set of VI-CarRealTime states, x ∈R. In this simulation analysis, only extended states - parameters - are going to be corrected, as we want to focus on the feasibility of parameters correction. Each extended state represents the deviation of said parameter from the nominal value provided by the simulator as an output. Joint state and parameter correction will be considered in an experimental case study in Section 5.

In order to reproduce a simulation environment the closer to a real scenario, we introduce measurement noise. The noise is introduced on the signals coming from an - simulated in CRT - inertial measurement unit (IMU) placed near the vehicle CM. The

(10)

where s is a signal coming from an IMU, and σs is the standard deviation of a suitable white noise. In the simulation case study, x-axis acceleration ax and x, y, z axes angular rates ωx,y,z are employed as measurements in the observer, hence, only these signals are perturbed with noise. When not specified, the snr is tuned to be ≈10: however, we also conduct sensitivity analyses to verify the impact of measurement noise onto the estimator.

When quantifying the observer performance, we consider as a metric the root mean square estimation error in the last w = 1 seconds of test, as the dynamics of the estimated parameters are rather slow, and considering larger windows would take into account transient effects.

(11)

Where Ns is the number of samples in an experiment, fs [Hz] is the sampling frequency, and ν is a suitable parameter or variable to be estimated, e.g. ν = δM. On the other hand, we also consider the percentage version of rmsw, in order to quantify the amount of error within the parameters values. This metric is defined as

(12)

Where ν0 is the nominal value of a variable to be estimated; e.g. in our case, the nominal value for δM is the difference among the perturbed value in Table 3 and the nominal value in Table 1.

In the following, we consider as acceptable a percentage rms smaller than the 10 % of a perturbated variable.

Enter-Of-Mass Position Identification

The CM position is perturbed from CM0 in the modified layout, as evident from Table 3. Most significant displacement occur along x and z axes, as y axis variation are mostly due to extremely unbalanced - on the left-right direction - loads, which are not common in road vehicles. Given that the digital twin computes the torque and force balances referring to the center-of-mass, a not exact knowledge of CM might be detrimental for estimating the other parameters.

Two Possible Ways Of Solving This Problem Exist:

• Insert the variables dx, dy, dz onto the augmented state vector xaug, and conse- quently correct the mismatch from the nominal values; • Identify in a traditional way - see e.g. - dx, dy, dz on-line via available data and simplified models.

In the present work, we decide to follow the second approach, as we want to concentrate onto the estimation of mass and inertia: hence, we assume correct knowledge of CM. However, we also perform sensitivity analyses to check the effect of a wrong CM onto the estimation performance: in general, we will show as for the considered load conditions, which are reasonable for a passenger car, the performance loss is negligible even in case of wrong CM estimation.

Ehicle Mass Estimation

(a) Mass estimation in an urban driving context. (b) Urban driving commands. Figure 4. Mass estimation in an urban driving like context, with noisy measurements.

Estimated mass for different initial conditions. Vehicle chassis mass can be estimated by suitably exciting the longitudinal dynamics. Consider the following simplified longitudinal dynamics balance for a road vehicle Mchassis · ax = Ftrac −Fbrake −Froll −Faero.

(13)

It is clear that, provided that roughly the same forces act on the vehicle, an increased mass yields a lower longitudinal acceleration. Hence, if the digital twin is characterized by a smaller mass than the real vehicle, a suitable correction can be based upon the difference between longitudinal accelerations. Indeed, if the terms on the right hand side of Eq. (13) are significantly different, we are not able to determine whether an

Table 4. Mass Estimation Performance In

different conditions. acceleration variation is due to a mass difference or rather to an error in modelling the brake system or the tire-road interaction. For this reason, in this simulation analysis the sole modelling difference among the two simulated instances of the vehicle lie in the mass perturbation. In Section 5 we will test the mass estimation on real data, where other modelling differences might exist.

(14)

Where Kax,δM is a suitable gain to be tuned and sgn (·) extracts the sign of the argu- ment. Note as K (yk) = Kax−δM · sgn(ax,k) in this context. The importance of the sign operator is easily understood with a simple example.

Consider a coasting down - deceleration due to inertia ax < 0 - event: if the vehicle has an higher mass than the simulator, it will coast down faster, thus (ax −˜ax) < 0. Correcting δM proportionally to (ax −˜ax), with the same sign, would lead to a decrement of the extended state: however, δM should instead increase to compensate for the greater mass on the vehicle. Thus, the introduction of the sign operator accounts for this issue, an introduces a necessary non-linearity in the correction law.

The considered experiment for the mass estimation is an urban driving one - see Fig. 4b: in said test, only the correction of Eq. (14) is applied. The results - in case of noisy data and correct center-of-mass - can be appreciated in Fig. 4a: the mass is correctly estimated even by starting from different initial condi- tions, and the estimate eventually converges to the correct value. Table 4 reports the estimation performance in different conditions: as one can notice, the mass estimate is highly robust both to measurement noise and to imperfect knowledge of the center-of- mass. In the worst case, rmsM = 0.68 %: since δM = 355 kg, the error is smaller than 3 kg.

Figure 5 compares the estimator performance for an snr growing from 5 to 20: we can conclude that for reasonable noise levels, the estimator performance does not drop below the 10%, which was originally set to be our limit.

Finally, note that δM converges to the real value even if we are not correcting δJxx, δJyy, δJzz: this highlights the good decoupling among the estimated variables, without the need for designing a separated model for each of them.

Yaw Inertia And Roll Inertia Estimation

(a) Correct center-of-mass estimation case. (b) Wrong center-of-mass estimation case. Figure 6. Roll and yaw inertia estimation by means of a swept steer experiment, with noisy measurements. The upper plot depicts the estimated parameters in case the center-of-mass is exactly known, while the lower one depicts them in case the CM is not exactly known.

Figure 8. Yaw Inertia Estimation With

varying noise levels. Roll and yaw inertia can be estimated by exciting lateral dynamics and left-to-right load transfer, which often come together, e.g. while negotiating a curve. A proper experiment to estimate both variables at the same time is a swept steer maneuver, at constant speed, from 0 to 4 Hz. The non-linear correction law to be applied onto δJxx and δJzz follows from what described in Section 4.2 for the mass ∆δJxx,kk = K ˙ωx−δJxx( ˙ωx,k −˜˙ωx,k) · sgn( ˙ωx,k), ∆δJzz,kk = K ˙ωz−δJxx( ˙ωz,k −˜˙ωz,k) · sgn( ˙ωz,k).

(15)

Where the angular accelerations ˙ω are employed - such signals are easily obtained from the angular rates via differentiation. Note that while estimating Jxx and Jzz, δM could have been already estimated as described before. Same goes for the center-of- mass. Figure 6a depicts the estimation results in case of noisy measurements, wrong mass estimate, and correct center-of-mass; only corrections in Eq. (15) are applied. The Table 5. Roll and yaw inertia estimation performance in different conditions.

Wrong Mass;

Wrong CM. estimates converge to the true value, even starting from different initial conditions. On the other hand, Fig. 6b depicts the estimation of the same variable, in case the nominal center-of-mass is kept within the digital twin: as expected, we note a steady-state error in the estimated inertia - mostly noticeable for Jzz.

Table 5 quantifies the estimation performance in different cases. One can notice as the error on Jxx is generally higher and grows faster as the uncertainty increases. This is easily explained as the nominal value and the variation of Jxx are much smaller than for the other inertia. Finally, Fig. 7 and Fig. 8 show the estimator performance when considering different noise levels on the employed measurements. As expected, Jxx estimation performance significantly drops, and is never within the 10% limit. On the other hand, Jzz estimation shows good performance up to snr ≈7.5, which is a reasonable bound for yaw acceleration noise.

Pitch Inertia Estimation

As done above, pitch inertia Jyy can be estimated by suitably exciting the corre- sponding dynamics. The most straightforward way of exciting pitch dynamics is the excitation of the vehicle body with a non-zero road profile: hence, we assume that the vehicle is being driven at constant speed on a paved road. The road profile at front

(16)

Where σz = 0.01 m, and WN is the realization of a white noise. Consequently, the profile on the rear wheels is equal to zr(t) = zf(t−v/wb), with v the vehicle longitudinal speed, and wb the wheelbase.

The real vehicle, whose load is unknown and has to be estimated, is fed with the gen- erated road profile. The digital twin is then fed with the same road profile. In pratice, we are considering that the road profile at the current time is known; this information
