Weeding Robot Agriculture

Abstract. Agriculture has always remained as an integral part of the world. As the human population keeps on rising, the demand for food also increases and so is the dependency on the agriculture industry. But in today’s scenario because of low yield, less rainfall, etc., a dearth of manpower is created in this agricultural sector and people are moving to live in the cities, and villages are becoming more and more urbanized. On the other hand, the field of robotics has seen tremen- dous development in the past few years. The concepts like Deep Learning (DL), Artificial Intelligence (AI), Machine Learning (ML) are being incorporated with robotics to create autonomous systems for various sectors like automotive, agri- culture, assembly line management, etc. Deploying such autonomous systems in the agricultural sector help in many aspects like reducing manpower, better yield, and nutritional quality of crops. So, in this paper the system design of an auton- omous agricultural robot which primarily focuses on weed detection is described.

A modified deep learning model for the purpose of weed detection is also pro- posed. The primary objective of this robot is the detection of weed on a real-time basis without any human involvement but it can also be extended to design robots in various other applications involved in farming like weed removal, plowing, harvesting, etc. in turn making farming industry more efficient. The source code

At

https://github.com/Dhruv2012/Autonomous-Farm-Robot Keywords: Robotics Operating System (ROS), Deep Learning (DL), Unified Robot Description Format (URDF), Robot Visualization.

Ntroduction

From the dawn of the human civilization, agriculture has played a pivotal role in ful- filling the demand for the food. With the human population on the rise, the demand for the food has also increased and so is the dependency on the agriculture industry. But the present situation suggests otherwise. There is a dearth of manpower created in the agricultural sector and people are moving to live in the cities, and villages are becoming more and more urbanized because of the irregularities in the rainfall, less yield, etc. At the current growth rate of the world population, it is really important to address the issue of the dwindling agricultural sector. The field of Robotics on the other hand evolved exponentially during the past few decades. Robotics deals with the con- struction, design, operation, and use of robots, and apart from that it also deals with their computer systems for the processing of information and for obtaining the sensory and control feedback. The emerging area of applications for the robots or drones in the agriculture are weed-control, seed planting, soil analysis, environmental monitoring, and harvesting .

Ros For Agriculture

ROS stands for Robotics Operating System. It is a framework developed for writing the independent robot software. It consists different compilation of libraries, tools, and con- ventions which is used for streamlining the process of developing sturdy and complex automate the agriculture, it can be accomplished by making the present agriculture ma- chines ROS-compatible, and/or by introducing ROS-compatible robots into agricul- ture. To make a ROS-compatible agriculture robot, certain steps are involved and they are; developing the description model of robot components along with the sensor’s drivers and controller interfaces. Apart from this, it also involves creating certain spe- cialized ROS packages for the robot in order to make it perform the required agriculture tasks. A similar kind of process is followed when the ROS compatible machinery are being used into agriculture. The ROS-compatible robots can use the vibrant features of ROS and other open-source technologies in order to obtain better results once the pro- cess of incorporation of ROS packages are completed .

Eep Learning And Computer Vision For Agriculture

Deep Learning is a subset of Artificial Intelligence (AI) where the models mimic the neural connections of a human brain for recognizing patterns in the data which can be used for decision-making . With the availability of adequate training data and in- creasing use of deep neural networks, the hardware side has also been developed to possibilities, and it has certainly impacted the agriculture field too. A variety of com- puter vision and Deep Learning-based approaches are being utilized for extracting meaningful phenotyping information from crops. These approaches helped us to de- velop a novel solution for weed control through AGRIBOT.

For this paper, we have simulated an agricultural robot called “AGRIBOT”. AGRIBOT - Autonomous Agricultural Robot is a four-wheel skid steering proto- type that is designed to be used in the agrarian environment for automating different tasks like monitoring and classification between crop and weed. AGRIBOT is equipped with onboard sensors including Global Positioning System (GPS), Compass, Inertial Measurement Unit (IMU) and Camera.

Iterature Survey

Traditional Weed Management required methods like burying, cutting, or uproot- ing. Several tools like finger weeders, brush weeders etc., were used which performed the above-mentioned operations. But these methods required human intervention, which makes them less effective, time taking & it caused damage to crops in case of intra-crop weeding. This led to the demand for robotics and automation in the field of agriculture. Various Robots have been developed which navigated autonomously and performed various tasks like plowing, crop monitoring, seeding through actuation in real-time. The recent breakthroughs in the domain of Modelling and simulation, sensor fusion, crop-weed classification with the help of computer vision, deep learning and how they provided the base for the development of AGRIBOT is thoroughly discussed in this section.

Sensor Fusion

It is difficult for a mobile robot to estimate its exact location even if it has been equipped with a map of a specific environment. In addition, the exploration of an unknown environment of the robot’s location is more difficult. These difficulties are mainly caused by the accumulative error of the measuring sensors, the dynamics of robots, and environmental changes.

Authors have tested navigation algorithms using single GPS receiver and multi re- ceivers. When using just one single GPS receiver, the reception impediment and noise resulted in the serious inaccuracy of positioning. Therefore, they used three GPS receivers to make the positioning of GPS is more accurate and reliable. They have also used camera sensor to compensate for errors. Fused data has been applied to compen- sate the tracking error between the real path and the target path through the Kalman filter. Though the robot traced the path efficiently, there was an error in co-ordinates shifting .

Likewise, Magnetometer is also an important sensor in the ground vehicle, un- manned aerial vehicles and even in satellites and submarines. Three-axis magnetom- eters are mostly used in the present scenario. Constant and time varying sources corrupt the measurements from Magnetometer. The errors which vary through time come from the nearby electronics whereas the constant sources consist of hard irons error, soft irons errors, non-orthogonality and scale factor errors. Hence it been a challenge for researchers to calibrate and compensate these errors. Many algorithms such as moving median, Kalman filtering, unscented Kalman filtering, etc. have been tested and have proven to be successful in removing the noise up to a certain extent .

The literatures which were reviewed for the sensor fusion part focused on using only one type of sensor (i.e., either Magnetometer or GPS) but for AGRIBOT, we have ex- plored the possibility of integrating different types of sensors like magnetometer, GPS, IMU and camera in order to bring down the positional errors and trace the path accu- rately.

Rop-Weed Classification

In earlier times, Robots did not have the capability to detect and classify objects at real- time. Due to development in the field of imaging systems, robots were incorporated with cameras, for example - Colour cameras performed the task of segmentation of plants while the spectral cameras performed the task of classification of plants. Various image processing and Deep Learning algorithms have made it possible to classify multi- weed species and crops under outdoor illuminations . The errors of the algorithm, when processing 666 field images, ranged from 2.1 to 2.9%. The ANN correctly de- tected 72.6% of crop plants from the identified plants and considered the rest as weeds.

It basically uses thresholding to segment the vegetation mask from the image and then the morphological features are given to an ANN network for classification . Due to the rise in the development of CNNs, several architectures have been pro- posed to detect or classify vegetation masks in images. One of the approaches uses this mask along with bounding boxes to train a VGG 16 network to classify extracted blobs into crops and weeds. It is trained on 1500 images, validated on 350 images, and tested on 150 images, and achieves around 90% accuracy in classifying crops and weeds spe- cies .

The above bounding box-based approaches suffer from overlapping issues of the boxes. Hence, to counter this and get pixel-level accuracy, several semantic segmenta- tion algorithms are proposed which classify each pixel into a class. As referred from , a CNN is proposed based on the same encoder-decoder based segmentation archi- tecture which classifies crop and weed in real-time and can operate at around 20Hz. It is a 14-channel network trained on the Bonn dataset and has less than 30,000 parame- ters. These multichannel representations along with RGB converge to 95% accuracy which is greater by approximately 9% than the RGB counterpart. The network is capa- ble of running on 5Hz on a flying vehicle . Inspired by this model, we have imple- mented a 10-channel network for the crop-weed classification task.

System Design

For the application of controlling the weed which are surrounding the crops in the field, these points must be taken into consideration. The terrain in which the vehicle will be driven is highly uneven. The Wheels should be rugged enough for driving in these con- ditions. The drive system should be able to take a zero- radius turn if required. The track length of the vehicle may vary. The minimum value of the ground clearance of such a robot should be 200mm so that the on-board modules, as well as crops, might not be damaged. On-board power supply and connectivity must be available to the robot. It should be able to handle the data available on the real-time basis and make decisions based on that in real-time scenario. Precise monitoring and detection of weed are more important so that farmers can easily take care afterward. The main pro- cessor should be capable of handling multiple data coming from different inputs at different frequencies.

Four-wheeled systems are more efficient compared to three or two-wheeled systems because they are more stable on the rough surfaces as compared to three-wheeled sys- tems and cornering can be done more efficiently. The four-wheeled robot is pretty much well balanced because the center of gravity is usually in the middle and due to this rea- son, this system is commonly used in automobiles and robotics . So, a four wheeled system will suit perfectly for an agriculture robot. The overview of AGRIBOT high- lighting major systems is given in Fig. 1. The robotic structure consists of a primary processor, secondary controller for actuation, various sensors and actuators using which the farmer can monitor and visualize the field remotely.

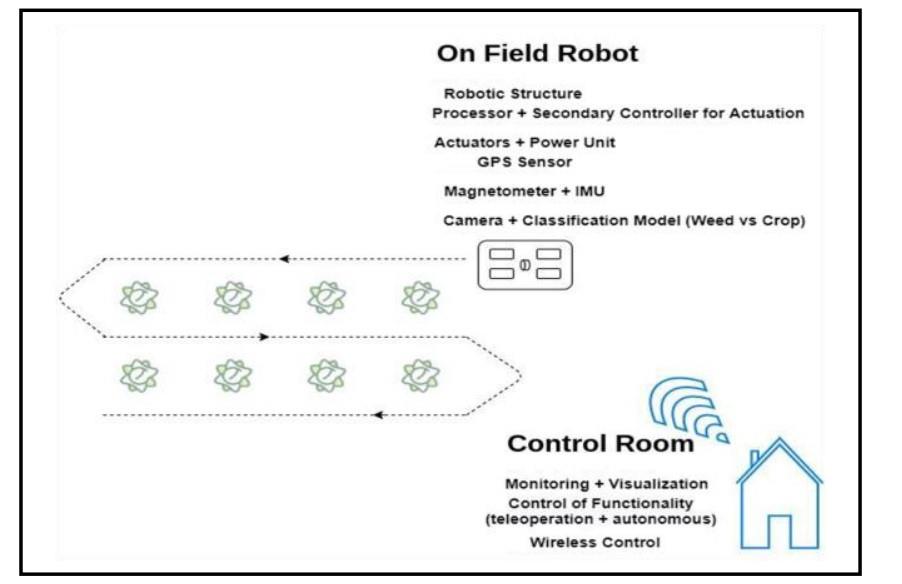

Fig. 1. Overview of AGRIBOT.

Proposed Mechanical System Design

With regards to the mechanical structure of the robot, certain design margins like weight and size of the body, strength, manufacturability, time for manufacturing, and cost. The mechanism responsible for driving the robot consists of DC motors, leg structure links, bearings, and shaft at the output which drive the wheels . The structure of the chas- sis is simple and aluminum box section is used for its construction. Design is kept in such a way that the length between sides can be changed according to field requirements.

Primarily we have considered the dimensions according to a sugarcane farm. All the parts have been designed using CAD (Computer Aided Design) tool Solid- works to enable further stress analysis and complex frame structure of the robot. This design comprises of the parts which are to be fabricated and the other parts supplied from off the rack. While designing the robot’s body parts, assimilability with other parts such as motors and cameras has been considered. The developed 3D design allows to study and analyze the mechanical interface between each part as joints and links. URDF of the robot has been generated using a custom add-on available in CAD software.

Physical criteria of the robot body are also applied through this exporter. Then URDF scripts were used in the ROS framework to simulate the robot for further functionality. The TF (Transform) tree is used to describe the various frames of the robot and their relative relationships. The TF tree is required for performing the complex robot kine- matics operations. With the incorporation of the TF tree with the URDF model of the robot, all operations involving kinematics is performed by ROS’s TF package which in turn saves the developers’ time for performing these complex mathematics operations manually. We have used two packages from ROS libraries, robot state publisher and joint state publisher. These packages are responsible for all background coordinates transformations.

The kinematic chain generated by the URDF file for this has 8 links and 9 joints. Joints connect multiple links to one link and they can be defined as parent and child links as per the URDF terminology. The joints responsible for driving are defined as continuous. Continuous joints have given to 4 joints so that all wheels can rotate freely around one axis. Dynamic simulation using Gazebo and RVIZ (Robot Visualization) for visualization is possible for this robot definition. On the Robot local frame, this robot has four DOFs overall, which in turn provides three DOFs motion (V x, V y, and ω) in the frame of world. The locomotion control system for this robot is skid steering system.

Proposed Embedded System Design

The proposed embedded system of the agricultural robot can be divided into five parts. They are the central processing unit, control unit, power supply unit, peripheral cir- cuitry, and motors.

The Central Processing Unit includes a primary processor which is used for pro- cessing the data available from the GPS Sensor, Camera, and IMU sensor. The primary processor proposed here is NVIDIA Jetson Nano .

The Control unit consists of a slave controller, encoder, and motor driver circuit. The secondary controller is responsible for driving the motors and taking the feedback from the motors via encoders. The secondary controller used in the agricultural robot is Ar- duino Mega 2560. The encoder is used for translating the linear or rotary motion into a digital pulse which in turn would control the direction, speed, position or distance of the motor. The encoder is used to precisely control the displacement of the agricul- tural robot. The encoder used in this robot is in-built in the motor itself. Motor drivers are used because the motor draw a huge amount of current but the controller works on low currents. These drivers take the low-current control signal from the controller and then turn it into a high- current signal so that the motor can be driven. The primary focus of the agriculture robot is to detect the weed so a low RPM and high torque motor will meet the requirements.

The Peripheral Circuitry has three components present in it. They are Raspberry Pi V2 Camera, MPU 9265 IMU, and Neo-M8N GPS Module. These are directly inter- faced with the primary processor (i.e.) using CSI, I2C, and USB Interfaces respectively.

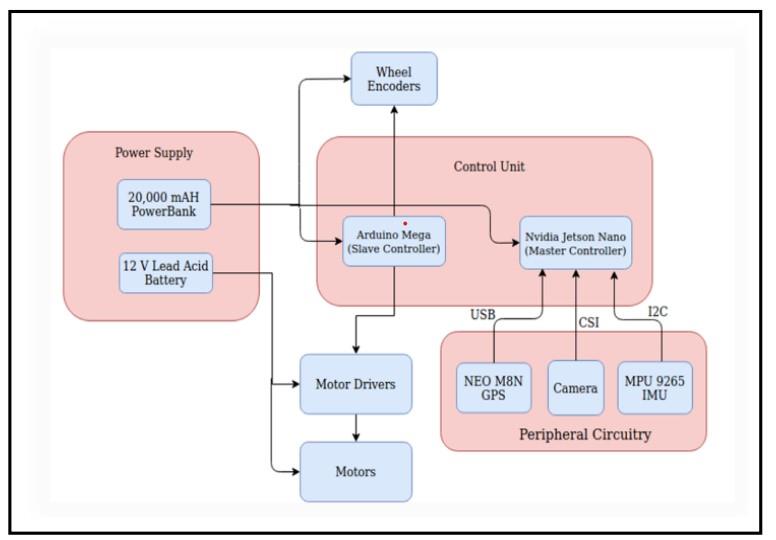

Fig. 2. Embedded System Block Diagram of Agricultural Robot.

Odelling And Simulation Of Agribot

Gazebo is a multi-robot simulation tool. It is capable of simulating a swarm of robots, sensors and objects in a 3-dimensional world in an accurate and efficient way. It can generate the practical feedback from the sensor and for generating interactions between objects, robots and environment through URDF (Unified Robot Description Format) scripts, it has a robust physics engine. It is available as a stand-alone open-source soft- ware, but it is also been offered along with ROS as a simulation tool.

All the physical joints and links, along with the control and sensing interfaces of AGRIBOT are described in this section. The farm environment is modeled and the ro- bot model is simulated in that environment in the gazebo simulator. By including the Open Dynamics Engine – ODE, Gazebo provides the dynamics simulation by taking different physical parameters like friction, contact forces, and gravity into account. Dif- ferent types of Gazebo plugins have been enabled to develop control interfaces and sensing systems for AGRIBOT. The general architecture and the necessary components in Gazebo for designing a robotic system is described in Fig. 3.

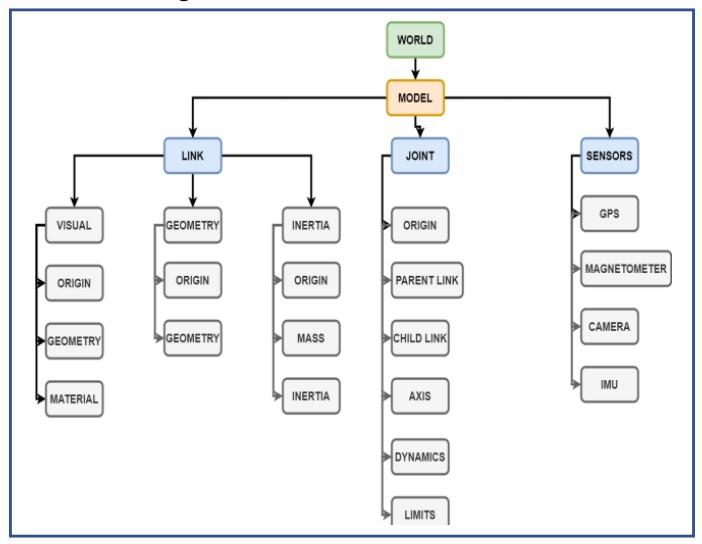

Fig. 3. General architecture and the necessary components in Gazebo for modeling a robotic system. 4. Simulated Environment in Gazebo.

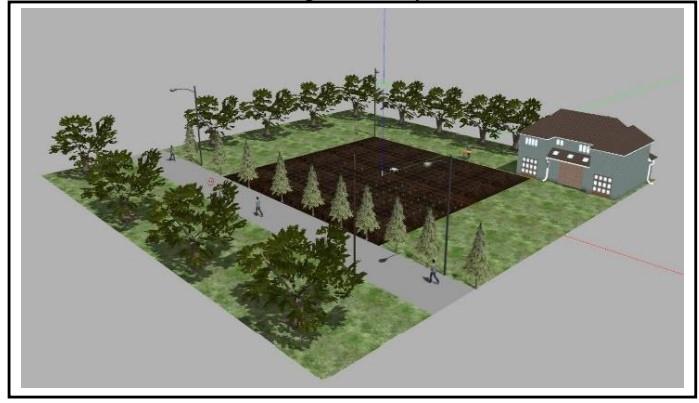

The world is a general term to portray objects, global parameters, and physics prop- erties. Fig. 4 shows a simulated environment in Gazebo. Stationary objects as the mod- eled field, pine trees, building, street lamps, and farm are incorporated in the world en- vironment. These objects were developed with the help of SDF scripts and models were integrated from GAZEBO library.

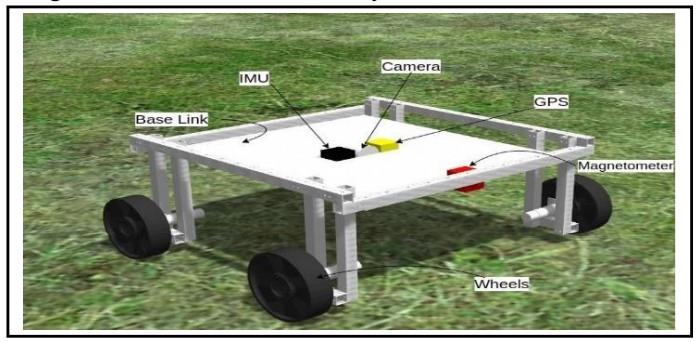

Fig. 5. Kinematics Chain Of Agribot Platform

The robot in this modeled world is a dynamic object, and it include links which are interconnected to each other with the help of joints. In Gazebo, a link is used to describe the dynamic properties and kinematics of a physical link in the form of inertia infor- mation and visual/collision geometry. A joint is used for modeling the kinematic and dynamic properties of a physical joint. This information is described in URDF file for- mat in order to frame the constraints of the design. Fig. 5 depicts the kinematic diagram of the AGRIBOT platform. It shows the kinematic chain of all the physical and virtual links and joints, each joint which possess the information of its placement with regards to the previous link and all these calculations are being done by the TF package.

The robot has different on-board sensors and each of them can be independently simulated as a Gazebo plugin and in the robot model it must be physically attached as a link. In the URDF file, these plugins are incorporated. In Gazebo, the sensor plugins are noiseless and they perceive the environment which has been simulated with perfec- tion. In order to make the plugins more realistic, the noise can be incorporated. For the plugins, a gaussian error of the first-order is used as a noise model and it is added with the measurement taken from each sensor. It is modelled by setting the mean and the standard deviation of the Gaussian distribution. Each measurement of Y(t) at time t is

(2)

Y’ is the raw measured value, B is the bias/offset, NY is additive noise that affects the measurement, and NB defines the characteristics of random drift with the time con- stant τ this includes drift due to environmental changes, voltage changes and age of sensors.

The inertial measurement unit (IMU) reports the robot body’s angular rates from a three-axis gyroscope, absolute orientation around the Z-axis by a magnetometer and ac- celeration from a three-axis accelerometer. With the integration of these measurements with other sensors, a proper reference for the localization of the robot system is ob- tained.

Through several pre-processing steps, images are being converted into video and DL (Deep Learning) model has been implemented to classify between crop and weed. The necessary parameters like image width and height, frame rate, etc., can be defined within Gazebo plugin through URDF. For each pixel the gaussian noise is sampled individu- ally and it is added to each color channel of that pixel. GPS sensor reports latitude, longitude and altitude of robot body from reference provide through parameters. Inte- gration of this sensor with IMU, after converting it into an XY frame helps us to locate the robot in an outdoor environment.

For controlling the motion in one degree of freedom for each joint, the Gazebo con- trol plugin should be enabled. Apart from this, interfacing of Gazebo with a robot middle- ware like ROS is also required for controlling each joint. A meta-package called ga- zebo_ros_pkgs is available which provides different packages for interfacing ROS and GAZEBO. Apart from this, the hardware interfaces, toolboxes, and controllers for con- trolling the joint actuators is provided by a set of packages called ros_control. The joints are interfaced with the controllers by the hardware interfaces relevant to them. The software control system which has been developed can be used to control the physical robot. The feedback to the control system is read from the encoders. The overview of the control system plugin for the simulated AGRIBOT is portrayed in Fig. 6.

When the ROS package containing the URDF file of AGRIBOT is launched, the sim- ulated model is opened in the virtual world of GAZEBO. The control interface is also loaded and then it waits for all the controllers to be loaded.

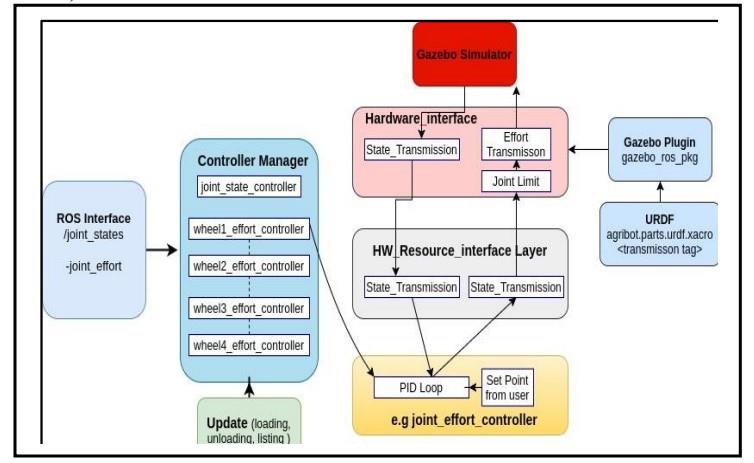

Fig. 6. Control system plugin for the simulated AGRIBOT
