An Ambient Light Sensor is used to measure the intensity of light in the surrounding environment. It adjusts brightness levels automatically and is commonly used in smart lighting, display brightness control, and energy-efficient systems.

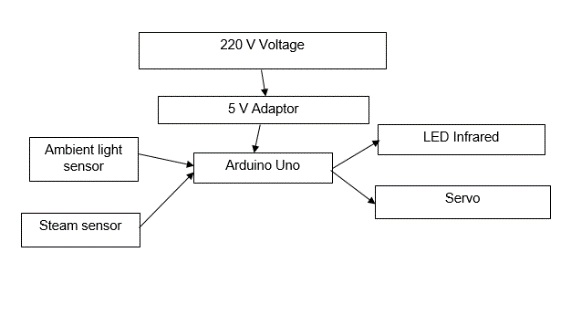

The Ambient Light Sensor works by detecting the amount of visible light in the environment and converting it into an electrical signal. The Arduino processes this signal to determine brightness levels and adjust outputs accordingly.

To connect the Ambient Light Sensor to Arduino, connect the VCC and GND pins to +5V and GND on the Arduino. The A0 pin is connected to an analog input pin for real-time light intensity measurement, while the D0 pin is connected to a digital input pin for threshold-based lighting control.

Interfacing an Ambient Light Sensor with Arduino enables real-time light monitoring and automation. These sensors are essential in smart lighting, energy-efficient applications, and adaptive display technologies. By integrating simple wiring and coding, you can enhance your projects with intelligent light control.

If you've ever been curious about how the screen light on your smartphone works, here's your chance to find out. The reason is the presence of an ambient light detector. Smartphones have a built-in light sensor that adjusts the screen and keypad brightness to match the surrounding lighting conditions. Vehicles also benefit from them since they automatically activate the headlights when it becomes dark. How do these ambient light sensors work? Let's find out in this article! In this tutorial, we will interface "BH1750 Ambient Light Sensor with Arduino."

The BH1750 sensor is being used in this circuit, but why? Because it provides a more precise reading of light intensity than light-dependent resistors. As a result, this sensor can be used in situations calling for extreme precision.

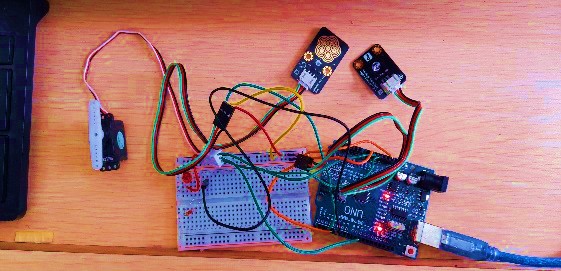

A couple of the components mentioned in the hardware section are all needed to build the circuits. When you have all the materials, proceed as follows:

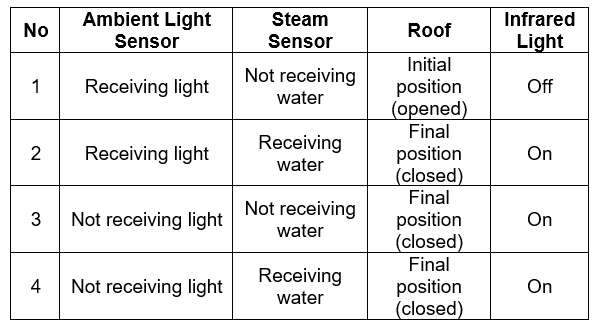

The circuit must now be put to the test. The above code may be uploaded to an Arduino board once the necessary libraries have been installed. The circuit will show a numerical value for the brightness of the light on the LCD.

To understand the working of the circuit, you need to understand the coding. So, let's explore the code:

The light is detected by a photodiode inside the sensor, generating an electric current whose strength is proportionate to the light's intensity.

In this project, we will build a Magnetic Field Visualizer using an analog Hall effect sensor, SSD1306 OLED display, and Arduino UNO. This s…

This simple yet powerful project uses a TCRT5000 IR Reflective Sensor and an SSD1306 OLED display to visualize distance or surface reflectiv…

In this interactive Arduino project, we simulate a bouncing green ball on a full-color ST7789 170x320 LCD screen, controlled entirely by the…

If you've ever wanted to turn motion into something visual, this simple yet fascinating Arduino project might be the perfect place to start…

This article offers a detailed guide on controlling ambient light sensors using Arduino, including hardware setup, software preparation, wiring diagrams, and sample code execution for effective sensor management and real-time LED control.

In this tutorial, we will learn how to interface BH1750 light sensor with Arduino Uno . Have you ever wondered how your mobile phone screen automatically adjusts its screen light? If yes, then your curiosity will end today. Because, in this tutorial, we will use one such sensor that is BH1750. We will display Lux value on 16×2 LCD .

BH1750 is a 16-bit digital ambient light sensor developed by Rohm Semiconductors which can accurately measure the light intensity over a wide range. This sensor has a breakout board that consists of BH1750 sensor along with a 16-bit analog to digital converter.

BH1750FVI is a digital ambient light sensor. It can be easily used for backlight adjustments of mobile phone keypads and LCDs. This figure shows the pin configuration layout of an ambient light sensor module.

The sensor communicates with other devices by the I2C interface and gives an output in LUX. Lux is the unit of light intensity. The sensor uses an I2C interface due to which you can easily interface it with microcontrollers. It provides an accurate value and high resolution. We can set its resolution up to 0.5 lx, 1 lx, and 4 lx. Light-dependent resistors also measure the intensity of light. They perform well only in simple applications like controlling an LED lamplight.

It contains a photodiode which senses the light and produce electricity which is proportional to the light intensity.

You don’t need to perform complex calculations and calibration it provides you directly digital output. The ambient light sensor on mobile phones changes the brightness of display or backlight of keypad based on the luminous intensity automatically. In vehicles, they help to turn headlights automatically on in dark.

There are many devices such as mobile phone etc. which uses these ambient light sensors for controlling display brightness, turning off and on lights and for many other functions. When it comes to complex applications like mobile phones, vehicle headlights then these resistors fail to provide an accurate result. In such applications, we use the BH1750 sensor. It can measure light intensity more accurately as compared to light-dependent resistors. So, you can use this sensor in applications where high accuracy and high resolutions are in demand.

This light sensor operates in two modes of operation namely, continuous mode and one-time measurement mode. In continuous mode, as it name suggests, sensor keeps measuring ambient light value endlessly. On the other hand, in one-time measurement mode, it takes light intensity measurement and shifts into power-down mode.

In programming section, we will show you how to select different modes of operation.

As we mentioned earlier, BH1750 ambient light sensor can be interfaced with Arduino through I2C bus pins such as SDA and SCL that are A4 and A5 pins of Arduino Uno. This schematic diagram shows the internal circuit of the breakout board:

To interface, this light sensor with Arduino, we use I2C pins of Arduino Uno. The figure shows the connections of the breakout board with Arduino. Make connections with BH1750 with Arduino according to this table:

You will also need a 16×2 LCD to display measured flux value. If you don’t know how to interface LCD with Arduino, you should read this post:

For LCD interface, we used D2-D7 pins of Arduino. Connect D2-D5 pins with lower data pins of LCD (D4-D7) and also D6-D7 pins with LCD RS and EN pins respectively.

We will use an Arduino library for the BH1750 light sensor. Go to this link and download the Arduino library. This library is provided by claws on Github. One of the major pros of using this library is that we do not have to worry about the internals of module and configuration settings.

After that add this library to the Arduino library folder. If you did not add a library to Arduino IDE before, you should watch this video:

After adding library, upload above code to Arduino board. You will see light intensity value on LCD like this:

As we mentioned eariler, this light sensor library can be configured in two modes. By default, craws library configure lux sensor in continouse measurement mode. But we can change the mode easily by using BH1750.begin() function.

By default, this routine does not require any argument, but we can pass arguments to this routine if we want to change sensor mode of operation. We can pass these arguments to the .begin() to select different modes:

This example code measures light sensor value by using one-time measurement mode.

You can also use this library to interface Arduino Nano, Arduino Leonardo, Arduino Mega, Due and esp8266 WiFi Module.
