ABSTRACT From its origin, the main objective of the OBD [On Board Diagnostics] standard has been the control of the gases emitted by the vehicles and its corresponding effects in the environment. This project implements a system based on the OBD-II protocol over a CAN [Controller Area Network] bus, which allows the visualization of variables in real-time and the performing of a diagnosis of the vehicle state showing the operating, failure, and energy consumption codes. The on board diagnosis systems allow to retrieve the stored failure codes together with a large number of variables –important for the diagnosis– such as speed, fuel level, and CO2 [Carbon Dioxide] emissions in real-time. We implemented an OBD- II system located at the end of the test vehicle (a bus) –which corresponds to the scanner or diagnosis unit– in an Arduino Mega 2560 development board connected to a CAN transceiver-controlled composed module. The scanner has a USB connection that eases the graphical visualization of data in a PC through an interface created in LabVIEW.

KEYWORDS OBD-II; CAN; Arduino; ECU.

Bus Con Arduino

RESUMEN Desde su surgimiento, el objetivo fundamental del estándar OBD [On Board Diagnostics] ha sido el control de los gases emitidos por los automóviles y de sus efectos en el medio ambiente. Este proyecto implementa un sistema basado en el protocolo OBD-II sobre un bus CAN [Controller Area Network], que permite visualizar variables en tiempo real y rea­ lizar un diagnóstico del estado del automóvil que muestra los códigos de funcionamiento, falla y rendimiento energético. Los sistemas de diagnóstico abordo permiten conocer los códigos de fallo almacenados y un gran número de variables de especial re­ levancia, como la velocidad, el nivel de combustible y el nivel de emisión de dióxido de carbono, en tiempo real. Se implementó un sistema OBD-II centrado en el extremo del bus, que corres­ ponde al escáner o unidad de diagnóstico, en una placa Arduino Mega 2560 conectada a un módulo compuesto transceiver-con­ troller CAN. El scanner posee una conexión USB que facilita visualizar los datos recuperados de forma versátil en una PC a través de una interfaz gráfica creada en LabVIEW™.

PALABRAS CLAVE OBD-II; CAN; Arduino; ECU.

Com Arduino

RESUMO Desde a sua criação, o objetivo fundamental do pa­ drão OBD [On Board Diagnóstics] tem sido o controle dos gases de escape em automóveis e seus efeitos sobre o meio ambiente.

Este projeto implementa um sistema baseado no protocolo OBD- II sobre um CAN [Controller Area Network] BUS, que permite visualizar variáveis em tempo real e realizar um diagnóstico do estado do automóvel que mostre os códigos de operação, falha e eficiência energética. Os sistemas de diagnóstico a bordo per­ mitem conhecer os códigos de falhas armazenadas e um grande número de variáveis de especial relevância, como a velocidade, o nível de combustível e o nível de emissões de dióxido de carbono, em tempo real. Foi implementado um sistema OBD-II centrado no extremo do BUS correspondente ao scanner ou unidade de diagnóstico, em uma placa Arduino Mega 2560 conectada a um módulo composto transceiver-controller CAN. O scanner possui uma conexão USB que facilita a visualização dos dados recupera­ dos de forma versátil em um PC através de uma interface gráfica criada no LabVIEW™.

PALAVRAS-CHAVE OBD-II; CAN; Arduino; ECU. Received / Recepción: Jan. 4, 2018 - Accepted / Aceptación: Feb. 2, 2018

32

http://www.icesi.edu.co/revistas/index.php/sistemas_telematica Rodríguez, A., Vento, J., & Inouye, R. (2018).

I. Introducción

The current Cuban scenario shows an accelerated ex­ pansion of the automotive sector associated to the in­ creasing in tourism (non-heavy vehicles) and the amount of trucking vehicles in the roads. In most of the cases, cars in these two divisions have advanced technological features, which include onboard intelligent systems, fai­ lure detection, and performance analysis systems inclu­ ding energetic efficiency and environmental effects.

These advances have allowed to simplify the vehicle repairing tasks, seeking to detect potential failures that might damage it, and to centralize the variables visuali­ zation in real-time; nowadays, these values can be read from the ECU [Electronic Control Unit] and there are several examples of commercial systems providing the ability to perform vehicle state diagnostics (xTool, 2017).

Some efforts have been developed in the last decade leve­ raging the applications research related with OBD-II [On Board Diagnostics II], implemented over a CAN bus embe­ dded into the onboard diagnostics systems in automobiles (Simbaña, Caiza, Chávez, & López, 2016; Rayo 2009).

The present project implements an onboard diagnostics system based on the OBD-II protocol over a CAN bus that will allow both the real-time variables visualization and the diagnostics performance for the vehicle state. Our proposal shows the stored trouble codes and it allows their deletion after solved. The management of this process if performed through a graphical interface developed in LabVIEW.

Ii. Obd-Ii Systems

The OBD-II system started to be mandatory in every new vehicle in the United States from 1996, looking for monitoring components that might affect the control sys­ tem of the gas emission and to measure real-time para­ meters such as temperature, pressure, and speed. When the OBD-II system detects a problem through its trans­ ductors, a warning light is turned on in the instrument panel, alerting the driver of the problem. Furthermore, it stores the information of the detected failures in the computer memory, which eases the technical personnel to find problems and correct them (Meseguer, 2013).

The Main Components Of The Obd-Ii System Are: The

ECU, also known as the vehicle computer; the transduc­ tors, which send the data towards the ECU; the MIL [Malfunction Indicator Lamp], located in the instrument

I. Introducción

El escenario cubano actual presenta un acelerado desarrollo del transporte automotor asociado al crecimiento del turismo y al manejo de cargas por carretera. En la mayoría de los ca­ sos, el parque disponible de vehículos en estas dos esferas es de avanzada tecnología, que incluye sistemas inteligentes abordo y sistemas de diagnóstico de fallas y análisis de funcionamiento, que incluyen eficiencia energética y efectos medioambientales.

Estos avances han permitido simplificar la reparación del au­ tomóvil, detectar fallos potenciales que pudieran dañarlo aún más y simplificar y centralizar la visualización de variables en tiempo real, que ahora pueden ser leídas directamente desde el ordenador central o Unidad de Control Electrónico [ECU, Electronic Control Unit].

En la actualidad son varios los ejemplos de sistemas comer­ ciales que brindan la posibilidad de realizar diagnósticos del estado del automóvil (xTool, 2017).

En la última década se han desarrollado varios esfuerzos en la investigación de aplicaciones relacionadas con OBD-II [On Board Diagnostics II] implementadas sobre un bus CAN incor­ porado a los sistemas de diagnosis de abordo en vehículos auto­ motrices (Simbaña, Caiza, Chávez, & López, 2016; Rayo 2009).

El presente proyecto implementa un sistema de diagnóstico abordo basado en el protocolo de diagnosis OBD-II sobre un CAN bus que permitirá, tanto visualizar variables en tiempo real, como realizar un diagnóstico del estado del automóvil , que mues­ tre los códigos de falla almacenados y permita borrarlos una vez reparados. La gestión de este proceso se realiza a través de una interfaz gráfica creada empleando el software LabVIEW™.

Ii. Sistemas Obd-Ii

El sistema OBD-II se comenzó a utilizar de forma obligatoria en los nuevos automóviles en los Estados Unidos de América desde 1996, con el objetivo de monitorear los componentes que afecten el sistema de control de las emisiones de gases contaminantes y medir parámetros en tiempo real, tales como: temperaturas, presiones y velocidades. Cuando el sistema OBD-II detecta algún problema a través de los transductores, se enciende una luz de advertencia en el tablero, que alerta al conductor de la falla existente. Además, guarda la información sobre las fallas detectadas en la memoria de la computadora del automóvil, lo que facilita al técnico automotriz encontrar los problemas para corregirlos posteriormente (Meseguer, 2013).

A. Componentes Del Sistema Obd

Los componentes del sistema OBD-II son: la ECU, conocida como la computadora del automóvil; los transductores, en­ cargados de enviar los datos hacia la ECU; la luz indicadora de fallas [MIL, Malfunction Indicator Light], ubicada en el tablero; y el conector de diagnóstico [DLC, Data Link Con­ nector], que sirve de interfaz entre la ECU y los dispositivos de diagnóstico automotriz.

Computadora Del Automóvil

La ECU es la computadora del automóvil y su función prin­ cipal es obtener y manejar los datos provenientes de todos los

33

panel; and the DLC [Data Link Connector], which is an interface between the ECU and the devices for diagnostics.

Computer In The Vehicle

The ECU is the computer in the vehicle and its main func­ tion is to collect and process data coming from all the engine transductors. It is a device generally located under the instru­ ment panel in the driving seat (Cervantes & Espinosa, 2010).

Transductors

These are the devices in charge of continuously monitor the engine operation (García, 2015). Data collected by the transductors include: the number of revolutions per mi­ nute [RPM], temperature of the cooling liquid, manifold absolute pressure, barometric pressure, admission air tem­ perature, position of the gas pedal, and speed.

In Table 1 We Present Some Engine Transductors

in charge of gathering the mentioned variables and

Ignition Point, And Other Necessary Parameters To

assess the current vehicle conditions (Zabler, 2002).

The Mil Is Used By The Obd-Ii System To Indicate

a problem in the engine, detected by the transduc­ tors. Its purpose is to alert the driver about the need to perform a maintenance for the vehicle.

Data Link Connector

It is a trapezoid-shaped interface with 16 pins ba­

Sed On The Sae J1962 Standard, Located Under The

instrument panel, generally in the driver side. Its function is to be an access and data collecting in­

Terface From The Ecu Towards A Diagnostics Equip­

ment (automotive scanner) (McCord, 2011). In Table 2, we show a brief description of each DLC pin.

B. Measuring Modes

The OBD-II system uses 9 measuring modes, each one of them allows the access to the ECU data in the vehicle (see Table 3). In order to request data, it is necessary to use PID [Parameter Identification] codes. Each PID is related with a specific measurement of the modes 1 and 2 of the OBD-II system. For instance, if the real-ti­ me datum of the vehicle speed is requested, the mode 1 should be chosen and the PID “0D” has to be used.

C. Ecu Communication With External Devices

Within the OBD-II system, the communication proto­ cols allow to establish a bidirectional communication to transductores del motor del automóvil. Es un dispositivo que se encuentra generalmente debajo del tablero en la parte del conductor (Cervantes & Espinosa, 2010).

Transductores Del Automóvil

Los transductores son los dispositivos encargados de moni­ torear de forma continua el funcionamiento y operación del motor del automóvil (García, 2015). Las medidas que pueden obtener los transductores del motor incluyen: el número de re­ voluciones por minuto, la temperatura del líquido refrigerante, la presión absoluta del colector de admisión, la presión baro­ métrica, la temperatura del aire de admisión, la posición del acelerador y la velocidad del automóvil.

En la Tabla 1 se presentan algunos transductores del motor del automóvil que permiten obtener las medidas menciona­ das y que hacen que la ECU pueda determinar la cantidad de combustible, el punto de ignición y otros parámetros necesa­ rios para evaluar las condiciones del automóvil (Zabler, 2002).

Luz Indicadora De Fallas

La MIL es utilizada por el sistema OBD-II y se enciende cuan­ do los transductores del motor detectan un problema en el automóvil, su propósito es alertar al conductor acerca de la necesidad de realizar un mantenimiento del mismo.

Data Link Conector

El DLC es una interfaz con forma trapezoidal de 16 pines ba­ sado en el estándar SAE J1962, que se ubica bajo el tablero, generalmente en el lado del conductor. Sirve como interfaz de acceso y recuperación de datos desde la ECU hacia un equipo de diagnóstico (escáner automotriz) (McCord, 2011). En la Ta­ bla 2 se muestra la descripción de los 16 pines de este conector.

B. Modos De Medición

El sistema OBD-II utiliza nueve modos de medición, cada uno de ellos permite el acceso a los datos de la ECU del automóvil (ver Tabla 3). Para solicitar datos de un au­ tomóvil es necesaria la utilización de códigos PID [Para­ meter Identification]. Cada PID está relacionado con una

Velocidad Del Automóvil

Table 1. Transductors of the vehicles / Transductores del motor del automóvil

34

http://www.icesi.edu.co/revistas/index.php/sistemas_telematica Rodríguez, A., Vento, J., & Inouye, R. (2018). share information between a diagnostics tool (automoti­ ve scanner) and the vehicle ECU.

Obd-Ii System Include The Sae J1850 Pwm (Pulse

width modulation at 41.6 kbps), SAE J1850 (variable pulse width at 10.4 – 41.6 kbps), ISO 9141-2 (asyn­

Chronous Serial Communication At 10.4 Kbaud), Iso

medida específica de los modos 1 y 2 del sistema OBD- II. Por ejemplo, si se desea solicitar el dato en tiempo real de la velocidad del automóvil, se debe ingresar al modo 1 y utilizar el PID 0D.

C. Comunicación de la ECU con dispositivos externos En el sistema OBD-II, los protocolos de comunicación permiten establecer comunicación e intercambiar mensaje de forma bidireccional, entre una herramienta de diagnós­ tico (escáner automotriz) y la ECU del automóvil.

Los protocolos de comunicación soportados por el sis­

Tema Obd-Ii Incluyen El Sae J1850 Pwm (Modulación

por ancho de pulso a 41.6 Kbps), el SAE J1850 VPW (an­ cho de pulso variable a 10.4 - 41.6 Kbps), el ISO 9141-2 (comunicación serial asincrónica a 10.4 Kbaud), el ISO 14230 KWP (comunicación serial asincrónica hasta 10.4 Kbaud), y el ISO 15765 CAN (250 - 500 Kbps).

Lución Implementada

Las herramientas de diagnóstico OBD-II son las encar­ gadas de gestionar el proceso de chequeo de desperfectos técnicos en los automóviles; forman parte de la evolución del sistema electrónico del vehículo con la incorporación de sistemas destinados a la mejora del rendimiento y a la comodi­ dad y seguridad de los usuarios.

En esta investigación se plantea la implementación de un scanner OBD-II sobre un bus CAN, en una plataforma Ardui­ no, y su monitoreo en una PC [Personal Computer] a través de LabVIEW™. La interfaz eléctrica encargada de manipular el

Voltaje De Batería

Table 2. Description of the DLC pins / Descripción de los pines del DLC

01

Collecting updated data: it allows the real-time access to the ECU inputs and outputs. Obtención de datos actualizados: permite el acceso en tiempo real a los valores de salidas y entradas de la ECU.

02

Access to frozen data frames: the ECU takes a sample of the values related with the emissions at the exact moment when a failure arises. Acceso a cuadro de datos congelados: la ECU toma una muestra de los valores relacionados con las emisiones en el momento exacto de ocurrir un fallo.

03

Gathering of the failure codes: it allows to extract all the DTC [Data Trouble Codes] stored in the ECU memory. Obtención de los códigos de falla: permite extraer de la memoria de la ECU todos los códigos de fallo [DTC, Data Trouble Code] almacenados.

04

Code erasing and failure in the stored values: it allows to delete all the stored codes in the ECU, including the DTC and the saved data frame. Borrado de códigos de falla y valores almacenados: permite borrar todos los códigos almacenados en la ECU, incluyendo los DTC y el cuadro de datos grabado.

05

Tests results in the oxygen transductors: it allows the access to the test results performed to the oxygen transductors. Resultado de las pruebas de los transductores de oxígeno: permite el acceso a los resultados de las pruebas realizadas a los

06

Tests results of other transductors: results of the diagnostics in components not submitted to constant surveillance Resultados de las pruebas de otros transductores: resultado del diagnóstico en componentes que no están sujetos a vigilancia constante.

07

Pending failure codes sampling: it allows to read all the pending DTC from the ECU memory. Muestra de códigos de falla pendientes: permite leer de la memoria de la ECU todos los DTC pendientes.

08

Components operating control: it permits the execution of tests in the actuators. Control de funcionamiento de componentes: permite realizar pruebas en los actuadores.

09

Vehicle information: it allows to request the VIN [Vehicle Identification Number] Información del automóvil: permite solicitar el número de identificación del automóvil [VIN, Vehicle Identification Number]. Table 3. Measuring modes supported by the OBD-II system / Modos de medición soportados por el Sistema OBD-II

14230 Kwp (Asynchronous Serial Communication Up

to 10.4 kbaud), and ISO 15765 CAN (250 – 500 kbps).

Implemented Solution

The OBD-II diagnostics tools are the ones in charge of ma­ naging the checking process of technical failures in automo­ biles; they are part of the evolution in the vehicle electronic system with the incorporation of systems destined to impro­ ve the performance, comfort, and safety of the end users.

In this research paper, we propose to implement an OBD- II scanner over a CAN bus and using the Arduino platform by monitoring in a PC through LabVIEW. The interface in charge of controlling the CAN bus is defined by the CAN shield (expansion board) for Arduino, which is manufactu­ red by Seed Studio. Figure 1 presents the developed system.

The general diagram of the developed system is divided in two parts: the data gathering stage (scanner) and the gra­ phical interface to visualize and monitor several parameters.

Additionally, we have a professional portable tool to read OBD-II codes as a way to check the results of our system. Besides, we have simulated an equivalent ECU

Or Car Computer –In Another Arduino Board–, Which

provides an approximate behavior to the reality.

A. Development Environments

Within the system design process, we used several develop­ ment environments: a high level one –it hosts the graphical interface and, at the same time, the processing of the data collected from the OBD-II scanner–, and the other envi­ ronment dedicated to program hardware elements, i.e., the Arduino platform acting as USB-CAN adapter.

The application in the high level was developed using

The Labview 2011 Software. We Employed The Ardui­

no IDE [Integrated Development Environment] version 1.8.2 to program the hardware.

Labview™ 2011

Its name represents the acronym for Laboratory Virtual Instrumentation Engineering Workbench. It is a plat­ bus CAN está definida por el shield (placa de expansión) CAN para Arduino, que pertenece a la factoría de Seeed Studio. En la Figura 1 se describe el sistema desarrollado.

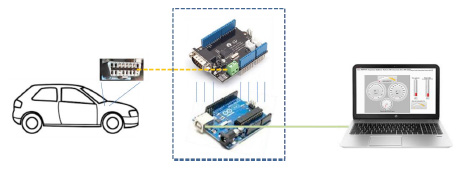

El diagrama general del sistema diseñado, como se apre­ cia, está dividido en dos, la etapa de adquisición de datos (scanner) y la interfaz gráfica para la visualización y moni­ toreo de parámetros.

Adicionalmente, se cuenta con una herramienta portátil pro­ fesional de lectura de códigos OBD-II, como vía de compro­ bación de los resultados de la puesta en práctica del sistema.

Además, se ha simulado, en otra plataforma Arduino, un mó­ dulo equivalente a la computadora del auto, el cual provee un comportamiento aproximado a la realidad.

A. Entornos De Desarrollo

En el proceso de diseño del sistema se usan varios entornos de desarrollo diferentes: uno de alto nivel, en el cual se im­ plementa la interfaz gráfica y, al mismo tiempo, la parte de procesamiento de los datos adquiridos a través del scanner OBD-II; otro, destinado a la programación de los elementos de hardware, en este caso la plataforma Arduino que actúa como adaptador USB-CAN.

La aplicación en alto nivel se desarrolló empleando el sof­ tware LabVIEW™ 2011. Para la programación del hard­ ware se empleó el entorno de desarrollo integrado o IDE de Arduino en versión 1.8.2.

Labview™ 2011

Su nombre representa el acrónimo de Banco de pruebas de Laboratorio para Ingeniería de Instrumentación Virtual [La­ boratory Virtual Instrumentation Engineering Workbench]. Es una plataforma y entorno de desarrollo para diseñar sistemas, con un lenguaje de programación visual gráfico.

Se recomienda para sistemas hardware y software de pruebas, con­ trol y diseño, simulado o real y embebido, pues acelera la producti­ vidad. Usa lenguaje G, donde la G indica que es lenguaje gráfico.

Ide De Arduino V1.8.2

Arduino necesita de un programa externo, ejecutado en otro or­ denador, para poder escribir programas para la placa. Este sof­ tware es lo que llamamos Arduino IDE [Integrated Development Environment] o Entorno de Desarrollo Integrado en español.

Arduino IDE es muy sencillo y está basado en Processing, un lenguaje de programación y entorno de desarrollo integrado de código abierto, basado en Java, que sirve como medio para la enseñanza y producción de proyectos multimedia e interac­ tivos de diseño digital.

Para usarlo el procedimiento es el siguiente: se escribe un programa en el IDE y se carga en el Arduino; el programa se ejecutará automáticamente en la placa.

La estructura básica del lenguaje de programación de Ardui­ no es bastante simple y se compone de al menos dos partes o funciones (setup y loop), que encierran bloques que contienen declaraciones, estamentos o instrucciones.

La función setup se encarga de recoger la configuración, es la primera función ejecutada dentro del programa y se ejecuta una única vez. Se utiliza, principalmente, para inicializar los

36

http://www.icesi.edu.co/revistas/index.php/sistemas_telematica Rodríguez, A., Vento, J., & Inouye, R. (2018). form and environment to design systems with a graphi­ cal programming language; it is recommended for hard­ ware and software testing and its corresponding control and design with real or embedded simulation, since it can speed up the productivity. It uses G language, where the G stands for using a graphical language.

Arduino V1.8.2 Ide

Arduino needs an external software –executed in a PC– to write programs in the development board. This sof­ tware is commonly called Arduino IDE; it is relatively simple and it is based on Processing. This latter is an

Open Source Programming Language And Ide Based In

Java; generally used as a medium to teach multimedia and interactive digital design projects. In order to use the Arduino IDE, the following pro­ cedure is required: a program is coded in the IDE and it is loaded into the Arduino board. The program will execute immediately within it.

The basic structure of the Arduino programming lan­ guage is simple and it is composed of at least two parts or functions (“setup” and “loop”), entailing code blocks that contain declarations, statements, or instructions.

The “setup” function is in charge of collecting the configuration, it is the first function running in the pro­ gram and it is executed only once. It is mainly used to initialize the operating modes in the input/output [I/O] pins and to configure the serial communication; althou­ gh it has many other additional utilities.

The “loop” function has the code to be continuous­ ly executed (input reading outputs triggering, etc.). This function is the core of all Arduino program and it is the one performing most of the load.

Arduino Uno R3 Board

Arduino UNO is the electronic board based on the AT­ mega328P microprocessor. It has 14 digital pins for input/ output (6 of them with PWM features), 6 analog entries, a 16 MHz quartz crystal, a USB connection, a DC power outlet, a ICSP header, and a restart button (see Figure 2). The “UNO” name (“one” in Spanish and Italian) was chosen to commemorate the launch of the Arduino IDE 1.0. UNO is the first in a series of Arduino USB boards and the reference model for the platform.

We chose this board because the electric interface to control the CAN bus (previously described) is designed for total compatibility with Arduino UNO, i.e., it has the same dimensions of the board such as the pinout of the modos de trabajo de los pines E/S y para configurar la co­ municación serie, aunque tiene muchas utilidades adicionales.

La función loop, también conocida como función bucle, contiene el código que se ejecutará continuamente (lectura de entradas, ac­ tivación de salidas, etc.). Esta función forma el núcleo de todos los programas de Arduino y es la que realiza la mayor parte del trabajo.

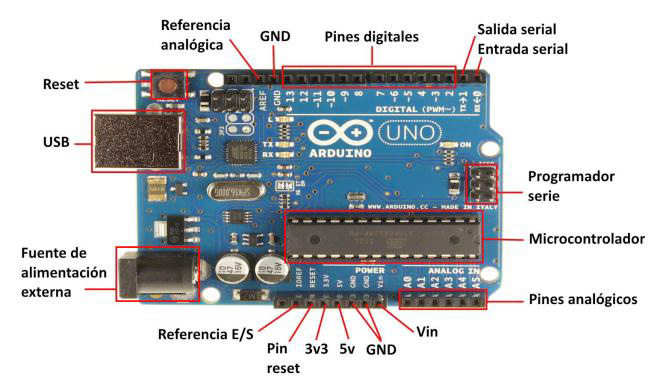

Placa Arduino Uno R3

Arduino UNO es una placa electrónica basada en el ATme­ ga328P. Cuenta con catorce pines digitales de entrada/salida (de los cuales seis se pueden utilizar como salidas PWM), seis entradas analógicas, un cristal de cuarzo de 16 MHz, una co­ nexión USB, un conector de alimentación, una cabecera ICSP y un botón de reinicio (véase la Figura 2). El nombre “UNO” fue elegido para conmemorar el lanzamiento del entorno de programación integrado Arduino (IDE) 1.0. UNO es el prime­ ro de una serie de placas Arduino USB y el modelo de referen­ La selección de esta es que la interfaz eléctrica empleada para controlar el bus CAN (descrita posteriormente) está diseñada para una total compatibilidad con Arduino UNO, o sea, po­ see las mismas dimensiones de la placa, así como el pinout del controlador CAN para la comunicación vía SPI con la misma, descrita en la librería que la acompaña.

Seeed Can Bus Shield Para Arduino

CAN es uno de los protocolos de comunicación bus más usa­ dos debido a su largo alcance, su velocidad de comunicación y su alta fiabilidad. Se encuentra comúnmente en máquinas de control y en el bus de diagnóstico automotriz. La placa CAN bus Shield dota de conectividad CAN a la placa Arduino, para ello cuenta con el controlador CAN MCP2515, con interfaz SPI, encargado del preprocesamiento de los mensajes CAN, y con un transceiver CAN MCP2551, que maneja la interfaz eléctrica del bus. Sus principales características son: • implementa CAN 2.0B a velocidades de hasta 1 Mbps;

• Cuenta Con Una Interfaz Spi De Hasta 10 Mhz;

• soporta tramas estándar (11 bits), extendidas (29 bits) y

Tramas Remotas;

• cuenta con dos buffers de recepción, para el almacena­ miento de mensajes con prioridad, un conector indus­ trial estándar de 9 pines sub-D y dos indicadores LED; • su voltaje de operación es de 5V, sus dimensiones 68x53 mm, y su peso 50 g.
