Measuring carbon dioxide (CO2) in the air can be very useful in monitoring indoor air quality, as well as levels of pollution in the atmosphere.

CO2 is produced indoors when people breathe, and in an enclosed space the levels can often rise above 1000ppm and make you feel drowsy, sleepy or even lead to headaches .

You can use a CO2 sensor to monitor the carbon dioxide in the air, and provide warning signals that can help you to improve air quality.

You can also utilise CO2 sensors in horticultural applications and they can be very useful to create the correct growing conditions in mushroom cultivation .

In this article, we will use a CO2 sensor from DFrobot to monitor the ambient CO2 levels.

You also have the option to trigger an alarm using a digital pin available on the CO2 sensor.

In the later section, we will cover the connection diagrams followed by the required Arduino code.

At the end of the article, you will find a collection of the most frequently asked questions on the DFrobot CO2 sensors with answers.

Makerguides.com is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to products on Amazon.com.

In this section, we will understand the features, specifications, and connection options available on the CO2 sensor.

You also have an alternate option to simply detect whether the Co2 levels are above the preset limit.

In this section, we will build a project using Arduino UNO and the Carbon dioxide sensor.

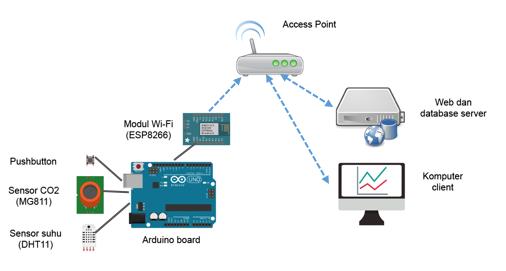

Below is the step-by-step guide to complete the minimal connections needed to connect the Arduino and CO2 Sensor.

Connect the Analog Output of the sensor to the A0 pin of the Arduino UNO. You can choose to use any of the analog pins available.

Please ensure the analog pin used for the connection is the same as the one used in the Arduino UNO code.

Arduino Board has six analog inputs. You can connect up to six CO2 sensors in parallel.

In the next sections, we will walk through the Arduino code required to test the connections!

In this section, we will walk through the example Arduino code to verify the CO2 sensor module.

You have to mention the analog pin planned to use for the connections here. In our case, it is pin A0.

Update the lin below with the value you came up with to complete the calibration.

I have included a list of the most frequently asked questions about projects built using Arduino and the CO2 sensor.

The CO2 sensor is an electrochemical sensor that you can calibrate easily. It would help if you calibrated the sensor before you read the measurements.

You have to measure the zero-point voltage for your board and update the line below in the Arduino sketch.

The CO2 sensor discussed in the article is a good option for most applications. To evaluate the best sensor, you should first list the requirements.

Some sensors have longer calibration times, some won’t work at 3.3 V, and others need precise external references.

Sensors prices will also vary significantly based on the features and the operating environment they are expected to function.

The CO2 levels in the atmosphere are very low. The oxygen, for example, is about 21%.

A 0.04% concentration is referred to as 400 PPM. PPM stands for parts per million.

The CO2 sensors, whose specifications are between 2000 PPM and 10000 PPM, are better suited for indoor air quality monitoring in closed areas such as party halls, schools, and offices.

The sensors used will have a good resolution. The typical open-air CO2 concentration is about 440 PPM.

In this article, we covered the basics of the CO2 sensor from DFRobot, which is abed on the MG-811 gas sensor.

We covered the connection details, calibration mechanisms, and the example Arduino code to test the connections.

I have used CO2 sensors in my project where I monitor the living room air quality and display it using LED color indication.

By monitoring the CO2 levels and regulating them, we can improve air quality for ourselves and the people around us.

If you have any feedback to improve the article, please share them in the comments section.

I am Puneeth. I love tinkering with open-source projects, Arduino, ESP32, Pi and more. I have worked with many different Arduino boards and currently I am exploring, Arduino powered LoRa, Power line communication and IoT.

Hi, I wpold like to measure co2 levels in a chimney, would this be possible with arduino. Thank You in advance Regards Gino

In theory this should be possible. But you will need to make sure that the sensor doesn't get too hot and has a range suitable for the co2 levels in a chimney. I never tried that, however, and I am not familiar with suitable sensors for this application.

When many people stay in a closed room, the CO2 level goes up. High CO2 makes us tired and slow to think. With an SCD40 and an Arduino Uno, we can see this number and know when it is time to open a window.

The SCD40 is a small CO2 sensor made by Sensirion. It measures the real amount of carbon dioxide in the air. This is different from cheap gas sensors like the MQ series (see Arduino - Gas Sensor ), which only estimate air quality. How does it work? Inside the sensor, a tiny infrared light blinks. CO2 gas absorbs this light and makes a very small pressure wave, like a sound. A tiny microphone hears it. The more CO2 there is, the louder the sound. This method is called photoacoustic NDIR.

Most SCD40 modules already have pull-up resistors for the I2C lines, so we do not need to add any.

The below code prints the CO2 level and a simple word for the air quality: Good, Moderate or Poor.

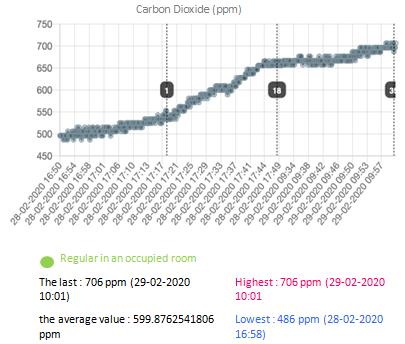

The jump to 1362 ppm happens when we breathe on the sensor. After a short time, the value goes back down.

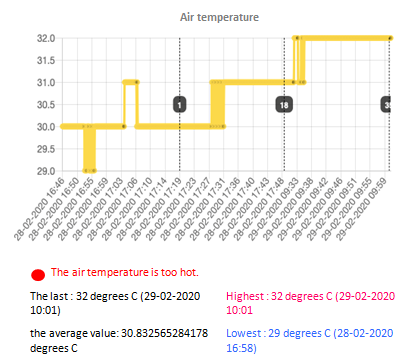

The SCD40 also has a built-in temperature and humidity sensor. It uses them to correct the CO2 value, but we can read them too. They come from the same readMeasurement() call, so we do not need any extra wiring or library. The code below prints all three values.

The SCD40 is not made to be a high-accuracy thermometer. If you only need temperature and humidity, the Arduino - DHT22 tutorial is a simpler choice.

Build a reliable Arduino CO2 sensor using the Sensirion SCD41. Includes exact I2C wiring, compilable code, and debugging for common transfer errors.

If you are building an indoor air quality (IAQ) monitor in 2026, the Sensirion SCD41 is the definitive Arduino CO2 sensor to use. Unlike older, bulky NDIR (Non-Dispersive Infrared) modules that drift heavily and consume hundreds of milliamps, the SCD41 uses a photoacoustic sensing principle. It measures just 10.1 x 10.1 x 6.5 mm, draws an average of 45 mA, and delivers an accuracy of ±(40 ppm + 5%) without needing a massive optical bench inside your enclosure.

This guide walks through wiring the SCD41 to a 3.3V microcontroller, provides production-ready I2C code with error handling, and breaks down the exact debugging steps for the most common I2C transfer failures.

Before wiring anything, it is critical to understand why the SCD41 has largely replaced older modules on the workbench. The Winsen MH-Z19B was the hobbyist standard for years, but its UART interface and heavy baseline drift make it a headache for long-term logging. The SCD30 was a great bridge, but its 35mm height makes it impractical for sleek, modern enclosures.

The SCD41 operates strictly at 3.3V logic . Feeding 5V I2C lines from a classic Arduino Uno R3 into the SCD41 will degrade the sensor's internal voltage regulator and eventually brick the IC. Therefore, this build targets the Arduino Nano 33 IoT (ABX00027) , which features a native 3.3V SAMD21 Cortex-M0+ processor and excellent I2C stability.

The code below uses the official SensirionI2CScd4x library. Install it via the Arduino Library Manager before compiling. This script explicitly defines pins, handles the mandatory 5-second startup delay, and includes robust error string parsing so you aren't left staring at blind hex codes on the serial monitor.

When working with Sensirion modules, the most common point of failure occurs during the initial I2C handshake or when attempting to change sensor configurations while it is actively sampling.

Do not panic. The Sensirion library maps I2C bus failures to uint16_t integers. The value 32768 is 0x8000 in hex, which is the library's generic flag for an I2C NACK (No Acknowledge) . The microcontroller sent a clock pulse, but the SCD41 did not pull the SDA line low to respond.

Once you have verified the I2C data stream on the serial monitor, you will likely want to adapt the hardware for a specific deployment environment.

If you want to log IAQ data to Home Assistant, swap the Nano 33 IoT for an ESP32-S3 DevKitC-1 . The ESP32 is also native 3.3V. Replace the serial print statements in the loop() with the PubSubClient library to publish the co2 , temperature , and humidity variables as a JSON payload to an MQTT broker (like Mosquitto) every 5 seconds. Ensure you implement a WiFi reconnection watchdog, as the ESP32's radio spikes can cause brief brownouts if your 3.3V regulator cannot supply at least 500mA.

1. Executive Abstract and Engineering Problem Formulation for Arduino Co2 Sensor

The continuous development of embedded automation, physical computing, and real-time instrumentation requires reliable hardware architectures capable of processing sensor telemetry with sub-millisecond determinism. The development of Arduino Co2 Sensor addresses manual operational bottlenecks by pairing analog/digital sensory acquisition with low-overhead firmware execution on the ATmega328P Microcontroller (Arduino Uno / Nano). Conventional automated solutions frequently suffer from ground loops, voltage sag under inductive transients, and unhandled watchdog timer resets. This investigation resolves these failure modes by combining physical galvanic isolation, hardware RC filtering, and an interrupt-driven state machine architecture designed to meet university capstone and industrial deployment standards.

2. Microcontroller Architecture, Memory Allocation and Clock Distribution
