An Arduino-based collision detection warning system can use an HC-SR04 ultrasonic sensor to measure the distance to an object, then control LEDs and a buzzer as that object approaches. It is an inexpensive and useful project for a model car, parking demonstrator, robot, or educational prototype—but it is not a certified automotive collision-avoidance or autonomous-braking system.

This guide covers the circuit, wiring, Arduino code, threshold design, testing, common faults, and the limitations that matter if you are considering adapting the project to a real vehicle.

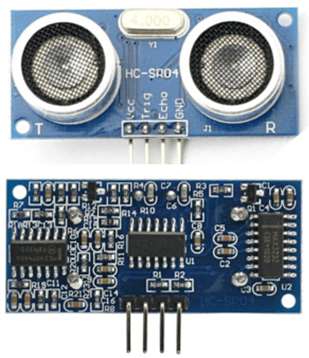

The HC-SR04 uses separate VCC, ground, trigger, and echo connections. Adafruit specifies a 5 V supply, approximately 15 mA measurement current, a 15-degree measuring angle, and a trigger signal of about 10 microseconds. Its nominal operating range is approximately 2–400 cm, although real-world performance depends on the target, mounting, environment, and wiring.

The result is better described as a short-range proximity warning prototype . A single ultrasonic sensor cannot determine whether an object is a vehicle, pedestrian, bicycle, or harmless background surface, and it cannot establish that a gap is safe to enter.

It should not replace certified parking sensors, advanced driver-assistance systems, industrial safety scanners, emergency-stop equipment, or a driver’s attention. If the system controls braking, steering, throttle, or another safety-critical function, it requires substantially more capable sensors, fault handling, validation, vehicle integration, and compliance engineering.

The official Arduino UNO R4 Minima is a practical board choice. It operates at 5 V and provides 14 digital I/O pins, six analog inputs, 256 kB of flash, 32 kB of RAM, and a 48 MHz Arm Cortex-M4-based microcontroller.

Do not assume that every Arduino-compatible board accepts 5 V signals. The HC-SR04 is a 5 V module. A 3.3 V board may need level shifting or a sensor designed for 3.3 V logic.

For each LED, connect the Arduino pin to the resistor, the resistor to the LED anode, and the LED cathode to ground. Connect the positive buzzer lead to D11 and the negative lead to ground.

Use a driver circuit rather than an Arduino I/O pin when operating a high-current lamp, relay, motor, automotive buzzer, or other substantial load. Vehicle power also requires a protected converter and consideration of reverse polarity, voltage transients, vibration, moisture, and electromagnetic interference.

The division by two is essential because the echo time includes both the outward and return journeys. Sound speed changes with temperature, humidity, and air conditions. Soft, angled, narrow, or irregular objects can also produce weak or misleading echoes.

This example uses a measurement timeout, an explicit no-reading state, mutually exclusive LEDs, and nonblocking buzzer timing. The demonstration thresholds are 50 cm for caution and 15 cm for danger; they are not universal automotive safety values.

The sketch treats a timed-out echo as a fault rather than as zero distance. That distinction matters: interpreting a failed measurement as “safe” can conceal a sensor or wiring failure, while interpreting every failure as “danger” may create a nuisance alarm. This version makes the fault visible by turning off the warning LEDs and silencing the buzzer; a finished design could add a separate fault LED or display message.

At more than 50 cm, the green LED should be on. From 15–50 cm, the yellow LED should be on with an intermittent tone. At 15 cm or less, the red LED should be on with a continuous tone. A missing echo should print “No valid echo” rather than appear as a normal distance.

Test at approximately 10, 15, 30, 50, and 100 cm. Then repeat with a soft cloth, angled surface, narrow pole, dark object, large flat board, moving object, and multiple nearby objects. These tests demonstrate that the strongest usable echo is not necessarily the object the user cares about.

Disconnect or obstruct the sensor and verify that the program does not treat the failure as zero distance, leave the buzzer permanently active, or silently report a safe state.

A moving robot or vehicle needs a different approach. The meaningful question is not simply whether an object is 30 cm away, but whether there is enough distance to detect it, alert the operator, react, and stop. A simplified model is:

Reaction distance depends on speed and human or software response time. Braking distance depends on mass, traction, slope, brakes, and control authority. Sensor and software latency, filtering, and measurement uncertainty require additional margin. A fixed tutorial threshold is not a substitute for that analysis.

Raw ultrasonic readings can jump around a threshold. A better warning system can:

Filtering should not conceal a rapidly approaching object. More smoothing reduces nuisance changes but adds delay, so the filter must be evaluated together with the platform’s speed and stopping response.

Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.

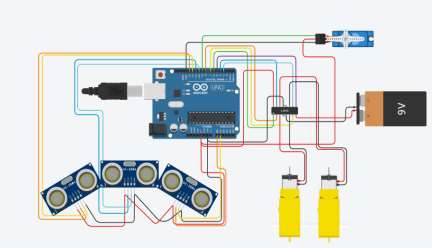

A single forward-facing HC-SR04 covers only a narrow cone. Multiple sensors can be placed at the front, rear, or sides, but adjacent ultrasonic modules should not transmit at the same time. Schedule them sequentially and allow echoes to decay before triggering the next sensor, otherwise one module may interpret another module’s burst as its own echo.

Arduino has documented a DIY vehicle-assistance concept using six HC-SR04 sensors—two on each side, one at the front, and one at the rear—with turn-signal input for blind-spot warnings. That is a useful example of prototype architecture, not evidence that an Arduino and exposed ultrasonic modules provide a roadworthy blind-spot safety system.

For a real vehicle, use a professionally designed parking or driver-assistance system unless you have the expertise and equipment to engineer, validate, and protect the complete installation.

The system may fail to detect soft or absorbent materials, narrow objects, angled surfaces, targets outside the beam, very close targets, or objects hidden by another surface. Electrical noise, obstruction, sensor interference, and missing timeout handling can also produce invalid results.

Side walls, floors, ceilings, nearby structures, multiple objects, mechanical vibration, and cross-talk can return echoes that do not represent the intended obstacle.

The HC-SR04 does not reliably provide object identity, lane position, object classification, safe-gap judgment, or dependable object velocity from one measurement. It supplies approximate range to a reflecting target under particular conditions.

This Arduino project is an excellent low-cost way to learn how distance sensing and warning logic work. An Uno-class board and HC-SR04 are reasonable choices for an indoor, low-speed prototype, model vehicle, robot, or parking demonstrator.

They are not a substitute for automotive ADAS, certified parking equipment, autonomous braking, an emergency-stop system, or a trained driver’s attention. Do not test an experimental warning system in traffic, around people, or near moving machinery without appropriate safeguards.
