This is a report of the drone and my project that I had to submit at the end of the workshop. You can scroll down to the part where I explain the gimbal stuff and ignore the codes I have added (they definitely don't work).

A 3D printed Do-It-Yourself (DIY) gimbal -- fitted with 3 FS90 Micro servo motors -- is controlled using an MPU6050 inertial measurement unit (IMU) sensor to keep the 3D printed platform stable during rotation in any axis. The servo motors and the IMU sensor are connected to the Arduino Nano microcontroller.

Veroboard to solder on female headers (for the arduino nano and MPU6050) and male headers for the servo cables

The diagram below shows how the electronic components of the gimbal were connected.

The 9V battery provides the power for the project and is connected to a buck/voltage regulator which steps down the voltage to 5V for the Arduino Nano. A switch is connected inline with the regulator and battery to open or close the circuit.

The pair of analog pins, A4 and A5, on the Nano are usually used for I2C communications according to the board pinout . Hence, pins A4 and A5 are connected to SDA and SCL on the MPU6050 board respectively. The external interrupt pin of the MPU6050 is connected to the D2 digital pin.

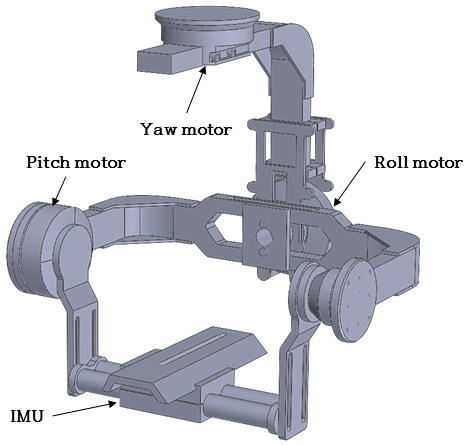

The physical parts of the gimbal: the platform, servo housings and the main body were 3D printed. The STL files used to 3D print the project parts can be found here from Make It Smart and are also provided in the project repository.

The Nano and MPU6050 boards were attached to a breadboard using female headers. The servo motors were connected to the Nano via male headers soldered onto the breadboard (to the left of the Nano in the image below). The signal, ground and vcc connections were soldered underneath the breadboard to the corresponding pins on the Nano.

An extra column of headers was attached for debugging power and ground connections.

The black and red wires shown are connected to the ground and the voltage output from the buck regulator. The idea behind this connection and assembly is again attributed to Make It Smart . The servos are attached to the servo housings with screws, the double sided tape is used to attach the breadboard securely in the gimbal body and to insulate connections from possible short circuits.

The Arduino IDE was used in programming this project. The i2cdevlib and MPU6050 libraries by Jeff Rowberg were the main libraries utilized in this project. These libraries can be installed by importing them into the Arduino IDE as explained in the README of the repository; this guide can also be instructional for the installation process.

The MPU6050 board, shown below, is a Micro Electro-Mechanical System (MEMS) which consists of a 3-axis gyroscope -- to measure angular velocity -- and a 3-axis accelerometer, to measure acceleration. The board is also called an Inertial Measurement Unit (IMU) which provides a 6-degree of freedom system for motion tracking and measures velocity, orientation, acceleration, displacement and other motion related parameters.

The I2C protocol is used to interface the MPU6050 module with the Arduino Nano. Jeff Rowberg's library employs the Arduino Wire library used to enable communication between I2C devices.

As stated earlier, the MPU6050 board is employed to balance the gimbal platform, how this works will elaborated on in a subsequent subsection.

Before delving further into the project, it's essential to gain some understanding of the fundamentals of rotations in 3D space.

Typically, coordinate frames are used in representing 3D orientation and rotations of an object. This is necessary so that the object has a reference in the real world (in relation to itself) to locate itself, avoid obstacles and more. In a simplified instance, there is a coordinate frame on the object (consider the yellow ball in the figure below), usually known as the body-fixed frame, B , and a reference frame commonly known as the world/earth-fixed frame, W . With two coordinate frames, parameters that are measured or observed in the world-fixed frame can be related in the body-fixed frame and vice versa.

For brevity, only the three-angle representation and quaternions will be considered here.

As the name implies, in this method, the orientation and rotation of an object in 3D space is represented using three angles namely: 𝜃 (for rotation around the z-axis), 𝜙 (for rotation around the y-axis), and 𝜓 (for rotation around the x-axis). These angles are known as Euler angles with the direction of the axes determined by the right-hand rule convention .

Rotations using the three-angle representation method can be carried out in two ways:

In the Euler rotation sequence, rotation occurs about two axes but no successive rotation about the same axis: XYX , YXY , YZY , ZYZ , XZX , and ZXZ .

However, in the Cardan rotation sequence, rotation occurs about all three axes: XYZ , XZY , YXZ , YZX , ZYX , ZXY . Sometimes Cardan rotation sequences are considered as a more specific case of Euler rotation sequences -- effectively categorizing all sequences as Euler rotation sequences. Another point to note is that the rotation sequences are non-commutative, meaning sequence XYZ ≠ ZYX .

In the above rotation sequence, the first rotation of angle, 𝜓, is about the z-axis , the second rotation of angle, 𝜃, is about the y ' ' ' - axis with the final rotation of angle, 𝜙, about the x ' ' -axis . This sequence is implemented with the use of rotation matrices. Each rotation in the sequence is expressed as a rotation matrix and the matrix multiplication of the three rotation matrices results in the new orientation, x ' ' ' y ' ' ' z ' ' ' .

The rotation sequence is ZYX as shown by the matrix multiplication of the matrices R z with angle 𝛼 (yaw), R y , with angle 𝛽 (pitch), and R x with angle 𝛾 (roll). R is the product of the rotation matrices.

The three-angle representation is a consequence of the Euler's rotation theorem which states:

Any two independent orthonormal coordinate frames can be a sequence of rotations(not more than three) about coordinate axes, where no two successive rotations may be about the same axis.

Representing 3D rotations in this format is natural and intuitive, however, this format runs into the problem of gimbal lock where one degree of freedom is lost because two of the three coordinate axes are parallely aligned at certain points. Considering a rotation sequence of ZYX , rotating the y-axis by ±90 degrees (or any multiples of 90) will cause the outer axes of the sequence, z-axis and x-axis, to be aligned and rotation about these axes will have the same effect; eseentially, rotations about these axes are indistinguisable. This problem can be viewed graphically and proven mathematically as well. Gimbal lock is avoided by making use of quaternions.

Quaternions are another way of representing 3D rotations and orientation and are a 4-dimensional extension of the complex numbers as shown:

where s , v 1 , v 2 , and v 3 are real numbers and i , j and k are unit vectors. There are different notations for the real numbers depending on the application, programming language or literature in use. Some of these notations are as follows,

To represent rotations and orientations in three dimensions, unit quaternions are used. They're of the form,

Where v is a unit vector that defines an axis of rotation and 𝜃 is the amount of rotation about this axis. Unit quaternions have a magnitude have a magnitude of 1,

Unit quaternions can be represented visually as shown below courtesy of Martin White which is juxtaposed with the Yaw, Pitch and Roll angles. In the image, the red arrow is the unit vector given as sines and the grey arrow is the rotation about the vector.

Suppose there exists a point p in 3D space ( x, y, z ) to be rotated about a unit vector axis of rotation, v , with an angle, 𝜃. Rotation is carried about by the quaternion multiplication,

Where q -1 is the inverse of the unit quaternion q and p is expressed in quaternion format as [0, ( x, y, z )]. This quaternion multiplication is also applicable to rotation between coordinate frames.

Quaternions can be complicated to understand compared to the more intuitive three-angle representation previously discussed and only the basics have been considered here but for more information on fundamentals of quaternions, derivations of quaternion properties and visual representation the references , here , here and here are great places to start.

Despite the relative steep learning curve, quaternions are simpler to compose, more numerically stable and more efficient than other methods of 3D representation. They're utilized in computer graphics, computer vision, robotics, navigation, flight dynamics, orbital mechanics of satellites and more.
