This version of the article has been published in the Journal of Flood Risk Management Robust blue-green urban flood risk management optimised with a genetic algorithm for multiple rainstorm return periods Asid Ur Rehman 1*, Vassilis Glenis 1, Elizabeth Lewis 2, Chris Kilsby 1, Claire Walsh 1

Abstract

Flood risk managers seek to optimise Blue-Green Infrastructure (BGI) designs to maximise return on investment. Current systems often use optimisation algorithms and detailed flood models to maximise benefit-cost ratios for single rainstorm return periods. However, the BGI scheme optimised for one return period (e.g., 100 years) may differ significantly from those optimised for others (e.g., 10 or 20 years).

This study aims to assess the effectiveness of single return period-based BGI design across multiple storm magnitudes and introduces a novel multi-objective optimisation framework that simultaneously incorporates five return periods (T = 10, 20, 30, 50, and 100 years). The framework combines a Non- dominated Sorting Genetic Algorithm II (NSGA-II) with a fully distributed hydrodynamic model to optimise the spatial placement and combined size of BGI features. For the first time, direct damage cost (DDC) and expected annual damage (EAD), calculated for various building types, are used as risk objective functions, transforming a many-objective problem into a multi-objective one. Performance metrics such as Median and Maximum Risk Difference (MedRD, MaxRD) between reference and trial Pareto fronts, capturing characteristic single values from the distribution of risk differences, and the Area Under Pareto Front (AUPF), indicating overall optimisation quality, reveal that a 100-year optimised BGI design performs poorly when evaluated for other return periods, particularly shorter ones. In contrast, a BGI design optimised using composite return periods enhances performance metrics across all return

2

periods, with the greatest improvements observed in MedRD (22%) and AUPF (73%) for the 20-year return period, and MaxRD (23%) for the 50-year return period. Furthermore, climate uplift stress testing confirms the robustness of the proposed design to future rainfall extremes. This study advocates a paradigm shift in flood risk management, moving from single maximum to multiple rainstorms-based optimised designs to enhance resilience and adaptability to future climate extremes.

Keywords

multi-objective optimisation; genetic algorithm; blue-green infrastructure; multiple return periods; robust

Introduction

Flooding, a prevalent global natural disaster, exposes 1.47 billion people to 1-in-100-year risk, with annual losses rising from $6 billion in 2005 to an expected $60 billion by 2050 (Salhab & Rentschler, 2020). As urbanisation expands (Miller & Hutchins, 2017; Rentschler et al., 2023) and climate change intensifies, flood events are becoming more frequent and severe (Kendon et al., 2023; Robinson et al., 2021). Traditional urban flood risk management (FRM) approaches, primarily relying on subsurface drainage and designed by historical rainfall data, often struggle to handle extreme and varying rainfall patterns, leaving cities at unprecedented risk (Salinas-Rodriguez et al., 2018). This escalating risk to cities highlights the need for innovative and robust FRM designs to tackle the adverse impact of rainstorm events of varying intensities.

Grey Infrastructure (GI), such as drainage systems and concrete barriers, manages runoff but often fails during severe rainstorms due to limited capacity (D’Ambrosio et al., 2022; Salinas-Rodriguez et al., 2018). Expanding GI can increase capacity, but it is costly, unsustainable, impractical in dense urban areas, and potentially degrades ecosystems (Qin et al., 2013; Rosenbloom, 2018). Such limitations highlight the need for sustainable alternatives such as Blue-Green Infrastructure (BGI) or Low Impact Development (LID). These approaches use semi-natural features such as permeable surfaces, green roofs, rain gardens, and detention/retention ponds to enhance flood risk management by integrating natural hydrological processes like infiltration, evaporation, and temporary storage into urban planning (Alves et al., 2019; O’Donnell et al., 2020; Webber et al., 2020). Beyond managing floods, BGI proves beneficial

3

in boosting biodiversity, mitigating heat islands, and improving urban environments (Ahiablame et al., 2012; Rodriguez et al., 2021). The adaptability, sustainability, and multifunctionality of BGI make it ideal for retrofitting flood management systems by complementing traditional GI methods and driving policy shifts in city councils towards ‘blue-green’ urban planning (Liberalesso et al., 2020; Manchester City Council, 2021; Wheeler, 2016).

Sustainable FRM requires efficient resource allocation and robust designs that perform across varying rainstorm intensities (Sharma et al., 2021). The literature suggests that the cost-effectiveness and robustness of BGI largely depend on the hydrodynamic models and risk assessment functions used to evaluate design parameters such as BGI type, location, and size.(Maier et al., 2019; Seyedashraf et al., 2021; Wang et al., 2022). For instance, semi-distributed models like the Storm Water Management Model (SWMM) (Rossman, 2010) evaluate BGI efficiency and robustness by considering reduced peak flows and water volumes in drainage networks (Zhi et al., 2022), barely addressing surface flooding and related risks, usually termed stormwater management. Fully distributed models such as CityCAT (Glenis et al., 2018; Iliadis et al., 2023) explicitly simulate BGI to assess its effectiveness in reducing surface runoffs and associated risks to buildings, properties, and infrastructure, providing a more accurate representation of surface FRM. The literature reports that most BGI designs for FRM, developed using detailed flood models, often rely on limited options evaluated through multi-criteria (Alves et al., 2018; Joshi et al., 2021) or scenario-based designs (Abduljaleel & Demissie, 2021; D’Ambrosio et al., 2022; Iliadis et al., 2024; Vercruysse et al., 2019; Webber et al., 2020), which restrict BGI deployment options and may not ensure cost-effective designs. To address this challenge, a multi-objective optimisation algorithm is integrated with a fully distributed hydrodynamic flood model to systematically achieve the most cost- effective BGI design (Ur Rehman et al., 2024). In line with industry practice, a 100-year return period was initially used to optimise the permeable surfaces' location and overall size. However, the 100-year design performed poorly when tried for a 30-year return period, possibly due to a discrete risk objective function, which only accounts for BGI performance in risk reduction when a certain threshold is met. The outcomes highlight the need to investigate BGI optimisation further using continuous risk functions across different return periods. A continuous risk objective should capture the full range of risk reduction, from

4

very minor to maximum. Furthermore, a novel approach is needed to optimise multiple return periods simultaneously, potentially leading to robust FRM. To the authors' knowledge, no such method has yet been developed or tested in multi-objective optimisation, highlighting a considerable research gap.

The prevailing approaches typically focus on a single design storm, often the maximum return period, which may not ensure reliable performance under more frequent or less intense events, raising a fundamental research question of whether this paradigm should be retained or replaced by a more comprehensive approach that integrates multiple rainstorm magnitudes. This study aims to answer this research question by evaluating the effectiveness of a BGI design optimised for a single maximum return period when applied to other return periods, and by developing and comparing a composite BGI design optimised using a range of rainstorm intensities. The novelty of this work lies in the simultaneous incorporation of multiple rainstorm return periods and the design of a continuous risk function for optimisation to develop a comprehensive blue-green flood risk management approach. The specific objectives of this study are to: (i) design a continuous risk objective function for optimisation and analyse subsequent optimisation results for distinct return periods, (ii) incorporate multiple return periods into a multi-objective optimisation framework to achieve a composite BGI design, (iii) quantitatively assess optimisation performance for individual and composite optimised BGI designs, (iv), calculate realistic cost-benefits for BGI lifespan and (v) conduct a stress test to evaluate the climate change resilience of the newly proposed FRM method. The rest of this paper is organised as follows: Section 2 covers the study area and detailed methodology; Section 3 presents the results; and Section 4 discusses the overarching findings, including their implications. Lastly, Section 5 provides the main concluding remarks along with the key limitations and future research directions.

Material And Methods

Figure 1 presents the research flow diagram, with each block representing a distinct stage of the study. Phase I involves BGI and rainstorm design for the selected study area. Phase II uses the outputs from Phase I to develop an optimisation framework by integrating the CityCAT model with an optimisation algorithm. Phase 3 processes the resulting Pareto fronts (a set of optimal solutions), generated for both single and composite return periods, and applies quantitative performance metrics to evaluate optimisation

5

quality. The best-performing BGI design is then carried forward to Phase IV, where a lifetime benefit- cost analysis is conducted alongside stress testing based on projected future rainfall. Sections 2.1 to 2.4 explain each phase in detail.

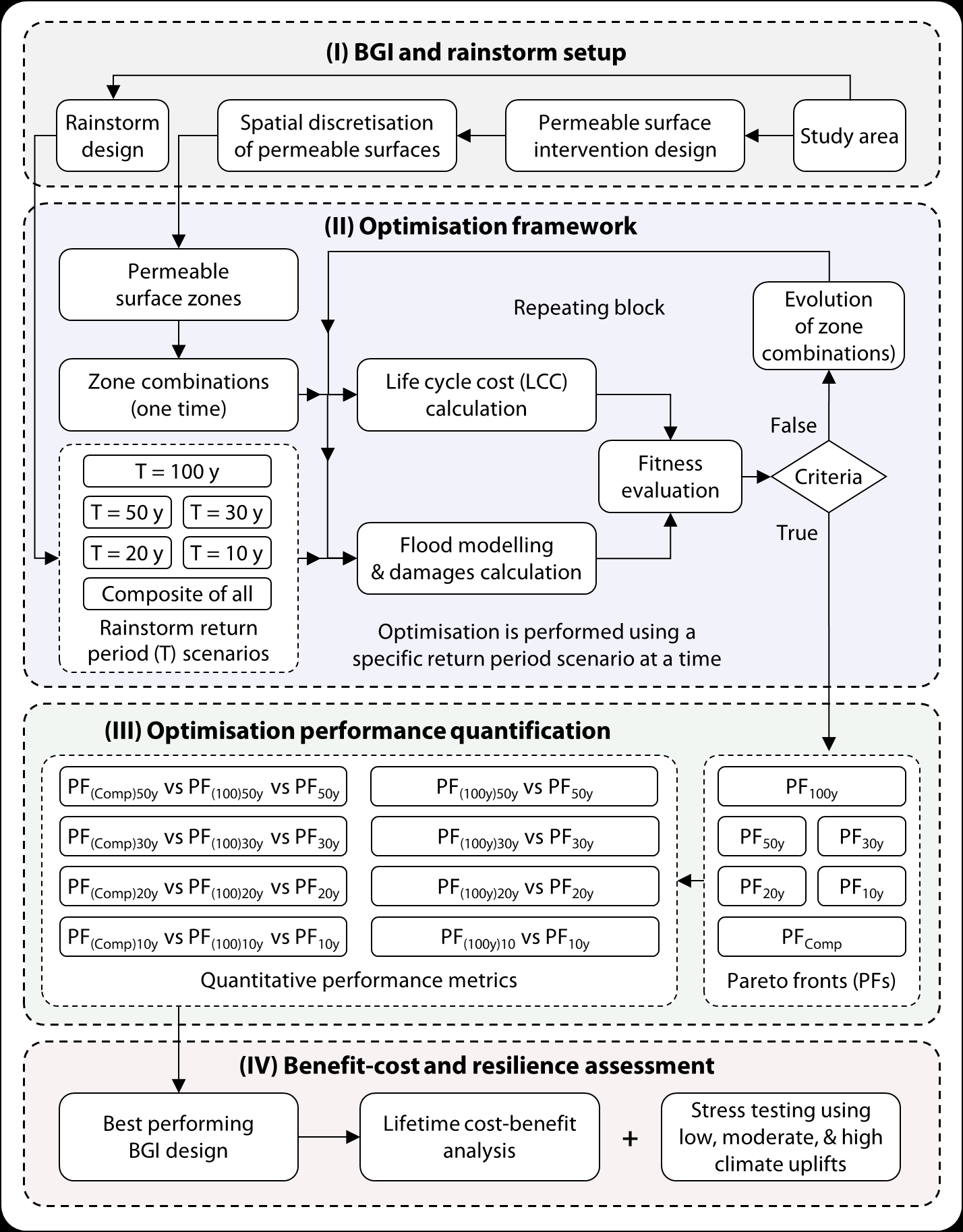

Figure 1. Flow diagram showing the overall research design, including key components, processes, and their interactions. PF50y refers to the Pareto front optimised for a 50-year rainstorm event. PF(100y)50y and PF(Comp)50y denote Pareto fronts obtained by optimising BGI for a 100-year and a composite of multiple return periods rainfall events, respectively and then assessed for performance under a 50-year event. The same annotation applies to other return periods.

2.1.1 Study Area

The study area, shown in Figure 2, is an urban catchment in Newcastle upon Tyne. The catchment has a total area of approximately 5.3 km, of which approximately 43% is green/permeable area, 32% is impervious surfaces, and 25% is buildings. Based on type, the building area is further classified into residential (10%) and non-residential (15%) categories. The catchment has a maximum elevation of 128 meters, with a relatively steep slope of 3.3% from northwest to southeast (see the elevation map in Supplementary Information S2). The high gradient allows rainstorm water to move relatively quickly from the upper catchment to the lower catchment, placing infrastructure and properties in the lower catchment at high risk.

Newcastle has experienced numerous flash floods due to heavy rainstorm events (Newcastle City Council, 2016), the most severe being 'Thunder Thursday', during which the city received 49 mm of rainfall in 2 hours (Environment Agency, 2012). This rainstorm was approximated as a 100-year return period event.

2.1.2 Permeable Surface Intervention Design

The current study builds on previous research (Ur Rehman et al., 2024), which assessed the cost- effectiveness of permeable surface interventions by dividing the entire catchment into zones of varying sizes and quantities. The best-performing scenario, featuring 80 permeable zones (shown in Figure 3), was selected for this case. The total permeable surface area is 0.74 km, comprising 31% parking areas

7

and 69% roadside pavements and paths. As shown on the map, the sizes of permeable surface zones vary, but the optimisation process automatically normalises these differences through intervention costs. Figure 3. Permeable surface zonation for interventions: A total of 80 zones were defined, with red numbered boxes used to reference different parts of the catchment.

2.1.3 Rainstorm Design

The standard Depth-Duration-Frequency (DDF) model for the UK (Faulkner, 1999) was used to calculate the total rainfall amount for 100, 50, 30, 20, and 10-year return periods (T), each with a duration (t) of 30 minutes. The DDF model equation used for rainfall with a duration of 12 hours or less is given below: 𝑙𝑛(𝑅) = (𝑐𝑦+ 𝑑1) 𝑙𝑛(𝐷) + 𝑒𝑟+ 𝑓 𝑤ℎ𝑒𝑟𝑒 𝑟= −𝑙𝑛[−𝑙𝑛(1 −1

𝑇)]

R is the rainfall depth, D is the duration, r is the Gumbel reduced variate, T is the return period, and c, d1, e, and f are catchment descriptors. The hyetograph generation method from the Flood Studies Report (FSR) (Institute of Hydrology, 1975) was then applied to generate temporal distribution profiles for the given rainfall events in an urban catchment. The equation to create the rainfall distribution profile is given

1 −𝑎 𝑤ℎ𝑒𝑟𝑒 𝑧= 𝑥𝑏

Where: y is the fraction of the rainfall that drops within the proportion x of the total rainstorm duration. Parameters a and b have fixed values, and the profile is centred on the peak. The obtained rainfall totals

8

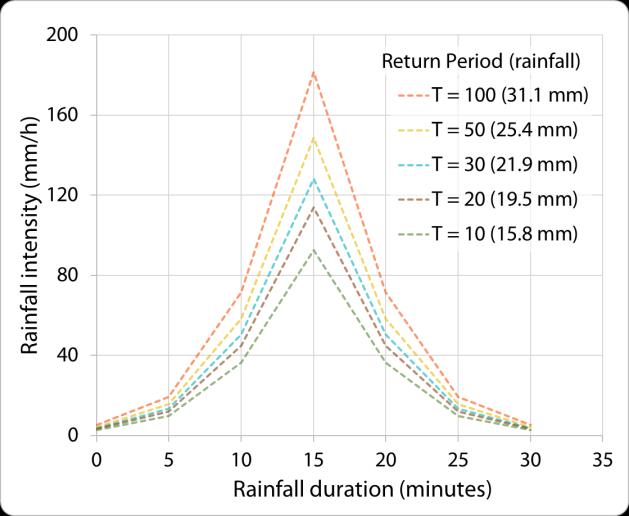

and temporal distributions for the considered return periods with the same durations are shown in Figure 4. Figure 4. Design rainstorms for five return periods

Optimisation Framework

The optimisation framework integrates a Multi-Objective Optimisation Algorithm (MOOA) (Venter, 2010), called the Non-dominated Sorting Genetic Algorithm (NSGA-II) (Deb et al., 2002), with the CityCAT flood simulation model to identify the most cost-effective spatial combinations of permeable surface zones. MOOAs generally solve optimisation problems by iteratively changing the values of decision variables in a set of candidate solutions, called a population, to achieve better values for the considered objective functions. This iterative process, known as generations, continues until a termination criterion is reached. The result is a set of optimal solutions called the Pareto optimal front, representing the best trade-offs between objective functions. NSGA-II, in particular, uses non-dominated sorting to identify the optimal solutions and applies a crowding distance method to maintain population diversity to create better solutions in the new generation (Deb et al., 2002). For a detailed overview of a genetic algorithm, readers are encouraged to refer to the article by Maier et al. (2019). NSGA-II was selected over other optimisation algorithms due to its straightforward implementation and its ability to avoid trapping in local optima, thereby achieving a good balance between adaptability and optimisation efficiency.

CityCAT was chosen for hydrodynamic modelling because of its advanced capabilities in accurately representing and modelling buildings, BGI, and other land use features (Iliadis et al., 2023), which enables precise calculation of water depths and velocities. While Sections 2.2.1 to 2.2.4 offer an overview of these

9

topics, Ur Rehman et al. (2024) provide a thorough justification for prioritising NSGA-II, detailed insights into CityCAT’s functionality, and a step-by-step guide to integrating both tools within the context of flood risk optimisation.

The following sub-sections provide a concise overview of hydrodynamic modelling and the optimisation processes implemented in this study.

2.2.1 Hydrodynamic Flood Modelling

This study uses the advanced City Catchment Analysis Tool (CityCAT) (Glenis et al., 2018). CityCAT is a fully distributed, physically-based hydrodynamic model that uses a high spatial resolution Digital Elevation Model (DEM) to explicitly represent land use features, including buildings, permeable green spaces, and impervious areas. It also simulates the hydrodynamics of BGI, incorporating features such as permeable surfaces, green roofs, and water butts. Surface water elements like detention ponds and rivers are represented within the DEM. CityCAT takes rainfall, DEM, land use and BGI inputs and applies shallow water equations to simulate 2D water depths and velocities across the spatial domain. It can also integrate subsurface sewer networks to compute coupled surface-subsurface water flows and volumes, though this significantly increases computational time. Due to such computational constraints, this study only uses CityCAT's 2D surface flood simulation module. Further details on its role within the optimisation framework are provided in Section 2.2.3. For a comprehensive overview of CityCAT, refer to Ur Rehman et al. (2024), with detailed information in Glenis et al. (2018). A detailed description of the data used for BGI and flood modelling is provided in Supplementary Information S1.

CityCAT has been successfully validated in various studies using laboratory datasets (Glenis et al., 2018), on-the-ground flood depths derived from social media images (Kutija et al., 2014), and property-level flooding based on local authority surveys (Bertsch et al., 2022). More recently, Iliadis et al. (2023) validated CityCAT outputs for the 2012 "Thunder Thursday" flood event and found good agreement between the model and surveyed data. Notably, the validation area overlaps with the catchment considered in the present study. Therefore, the same CityCAT parameters were adopted for this study (see Table S3 in Supplementary Information S1).

2.2.2 Decision Variables And Objective Functions

The decision variables in this optimisation problem correspond to the spatial locations of 80 predefined permeable surface zones. Each candidate solution is encoded as a binary vector of length 80, where a value of 1 indicates the inclusion of a particular zone, and 0 indicates its exclusion. With 80 binary decision variables, the total solution space consists of 280 possible combinations, which is an extremely large number. However, the binary representation allows the algorithm to efficiently explore a limited range of spatial configurations to find the optimal set of solutions. The encoding strategy used in this study is described in detail by Ur Rehman et al. (2024).

The objective functions are the life cycle cost (LCC) of the permeable surface zones and the associated levels of risk (R) to properties. Based on these decision variables and objective functions (LCC, R), the optimisation

𝑀𝑖𝑛𝑚𝑖𝑠𝑒: 𝐹(𝐼) = (𝐹𝐿𝐶𝐶, 𝐹𝑅)

The LCC for the jth permeable zone can be computed using the following equation:

𝐿𝐶𝐶(𝐼𝑗) = (𝐶𝑐+ 𝐶𝑜) × 𝑆(𝐼𝑗) 𝑗= 1, . . . , 80

Cc and Co are the unit size capital and operational costs, respectively, and S(Ij) is the jth permeable surface zone area. The capital cost refers to the one-time installation expense, while the operational cost is the annual maintenance expense of the permeable surfaces over a specific lifetime.

The LCC per unit of permeable surface area was calculated following the guidelines from the UK Environment Agency (Gordon-Walker et al., 2007). LCC comprises one-time Capital Expenditures (CapEx) and recurring Operational Expenditures (OpEx) over the BGI lifetime. A lifespan of 40 years was assumed for permeable pavements. An average inflation rate of 2.9%, calculated from the UK Office for National Statistics’ Consumer Price Index (CPI) spanning 2007 to 2022, was applied to calculate the current and future costs using the equation below.

11

Where: FV represents the future value, BV is the base year value, i is the inflation rate, and n is the number of maintenance years. For this study, the operational cost was multiplied by the lifespan of the permeable surface, which is 40 years, before being added to the capital cost. The calculated CapEx was £82.9 m-2, with an OpEx of £46.6 m-2, resulting in an LCC of £129.5 m-2.

The risk objective function (FR) in this study represents two scenarios: (i) a risk function based on a single return period and (ii) a composite risk function incorporating multiple return periods. According to the Intergovernmental Panel on Climate Change (IPCC) Sixth Assessment Report, flood risk results from the combination of hazard, exposure, and vulnerability of affected systems (IPCC, 2023):

𝑅𝑖𝑠𝑘𝐼𝑃𝐶𝐶= 𝐻𝑎𝑧𝑎𝑟𝑑 × Exposure × Vulnerability

Previously, Ur Rehman et al. (2024) approximated flood hazard by extracting flood depths using hydrodynamic simulations. These depths were used as inputs into a building-level exposure tool (Bertsch et al., 2022) to estimate the number of buildings exposed to flooding. The resulting building count served as a proxy for flood risk within the objective function. However, this approach presents two key limitations. First, it omits building vulnerability, thereby failing to capture the true nature of flood risk.

Second, the exposure tool produces discrete outputs, classifying buildings as "exposed" only when both the 90th percentile and the mean of maximum flood depths exceed predefined thresholds. This binary classification leads to a discrete risk function, which only recognises BGI effectiveness when these thresholds are surpassed. Consequently, it may underestimate the efficiency of BGI interventions and produce inconsistent performance across varying storm intensities.

To address these limitations, this study adopts a revised approach by adapting the risk estimation methodology outlined in the Multi-Coloured Manual (MCM) for the Economic Appraisal of Flood Risk (Penning-Rowsell et al., 2014). The MCM defines flood risk as:

𝑅𝑖𝑠𝑘𝑀𝐶𝑀= Probability × Consequence

When aligned with the IPCC framework, probability in the MCM corresponds to hazard, while consequence encompasses both exposure and vulnerability. Although the MCM does not explicitly define vulnerability, it is implicitly embedded within the consequence term, which is calculated as:

12

Consequence = ∑𝐹𝑙𝑜𝑜𝑑 𝑑𝑒𝑝𝑡ℎ × 𝑃𝑟𝑜𝑝𝑒𝑟𝑡𝑦 𝑡𝑦𝑝𝑒× 𝐷𝑎𝑚𝑎𝑔𝑒 𝑓𝑎𝑐𝑡𝑜𝑟 In this formulation, flood depth and property type represent exposure, whereas the damage factor is linked to building vulnerability. The consequence term is operationalised through depth-damage curves, which are derived from empirical data and express the percentage of damage relative to the asset value across varying flood depths, as illustrated in Figure 5.

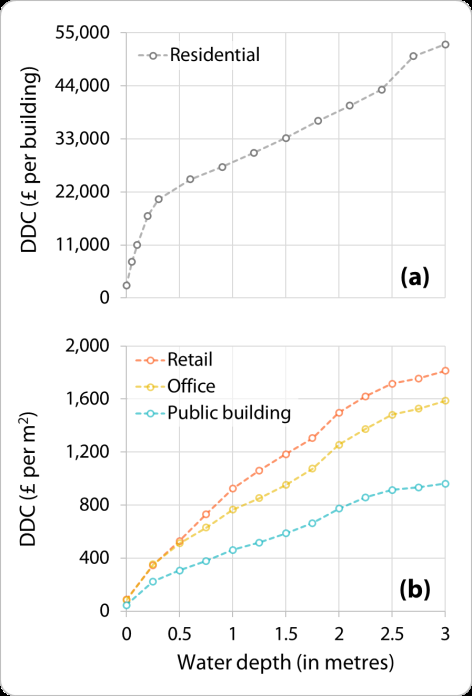

Figure 5. Depth damage curves for (a) residential and (b) non-residential buildings (Source: Penning-Rowsell et al., 2014). The adaptation of depth-damage curves enables a continuous and more representative estimation of flood risk, capturing the varying susceptibility of different building types to damage across a spectrum of flood depths (i.e. hazard severity). Using these curves, this study calculates Direct Damage Cost (DDC) and Expected Annual Damage (EAD) as risk objective functions for optimisation under single and multiple return periods.

According to the MCM, DDC is calculated per property for residential buildings (Figure 5a) and per unit area for non-residential buildings (Figure 5b), with the latter multiplied by the total floor area to obtain total damage to the building (see Section 2.2.3). EAD is then computed by integrating DDC values across different return periods (see Section 2.2.4 for details). While DDC represents only the consequence component of risk, EAD accounts for both probability and consequence, offering a more comprehensive measure of flood risk.

2.2.3 Single Return Period-Based Bgi Optimisation

The schematic diagram of the multi-objective optimisation framework is illustrated in Figure 6. It comprises NSGA-II, CityCAT, and Risk Modules. Initially, NSGA-II (Figure 6a) randomly generates 'P- 2' candidate solutions, each representing different combinations of permeable surface zones. The first candidate solution, with no permeable zones, defines the baseline scenario, while the P th candidate solution, with all permeable zones, represents the maximum intervention scenario. Next, NSGA-II passes these candidate solutions to the objective functions for fitness evaluation. The cost function calculates the LCC of each candidate solution using the formula provided below:

𝑗=1

LCC(Sz) is the life cycle cost for the zth candidate solution, and LCC(Ij) is the life cycle cost of the jth permeable intervention zone. Similarly, the risk function processes the 'P' candidate solutions sequentially using the CityCAT module (Figure 6b). This module consolidates geometry files of the available permeable surface zones in each solution. Then, it incorporates standard inputs such as rainfall, DEM, and geometries of green areas and building footprints to compute maximum water depths. These water depths are then forwarded to the risk module (Figure 6c), which is adapted from Bertsch et al. (2022). The risk module creates a buffer around each building at 150% of the DEM grid cell dimension. The buffer polygons are overlaid on the flood depth map to extract flood depth cells surrounding each building. The risk module then calculates the 90th percentile and mean of maximum depth values within each building buffer area to determine whether the building Bi (where i = 1, 2, …, m) is at risk or not at risk. If Bi is categorised as at risk, the DDC is calculated using the 90th percentile of the water depth value, which helps tackle outliers in maximum flood depth values. The building classification approach helps avoid extra DDC for buildings with negligible water depths. The total risk is the sum of DDCs for 'm’ buildings, calculated using the following equations:

1 𝑑𝑚_𝑖< 0.1 𝑚 𝐴𝑁𝐷 𝑑90𝑡ℎ_𝑖< 0.3 𝑚

𝑂𝑡ℎ𝑒𝑟𝑤𝑖𝑠𝑒 𝐵𝑖 𝑛𝑜𝑡 𝑎𝑡 𝑟𝑖𝑠𝑘

Where:

• DDC(Sz) is the direct damage cost (risk level) for the zth candidate solution. • IR_i is the risk index, a function of the mean maximum depth (dm_i) and the 90th percentile of maximum depths (d90th_i) around the ith building Bi. The criterion for IR_i is adapted from the exposure classification scheme presented by Bertsch et al. (2022).

• DDCres_d90th_i is the direct damage cost for a residential building based on the 90th percentile of maximum flood depths around Bi. • ABi is the area of Bi, and DDCnon-res_d90th_i is the direct damage cost per unit area for a non- residential building, depending upon the 90th percentile of maximum flood depths around Bi.

After receiving the LCCs and DDCs for ‘P’ candidate solutions, the NSGA-II module evaluates their fitness based on their ability to minimise both LCC and DDC simultaneously. The algorithm then checks the generation number as a termination criterion and stops if it is met. Otherwise, evolutionary operations, including parent selection, crossover, and mutation (Ur Rehman et al., 2024), create a new set of ‘P’ offspring. These offspring are evaluated for cost and risk objectives to determine their LCCs and DDCs.

NSGA-II combines the LCCs and DDCs of both parent and offspring populations, selects the ‘P’ best solutions, and forms a new generation of parents. This process repeats for N generations to achieve optimal solutions with the lowest LCC and DDC.

15

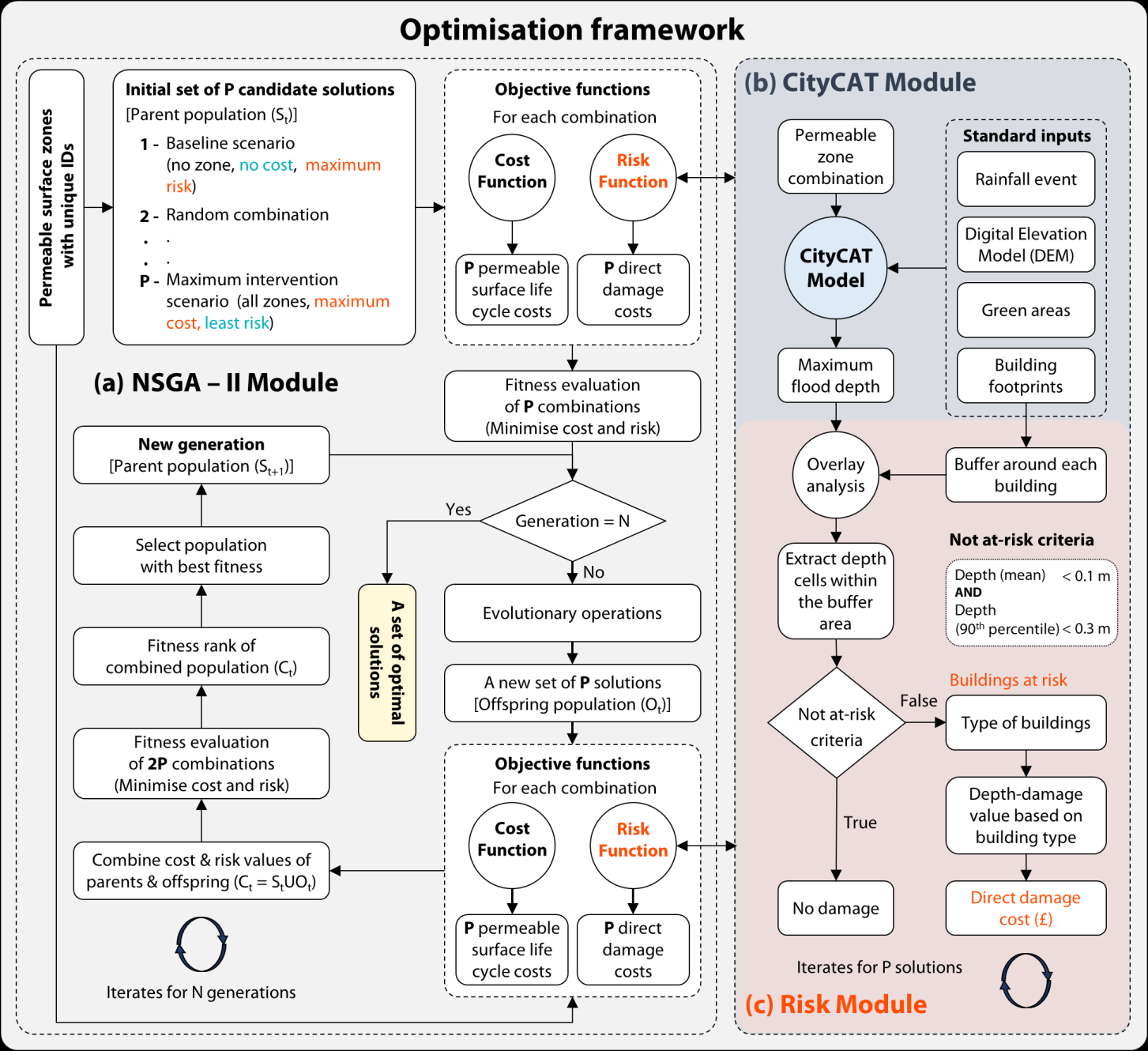

Figure 6. The optimisation framework for individual return periods. The NSGA-II module (a) generates a population of candidate solutions, calculates the life cycle cost (LCC) for each solution, and forwards them one by one to the CityCAT module (b), which simulates each solution to determine maximum flood depths. These depths are then used by the Risk module (c) to identify the number of buildings at risk and estimate the associated direct damage cost (DDC). The total damage cost for each solution is calculated and returned to the NSGA-II module, which evaluates LCC versus DDC to identify better- performing solutions and evolves them to create a new population. This process continues until the termination criteri on is met, ultimately providing the optimal solutions.

2.2.4 Multiple return period-based BGI optimisation For multiple return periods, each return period has an associated direct damage cost (DDC), resulting in multiple DDC objectives. Traditional multi-objective algorithms are typically limited to handling up to three objectives efficiently. A potential alternative is a many-objective optimisation algorithm (Deb & Jain, 2014), which extends multi-objective methods to accommodate and tackle a larger number of objectives. However, the implementation of such algorithms is complex, and, in this case, assigning equal

16

weight to DDCs for frequent and rare events does not reflect real-world risk priorities, making this approach unsuitable for the current study. Instead, a weighted aggregation of DDCs into a single risk objective function, such as expected annual damage (EAD), is more appropriate. EAD, calculated using the trapezoidal rule, assigns weights to respective DDCs based on their exceedance probability (Bilskie et al., 2022). Five return periods (T = 10, 20, 30, 50, and 100 years) were selected to balance accuracy and computational cost, as Ward et al. (2011) noted that using very few return periods may overestimate EAD. Adopting EAD as a risk objective function provides a more accurate representation of risk and enables the calculation of realistic lifetime cost benefits for BGI. The following equation from the Scottish

(3)

𝐷(𝑆𝑧)𝐼𝑁𝐹𝐼𝑁= 𝐷𝐷𝐶(𝑆𝑧)𝑇100 + (𝐷𝐷𝐶(𝑆𝑧)𝑇100 − 𝐷𝐷𝐶(𝑆𝑧)𝑇50) × (( 1

(4)

The term 𝐷(𝑆𝑧)𝐼𝑁𝐹𝐼𝑁 is used to get proportionate direct damage contributions from the 100-year return period in the absence of the next longer return period. The adaptation of a multi-objective optimisation framework for composite return periods is shown in Figure 7. While the processes in the NSGA-II module remain unchanged, the CityCAT and risk modules evaluate each candidate solution across all return periods, calculating individual DDCs and then the EAD for each solution. This process is repeated ‘P’ times to generate ‘P’ EADs. The NSGA-II module then optimises over N generations using the LCC and EAD values of the candidate solutions.

Table S4 in Supplementary Information S4 provides the NSGA-II parameters and values used for single- and multiple-return-period optimisation.

17

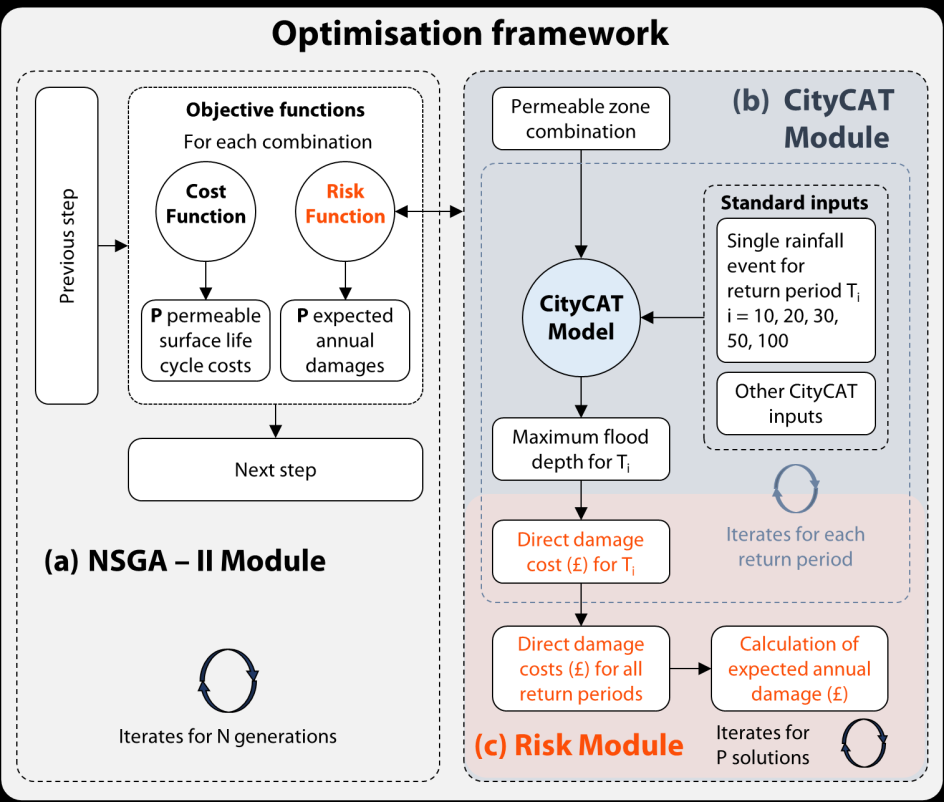

Figure 7. The optimisation framework for the composite of multiple return periods. The optimisation process functions similarly to that described in Figure 6. The key difference is that instead of using a single direct damage cost (DDC) as the risk function, the Risk module calculates the expected annual damage (EAD) by combining DDC values across multiple return periods. The NSGA-II module then evaluates life cycle cost (LCC) against EAD.

Optimisation Performance Quantification

Three metrics, Maximum Risk Difference (MaxRD), Median Risk Difference (MedRD), and Area Under Pareto Front (AUPF), were developed to quantify the performance and robustness of Pareto fronts obtained for the 100-year and composite return period optimisation (trialled Pareto fronts). Pareto fronts obtained by optimising BGI for individual return periods were used as a reference.

Maximum Risk Difference (MaxRD) and Median Risk Difference (MedRD) quantify the largest and median disparity in risk (DDC) between the reference and trialled Pareto fronts at any BGI cost (LCC). MedRD represents the central tendency of the risk discrepancies, providing a robust measure less sensitive to extreme deviations than the maximum difference. The formulas for these metrics are provided below:

(5)

𝑀𝑒𝑑𝑅𝐷= 𝑚𝑒𝑑𝑖𝑎𝑛 (|𝑅𝑡𝑟𝑖𝑎𝑙(𝑐1) − 𝑅𝑟𝑒𝑓(𝑐1)|, |𝑅𝑡𝑟𝑖𝑎𝑙(𝑐2) − 𝑅𝑟𝑒𝑓(𝑐2)| , . . , |𝑅𝑡𝑟𝑖𝑎𝑙(𝑐𝑛) − 𝑅𝑟𝑒𝑓(𝑐𝑛)|)

18

Rref (c) and Rtrial (c) represent the risk value (DDC) on the reference and trialled Pareto fronts for a given cost c. C = {c1, c2, . . , cn} denotes the set of all cost values (LCC) where the solutions of Pareto fronts are evaluated.

MaxRD and MedRD metrics can also be expressed as percentages of the total risk range to get normalised values. The total risk range (Rrange) is defined as the difference between the risk of the baseline or no intervention solution (DDCBaseline) and the maximum intervention solution with the highest LCC (DDCMax- int).

(9)

Area Under Pareto Front (AUPF) measures the total area beneath a Pareto front in the objective space, defined by the BGI cost (LCC) and risk (DDC). This metric captures the performance of the entire Pareto front distribution. A smaller area typically indicates a more optimal front, representing lower cost and risk. AUPF is computed using the trapezoidal rule, as defined in the equation below:

Where:

C= {c1, c2, . . , cn} represents the set of sorted cost values (LCC) and R(ci) = risk value (DDC) at cost ci. The difference in underneath areas (∆AUPF) between the reference (AUPFref) and trialled Pareto fronts (AUPFtrial) reflects the overall disparity in the trialled set of solutions. This disparity can be expressed as a percentage of the reference AUPF to get normalised values.

(12)

Interpretation of performance evaluation metrics requires analysing their values in synergy. Percent MaxRD and MedRD capture characteristic single values from the distribution of risk differences and thus represent local improvements. In contrast, the percent ∆AUPF quantifies the overall gap in trialled solutions, representing global improvements. Referring to Table 1, it is also important to note that ∆AUPF (%) has an unbounded upper limit; therefore, it should not be interpreted in isolation and must be considered alongside other metrics to enable meaningful comparisons. To achieve optimal performance, all three metrics should ideally be as close as possible to their minimum values. A combination of low MedRD (%) and ∆AUPF (%) with a high MaxRD (%) suggests overall good optimisation performance with a few poorly performing trialled solutions. Conversely, moderate ∆AUPF (%) alongside high MedRD (%) and MaxRD (%) indicates inconsistent optimisation, where some trialled solutions are highly effective but majority may differ significantly from the reference front. High values for all three metrics imply that the trialled solutions are totally incompatible with the reference set.

Unbounded (Depends On Deviation Severity)

Table 1. Upper and lower bounds of performance metrics

Benefit-Cost And Resilience Assessment

2.4.1 Benefit-cost analysis of composite optimised BGI design Integrating BGI LCC and EAD in multiple-return periods-based optimisation provides an opportunity to calculate more realistic benefit-cost ratios by accounting for the lifespan of the BGI. The following equation was used to compute benefit-cost ratios for optimised solutions:

20

• B/C represents the benefit-cost ratio. • BGI lifespan is the time (in years) when substantial maintenance or overhauling of the BGI is required. • BGI LCC is the life cycle cost of the BGI, calculated based on its lifespan.

• EADBaseline is the expected annual damage for the baseline flooding scenario (i.e., without BGI intervention). • EADBGI is the expected annual damage after implementing a specific BGI solution.

2.4.2 Bgi Design Resilience Assessment

A stress test using three climate change uplifts, classified as low, medium, and high, assessed the resilience of the proposed FRM design. Based on Chan et al. (2023), rainfall increases of 15%, 30%, and 45% were applied to baseline return periods for each uplift. Figure 8 shows how these uplifts can be considered equivalent to an increase in the return period. For example, a 45% rainfall increase for a 100- year storm equates to a 360-year return period on the baseline scale.

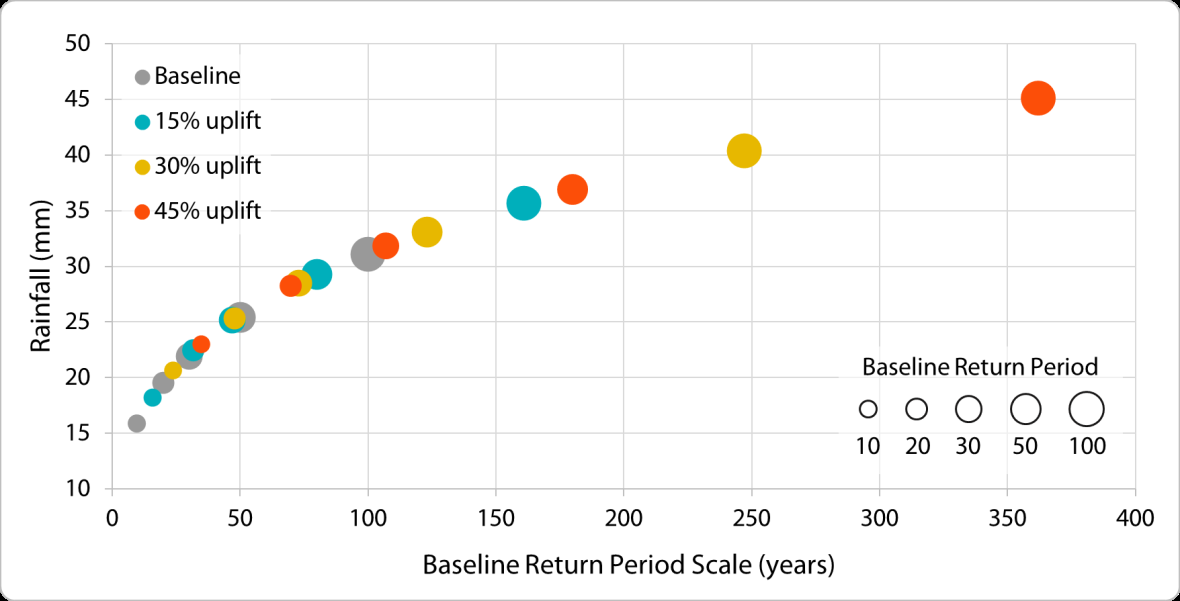

Figure 8. Different climate uplifts drawn on baseline return periods (percent uplifts were adapted from Chan et al. (2023))

Optimisation For Individual Return Periods

The BGI optimisation results for individual return periods are shown in Figure 9a-e. Referring to the scatter plots, the x- and y-axes represent the BGI life cycle cost (LCC) and the buildings’ direct damage cost (DDC), respectively. Grey dots in the plots depict solutions generated throughout the evolutionary

21

process of NSGA-II, whereas the coloured dots indicate the optimal or best solutions achieved by the final generation. The optimal solutions for each return period form a curve, representing the Pareto optimal front. On each Pareto front, the solution positioned at the top-left represents the baseline scenario, while the bottom-right solution corresponds to the maximum intervention scenario. The latter indicates that the solution has the most permeable surface zones with the highest LCC. Additionally, for each return period, an individual spatial map highlights the contribution of each permeable surface zone to the optimal solutions. Zones with the highest contribution, indicated in dark blue, are considered highly cost-effective, while zones in orange shades are the least cost-effective. Zones with no contribution to risk reduction are shown in white.

Figure 9a-e highlights BGI’s performance in reducing DDC and identifying the best zones for permeable interventions. The Pareto curve for the 50-year return period achieves greater depth than any other return period, indicating that optimal solutions with smaller LCCs (up to ~£10 million) result in a higher reduction in total DDC than other return periods with similar LCCs. In contrast, the Pareto curve for the 30-year return period has relatively low curvature towards the minimal value.

22

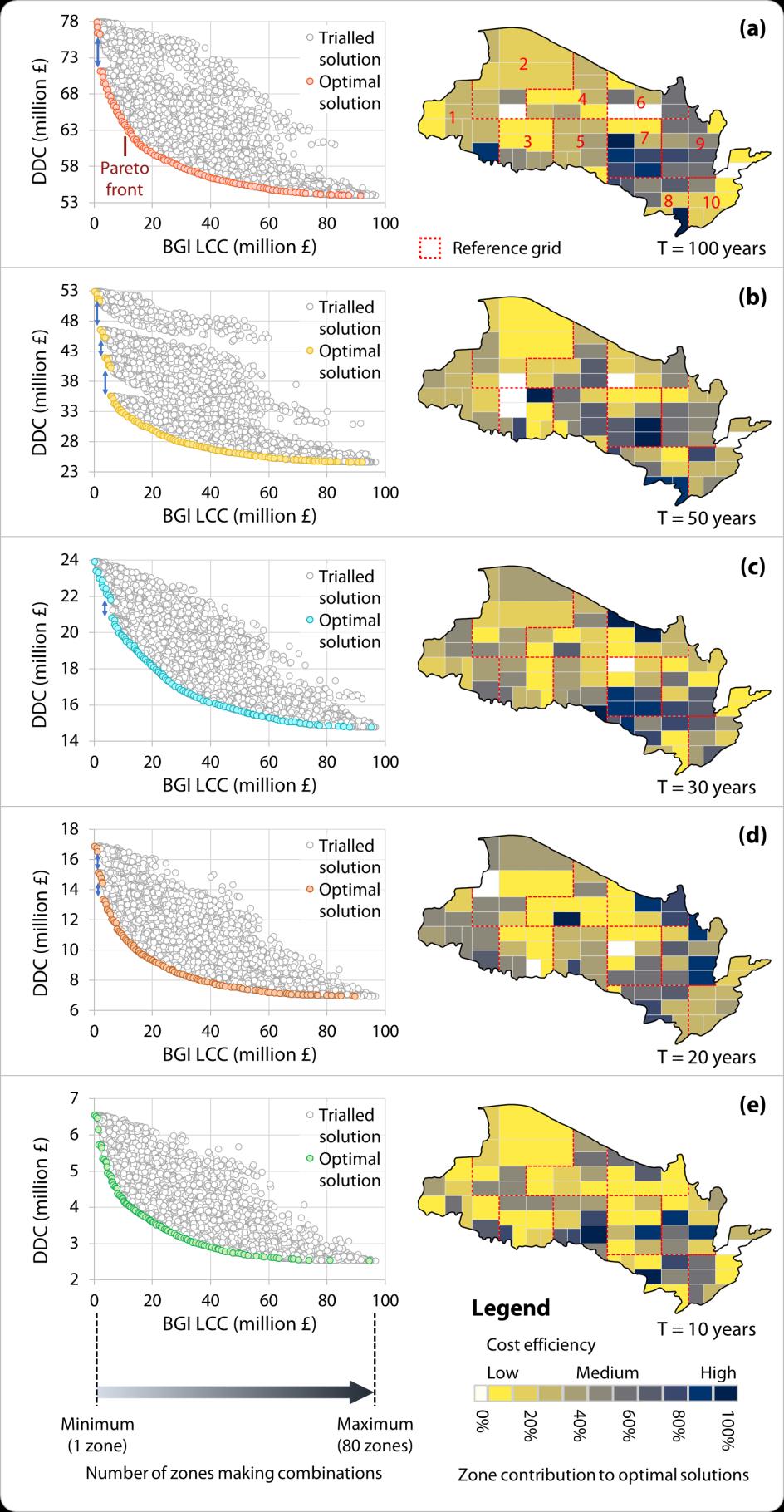

Figure 9. Optimisation of permeable zones for (1) 100-year, (b) 50-year, (c) 30-year, (d) 20-year, and (e) 10-year rainstorm return periods. Each map illustrates the contribution (in percent) of each zone to the number of solutions in the respective Pareto front, with higher contributions indicating greater cost-effectiveness. Grey-outlined points represent all solutions evaluated during the optimisation process, while coloured points denote the optimised solutions for the respective return period. Tinny blue arrows along the y-axis indicate abrupt gaps between consecutive solutions along the Pareto fronts.

23

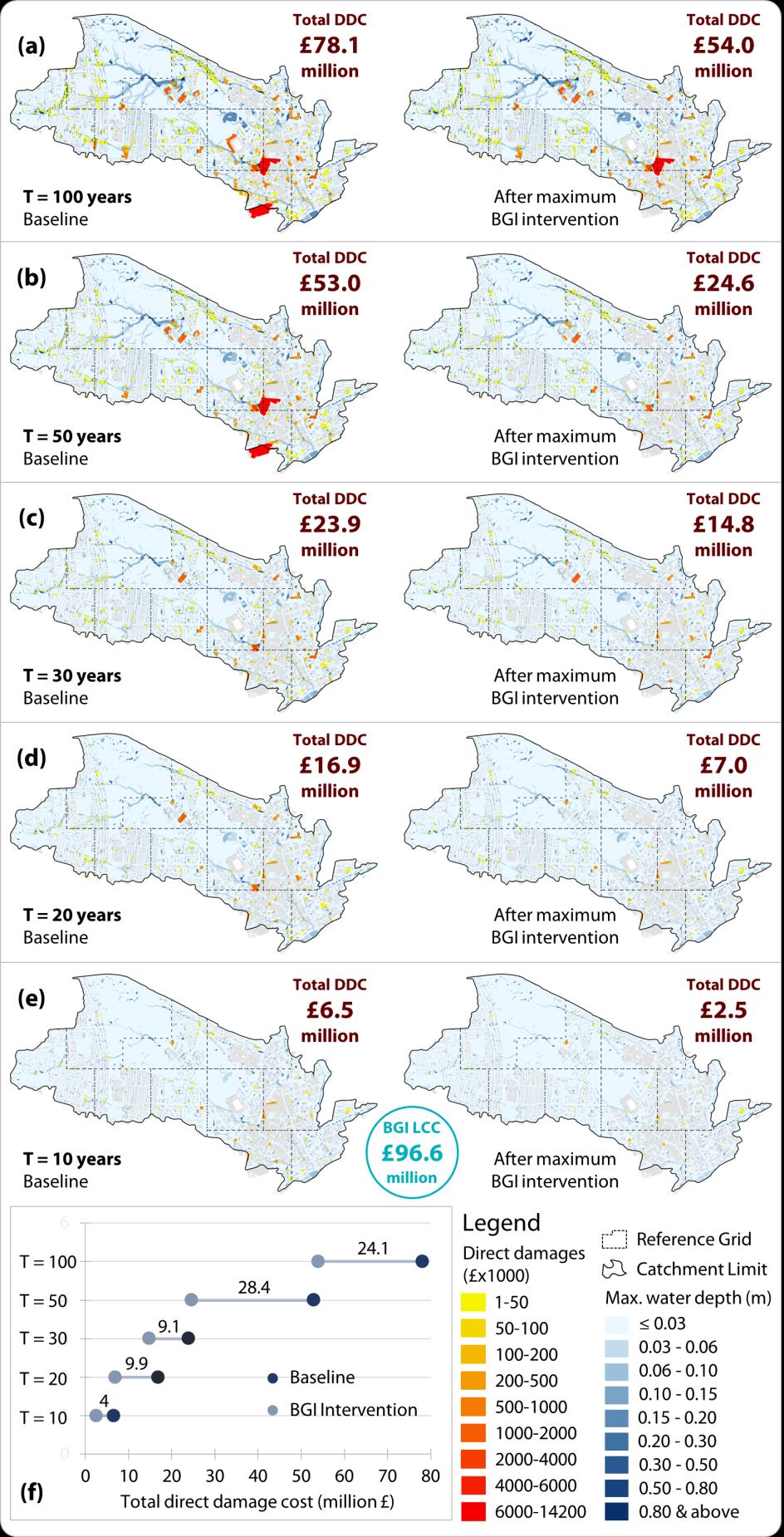

Figure 10. Maximum flood depths and direct damage cost to buildings calculated for baseline (left) and after implementing maximum BGI intervention (right) for (a) 100-year, (b) 50-year, (c) 30-year, (d) 20-year and (e) 10-year return periods, (f) shows the DDC ranges reduced by maximum intervention for considered return periods.
