Arduino Lottery Machine

Sandeep Mishra1 And Anirban Pathak1,*

1Jaypee Institute of Information Technology, A 10, Sector 62, Noida,

Abstract

Lottery is a game in which multiple players take chances in the hope of getting some rewards in cash or kind. In addition, from the time of the early civilizations, lottery has also been considered as an apposite method to allocate scarce resources.

Technically, any scheme for lottery needs to be fair and secure, but none of the clas- sical schemes for lottery are unconditionally secure and fair. As fairness demands complete unpredictability of the outcome of the lottery, it essentially requires per- fect randomness. Quantum mechanics not only guarantees the generation of perfect randomness, it can also provide unconditional security. Motivated by these facts, a set of strategies for performing lottery using different type of quantum resources (e.g., single photon states, and entangled states) are proposed here, and it’s estab- lished that the proposed strategies leads to unconditionally secure and fair lottery schemes. A scheme for semi-quantum lottery that allows some classical users to participate in the lottery involving quantum resources is also proposed and the merits and demerits of all the proposed schemes are critically analysed. Its also established that the level of security is intrinsically related to the type of quantum resources being utilized. Further, its shown that the proposed schemes can be ex- perimentally realized using currently available technology, and that may herald a new era of commercial lottery.

Introduction

Lottery is a game of chances where multiple players hope for getting the rewards. The use of lotteries has been prevalent since the time of early human civilizations. For example, during the Roman empire, lotteries were used as a form of amusement for giving gifts to the guests . The first commercial application of the lottery was done by Roman Emperor Augustus Caesar as an alternative to increase in taxes for the purpose of funding the infrastructure projects of the city .

In The Modern History, The First Officially

recorded state controlled lottery was organized by Queen Elizabeth I in 1556-59 for the purpose of funding a set of projects . In this particular case, 4, 00, 00 tickets of 0.5 pound each were issued with a reward of 5, 000 pounds to the winner. Since then, the

Arxiv:2203.12496V1 [Quant-Ph] 23 Mar 2022

lotteries have globally evolved as a mechanism that states can adopt to collect money (without levying higher taxes) required for various people-centric projects. Thus, the lottery is historically used for socially meaningful purposes, but it has close resemblance with the gambling and it can always be viewed as a kind of gambling. Consequently, nowadays commercial lottery with financial rewards is not considered righteous in many countries.

Despite the above issue, we are interested in the lottery as the use of lottery is not restricted to gambling and collection of funds by the states. In fact, lotteries have many other applications in the diverse fields . In the modern theory of allocation of resources, there are primarily four ways of allocation namely merit, queue, auction and lotteries. In “merit”, the persons are allotted points based on many parameters and the entity with maximum points get the first preference. In “queue”, the entity which has submitted the application first gets the reward. In “auction”, one who is willing to pay the maximum gets the rights. Of all the above, lotteries does a randomization and the entity gets hold of the resource purely by luck. In fact, lottery is the only method which is free from any type of inherent bias. Debates are going on to find an optimum method for the allocation of resources , but the lottery is often considered as a better and fairer way of allocating the scarce resources among the large number of applicants [6, 7]. Specially, if the number of indivisible goods (k) is lesser than the number of applicants (n) then lottery is considered as a suitable way for the allocation. Tracing down in history, the lottery has been used by governments for the allotment of lands to the farmers. Even nowadays lotteries are used for the allocation of low cost houses by many governments across the world. Lotteries are prevalent medium in many countries for fair grant of admission to the students in the elementary schools. Lotteries are also used to grant work permits from the pool of eligible applicants. Lotteries are considered as a good way of placing the teams in various groups of major sporting events such as Olympics and the events organized by FIFA, NBA, etc. Even there is a recorded history of use lottery in the legal system where punishment to the accused were delivered via use of lottery in a situation where the act of crime was committed by a mob and it was difficult to trace out the right person who dealt the fatal blow . With respect to technology, lottery based CPU scheduling among the various competing processes has been proposed and used for instantaneous fair CPU allocation . Indeed, recently, lottery ticket hypothesis for graph theory has been proposed for training of the neural networks . Nowadays, serious debate is also going on for the use of lotteries for the funding of the research projects as the prevalent medium of the peer review process has many intrinsic biases . In fact, many funding agencies such as the Health Research Council of New Zealand, Volkswagen Foundation in Germany and the Swiss National Science Foundation are using the lotteries to fund the research projects after the initial screening of the eligible projects [12, 13].

As described above, lottery is an integral part of many important processes that are associated with our daily life. However, not all forms of lottery can be considered as fair. To understand this point, we first need to understand the meaning of a fair lottery. A lottery is considered as fair if and only if all the participants have an equal chance of winning. Thus, it requires perfect randomness. Further, once the results are announced then no one should be able to forge the ticket and claim to be the winner. Moreover, every participant should be able to verify the outcome of the process. An important point of concern is that the fairness of the lottery is inherently dependent upon the security of the lottery scheme being used. Thus, randomness and security are the primary

2

concerns associated with the schemes of the lottery. Currently, the lottery schemes being used depend upon the credibility of the trusted authorities or security based on some mathematical complexities. Security derived in such a way is conditional. In fact, an unconditional security cannot be obtained in the classical word. Further, randomness used in classical schemes is weak compared to the randomness that can be generated quantum mechanically. Naturally, often issues have been raised regarding the fairness of the lottery schemes and such things will come up again and again until and unless we have an unconditionally secure lottery scheme. By unconditionally secure, we mean that any potential adversary even with the unlimited resources would not be able to manipulate the outcome. Such issues were raised for the classical cryptographic schemes, too, but the advent of quantum cryptography provided a new way forward for unconditionally secure cryptography [15, 16, 17]. The use of quantum states is currently being explored for providing unconditional security in various applications such as bit commitment [18, 19, 20], auctions [21, 22], voting [23, 24, 25, 26], multi-party computation . Lottery is inherently related to quantum states as quantum mechanics has intrinsic randomness and lottery demands a complete randomization of the outcome .

Quantum strategies for fair and unconditionally secure lottery is a demand of the time. A step in this direction was provided by Sun et al. in Ref. , where they proposed the schemes for lottery and auction on the backbone of the quantum blockchain. However, the mentioned protocol was not mature as it was based on quantum bit commitment which still does not provide unconditional security. Further, it used the elementary idea of quantum blockchain where communication between nodes was done via the QKD protocol for which trust between the nodes would have been required at the forefront. However, the blockchain requires consensus on the contents of the decentralized data between between non-trusting parties. Barring this work, the field for use of quantum systems in implementing lottery schemes has remained largely untouched till now. Hence, we try to explore the use of quantum resources towards the development of fair and unconditionally secure lottery schemes which can be implemented via the currently available quantum hardware.

The rest of the paper is structured as follows. In Section 2, we introduce some of the basic ideas and nomenclature required for better understanding of the article with specific attention to the requirements that a good scheme of lottery should satisfy. Subsequently, a set of schemes for quantum and semi-quantum lottery are proposed in Section 3. This is followed by security analysis of the proposed schemes in Section 4. Finally, the paper is concluded in Section 5.

Basic Notations And Definitions

The basic requirements to be satisfied by a lottery scheme can be briefly mentioned as

Follows:

i) Eligibility: Only the registered and legitimate entities can take part in the lottery. ii) Equi-probability: All the entities have equal probability to win the lottery. Thus, if there are n participants, then the probability of winning for every participant (pi) must be the same (complete randomization) and the total probability should

Pn

Figure 1: (Color online) Schematic of the quantum lottery scheme with solid lines denot- ing quantum channels while dashed lines denoting classical channels.

P1 = P2 = P3 = · · · = Pn = P,

s.t.

I=1

pi = 1.

(1)

iii) Binding: No one can change the lottery ticket after it has been issued. iv) Verifiability: Anyone can verify the outcome of the process. v) Secure: An adversary even with unconditional computational power cannot ma- nipulate the outcome.

Quantum Lottery Schemes

The proposed lottery schemes consist of the following stakeholders (see fig 1): 1. Lottery Authority: The lottery authority (LA) is responsible for the conduct of lottery. Further, it will consist of multiple personnels but for the sake of simplicity, we can consider it to be consisting of three agents only, namely ‘lottery authority for registration’ (LAR), ‘lottery authority for ticketing 1’ (LAT1) and ‘lottery authority for ticketing 2’ (LAT2). The role of LAR is to register the interested parties and record their details. The role of LAT1 and LAT2 is to generate the lottery tickets for every eligible participant. Further, they cooperate with each other to declare the winning lottery ticket.

2. Participants: Participants (Pi) consist of the set of people who are interested to participate in the lottery. It is to be mentioned that the proposed lottery scheme provides a method by which every participant can verify the winning lottery ticket.

Bb84 Based Quantum Lottery Scheme

It has always been an endeavour since ages to develop a scheme by which secret messages can be sent from one party to another with minimum number of assumptions.

The

classical schemes were basically based on the assumption of trust that the encryption key is available to only authorized people or that some problems are too complex to be solved in polynomial time . However, the advent of quantum cryptography in 1984 (i.e., the introduction of BB84 protocol for quantum key distribution (QKD)) altogether changed the rules of the game by providing a scheme for unconditionally secure distribution of keys. Further, Ekert showed that the unconditional secure distribution of keys can be done via the use of entanglement and the presence of unauthorized interceptor can be detected by checking the correlations between entangled particles. This lead to two different ways of secure key distribution and each has its own advantages and disadvantages. Currently, this field of unconditional secure cryptography is quite mature to be used in practical situations and scenarios [15, 16, 32, 33].

Parallel To

the development of quantum key distribution technology, researchers have been working on the development of true random number generators whose outputs are completely non-deterministic as well as private. Since quantum mechanics has intrinsic randomness associated with it , so the quantum systems can be used to generate truly random numbers . Currently, the quantum technology is quite mature that we can generate very high quality random numbers at great speeds [36, 37, 38, 39] for a wide variety of applications including secure communication, e-commerce, multi-party computations and lottery. In fact, there are many commercial quantum random number generator (QRNG) devices available in the market such as ID Quantique , Toshiba , PicoQuant , MPD etc.

Taking inspiration from quantum cryptographic protocols, and the availability of the required hardware, we will first propose a lottery strategy based on BB84 states and then briefly elaborate about its physical implementation. BB84 states are one of the most important and widely studied set of states studied in context of quantum key distribution.

These states can be experimentally produced in a wide variety of physical systems, but it is more useful when implemented using photonic systems. In photonics, BB84 states are essentially polarization-encoded qubits or equivalently a sequence of photons which are randomly polarized in horizontal, vertical, 45o or −45o which respectively correspond to the states |0⟩, |1⟩, |+⟩and |−⟩. These states can be easily generated by passing the photons from a laser diode source to an attenuator (neutral density filter) or by performing heralding on the output of certain spontaneous parametric down conversion process, and then passing the single photon through the relevant polarizer . The lottery scheme using BB84 states involves the following three stages:

Registration Phase

This phase is required for the registration of every participant with the LA and generation of unique digital signatures similar to that proposed by Wallden et al. for every participant Pi. The steps involved in the process can be enumerated as follows: Step 1 The participant Pi will first register with the LA by sending the documents and purchasing the lottery ticket with LAR.

Step 2 LAR will verify the credentials of the Pi and then use a QRNG to issue a unique 256 bit participant’s identity (PID) for the participant Pi. Further, LAR keeps a

5

record of all the allocated PIDs in the database. The purpose of generation of PID for every participant is to maintain the privacy of the participants as from here on the participant will only be using PIDs in all the subsequent steps. Because of the use of QRNG by LAR, the probability of PID collision for two participants will be asymptomatically very small. However, if the PID generated for a new participant collides with the existing set of allocated PIDs, then the QRNG is used again to generate a new PID.

Step 3 For the generation of digital signatures, the participant Pi will generate two large identical, but random sequences of BB84 states (|0⟩, |1⟩, |+⟩, |−⟩) in accordance with the output generated by QRNG. Pi will then send the first and second sequence respectively to LAT1 and LAT2 via the use of quantum channel.

Step 4 LAT1 (LAT2) will randomly choose to either forward the signature element to LAT2 (LAT1) or keep it with themselves to directly measure it. Further, in either case the position of the elements in the sequence is recorded.

Step 5 LAT1 (LAT2) measures the states that they have directly received from Pi or through LAT2 (LAT1) by randomly choosing either the rectilinear basis (|0⟩, |1⟩) or diagonal basis (|+⟩, |−⟩). In this way, after the measurements, both LAT1 and LAT2 exclude at least one of the four possible states and generate an eliminated signature for the sequence. e.g., if the measurement result is |0⟩then the participant must have never sent |1⟩. The eliminated signature will serve as the quantum digital signature for the participant Pi to be used in the next phase.

Similarly, unconditionally secure digital signatures are generated for every participant Pi. The registration phase in only meant for the generation of signatures for every participant that will be used in the next phase for the authentication of the participants before the generation of the tickets.

Ticketing Phase:

In this phase, lottery ticket numbers are generated by every participant.

Involved In This Phase Are As Follows:

Step 1 Participant Pi will first send the PID to both LAT1 and LAT2. After that, Pi will reveal the classical information corresponding to the BB84 sequence used in the registration stage.

Step 2 Both LAT1 and LAT2 will then match the set of states revealed by Pi with the corresponding eliminated signatures for every position. If the number of mismatches as recorded by either of LAT1 and LAT2 is greater than a threshold limit, then the participant is not allowed to take part further. Pi is allowed to participate only if he is authenticated by both LAT1 and LAT2.

Step 3 Pi will use any of the experimentally available BB84 based QKD protocol to

Pi

corresponding to LAT1 and LAT2. Step 4 Pi will then generate a random 256-bit unique ticket (TIDi) via use of QRNG. These TIDs will be used for the draw of lots. Also, the hash value of the TIDi

6

will be generated and publicly announced. The generation of TIDi by the partic- ipant will prevent any kind of manipulation by the lottery authority during ticket allocation phase. Further, the public announcement of hash of TIDi precludes any forging of the lottery ticket after the reward have been announced. Here, it is to be mentioned that any adversary can use the dictionary attack in which the publicly announced hash value of TIDi can be compared with the pre-calculated hash value of all possible 256 bit TIDs. But, such an attack is computationally impossible.

Step 5 Pi sends the TIDi to both LAT1 and LAT2 using the key KPi = KLAT1

Pi

. In this way, the TID sent by Pi can be opened only if LAT1 and LAT2 cooperate with each other. As an alternative, Pi can use any other experimentally available quantum secret sharing protocol using BB84 states [48, 49] to send the TIDi to LAT1 and LAT2.

The same procedure will be repeated by every participant Pi to send the correspond- ingly generated TIDi to the LAT1 and LAT2. No lottery tickets will be accepted after the closing of the phase.

The Steps Involved In This Phase Are As Follows:

Step 1 LAT1 and LAT2 cooperate with each other to open the tickets TIDi. Step 2 The winning ticket is announced as the bit wise XOR of all the received TIDs. i.e., T W = ⊕TIDi.

Step 3 The reward for every participant is calculated as proportional to the Hamming distance of the participants’ ticket (TIDi) from the winning ticket (TW). Hamming distance between two strings basically corresponds to the number of positions in which two strings are different. For bit strings, it corresponds to the number of 1’s present in the XOR of the two strings. In the proposed scheme, there is finite possibility that two or more participants have the same TID. For such an event, the rewards can be distributed equally to all participants having the winning ticket, but for most of the cases the specific scheme for the calculation of rewards will depend upon the particular application of the lottery scheme.

In this phase, our main focus is to just propose a method for generation of the winning ticket rather than commenting on a particular method for distribution of the rewards. The allocation of rewards will depend upon the application of lottery scheme and is thus left open to the potential users to develop their own methods. Further, such methods only constitute as a part of the post-processing techniques.

Before, moving to the next lottery scheme, let us just briefly describe the physical implementation of the above mentioned scheme. Figure 2 shows the schematic of the resource requirements for the participants and the lottery authority to implement the BB84 based lottery scheme. We can see that the resource requirements at both the ends are symmetric in nature. Both of them require a QRNG to perform certain steps in the protocol and more so with respect to generation of TIDs and PIDs. As mentioned before, currently there are a wide variety of commercial QRNGs in the market, though the cost is a bit on the higher end. To reduce cost, the participants may use pseudo random number

Set Up

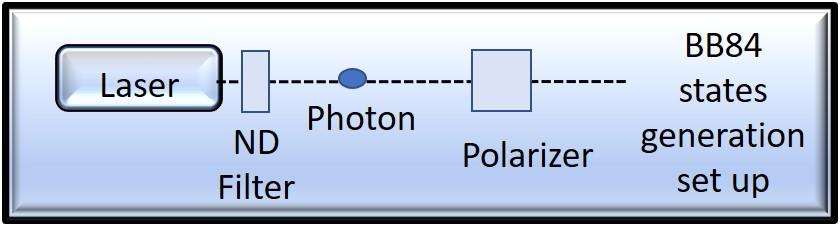

Figure 2: (Color online) Schematic of the resource requirements for BB84 based lottery scheme. All the participants as well as lottery authority require a QRNG, a set up for generation of BB84 states and a set up for measurement of BB84 states.

generators (PRNGs) which pass NIST test but that may lead to a compromise with the security aspects. Other than QRNG, both of them require set-up for the generation and the measurement of BB84 states. The current optical technology is quite mature enough to generate and measure BB84 states with very high fidelity. For photonics based implementation, the qubits are encoded in the polarization states of the single photon with horizontal, vertical, 45o or −45o respectively corresponding to the states |0⟩, |1⟩, |+⟩ and |−⟩. These BB84 states are used for both the authentication of the participants as well as sending of the TIDs from the participants to the lottery authority. Further, the participants and lottery authority are connected to each other via bi-directional quantum as well as the classical authenticated channel. Current technology now allows us to send qubits from one party to another through free space communication as well as via use of optical fibres. So, the proposed lottery scheme seems feasible to be implemented via the use of currently available technology.

Entanglement Based Quantum Lottery Scheme

Till now, we have proposed a lottery scheme based on BB84 states, but this is not the only quantum system that can used. In fact, we already know that for quantum cryptography, there are many entanglement based protocols [31, 33, 32]. The use of entanglement brings altogether new features such as device independence [51, 52, 27]. i.e. we need not trust the devices used for the implementation. Similar to the use of entanglement in cryptography, here we will propose a lottery scheme by exploiting the feature of entanglement that can be found only in quantum systems. It is to be mentioned that quantum entanglement is a very costly resource which is very difficult to maintain. So, we will try to minimize the use of quantum entanglement in the proposed scheme. We will keep the registration

8

phase and rewards phase same as that used in the already discussed scheme while using the entanglement only in the ticketing phase using schemes similar to that of quantum secret sharing [53, 54, 55]. This is done with the motivation that ticketing is the most important phase where tickets are generated by the participants and are sent to the lottery authority. The proposed scheme makes use of the Bell state |ψ−⟩=

2{|01⟩−|10⟩} And

single qubit local unitary operators, namely U0 = |0⟩⟨0| + |1⟩⟨1|, U1 = |0⟩⟨0| −|1⟩⟨1|, U2 = |1⟩⟨0| + |0⟩⟨1|, U3 = |0⟩⟨1| −|1⟩⟨0|. In principle, the scheme can use any of the four Bell states (|ψ±⟩, |φ±⟩) 1 but we will use only |ψ−⟩in the scheme. Further, the scheme will make use of the entanglement swapping for two Bell states [56, 57]. The steps involved in the ticketing phase while implementing entanglement based lottery scheme are as follows:

Step 2 Same As That Of 3.1.2

Step 3 Pi will prepare 256 pair of Bell states |ψ−⟩and stores the first qubit of all 256 pairs with him. The sequence of second qubits of one set of 256 Bell states is sent to LAT1 while the sequence of second qubits of the other set of 256 Bell states is sent to LAT2. So, Pi shares 256 Bell states with LAT1 (Set I) and another 256 Bell states with LAT2 (Set II). The combined state of Pi, LAT1 and LAT2 can be

Lat2.

Step 4 Pi randomly picks half of his qubits, then choose to measure them either in the computational basis (|0⟩, |1⟩) or Haddamard basis (|+⟩, |−⟩) and publicly announce the basis used for measurement of his qubits. LAT1 and LAT2 will use the same basis as announced by Pi to measure their corresponding qubits. If there is no adversary during the transmission phase, then the measurement outcomes of Pi will be opposite to that of LAT1. e.g. If Pi gets |0⟩(|1⟩) then LAT1 will get |1⟩ (|0⟩) while if Pi gets |+⟩(|−⟩) then LAT1 will get |−⟩(|+⟩). Similar is the case for measurement outcomes of Pi and LAT2. If the error is below the threshold limit, then they proceed to next step else they abort the protocol. Further, they will rearrange the qubits to have the combined state as {|ψ−⟩1 ⊗|ψ−⟩2 ⊗· · · ⊗

Lat2.

Step 5 Pi will choose one qubit from Set I and another qubit from Set II. Further, Pi will randomly choose one of the above qubits to apply any one of the operators U0, U1, U2, U3 to encode the bits 00, 01, 10, 11 respectively. Pi will then perform a Bell measurement on the two qubits and then publicly announce the outcome. The same operation is performed for all the qubits of Pi by taking one qubit from Set I while other from Set II. In this way, Pi will send the encoded 256 bit TID to LAT1 and LAT2. Further, the hash of the TID is publicly announced.

Step 6 LAT1 and LAT2 can cooperate with each other to get the TID sent by Pi after performing the necessary joint Bell measurements of their respective qubits and the properties of entanglement swapping.

In this way, all the Pis will send their TIDs to the LA and the TIDs can be opened only if both the LAT1 and LAT2 cooperate with each other. So, entanglement based
