First Microlensing Candidates From The MEGA Survey⋆Of M31 Jelte T.A. de Jong1, Konrad H. Kuijken2,1, Arlin P.S. Crotts3, Penny D. Sackett4, Will J. Sutherland5, Robert R. Uglesich3, Edward A. Baltz3, Patrick Cseresnjes3, Geza Gyuk6, and Lawrence M. Widrow7

(The Mega Collaboration)

3 Columbia Astrophysics Laboratory, 550 W 120th St., Mail Code 5247, New York, NY 10027, United States

Weston Act 2611, Australia

5 Institute of Astronomy, Madingley Rd, Cambridge CB3 0HA, United Kingdom

States

Received 24 September 2003 / Accepted 24 September 2003 Abstract. We present the first M31 candidate microlensing events from the Microlensing Exploration of the Galaxy and Andromeda (MEGA) survey. MEGA uses several telescopes to detect microlensing towards the nearby Andromeda galaxy, M31, in order to establish whether massive compact objects are a significant contribution to the mass budget of the dark halo of M31. The results presented here are based on observations with the Isaac Newton Telescope on La Palma, during the 1999/00 and 2000/01 observing seasons. In this data set, 14 variable sources consistent with microlensing have been detected, 12 of which are new and 2 have been reported previously by the POINT-AGAPE group. A preliminary analysis of the spatial and timescale distributions of the candidate events support their microlensing nature. We compare the spatial distributions of the candidate events and of long-period variable stars, assuming the chances of finding a long-period variable and a microlensing event are comparable. The spatial distribution of our candidate microlensing events is more far/near side asymmetric than expected from the detected long-period variable distribution. The current analysis is preliminary and the asymmetry not highly significant, but the spatial distribution of candidate microlenses is suggestive of the presence of a microlensing halo.

Key words. Gravitational lensing – M31: halo – Dark matter

1. Introduction

One of the astrophysical solutions to the galactic dark mat- ter problem would be the presence of a significant amount of undetected compact objects in the halos of galaxies. These MACHOs (Massive Astrophysical Compact Halo Objects) can be detected using gravitational microlensing (Paczynski 1986).

According to gravitational lensing theory the measured bright- ness of a background source will temporarily increase if a mas- sive compact object moves close enough through our line of sight towards the background source.

During the last decade, the MACHO (Alcock et al. 1993) and EROS (Aubourg et al. 1993) collaborations have been monitoring fields in the Large and Small Magellanic Clouds

E-Mail:

⋆Based on observations made with the Isaac Newton Telescope op- erated on the island of La Palma by the Isaac Newton Group in the Spanish Observatorio del Roque de los Muchachos of the Instituto de

Astrofisica De Canarias

(LMC and SMC) in order to detect such events. After 5.7 years of observing the MACHO group found 13-17 microlensing events towards the LMC, and concluded that up to 20% of the Milky Way dark halo may consist of compact objects of mass 0.15 - 0.9 M⊙(Alcock et al. 2000). The EROS collaboration has found 3 microlensing events towards the LMC and puts strong constraints on the fraction of dark matter in the form of com- pact objects (Lasserre et al. The results of both groups are, however, consistent with ∼10% of the dark halo mass con- sisting of compact objects of ∼0.5M⊙(e.g. Milsztajn 2002).

Looking for microlensing events in the nearby Andromeda galaxy (M31) has several advantages over Magellanic Clouds searches (Crotts 1992; Baillon et al. 1993). Because of the ge- ometry the microlensing optical depth can be up to ten times larger in parts of M31. In combination with the extremely high density of background stars, this results in a highly en- hanced microlensing rate. Due to the high inclination of the disk of M31, it should be possible to use microlensing to con- strain the mass contribution of compact objects to the dark halo (Baltz, Gyuk & Crotts 2003; Gyuk & Crotts 2000; Kerins et al.

2

Jelte T.A. de Jong et al.: First Microlensing Candidates From The MEGA Survey Of M31 2001). In the presence of a significant microlensing halo, the microlensing rate should be asymmetric, with more microlens- ing taking place towards the far side of the disk than to the near side, because the line-of-sight through the halo is longer towards the far side.

Besides these advantages, M31 microlensing also has some problems. Because of the large distance the stars are faint and generally unresolved from the ground. However, using spe- cial techniques, it is possible to detect microlensing in M31 (e.g. Crotts & Tomaney 1996; Paulin-Henriksson et al. 2003; Calchi Novati et al. 2003). Three collaborations are currently working on microlensing surveys in M31, namely POINT- AGAPE (Auri`ere et al. 2001), WeCAPP (Riffeser et al. 2001) and MEGA (Crotts et al. 2001).

And

Andromeda (MEGA) collaboration has performed an in- tensive four-year survey of two large fields in M31 plus extended baseline observations in order to measure the mi- crolensing optical depth due to a possible MACHO halo.

In this paper we present the first microlensing candidates resulting from the analysis of the 1999-2000 and 2000-2001 season data obtained at the Isaac Newton Telescope at La Palma. In section 2 we briefly describe the dataset and methods used. The microlensing candidates are presented in section 3. Our discussion and conclusions are presented in section 4.

Finally, future work is outlined in section 5.

2.1. Dataset

MEGA uses several telescopes to monitor two wide fields, cov- ering a total area of 0.57 square degrees. For the current analy- sis, observations done with the Wide Field Camera (WFC) on the Isaac Newton Telescope (INT) were used. The layout of the WFC chips on M31 is shown in Figure 1. We present mi- crolensing events from the 1999/2000 and 2000/2001 observ- ing seasons. The observations in the first season (99/00) were spread over 57 nights between August 1st 1999 and January 4th 2000 and were taken in the Sloan r′, g′ and i′ broad bands.

The r′ dataset is the largest with 57 epochs, whilst the g′ and i′ datasets contain 41 and 24 epochs respectively. During the second observing season (00/01) 90 epochs were obtained in both r′ and i′, between August 1st 2000 and January 23 2001.

Observations were spread equally over both fields. The expo- sure time per epoch ranges between 5 and 30 minutes and is typically 10 minutes. Because the WFC is not always mounted on the INT, the epochs tend to cluster in blocks of two to three weeks. Part of the data from the 2001/2002 season has been used as well. From this third season, 19 epochs in r′ and i′ taken between August 13th 2001 and November 18th 2001 were used to extend the baselines of the events from the first two seasons in order to exclude long period variable stars. These data were not used to detect more microlensing events.

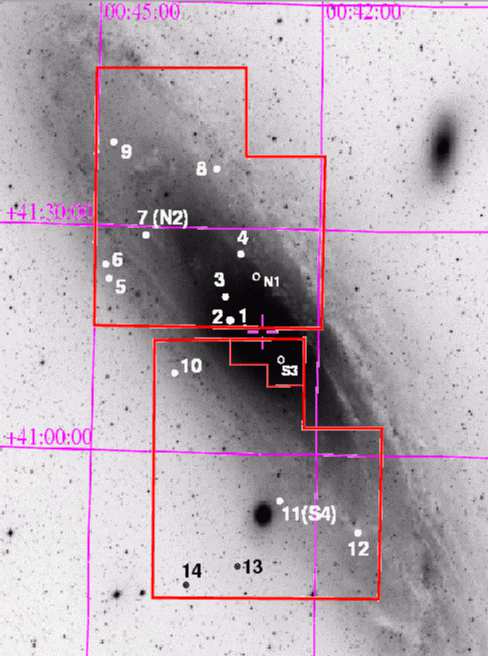

Fig. 1. The layout of the two INT Wide Field Camera (WFC) fields in M31 used for the microlensing search described in this paper. The WFC has four 2048x4100 pixel chips with a pixel scale of 0.333′′, offering a field of view of approximately 0.25□o. With this field layout we cover a large part of the far side (SE) of the disk of M31 as well as part of the near side.

Also plotted are the positions of the candidate microlensing events in our sample (full circles). Note that our events 7 and 11 correspond to the events PA-99-N2 and PA-00-S4 reported previously by POINT-AGAPE. Part of the south field close to the bulge is not used for our analysis, since the image subtrac- tion is not of high quality in this very high surface brightness area. This region is indicated in the uppermost chip of the south field. The two POINT-AGAPE events not present in our sample are indicated with the open circles.

2.2. Data Reduction

Standard data reduction, including bias subtraction, trimming and flatfielding was performed in IRAF. Because of the high stellar density in M31 and its large distance, the background source stars are usually resolved only while they are be- ing lensed and sufficiently magnified. To detect microlensing events in these fields, we use the Difference Image Photometry (DIP) method as described by Tomaney & Crotts (1996). This method involves subtracting individual images from a high quality reference image, resulting in difference images in which variable objects show up as residuals.

Below we outline the steps of the DIP pipeline that was used. All operations are done in IRAF, using the DIFIMPHOT package written primarily by Austin Tomaney, unless explic- Jelte T.A. de Jong et al.: First Microlensing Candidates From The MEGA Survey Of M31

3

itly stated otherwise.

• Astrometric Registration And Stacking Of Images

All images are transformed to a common astrometric reference frame. By stacking high quality images from the 1999 season, a high signal-to-noise reference image was made. Per night all exposures are combined separately for each band. Each epoch corresponds to the combination of all frames taken in the same band in one night. The Julian date of the epoch is taken as the weighted average of the Julian dates of the individual frames.

• Image Subtraction

From the single epoch images the high signal-to-noise ref- erence image is subtracted, after photometric calibration and matching of the point spread function (PSF) between the im- ages (Tomaney & Crotts 1996). The shape of the PSF is mea- sured from bright, unsaturated stars in the images that are being matched. By dividing the PSFs in Fourier space a convolution kernel is calculated with which the better seeing image (usually the reference image) is degraded.

• Variable Object Detection

The resulting difference images are dominated by shot noise in which variable sources show up as positive or negative residu- als, depending on the flux difference of the object between the single epoch image and the reference image. Due to fringing, the i′ difference images are of poorer quality than the r′ dif- ference images. SExtractor (Bertin & Arnouts 1996) is used to detect residuals in all r′ difference images from the first two observing seasons. The catalogs with residuals are cross- correlated to obtain a catalog with all variable objects in the surveyed fields. As a first selection to get rid of noisy detec- tions, we demand that objects have to be detected in at least two epochs.

• Lightcurves And Epoch Quality

Lightcurves for the variable sources are obtained by perform- ing PSF fitting photometry on the residuals in the difference images, using the PSF shape measured from the bright unsatu- rated stars. Several epochs turned out to give problematic dif- ference images for a number of different reasons. Epochs with seeing worse than 2.0′′ do not give clean difference images and were discarded. A small number of epochs were overexposed and had to be discarded as well.

Lightcurves were also produced at “empty” positions, i.e. posi- tions were no variability was detected. Flat line fits were done to these empty lightcurves to check the error bars on the fluxes derived from statistics of the PSF fitting photometry. For each epoch, the distribution of the deviations from the flat lightcurve fits weighted by the error bar returned by the photometry rou- tine was examined. In some cases this distribution showed broad non-gaussian wings, and these epochs were discarded.

Typically they were associated with highly variable seeing be- tween the individual exposures. In other cases, the normalized error distribution was gaussian, but with dispersion higher than one. In these cases the error bars were renormalized appropri- ately.

The typical number of epochs that were left after the pro- cedure described above are tabulated in table 1 for each filter and field for the 99/00 and 00/01 seasons. From these epochs the lightcurves were constructed that were used for the analysis presented in this paper.

71

Table 1. Overview of the number of epochs used for seasons 1 and 2, field and filter. F1 is the north field and F2 is the south field.

2.3. Event Selection

The final dataset consists of lightcurves of 118,424 variable sources, practically all of which are periodic variable stars. Finding candidate microlensing events in such a large num- ber of lightcurves is no trivial problem. A procedure to se- lect lightcurves that are compatible with microlensing must be aimed at recognizing the characteristics of a microlensing lightcurve while taking into account computing speed, and the quality of the available data. Since the quality of the i′ band data was clearly poorer than the quality of the other bands, and since g′ data were only available for the first season, we de- cided to use the r′ data as the main basis for candidate selec- tion. Another advantage of the r′ data is that they have much better sampling density in the first season than do i′ and g′ data separately. Thus, the first steps of the filtering process involved only r′ data, after which the i′ data are used to further analyse the r′ microlensing candidates.

A microlensing event caused by a single lens has a char- acteristic shape and a flat baseline. The selection steps based purely on the r′ lightcurves are aimed at selecting lightcurves with flat baselines and well sampled, significant peaks which fit the characteristic microlensing shape well. A detailed descrip- tion of these steps is given in Appendix A1. To make sure these selection steps do a good job selecting microlensing events and rejecting long-period variable stars, Monte Carlo simula- tions of microlensing events and long-period variables were performed and used to fine tune the selection procedure. Based on just the r′ data we select 1,347 lightcurves.

Colour information can be used for the microlensing can- didate selection for several reasons. Contrary to variable stars, microlensing events are intrinsically achromatic, meaning that the colour of the observed difference flux remains the same during the event. Furthermore, long-period variable stars that might be mistaken for microlensing are very red. Because of this, the brightness variations are also more pronounced in i′ than in r′. Further selection steps, described in more de- tail in Appendix A2, include a colour cut designed to reject long-period variables and a goodness of fit criterion for the i′ lightcurve. For the latter, the i′ lightcurves are fit with a stan- dard microlensing lightcurve with the shape parameters found for the r′ lightcurves, as a test for achromaticity.

This complete automated selection procedure results in 126 candidate microlensing events from the 99/00 and 00/01 ob- serving seasons. Unfortunately, rather lenient χ2 cuts had to be used for the goodness of fit criteria. This is due to the photome- try being too sensitive to nearby variable sources, as described

4

Jelte T.A. de Jong et al.: First Microlensing Candidates From The MEGA Survey Of M31 Fig. 2. Lightcurves of the 14 microlensing candidate events. This page shows candidates 1 through 5, with the r′ lightcurves plotted in the upper panel and the i′ lightcurves in the lower panel. The Julian Date of the zeropoint of the time axis is 2451393, which corresponds to August 1st 1999.

Jelte T.A. de Jong et al.: First Microlensing Candidates From The MEGA Survey Of M31

5

Fig. 3. Data points from the baseline of event 10, but now the ∆Flux is plotted as function of the seeing. During the period from which these points are taken, a variable source located about 7 pixels away from the event caused a strong residual in the difference images. There clearly is a trend with worse seeing corresponding to lower fluxes.

in more detail in Appendix A. Because of this, the sample still contains lightcurves with slightly variable baselines. The lightcurves and the difference image residuals of these candi- date events had to be inspected visually to establish whether any additional variability was intrinsic to the variable source or was caused by nearby sources. An effort to improve the photometry in the presence of neighbours is underway. The lightcurves with baseline variability that could not be attributed to nearby variable sources, in total 67, were thrown out. In a further 39 cases, the detected candidate event was actually caused by bad pixels and these were discarded as well, so af- ter visual inspection, 21 events remain that are consistent with microlensing based on the 2 year lightcurves. Finally, part of the data from the third (01/02) season were used to extend the baselines of these 21 events, 7 of which showed variability in the third season. The final set of candidate microlensing events consists therefore of the 14 events described in the following section.

3. Results

The lightcurves of the 14 candidate microlensing events are shown in figure 2; their positions are plotted in figure 1. August 1st 1999 was taken as the zero point of the time scale in the lightcurve plots. The important fit parameters are tabulated in table 2. For illustration we show in figure 4 thumbnails of the difference images and single epoch images for events 5, 7 and 11. All difference image thumbnails for all events are available on-line at http://www.astro.rug.nl/∼jdejong/eventtn.

Inspection of the lightcurves in figure 2 indicates that the baselines are not always completely flat, this is especially the case for the i′ lightcurves. When looking at the difference im- ages, it becomes clear that for these events, secondary bumps in the lightcurve are caused by variable objects very close to the position of the event, rather than by variability in the events themselves. For example, the bump around day 100 in the lightcurve of candidate event number 2, is caused by a bright- ening source located only 4 pixels away from the event. In the i′ data, this problem occurs more frequently because of the higher density of detected variable sources and the effect is stronger because of the stronger variability at longer wavelengths.

Not only can nearby variable sources result in trends in the lightcurves, they can also increase the scatter in the flux. The size of the aperture and the ring that is used for sky subtraction depends on the seeing, meaning that a nearby variable does not always influence the photometry and also not necessarily in the same way. As an example of this, we show in figure 3 the flux as a function of the seeing for the part of the baseline of event 10.

Clearly, differences in seeing between the epochs will create extra scatter in the baseline. Below we discuss the possible reasons for additional vari- ability in each of the event lightcurves.

Event 1: This event has a bright periodic variable star at a dis- tance of 5 pixels, which is probably the cause of the noisy base- line in both r′ and i′.

Event 2: This event also has close variable neighbours. In the r′ difference images a variable source is located at only 3 pix- els from the event. This source peaks around day 100, causing a bump in the r′ lightcurve. In the i′ difference images there are two additional bright variables, both of them at about 10 pixels distance. These sources cause the noisy nature of the i′ baseline.

Event 3: Although the r′ baseline is very clean, the i′ baseline shows quite some variability, especially in the second season. Again this is caused by a very close variable source, at 3 pixels distance. This source has a bright episode between days 440 and 470, which causes the high fluxes in this period in the i′ lightcurve.

Event 4: The baselines of this event look quite flat, but the peak in the i′ data is not very symmetric. The sudden drop in flux after day 420 coincides with the sharp brightening of a bright variable source at 14 pixels distance.

Event 5: This event has several variable sources nearby. Unfortunately the closest one, at about 4 pixels, is also the brightest, which especially in the i′ lightcurve causes a lot of noise. See figure 4 for thumbnails of this event.

Event 6: In the second season the baseline shows a periodic variability, which is caused by a periodic variable star at 6 pix- els from the event. A second close variable, at 5 pixels, shows up only in the first season in r′, but pops up also in the second season in i′ and is very bright in the first season. Together, these variables cause the i′ baseline to be be rather messy.

Event 7: The baselines of this very high S/N event are quite well behaved in both r′ and i′, but there is a quite bright variable source located at 15 pixels, which may cause some deviations.

However, the deviations in the i′ data from the Paczynski fit between days 100 and 150 are too large to be caused by these near neighbours. Also from this event, some thumbnails are shown in figure 4.

0.3 ± 0.4

Table 2. Fit parameters for the 14 candidate microlensing events. The tmax and tFWHM values are based on full parameter fits to the r′ lightcurves. Also listed are the magnitude of the difference flux at maximum amplification and the r′-i′ colours where possible. For the short events, i.e. tFWHM in the order of a few days, the uncertainties are large, because the time sampling of the data is relatively sparse compared to the width of the peak. Peak times are in days after August 1st 1999.

Event 8: Even though there is a variable source located at 7 pixels distance from this event, the baselines are quite well be- haved.

Event 9: Two faint variables are located at about 4 and 8 pixels distance from this event, and a bright one at 12 pixels. The lightcurves do not appear to be affected substantially.

Event 10: Here the noisy baseline in i′ and the two deviating points in the r′ lightcurve around day 100 can be attributed to the same variable source 7 pixels away.

Event 11: While the r′ baseline of this high amplification event is well behaved, the i′ baseline is not completely flat. In the difference images there is a hint of a weak variable source a few pixels away, which is probably the cause of the small baseline wiggle. See figure 4 for thumbnails of this event.

Event 12: The r′ lightcurve of this event is quite well behaved and there are no nearby variable sources. The reason for the noise in the i′ lightcurve is not clear.

Event 13: A fairly bright variable source is situated 16 pixels away from this event, but the lightcurves in both r′ and i′ are well behaved.

Event 14: The noise in the lightcurves and more particularly the small bump in the i′ lightcurve around day 370 is due to a variable source 3 pixels away from the event.

3.1. Point-Agape Events

The POINT-AGAPE group uses the same data for their mi- crolensing survey towards M31, although their pixel lensing technique is different (Paulin-Henriksson et al. 2003). Based on the same two-year dataset, they find four high signal-to-noise microlensing events. Two of these events are also present in our sample, namely PA-99-N2, our event number 7, and PA-00-S4, our event number 11.

The fact that our sample of candidate microlensing events is much larger is caused by the severe selection criteria used Fig. 5. The lightcurves in r′ (upper panel) and i′ (lower panel) of the microlensing event PA-99-N1, reported by POINT- AGAPE. In the i′ data the variability in the baseline, caused by nearby variables, is high enough to give a χ2 which is too high to pass our selection procedure.

by POINT-AGAPE, that limit the number of events found. For example, POINT-AGAPE demands FWHM timescales smaller than 25 days and much higher signal-to-noise than we. The fol- lowing two events reported by the POINT-AGAPE team are not in our sample of candidate microlensing events.

• Pa-99-N1

This event did not pass our filtering procedure because of too large variability in the i′ baseline caused by a very closeby vari- able star. Our lightcurves of this event are shown in figure 5.

• Pa-00-S3

Very close to the bulge of M31 the surface brightness becomes very high and our difference images become very noisy and of low quality. This event is located in a part of the field that is not used for the current analysis for this reason. In figure 1 the region that is not used in our analysis is indicated.

4. Discussion

Due to the nature of M31 microlensing, it is very difficult to de- termine the nature of the lensing object in individual microlens- ing events. In classical microlensing the mass of the lens, the relative motion of the lens with respect to the source and the distance to the lens are usually unknown and degenerate pa- rameters. In difference-image lensing there is an additional un- known, namely the unlensed flux of the source. If a conclusion about the existence and/or nature of a MACHO population in the halo of M31 is to be drawn from a microlensing survey, statistical methods have to be used.

By modeling the population of stars that can be lensed and the population of objects that can act as lenses, predictions can be made about the rate of occurrence, the spatial distributions, and the timescales of microlensing events. All these data can be used to constrain the lens populations responsible for ob- served microlensing events (Baltz, Gyuk & Crotts 2003, here- after BGC; Kerins et al. 2001).

To compare our sample of candidate microlensing events with rate maps as published by BGC, the detection efficien- cies and observing characteristics have to be carefully modeled, which will be done in a future paper. Instead of a full statistical analysis of the current sample, we restrict our discussion to a simple analysis of the spatial and timescale distributions of the candidate events to see if they are consistent with predictions for halo lensing and lensing by stars in M31.

4.1. Timescale Distribution

The timescale of a microlensing event depends on the relative velocities of the source and the lens and the size of the Einstein radius, which in turn depends on the mass of the lens and the geometry (eq. A.2). In the case of M31 microlensing we can assume that DOL = DOS and since the Einstein ring crossing

(1)

where vperp is the relative speed between lens and source pro- jected on the sky. The tFWHM that we measure is related to tE according to equation A.5.

For self-lensing, i.e. lensing by stars, this translates into a timescale distribution that varies spatially. In the bulge, veloc- ities are relatively high and distances between lens and source relatively short (compared to lensing by halo objects), therefore event durations will be relatively short. In the disk, relative ve- locities are much slower and event durations longer than in the bulge. On top of that, the timescales are expected to rise when going to larger radii, since the random velocities of the stars in a galactic disk are proportional to the root of the surface den- Fig. 6. For the 14 candidate microlensing events, the logarithms of the FWHM timescales are plotted against the local r′ surface brightnesses. At high surface brightnesses the timescales tend to be shorter than in low surface brightness regions.

sity (Bottema 1993). Roughly speaking we can say that aver- age self-lensing timescales are inversely correlated with surface brightness; in higher surface brightness regions the timescales are expected to be shorter.

For halo lensing, relative velocities are higher than for disk- disk lensing, but because of the larger lens-source distance the event durations are still relatively long. Because the relative ve- locities and distances do not change much within the observed field, the timescale distribution of halo-lensing events should be spatially uniform. Plots of the expected timescale distribu- tions for different lines of sight towards M31 are given by BGC for stellar self-lensing and halo lensing combined and reflect these trends.

In figure 6 we plot for our 14 microlensing candidates the logarithm of tFWHM versus the r′ surface brightness at their locations. The candidate events close to the center of M31, in locations with surface brightness brighter than 19.5 magr′ arcsec−2, all have event durations in the order of a few days. Most of the candidates in the low surface brightness re- gions have significantly longer timescales. That this distribu- tion is exactly what is expected for microlensing and the fact that the timescales are consistent with the timescales predicted by BGC are further indications that our sample of candidates consists of actual microlensing events.

4.2. Spatial Distribution

The expected spatial distribution of stellar self-lensing events is strongly concentrated to the center because both the density of possible source stars and lenses is highest there. Furthermore, the spatial distribution is nearly symmetric from the far to the near side of the disk of M31 (BGC), so in the case of only

8

Jelte T.A. de Jong et al.: First Microlensing Candidates From The MEGA Survey Of M31 self-lensing the number density of events should be the same at the same radius on both the far and near side. The stellar halo of M31 has not been taken into account by BGC, but is not expected to change the symmetry significantly, since, like the bulge, it acts both as a lens and as a source population. If the spheroid has the same M/L as the disk, for every event caused by a spheroid-lens and disk-source pair, there is a disk-lens and spheroid-source pair event, as is the case with disk-bulge and bulge-disk lensing (BGC). In case of heavy extinction in the disk, the spheriod could induce an asymmetry in the lensing rate.

Dark halo lensing on the other hand will induce an asym- metric microlensing distribution, because it only acts as a lens population. Due to the longer line-of-sight through the M31 halo towards the far side of the disk, the microlensing opti- cal depth is much higher on the far side than on the near side.

Therefore, an asymmetry in the density of microlensing events between the far and near side is a strong indication of a mi- crolensing halo. Halo lensing is also more likely near the center because of the higher surface density of possible source stars, but drops offmuch more slowly, since the surface density of halo lenses should not drop offvery quickly.

Without knowing the detection efficiency of microlensing events, the number of detected candidate events is hard to in- terpret quantitavely. Since the detection efficiency might vary with position, their spatial distribution is also hard to interpret.

However, if we assume that the spatial distribution of variable stars is symmetric over M31, we can get an idea of the variation of the detection efficiency with position by looking at the spa- tial distribution of the detected variable stars. The variable stars that are most likely to be mistaken for microlensing are vari- ables with periods longer than 150 days. In table 3 we present the detected numbers of variables with periods between 150 and 600 days, for 300x324′′ subregions in our field of view.

For each subregion the actual area, corrected for area lost due to bright stars and diffraction spikes, is also tabulated. In figure 7 we show the corresponding variable star density map, with the positions of the 14 candidate events plotted on top.

To select the long-period variables (LPVs) from the com- plete set of lightcurves, all lightcurves were checked for peri- odic behaviour using the Numerical Recipes (Press et al. 1992) algorithm based on the Lomb method (1976) for spectral anal- ysis of unevenly sampled data. The lightcurves for which a pe- riodicity between 150 and 600 days was found with very high significance were selected. In total 32,841 variables were se- lected, excluding the part of the south field close to the bulge and one other small part at the edge of the south field, where a very bright foreground star is located.

In the spatial distribution of the LPVs we see no surprises. The surface density of these objects is correlated with the sur- face brightness. Since we are interested in a possible asymme- try in the distribution of the candidate microlensing events, we compare the relative distributions of variables and events over the near and the far side of M31. We assume that the LPVs are a good tracer of the population of possible microlensing source stars and that the chances of detecting LPVs and microlens- ing events are the same. The detection efficiencies of both will Fig. 8. Upper panel: histogram of the surface densities of long- period variable stars (LPVs) in small 150x162′′ regions on the far side of the M31 disk. The thin, black bars show in which LPV surface density bins the far side microlensing candidate events are located. Lower panel: histogram of the surface den- sities of LPVs in small 150x162′′ regions on the near side. The thin, shaded bars show the numbers of candidate microlensing events predicted by scaling the numbers of far side events with the ratio of regions on the near and far side in each LPV density bin. In total 6 events are expected on the near side, but only 2 are detected, shown by the thin, black bars.

depend on the surface brightness of the disk and be subject to extinction effects. To investigate the different parts of the far and near side of the M31 disk that we sample, we divide each subregion in table 3 in 4 smaller 150x162′′ pieces. In the upper panel of fig- ure 8 we plot the distribution of the LPV surface densities of these small subregions. The smaller, black histogram shows the distribution of the far side candidate events over the LPV den- sity bins. If the microlensing rates are intrinsically near/far side symmetric, as we assume the LPVs to be, the expected number of candidate events on the near side can be determined for each LPV density bin, by scaling the number of far side events. We can only do this for the low surface density bins, since the high surface density bins are not populated sufficiently. However, since close to the center of M31 the microlensing optical depth is dominated by stellar self-lensing they should not affect the symmetry of the spatial distribution. The lower panel of figure 8 shows the distribution of the subregions on the near side over the LPV density bins. The shaded histogram shows the distri- bution of the far side candidate events scaled to the near side LPV density distribution, and the black histogram the actual near side candidate events.

Whereas 6 near side candidate events are predicted from the distribution of the 9 far side events in areas with fewer than 10 LPVs per square arcsec, only 2 are detected. Thus,
