This project builds a safety device that alerts riders when their motorcycle turn signal has been left on too long. Using a clamp-on Hall effect current sensor, the Arduino detects when the indicator circuit is active and monitors how long it stays on. If the signal runs past a user-adjustable timeout (10 to 120 seconds), a buzzer sounds an intermittent alarm to remind the rider to cancel it.

The guide provides a complete wiring diagram, parts list, and step-by-step assembly instructions for mounting everything in a weatherproof enclosure. The firmware uses current sensing and timing logic to distinguish between normal indicator flashing and a forgotten signal. No cutting or splicing of motorcycle wiring is needed—the sensor simply clamps around the indicator wire.

The motorcycle’s existing battery, chassis return, and switched turn-indicator output that supply this reminder.

A replaceable fuse holder that protects the reminder’s power wire from a short circuit.

A sealed vehicle-rated converter that turns motorcycle battery voltage into safe 5 V power for the Arduino.

A 3-terminal passive resistive voltage divider with a total resistance of 10kΩ. One end connects to 5V, the other to GND, and the wiper outputs a variable voltage between 0V and 5V.

A clip-on sensor that detects current flowing through one insulated indicator wire without electrically connecting to or cutting that wire.

Put the Arduino Nano, 5 V converter, clamp sensor, knob, and buzzer in a small waterproof or splash-resistant box. Leave the knob shaft and buzzer opening accessible, and position the clamp sensor so its clip can reach the selected indicator wire without stressing that wire.

Fit the 1 A fuse into the inline holder. Connect the motorcycle battery positive to the fuse holder battery side, then connect its protected side to VIN+ on the converter. Connect converter VIN− to battery negative or a clean chassis ground. Connect converter VOUT+ to the Nano 5V pin and VOUT− to Nano GND.

Find one insulated wire that feeds only the chosen turn indicator lamp, then open the clamp sensor and close it around that one wire. Do not strip its insulation and do not put both the positive and return wires through the same clamp. Connect sensor VDD to Nano 5V (power), sensor GND to Nano GND (ground), and sensor VOUT to Nano A1 (signal).

Connect one outer knob terminal to Nano 5V (power), the other outer knob terminal to Nano GND (ground), and the middle knob terminal to Nano A0 (signal). Turning the knob sets the reminder delay from about 10 seconds at one end to 2 minutes at the other.

Connect the buzzer SIGNAL pin to Nano D9 (signal) and its GND pin to Nano GND (ground). Secure every connection, close the box, and test while the motorcycle is stationary: leave the indicator on past the knob-selected delay, then turn it off and confirm the beeping stops.

Open a full copy of this project in your own Schematik workspace, diagram, code, parts, and assembly steps included. Swap the sensor, add features, or redesign the whole thing with AI. The author's original stays untouched.

SafeCycle is a microcontroller-based smart two-wheeler safety system designed to enhance rider safety and vehicle security. It is suitable for motorbikes and bicycles or any other two-wheeler.

The system integrates anti-theft detection, crash monitoring, rear-collision warning, GPS location tracking, automatic lighting, vibration alerts, and Bluetooth connectivity into a compact embedded solution.

The system is controlled by an Arduino Uno R3 , which continuously reads data from connected sensors. The controller processes motion, distance, light, and positional data to detect:

The rider interacts with the device through Bluetooth commands from a smartphone . Alerts are provided using buzzer, LEDs, vibration motor, LCD display, and GPS links .

A dedicated Android app was developed using MIT App Inventor . When connected with the HC-05 Bluetooth module , users can control the entire system.

This project is also compatible with the Serial Bluetooth Terminal app from Google Play Store.

Google Play link: https://play.google.com/store/apps/details?id=de.kai_morich.serial_bluetooth_terminal&pcampaignid=web_share

Smart two-wheeler safety and anti-theft system using Arduino Uno, Bluetooth, GPS, ultrasonic sensor, and MPU-6050. Features include theft detection, crash detection with SOS, rear-collision warning, automatic headlights, smart brake light, vibration alerts, LCD status display, and mobile app control.

A simple construction procedure of a motorcycle electronic 2 pin turn signal indicator with beeper circuit has been thoroughly I have explained in this article.

Normally, the electro-mechanical types of turn signal indicators are not reliable due to low consistency and vulnerability to changing weather conditions.

The present design easily withstands the above parameters and more importantly consists of an attached buzzer indication facility.

The inclusion of an audible signal makes it sure that once the required deviating turn is completed by the vehicle; the driver remembers to switch off the unit and save precious battery power

Conventionally a turn signal indicator will require three output terminals for its correct operation.

Uniquely the proposed circuit works with just a couple of terminals, and moreover incorporates a built-in buzzer.

Also popularly known as “flasher with buzzer,” turn signal actuators are indispensable piece of devices for every vehicle.

The device is particularly used for switching or flashing the side indicator lights (left or right) of a vehicle while making a turn or a deviation from its normal path.

Basically the flashing of the lamps acts like a warning signa l and makes it easier for the other vehicles to identify the track of the indicating vehicle.

This averts a possible collision and misunderstanding between vehicles. The device thus specifically helps in avoiding accidents and mishaps.

Nowadays many folks prefer the above devices accompanied with an audio indication like a buzzer or a beeper which may produce a rhythmic note with the light switching.

This facility proves to be useful in two ways, first: it assures the driver regarding the perfect working of the entire system and second: when the necessary deviating move or a turn is completed, the audio note keeps reminding the driver that the unit is still ON and needs to be switched off, thus saving precious battery power and false indications.

The present circuit of a motorcycle electronic turn signal flasher with beeper has been exclusively designed by me and tested thoroughly, in fact I have already sold more than 90,000 pieces of them in the market and the demand keeps growing.

· Since it is electronic and solid-state becomes very long lasting and weather proof.

From the circuit shown alongside we see that the whole circuit is built around just three inexpensive active components T1/T2 and T3.

A few other passive components in the form of resistors and capacitors are used to initiate the flashing action and sustain it as long as power remains switched ON to the circuit.

The moment it reaches its full charge, T3 is able to conduct and provides some sort of an initial biasing voltage to T1/T2.

T1/T2 partially conduct and in the process turns ON T3 much harder through R2, because now T3 receives full biasing through R2, T1 and the lamps switch ON.

But around this time C1 almost instantly discharges through R1, T1/T2 and the lamps, blocking the emitter of T3.

T3 immediately stops conducting, so does T1/T2 and the lamp shuts-off influencing a fresh cycle to begin. The lamps thus start flashing.

D1 and C2 are placed to filter out any AC component or spike that may be present in the auto electrical while it’s in motion.

The circuit of this motorcycle electronic turn signal beeper also incorporates a small yet powerful buzzer circuit connected in parallel to the supply line.

During the flashing process, at the instants when the lamp is turned ON the buzzer stops sounding and vice versa.

This happens because the lamps suck out almost all the power from the circuit and the buzzer is not able to receive the required voltage and is able to beep only when the lamp shuts off in between.

A single gate of the Schmitt Nand IC 4093 works like a 1Hz free-running-multivibrator and the remaining three gates in parallel function like a buffer stage to turn the BUZ1 1 power mosfet ON/OFF .

At power switch on, the status of the gates are such that the mosfet remains switched off and C1 starts charging through D1, R2 and the automotive lamp.

Throughout this period, C2 gets charged via R1, finally turning ON the multivibrator , and switching the mosfet and the series lamp ON.

The Power to the 2 pin flasher circuit is delivered throughout this time period is through the charged C1.

Capacitor C2 now begins discharging by means of R1; the opposite course of action starts transpiring, the mosfet is now turned off, making it possible for C1 to begin charging up again so that the cycle keeps repeating.

I am an electronics engineer and doing practical hands-on work from more than 15 years now. Building real circuits, testing them and also making PCB layouts by myself. I really love doing all these things like inventing something new, designing electronics and also helping other people like hobby guys who want to make their own cool circuits at home.

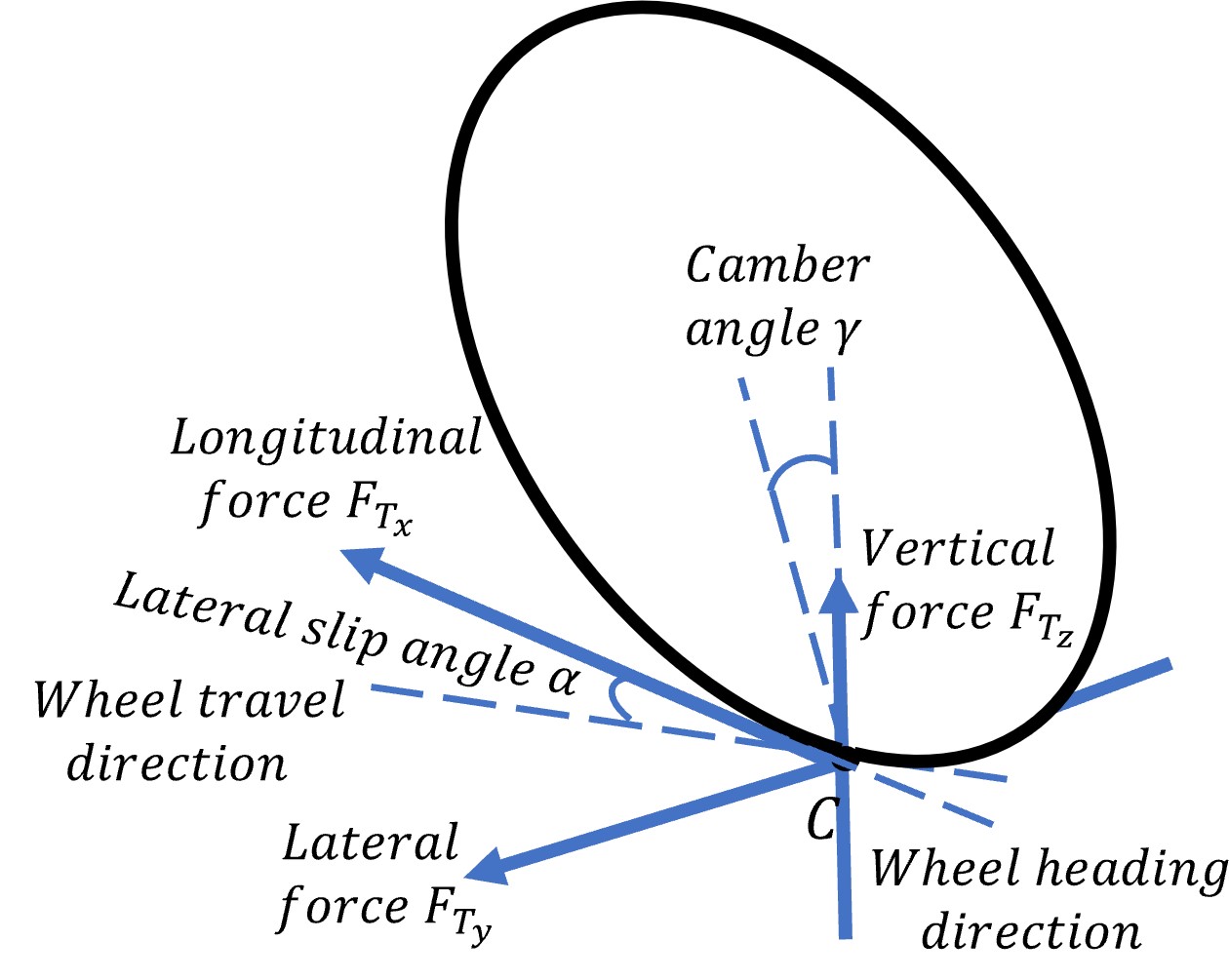

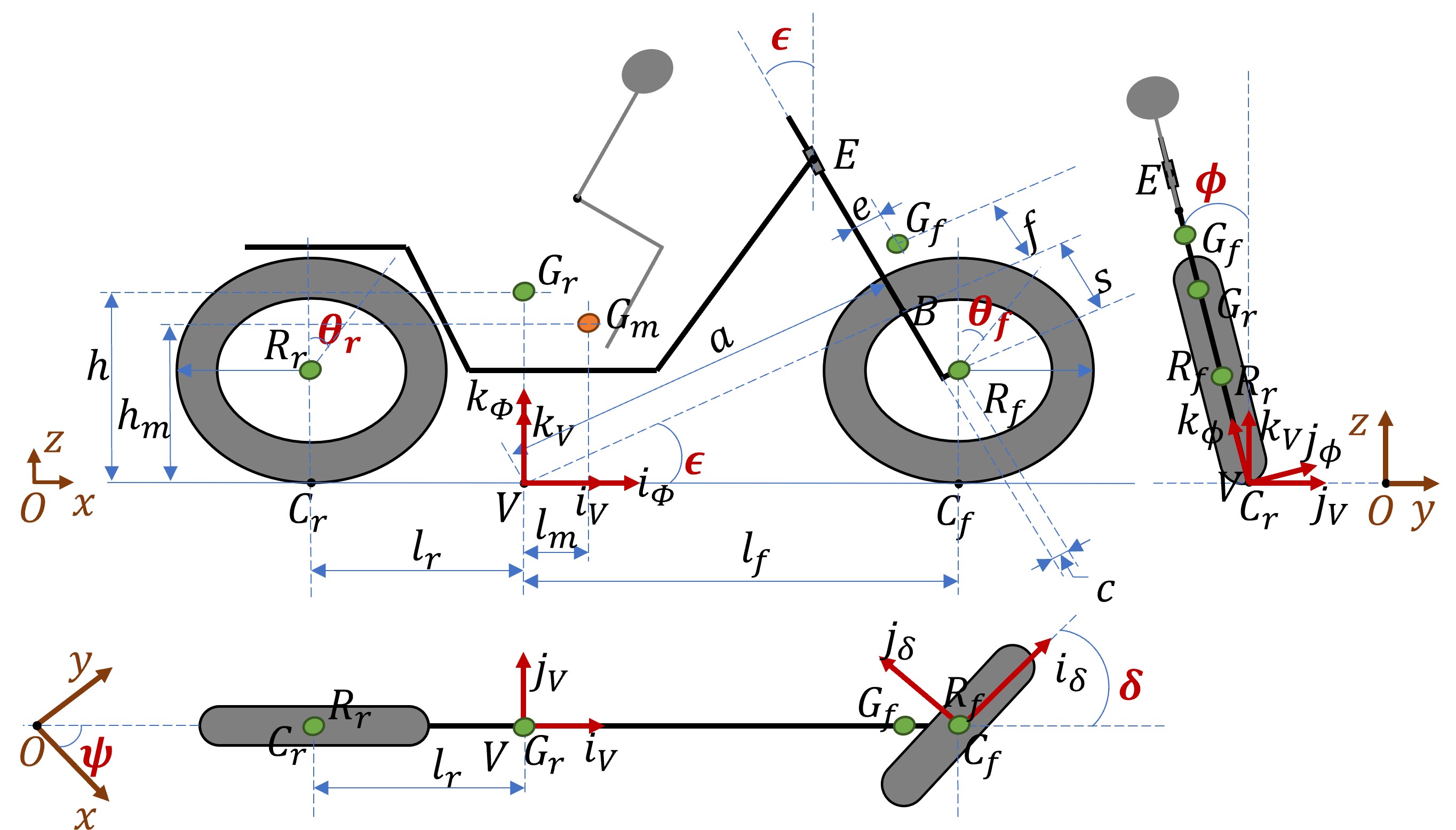

1. Executive Abstract and Engineering Problem Formulation for Arduino Motorcycle Safety

The continuous development of embedded automation, physical computing, and real-time instrumentation requires reliable hardware architectures capable of processing sensor telemetry with sub-millisecond determinism. The development of Arduino Motorcycle Safety addresses manual operational bottlenecks by pairing analog/digital sensory acquisition with low-overhead firmware execution on the ATmega328P Microcontroller (Arduino Uno / Nano). Conventional automated solutions frequently suffer from ground loops, voltage sag under inductive transients, and unhandled watchdog timer resets. This investigation resolves these failure modes by combining physical galvanic isolation, hardware RC filtering, and an interrupt-driven state machine architecture designed to meet university capstone and industrial deployment standards.

2. Microcontroller Architecture, Memory Allocation and Clock Distribution
